NP242

The NP242 is a transfer case family listed under Transfer Cases. Every unit here is remanufactured. Coverage is Jeep, with two Dodge listings. The identifying detail is in the input shaft, the rear output and the shift indicator switch.

What fits what

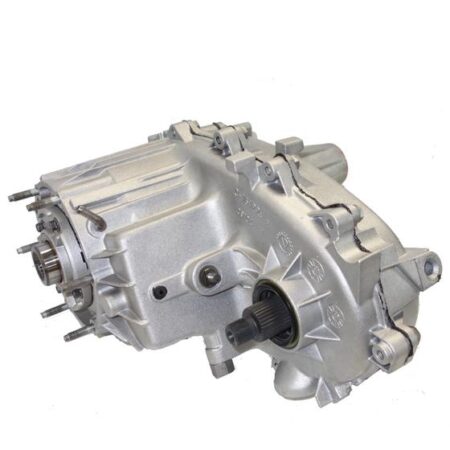

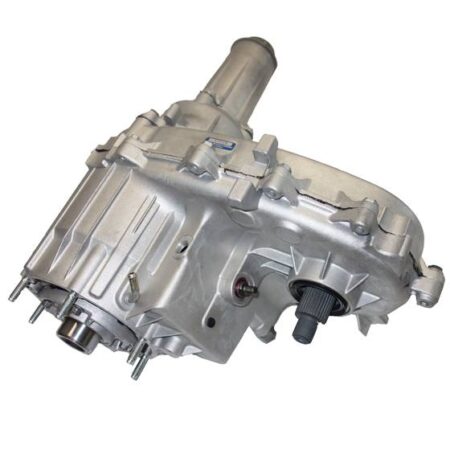

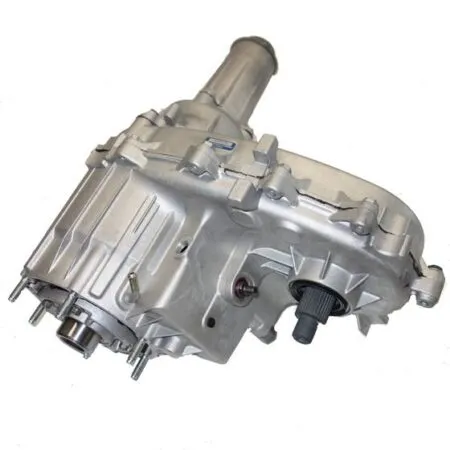

Jeep coverage is 1987-90 Cherokee, 1991-1995 Cherokee, 1993 Cherokee, 1996 Cherokee, 1997-2001 Cherokee and Grand Cherokee, 1993-1995 Grand Cherokee, 1999-2001 Grand Cherokee, 2000-2001 Grand Cherokee 4.7L, 2002-2003 Grand Cherokee, 2002-2004 Grand Cherokee, 2002-2007 Liberty and 2005-2007 Liberty. Dodge coverage is 1998-1999 Dakota and Durango and 2000 Dakota and Durango.

How to identify yours

Input spline count is either 21 or 23 in this group, and the exposed input length separates the 23 spline units: 0.75 inch, 0.84 inch or 2.5 inch. Rear output is a 27 or 32 spline slip yoke, or a 27 or 32 exposed spline shaft with a rubber boot. The front output yoke is either bolt on or cup style. After that, check the tail housing, which is listed as one piece or two piece, and the speedo hole, which is either 1.75 inch or absent.

The shift indicator switch is the other split. Listings here name a 2 pin, 2 prong, 4 pin, 4 prong, 2 position or 5 position switch, and two of them give a hex size on the switch of 0.875 inch or 1.5 inch. One unit uses a vacuum indicator switch in the speedo housing. Several listings also name the system, either Select-Trac, Command Trac with option code DHE, or Select Trac with option code DHP.

Confirm against the numbers. Tag numbers listed include 52007856, 52097528, 52098383, 52098875, 52099361, 52105332, 52111004AB, 52111022AC, 52853311AB and 53009359. Hollander numbers listed include 412-211, 412-283, 412-284, 412-310, 412-317, 412-330, 412-332, 412-400, 412-431, 412-442, 412-465, 412-490, 412-491, 412-552, 412-553 and 412-587. Vendor SKUs mostly run in the RTC242 series; the 2005-2007 Liberty unit is entered as RTC241J-9.

Core charge and warranty

Remanufactured units carry a 6-month limited warranty as standard. A 7-year / 1,000,000-mile extended warranty and a core fee waiver are available on request for qualifying remanufactured units, must be arranged at the time of purchase, and are not automatic. These are exchange units and a refundable core charge may apply, so call 216-250-6666 before you order. See the remanufacturing process and the warranty page.
