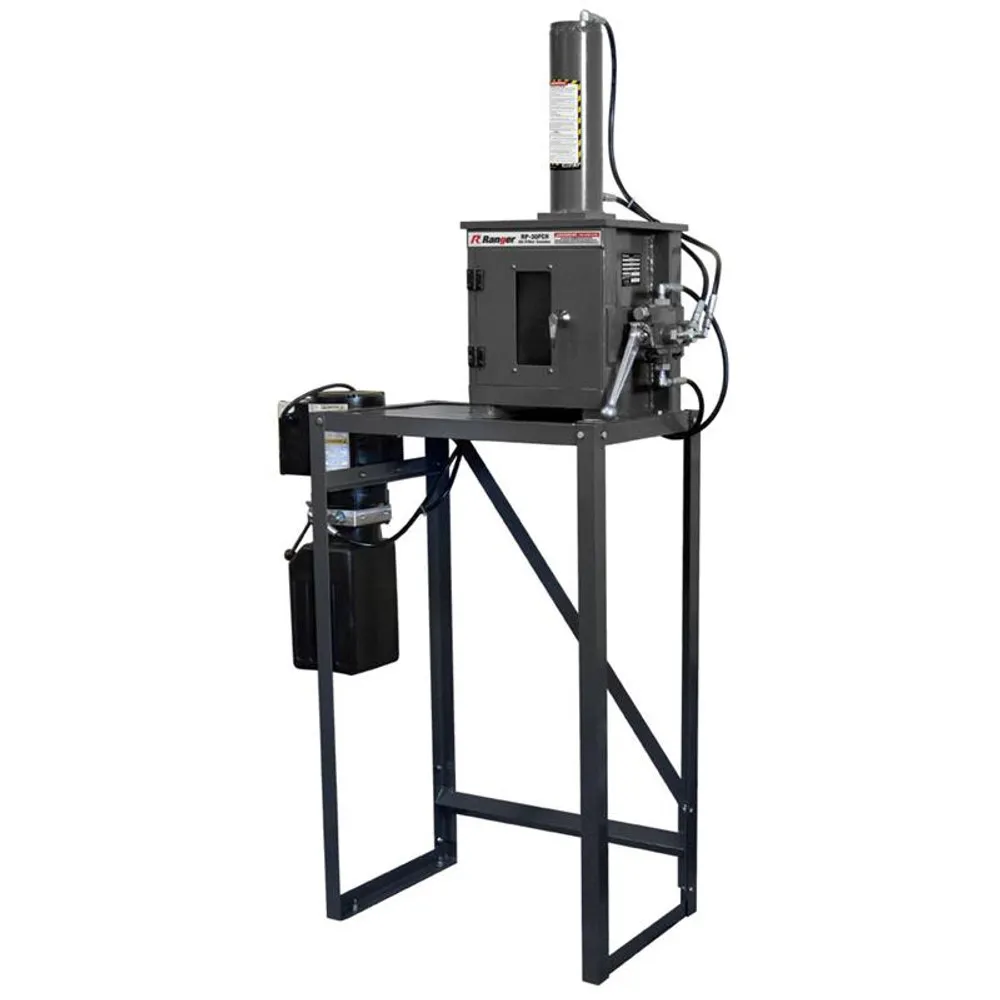

Ranger RP-30FCH Electro Hydraulic Oil Filter Crusher
$2,995.00
The Ranger RP-30FCH is a shop equipment unit. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you. Listed as: Electro Hydraulic Oil Filter Crusher.
Description
Ranger RP-30FCH Electro Hydraulic Oil Filter Crusher With Stand / 15-Ton Capacity / 208-240V, 1-Phase, 50/60hz
Features and Specs
Maximum crushing pressure of 30,000 pounds

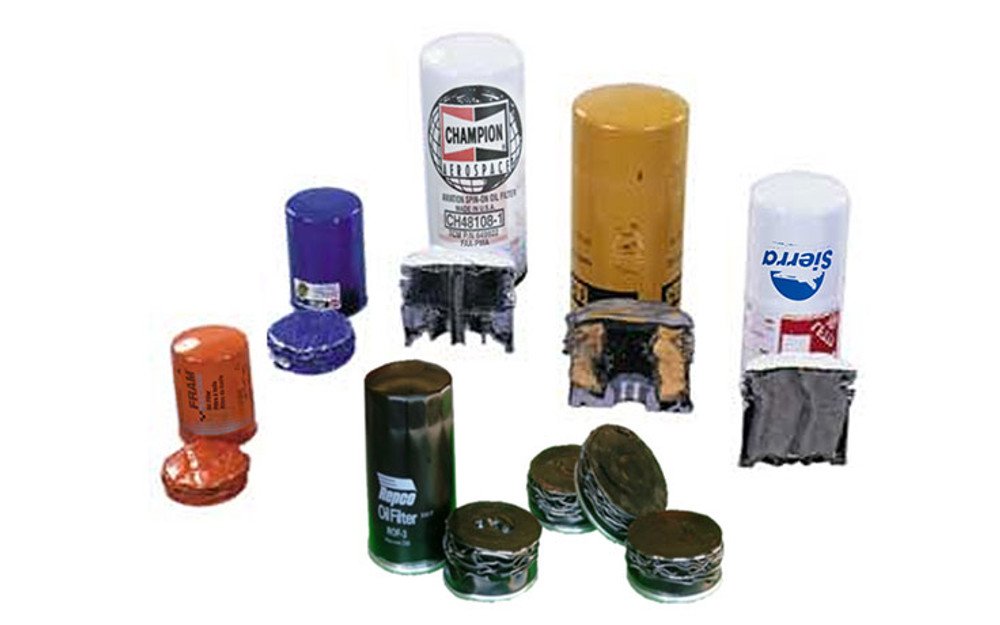

Filters are reduced to 20% of their original size with 95% of residual oil removed
Fulfills EPA and other mandated environmental standards
Save on waste disposal costs and storage space
Cycle time approximately 8 to 15 seconds depending on filter size
No-mess design operates clean and efficiently to lessen spill hazards
Ergonomic controls feature manual cycles
Welded steel plate construction
Electric-hydraulic power unit features 2-HP motor
Spring-loaded shutoff switch stops operation when door is opened

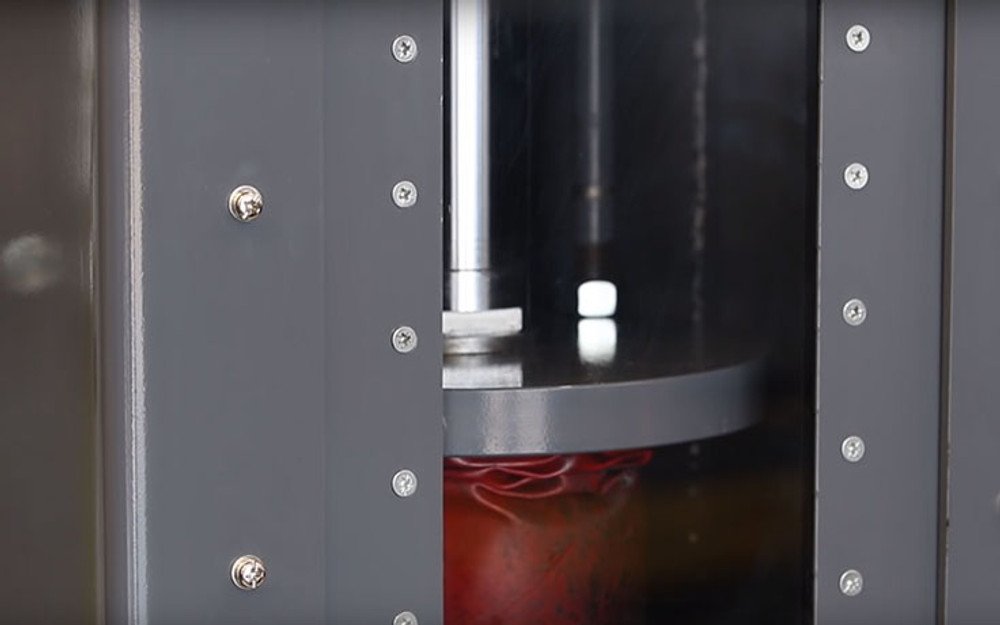

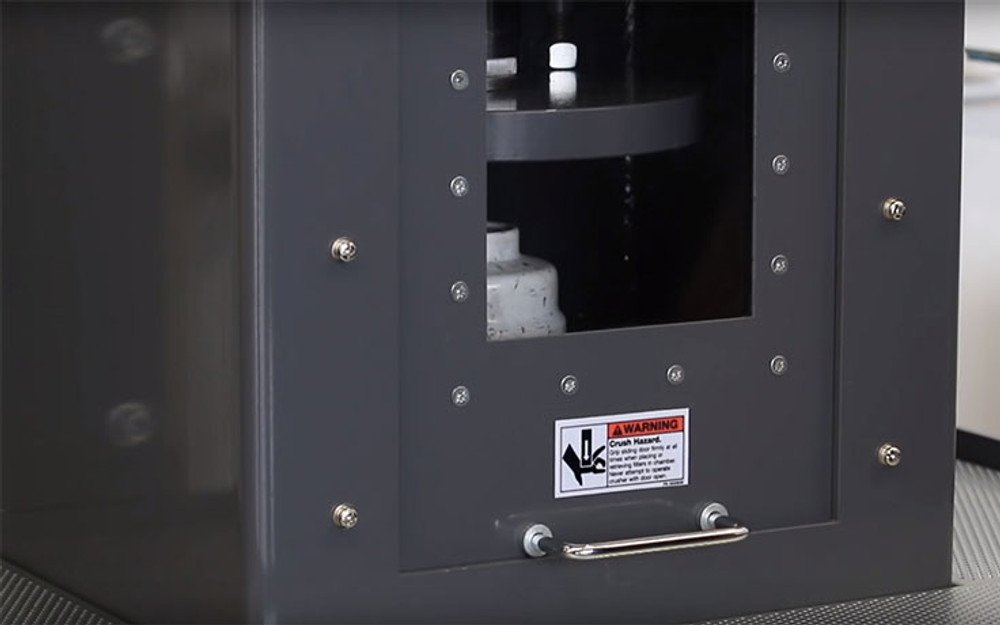

Transparent door for a convenient view of the crushing process
Powered by a 2-HP electric-hydraulic pump with 2-gallon reservoir
Rugged floor stand is designed to accommodate up to 55-gallon drums for efficient fluid handling
Overall Height 75” (1,905 mm)
Overall Width 42.5” (1,080 mm)
Overall Depth 17” (432 mm)
Chamber Opening Height 10.75” (273 mm)
Chamber Opening Width 8.5” (216 mm)
Chamber Opening Depth 10.5” (267 mm)
Average Cycle Time 8 – 15 sec
Power Supply 208-240V / 50/60 Hz / 1 Ph
Shipping Weight: 296 lbs. (134 kgs.)
Shipping Dimensions: 33″ x 38″ x 21″ (838 mm x 965 mm x 533 mm)
