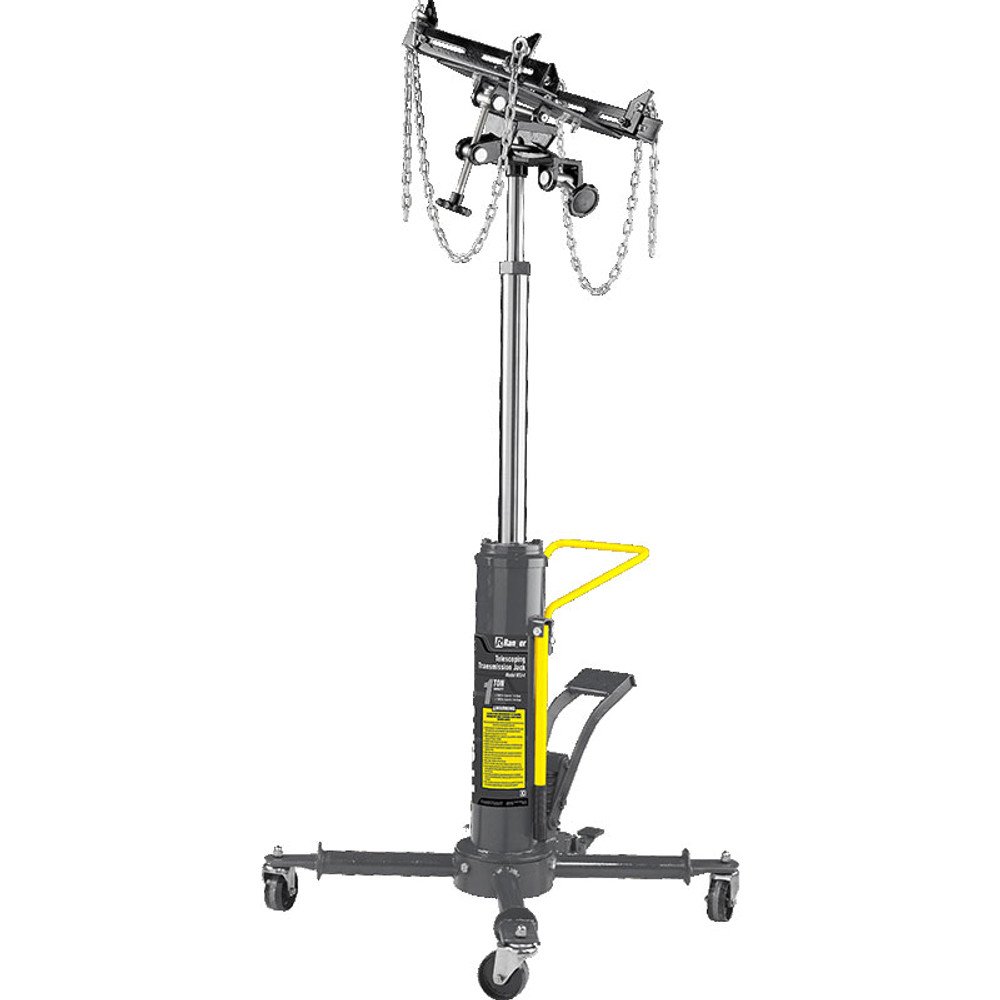

Ranger RTJ-1 1 Ton Capacity Telescoping Transmission Jack

Foot-operated pump

Two-stage design

Adjustable saddle tilts two ways

Saddle slides the other two directions

Heavy-steel construction for maximum durability

Double-sealed hydraulics to prevent contamination for longer service life

Heavy-duty chain anchors keep loads secure

Steel roller bearings are included underneath the table and on the ends of the adjustment screw to minimize friction and allow for effortless table adjustment even when loaded

Fully adjustable universal saddle adapts to passenger car and light truck automatic transmissions and transaxle assemblies

Fine-thread adjustment screws with oversized knobs make adjusting the table a cinch

Two-stage design provides an extended lifting height of over 73″

Hardened chrome-moly ram prohibits rust from entering hydraulic system

Two individual push / pull handles for extra handling capability

System overload system prevents the jack from being used beyond its rated capacity

Extra-wide base and four heavy-duty swivel ball bearing casters provides a low center of gravity and exceptional maneuverability

Lifting capacity – first stage: 2,000 lbs. / 907 kg

Lifting capacity – second stage: 1,000 lbs. / 454 kg

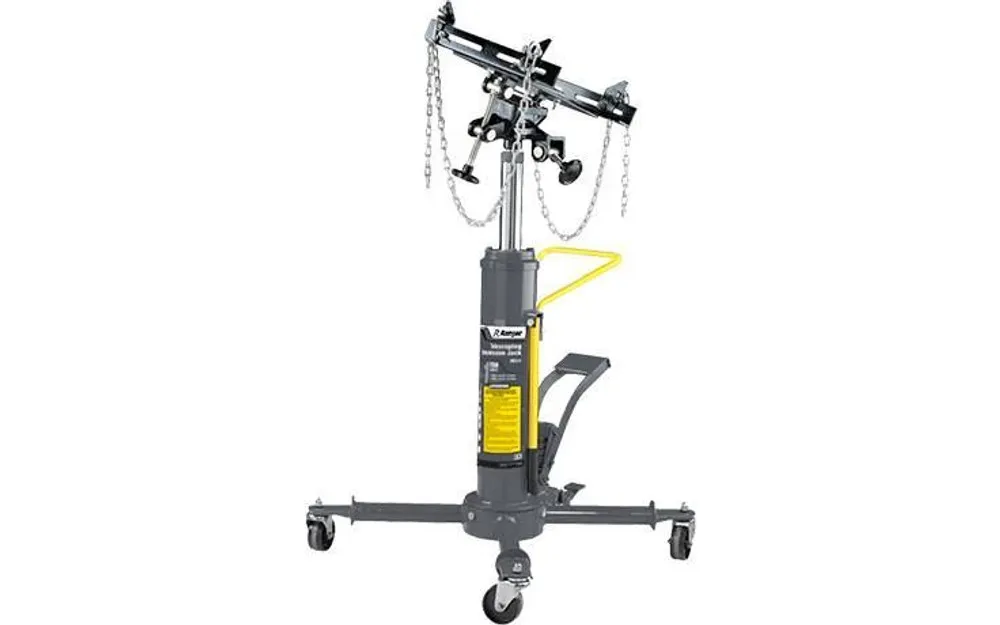

Lowered height: 37″ / 940 mm

Raised height: 73″ / 1,854 mm

Base dimensions: 39″ x 39″ / 991 mm x 991 mm

Shipping weight: 188 lbs. (85 kg)

Shipping dimensions: 23″ x 15″ x 33″ (597 mm x 381 mm x 838 mm)
