Dannmar D4-12A 12,000-lbs. Capacity Alignment Four-Post Lift / Includes Slip Plates and Turnplates

Dannmar D4-12A 12,000 lb 4-Post Alignment Lift with Slip Plates and Turnplates

Name: Dannmar D4-12A 12,000 lb 4-Post Alignment Lift with Slip Plates and Turnplates
Brand: Dannmar
SKU: VE-8226
Price: 8284.00 USD
Availability: InStock

SKU VE-8226Condition New

$8,284.00

In stock — ships in 1–2 business days

The Dannmar D4-12A is a 12,000-lb. alignment alignment lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

Call 216-250-6666 Request this unit

Call with your VIN or tag number and we will confirm this listing fits before you pay.

Shipping: Freight, 3–6 business days
Returns: 45 days, by mail
Warranty: See warranty terms
Payment: Bank transfer, Zelle, Chime

Product details

Features

12,000 pound lifting capacity
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493

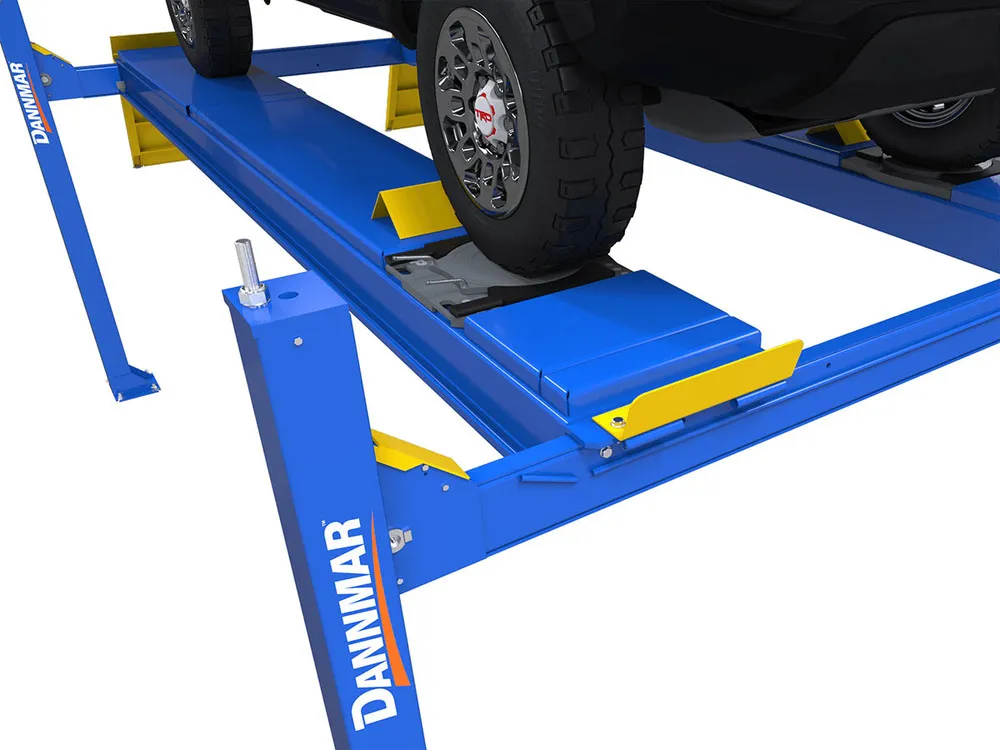

Heavy-duty turn plates and integrated rear slip-plates
Multi-position turn plate pockets
Automatic leveling system
Multiple auto-leveling locking positions
Runways include rail-kit for optional accessories
Electric / hydraulic power system
Single hydraulic cylinder mounted underneath runway
Fully enclosed lifting cables, safety locks, and sheaves
Internal “Anti-Sway” slider blocks in each column
Oversize sheaves and heavy-duty 1/2” aircraft cable
Rugged 1-3/8” roller axles and oversize self-lubricating cable sheaves
Multi-position safety locks in each column with push-button safety release
Runways adjust for different tread widths and feature non-skid surface
Optional 6,000-lb. capacity bridge jacks available

Specs

SKU#	5175318
Lifting Capacity	12,000 lbs. (5,443 kg)
A - Min. Runway Height	9.5" (243 mm)
B - Max. Rise	68.75" (1,746 mm)
C - Max. Lifting Height	79.5" (2,019 mm)
D - Ramp Clearance* (Max. Rise)	49" (1,245 mm)
E - Height of Columns	92" (2,337 mm)
F - Drive-Thru Clearance	98” (2,482 mm)
G - Overall Width	127.5" (3,239 mm)
H - Width Between Columns	115.75" (2,940 mm)
I - Overall Length	233.5" (2,940 mm)
J - Outside Columns	115.75" (2,940 mm)
K - Width Between Runways	34.5" (876 mm) or 41.5" (1,054 mm)
L - Runway Centerline	54.5" (1,384 mm) or 61.5" (1,562 mm)
M - Outside Edge of Runways	74.5" (1,892 mm) or 81.5" (2,070 mm)
N - Runway Width	20" (508 mm)
O - Length of Runways	194.75" (4,947 mm)
Min. 4-Wheel Alignment	106” (2,692 mm)
Max. 4-Wheel Alignment	158.5” (4,026 mm)
Max. 2-Wheel Alignment	163.5” (4,153 mm)
Min. Wheelbase @ Rated Capacity	140” (3,556 mm)
Min. Wheelbase @ 75% Capacity	120” (3,048 mm)
Min. Wheelbase @ 50% Capacity	100” (2,540 mm)
Min. Wheelbase @ 25% Capacity	80” (2,032 mm)
Locking Positions	15 (spaced every 4” / 102 mm)
Time to Full Rise	60 seconds
Motor	220 VAC / 60 Hz / 1 Ph

* Approach ramps can be removed.
