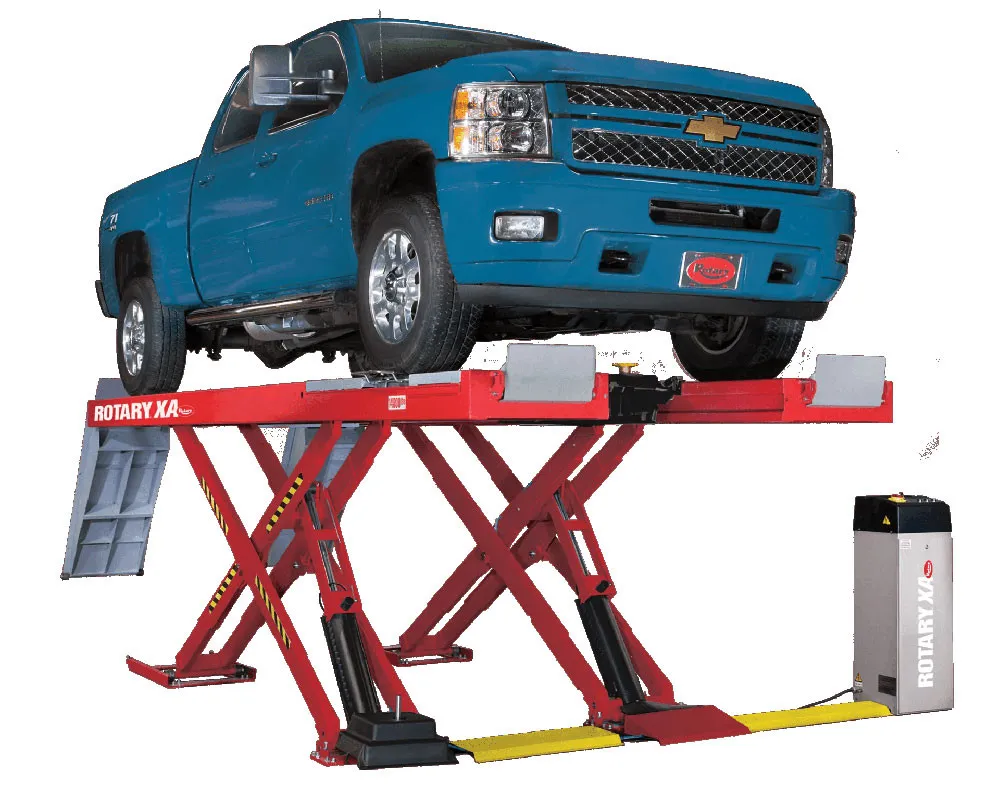

Rotary XA14 14,000 lb ALI Certified Alignment Scissor Lift + Rolling Jacks
Rotary XA14 14,000 lb ALI Certified Alignment Scissor Lift + Rolling Jacks

Rotary XA14 14,000 lb ALI Certified Alignment Scissor Lift + Rolling Jacks

$41,575.00

The Rotary XA14 is a 14,000-lb. ALI Certified alignment alignment lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

  • Open Access From Front to Rear

    The scissor lift design offers open access from the front to the rear. With no obstructions, your technician has greater access to the vehicle’s adjustment points for alignments and other repairs.

  • Multiple Installation Options Provide a Custom Bay

    This scissor lift is available with floor-recessed or surface-mount installation, which allows you to customize your shop. Extended ramps and control hose extension kits provide ultimate in-location flexibility.

  • VERSATILE WHEELBASE RANGE
    216” long runways, oversized slip plates and easily adjusted radius gauge pockets accommodate a range of wheelbases.

    • 85 1/2” to 193” for FOUR WHEEL ALIGNMENT
    • 195” MAX. TWO WHEEL ALIGNMENT
    • 198” for GENERAL SERVICE
    • 25-1/2” wide runways
  • Air Actuated Rear Slip Plate Locks

  • Includes: (2) 7,000 lb Rolling Jacks,  Stainless Turntables, Locking Slip Plates, Air Line Kit

Product Specifications

Model XA14
Capacity 14,000 lbs. (6350kg)
Maximum Rise* 81 1/2″ Surface Mounted
Lowered Height 10-3/4″ (275mm)
Overall Length 277″ (7035mm)
Overall Width 91″ (2310mm)
Runway Width 25-1/2″ (648mm)
Width Between Platforms 40″ (1015mm)
Runway Length 216″ (5486mm)
Max. Wheelbase 198″ (5038mm)
Max. Two Wheel Alignment Max Four Wheel Alignment Min. Four Wheel Alignment 195″ (4953mm)193″ (4902mm)85-1/2″ (2172mm)
Motor/Voltage 5 hp / 230 volt / Single Phase
Time of Full Rise 77 seconds
Lowering Time 47 sceonds
Compressed Air Connection 85-110 psi
Recommended Bay Size 14′ x 27′ (4.27m x 8.23m)
* Rise measures floor to top of runway at full stroke.

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Alignment Lifts.
