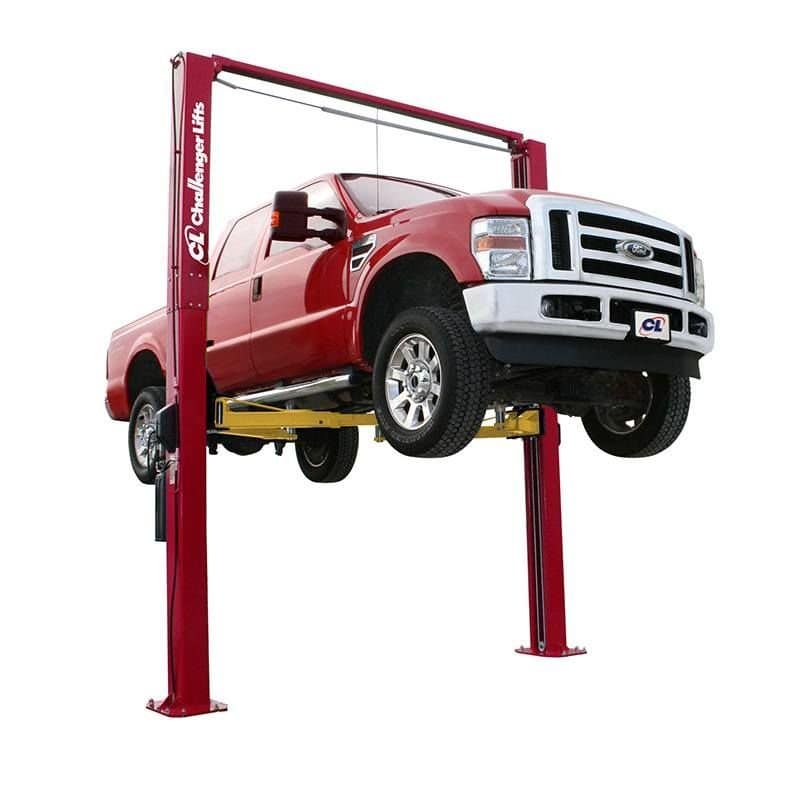

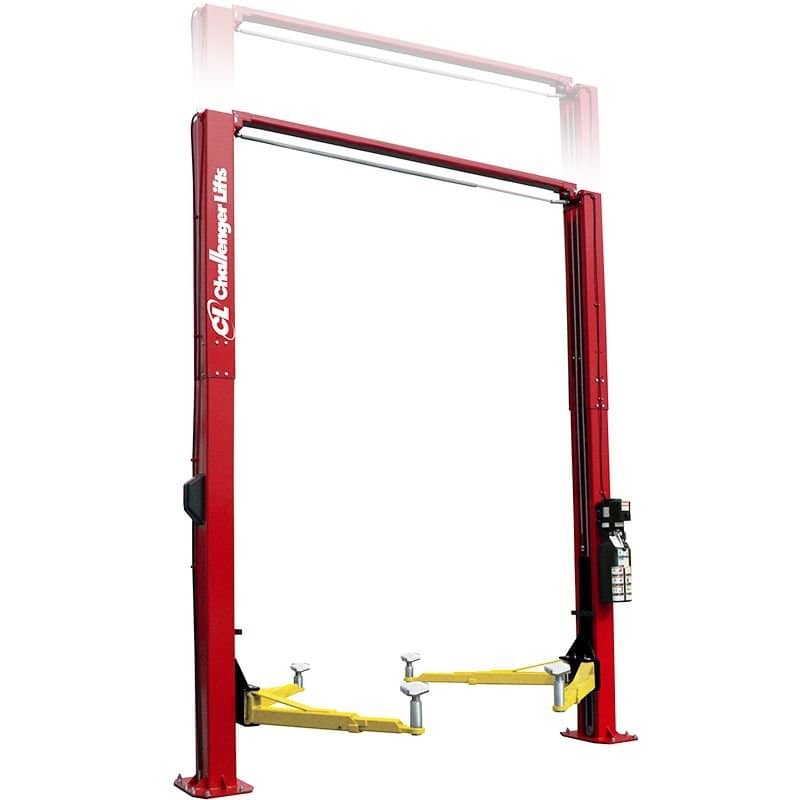

Challenger E12
$8,853.00
The Challenger E12 is a shop equipment unit. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Shop the Challenger E12 at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.
- 12,000 lb. lift capacity
- Heavy-duty 2-stage arms enable a wide range of symmetric lifting
- Single point mechanical lock release allows technician to disengage both columns simultaneously
- Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points

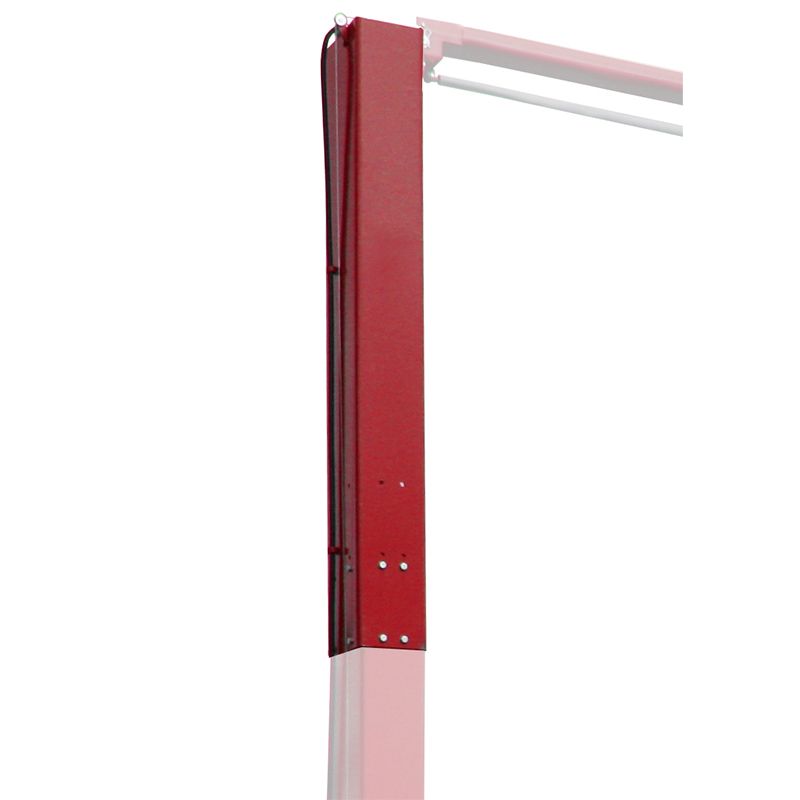

- Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
- Padded overhead shut off system prevents vehicle damage
- Powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
Specs
| SKU# | 6010126 |
|---|---|
| Lifting Capacity | 12,000 lbs. |
| Lifting Configuration | Symmetric |
| Arms | 2-stage front/2-stage rear |
| 2’ Height Extension Available | Yes |
| Rise Height | 77.75” |
| Overall Height | 166”/175” |
| Overall Width | 139.75” |
| Drive-Thru Clearance | 103” |
| Floor to Overhead Switch | 159.5”/168.5” |
| Minimum Arm Reach | 35.75” |
| Maximum Arm Reach | 54.5” |
| Screw Pad Height | 5.25”-6.75” |
| Inside Columns | 115” |
| Ceiling Height Required | 167”/176” |
| Motor / Voltage | 2HP, 208v – 230v |
| Speed of Rise | 61 s |
| ALI/ETL Certified | Yes |
