SKU: VE-7615
In Stock

$7,321.00

The Challenger CL10V3 is a shop equipment unit. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Shop the Challenger CL10V3 at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

  • 10,000 lb. lift capacity
  • Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
  • Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life
  • 48 in. elongated carriage design increases lift life
  • Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available
  • Padded overhead shut off system prevents vehicle damage

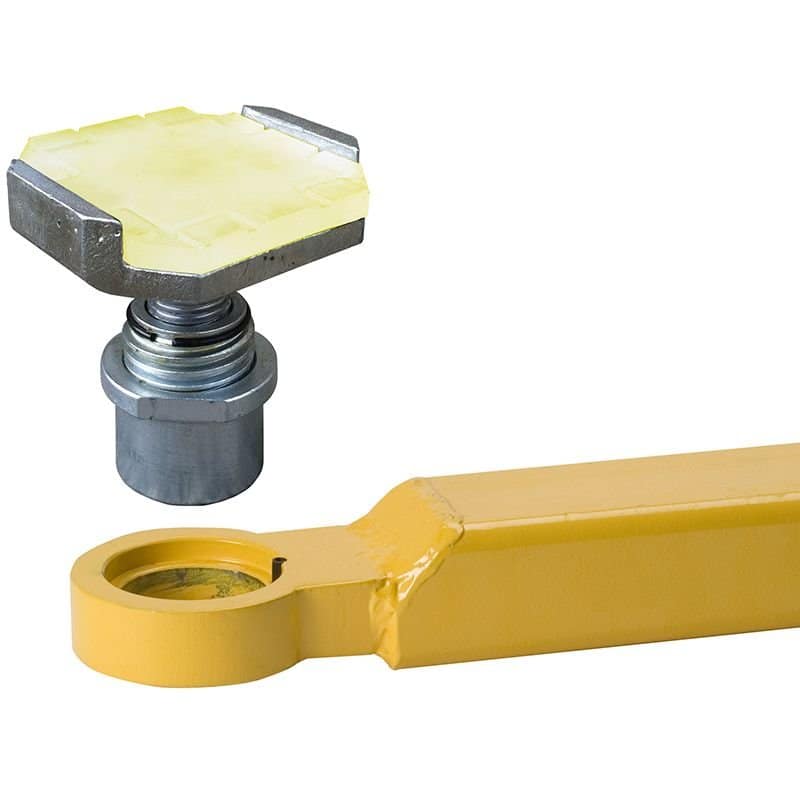

  • Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
  • Fully gusseted base plate design increases column rigidity
  • Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
  • Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
  • Premium powder coat finish provides long-lasting durability

Specs

SKU# 6010124
Lifting Capacity 10,000 lbs. (4,536 kg)
Lifting Configuration Versymmetric (Symmetric & Asymmetric)
Arms 3-stage front/3-stage rear
Rise Height 74.125”
Overall Height 134” / 140”
Overall Height (Cylinder Extended) 143”
2’ Height Extension Available Yes
3’ Height Extension Available Yes
Overall Width 138.5” / 143”
Drive-Thru Clearance 100” / 104.5”
Floor to Overhead Switch 128.5” / 134.5”
Front Arm Reach 20” – 42”
Rear Arm Reach 37.625” – 60”
Screw Pad Height 3.875” – 6.125”
Inside Columns 110” / 114.5”
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise 38 s
Ceiling Height Required 12′
ALI/ETL Certified Yes

About the Challenger CL10V3

This unit is quality-tested and ready to install. Browse more SHOP EQUIPMENT, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
