$21,149.00

The Atlas PX16A is an alignment alignment lift package. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Features & Benefits:

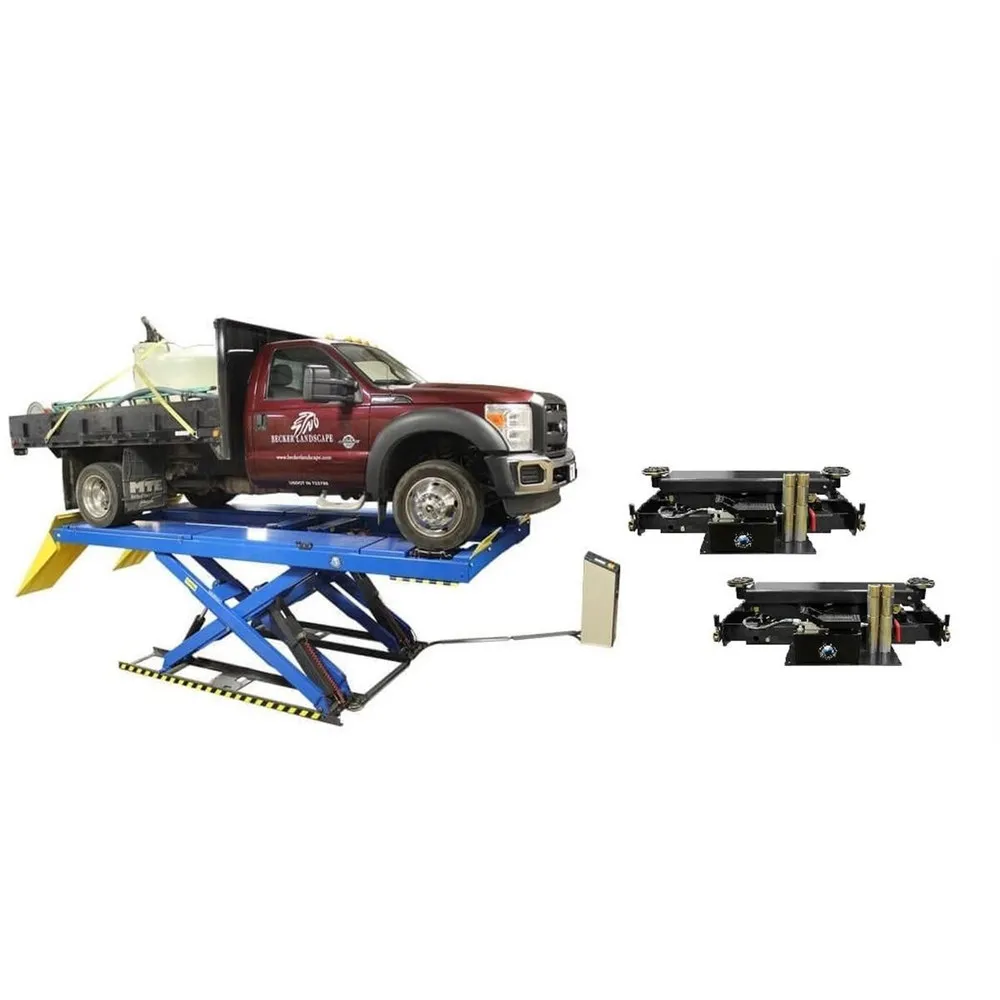

  • Combo includes PX16A scissor alignment lift & two RJ8 rolling jacks
  • Commercial Grade

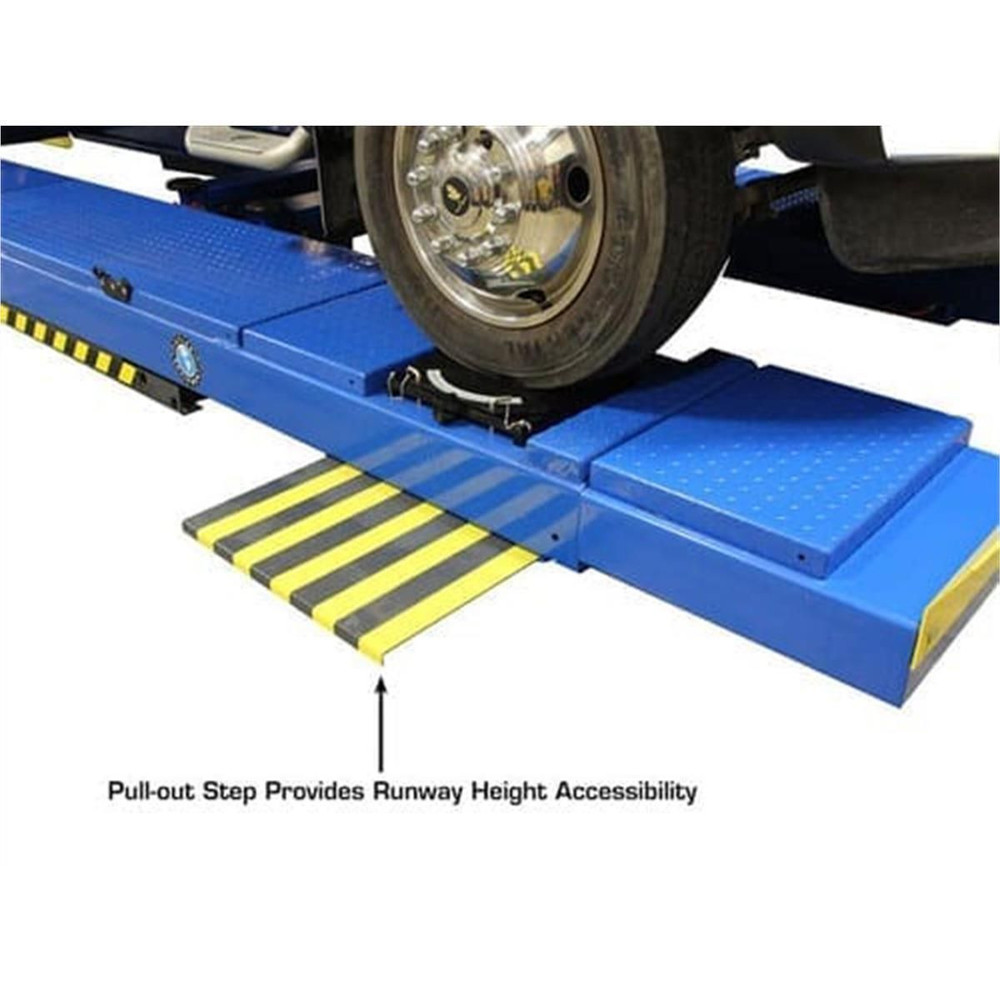

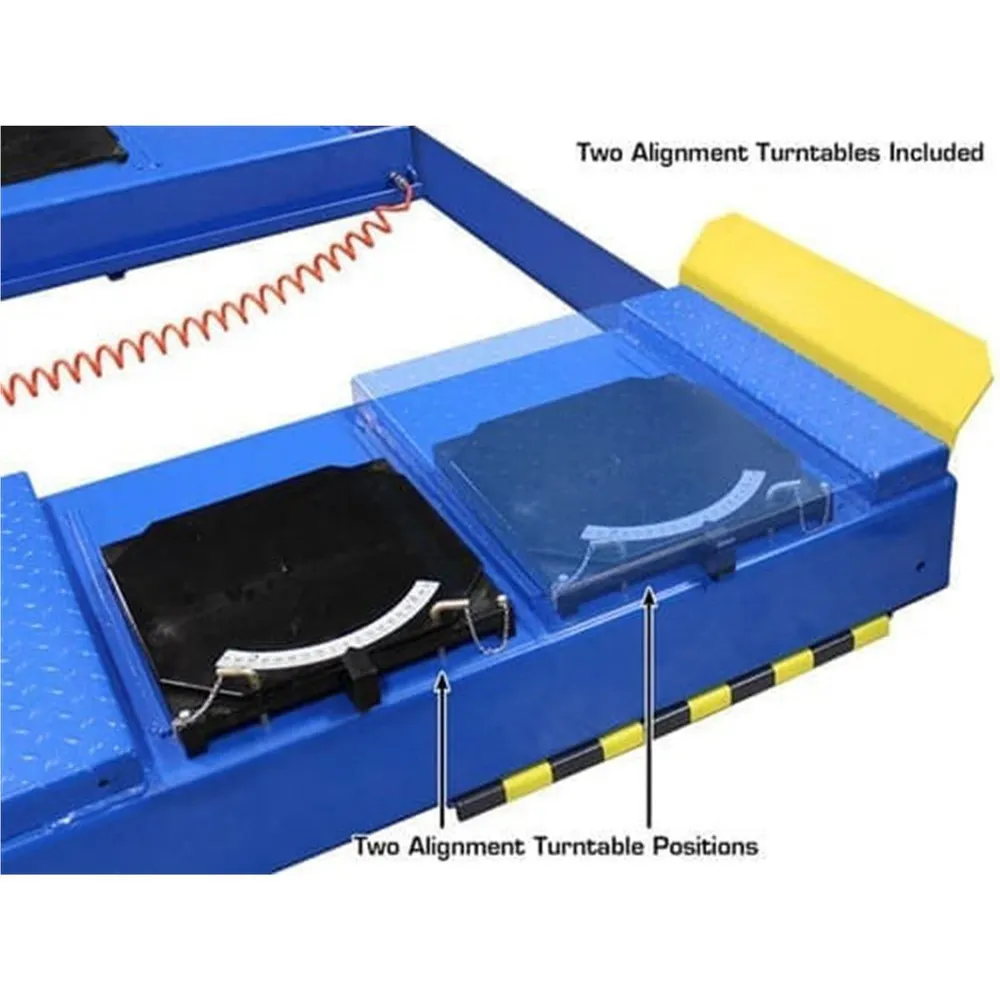

  • Built in Slip Plates and Alignment Turntables Included
  • Turntable Covers Included
  • Open Center Design for Easy Access

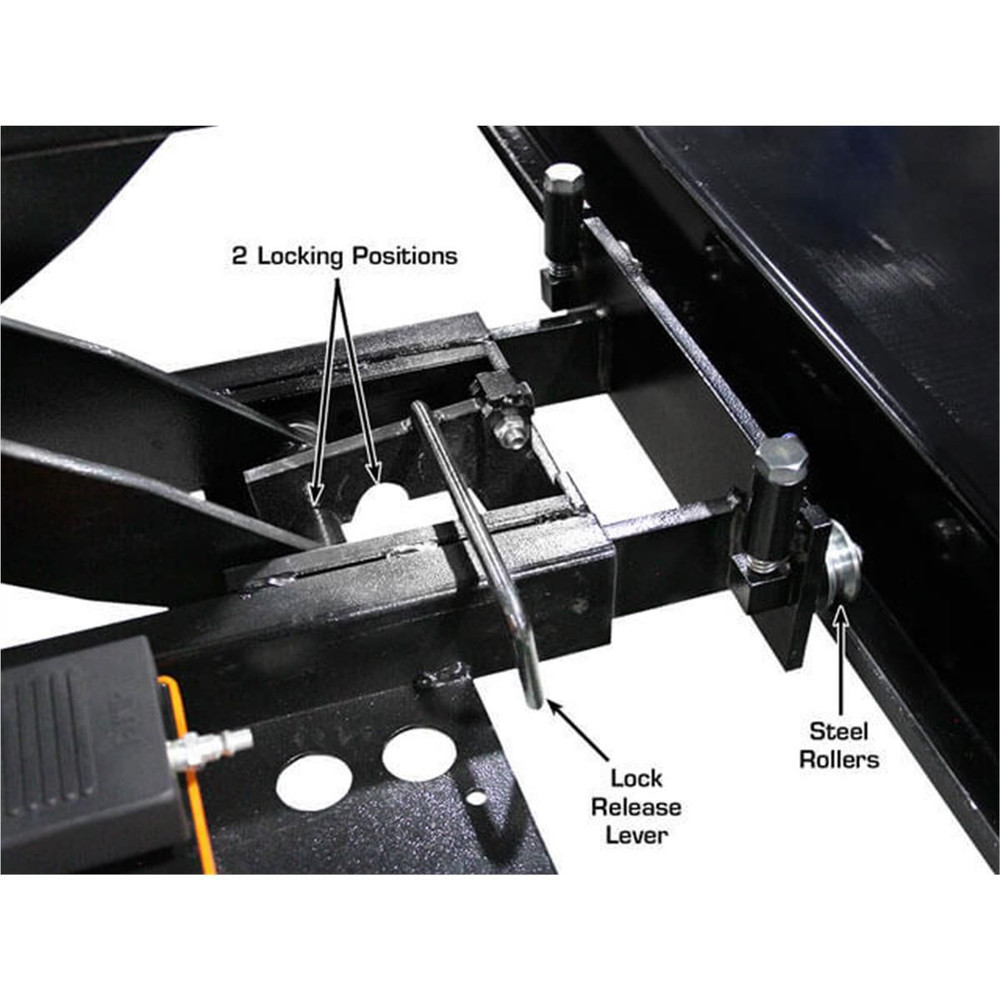

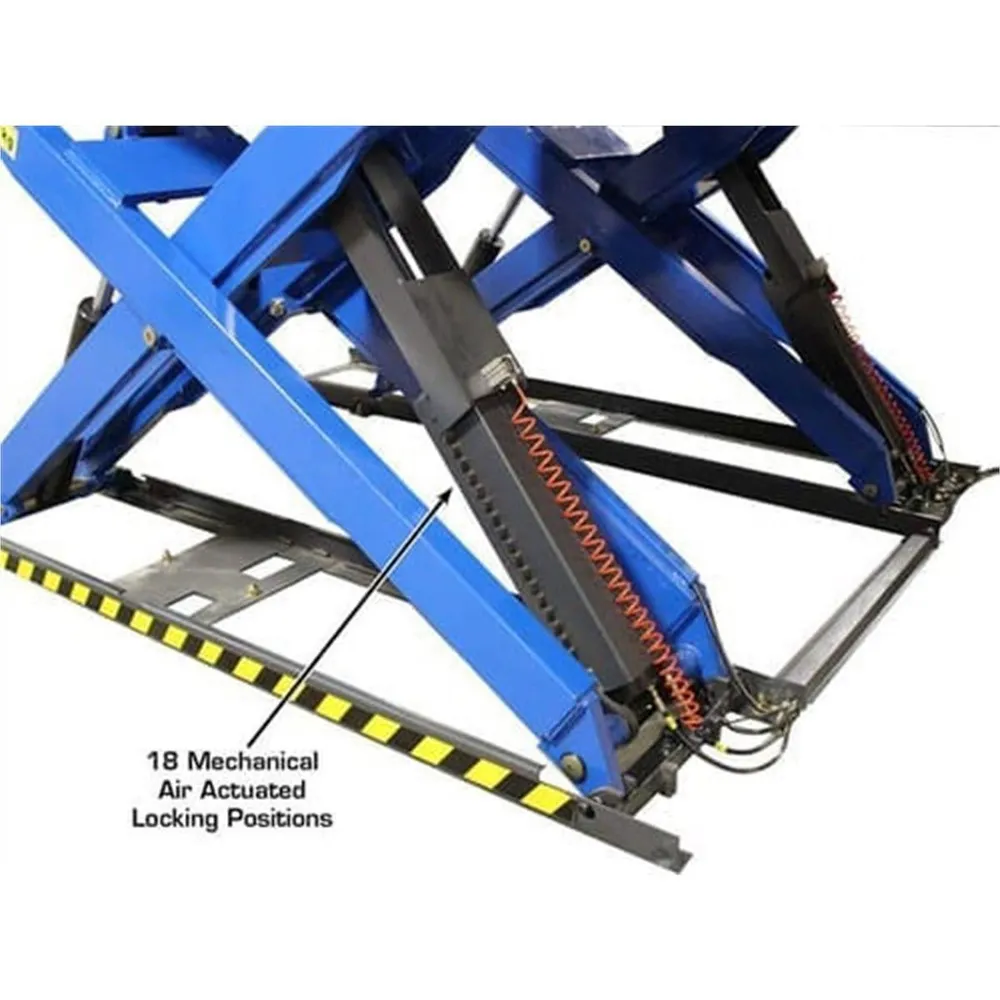

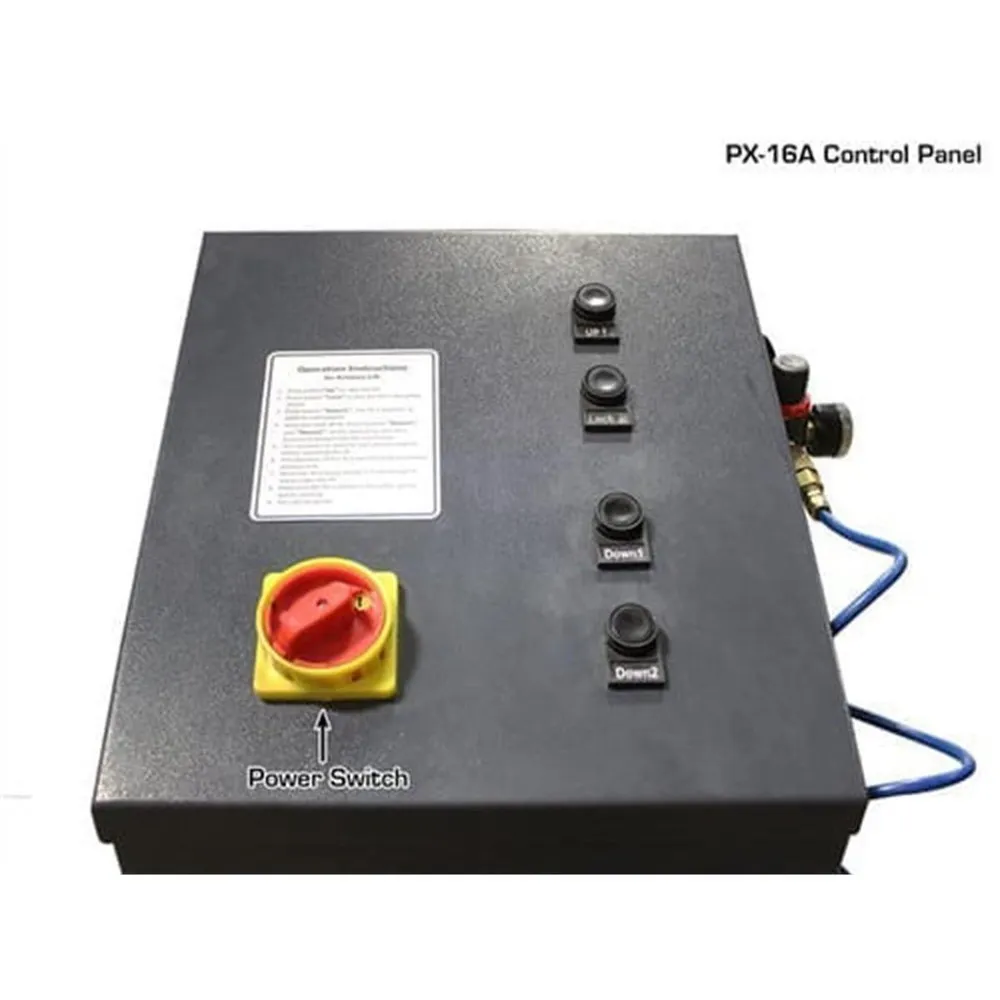

  • Air-Operated Single Point Lock Release (External Air Supply Required – NOT INCLUDED)

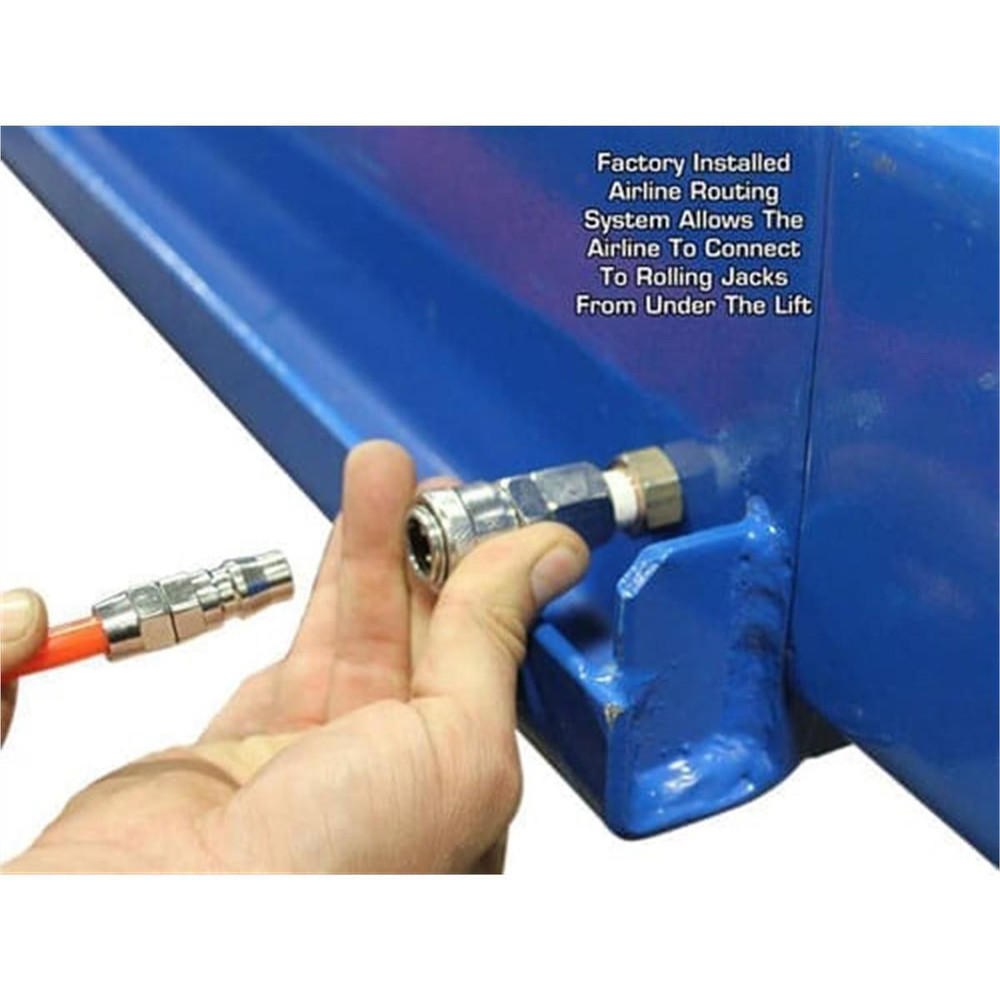

  • Jacks are Air Over Hydraulic operated
  • Truck Adapter Set for each Jack Included
  • This part number FREIGHT PREPAID

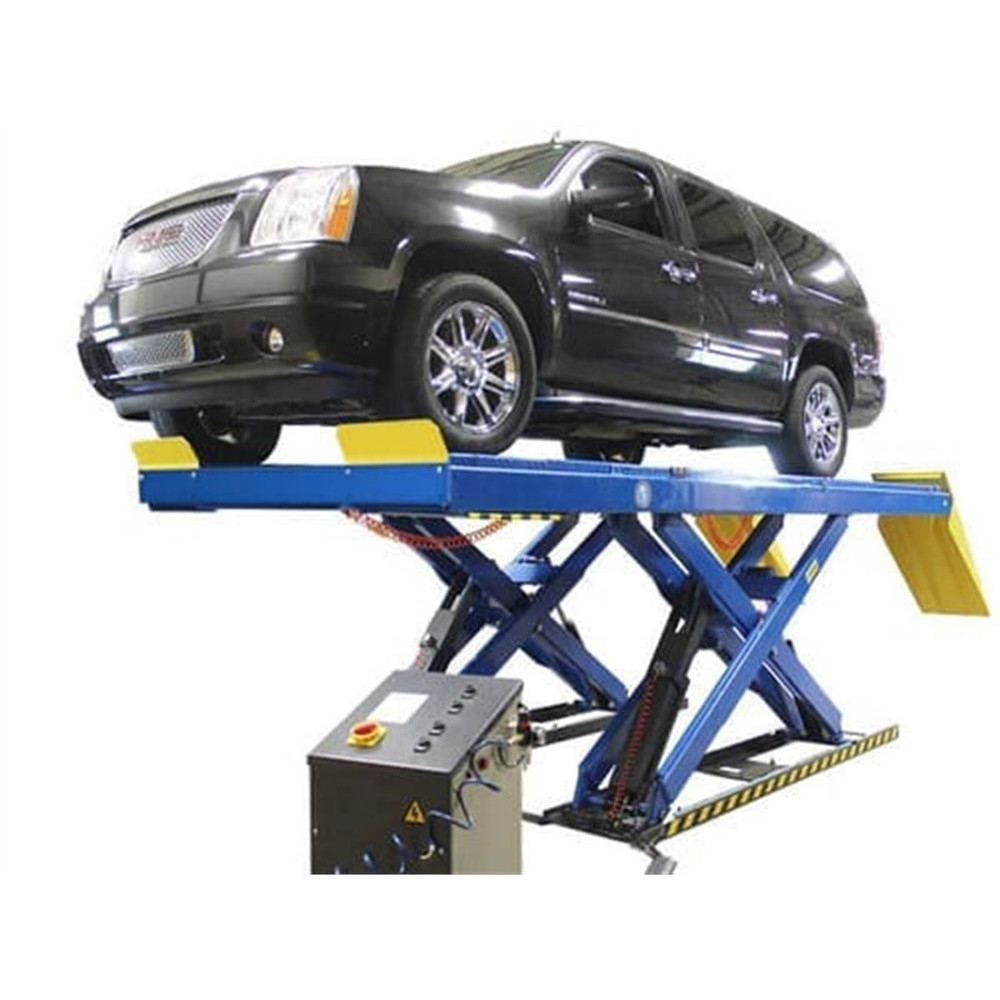

Atlas® PX16A Specifications

  • Capacity: 16000 lbs
  • Minimum Lift Height: 13 1/4″
  • Maximum Lift Height Above Floor: 71 1/2″ (5′ 11 1/2″))

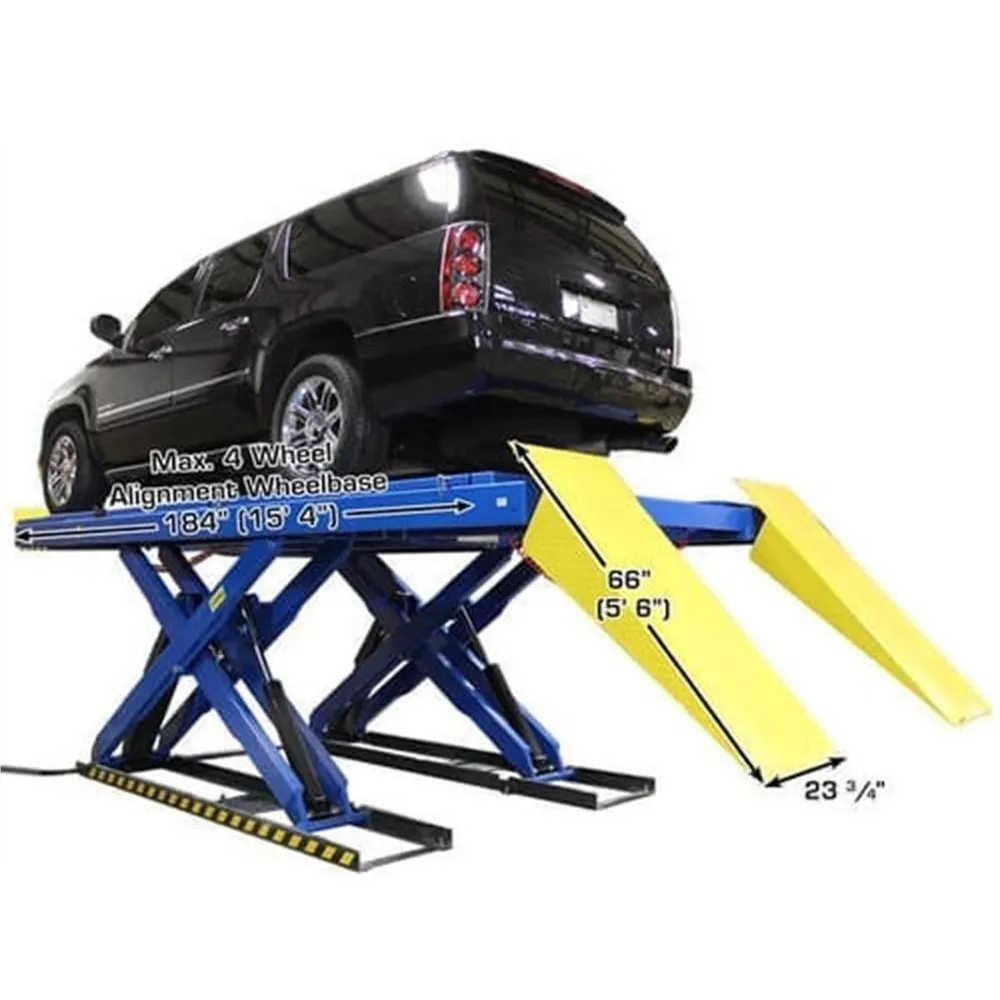

  • Overall Length w/ Ramps: 271″ (22′ 7″)

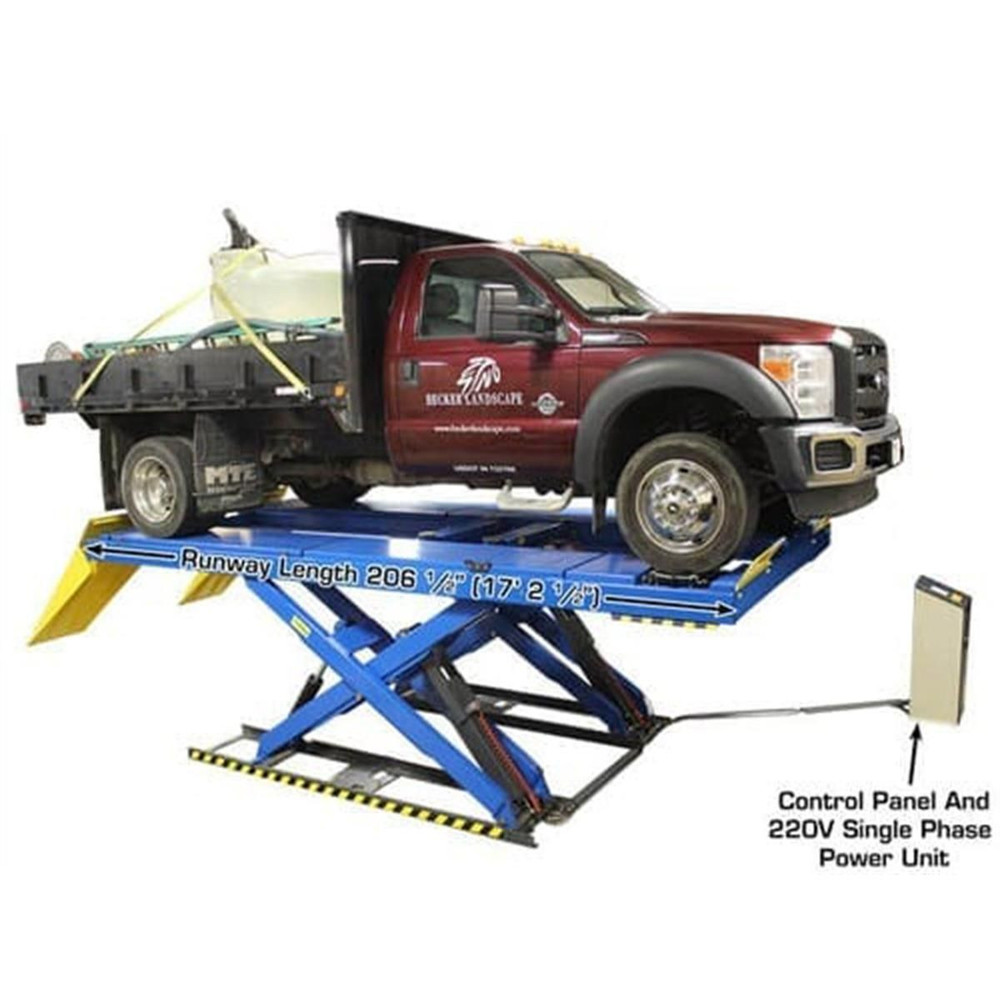

  • Overall Length w/o Ramps: 206 1/2″ (17′ 2 1/2″)
  • Overall Width: 94″ (7′ 10″)
  • Runway Width: 23 3/4″

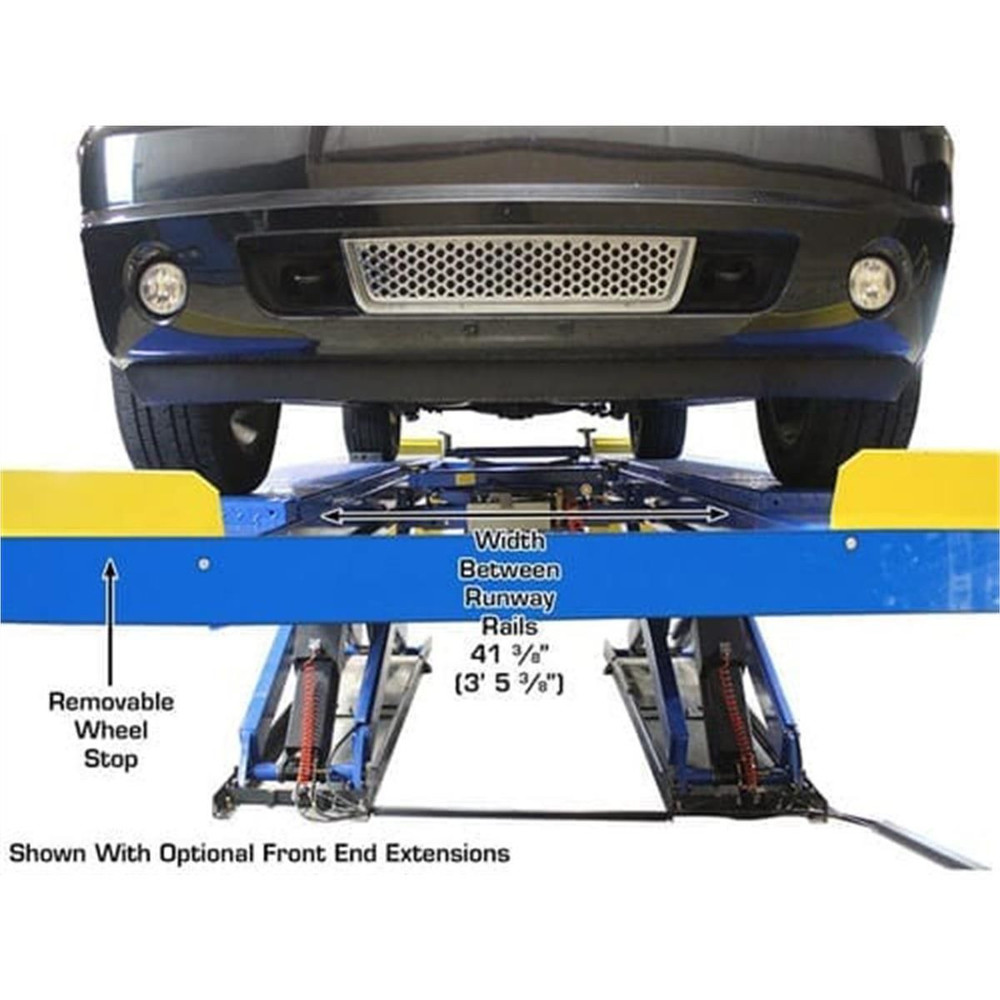

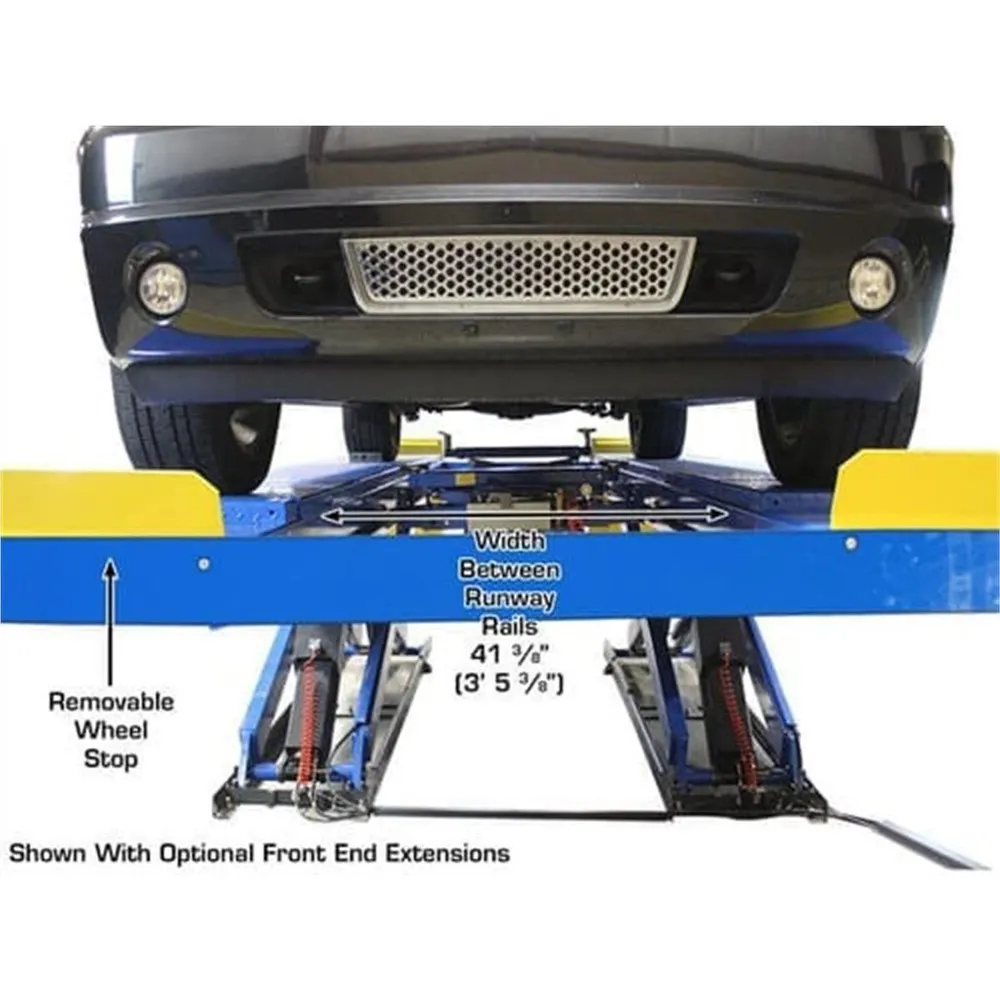

  • Between Runways: 44 7/8″ at top/41 3/8″ at rails
  • Air Requirement: 85-120 PSI
  • Motor/Electrical Requirement: 220volt +/- 5% (209-231 volts)/1phase 30amp breaker required
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
  • Shipping Weight: 6200 lbs.

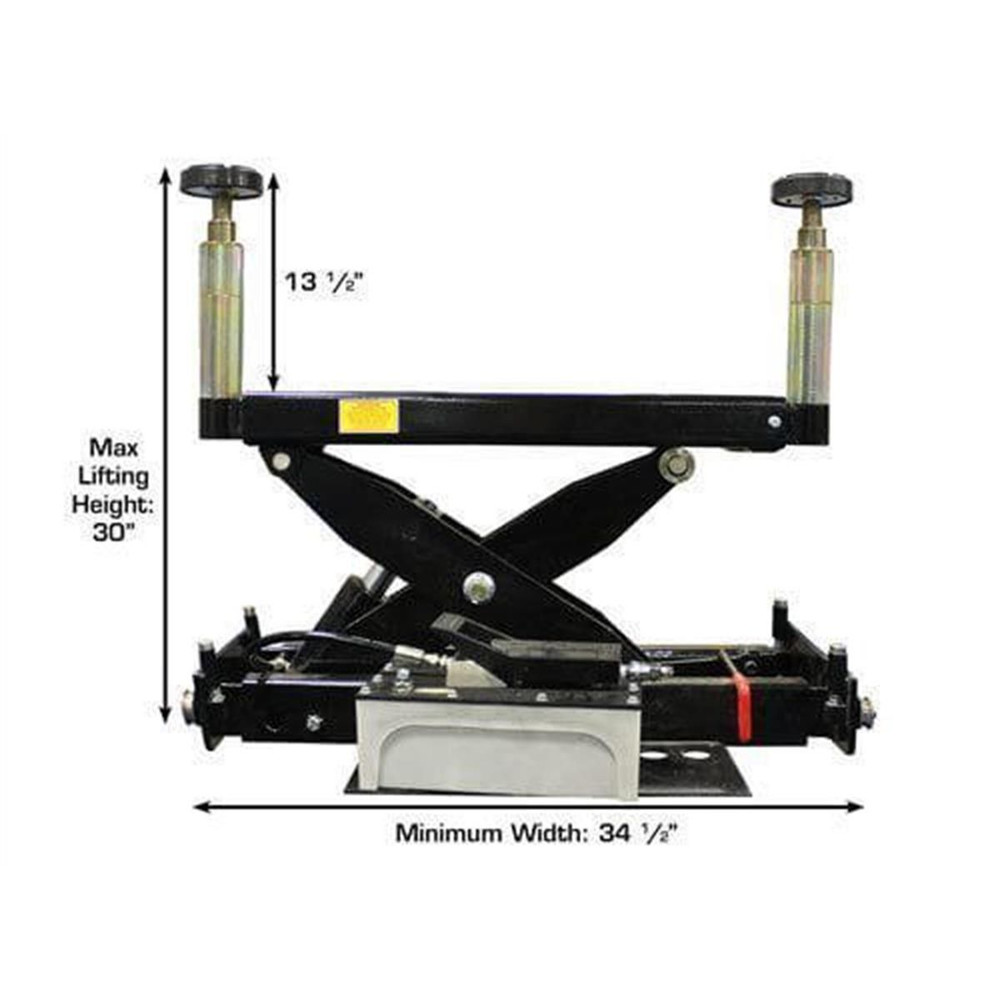

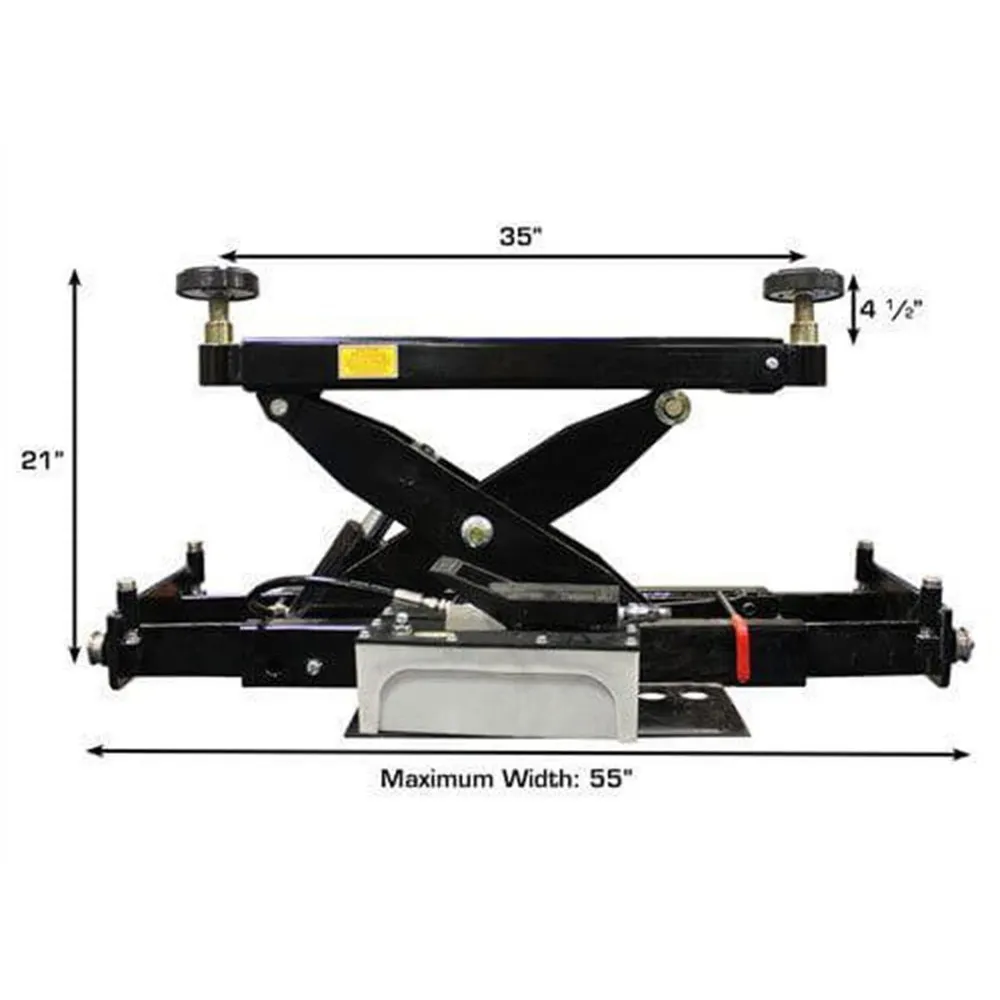

Atlas® RJ8000 Specifications

  • Maximum Capacity 8,000 lb.
  • Maximum Width 66 1/2″ (5′ 6 1/2″)
  • Minimum Width 40″ (3′ 4″)
  • Distance Between Runway Capability 34 1/2″-55″

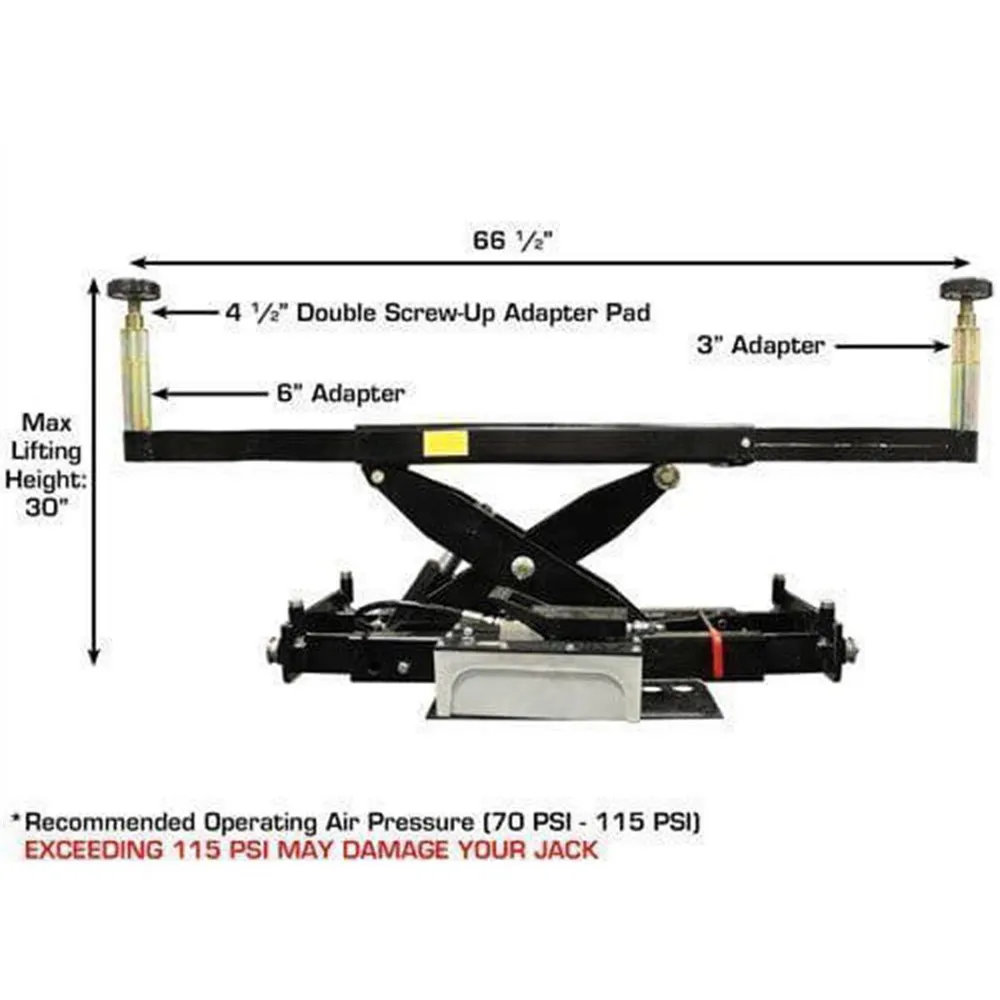

  • Maximum Lifting Height (With Adapters) 30″

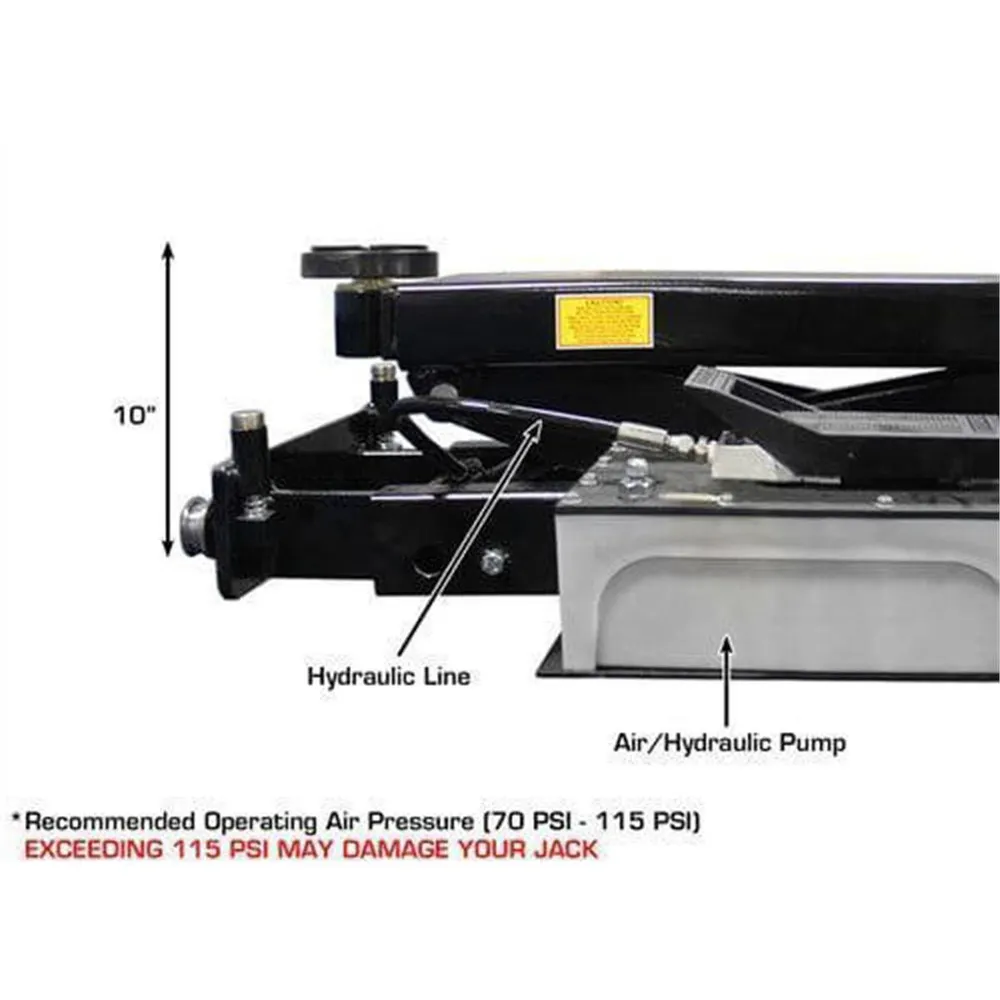

  • Air Requirement 70-115 PSI (External Air Supply Required – NOT INCLUDED)
  • Shipping Weight 390 lbs.
  • Adapter Heights 2 Each 2″, 3″
  • Arm Hole/Adapter Peg Size 1.5″

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Alignment Combo Kits.
