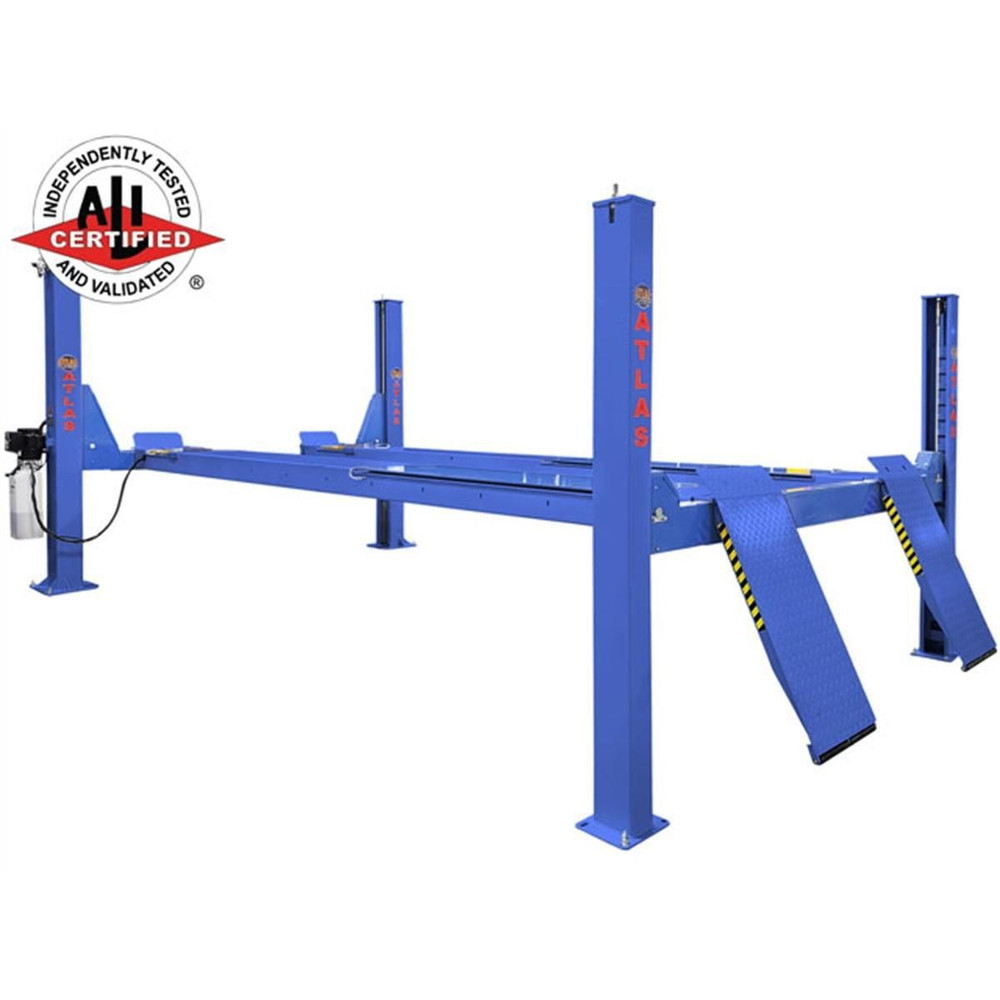

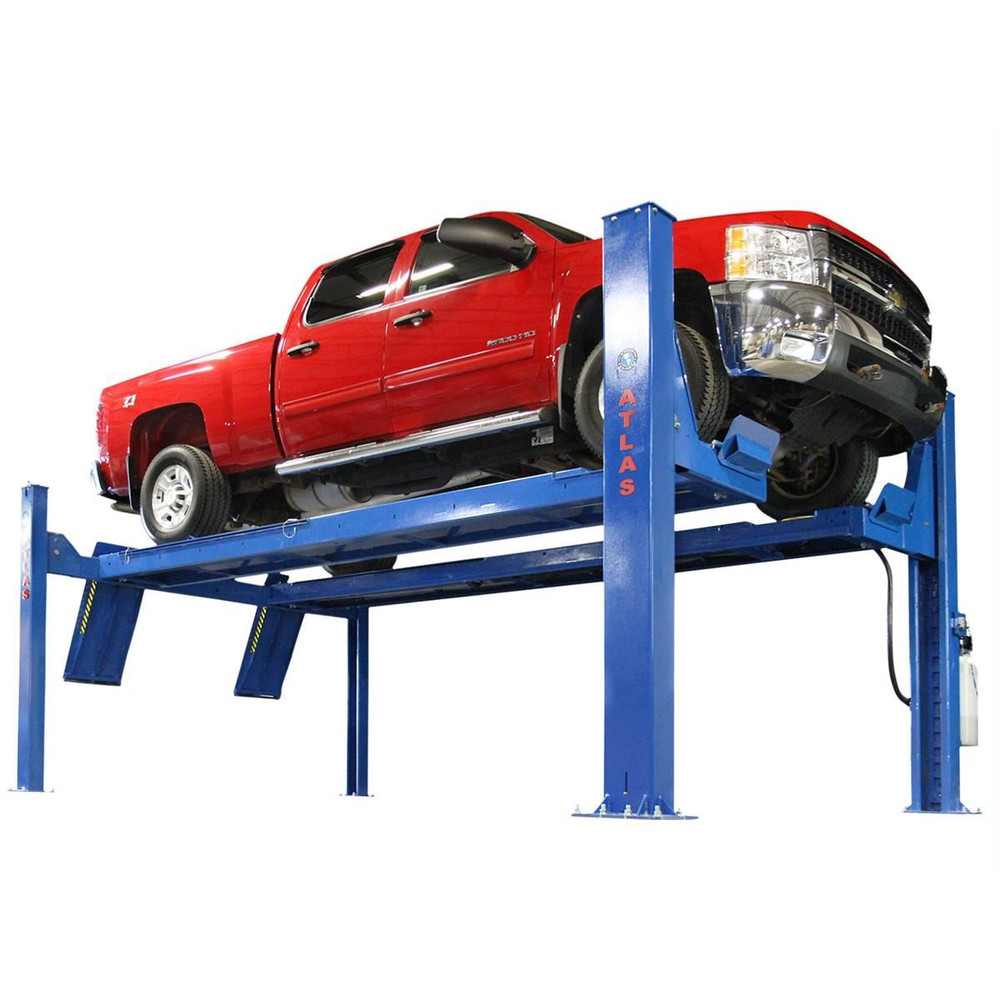

Atlas Platinum PVL14OF-EXT Alignment Lift + RJ7000 Rolling Jacks ALI Certified Combo
SKU VE-8546Condition New
$20,249.00
In stock — ships in 1–2 business days
The Atlas PVL14OF-EXT is an ALI Certified alignment alignment lift package. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Call with your VIN or tag number and we will confirm this listing fits before you pay.
- Shipping
- Freight, 3–6 business days
- Returns
- 45 days, by mail
- Warranty
- See warranty terms
- Payment
- Bank transfer, Zelle, Chime
Product details
Features and Benefits:

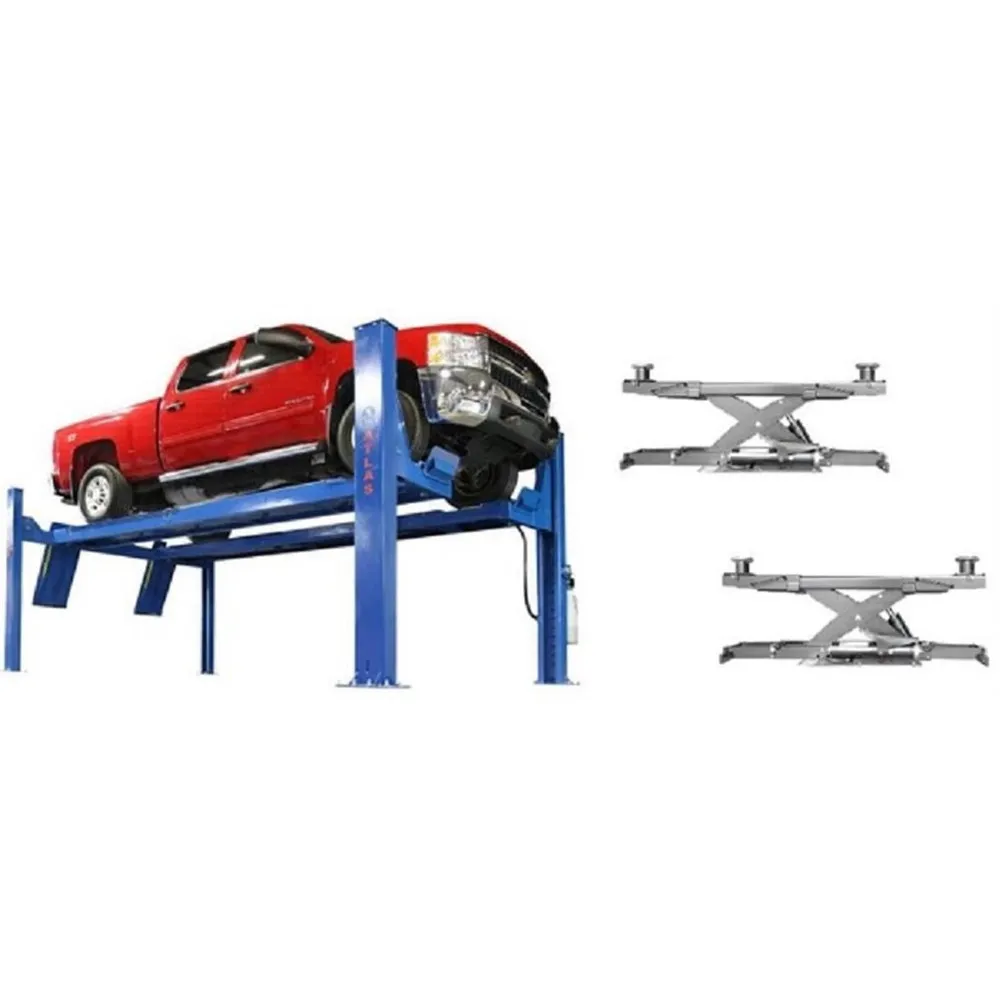

- ALI Certified Includes PVL14OF-EXT alignment lift & two RJ7000 rolling jacks
- Heavy Duty, Commercial Grade
- Open Front Design
- Lift is Extra Tall, Extra Wide & Super Long

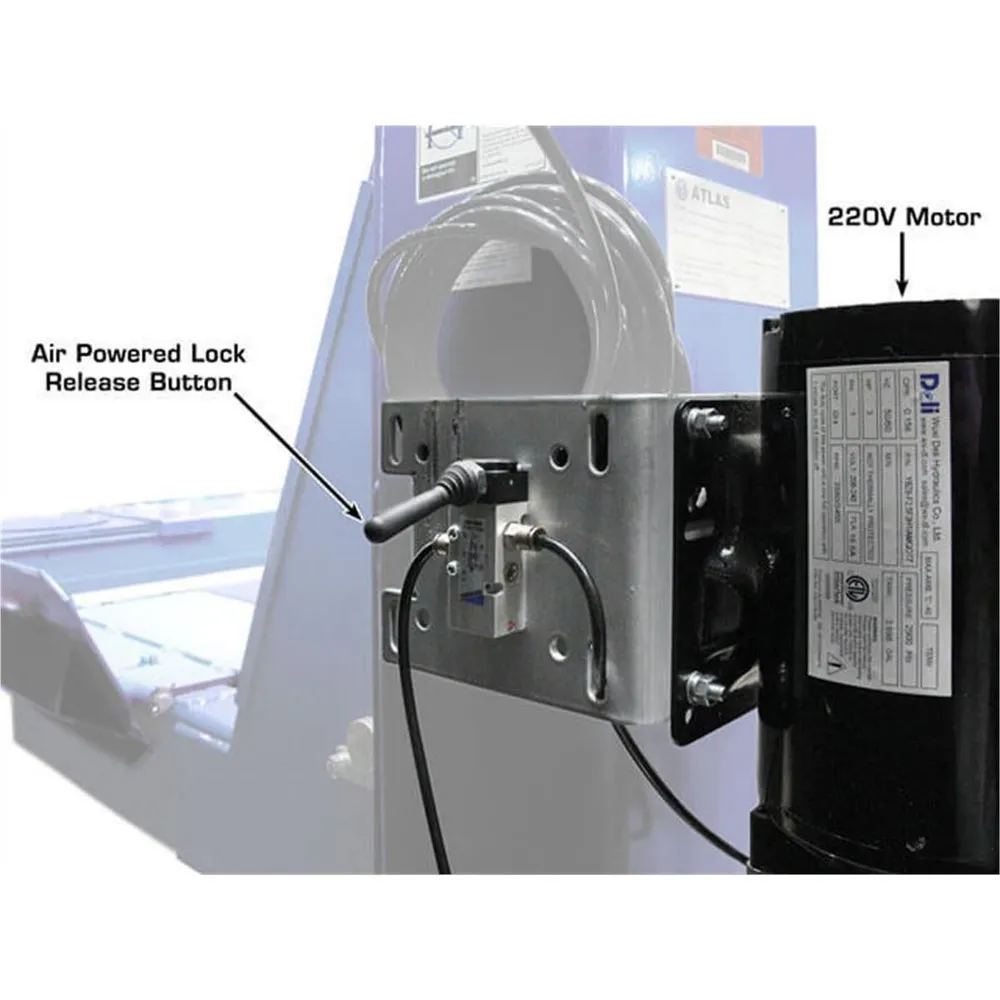

- Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)

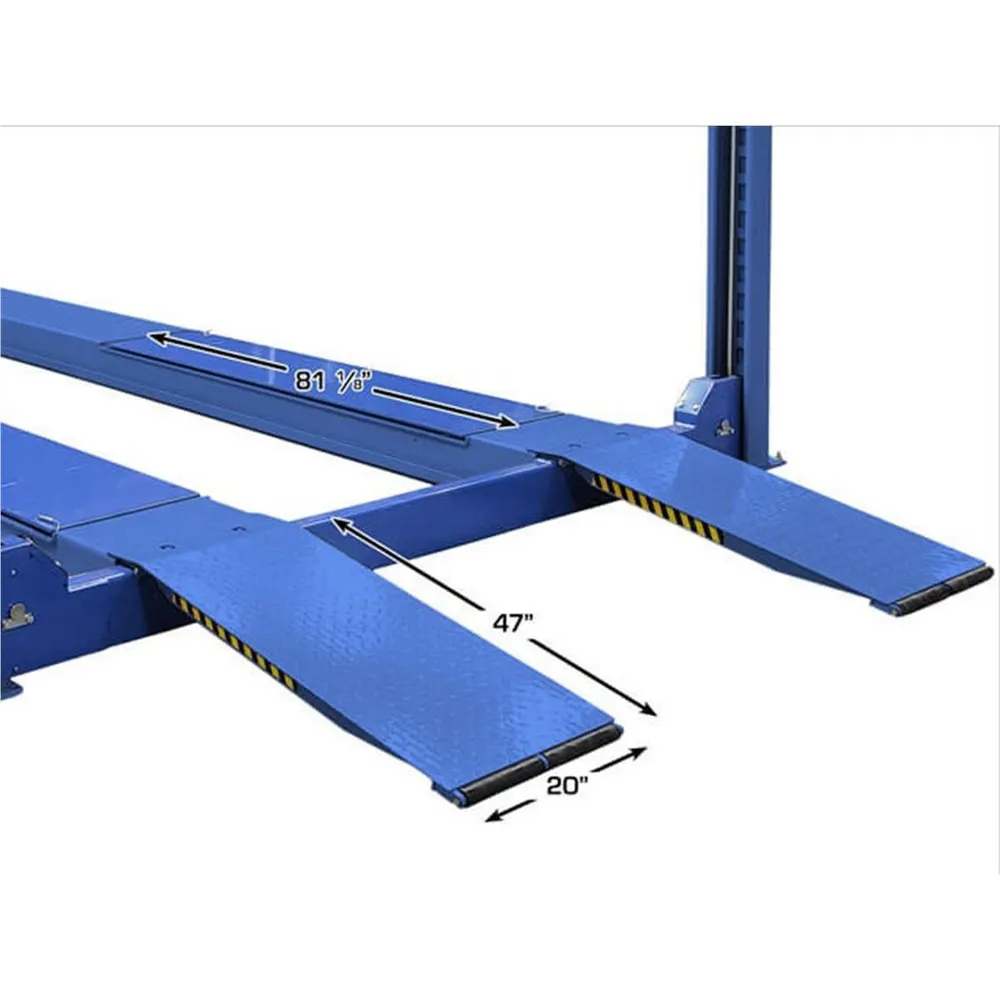

- Steel Approach Ramps Included
- Built in Slip-Plates

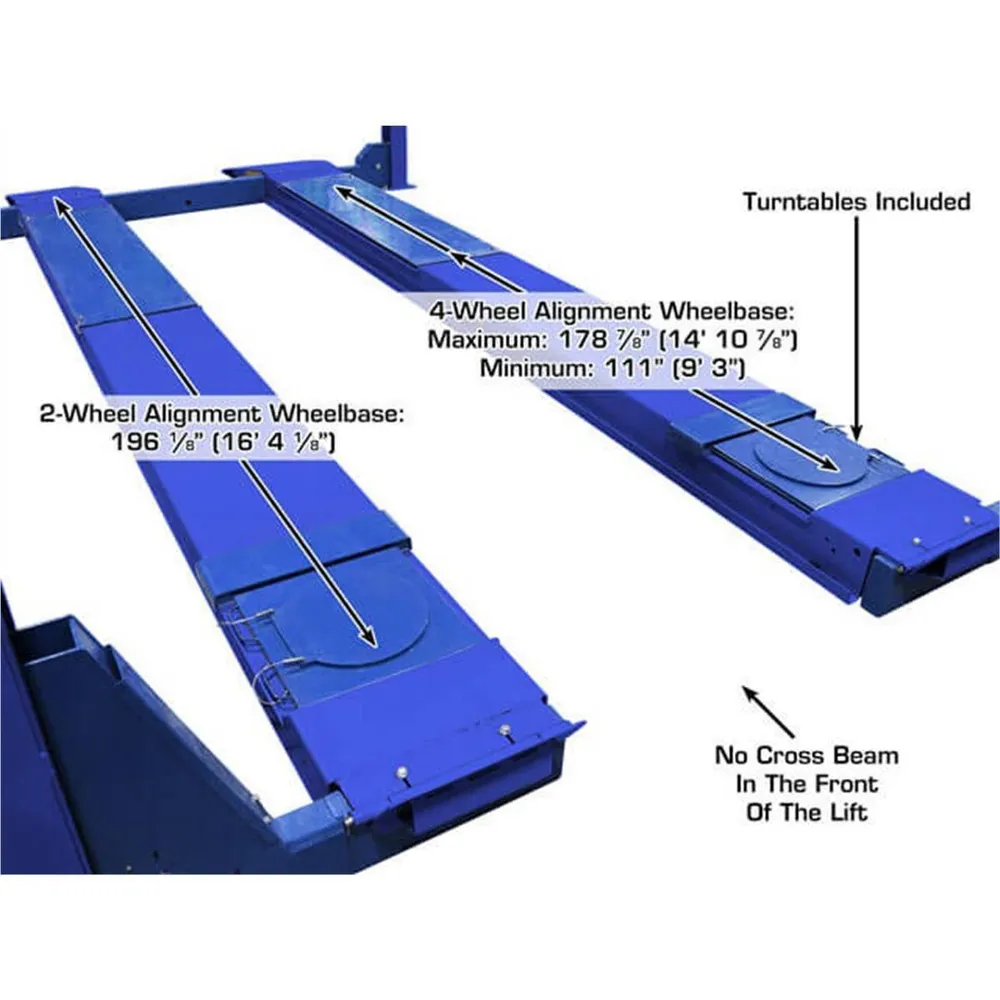

- Alignment Turntables Included

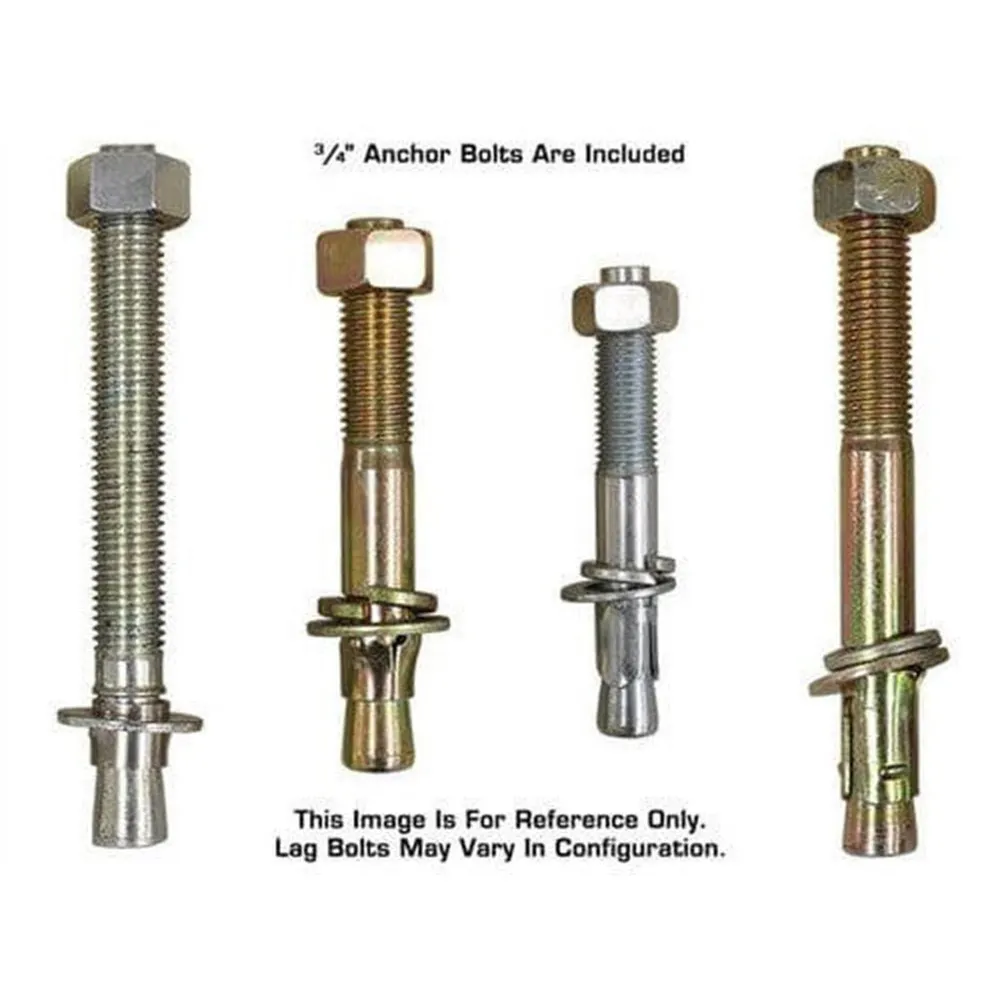

- Mounting Hardware Included
- Jacks are Air Over Hydraulic operated
- Truck Adapter Set for each Jack Included
- This part number FREIGHT PREPAID
- Capacity 14,000 lb.

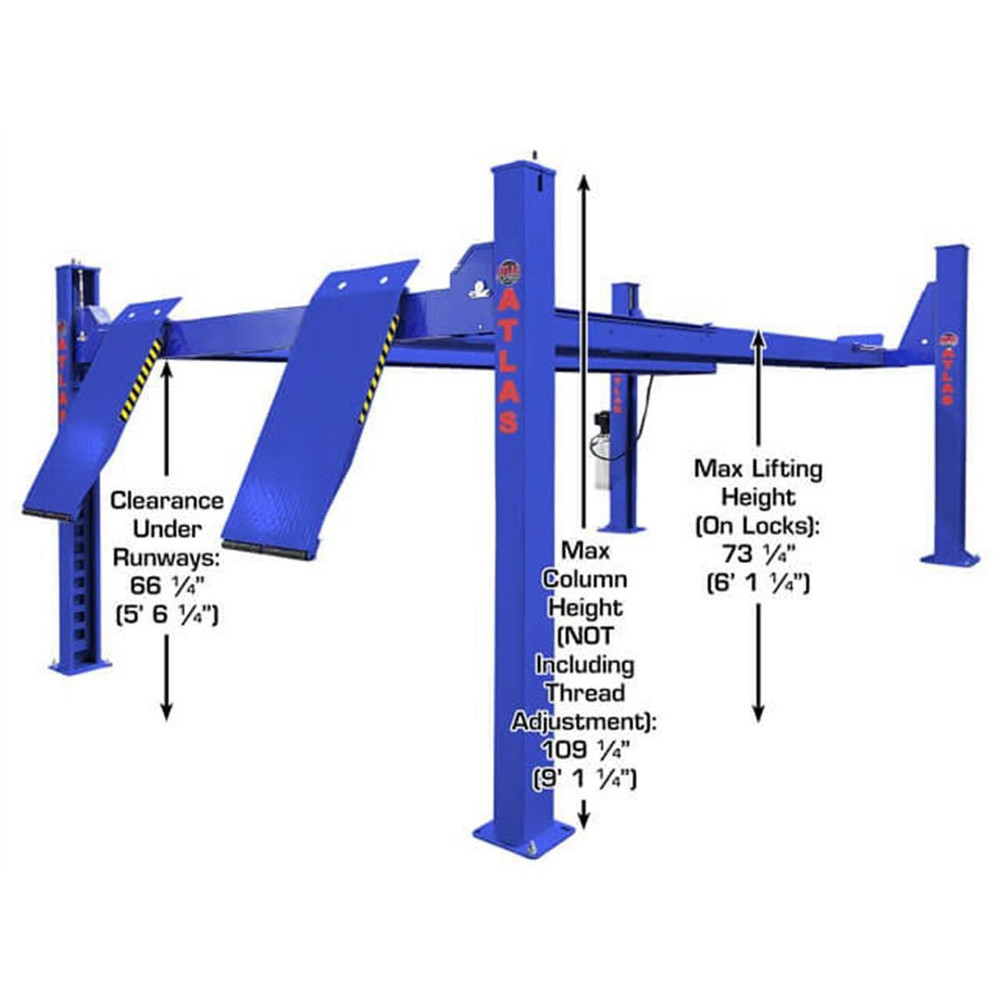

- Lifting Height 73 1/4" (6' 1 1/4")

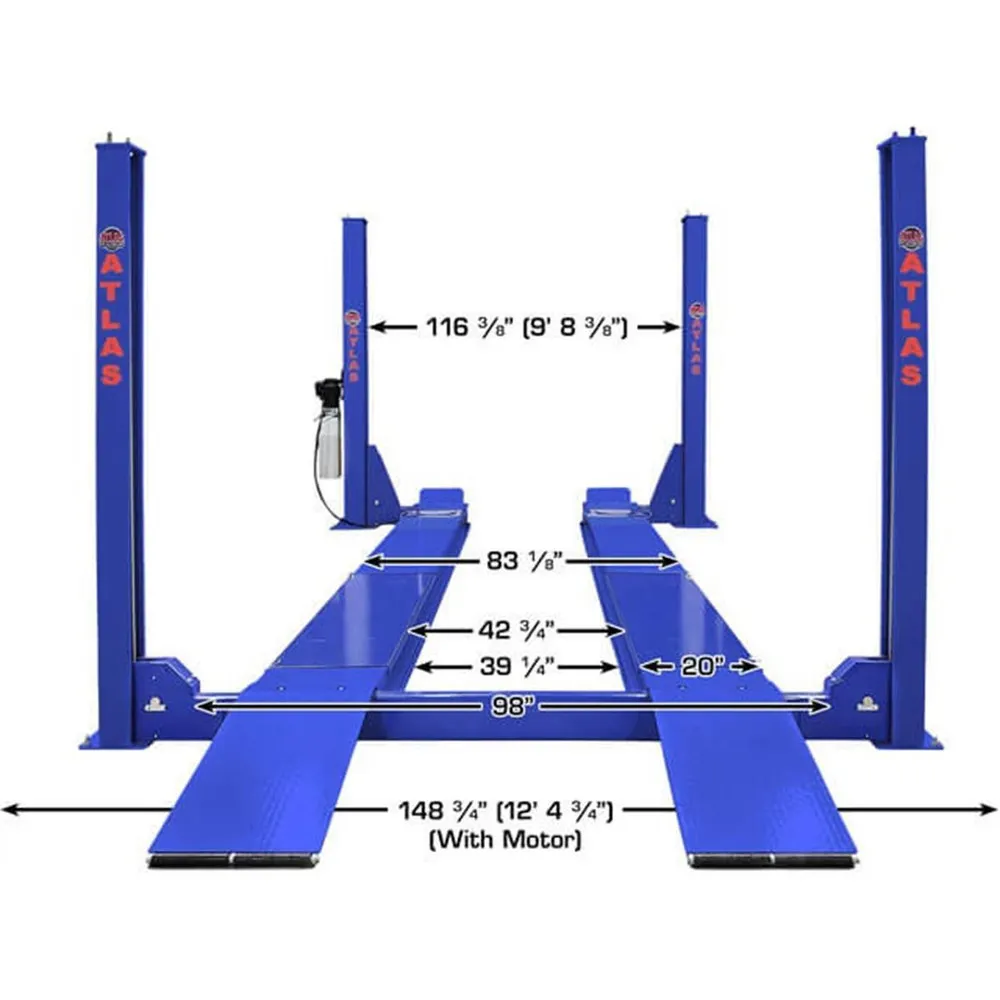

- Overall Width Of Columns (Without Motor) 140 1/8" (11' 8 1/8")
- Overall Width Of Columns (With Motor) 148 3/4" (12' 4 3/4")
- Overall Length With Approach Ramp 272 1/8" (22' 8 1/8")
- Length Between Columns 207" (17' 3")
- Runway Length 223 1/2" (18' 7 1/2")
- Runway Width 20"
- Thickness Of Runway 7"
- Width Between Runways 42 3/4" (w/ Rail 39 1/4")
- Outside Runway To Outside Runway 83 1/8" (6' 11 1/8")
- Clearance Under Runways 66 1/4" (5' 6 1/4")
- Clearance Between Columns 116 3/8" (9' 8 3/8")

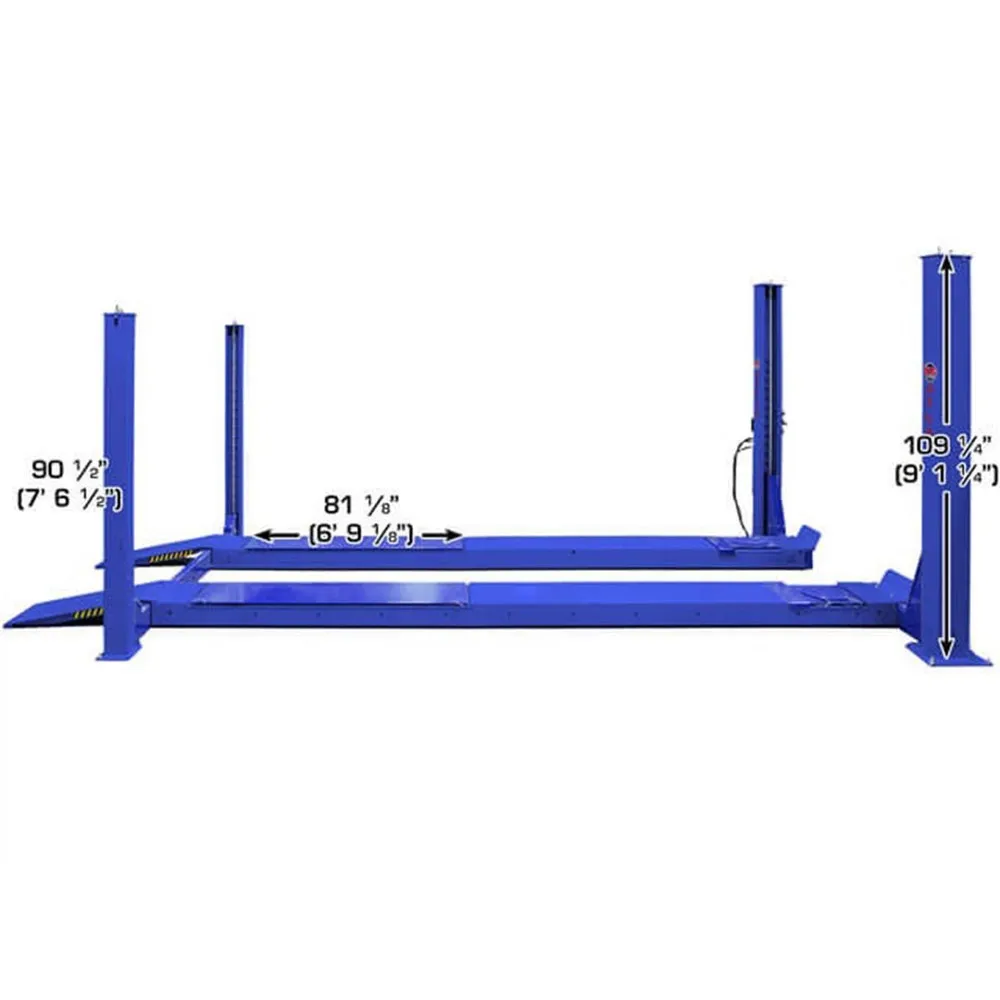

- Height Of Columns 92 1/2" (7' 8 1/2") Rear/109 1/4" (9' 1 1/4") Front
- Maximum Wheel Base 203" (16' 11")
- Drive Thru 94 1/2" (7' 10 1/2")
- Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

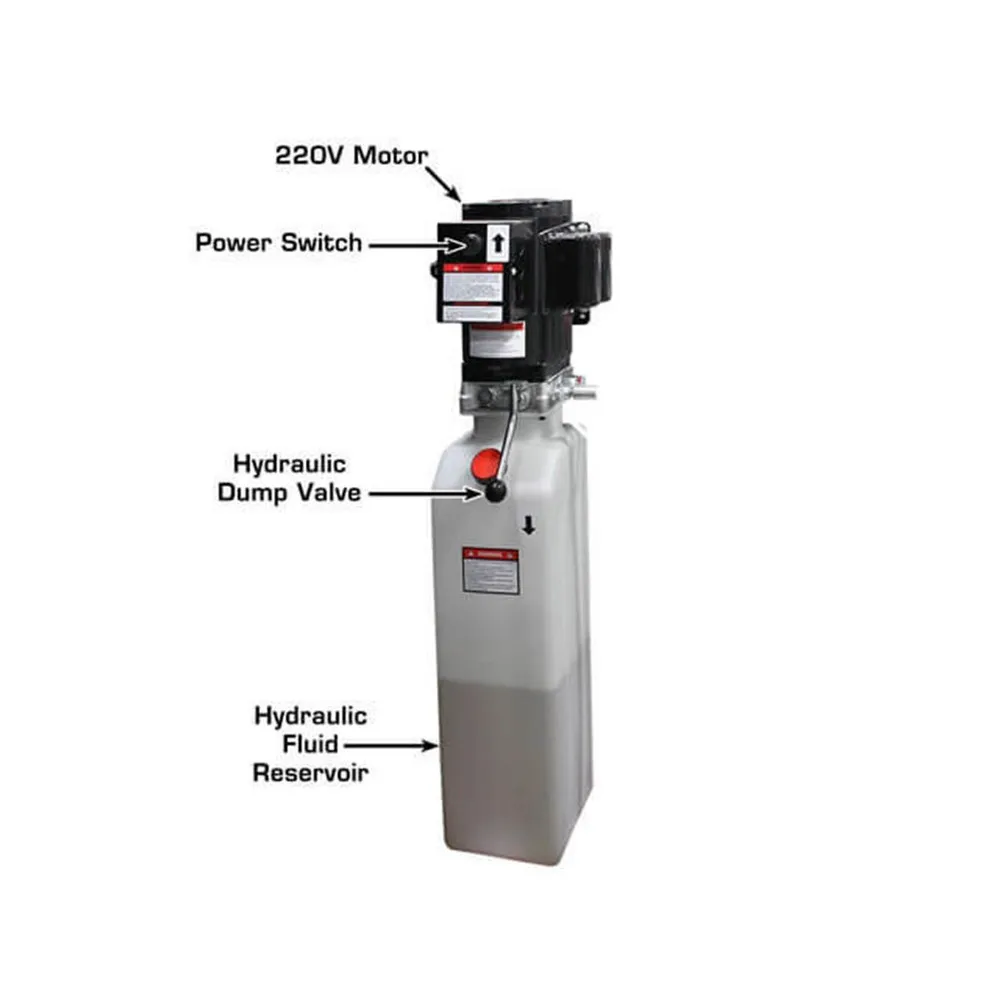

- Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
- Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

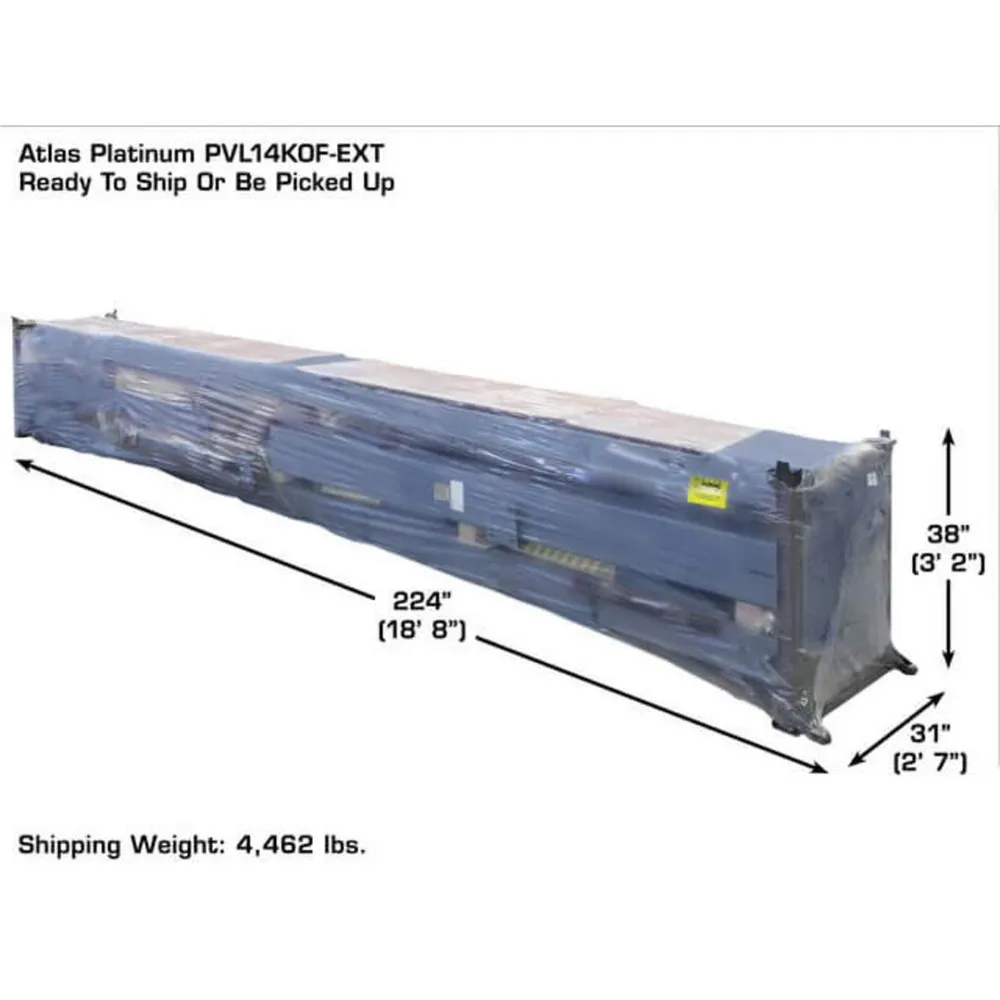

- Shipping Weight 4,462 LBS.

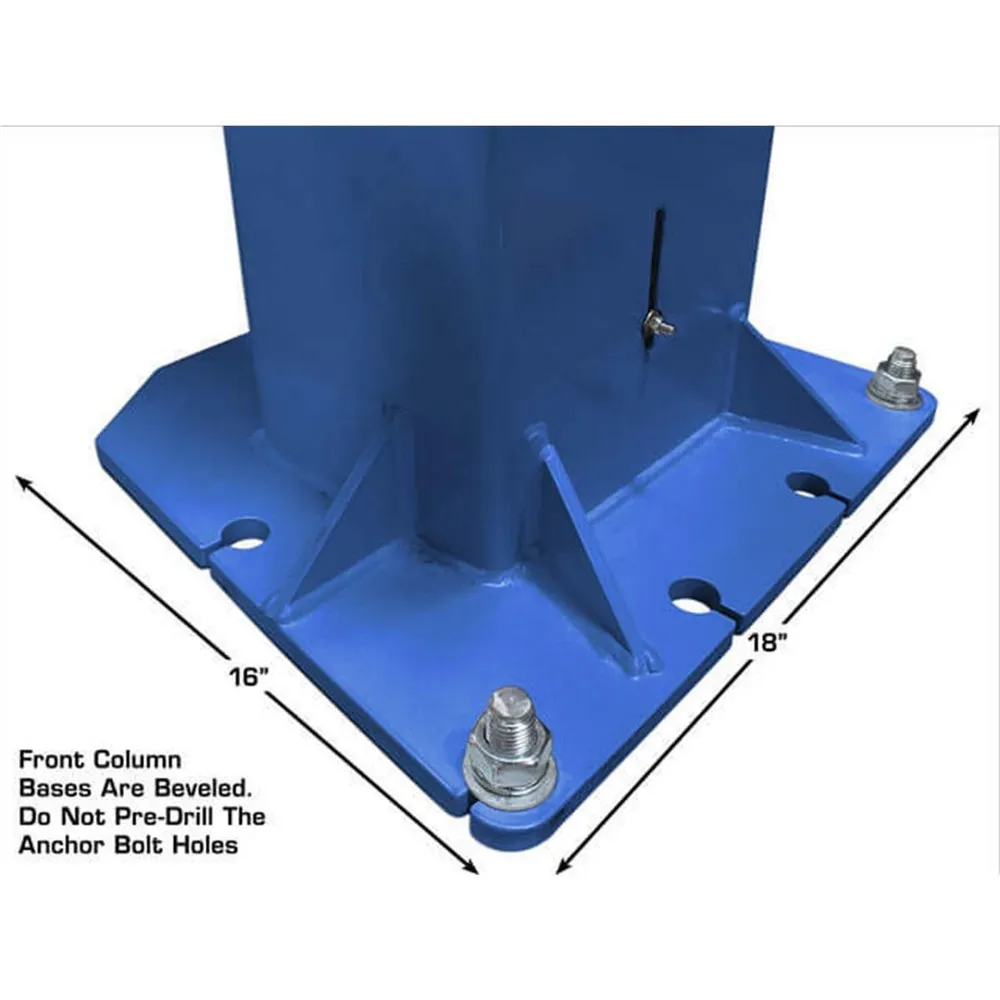

- Requires a minimum of 6" of concrete with a 3000 psi. rating
The Atlas® Platinum RJ7000 Specifications:
- Minimum Width: 36"
- Maximum Width: 45 1/2"
- Distance Between Runway Capability: 36" - 45"
- Minimum Lifting Height: 12 1/2"
- Maximum Lifting Height (w/ Adapters): 27 1/2"
- Double Screw-Up Adapter Pad 1 1/2" - 4"
Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Alignment Combo Kits.
