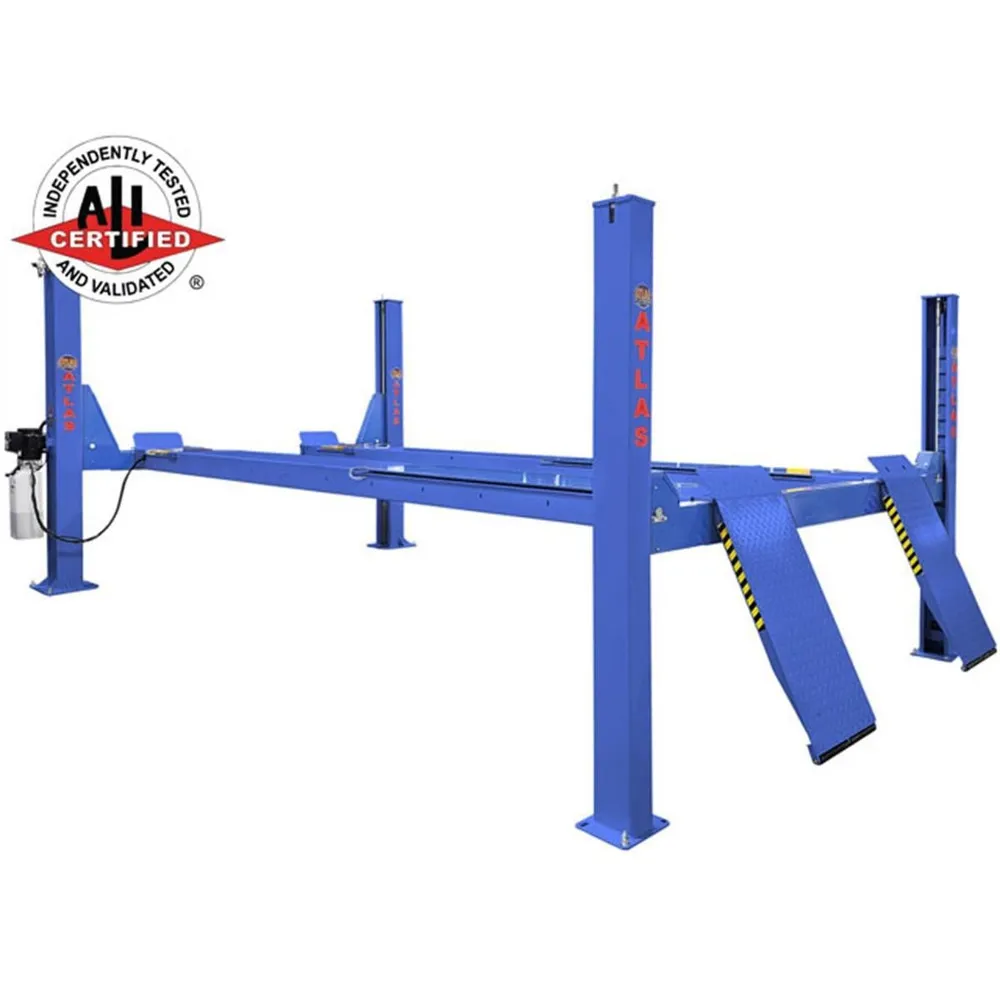

Atlas Platinum PVL14OF-EXT ALI Certified Open Front Alignment 14,000 lb. 4-Post Lift

Description

Shop the Atlas Platinum PVL14OF-EXT ALI Certified Open Front Alignment 14,000 lb. 4-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• ALI Certified Lift
• 14,000 lb. Capacity
• Heavy Duty, Commercial Grade

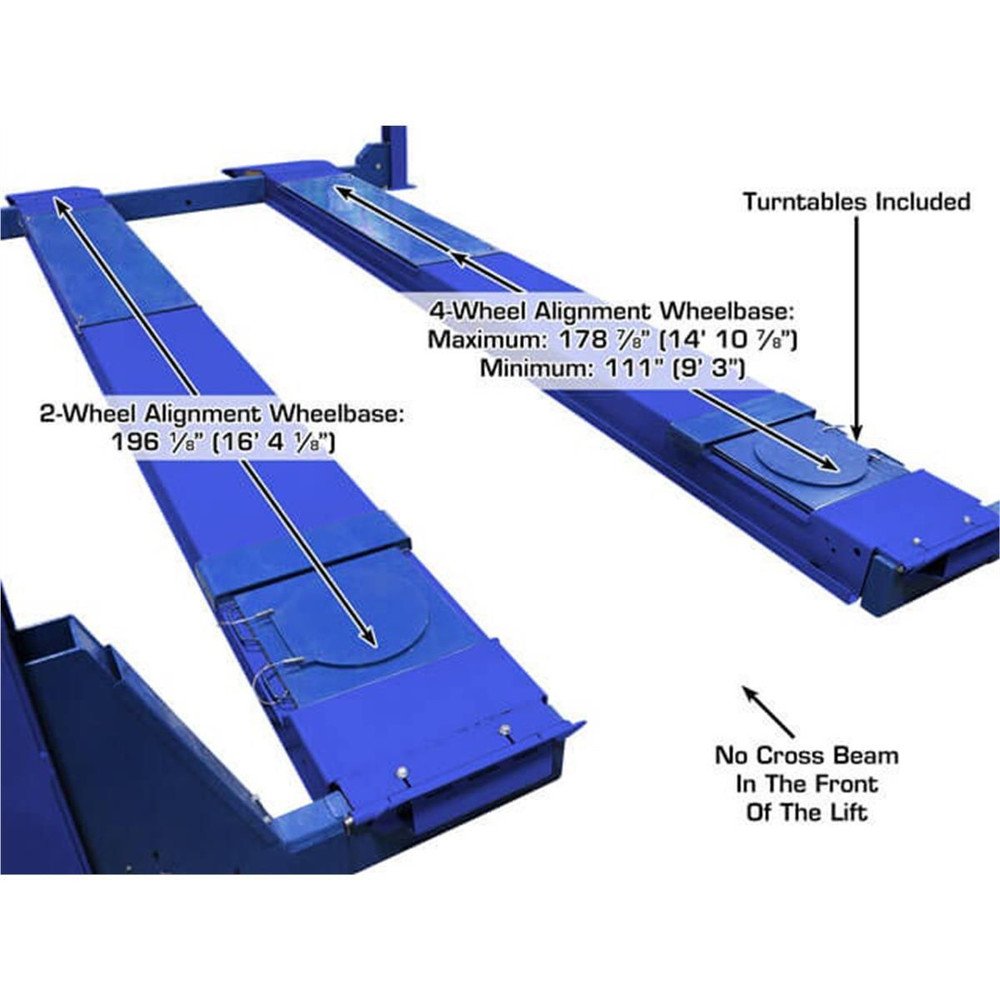

• Alignment Lift, Includes Built in Slip Plates & Turntables
• Open Front Design for Better Access
• Extra Long Runways

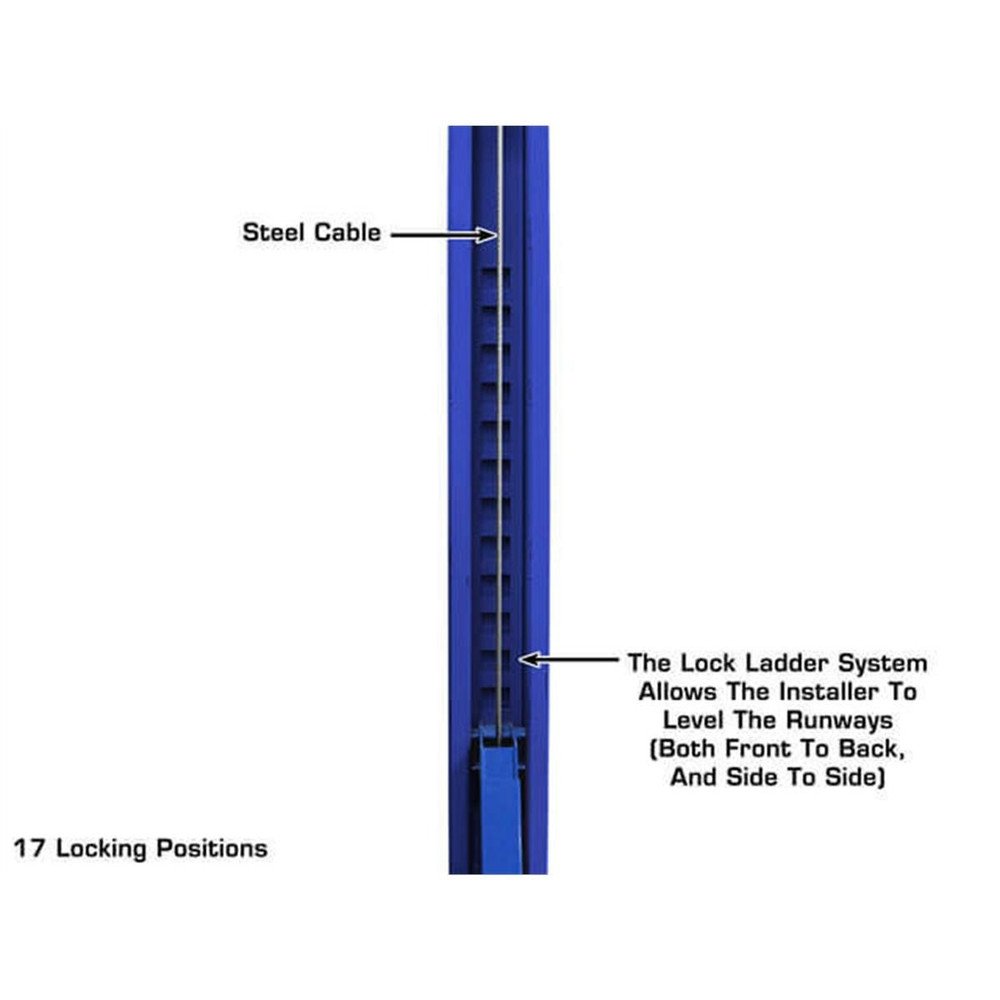

• Adjustable Lock Ladder Design
• Higher Quality Powder Coat Finish

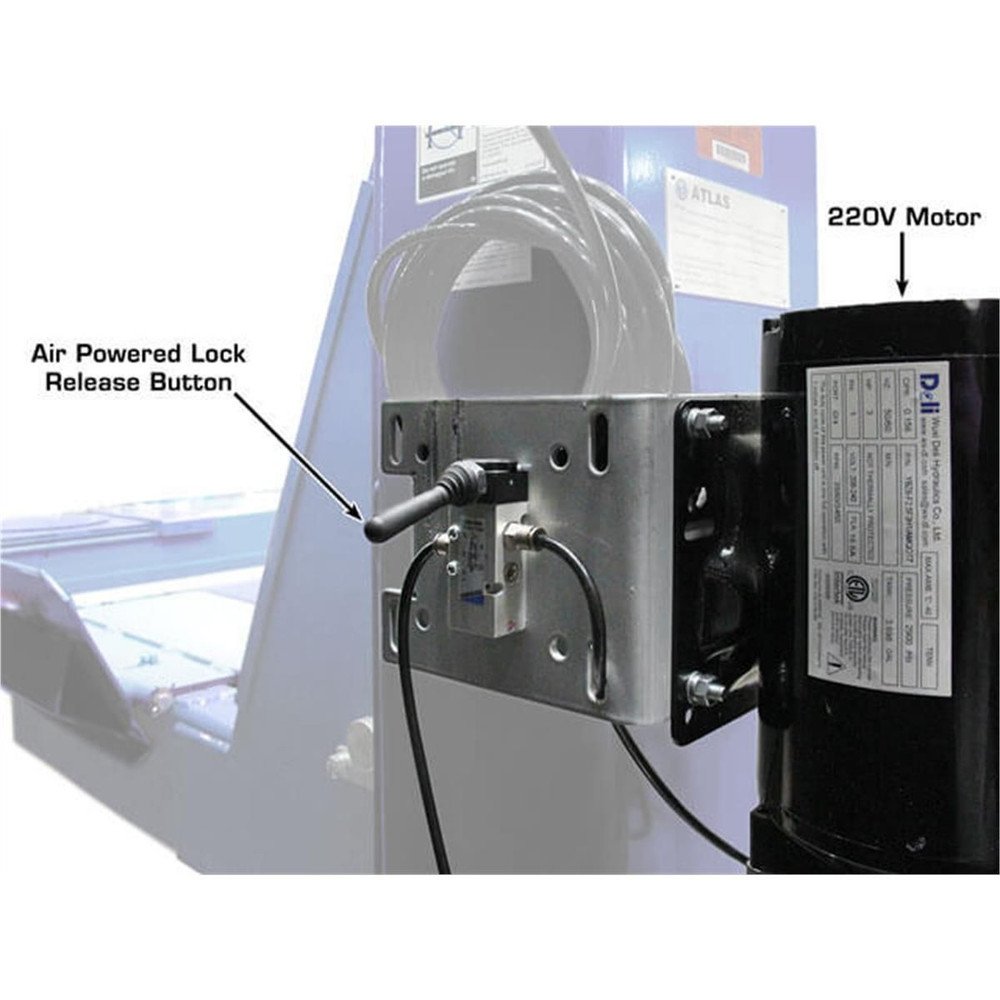

• Air Operated Single Point Lock Release (External Air Supply Required)
• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish

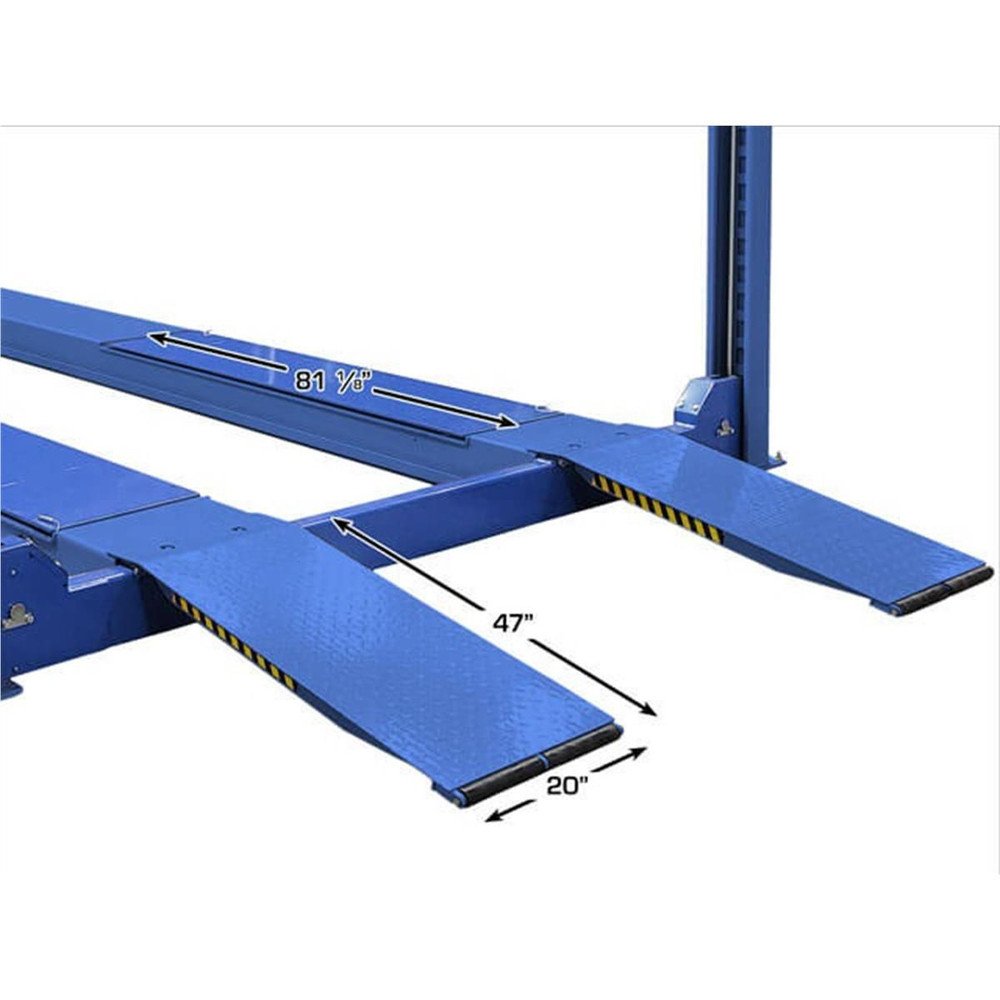

• Steel Approach Ramps Included

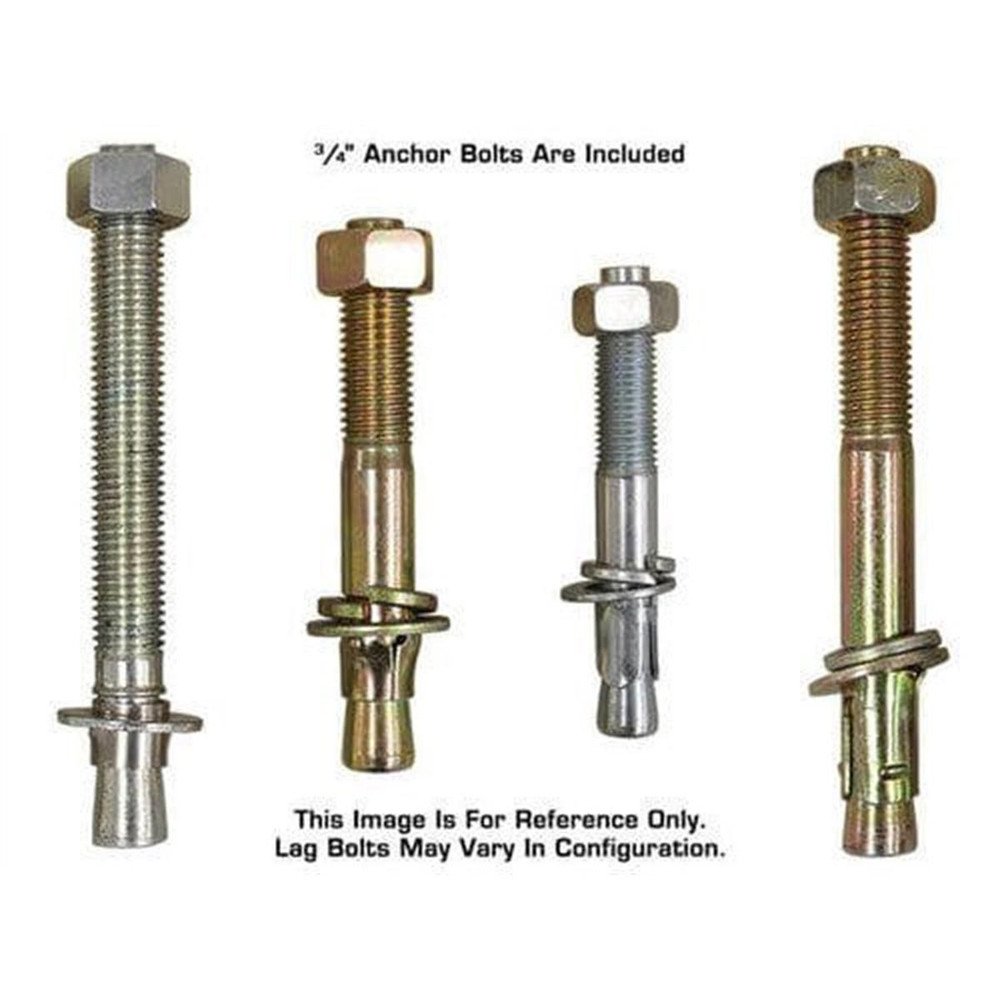

• Mounting Hardware Included

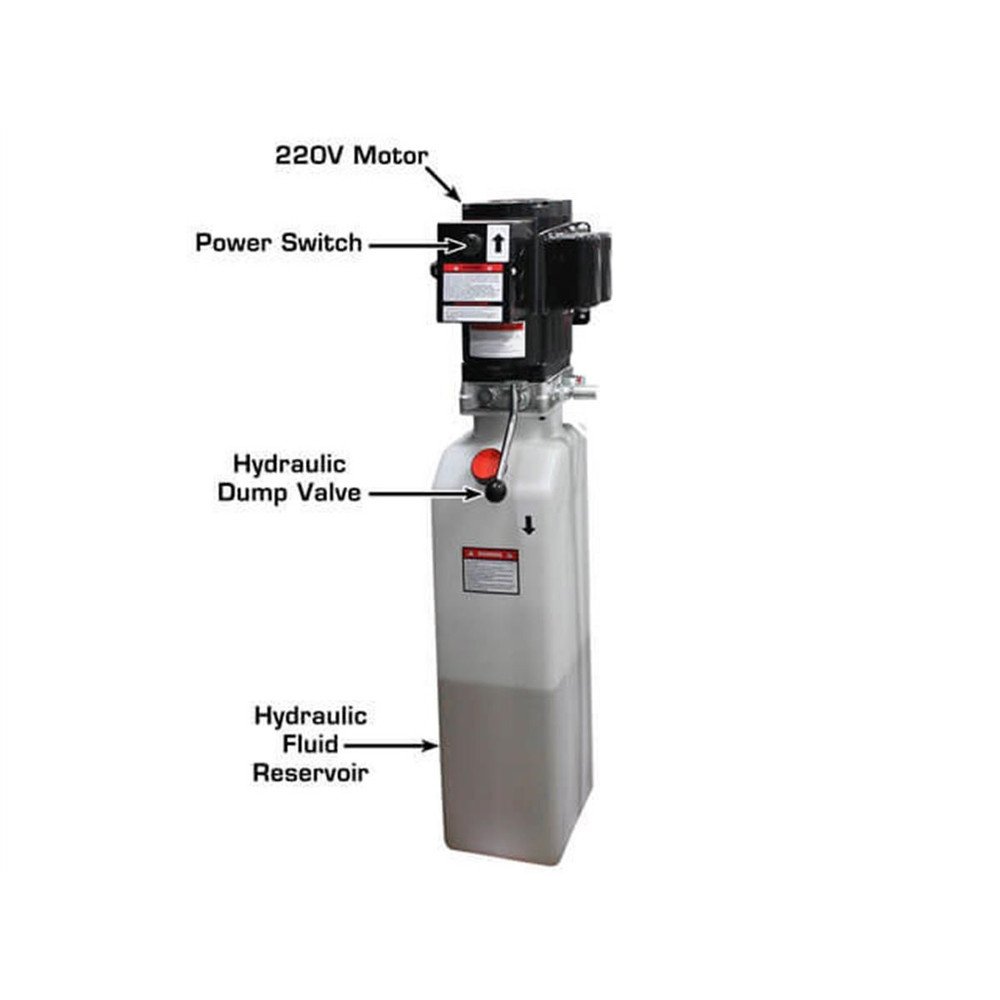

• Standard with Premium ALLY Power unit
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• Shipping Weight: 4,462 LB.
• 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty
• This part number Freight Prepaid

Atlas® Platinum PVL14OF-EXT Specifications

• Capacity 14,000 lb.

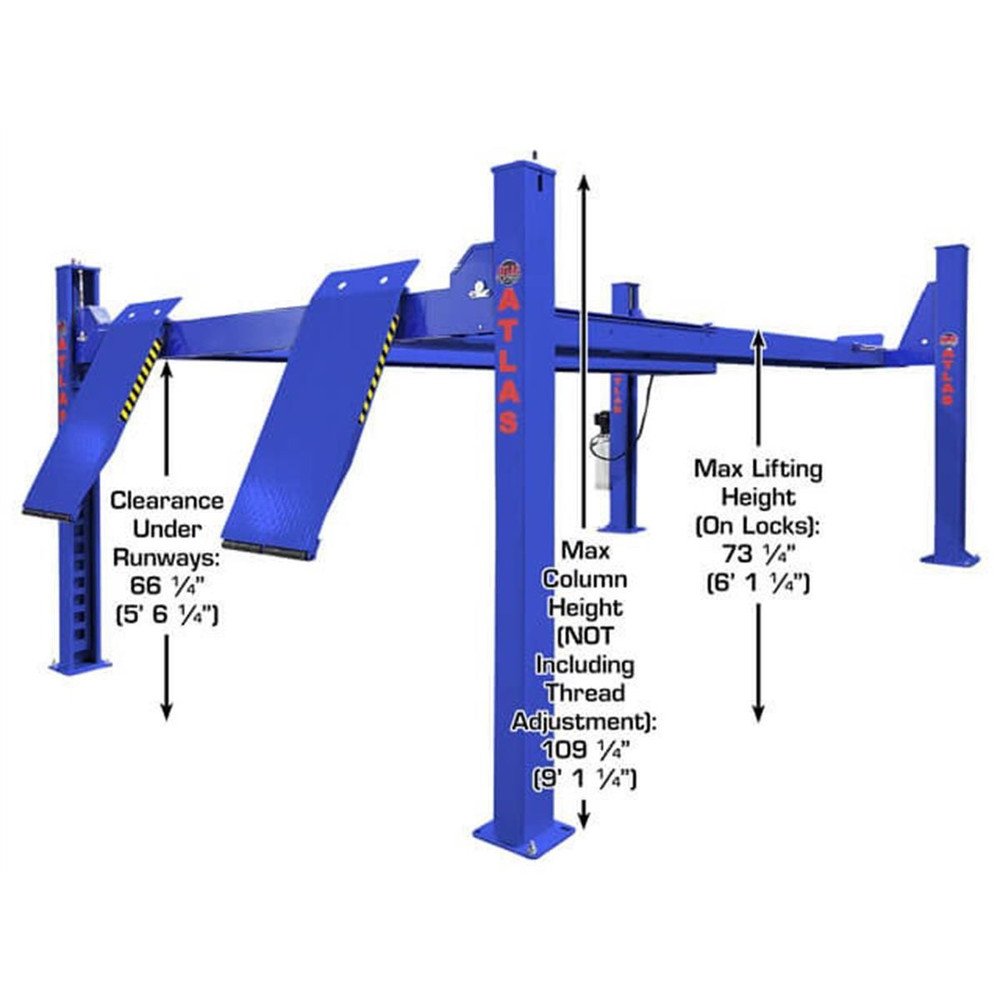

• Lifting Height 73 1/4″ (6′ 1 1/4″)

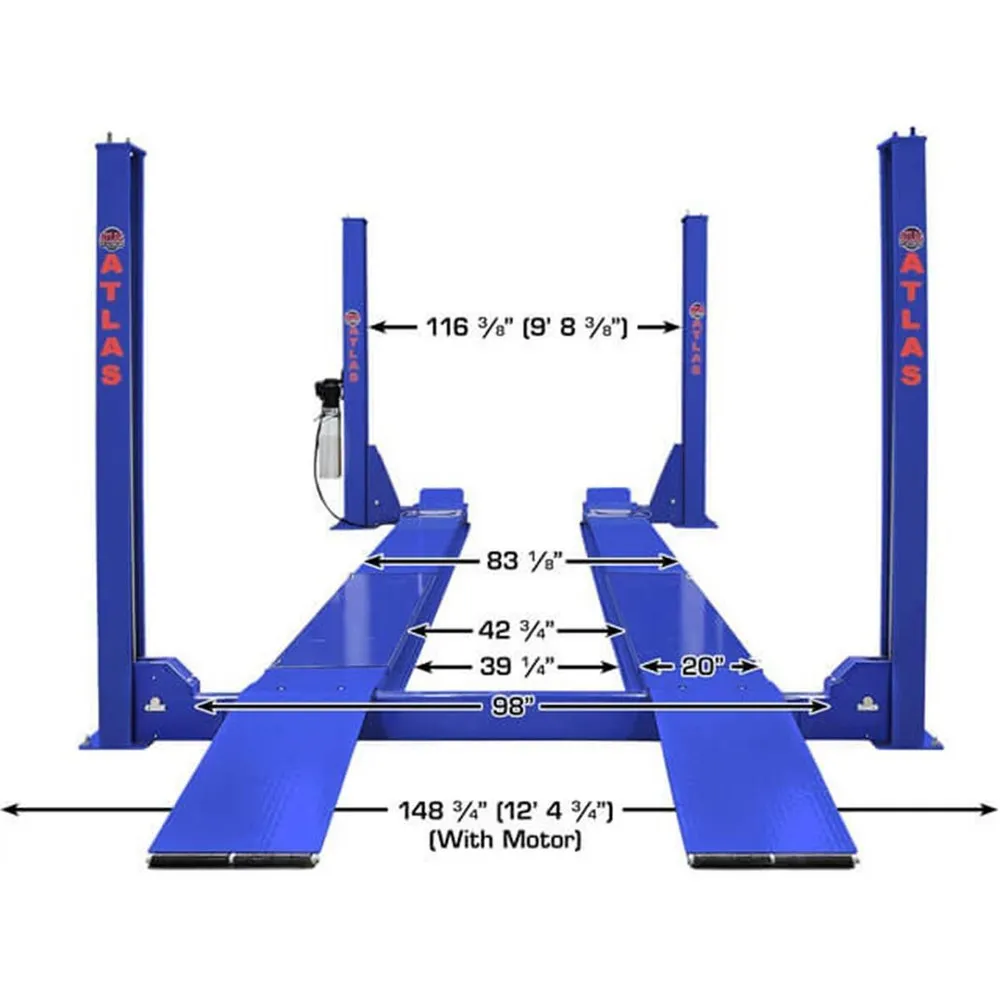

• Overall Width Of Columns (Without Motor) 140 1/8″ (11′ 8 1/8″)
• Overall Width Of Columns (With Motor) 148 3/4″ (12′ 4 3/4″)
• Overall Length With Approach Ramp 272 1/8″ (22′ 8 1/8″)
• Length Between Columns 207″ (17′ 3″)
• Runway Length 223 1/2″ (18′ 7 1/2″)
• Runway Width 20″
• Thickness Of Runway 7″
• Width Between Runways 42 3/4″ (w/ Rail 39 1/4″)
• Outside Runway To Outside Runway 83 1/8″ (6′ 11 1/8″)
• Clearance Under Runways 66 1/4″ (5′ 6 1/4″)
• Clearance Between Columns 116 3/8″ (9′ 8 3/8″)

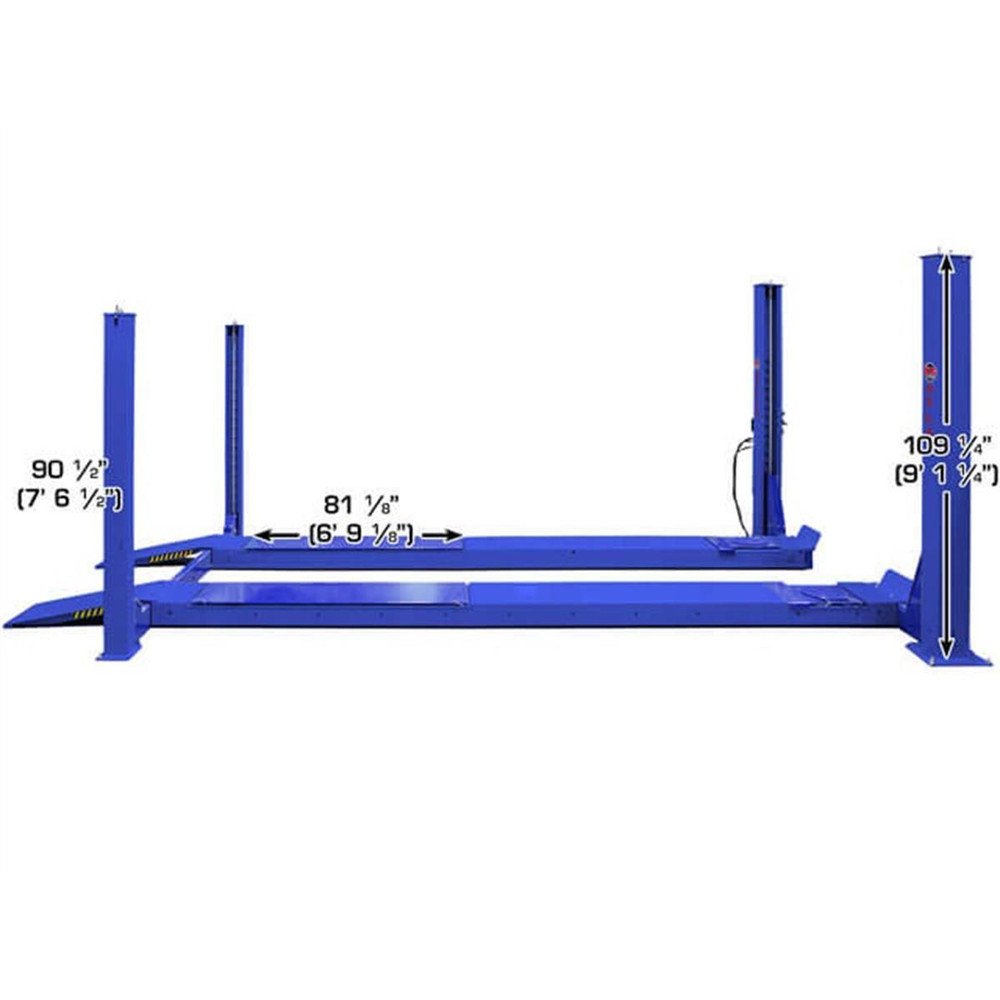

• Height Of Columns 92 1/2″ (7′ 8 1/2″) Rear/109 1/4″ (9′ 1 1/4″) Front
• Maximum Wheel Base 203″ (16′ 11″)
• Drive Thru 94 1/2″ (7′ 10 1/2″)
• Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

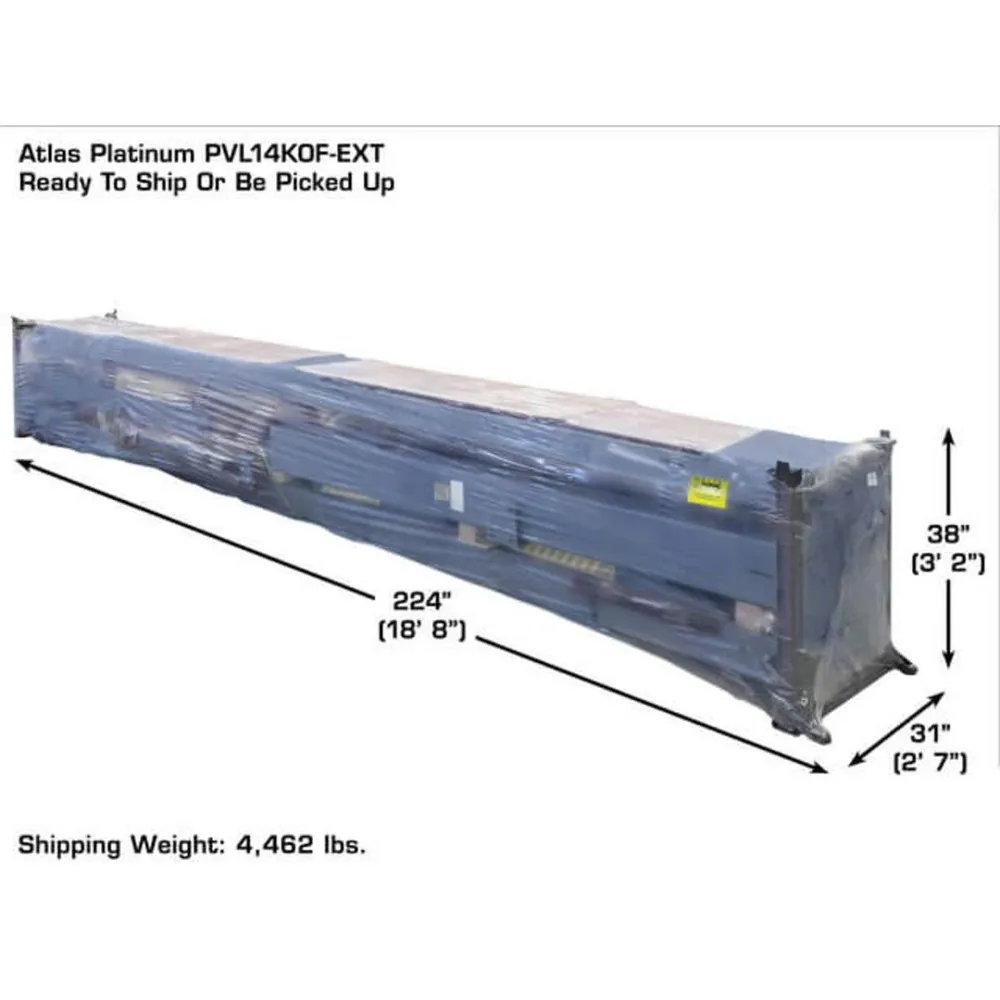

• Shipping Weight 4,462 LBS.

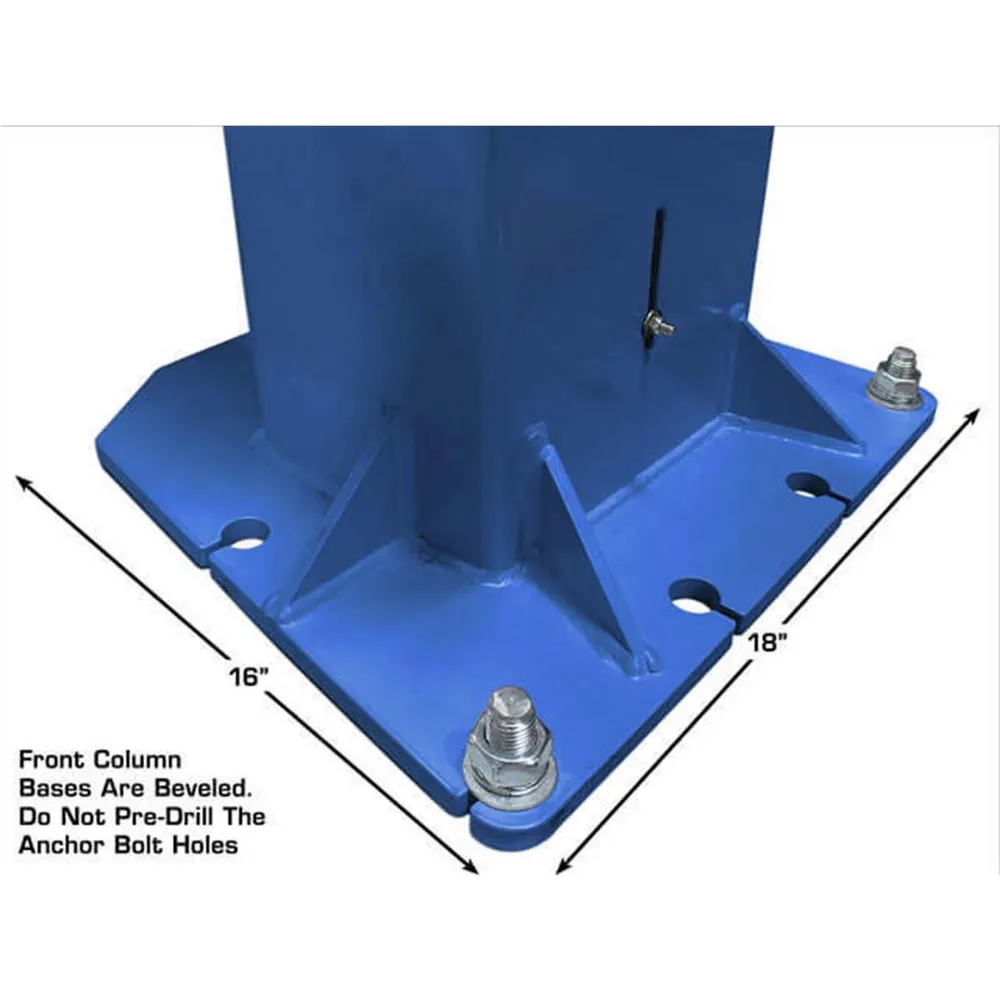

• Requires a minimum of 6″ of concrete with a 3000 psi. rating
