Atlas Platinum PVL14 ALI Certified Complete Alignment Combo

Description

Features and Benefits:

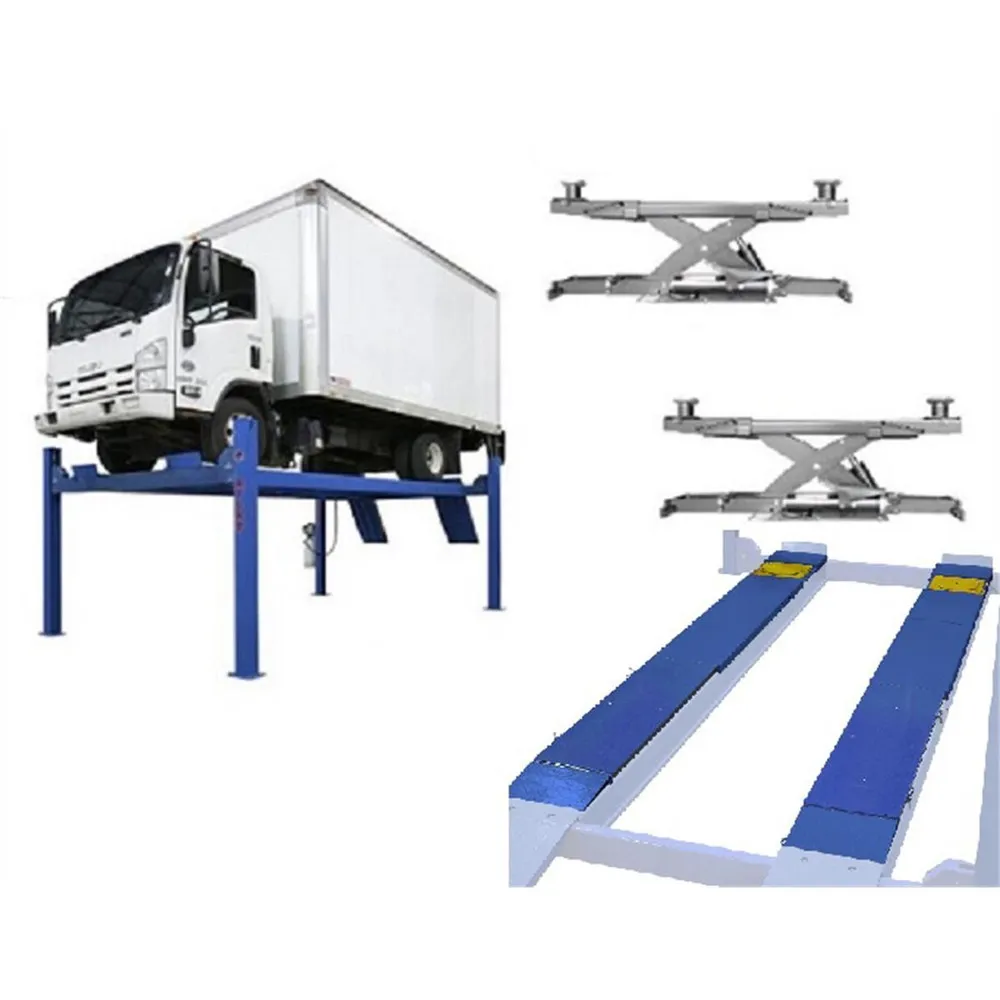

• ALI CertifiedCombo iincludes PVL14 14,000 lb. lift, Alignment Kit, & two RJ7000 rolling jacks
• Heavy Duty, Commercial Grade
• Lift is Extra Tall, Extra Wide & Extra Long

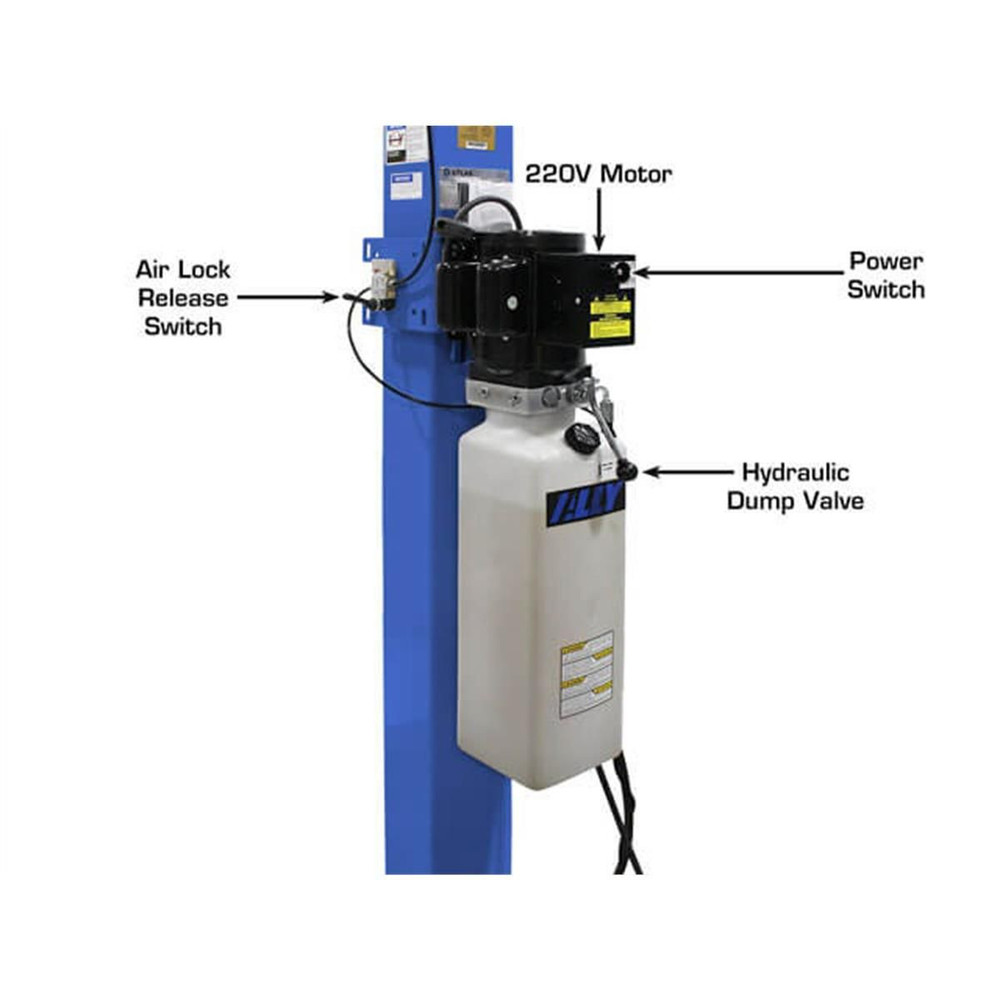

• Lift has Air Operated Single Point Lock Release (External Air Supply Required – NOT INCLUDED)
• Steel Approach Ramps Included
• Additional Drive off Ramps Available (Sold Separately)

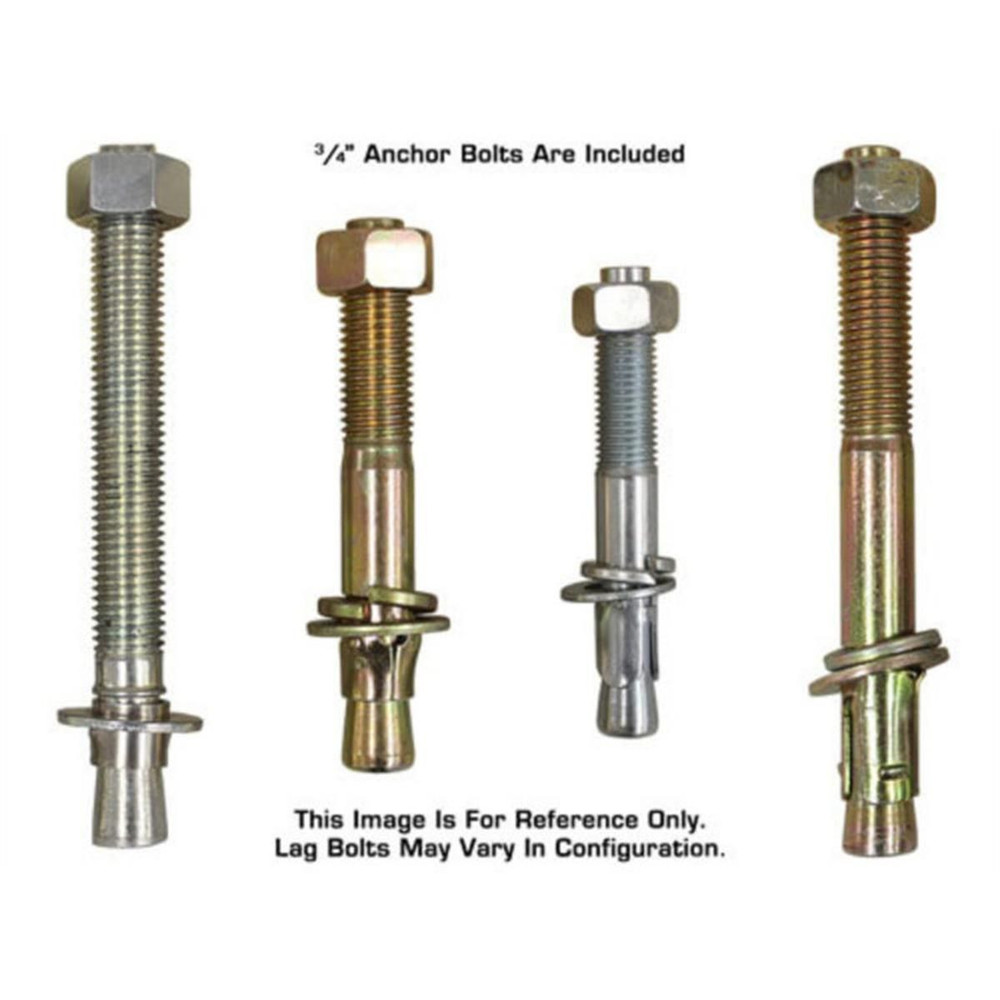

• Mounting Hardware Included
• Alignment Kit Includes Spacers, Ramps, Slip Plates, and Turntables
• Alignment Kit Bolts on Runways
• Truck Adapter Set for each Jack Included
• This part number FREIGHT PREPAID

Atlas® Platinum PVL14 Specifications

• Capacity 14,000 lb.

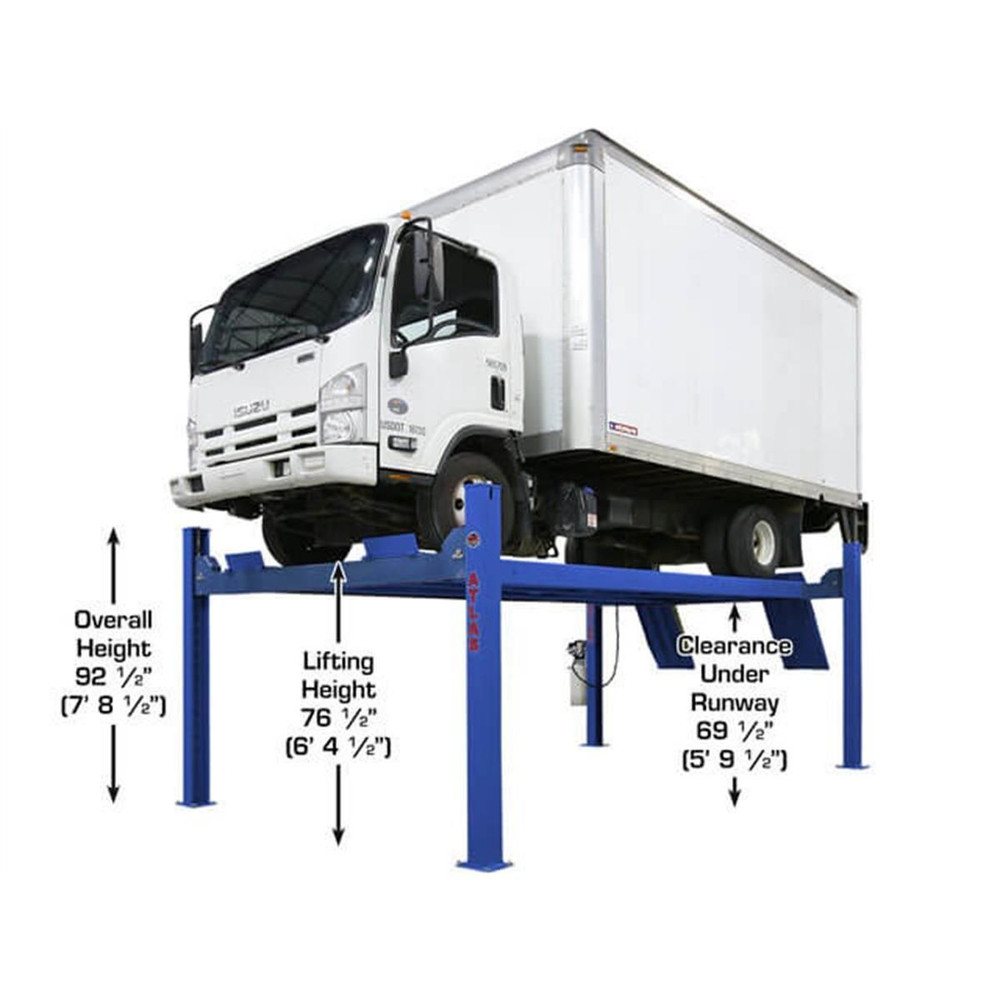

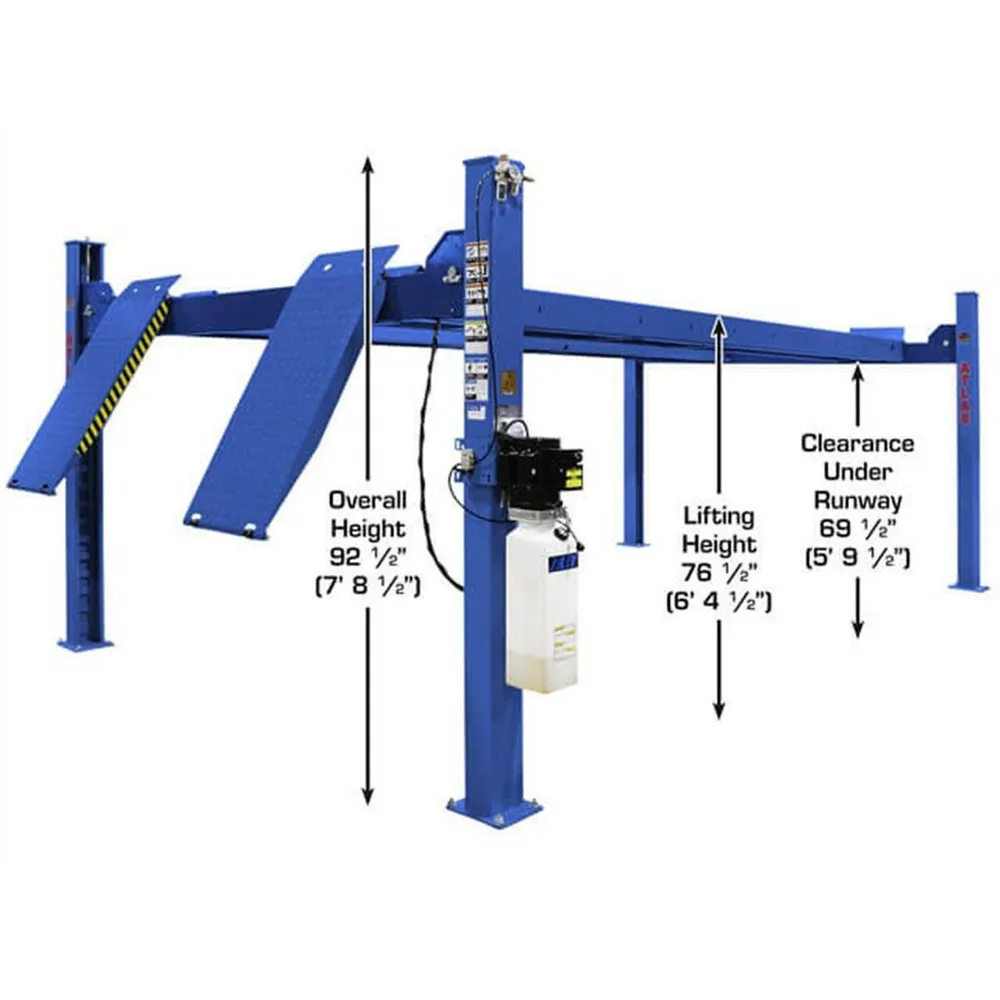

• Lifting Height 76 1/2″ (6′ 4 1/2″)

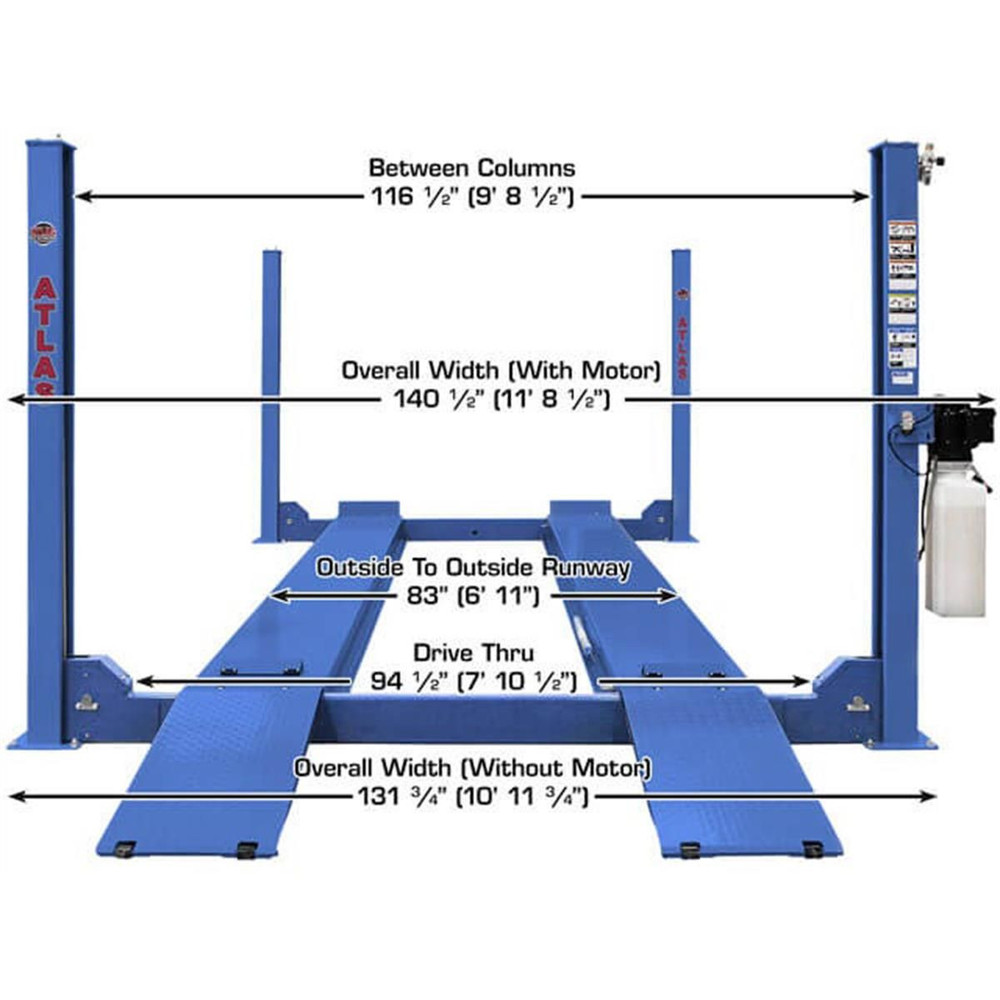

• Overall Width Of Columns (Without Motor) 131 3/4″ (10′ 11 3/4″)
• Overall Width Of Columns (With Motor) 140 1/2″ (11′ 8 1/2″)

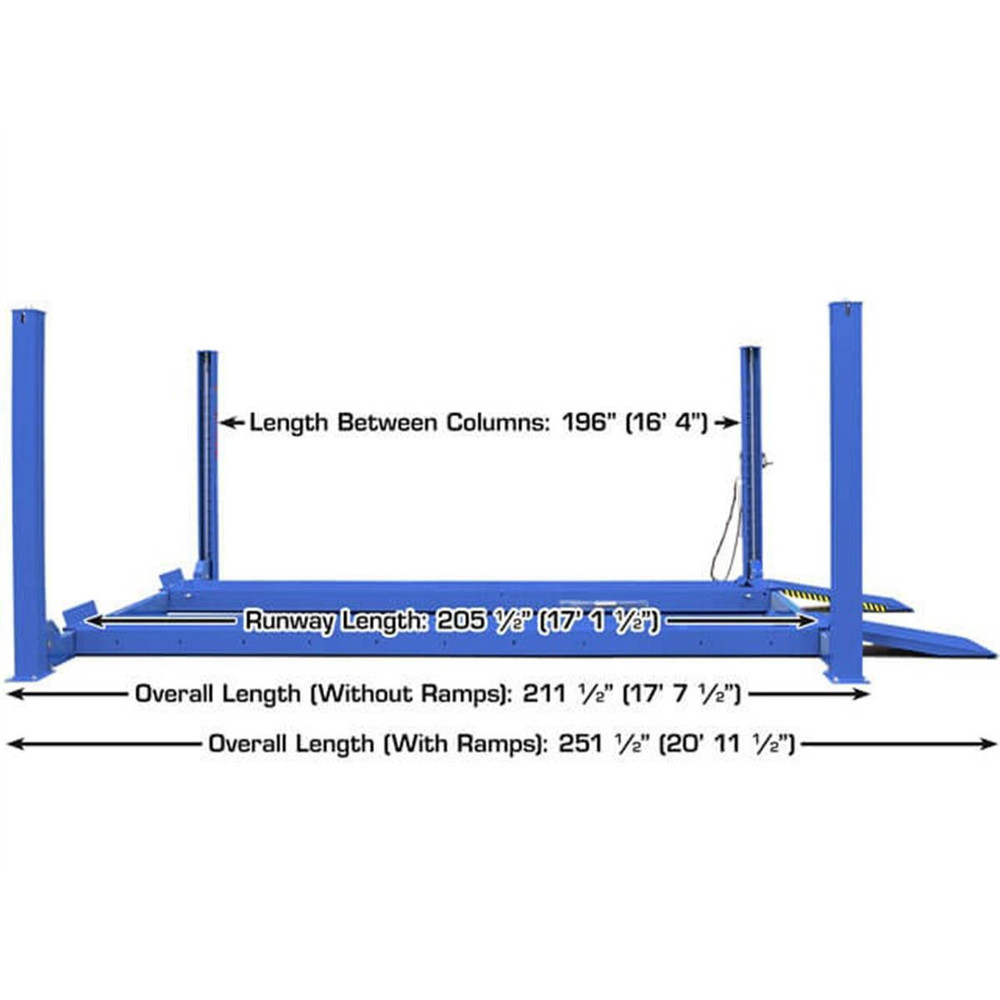

• Overall Length With Approach Ramp 251 1/2″ (20′ 11 1/2″)

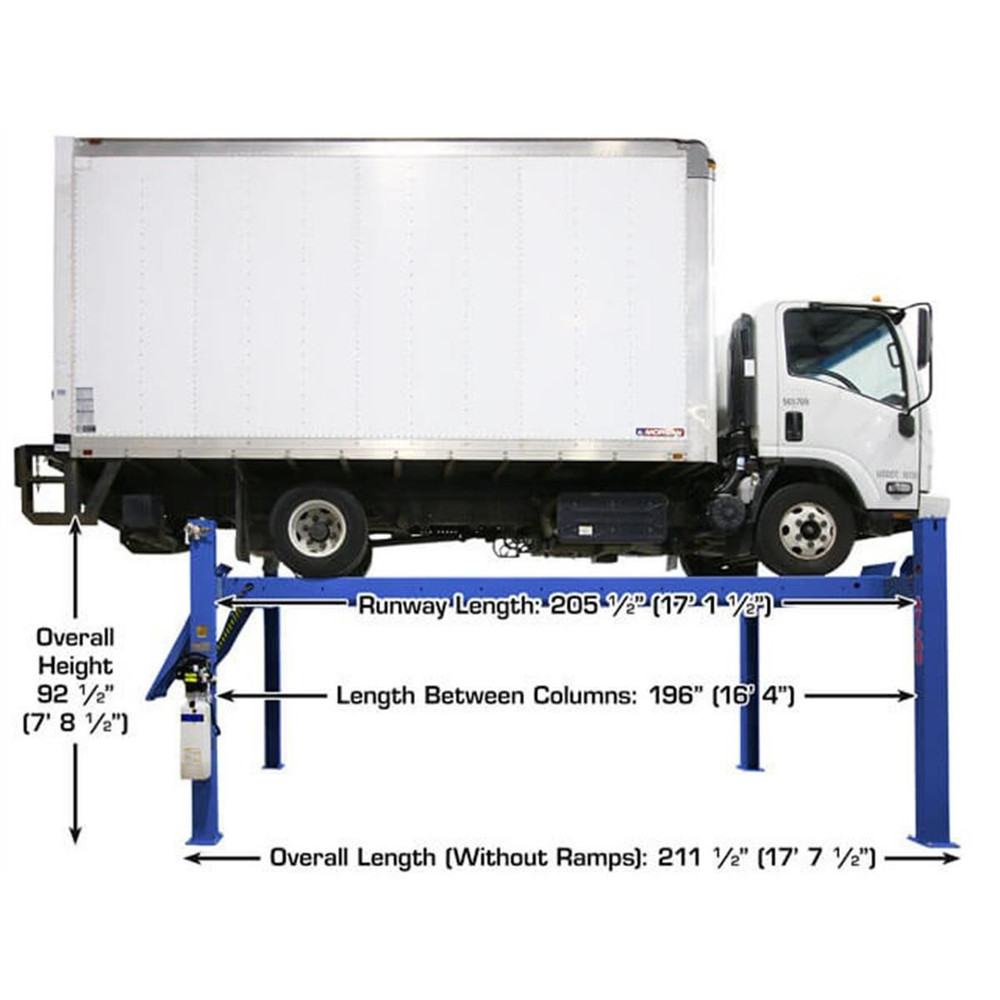

• Length Between Columns 196″ (16′ 4″)
• Runway Length 205 1/2″ (17′ 1 1/2″)

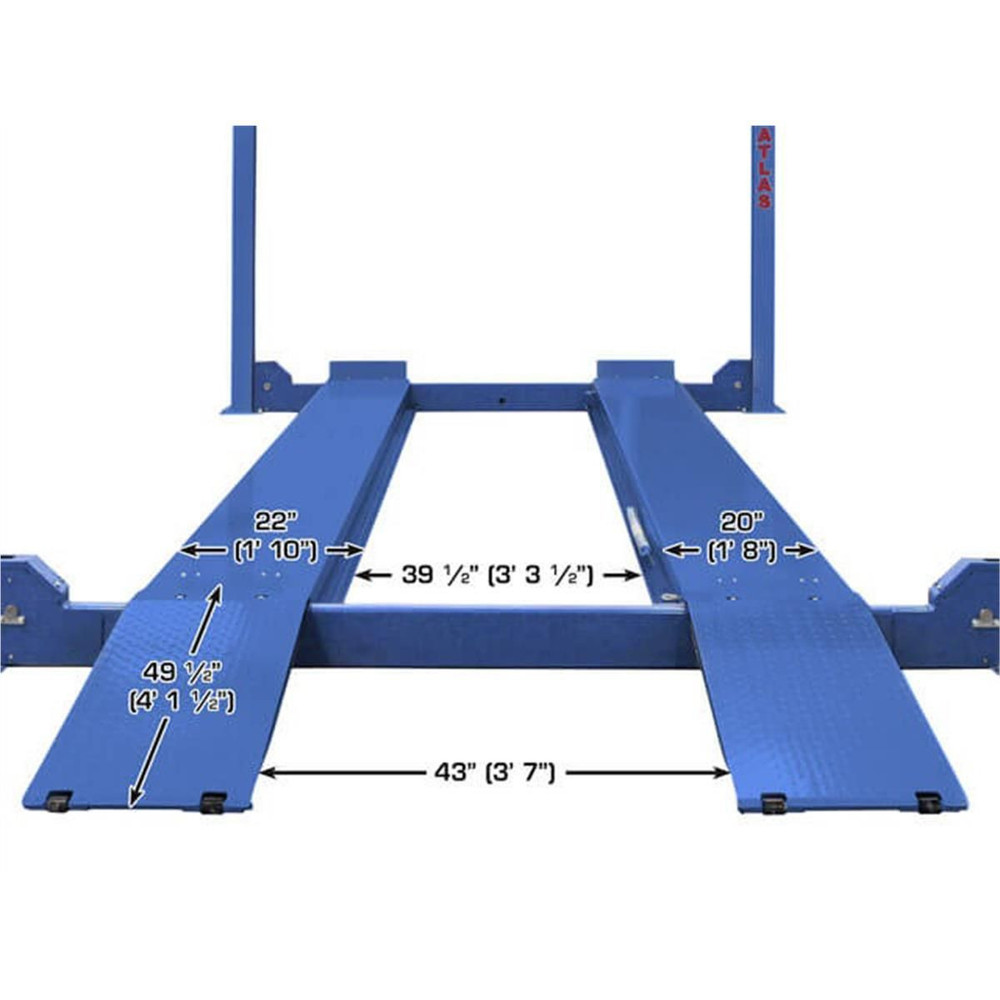

• Runway Width 20″
• Thickness Of Runway 7″
• Width Between Runways 42 3/4″ (w/ Rail 39 1/4″)
• Outside Runway To Outside Runway 83 1/8″ (6′ 11 1/8″)
• Clearance Under Runways 69 1/2″ (5′ 9 1/2″)
• Clearance Between Columns 116 3/8″ (9′ 8 3/8″)
• Height Of Columns 92 1/2″ (7′ 8 1/2″)
• Maximum Wheel Base 195″ (16′ 3″)
• Drive Thru 94 1/2″ (7′ 10 1/2″)
• Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Motor/Electrical Requirement 220 volt single (1) phase.(A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

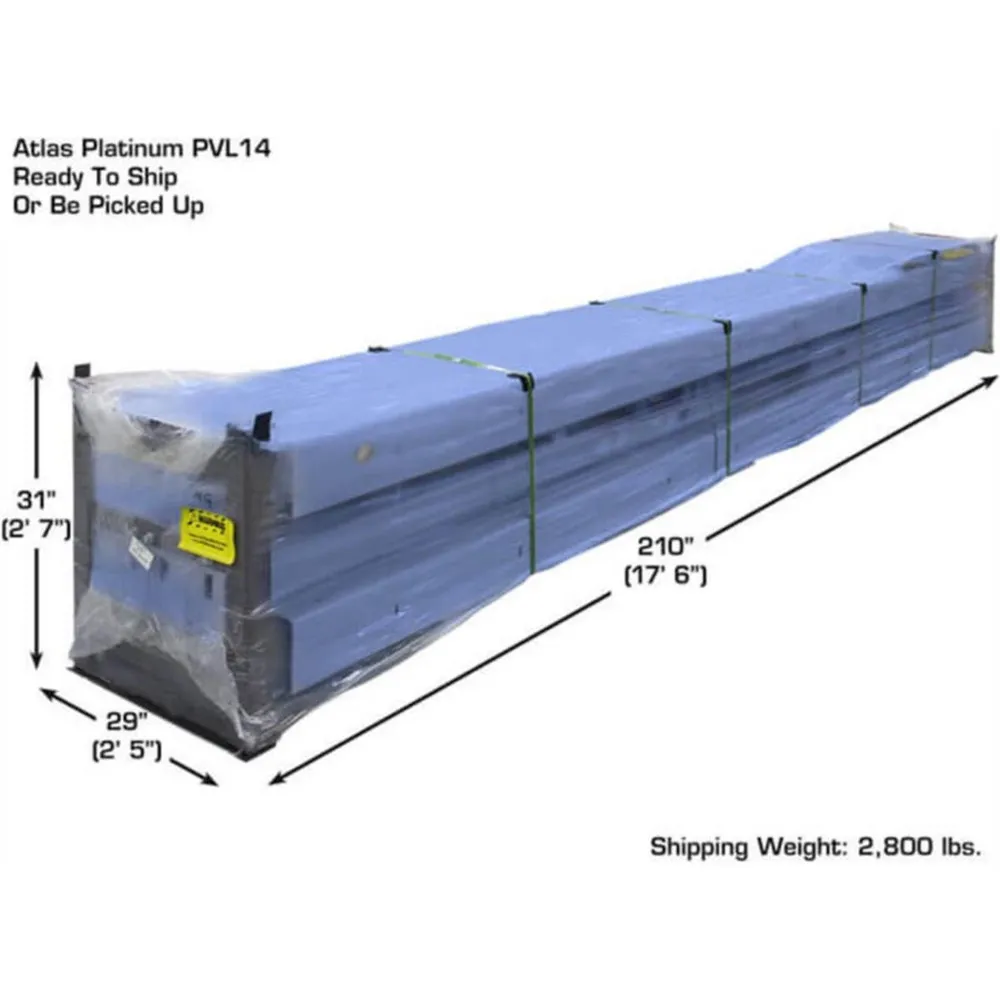

• Shipping Weight 2,800 LBS.
• Requires a minimum of 6″ of concrete with a 3000 psi. rating

The Atlas® Platinum RJ7000 Specifications:

• Minimum Width: 36″
• Maximum Width: 45 1/2″
• Distance Between Runway Capability: 36″ – 45″
• Minimum Lifting Height: 12 1/2″
• Maximum Lifting Height (w/ Adapters): 27 1/2″
• Double Screw-Up Adapter Pad 1 1/2″ – 4″
• Air Requirement: 70-115 PSI
• Shipping Weight: 390 lbs

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Alignment Combo Kits.
