Atlas 12AWFSL 12,000 lb. Capacity Alignment Scissor Lift w/ Wheels-Free System

Description

Shop the Atlas 12AWFSL 12,000 lb. Capacity Alignment Scissor Lift w/ Wheels-Free System at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features & Benefits:

• 12,000 LB. Capacity
• Commercial Grade
• Scissor Alignment Lift
• “Wheels Free” Lifting System

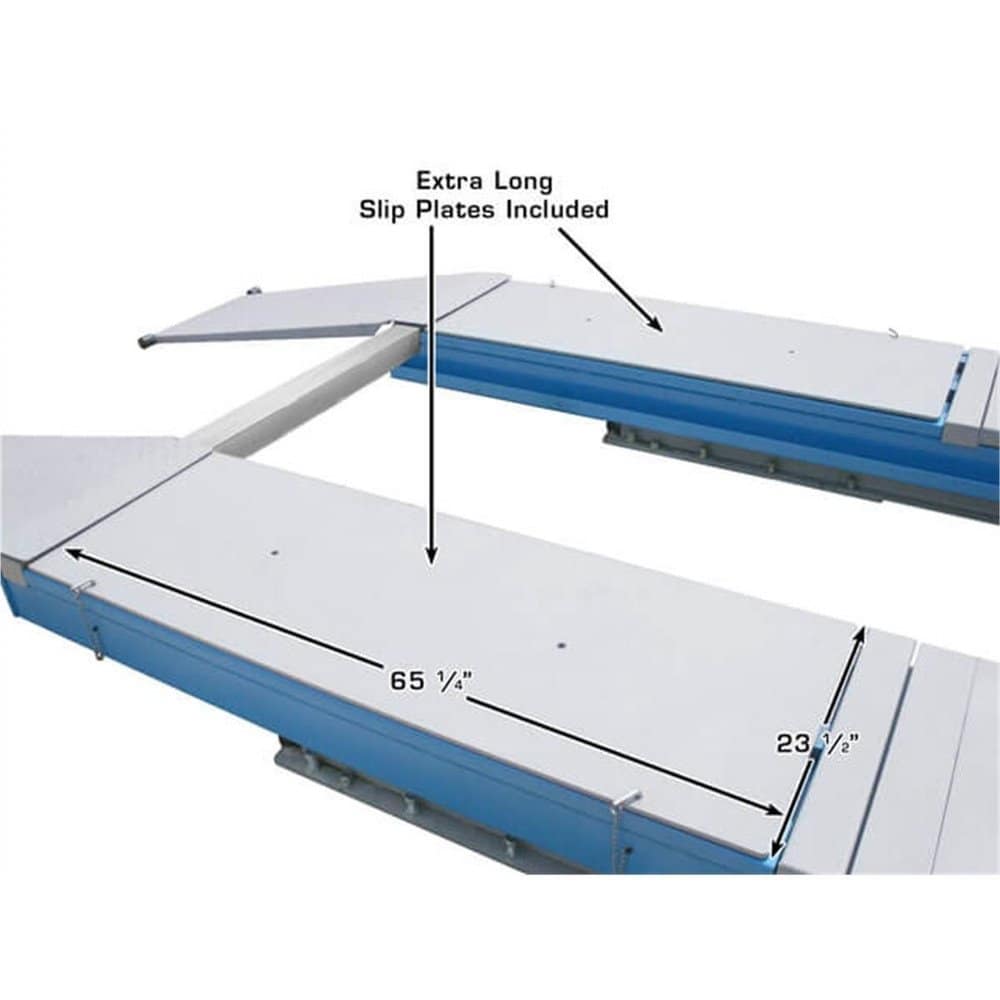

• Built in Slip Plates and Alignment Turntables Included
• Turntable Covers Included
• Open Center Design for Easy Access

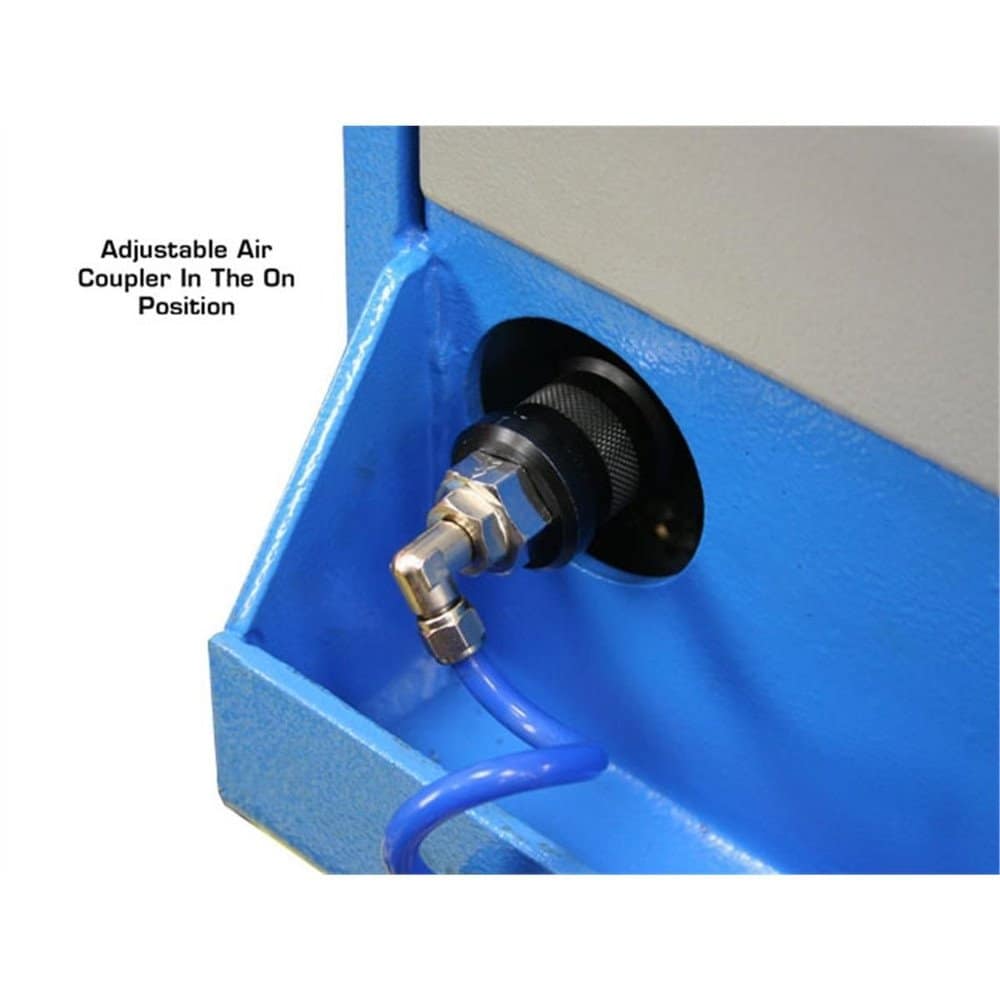

• Air-Operated Single Point Lock Release (External Air Supply Required)
• Airline Kit Included
• Precise Platform Leveling Accuracy

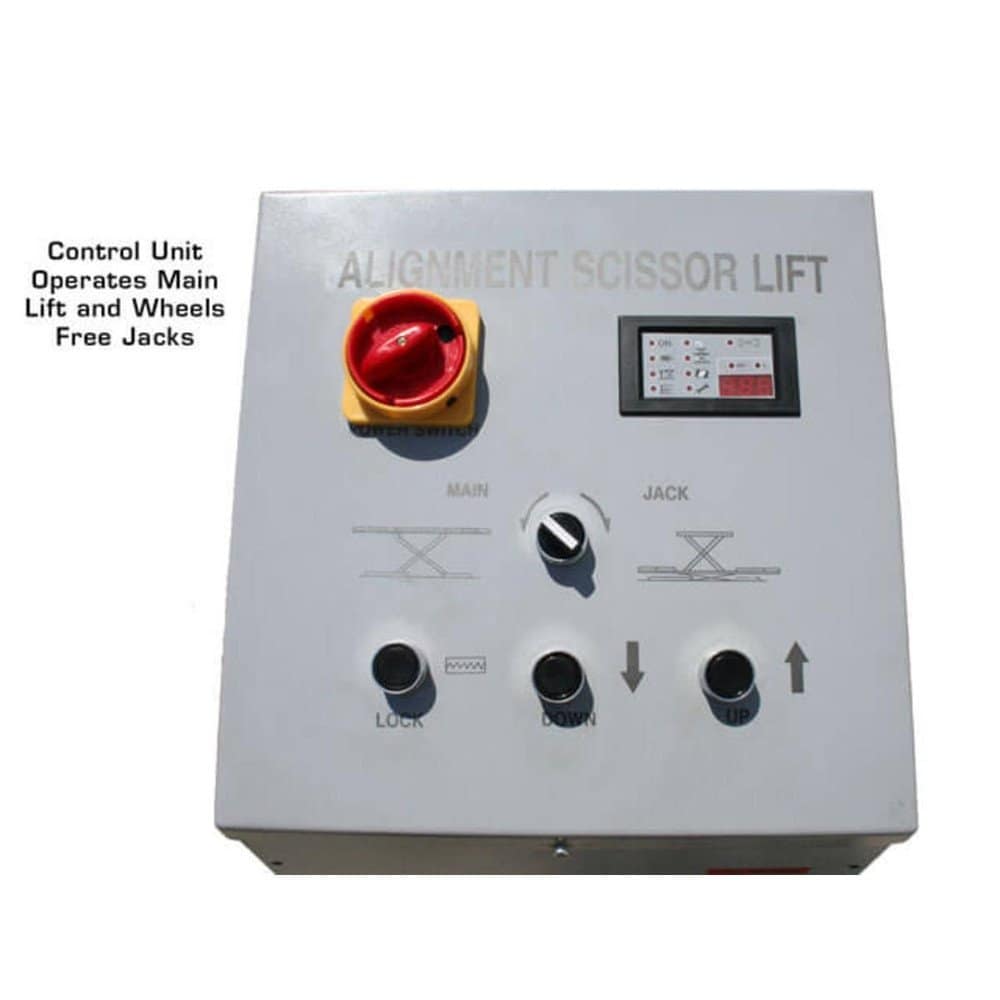

• Separate Self-Contained Control Panel
• Emergency Manual Pump for Lowering
• CE Certified

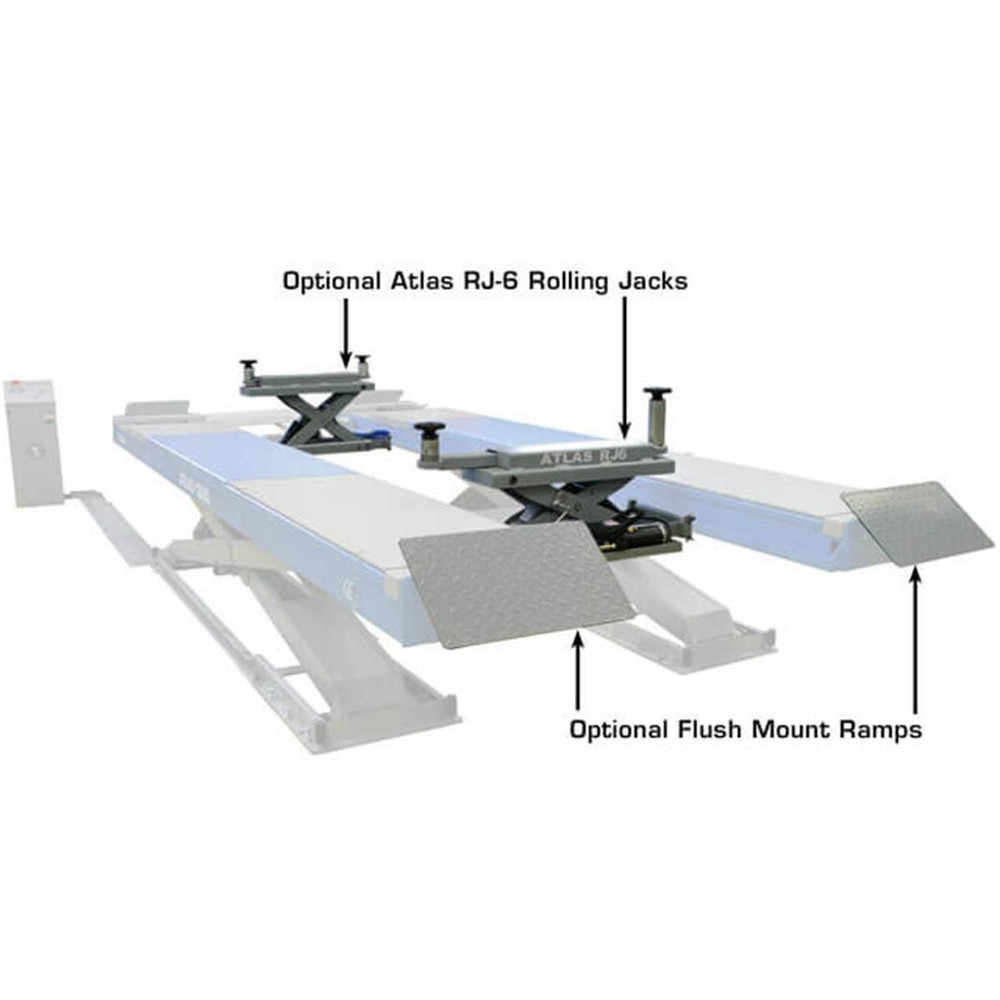

• Can be Surface Mounted or Flush Mounted

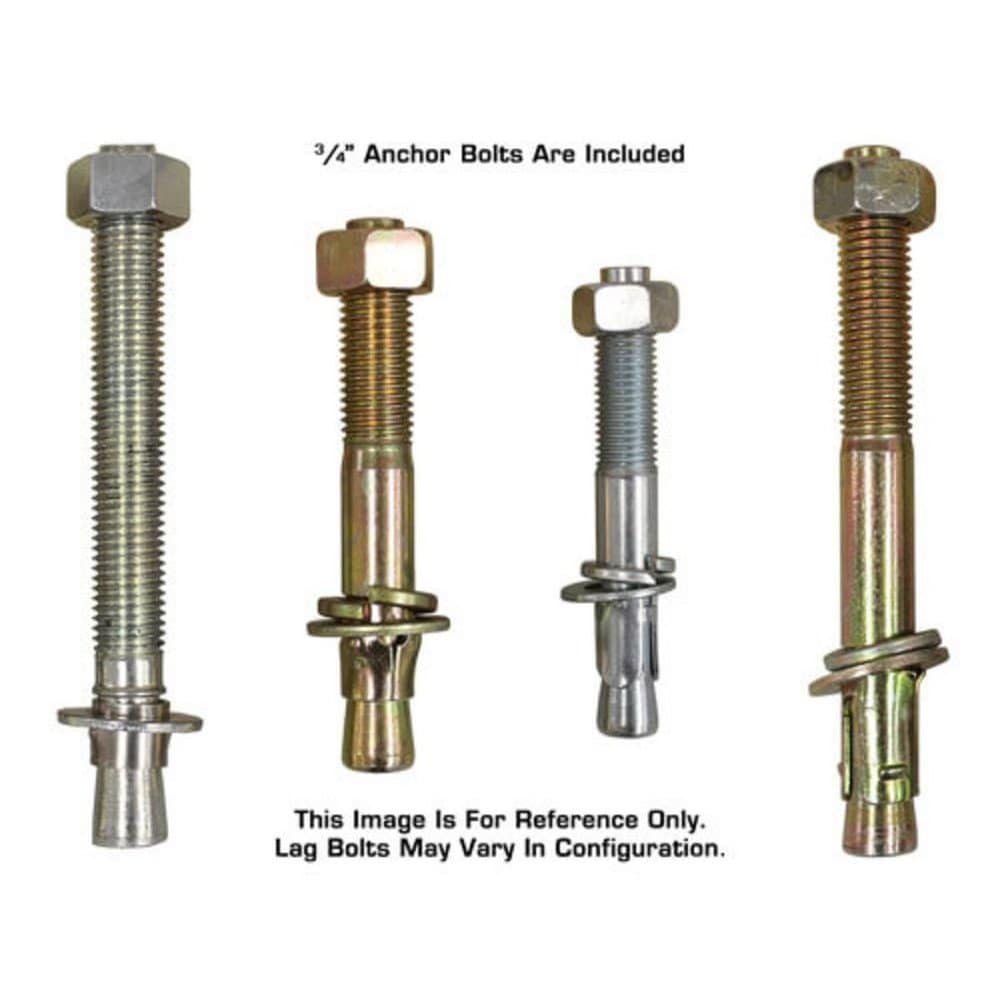

• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• 2 Year Structural/1 Year Hydraulic Warranty
• Shipping Weight: 5,500 lb.
• This part number FREIGHT PREPAID

Atlas® 12AWFSL Specifications

• Capacity: 12000 lbs

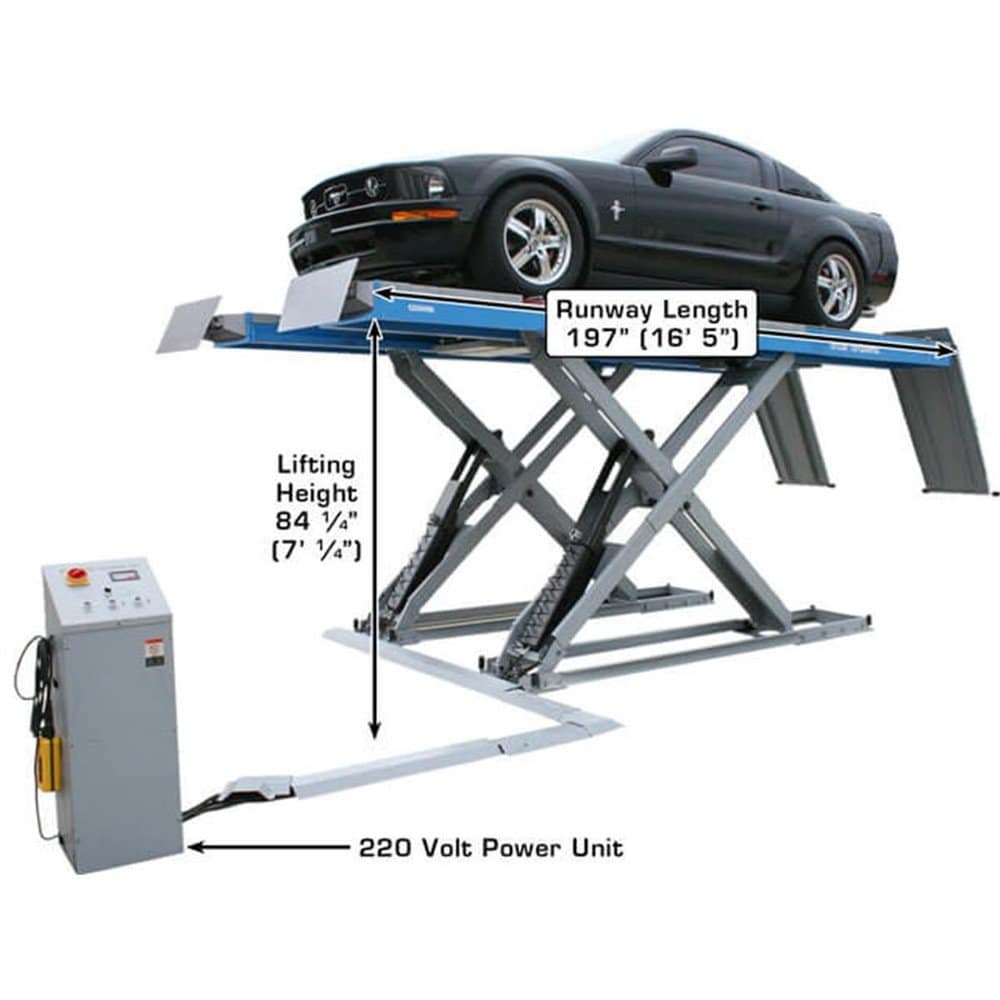

• Minimum Lift Height: 11 1/2″
• Maximum Lift Height Above Floor: 84 1/4″ (7′ 1/4″))
• “Wheels Free” Lift Height Above Runway: 17″
• Overall Length w/ Ramps: 250″ (20′ 10″)
• Overall Length w/o Ramps: 197″ (16′ 5″)
• Overall Width: 86 3/8″ (7′ 2/ 3/8″)
• Runway Width: 23 3/4″
• Between Runways: 39″
• Air Requirement: 85-120 PSI

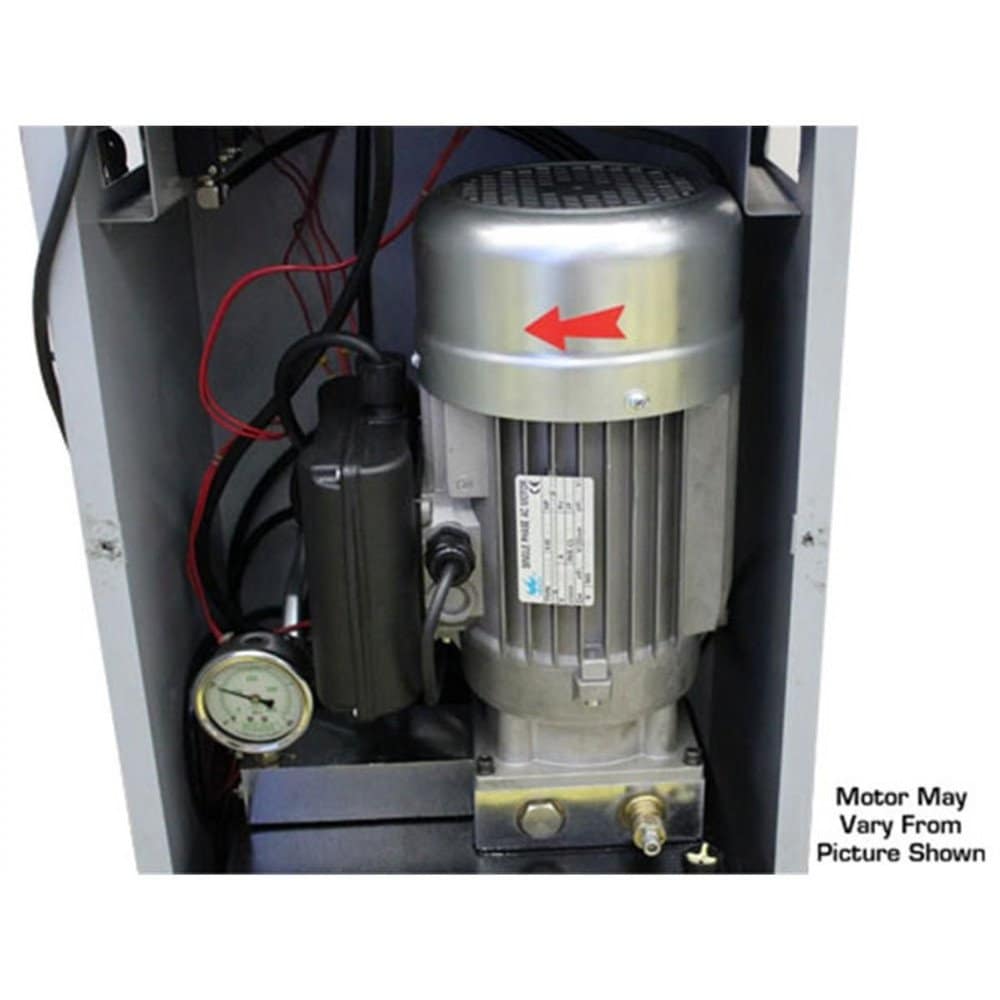

• Motor/Electrical Requirement: 220volt +/- 5% (209-231 volts)/1phase 30amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 5500 lbs

Accessories Available

Runway Extension Kit
