Atlas 12,000 lb. 4-Post Alignment Lift w/ Turntables

Description

Shop the Atlas 12,000 lb. 4-Post Alignment Lift w/ Turntables at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features & Benefits

• 12,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide & Extra Long
• Built-In Slip Plates & Alignment Turntables Included
• Multiple Positions for Turntable Placement
• Runway Covers Included (when Turntables are Removed)
• Air Operated Single Point Lock Release (External Air Supply Required)
• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish
• Steel Approach Ramps Included
• Additional Drive off Ramps Available (Sold Separately)
• Runway Extensions Available (Sold Separately)
• Mounting Hardware Included
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• 5 Year Structural/2 Year Hydraulic Warranty
• Shipping Weight: 2,900 lbs.
• This part number FREIGHT PREPAID

Atlas® ATTD-412A Specifications:

• Capacity: 12000 lbs
• Lifting Height, Top of Runway: 77 3/4″ (6′ 5 3/4″)
• Clearance Under Runways: 70 1/4″ (5′ 10 1/4″)
• Height of Columns: 89 3/4″ (7′ 5 3/4″)

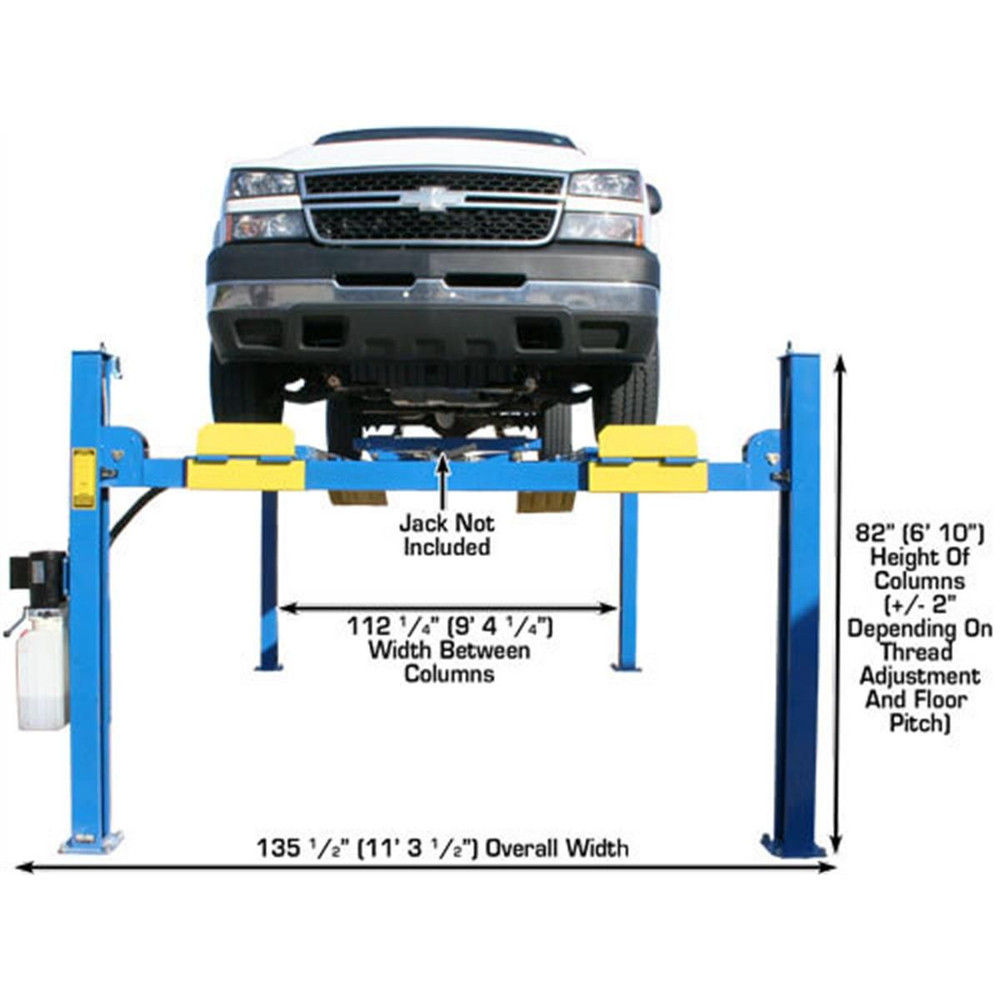

• Overall Width: 126 1/4″ (10′ 6 1/4″) w/ motor 135 1/4″ (11′ 3 1/4″)
• Overall Length w/ Ramps: 236 1/2″ (19′ 8 1/2″)
• Runway Length: 194 1/2″ (16′ 2 1/2″)
• Runway Width: 20″
• Runway Thickness: 7 1/2″
• Width Between Runways: 43 1/4″ w/ Rail 39 3/4″
• Outside Runway to Outside Runway: 83 1/4″ (6′ 11 1/4″)
• Clearance Between Columns: 112 5/8″ (9′ 4 5/8″)
• Length Between Columns: 183 1/4″ (15′ 3 1/4″)

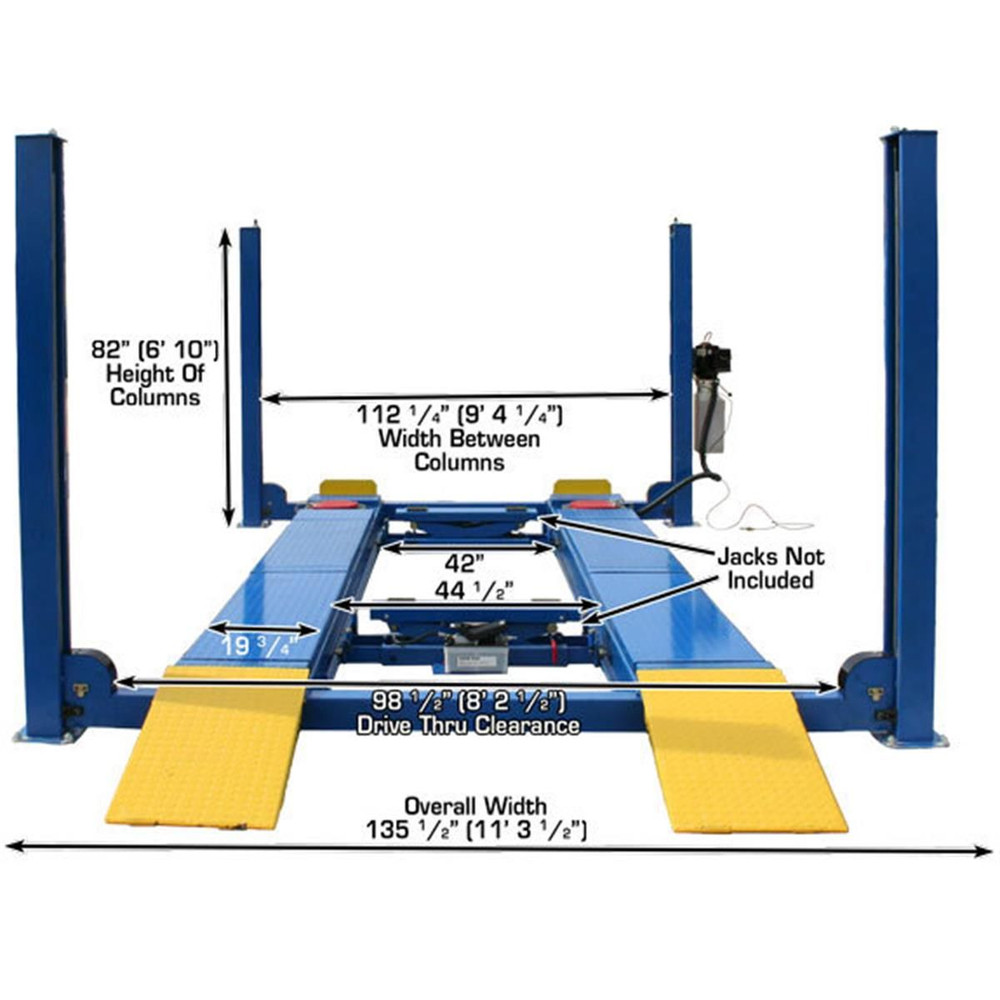

• Drive Thru: 98″ (8′ 2″)
• Air Requirement: 85-115 PSI
• Motor/Electrical Requirement: 220volt/1phase, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 2900 lbs

Accessories Available

Runway Extension Kit
