Atlas 10HP 3Phase 120 Gallon Horizontal Air Compressor
$6,199.00
The Atlas 10HP 3Phase 120 Gallon Horizontal Air Compressor is an air compressor. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Description
Atlas 10HP 3Phase 120 Gallon Horizontal Air Compressor
Features and Benefits:

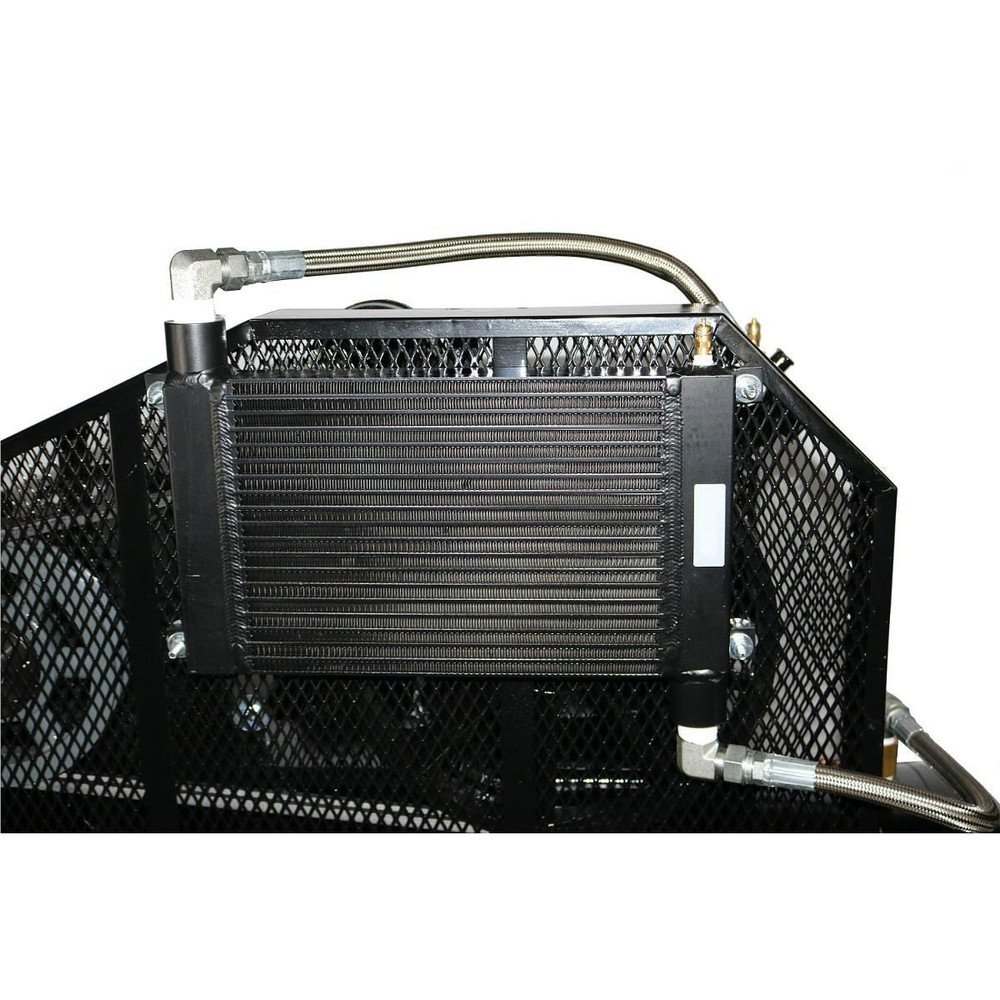

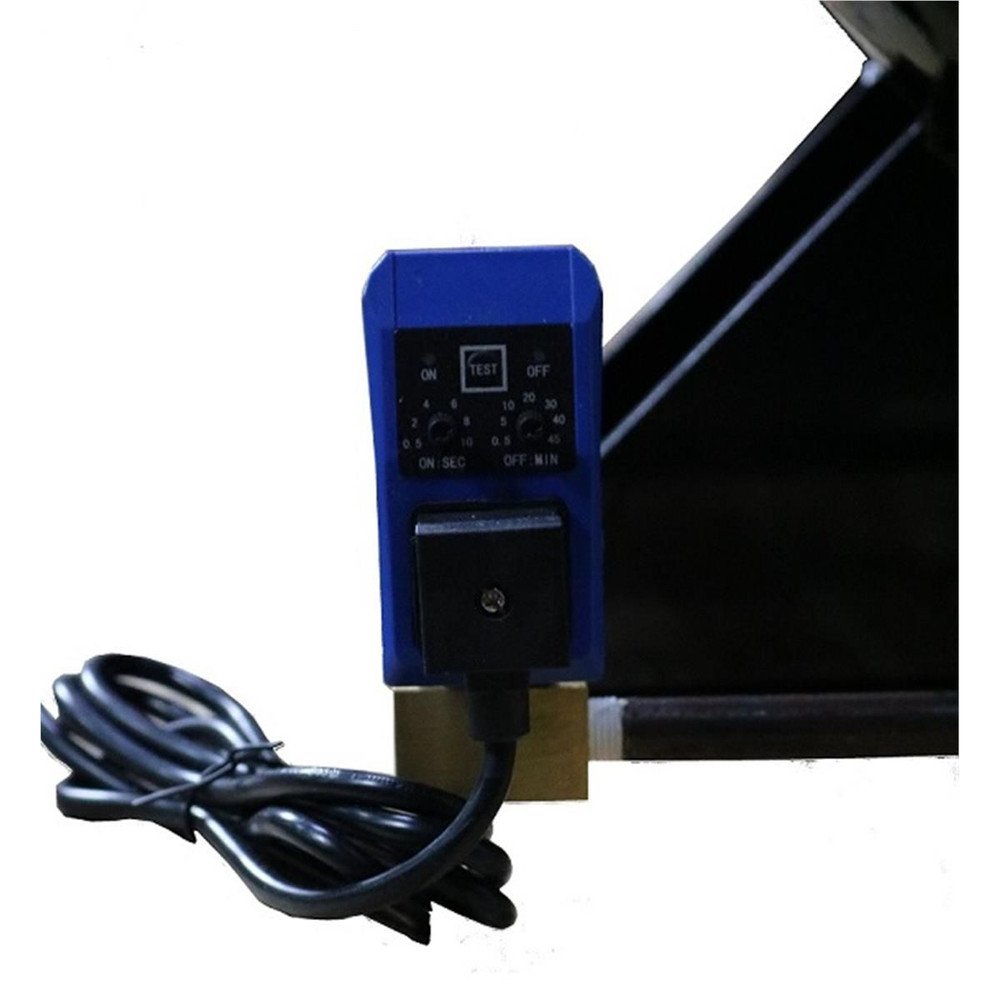

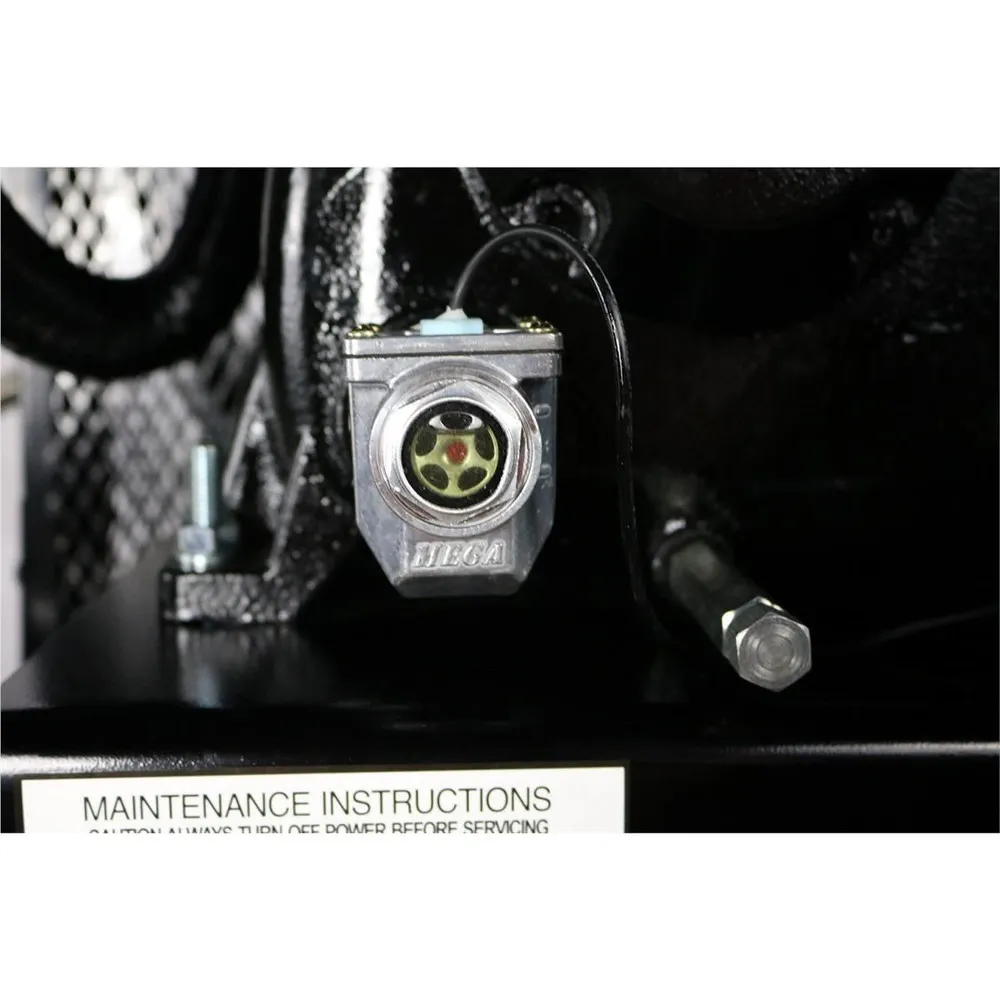

“Plus Package”: after cooler, low oil shut off, auto-tank drain
Cast Iron, V Cylinder, 2-Stage Pump
Aluminum head & Machined Cast Iron valve plate
Durable Stainless Steel Reed Valves
Shipped with 100% Synthetic Air Compressor Oil
Heavy Duty 10hp, low RPM Motor
120 Gallon Horizontal Tank (Made in the USA)
Air Output 145-175 PSI
Extremely Quiet Operation
Magnetic Starter Included
Set of Vibro-Pads Included
Compressor oil drain extension tube
Heavy Duty Metal Belt Guard
Electric: 220volt/3phase

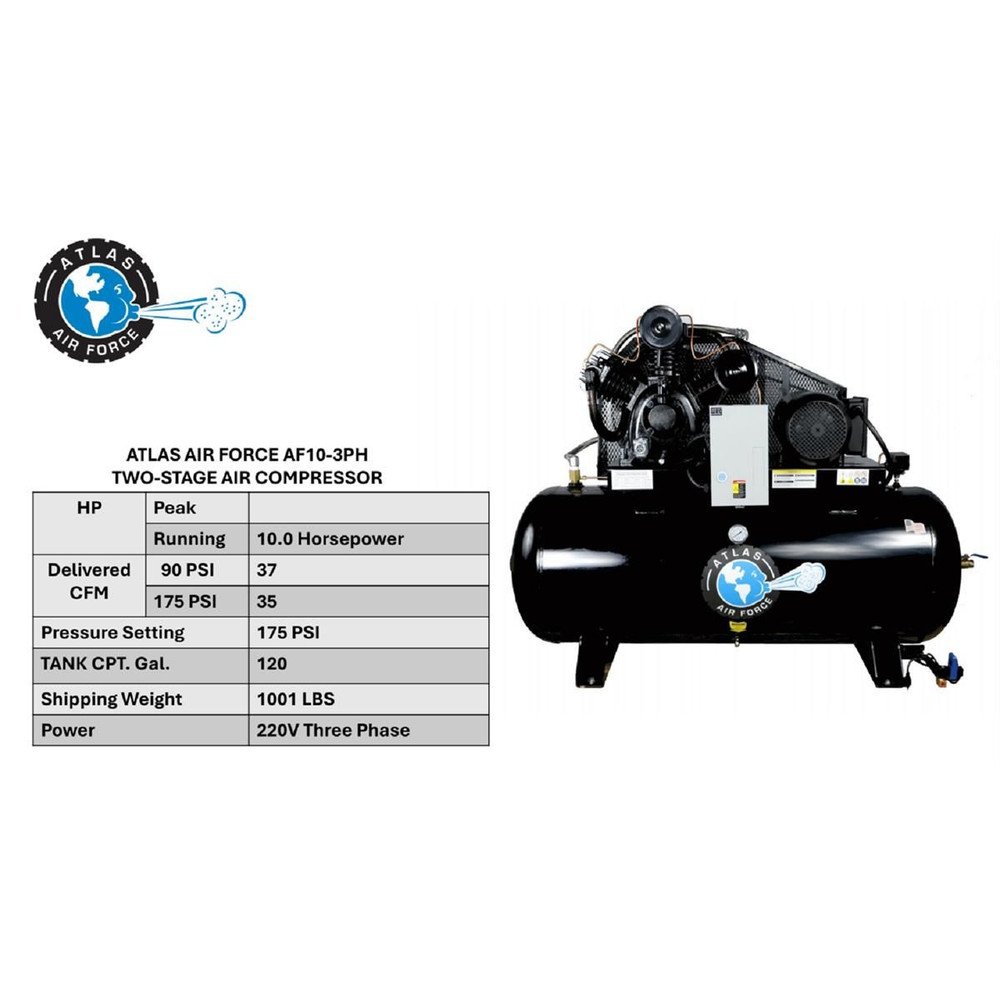

Atlas Air Force AF10-3PH Specifications
Motor Running: 10 Horsepower
Pressure Setting: 145-175 PSI
Delivered CFM at 90 PSI: 37
Delivered CFM at 175 PSI: 35
Tank Capacity: 120 Gallons
Compressor Pump: 3 Cylinder, 2-Stage
Air Outlet Size: 1/2″ NPT

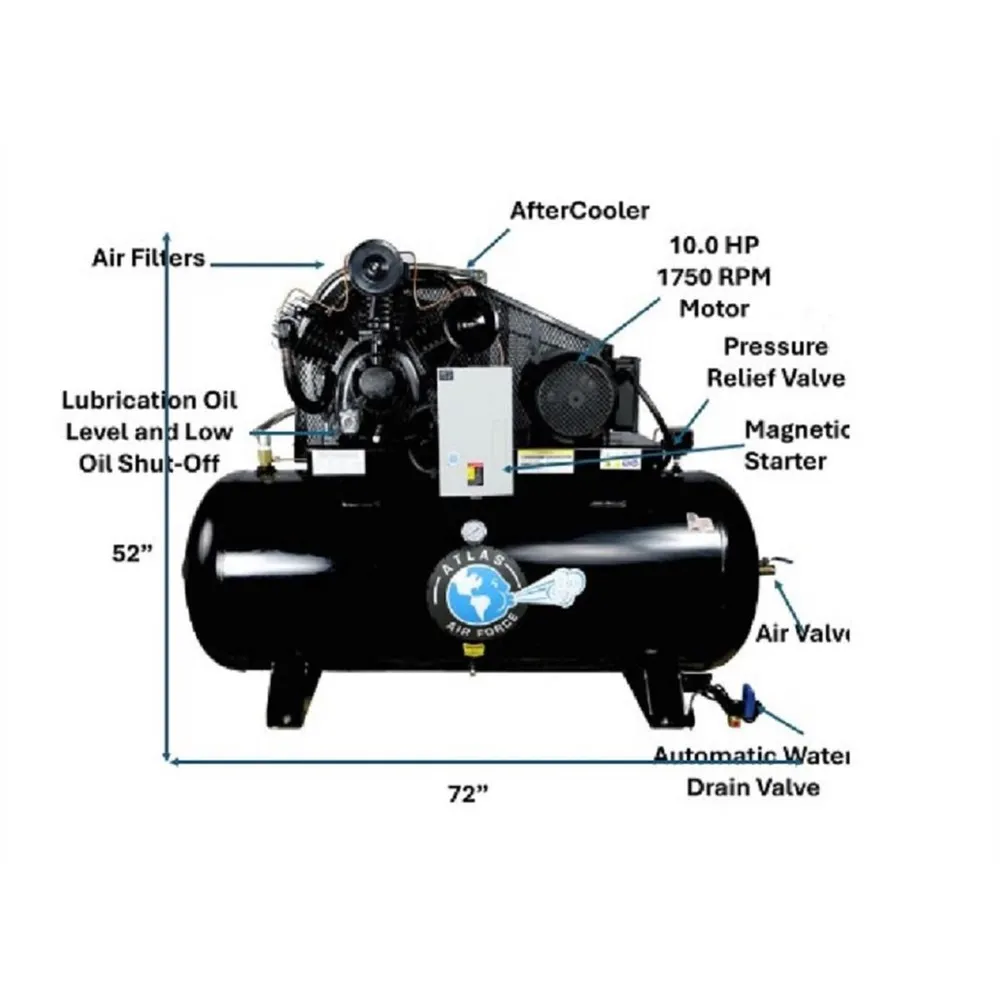

Overall Dimensions: L 72″ x W 32″ x H 52″
Motor/Electrical Requirement: 220volt Three Phase, 30 amp breaker required
Shipping Weight: 1000 lbs
