NP271

The NP271 is a transfer case family listed under Transfer Cases. All 11 units here are remanufactured and every one is manual shift.

What fits what

Ford coverage is 1999-2004 F-series, 1999-2005 F250, 2003-2006 F-series, 2007-2010 F-series and 2008-2010 F250/F350. Some Ford notes reference a 5 speed automatic or ZF transmission, and the 1999-2005 F250 unit references a 6 speed manual transmission, so read the notes against what is in your truck. RAM coverage is 2003-2011 RAM 2500/3500, 2003-2012 RAM 2500/3500 and 2007-2012 RAM 3500.

How to identify yours

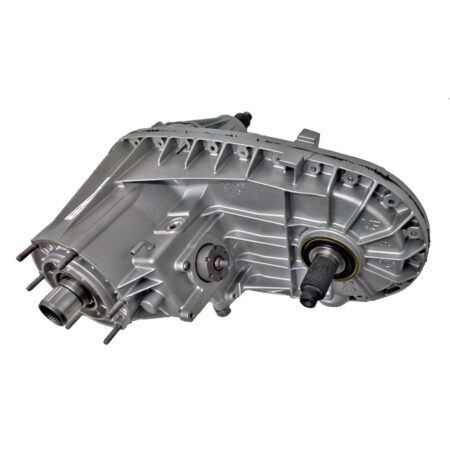

On the Ford side, input spline count does most of the work: 24 spline on the 1999-2005 F250, Hollander 412-590, tags 1C34-KA and F81A-KC; 31 spline on the 1999-2004 F-series, Hollander 412-417, tags 1C34-HA, 3C34-HD, 4C34-HD and F81A-HB; and 34 spline on the 2003-2006, 2007-2010 and 2008-2010 units. The three 34 spline cases split by rear housing. The 2003-2006 case is Hollander 412-589, UMT432-3. The 2007-2010 case has three mounting holes on the rear extension housing and a bolt on rear yoke, Hollander 412-589, UMT432-4, tags 7C34-BA, 7C34-BB, 7C34-BD and 7C34-BE. The 2008-2010 F250/F350 case has three mounting holes and a slip yoke style rear output, tag 7C34-EC, Hollander 412-634.

On the RAM side the input is either 23 spline with 0.84 inch of exposed length or 29 spline with 1.55 inch. Then check the shift indicator switch: some cases use a 5 position switch with a 1.5 inch hex, others a 2 position switch with a 7/8 inch hex. Then check the rear output. The RAM 2500/3500 cases use a 34 spline slip yoke style rear output shaft, Hollander 412-498, 412-528A, 412-528B, 412-496, 412-527A and 412-527B. The two 2007-2012 RAM 3500 cases use a 34 spline bolt on 6 inch flat rear output yoke, Hollander 412-623 on the 23 spline unit and 412-619 and 412-620 on the 29 spline unit.

Core charge and warranty

These are exchange units, so a refundable core charge may apply. We do not publish a core amount, so call for it. Remanufactured units carry a 6-month limited warranty. A 7-year / 1,000,000-mile extended warranty and a core fee waiver are available on request for qualifying remanufactured units, must be arranged at the time of purchase, and are not automatic. See the transfer case remanufacturing process and the warranty page. Related: NP246. Call 216-250-6666 or email sales@varietyengines.com with your tag or Hollander number and we will check it against this listing before you order.
