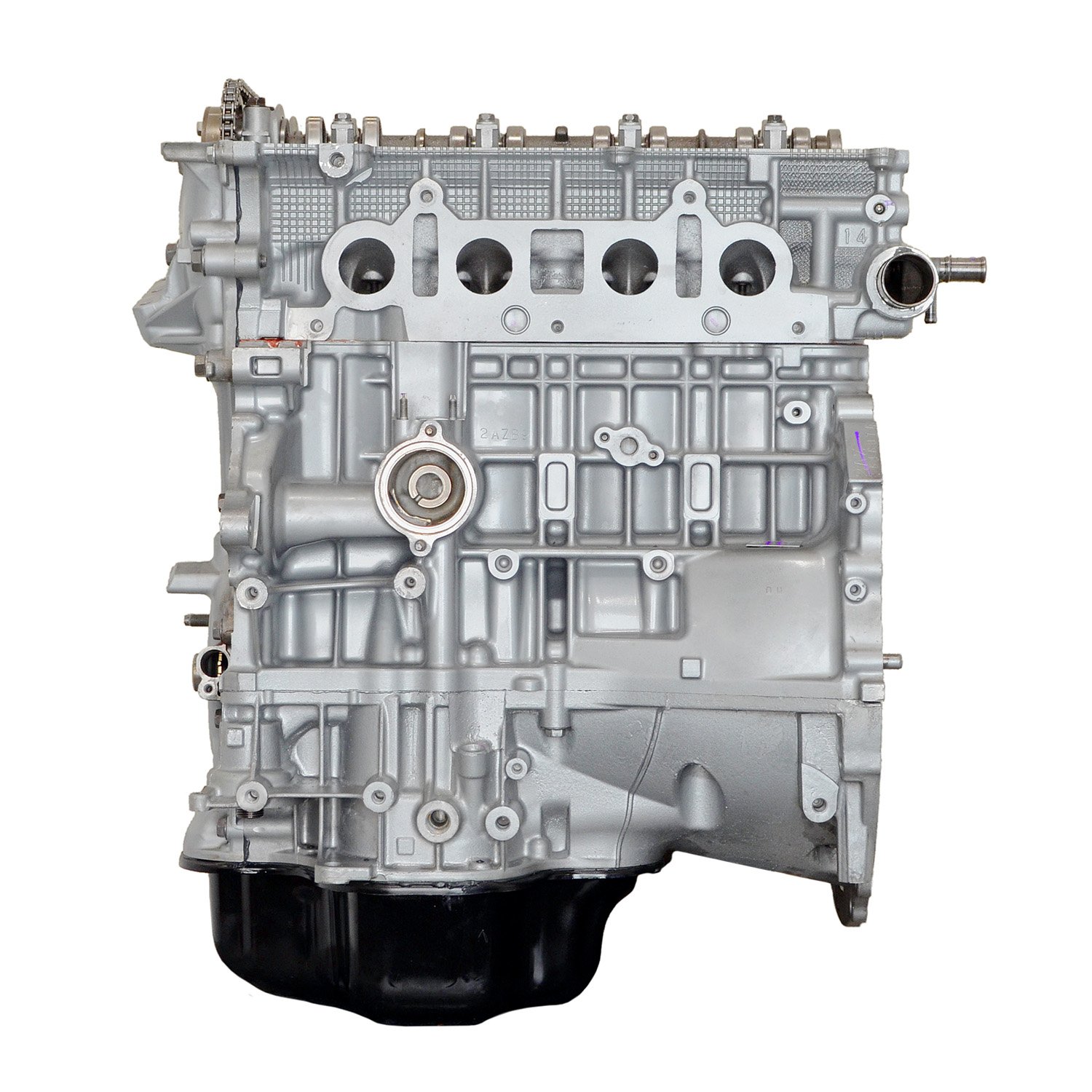

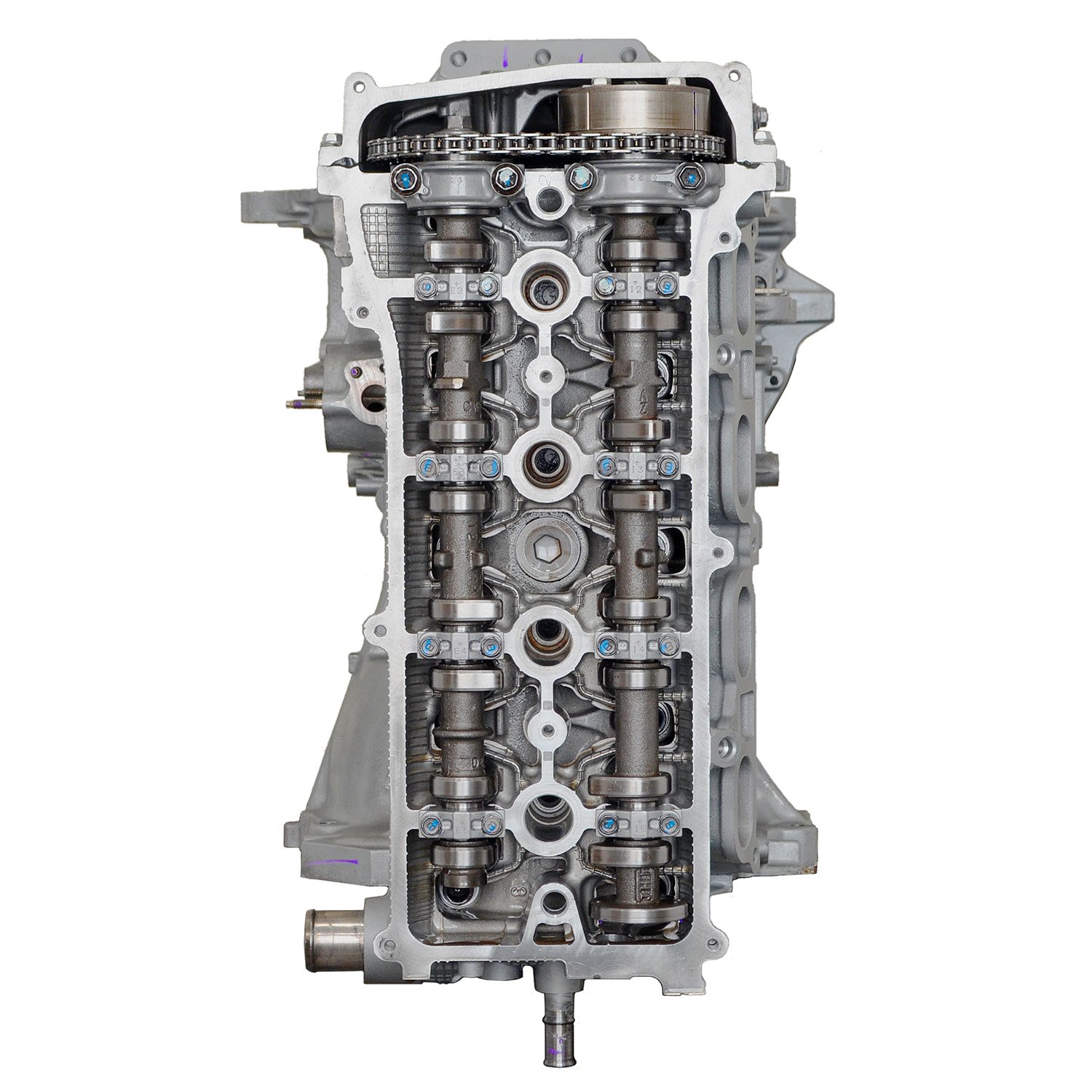

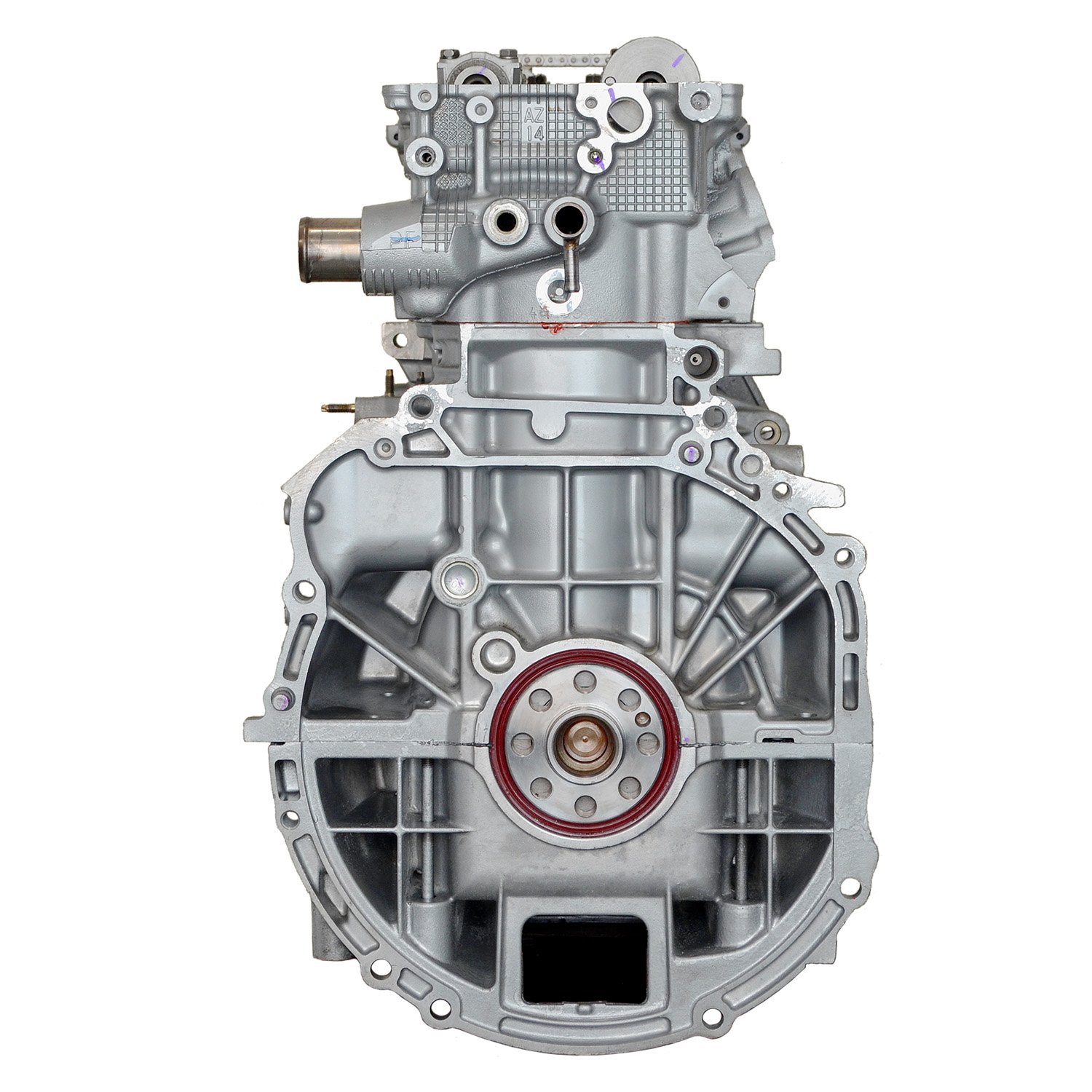

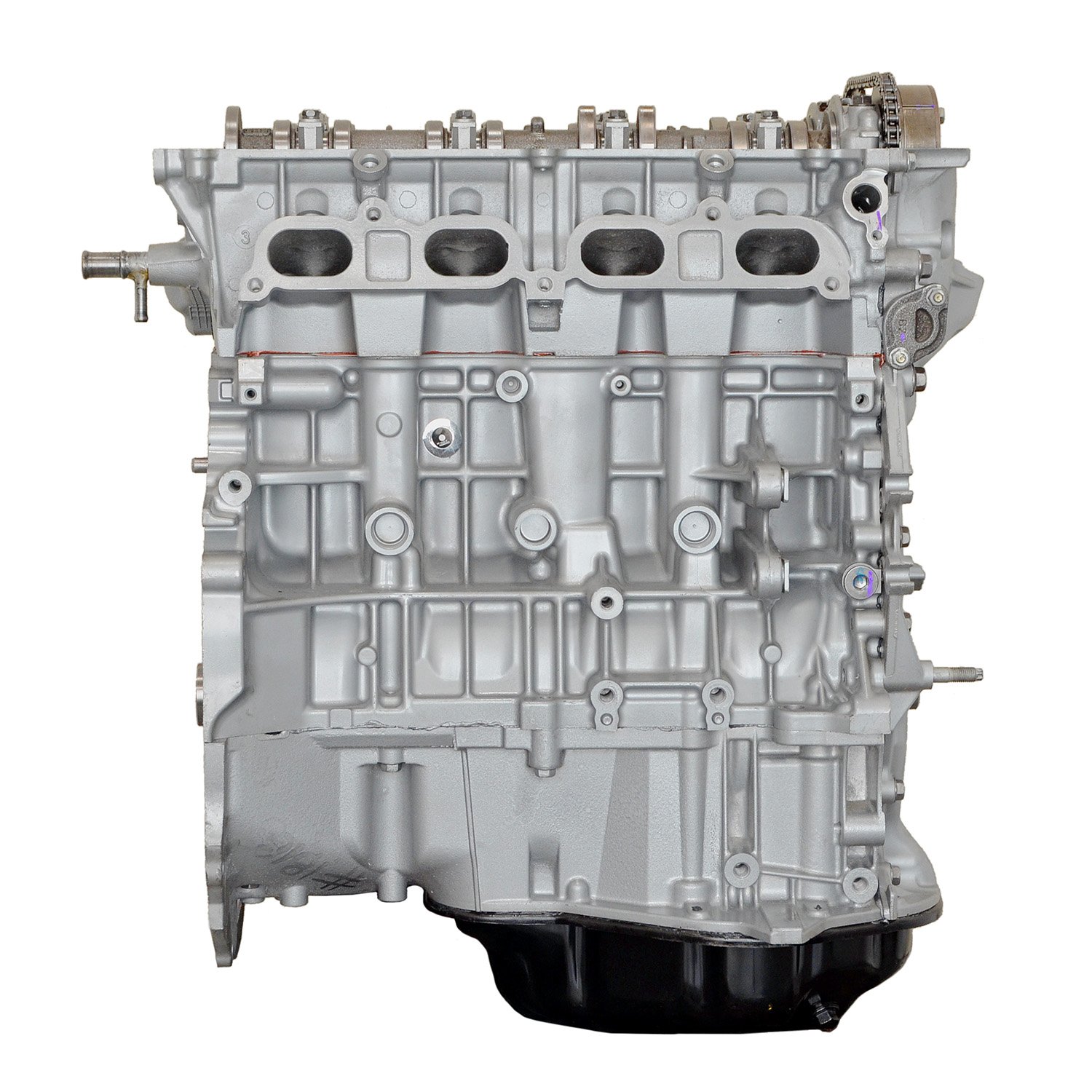

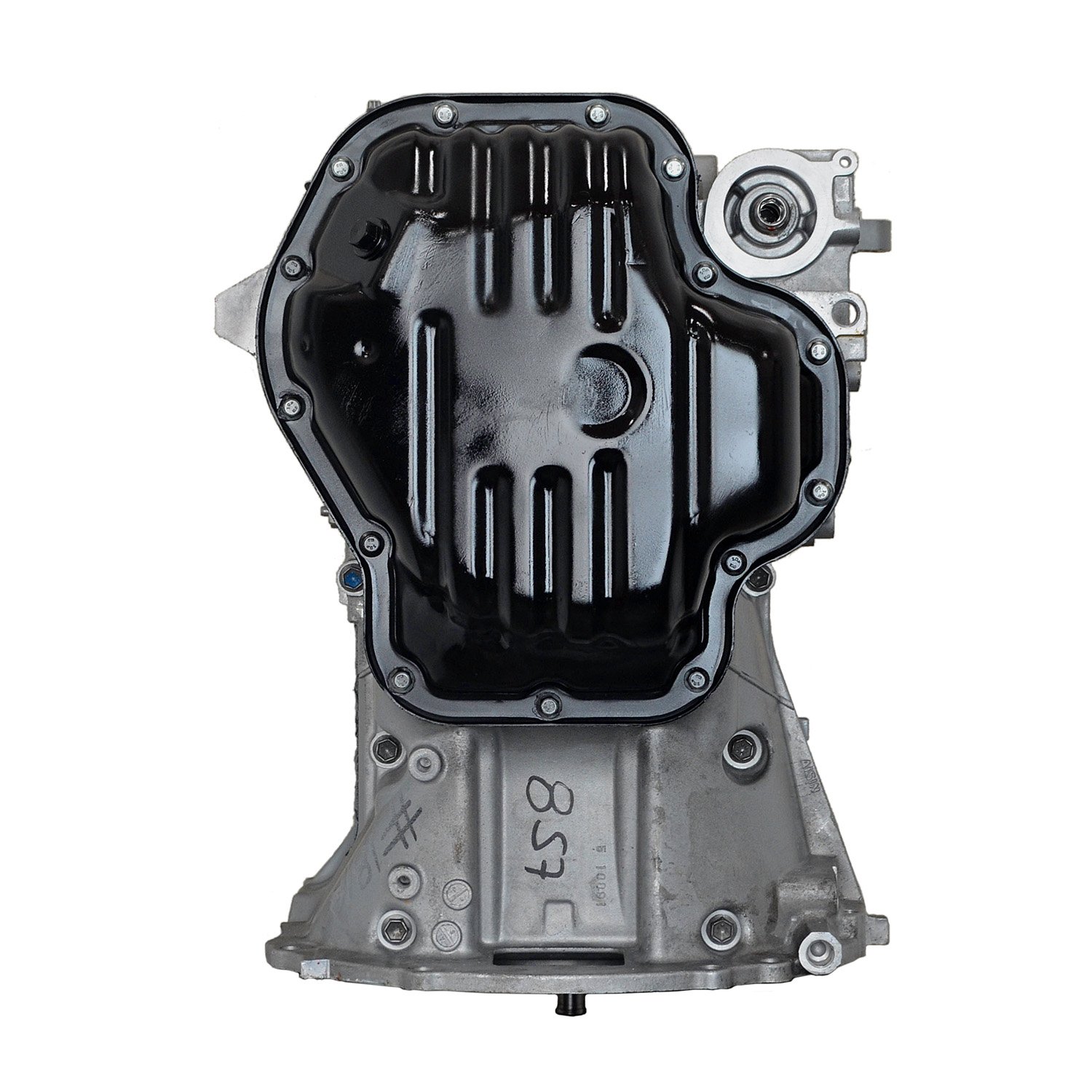

Toyota 2AZFXE 2.4L L4 Remanufactured Engine – 40974
In stock — ships in 1–2 business days
Call with your VIN or tag number and we will confirm this listing fits before you pay.
- Shipping
- Freight, 3–6 business days
- Returns
- 45 days, by mail
- Warranty
- See warranty terms
- Payment
- Bank transfer, Zelle, Chime
Specifications
- Vendor Sku
- 857A
- Block Casting
- 2AZ
- Casting Location
- DRIVER SIDE BELL HOUSING
- Body Style
- 2362
- Fuel Type
- Gasoline Hybrid Electric
- Displacement
- 2.4L
- Product Type
- Engines
- Number Of Cylinders
- 4
- Block Type
- L
- Head Type
- DOHC
- Number Of Valves
- 16
Product details
Title and casting field do not match exactly here: the engine is listed as a 2AZFXE while the block casting is recorded simply as 2AZ, stamped on the driver side bell housing. Fuel type is given as Gasoline Hybrid Electric. It is a 2.4 liter four with DOHC heads and 16 valves, remanufactured, stocked under vendor SKU 857A. The trailing 40974 in the title is a number, not a year range, so verify the application directly.
40974 Toyota 2.4L 2AZFXE L4.
- Deep Clean – To start the remanufacturing process, every engine is fully disassembled and hot tanked (cast iron) or thermally cleaned (aluminum)
- Inspection – Magnaflux testing uses magnetic particles to inspect metal, checking for microscopic cracks and fissures that will cause long-term failure. All parts are visually inspected as well.
- Machining and New Parts – Deck surfaces are CNC machined and new parts are added. New parts include bearings, pistons, rings, lifters, oil pump, gaskets, Viton™ valve seals, freeze plugs, galley plugs and either a new timing chain (with new tensioners) or a new timing belt (with new tensioner). If an engine has a timing-driven water pump, a new pump is installed.
- SIM Testing – Each engine is SIM tested after reassembly, with the cooling and oil systems being fully pressurized and the crank being spun at high RPM to verify compression and build quality.
Full details: our remanufacturing process and warranty terms. As an exchange unit a refundable core charge may apply.
Call 216-250-6666 with your VIN or tag number and we will confirm this listing fits. More 2.4L.
