Ranger RS-500D Professional Spray Wash Cabinet
SKU VE-10191Condition New
$11,195.00
In stock — ships in 1–2 business days
The Ranger RS-500D is a shop equipment unit. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Call with your VIN or tag number and we will confirm this listing fits before you pay.
- Shipping
- Freight, 3–6 business days
- Returns
- 45 days, by mail
- Warranty
- See warranty terms
- Payment
- Bank transfer, Zelle, Chime
Product details

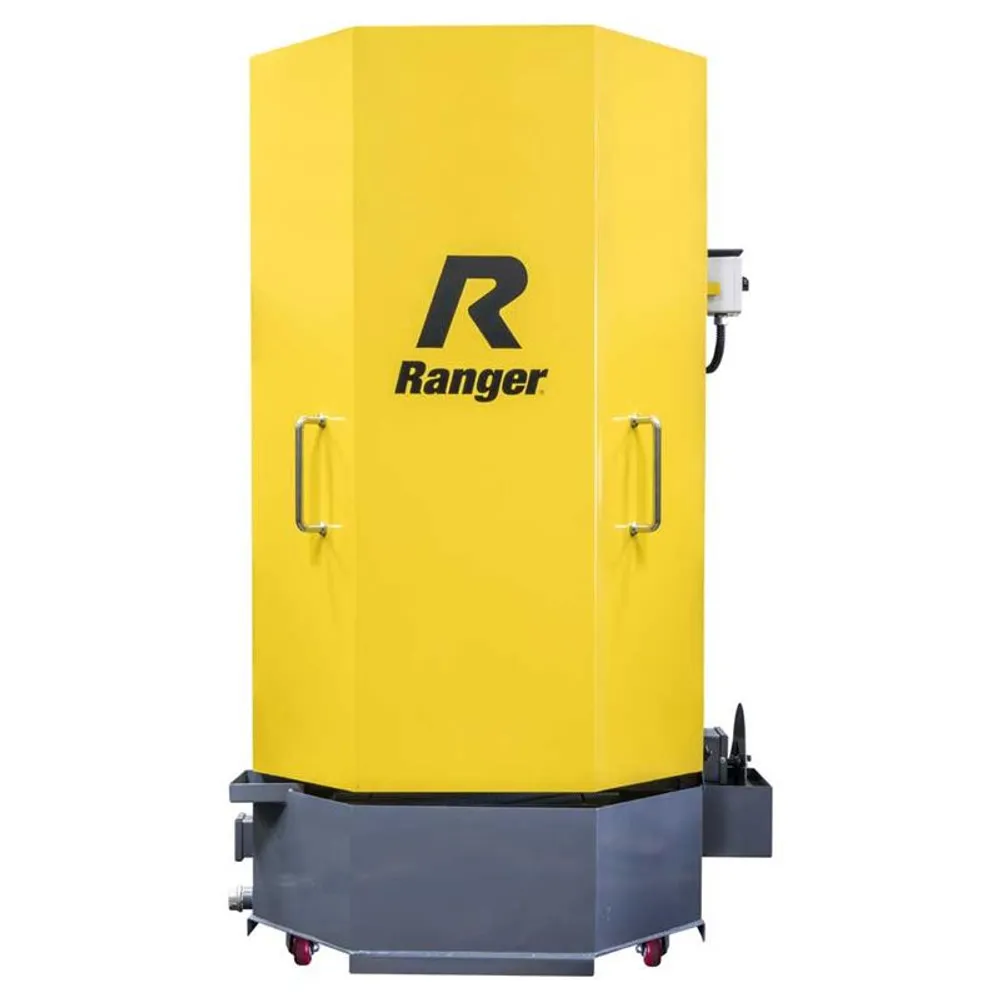

Ranger RS-500D Professional Spray Wash Cabinet
Powerful, Safe and Rapid Hot Wash Spray Cabinet by Ranger
A large cabinet size and solution tank makes the RS-500D versatile and productive. By using an octagonal full-opening door, we've enhanced access to the turntable to enhance the operator's loading capabilities. Simple operating controls, brass nozzles, a gasket-free door and a high-capacity 70 gpm pump demonstrate Ranger's commitment to enhanced performance and productivity without a single sacrifice in quality. Like all Ranger spray wash cabinets, the RS-500D is built to last. We constructed the cabinet and door with heavy-duty 12-gauge steel and then coated it with an industrial two-step primer and powder coat finish. All-around performance, durability and improved operator convenience make the RS-500D the definitive choice among professionals worldwide.Features
- Heavy-duty steel construction
- Safe aqueous operation: No harsh chemicals
- 50 gallon tank
- Dual water heaters for quick startup
- Heated cabinet w/ adjustable thermostat
- High-power spray jets clean parts fast
- Automatic low water shutoff
- Removable tank screen
- Stainless oil skimmer
- Removable parts tree
- Powder coat finish
- Stainless steel nozzles

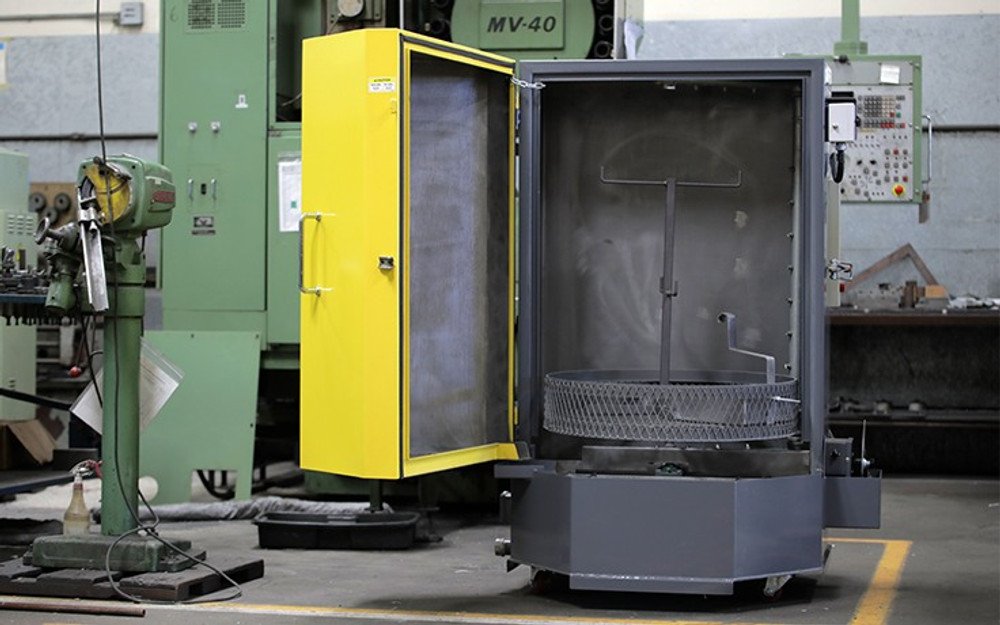

- Full opening octagonal door

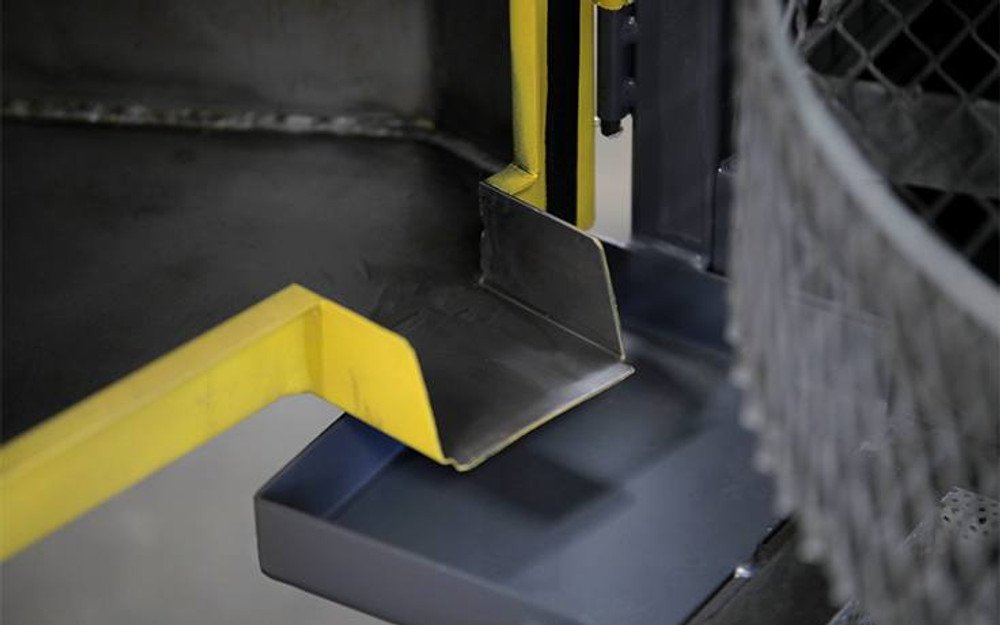

- Large drain pipe
- Heavy-duty casters
- Friction-drive turntable system
- Neoprene-sealed wash cabinet
- Contamination-proof interior welds
- Gasket-free door
- Small parts basket
- Stainless steel handles
- Free bucket and soap included
Specifications
Overall height: 66" (1,676 mm)
Inside height: 43" (1,092 mm)
Inside width: 32" (813 mm)
Turntable diameter: 30" (762 mm)
Tank capacity: 50 gallons
Recommended floor space: 44" x 43" (1,118 mm x 1,092 mm)
Load capacity: 500 lbs. (227 kg)

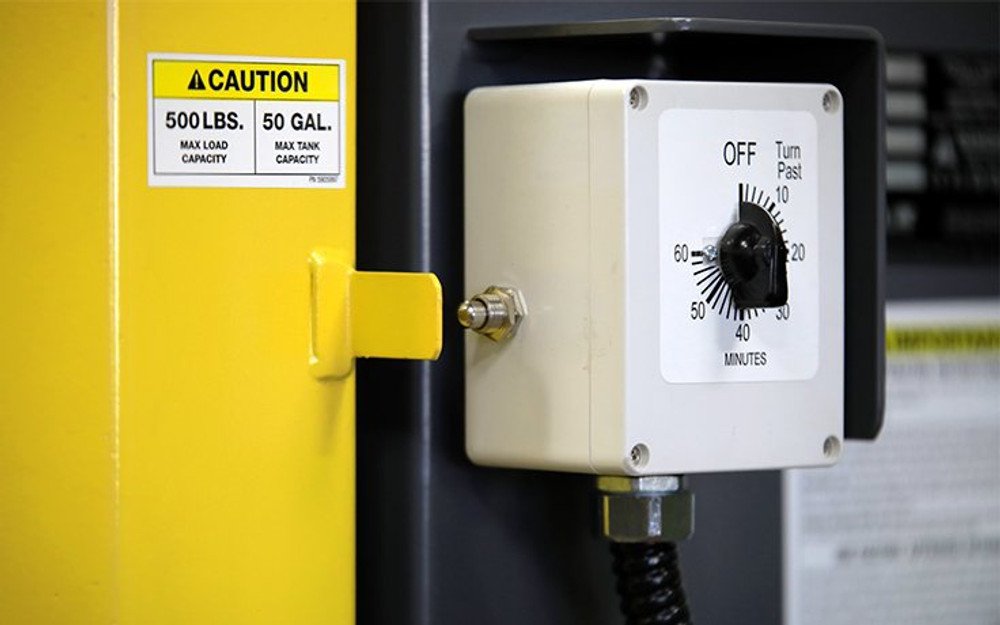

Cycle timer: 0 - 60 min
Brass nozzles: 18
Steel construction: 12 Gauge / .109 thickness

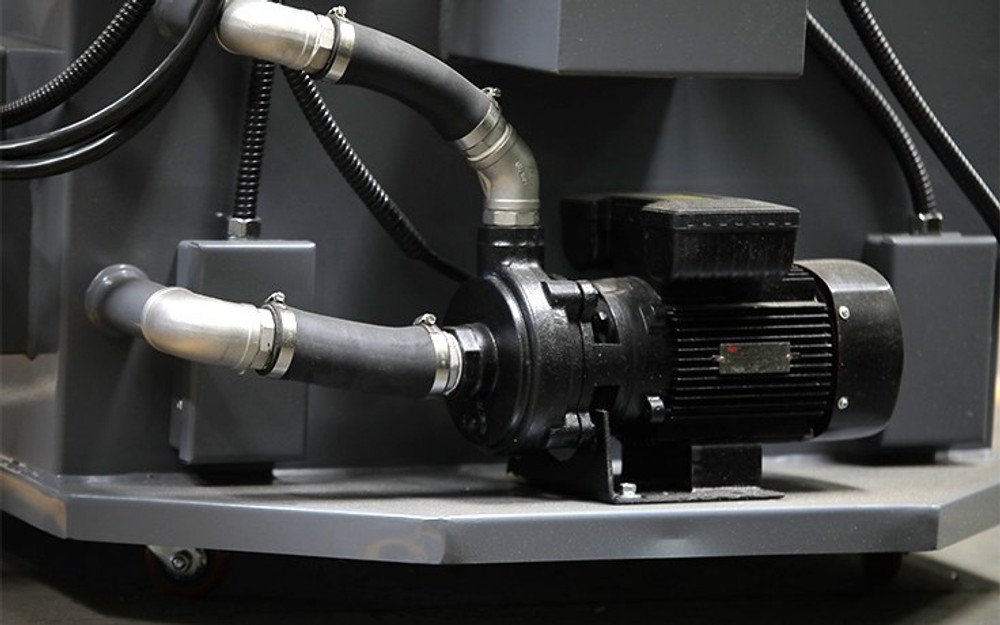

Pump output: 75 psi @ 70 gpm
Motor: 1 HP / 220 VAC / 60 Hz / 1 Ph
Electric heater: 6 kW
Water temperature: 160° - 180° F (71° - 82° C)
Shipping weight: 680 lbs. (308 kg)
Shipping dimensions: 46'' x 46'' x 68'' (1,168 mm x 1,168 mm x 1,727 mm)
