NV4500 Remanufactured Manual Trans for 1994-1995 GM C3500HD, 2WD
GM

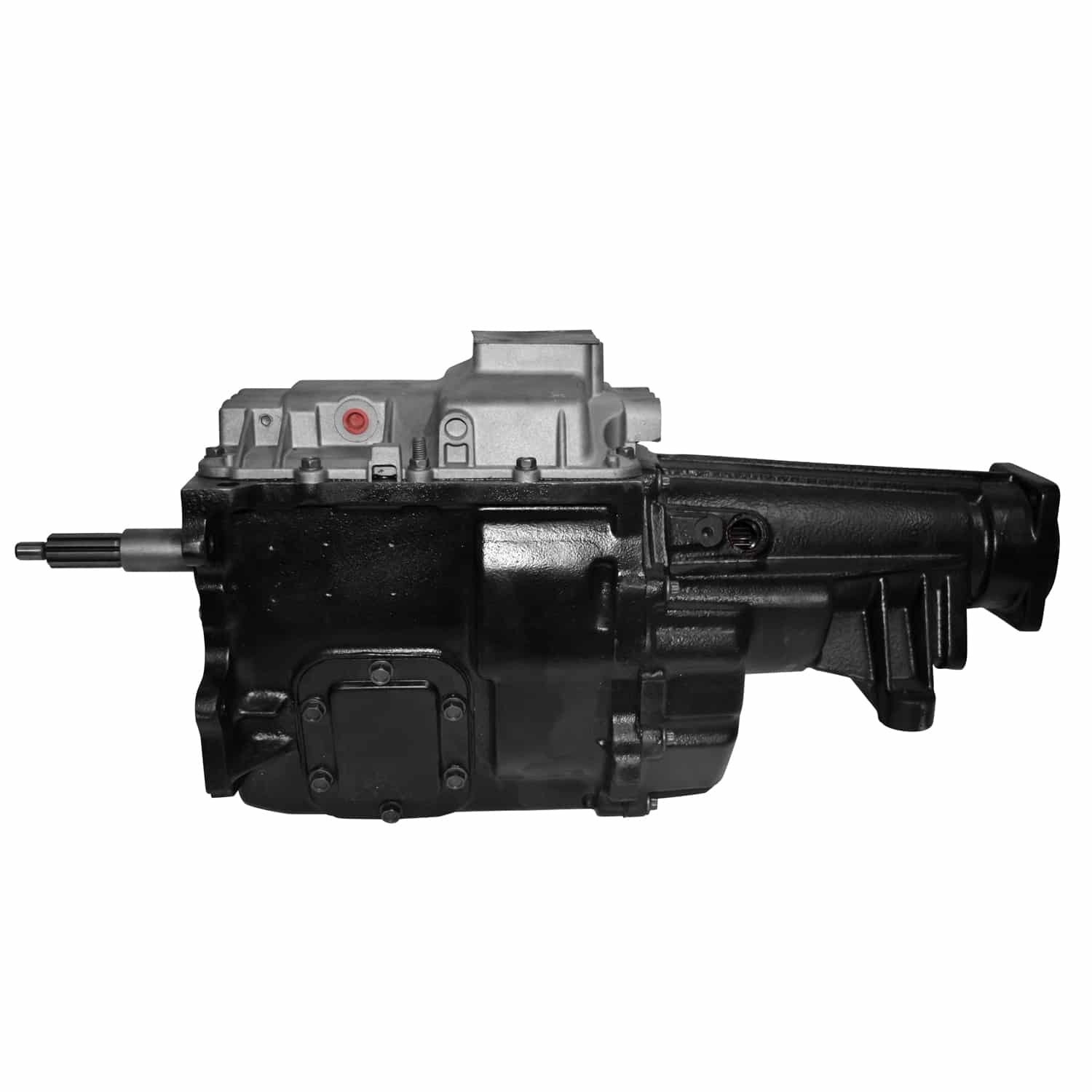

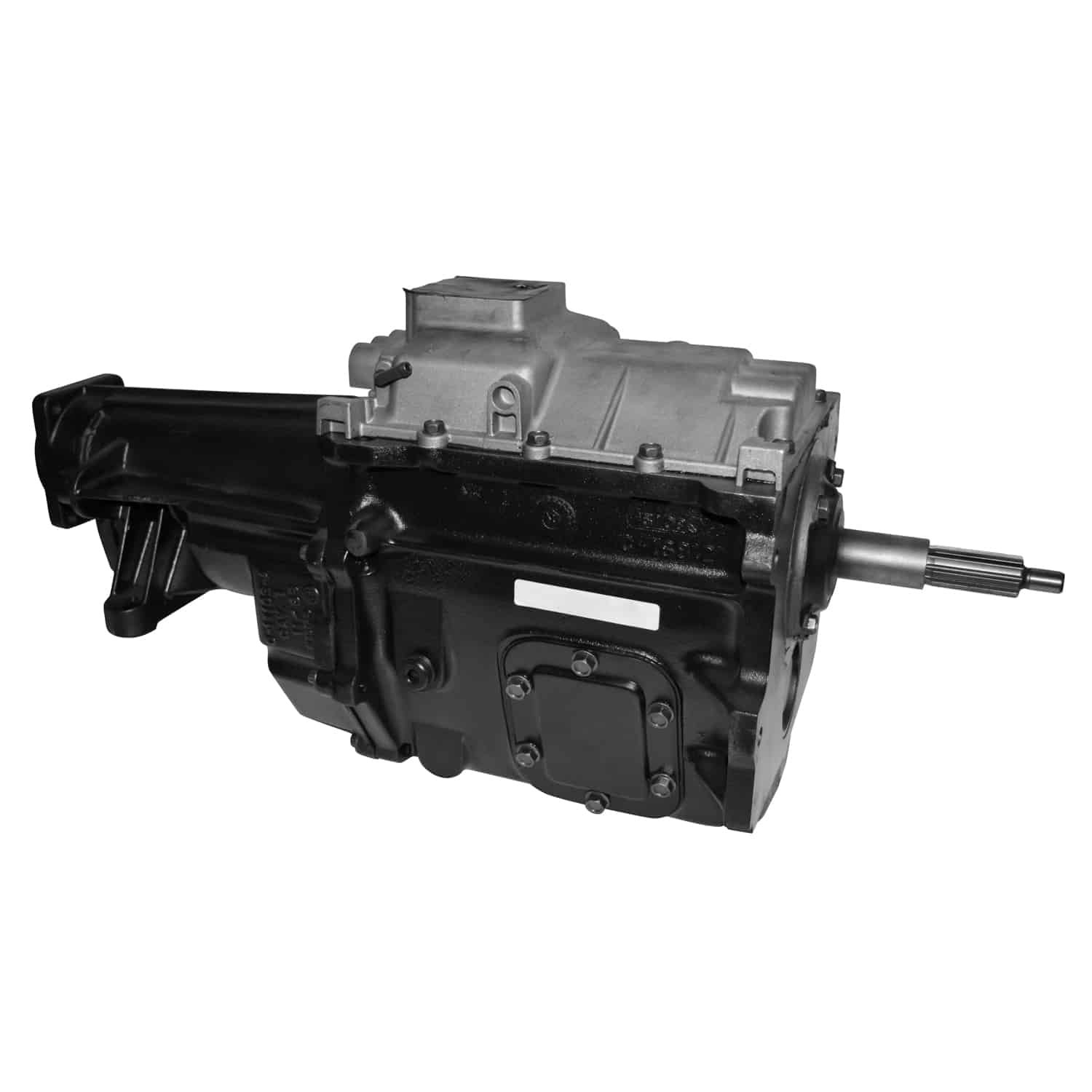

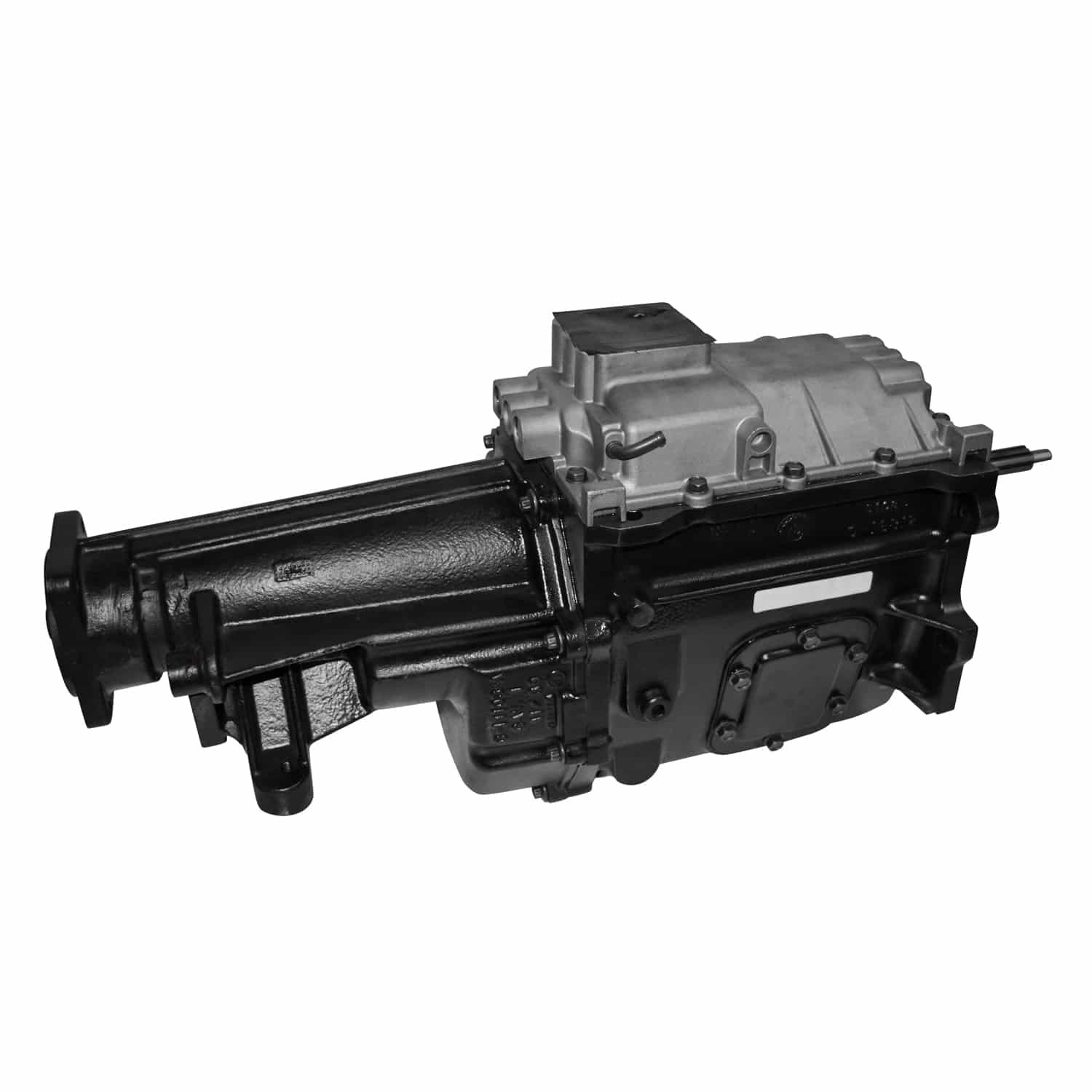

Remanufactured NV4500 Manual Transmission for 1994-1995 GM C3500HD, 2WD

SKU 12553TCondition Remanufactured
$2,749.00$3,149.00SAVE 13%

In stock — ships in 1–2 business days

NV4500 manual transmission for 1994-1995 GM C3500HD, 2WD. Listed with cast iron case, detachable bell housing and external slave cylinder. Match the Hollander number (400-02623).

Call with your VIN or tag number and we will confirm this listing fits before you pay.

Shipping
Freight, 3–6 business days
Returns
45 days, by mail
Payment
Bank transfer, Zelle, Chime

Specifications

Product Type
Transmissions
Application Notes
NV4500; Cast Iron Case, Detachable Bell Housing, External Slave Cylinder, Square Four Bolt Shift Tower, Has Emergency Brake Mounted On The Tail Housing (Not Included), Uses A Nut To Hold The Rear Output Yoke On And Not A Bolt, Main Case Cast 16812, Top Cover Cast 18860, or 25137, Tail Housing Cast 17106, OR 17108, Hollander Number: 400-02623
Model Number
NV4500

Product details

A nut, not a bolt, retains the rear output yoke on this one, so check that on the transmission you are removing. It is an NV4500 listed for the 1994-1995 GM C3500HD in 2WD, with a cast iron case, detachable bell housing, external slave cylinder and a square four-bolt shift tower. Castings recorded are main case 16812, top cover 18860 or 25137, and tail housing 17106 or 17108. The emergency brake that mounts to the tail housing does not come with it. Hollander number 400-02623 applies.

***Please understand that in the event this is being purchased for a swap CORES are very rare on these and if you do not have the same core to return you will be required to pay the core charge in full****

Application notes

NV4500; Cast Iron Case, Detachable Bell Housing, External Slave Cylinder, Square Four Bolt Shift Tower, Has Emergency Brake Mounted On The Tail Housing (Not Included), Uses A Nut To Hold The Rear Output Yoke On And Not A Bolt, Main Case Cast 16812, Top Cover Cast 18860, or 25137, Tail Housing Cast 17106, OR 17108, Hollander Number: 400-02623.

Every transmission carries a 6-month limited warranty as standard, with a 7-year / 1,000,000-mile extended warranty and a core-fee waiver available on request for qualifying remanufactured units. Every transmission undergoes the same rigorous remanufacturing process:
  1. Teardown and Triple Clean – Every transmission is disassembled, inspected, and cleaned three times. We also chase all threads and install all new bushings during this process.
  2. New or Re-machined Parts – Gear wear is checked and worn gears are replaced. Mainshaft straightness is tested and replaced if needed. Clutch disc synchronizers, selector fork, and flywheel are re-machined or replaced as needed.
  3. Dyno Testing – Our custom dyno testing machines spin and load test every transmission to verify it’s ready for the road.
When you buy a remanufactured transmission from Variety Engines, you’re buying a transmission that meets or exceeds OEM specifications. A 7-year / 1,000,000-mile extended warranty is available on request for qualifying units.

Full details: our remanufacturing process and warranty terms. As an exchange unit a refundable core charge may apply.

Call 216-250-6666 with your VIN or tag number and we will confirm this listing fits. More Manual.
