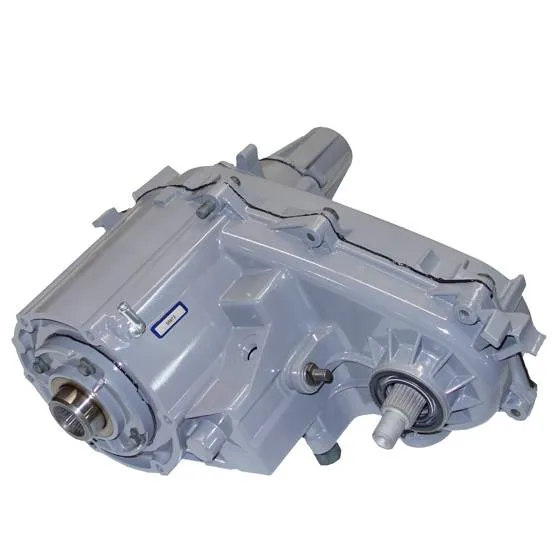

NP231 Transfer Case for Jeep 1989-1995 Wrangler & Cherokee
Original price was: $1,399.00.$1,299.00Current price is: $1,299.00.
- All units are quality inspected throughout the remanufacturing process to maintain our quality standard.
- All cases are cleaned utilizing our state of the art hydro blasting and rinsing process. This process is what brings all cases back to the OEM finish.
- 100% replacement of seals, bearings, viscous couplers (when applicable) and other common wear components.
- Units are shipped in high density plastic totes to help eliminate in-transit damage.
This fully remanufactured Transfer Case is backed by an available 7 year, 1 million mile warranty.
Description
Application Notes: NV231; 23 Spline 0.75 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch Above Shift Lever, 2 Piece Tail Housing, Tag Numbers: 52093497, 52097522, 52097695, 52097890, 52098362, 52098487, 52099695, 53005382, 53006096, 53008212, Hollander Numbers: 412-210, 412-309, 412-326, 412-328A, 412-328B, Other Numbers: UMT207-1.
Remanufacturing Process
Every transfer case we sell is fully remanufactured to meet or exceed OEM specifications. Our remanufacturing process:
- Deep Clean – To start the remanufacturing process, each transfer case is fully disassembled and cleaned
- Inspection – Each transfer case is carefully inspected for cracks, excessive wear, shaft warp, and chain stretch
- New Components – All seals, bearings, joints and rings are replaced as well as electrical components (solenoids and control units)
- Validation – After reassembly, each individual transfer case is spin tested as part of a detailed checklist validation process
Because of our rigorous remanufacturing process, we can offer the industry’s best warranty on remanufactured transfer cases. Each transfer case comes with up to 7 years and 1 million miles of warranty, which can be upgraded to include Pure Care™ no-fault protection. No other transfer case manufacturer comes close.
Additional information
| Model Number | NP231 |
|---|---|
| Vendor SKU | RTC231J-4 |
| Application Notes | 23 Spline Input 27 Spline Rear Slip Output Two Piece Tail Shaft Housing, Fixed Front Yoke Two Wire . ASSM# 52093497, 52097522, 52097695, 52097890, 52098362, 52098487, 52099695, 53005382, 53006096. 23 Spline 0.75 Inch Exposed Length On Input Shaft, Bolt On Front Output Yoke, 27 Spline Slip Yoke Style Rear Output Shaft, 1.75 Inch Diameter Speedo hole, 2 Pin Shift Indicator Switch Above Shift Lever, 2 Piece Tail Housing, Tag Numbers: 52093497, 52097522, 52097695, 52097890, 52098362, 52098487, 52099695, 53005382, 53006096, 53008212, Hollander Numbers: 412-210, 412-309, 412-326, 412-328A, 412-328B, Other Numbers: UMT207-1 |
| Product Type | Transfer Cases |
