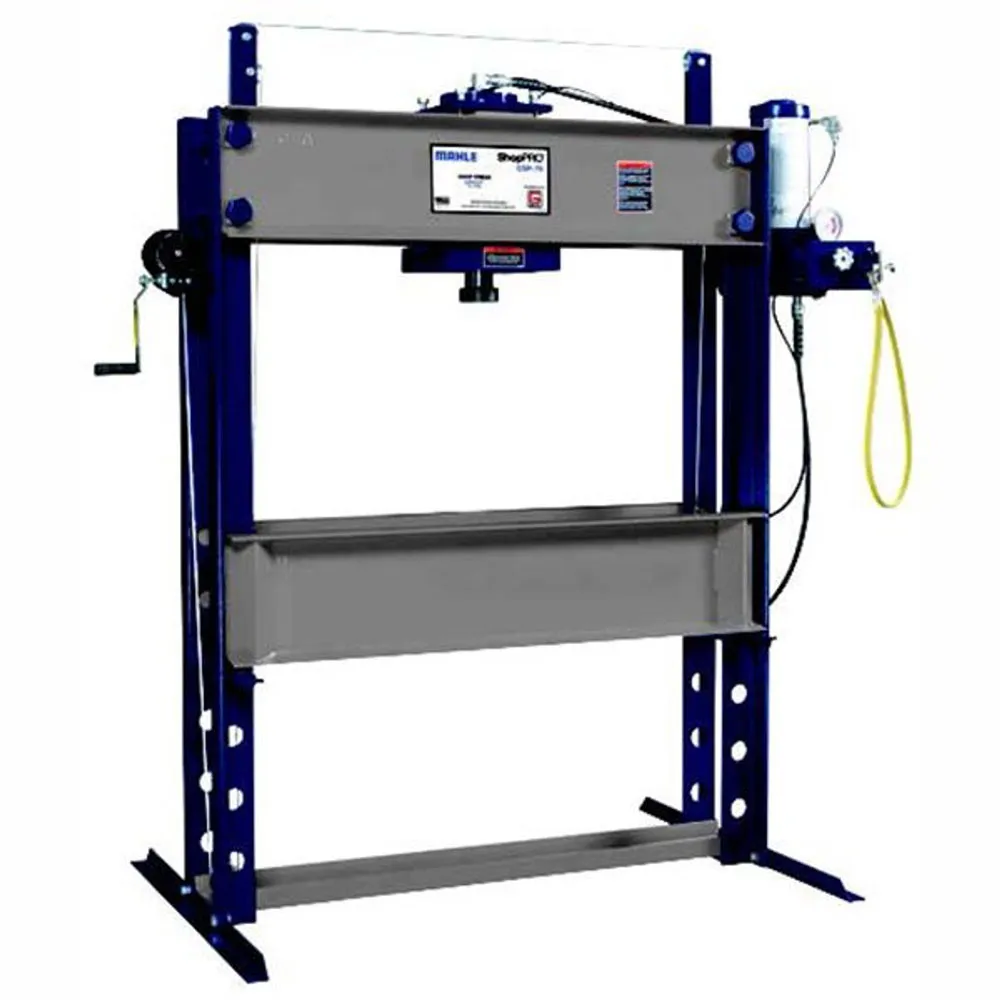

Mahle CSP-75 75 Ton Shop Press
Mahle CSP-75 75 Ton Shop Press

Mahle CSP-75 75 Ton Shop Press

SKU: VE-10271
In Stock

$14,549.00

The Mahle CSP-75 is a 75-ton shop press. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Categories: ,
Brand:

Description

Mahle CSP-75 75 Ton Shop Press

Adjustable bolster with six positions

Four-way mountable pump

Winch cable for raising and lowering the bolster

Gray engineered and built power units

Product Specifications

Capacity 75 Tons (68,039 kg)

Power Source Air/Hydraulic

Stroke 8.8 in (22.2 cm)

Horizontal Ram Travel 32 in (81 cm)

Throat Width 50 in (127 cm)

Inside Throat Depth 8 in (20 cm)

Outside Throat Depth 14 in (25 cm)

Required Air Pressure 120 to 200 psi (8.3 to 13.8 bar)

Adjustment Increments 6 in (15 cm)

Vertical Throat Minimum 9.5 in (24.1 cm)

Vertical Throat Maximum 39.5 in (100.3 cm)

Dimensions (H x W x D) 85 in x 78 in x 44 in (216 cm x 198 cm x 112 cm)

About the Mahle CSP-75 75 Ton Shop Press

This unit is quality-tested and ready to install. Browse more SHOP EQUIPMENT, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
