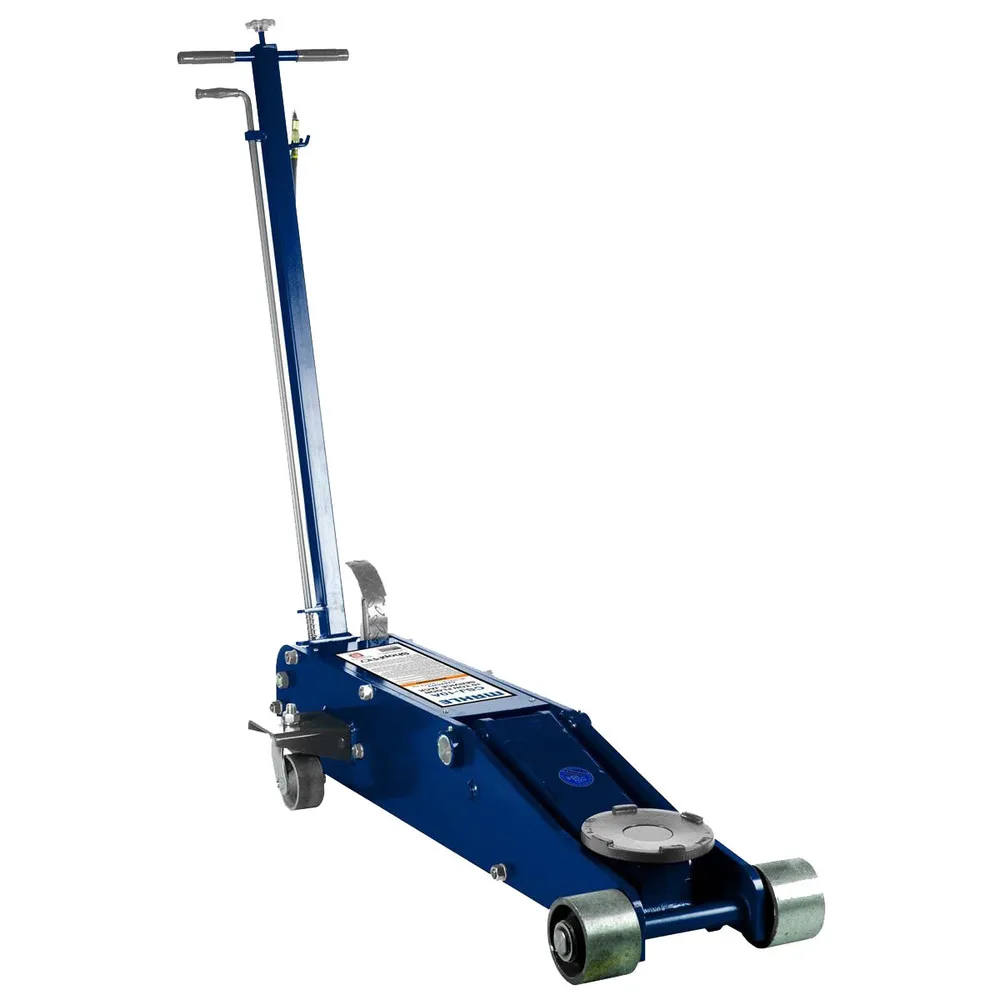

Mahle CSJ-10A 10 Ton Service Jack Air Assist
Mahle CSJ-10A 10 Ton Service Jack Air Assist

Mahle CSJ-10A 10 Ton Service Jack Air Assist

$4,260.00

The Mahle CSJ-10A is a 10-ton service jack. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Categories: ,
Brand:

Description

Mahle CSJ-10A 10 Ton Service Jack Air Assist

Features and Benefits:

Min start height 7″

Max lift Height 27″

Air/Hydraulic powered (90-175PSI)

20,000 lb Capacity

100% USA Made

Product Specifications

Maximum Capacity 20,000 lb (9,072 kg)

Minimum Start Height 7 in (18 cm)

Maximum Lift Height 27 in (69 cm)

Power Air/Hydraulic/Manual

Required Air Pressure 90 to 175 psi (6.2 to 12.1 bar)

Chassis Dimensions (H x L) 10 in x 53.5 (25 cm x 136 cm)

Handle Length 47 in (119 cm)

Dimensions (W x L) 21.9 in x 101.8 in (56 cm x 259 cm)

Overall Reach 93 in (236 cm)

Front Caster Diameter 5 in (13 cm)

Rear Swivel Caster Diameter 4 in (10 cm)

Saddle Diameter 8 in (20 cm)

Front Width Caster to Caster 17.1 in (43 cm)

Rear Width Bracket to Bracket 20.1 in (51 cm)

Shipping Weight 410 lb (186 kg)
