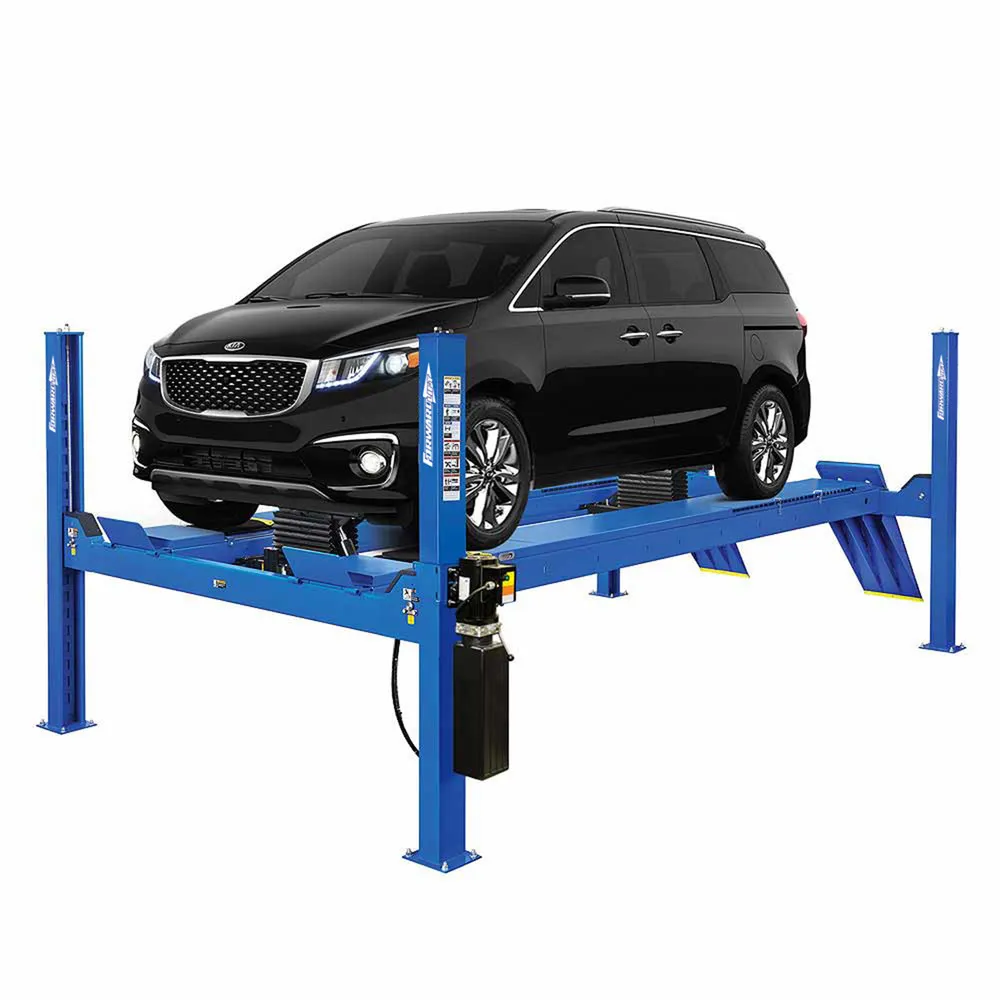

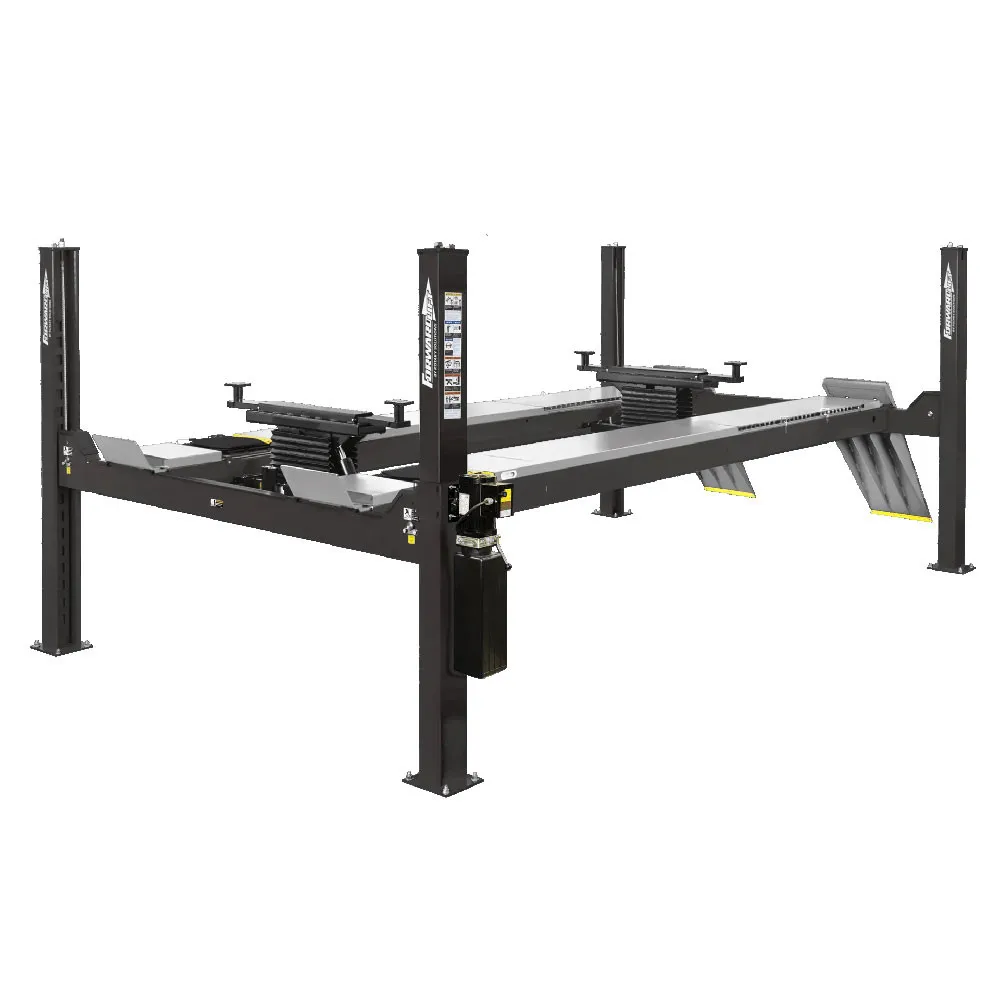

Forward Lift CRA14 14,000 LB. ALI Certified Alignment Four-Post Lift + Rolling Jacks – 182.5” Max Wheelbase
$20,805.00
The Forward CRA14 is a 14,000-lb. ALI Certified alignment alignment lift package. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Additional Features:
- Heavy duty hydraulic cylinder
- Internal airline standard
- Single Point latch release system
- One piece formed runway design incorporates rolling jack channels
- Multiple position latch points in each structural leg
- Rear wheel slip plates standard
Alignment-ready lift includes:
Two 7,000 lbs. rolling jacks, two carbon steel front turning radius, internal airlines, rear wheel slip plates, FLR (filter, lubricator, regulator)
| Specifications | CRA14N201Y |
|---|---|
| Capacity | 14,000 lbs. (6350kg) |
| Max. Wheelbase | 182-1/2″ (4635mm) |
| Max. Two Wheel Alignment | 166-1/4″ (4225mm) |
| Max. Four Wheel Alignment | 157″ (3987.8mm) |
| Min. Four Wheel Alignment | 88″ (2235mm) |
| Rise | 80-3/4″(2000mm) |
| Length Overall | 250″ (6350mm) |
| Width Overall | 10′ 11-3/4″ (3346mm) |
| Inside Columns | 116-1/4″ (2953mm) |
| Between Front and Rear Columns | 195-1/4″ (4959mm) |
| Height of Columns | 7′ 6-1/2″ (2281mm) |
| Width of Runways | 20″ (508mm) |
| Height of Runways | 9″ (228mm) |
| Width Between Runways | 43″ (1092mm) or 46″(1168mm) |
| Time of Full Rise | 72 seconds |
| Voltage Single Phase* | 208v-230v |
| Motor | 2HP |
| Minimum Bay Size | 15′ x 25′ (4572 x 7620mm) |
| * single phase standard; 3-phase available at additional cost | |
Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Alignment Combo Kits.
