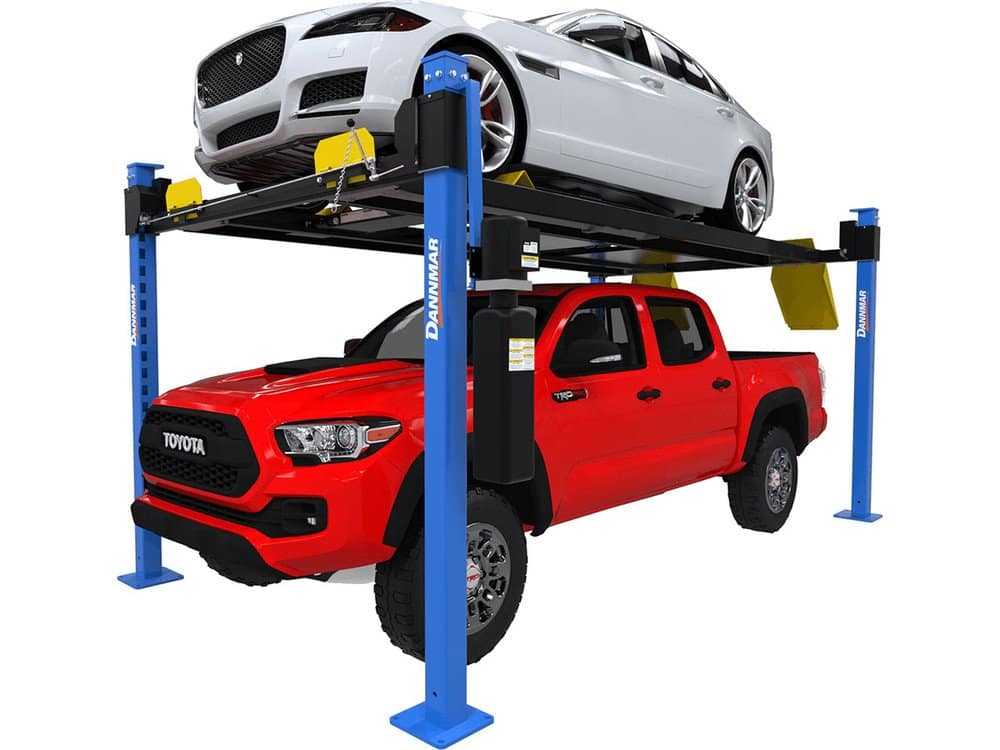

Dannmar D4-9X Package 9,000-lbs. ALI Certified Capacity Four-Post Lift Package
Dannmar D4-9X Package 9,000-lbs. ALI Certified Capacity Four-Post Lift Package
Dannmar D4-9X Package 9,000-lbs. ALI Certified Capacity Four-Post Lift Package
Dannmar D4-9X Package 9,000-lbs. ALI Certified Capacity Four-Post Lift Package
Dannmar D4-9X Package 9,000-lbs. ALI Certified Capacity Four-Post Lift Package
Dannmar D4-9X Package 9,000-lbs. ALI Certified Capacity Four-Post Lift Package
Dannmar D4-9X Package 9,000-lbs. ALI Certified Capacity Four-Post Lift Package

Dannmar D4-9X Package 9,000-lbs. ALI Certified Capacity Four-Post Lift Package

$7,864.00

The Dannmar D4-9X is a 9,000-lb. ALI Certified four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Boxed Steel Construction and Sleeve Containment

Dannmar’s D4-9X features extended-height versions of strong boxed-steel columns (4.75″ x 4.75″ wide) to ensure maximum durability and resistance to tough use. The 5/8″ thick, 12″ x 12″ baseplates provide superior support for loads on most floor surfaces. Full-perimeter exterior steel sleeves are used for retaining solid capture of the lift columns, so vehicles remain safe and supported at all times. The Dannmar design cradles the steel sleeves to create an interlock that keeps everything secured.

Space Efficient

With the extended dimensions for long-wheelbase vehicles, the D4-9X makes efficient use of your shop’s floor space. Dannmar’s excellent use of room is unequalled, which is why Dannmar recommends this car lift in both shop and residential settings.

Controlled Operation

Dannmar gives operators more confidence with straightforward and easy controls. This extended-height lift truly goes the distance faster than ever—just 55 seconds to max rise!

Multi-level locking positions

Sixteen locking positions are spaced every four inches to accommodate varying ceiling and vehicle heights. For more room under the vehicle or to park taller trucks and SUVs, the D4-9X features three added locking positions. This provides 12 inches of extra rise compared to the standard-size D4-9 four-post lift.

Heavy-Duty Aircraft Wire Rope

Dannmar’s D4-9X lift features four lifting wire ropes made from superior-grade stainless steel. Each of the four wire ropes is rated to support 14,000 lbs. The combined four wire rope rating is many times above the lift’s rated capacity.

Automatic Safety Locks

Four mechanical, 3/4″ thick safety locks engage simultaneously as the lift is raised. At all times, locks are securely trapped by the cross tube sleeves, so they don’t become dislodged or disengaged. A redundant backup slack-cable lock ensures instant lock engagement.

Dannmar Means Superior Service

The D4-9X delivers performance, and Dannmar’s longstanding reputation as a leader in lift technology is proof that we can back it up. If you need customer support, Dannmar’s team is here to assist. We’re glad to put our half-century of experience in the lift industry to the test!

Service you can depend on and Dannmar’s dealers and service providers deliver:

  • Genuine Dannmar OEM parts
  • Planned maintenance
  • Convenient national locations
  • Three-Year Warranty

Dannmar offers more than just car lifts: We want you to know you’re getting the absolute highest quality product at the best value. Dannmar’s lifts are backed by Dannmar’s standard 3-year warranty.

Features

  • CE Approved and Certified
  • Meets or exceeds the standards prescribed by European Standard EN-1493
  • Mid to long-style approach ramps for low-ground clearance vehicles
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Heavy-duty 1/2” aircraft cable and 1.75” roller axles
  • Safety locks enclosed in columns minimize pinch points
  • Oversized sheave diameter reduces cable fatigue
  • Large self-lubricating cable rollers
  • Multi-position safety locks in each column
  • Customizable power unit location
  • Approach ramps incorporate built-in rear-wheel chocks
  • Independent backup slack-cable safety latches
  • Runways feature non-skid surface
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional 6,000-lb. capacity rolling jacks available to raise front or rear of vehicle
  • ETL approved

What’s inside?

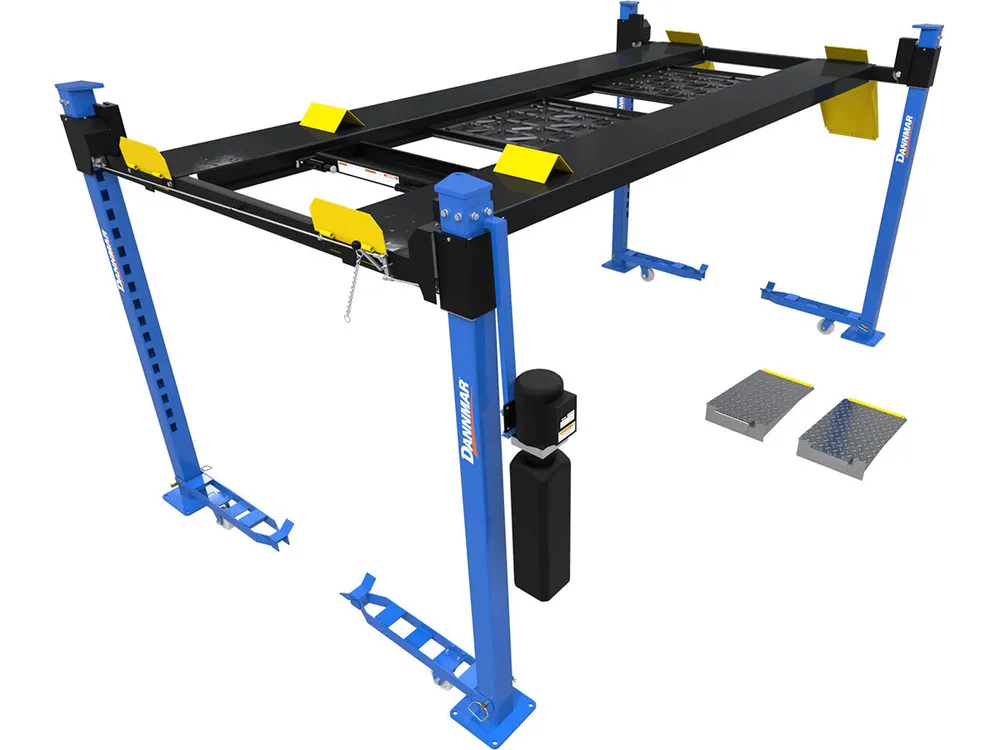

  • (1) D4-9X four post lift complete

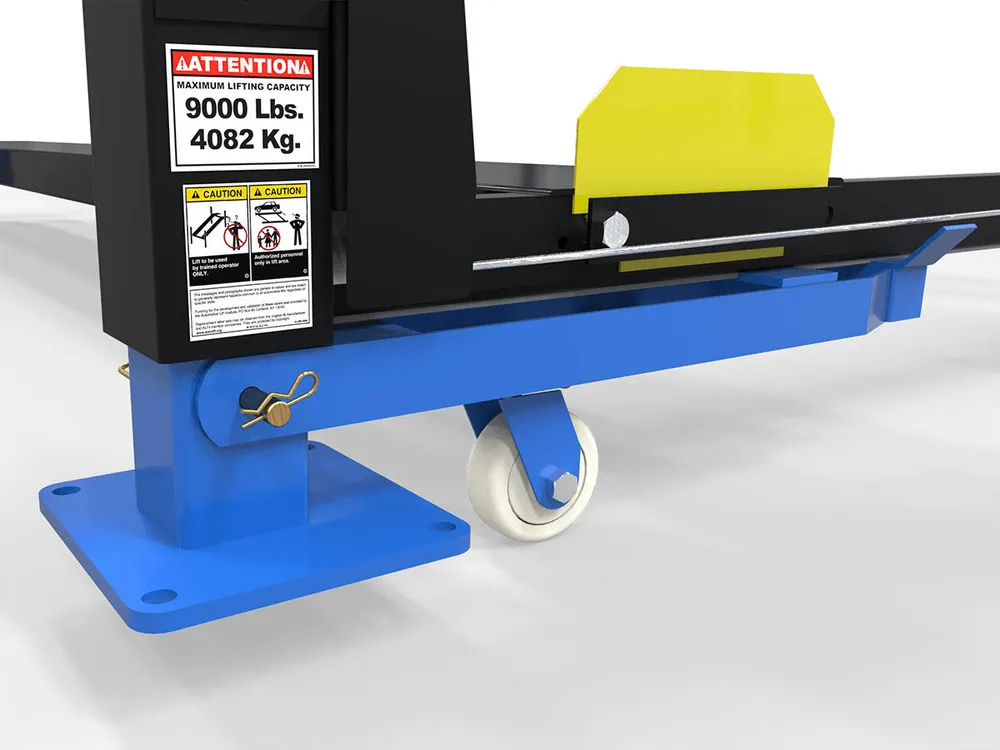

  • (1) Caster Kit

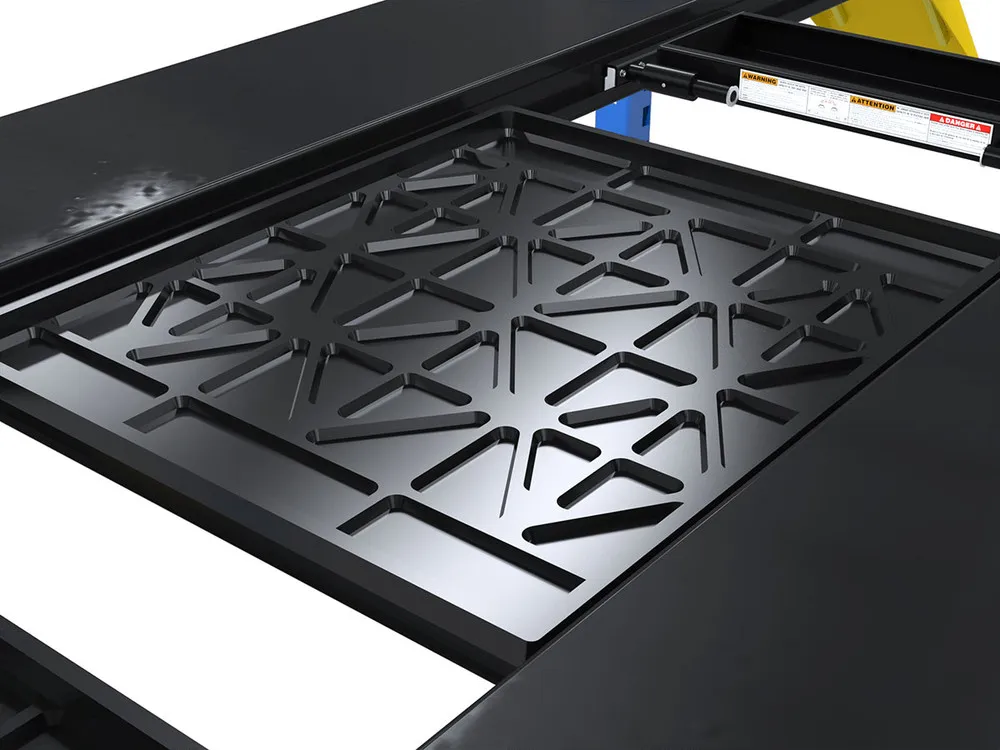

  • (1) Set Plastic Drip Trays

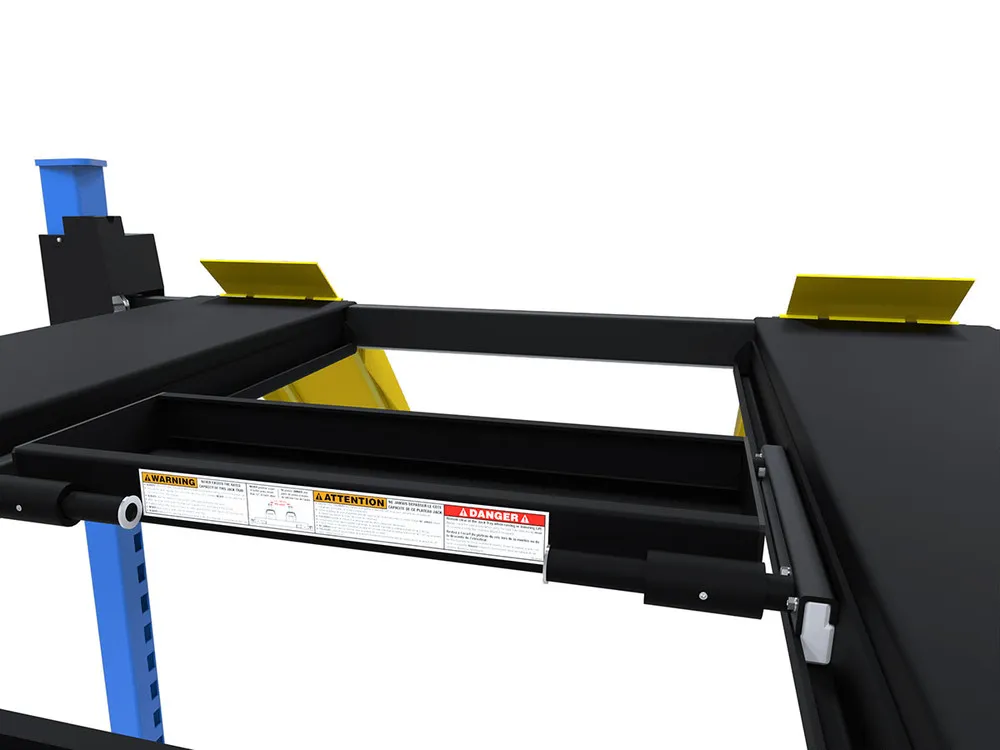

  • (1) JP45 Sliding Jack Tray

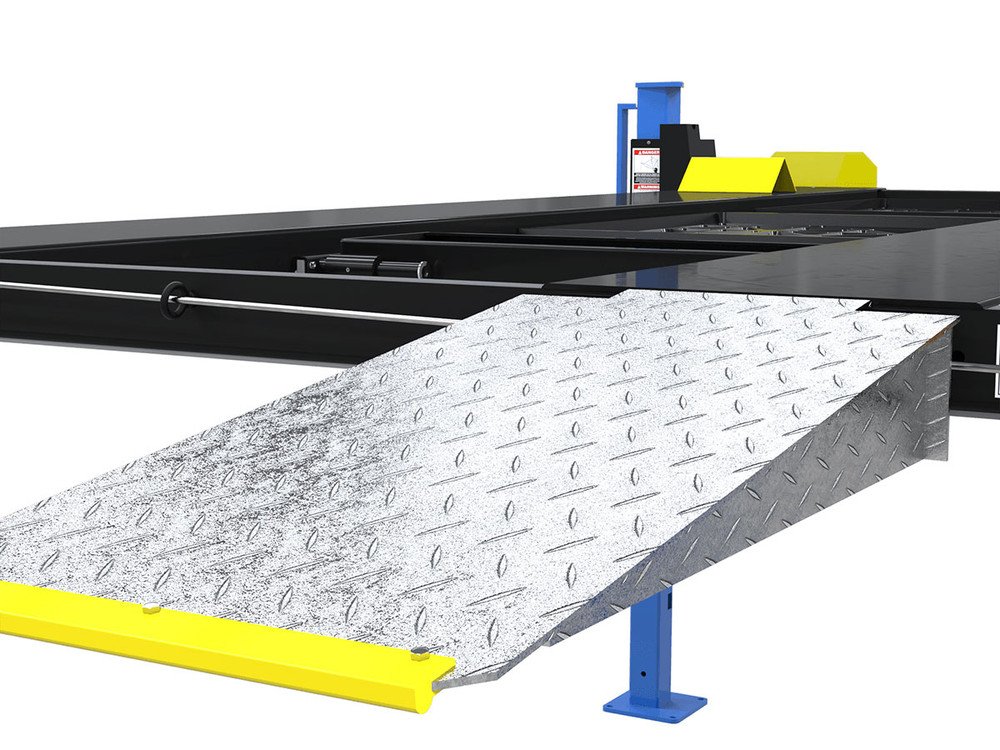

  • (1) Set Aluminum Approach Ramps

Specs

SKU# 5175321
Lifting Capacity 9,000 lbs. (4,082 kg)
A – Min. Runway Height 5” (127 mm)
B – Max. Rise 82” (2,083 mm)
C – Max. Lifting Height 87” (2,210 mm)
D – Height of Columns 99” (2,515 mm)
E – Drive-Thru Clearance 86” (2,184 mm)
F – Overall Width 114.5” (2,908 mm)
G – Width Between Columns 98” (2,489 mm)
H – Overall Length 227” (5,766 mm)
I – Outside Columns 200.5” (5,093 mm)
J – Width Between Runways 37.5” (953 mm)
K – Runway Centerline 53.75” (1,365 mm)
L – Outside Edge of Runways 72.5” (1,842 mm)
M – Runway Width 18.75” (476 mm)
N – Length of Runways 189.75” (4,820 mm)
Min. Wheelbase @ Rated Capacity 135” (3,429 mm)
Min. Wheelbase @ 75% Capacity 115” (2,921 mm)
Min. Wheelbase @ 50% Capacity 95” (2,413 mm)
Min. Wheelbase @ 25% Capacity 80” (2,032 mm)
Locking Positions 16 (spaced every 4” / 102 mm)
Time to Full Rise 60 seconds
Motor 110VAC, 50-60HZ, 1PH, 20A or 208-230VAC, 50-60HZ, 1PH, 25A

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
