$9,311.00

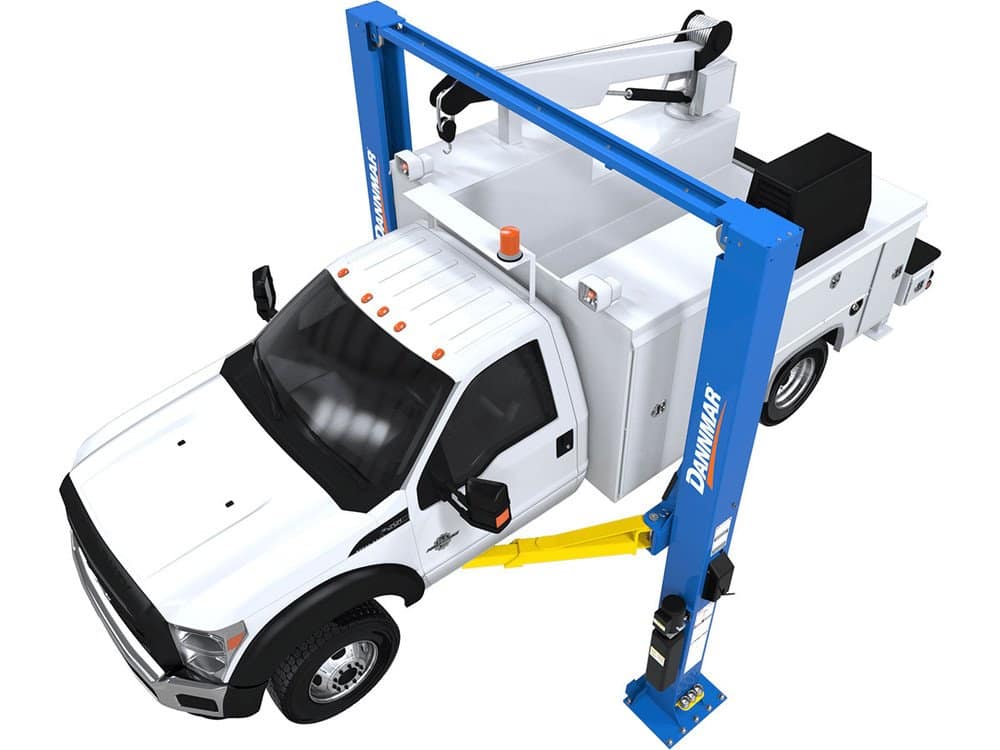

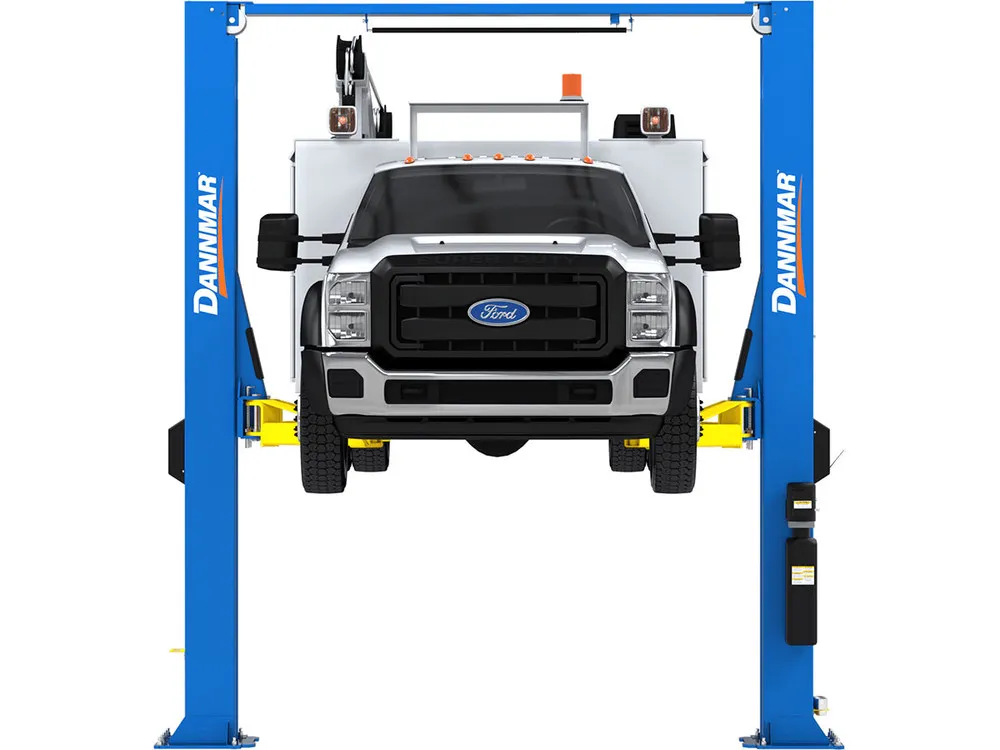

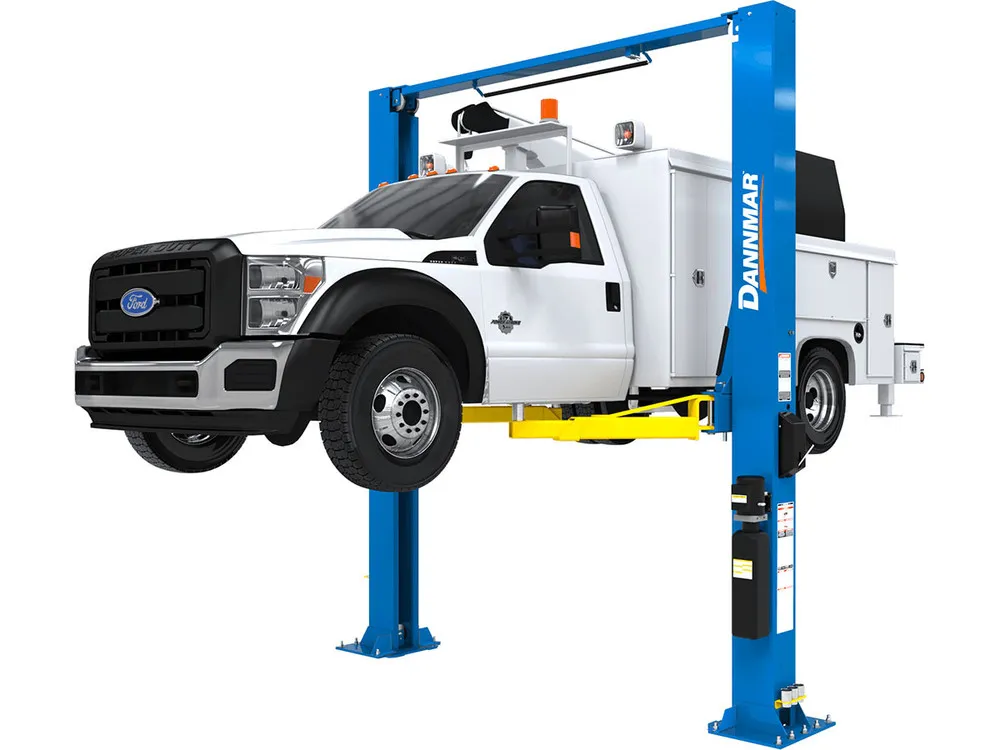

The Dannmar D2-15C is a 15,000-lb. ALI Certified clearfloor symmetric two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Features

  • 15,000-lb. lifting capacity
  • Padded overhead safety shutoff bar
  • Extended height top-beam provides greater clearance
  • Single-point safety release
  • Dual direct-drive hydraulic cylinders
  • Dual-synchro equalization system for equal lifting
  • Oversized 53” tall carriage for superior strength
  • Electric / hydraulic power system
  • Oversized A36 steel base plates
  • Self-lubricating Dura-glide UHMW polyethylene bearings
  • Safety locks in each column spaced every 3”
  • Automatic arm restraints
  • Heavy-duty 1/2” aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • Durable, rubber lift pads with stackable adapters
  • Multi-piece adapter set includes four 6” stackable adapters, four 3” stackable adapters, four polyurethane contact pads and four frame cradle pads. Ideal for trucks and vans with running boards or auxiliary fuel tanks.
  • Convenient storage is included for truck and van adapters
  • Versatile drop-in contact pads with stackable adapters

Specs

Style Asymmetric
SKU# 5175313
Lifting Capacity 15,000 lbs. (6,804 kg)
A – Lowered Height + Pad 6.5″ (108 mm)
B – Max. Lift Height (Top Lock) 83″ (2,032 mm)
C – Max. Rise 69″ (1,753 mm)
D – Height Overall 168.75″ (4,286 mm)
E – Width Overall 155.25″ (3,943 mm)
F – Width Outside Columns 142.5″ (3,620 mm)
G – Width Inside Columns 119.5″ (3,035 mm)
H – Drive-Thru Clearance 105” (2,663 mm)
I – Floor to Top Switch 162.75” (4,131 mm)
J – Arm Reach 37.25″ (946 mm) – 58” (1,473 mm)
Max. Load per Arm 3,750 lbs. (1,701 kg)
Time to Full Rise 55 seconds
Noise 45 dB
Motor 220 VAC / 60 Hz / 1 Ph

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Two Post Lifts.
