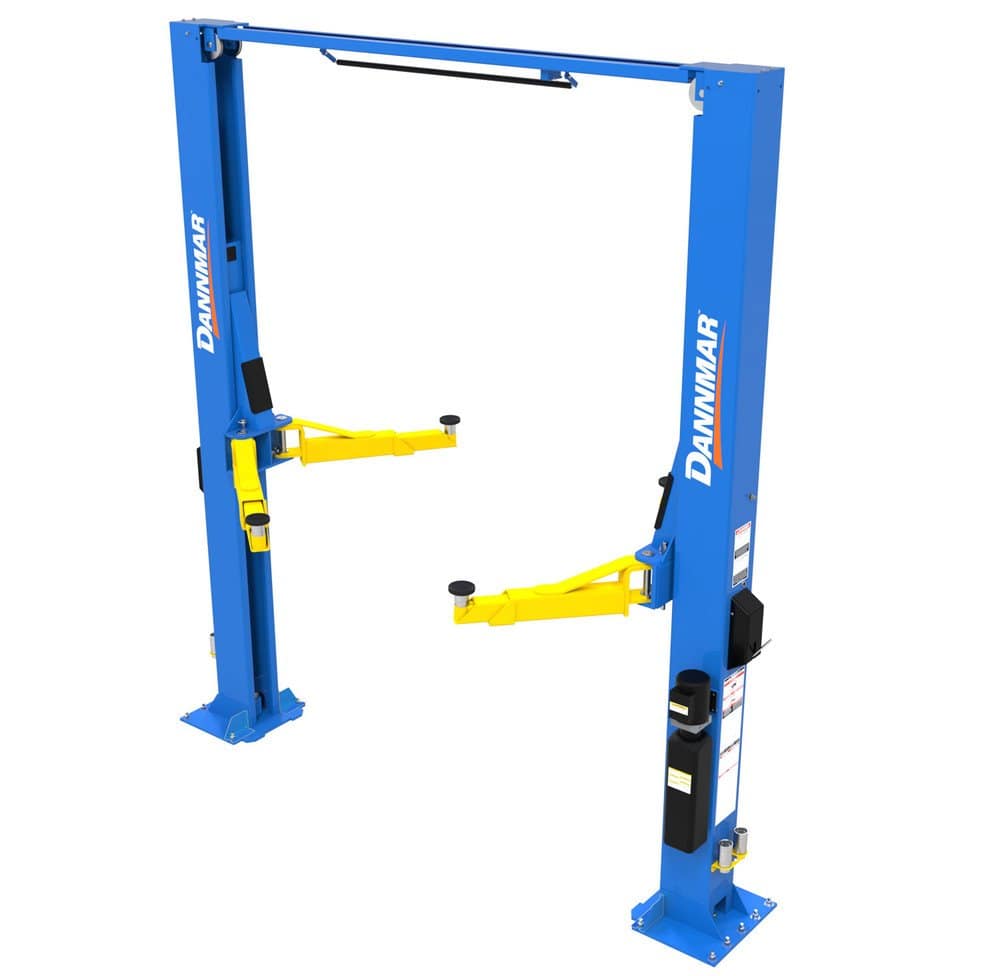

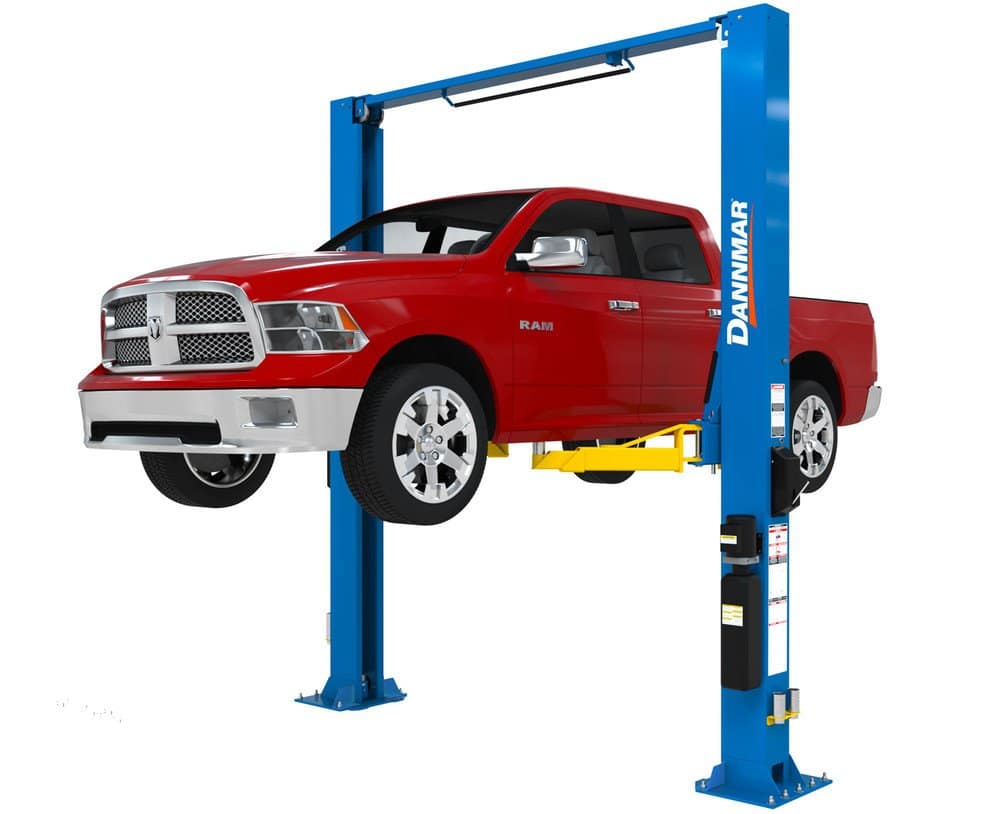

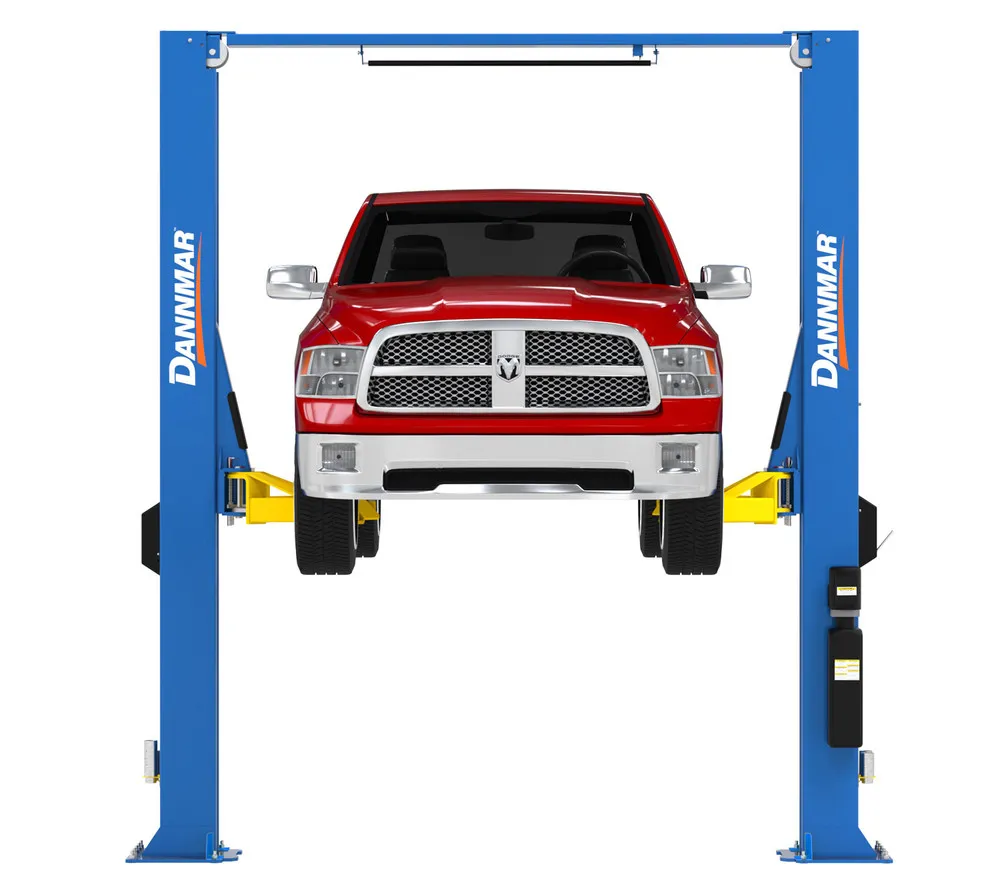

Dannmar D2-12C Symmetric 12,000 lb. capacity ALI Certified Two-Post Lift with Triple-Telescoping Low-Pro Arms
Dannmar D2-12C Symmetric 12,000 lb. capacity ALI Certified Two-Post Lift with Triple-Telescoping Low-Pro Arms - Image 2
Dannmar D2-12C Symmetric 12,000 lb. capacity ALI Certified Two-Post Lift with Triple-Telescoping Low-Pro Arms - Image 3
Dannmar D2-12C Symmetric 12,000 lb. capacity ALI Certified Two-Post Lift with Triple-Telescoping Low-Pro Arms - Image 4

Dannmar D2-12C Symmetric 12,000 lb. capacity ALI Certified Two-Post Lift with Triple-Telescoping Low-Pro Arms

In Stock

$7,809.00

Dannmar’s D2-12C is loaded with features to make your lift work better. With triple-telescoping arm sets, three-stage front and three-stage rear arms this Dannmar provides greater maximum reach with minimum retraction. This strong lift system will raise just about all passenger vehicles and many heavy-duty pickup trucks. The high-speed hydraulics, free-flow, high-pressure 3/8” hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speeds. The safe and rugged D2-12C two-post lift features extended height columns for added overhead clearance, as well as an adjustable top beam to accommodate wide or narrow installation setups.

In Stock
Category:

Description

Features

  • Dual direct-drive hydraulic cylinders
  • Heavy-duty 1/2” aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • Durable, rubber lift pads with stackable adapters
  • Dual-synchro equalization system for equal lifting
  • Padded overhead safety shutoff bar – Extended height top-beam provides greater clearance
  • Single-point safety release
  • Oversized 53” tall carriage for superior strength
  • Electric/hydraulic power system
  • Oversized A36 steel base plates
  • Self-lubricating Dura-glide UHMW polyethylene bearings
  • Safety locks in each column spaced every 3”
  • Automatic arm restraints
  • 16-piece specialty adapter set includes four 6” stackable adapters, four 3” stackable adapters, four polyurethane contact pads and four frame cradle pads – Convenient storage is included for truck and van adapters
  • Triple-telescoping arms provide increased range

Features

Specs

Style Symmetric
SKU# 5175312
Lifting Capacity 12,000 lbs. (5,443 kg)
A – Lowered Height + Pad 4.25″ (108 mm)
B – Max. Lift Height (Top Lock) 80″ (2,032 mm)
C – Max. Rise 69″ (1,753 mm)
D – Height Overall 168.75″ (4,286 mm)
E – Width Overall 155.25″ (3,943 mm)
F – Width Outside Columns 142.5″ (3,620 mm)
G – Width Inside Columns 119.5″ (3,035 mm)
H – Drive-Thru Clearance 105” (2,663 mm)
I – Floor to Top Switch 162.75” (4,131 mm)
J – Arm Reach 31.5″ (800 mm) – 58” (1,473 mm)
Max. Load per Arm 3,000 lbs. (1,361 kg)
Time to Full Rise 55 seconds
Noise 45 dB
Motor 220 VAC / 60 Hz / 1 Ph
