Challenger CLMM-5000 5,000 lb. ALI Certified Wireless Mobile Column Lift (Set of 4)
SKU VE-8846Condition New
$37,796.00
In stock — ships in 1–2 business days

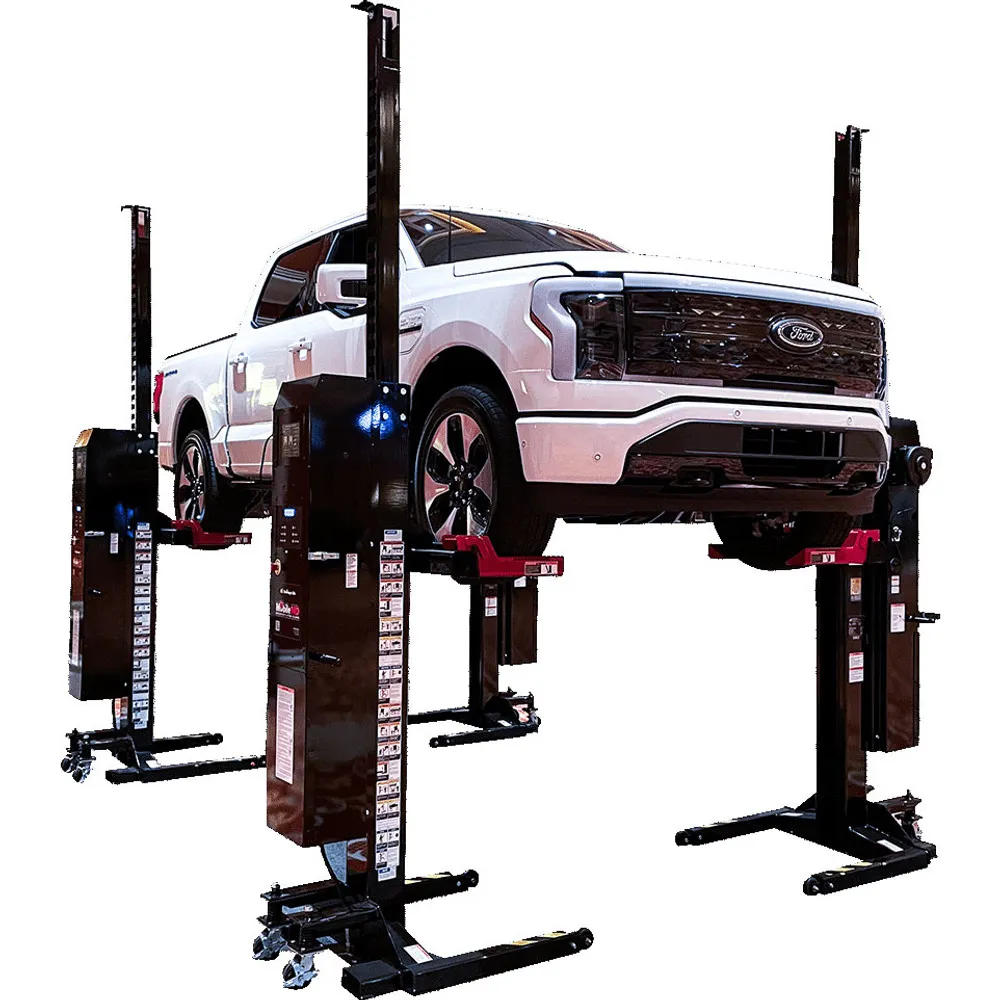

The Challenger CLMM-5000 is a 5,000-lb. ALI Certified mobile wireless mobile column lift. Supplied as a set of 4 columns. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Call with your VIN or tag number and we will confirm this listing fits before you pay.
- Shipping
- Freight, 3–6 business days
- Returns
- 45 days, by mail
- Warranty
- See warranty terms
- Payment
- Bank transfer, Zelle, Chime
Product details
- Sold in sets of 4
- 20,000 lbs. lifting capacity
- Operate from any column
- Rechargeable battery powered
- 110v charging system
- No air required
- Adjustable to fit wheel diameters from 6″ to 22″
| Lifting Capacity Per Column | 5,000 lbs. |
| Height of Lift Unit | 88.5" |
| Height of Lift Unit at Full Rise | 157" |
| Width of Lift Unit | 38.5" |
| Length of Lift Unit | 46.75" |
| Maximum Lift Height (4 units) | 69" |
| Maximum Lift Height (2 units - Normal Mode) | 32" |
| Min-Max Wheel Diameter | 6" - 22" |
| Max. Hydraulic System Operating Pressure | 2,230 psi |
| Lift Speed (Max Load) | 60" per min. |
| Weight of Lift Unit | 870 lbs |
| Footprint of Lift Unit | 450 sq. in. |
| Ground Pressure for each Lift (Max. Load) | 13.04 psi |
| Turning Radius of Lift Unit | 50.5" |
| Operating Peak Power | 4HP |
| Operating Voltage | 24 VDC nominal |
| Charger Voltage Required | 120-240 VAC @ 50-60 Hz |
| Charger Amps Required | 2.8 Amps |
| Colors Available | Black |
Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Mobile Column Lifts.
