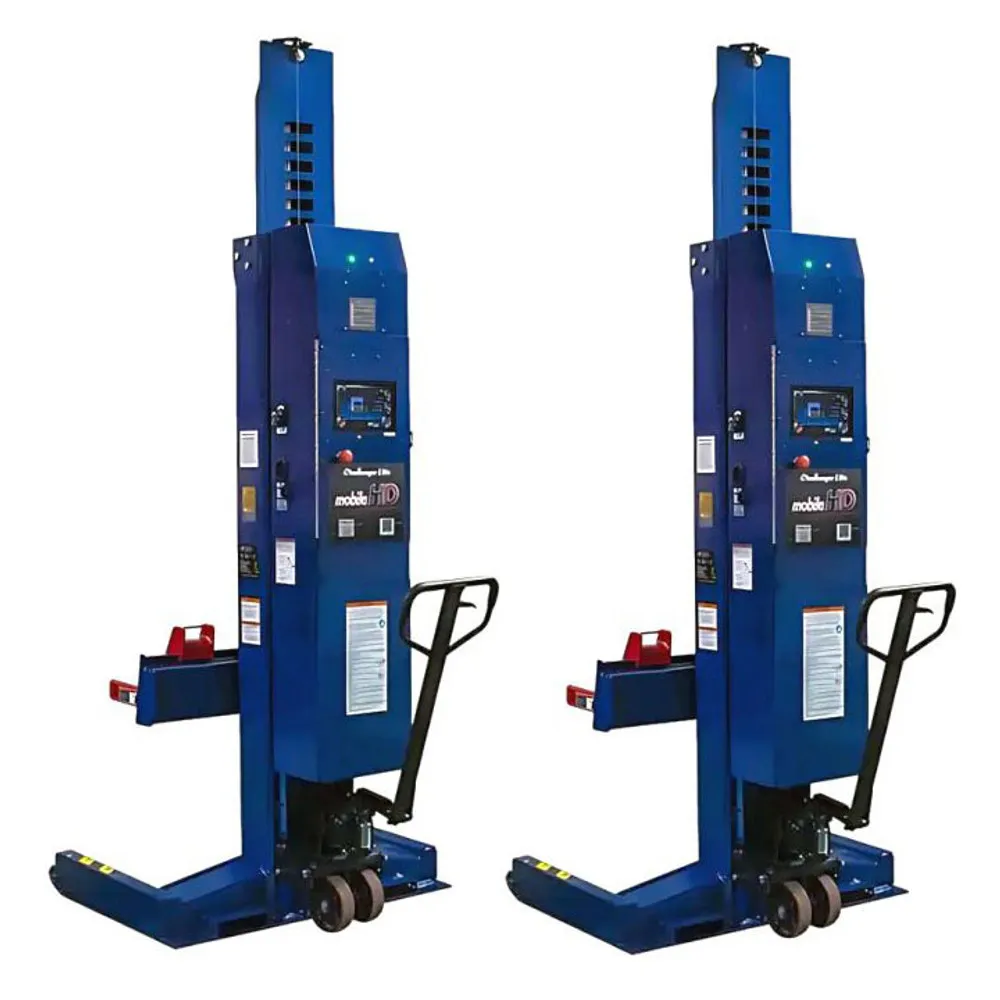

Challenger CLHM-190 19,000 lb. ALI Certified Wireless Mobile Column Lift (Set of 2)
$28,186.00
The Challenger CLHM-190 is a 19,000-lb. ALI Certified mobile wireless mobile column lift. Supplied as a set of 2 columns. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Description
A pair of CLHM-190 columns is published at 38,000 lbs of lifting capacity, and maximum lift height with two units in normal mode is 32 inches. Each unit measures 88.5 inches tall, 44.25 inches wide and 53.625 inches long, weighs 1,510 lbs and needs a 47 inch turning radius. The columns operate from 12-volt deep cycle batteries providing 24-volt operation, with a 110-volt built-in multi-stage charging system, so no power hookup is needed at the lifting point. Integrated weight gauges help prevent column overloading and verify lock engagement, and the units are ALI/ETL Certified.
- 14,000 lb. or 19,000 lb. capacity columns
- Hydraulic operated units provide 28,000/38,000 (set of 2) or 112,000/152,000 lbs. (set of 8) lifting capacity

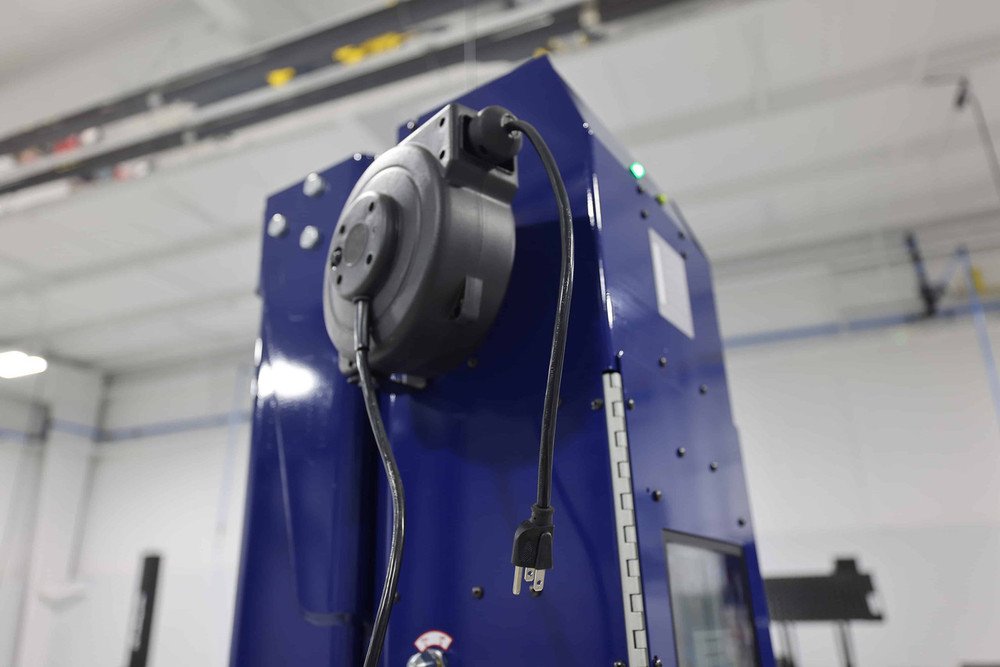

- 110-volt built-in multi-stage charging system
- Wireless system for clutter-free work area without cables to connect, navigate, roll-over or replace

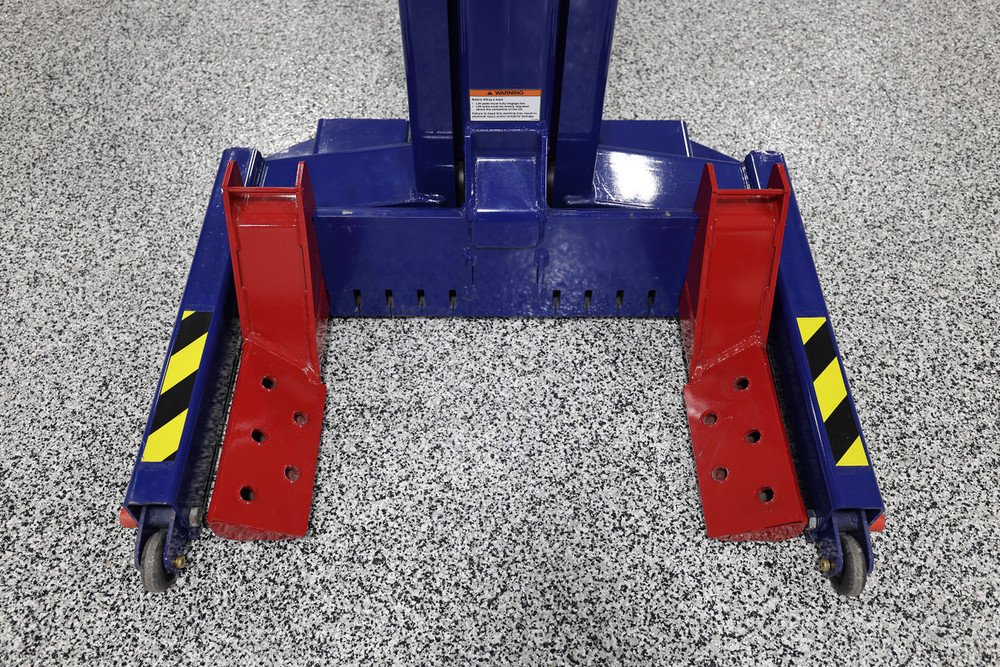

- Adjustable wheel carriage adapts to most tire sizes
- 12 radio frequencies with a wide channel range prevents radio noise from interrupting service
- Linear position transducers maintain system synchronization and ensure maximum reliability

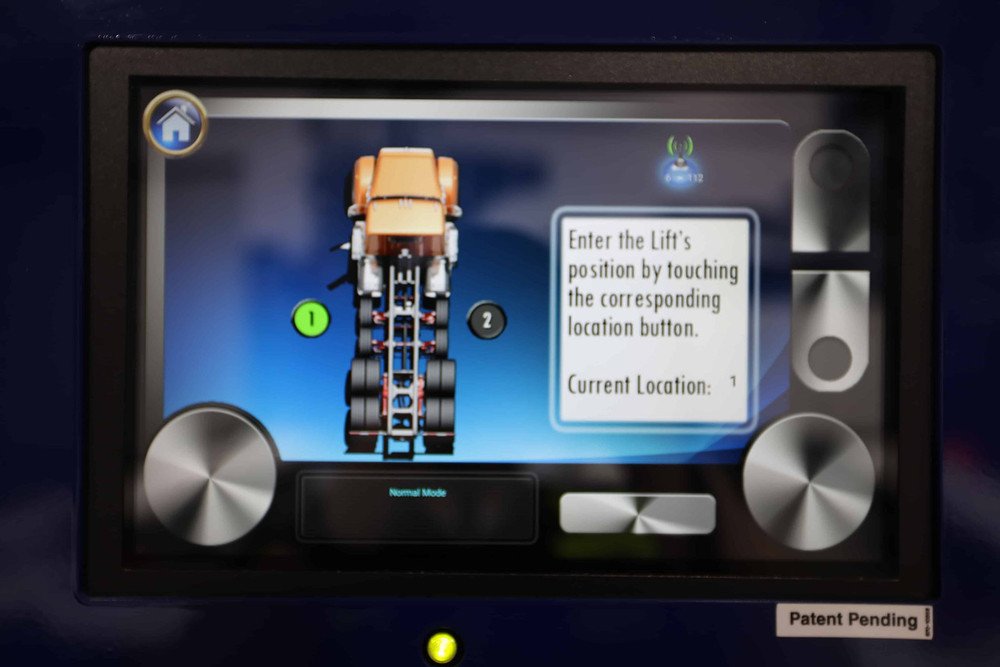

- Integrated touch screen control console at each column allows operation from any unit

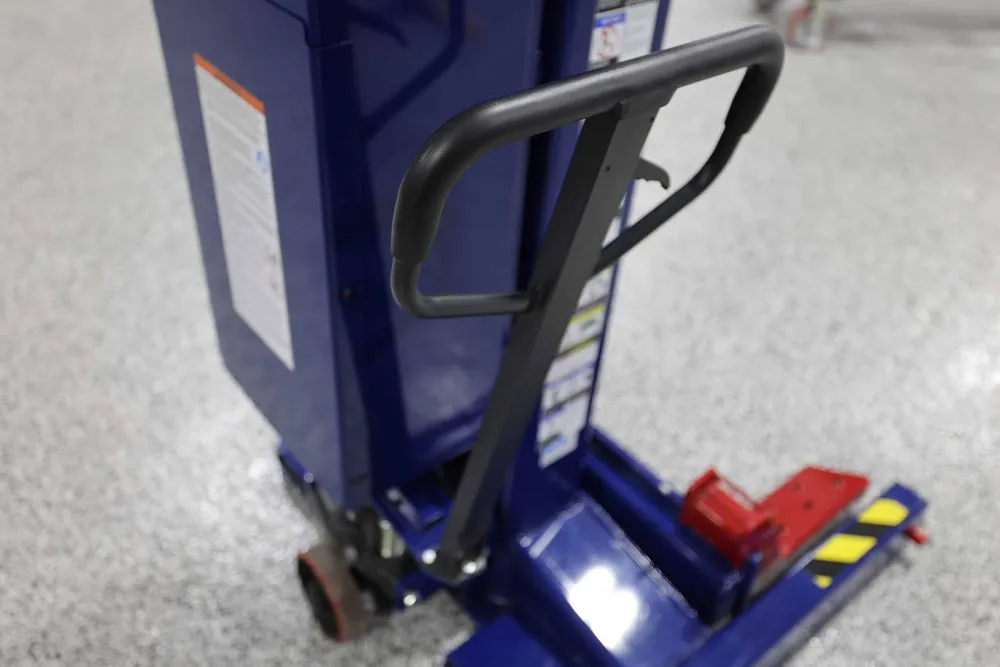

- Precise balanced design, heavy-duty tow handle and spring-loaded wheels for easy mobility
- Operates with 12-volt deep cycle batteries eliminating the need for power source hookups and providing 24-volt operation
- Integrated weight gauges help prevent column overloading and verify lock engagement
- Wide range of accessories available to further customize your columns to lift specialty heavy-duty trucks, transit and municipality vehicles, forklifts, cab removal of standard pickup trucks and more
| Model Number | CLHM-190 |
|---|---|
| Lifting Capacity Per Column | 19,000 lbs. |
| Height of Lift Unit | 88.5″ |
| Height of Lift Unit at Full Rise | 157.125″ |
| Width of Lift Unit | 44.25″ |
| Length of Lift Unit | 53.625″ |
| Maximum Lift Height (4 or more units) | 69″ |
| Maximum Lift Height (2 units – Normal Mode) | 32″ |
| Min-Max Wheel Diameter | 5″ – 24.5″ |
| Max. Hydraulic System Operating Pressure | 2,600 psi |
| Lift Speed (Max Load) | 60″ per min. |
| Weight of Lift Unit | 1,510 lbs |
| Footprint of Lift Unit | 560 sq. in. |
| Ground Pressure for each Lift (Max. Load) | 36.6 psi |
| Turning Radius of Lift Unit | 47″ |
| Operating Peak Power | 4HP |
| Operating Voltage | 25 VDC nominal |
| Charger Voltage Required | 120 VAC @ 60 Hz |
| Charger Amps Required | 1.3 Amps |
| ALI/ETL Certified | Yes |
| Colors Available | Blue |
Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Mobile Column Lifts.
