Challenger

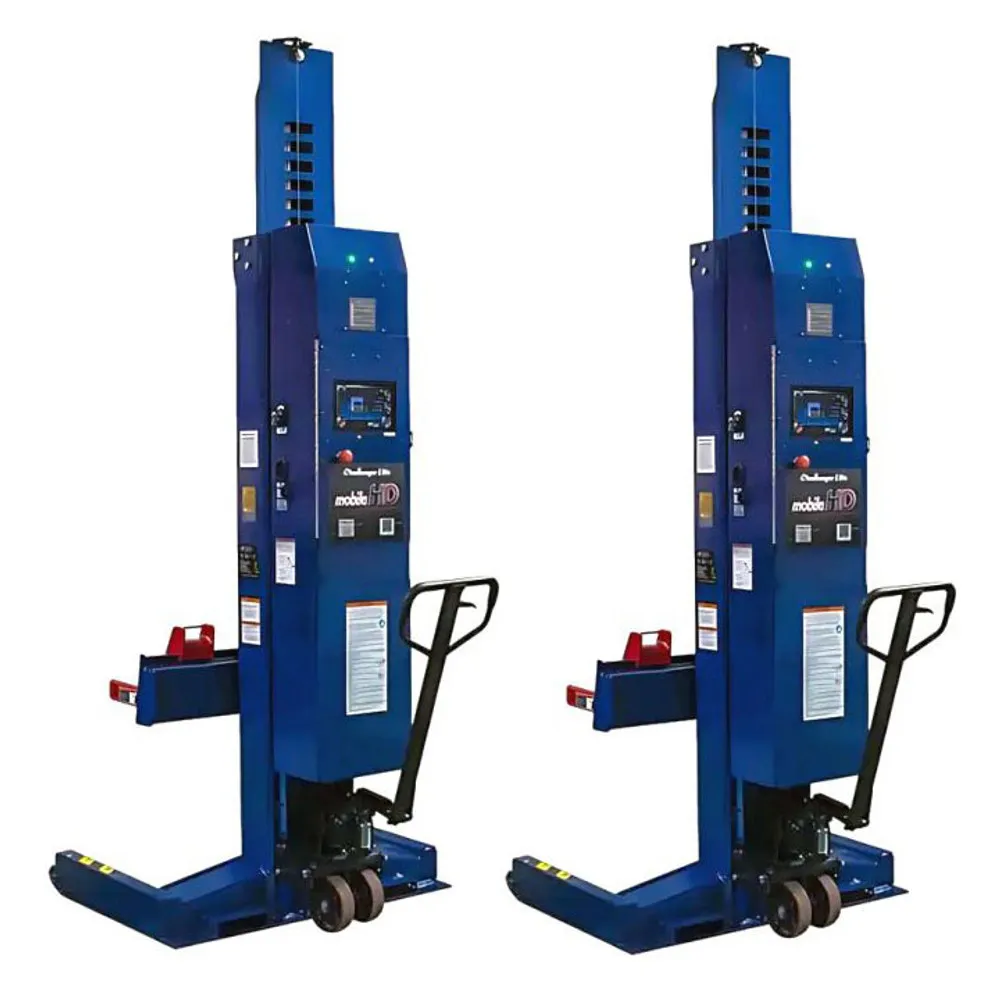

Challenger CLHM-140 14,000 lb. ALI Certified Wireless Mobile Column Lift (Set of 2)
SKU VE-9037Condition New
$25,297.00
In stock — ships in 1–2 business days
The Challenger CLHM-140 is a 14,000-lb. ALI Certified mobile wireless mobile column lift. Supplied as a set of 2 columns. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Call with your VIN or tag number and we will confirm this listing fits before you pay.
- Shipping
- Freight, 3–6 business days
- Returns
- 45 days, by mail
- Warranty
- See warranty terms
- Payment
- Bank transfer, Zelle, Chime
Product details
Additionally, with no cables to connect each column, they effortlessly lift vehicles of any axle length or wheelbase. These heavy-duty mobile lifts are available in 14,000 lbs. or 19,000 lbs. capacity and are versatile for various vehicle lifting needs.
- 14,000 lb. or 19,000 lb. capacity columns
- Hydraulic operated units provide 28,000/38,000 (set of 2) or 112,000/152,000 lbs. (set of 8) lifting capacity

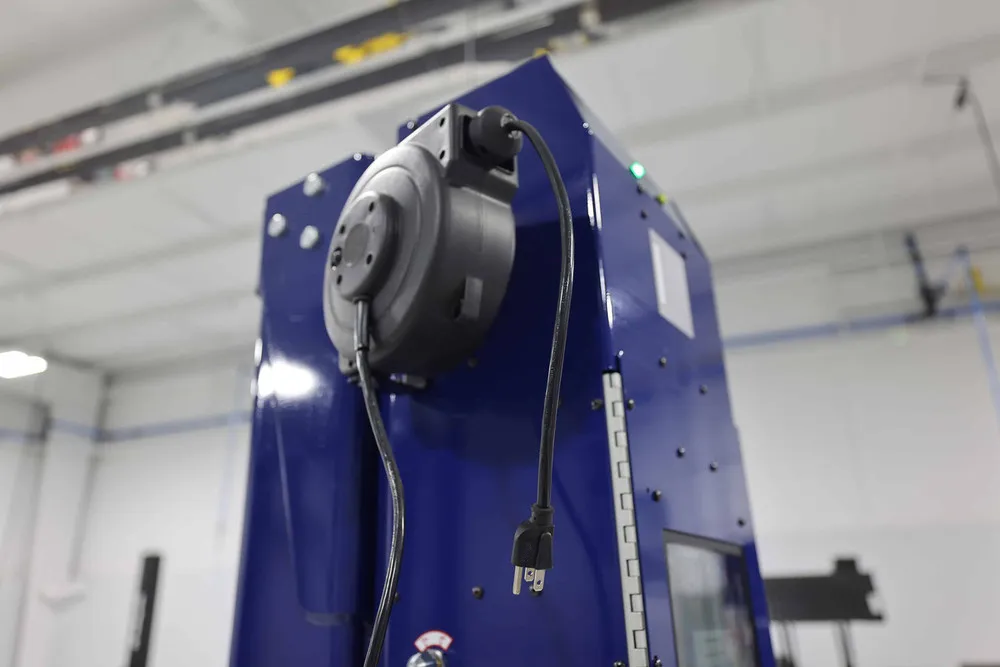

- 110-volt built-in multi-stage charging system
- Wireless system for clutter-free work area without cables to connect, navigate, roll-over or replace

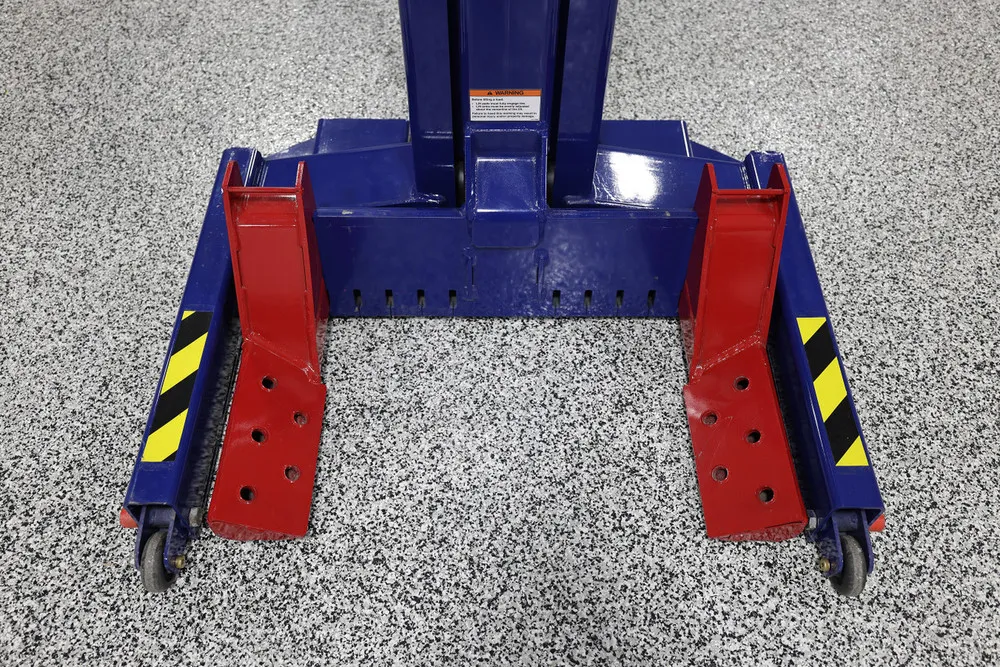

- Adjustable wheel carriage adapts to most tire sizes
- 12 radio frequencies with a wide channel range prevents radio noise from interrupting service
- Linear position transducers maintain system synchronization and ensure maximum reliability

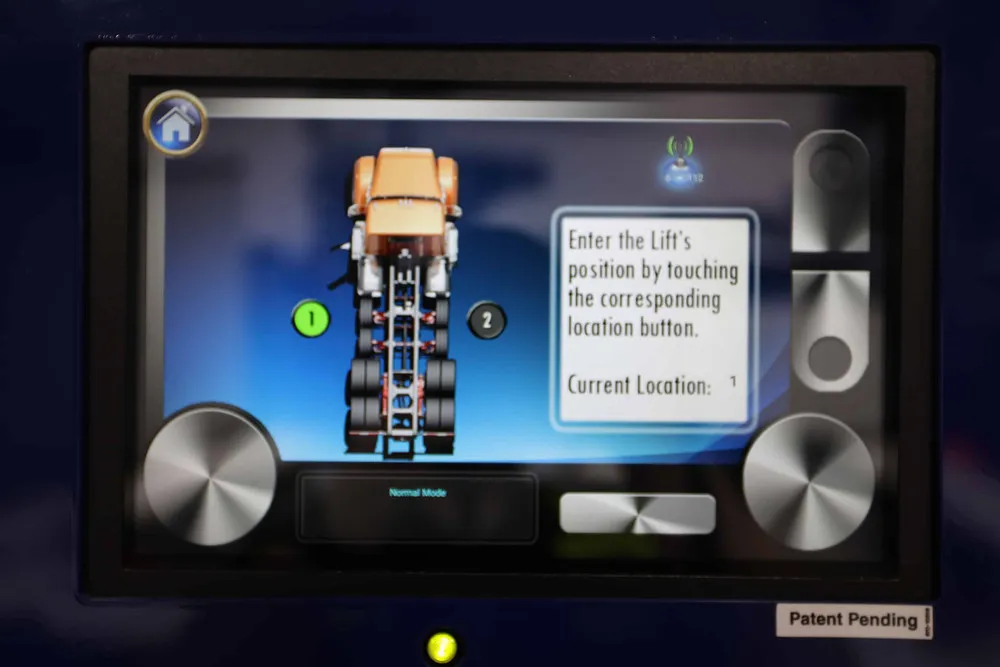

- Integrated touch screen control console at each column allows operation from any unit

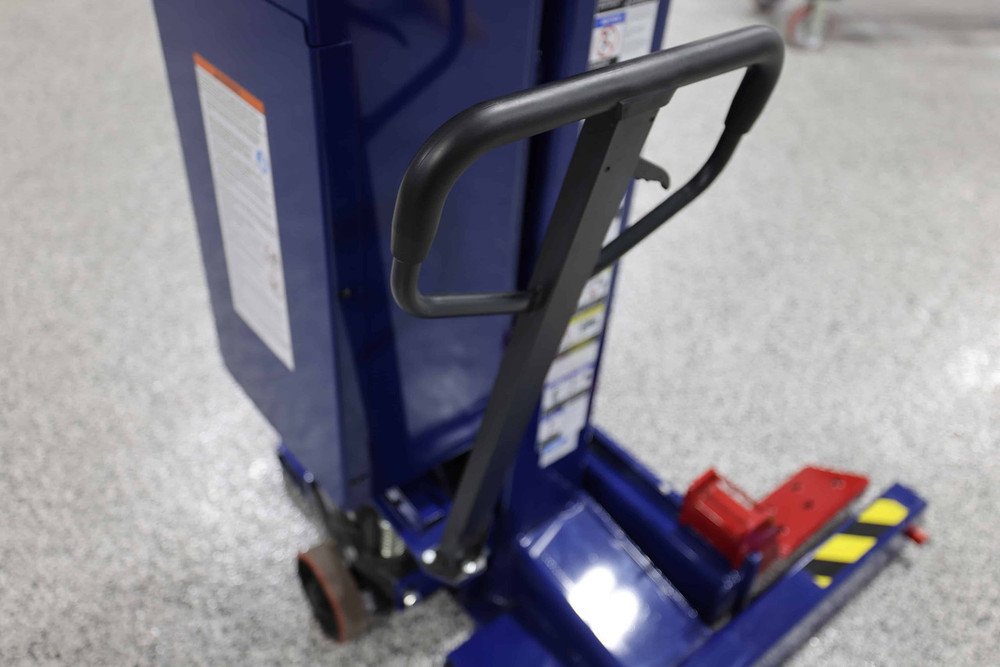

- Precise balanced design, heavy-duty tow handle and spring-loaded wheels for easy mobility
- Operates with 12-volt deep cycle batteries eliminating the need for power source hookups and providing 24-volt operation
- Integrated weight gauges help prevent column overloading and verify lock engagement
- Wide range of accessories available to further customize your columns to lift specialty heavy-duty trucks, transit and municipality vehicles, forklifts, cab removal of standard pickup trucks and more
| Model Number | CLHM-140 |
|---|---|
| Lifting Capacity Per Column | 14,000 lbs. |
| Height of Lift Unit | 88.5" |
| Height of Lift Unit at Full Rise | 157.125" |
| Width of Lift Unit | 44.25" |
| Length of Lift Unit | 53.625" |
| Maximum Lift Height (4 or more units) | 69" |
| Maximum Lift Height (2 units - Normal Mode) | 32" |
| Min-Max Wheel Diameter | 5" - 24.5" |
| Max. Hydraulic System Operating Pressure | 2,180 psi |
| Lift Speed (Max Load) | 60" per min. |
| Weight of Lift Unit | 1,485 lbs |
| Footprint of Lift Unit | 560 sq. in. |
| Ground Pressure for each Lift (Max. Load) | 27.7 psi |
| Turning Radius of Lift Unit | 47" |
| Operating Peak Power | 4HP |
| Operating Voltage | 24 VDC nominal |
| Charger Voltage Required | 120 VAC @ 60 Hz |
| Charger Amps Required | 1.3 Amps |
| ALI/ETL Certified | Yes |
| Colors Available | Blue |
Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Mobile Column Lifts.
