$10,950.00

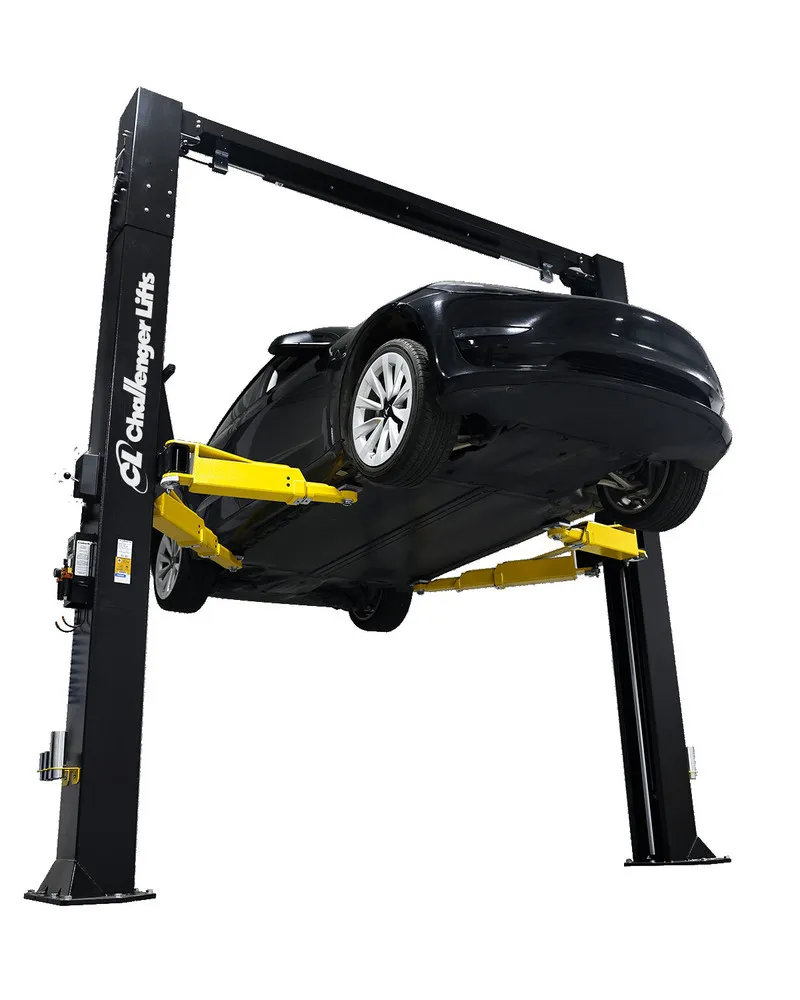

The Challenger CL12A is a 12,000-lb. ALI Certified symmetric two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

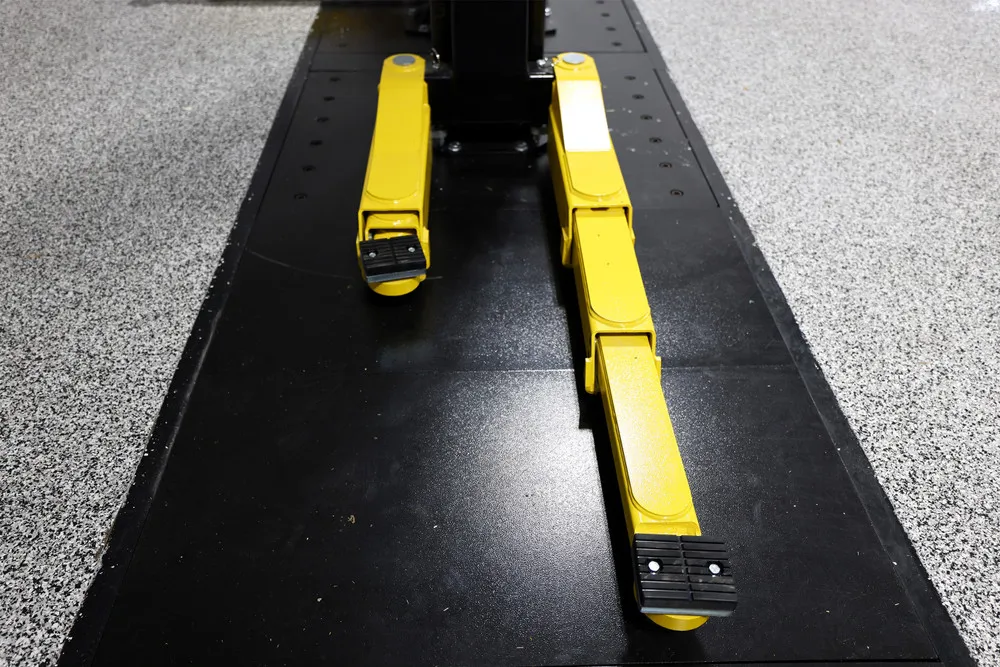

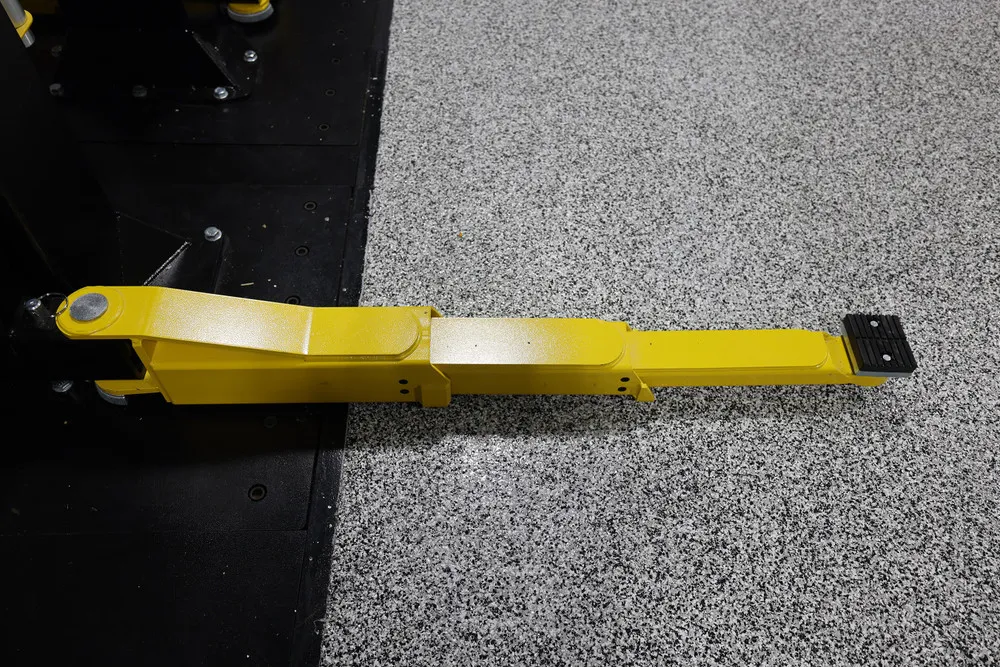

  • 3-Stage Front & Rear arms
  • Adjustable width from 11′ 10″ to 12′ 10″
  • Designed to service electric and other wider vehicles when combined with TFPK footpad kit
  • 1′ and 2′ Column Extensions available
  • Low-Ceiling model available with column height of 11′ 11″
Model Number CL12A CL12A-1 CL12A-2 CL12A-LC
Lifting Capacity 12,000 lbs. 12,000 lbs. 12,000 lbs. 12,000 lbs.
Lifting Configuration Symmetric Symmetric Symmetric Symmetric
Arms 3-stage front/3-stage rear 3-stage front/3-stage rear 3-stage front/3-stage rear 3-stage front/3-stage rear
Rise Height 84.75″ 84.75″ 84.75″ 80.75″
Overall Height 13′ 2″ or 13′ 8″ 14′ 2″ or 14′ 8″ 15′ 2″ or 15′ 8″ 11′ 11″
Adjustable Width Overall 142″ / 148″ / 154″ 142″ / 148″ / 154″ 142″ / 148″ / 154″ 142″ / 148″ / 154″
Drive-Thru Clearance 103.5”, 109.5″ or 115.5″ 103.5”, 109.5″ or 115.5″ 103.5”, 109.5″ or 115.5″ 103.5”, 109.5″ or 115.5″
Floor to Overhead Switch 12′ 8″ or 13′ 2″ 13′ 8″ or 14′ 2″ 14′ 8″ or 15′ 2″ 11′ 4.5″
Arm Reach (Min.) 27.5” 27.5” 27.5” 27.5″
Arm Reach (Max.) 59” 59” 59” 59″
Screw Pad Height * 4.75″ – 6.625″ 4.75″ – 6.625″ 4.75″ – 6.625″ 4.75″ – 6.625″
Inside Columns 114.5″ / 120.5″ / 126.5″ 114.5″ / 120.5″ / 126.5″ 114.5″ / 120.5″ / 126.5″ 114.5″ / 120.5″ / 126.5″
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph 2HP, 208v-230v, 60Hz, 1Ph 2HP, 208v-230v, 60Hz, 1Ph 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise (approximate) 63s 63s 63s 60s
Ceiling Height Required 14′ 3″ Minimum 15′ 3″ Minimum 16′ 3″ Minimum 12′ Minimum
Colors Available Red, Blue, Black Red, Blue, Black Red, Blue, Black Red, Blue, Black
ALI® Certified Yes Yes Yes Yes

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Two Post Lifts.
