Bendpak RBJ15000 15,000-lb. Capacity / Rolling Bridge Jack

$5,895.00

The BendPak RBJ15000 is a 15,000-lb. rolling bridge jack. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

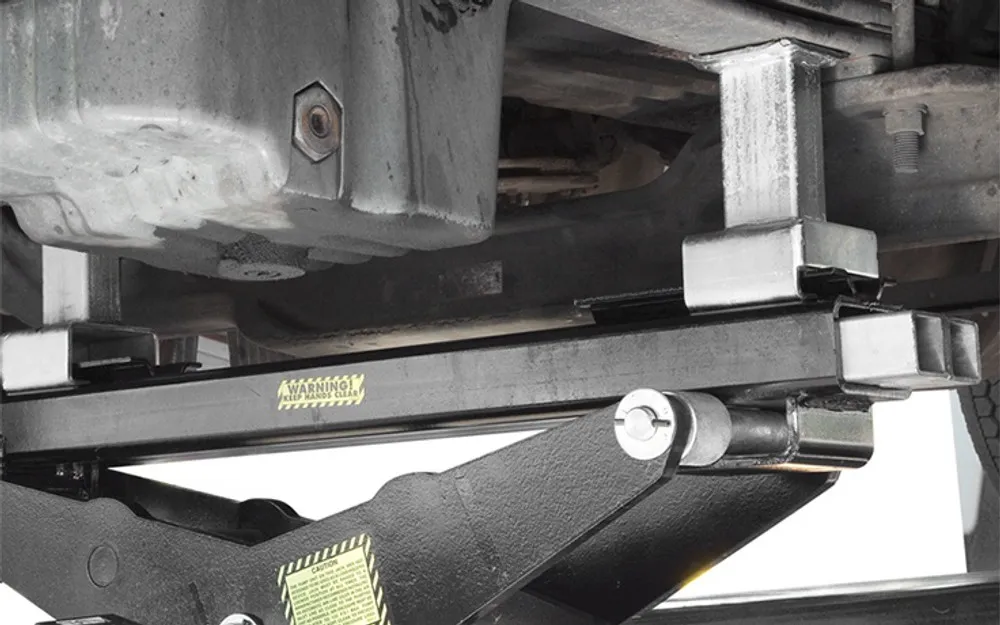

Rubber contact pads

BendPak bridge jacks feature rubber contact pads that are tougher than the rest. Resilient, sturdy and long-lasting, they never mark up or scratch your vehicle chassis or undercarriage. The jack is low-profile, so the pads fit comfortably underneath low-stance cars.

Stackable adapters

While the pads sit low enough for low ground-clearance vehicles, high-clearance vehicles have a tendency to lose lift with frame-engaging jacks. BendPak solves this issue with stackable adapters that come standard with every bridge jack. Better yet, two jacks allow you to lift a massive 30,000-lb. vehicle completely off its wheels.

High-pressure hydraulic power unit

The power unit to this jack is completely pneumatic-hydraulic. A small airline is attached to the bridge jack and is controlled with an ergonomically designed foot pedal. Two bridges jacks can share a single airline with the addition of BendPak’s exclusive, optional airline kit.

Three lock levels

Raise your jack to three different heights—whatever is most comfortable for you. The work you do varies, so if all you need is to lift the wheels a few inches, just enough to remove them, BendPak makes it easy. Rolling bridge jacks also give a little more raise for extra undercarriage clearance and comfort.

Features

  • 15,000-lb. lifting capacity
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit

RBJ15000 Specifications

Capacity

Lifting Capacity* 15,000 lbs. (6,804 kg)

Rise

A – Max. Height + Pad Only: 23″ (584 mm)

B – Max. Height + Pad + Adapter: 26″ (660 mm)

C – Min. Height + Pad Only: 14″ (356 mm)

D – Min. Height + Pad + Adapter: 17″ (432 mm)

Time to Full Rise: 45 seconds

Reach

F – Support Arm Width: 44.9″ (1,140 mm) –

G – Max. Arm Reach: 63.75″ (1,619 mm)

H – Min. Arm Reach: 39.5″ (1,003 mm)

Power Unit

Motor: Air-Hydraulic Pump

Noise: 45 dB

Shipping

Weight: 570

Dimensions: 36″ x 22″ x 21″ / 914 mm x 559 mm x 533 mm

Included commercial-grade air-hydraulic pump requires 125 psi and 10 – 20 CFM.

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Bridge Jacks.
