Bendpak PL-6000DC 6,000 Lb. Capacity Two-Post Parking Lift / Narrow / Shared Columns / SPECIAL ORDER
$9,095.00

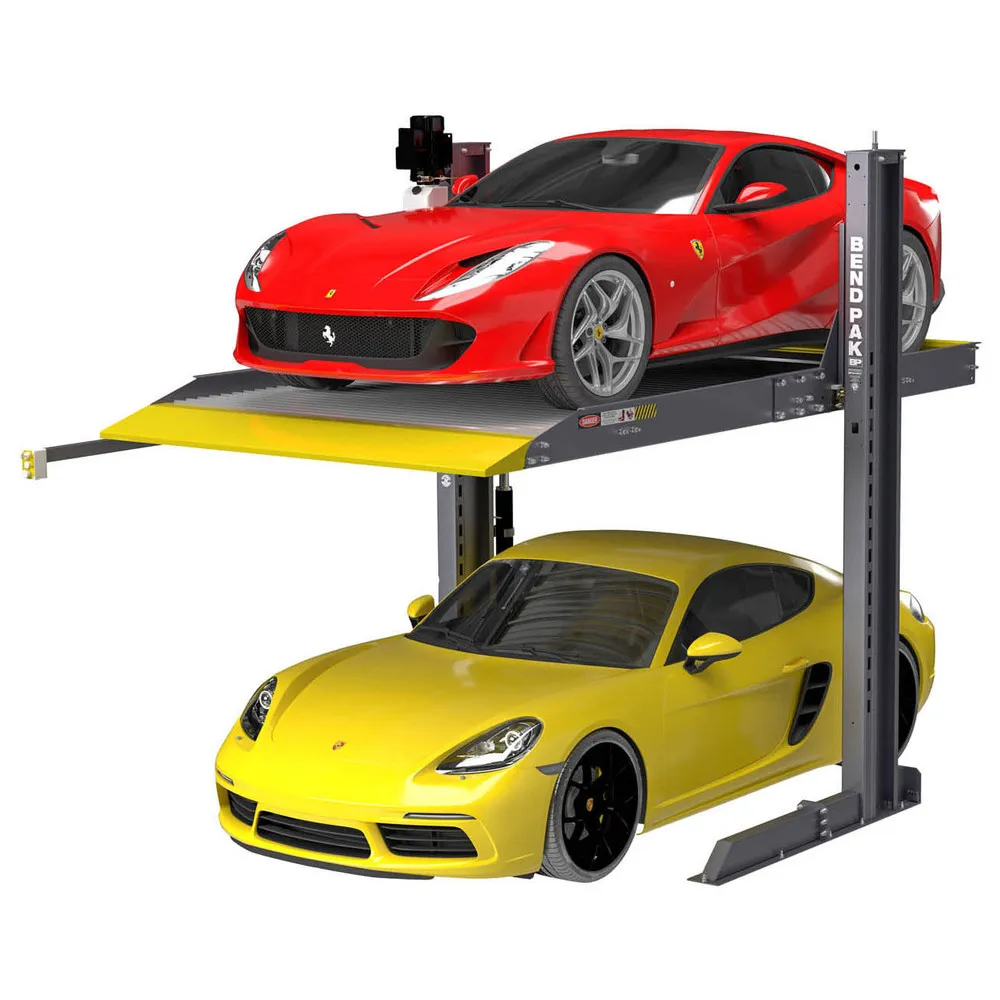

The BendPak PL-6000DC is a 6,000-lb. narrow parking lift. This model is a special order — ask us for the current lead time. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
Description
Advantages
Low Operating Cost
Platform driven by gravity when lowered. No electric motor consumption is required.
Fast and Easy Installation
Installation is fast and easy. A detailed installation manual is provided with floorplan and foundation drawings. Online videos are available to help customers through the installation process.
Ganged/Shared Columns
The posts can be shared which allows multiple installations in minimum space and reduces cost.
Professional Packing & Delivery
Professional packaging and our experienced logistic team ensures customers will get the product damage free. Compact package size means simple unloading and handling.
Dependable Hydraulic Operation
The PL-6000DC features a single direct-drive hydraulic cylinder eliminating the need for screw mechanisms and offers better reliability, smoother operation, and lower maintenance costs.
Automatic Safety Device
Powerful load-holding devices automatically engage and lock the lift structure as the parking lift raises, preventing sudden free fall in the unlikely event of a suspension component failure. Typically, after the lift is raised to the required working height, operators are instructed to lower the lift until it is resting safely on the locks to minimize wear on suspension components.
- Ganged column design allows multiple installations in minimum space
- Commercial grade design and construction
- Galvanized and corrugated anti-slip platform
- Freestanding design when ganged two or wide
- Overhead power unit provides smooth quiet hydraulic operation
- Designed for installation on typical parking surfaces
- Platform can be stopped at different heights to fit various vehicles and ceiling heights
- Full width channel-locked center panels protect lower vehicle
- Wide deck platform accommodates pickups, vans and cars.
- Single direct-drive hydraulic cylinder
- Automatic safety lock combined with anti-fall device hold platform securely
- Maintenance free composite carriage bearings
- Electric key switch for security and safety
- Automatic shut-off when operator releases key switch
- Features a rugged and reliable Manual Safety Lock Release
- Hydraulic overloading protection
- Mechanical safety locks are spaced every 4 inches
- 24VAC Operator controls
- Automatic locking system during power outage
- Emergency stop button
- Upper limit switch
- Pressure relief valve and pressure compensated flow control valve to ensure safe operation and level lifting
- Industrial-grade hydraulic cylinders feature a single-piece, pilot fitted, machined steel piston, wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands to virtually eliminate fluid bypass
Note: does not include the 2.5 in. / 57 mm Max. for Balance Chain Adj.
Single or Three Phase (specify when ordering)
Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Parking Lifts.
