BendPak

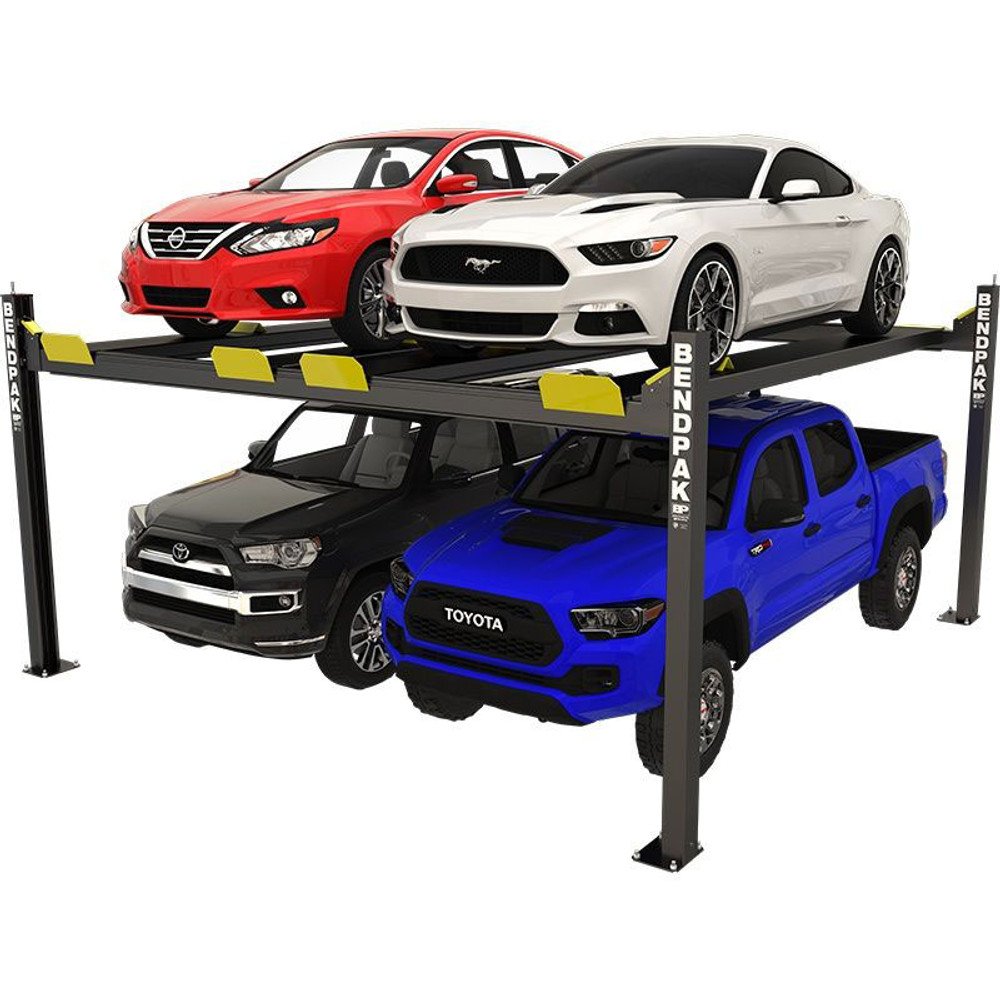

BendPak HD-9SWX 9,000-lb. Capacity Super Wide 82" Rise Car Stacker Parking Lift

Q: Is this BendPak HD-9SWX 9,000-lb. Capacity Super Wide 82" Rise Car Stacker Parking Lift new?

This is a new unit shipped in original manufacturer packaging.

SKU VE-9187Condition New

$12,995.00

In stock — ships in 1–2 business days

The BendPak HD-9SWX Capacity Super Wide 82″ Rise Car Stacker Parking Lift is a 9,000-lb. parking lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

Call 216-250-6666

Call with your VIN or tag number and we will confirm this listing fits before you pay.

Shipping: Freight, 3–6 business days
Returns: 45 days, by mail
Warranty: See warranty terms
Payment: Bank transfer, Zelle, Chime

Product details

Features & Specs

9,000-lb. maximum lifting capacity
Freestanding design
Perfect for parking, storage and service

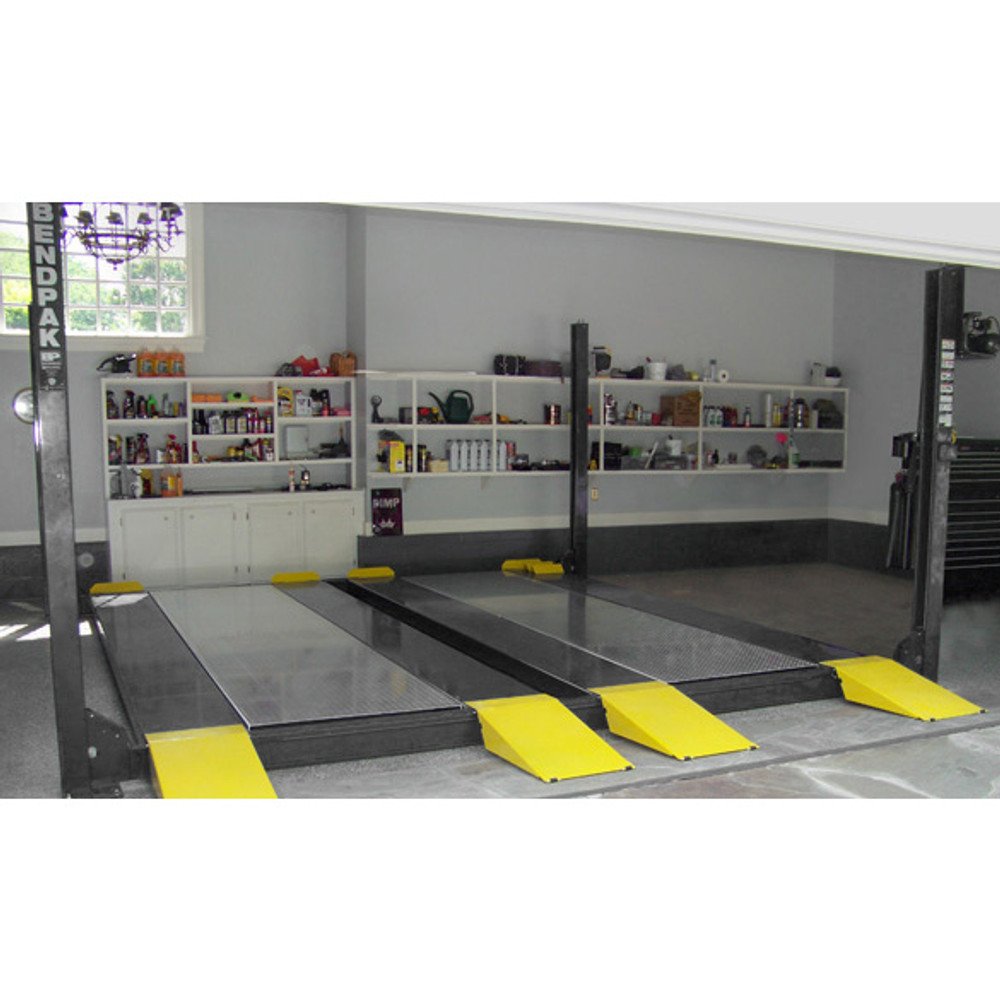

Double-wide configuration for quad-vehicle storage
Four runways
Super-tall rise
Extra-long ramp
Runways accommodate wide or narrow vehicles
Runways include rail-kit for optional accessories
Electric / hydraulic power system
Single hydraulic cylinder mounted underneath runway
Fully enclosed lifting cables, safety locks and sheaves
Internal anti-sway slider blocks in each column
Oversized self-lubricating cable rollers
Oversized sheave diameter reduces cable fatigue
High-speed lifting
Features heavy-duty 3/8" aircraft cable
Rugged 1.25" roller axles
Multi-position safety locks in each column
Adjustable lock ladders
Runways feature non-skid surface
Push-button pneumatic safety release
Independent backup slack-cable safety latches
Inside runways adjust for different tread widths
Customizable power unit location
Removable approach ramps for additional drive-under clearance
Optional drive-thru ramps available
Optional drip trays available
Optional solid deck available to increase storage capacity
Optional 4,500-lb. air / hydraulic rolling jacks available

Capacity

Lifting Capacity*

9,000 lbs. (4,082 kg)

*Max Capacity / Front Axle

4,500 lbs. (2,041 kg)

*Max Capacity / Rear Axle

4,500 lbs. (2,041 kg)

Rise

A - Min. Runway Height:

7" (178 mm)

B - Max. Rise:

82" (2,083 mm)

C - Max. Lifting Height:

89" (2,261 mm)

Time to Full Rise:

65 seconds

Outside Dimensions

D - Overall Width:

202" (5,131 mm)

E - Outside Length:

198" (5,029 mm)

F - Overall Length:

224" (5,690 mm)

G - Height of Columns:

102" (2,591 mm)

Inside Dimensions

H - Width Between Columns:

192" (4,877 mm)

I - Drive-Thru Clearance:

178" (4,521 mm)

Runways

J - Runway Width:

19" (483 mm)

K - Length of Runways:

188" (4,775 mm)

L - Width Between Runways:

37" (940 mm) or 42" (1,067 mm)

M - Runway Centerline:

56" (1,422 mm) or 61" (1,549 mm)

N - Outside Edge of Runways:

75" (1,905 mm) or 80" (2,032 mm)

Minimum Wheelbase

Rated Capacity:

135" (3,429 mm)

75% Capacity:

115" (2,921 mm)

50% Capacity:

95" (2,413 mm)

25% Capacity:

80" (2,032 mm)

Locking

Locking Positions:

Lock Spacing:

Every 4" (102 mm)

Power Unit

Motor:

220 VAC / 60 Hz / 1 Ph

Noise:

45 dB

Shipping

Weight:

2,987-lbs. (1354.9 kg)

Dimensions:

206'' x 22'' x 40'' (5,232 mm x 559 mm x 1,016 mm)

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Parking Lifts.
