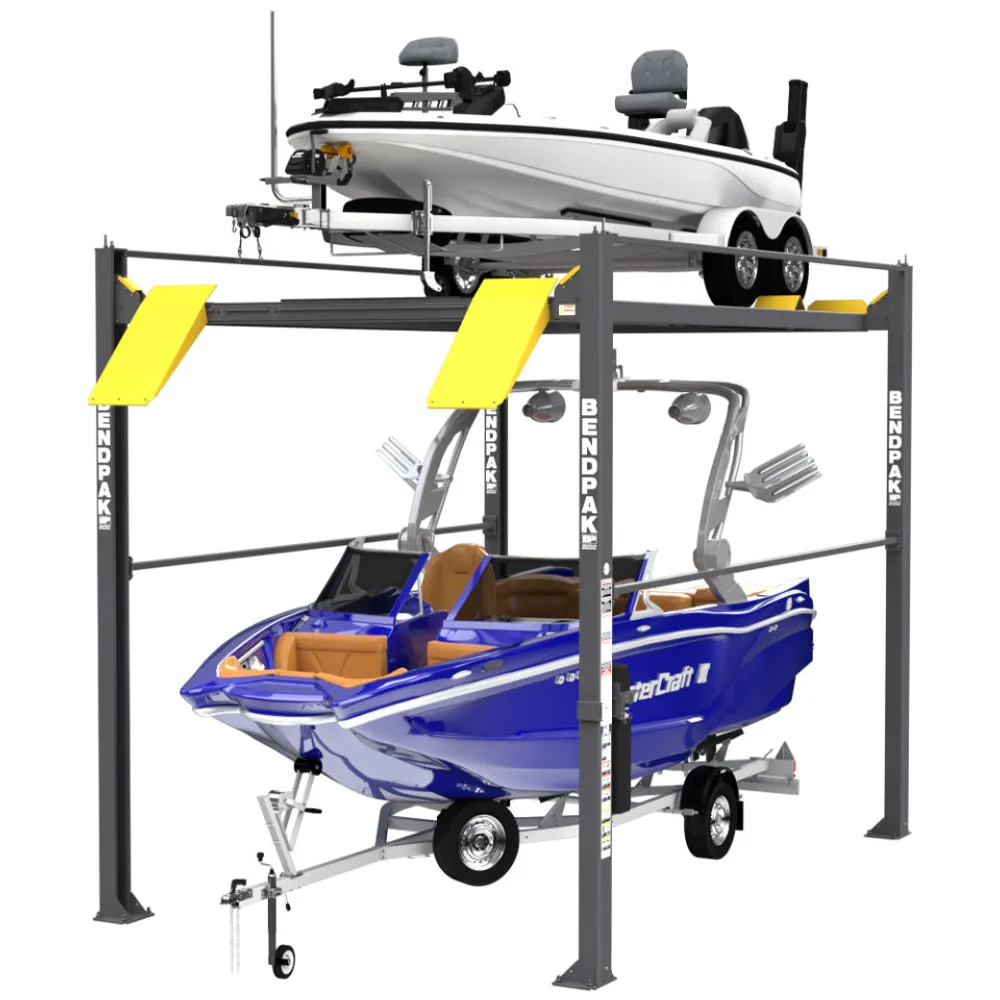

SPECIFICATIONS
- 7,500-pound lifting capacity
- Two different lifting heights to choose from
- Electric / hydraulic power system
- Internal anti-sway slider blocks in each column
- Both models feature heavy-duty 3/8" aircraft cable
- Multi-position safety locks in each column
- Runways include rail-kit for optional accessories
- Single hydraulic cylinder underneath runway
- Over-sized self-lubricating cable rollers
- Rugged 1-1/4" roller axles
- Adjustable lock ladders
- Push-button pneumatic safety release
- Durable powder coat finish
Lifting Capacity: 7,500 lbs / 3,402 kg
Maximum Capacity Front Axle: 3,750 lbs. / 1,701 kg
Maximum Capacity Rear Axle: 3,750 lbs. / 1,701 kg
Min. Runway Height, Lowered: 5 in. / 125 mm
Maximum Rise: 144.5 in. / 3681 mm
Maximum Lifting Height: 132 in. / 3357 mm
Overall Width: 132 in. / 3,353 mm (with fasteners 133.75 in. / 3,398 mm)
Outside Length: 198 in. / 5,028 mm
Overall Length: 224.5 in. / 5,704 mm
Height Of Post: 157.5 in. / 4010 mm
Distance Between Posts: 122 in. / 3,103 mm
Drive-Through Clearance: 108.5 in. / 2,756 mm
Runway Width: 19 in. / 482 mm
Runway Length: 188.5 in. / 4,788 mm
Width Between Runways : 49.5 in. – 69.5 in. / 1,257 mm – 1,765 mm
Outside Edge Of Runways: 87.5 in. (narrow) or 107.5 in. (wide) / 2,223 mm or 2,731 mm
Locking Positions:30 spaced every 4 in. / 102 mm
Motor 208-230 VAC, 60 Hz, 1 Ph
Air Supply 3 to 25 CFM at 50 to 150 psi
