Bendpak 12AP-SRT 12,000‐lb. Capacity ALI Certified / Adaptable Clearfloor / Adjustable Width / Screw Pads / SHORT-RISE
$9,395.00
The BendPak 12AP-SRT 12,000‐lb. Capacity / Adaptable Clearfloor / Adjustable Width / Screw Pads / SHORT-RISE is an ALI Certified clearfloor shop equipment unit. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.
In Stock
Description
Specifications
Durable Powder Coat Finish
Expandable Top Beam Accommodates Wide or Narrow Drive-Through Configurations

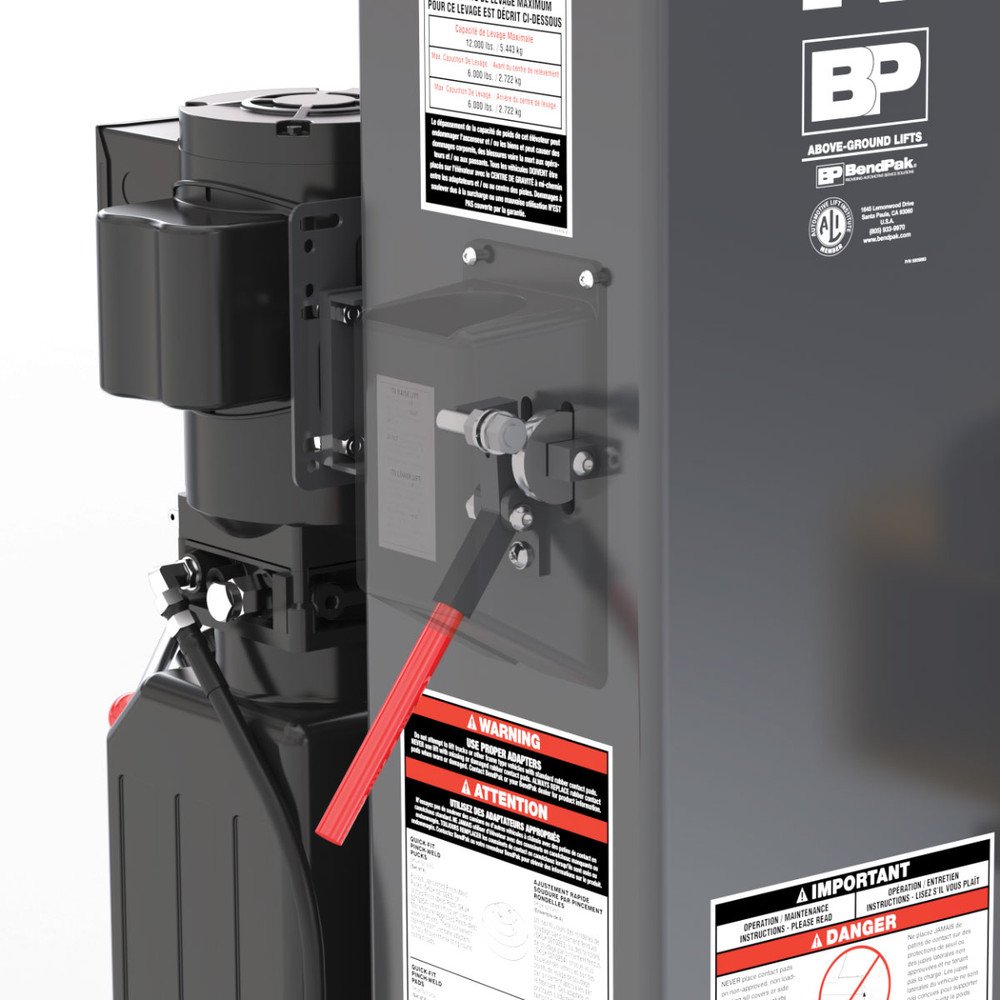

Power Side Post Supports the Power Unit, the Safety Lock Release Handle and the Lowering Handle
Double-Telescoping Screw Pads Offer Increased Versatility
Padded Overhead Safety Shutoff Bar
Exclusive Bi-Metric™ Arm Design for More Versatile Arm Positioning
Single-Point Safety Release

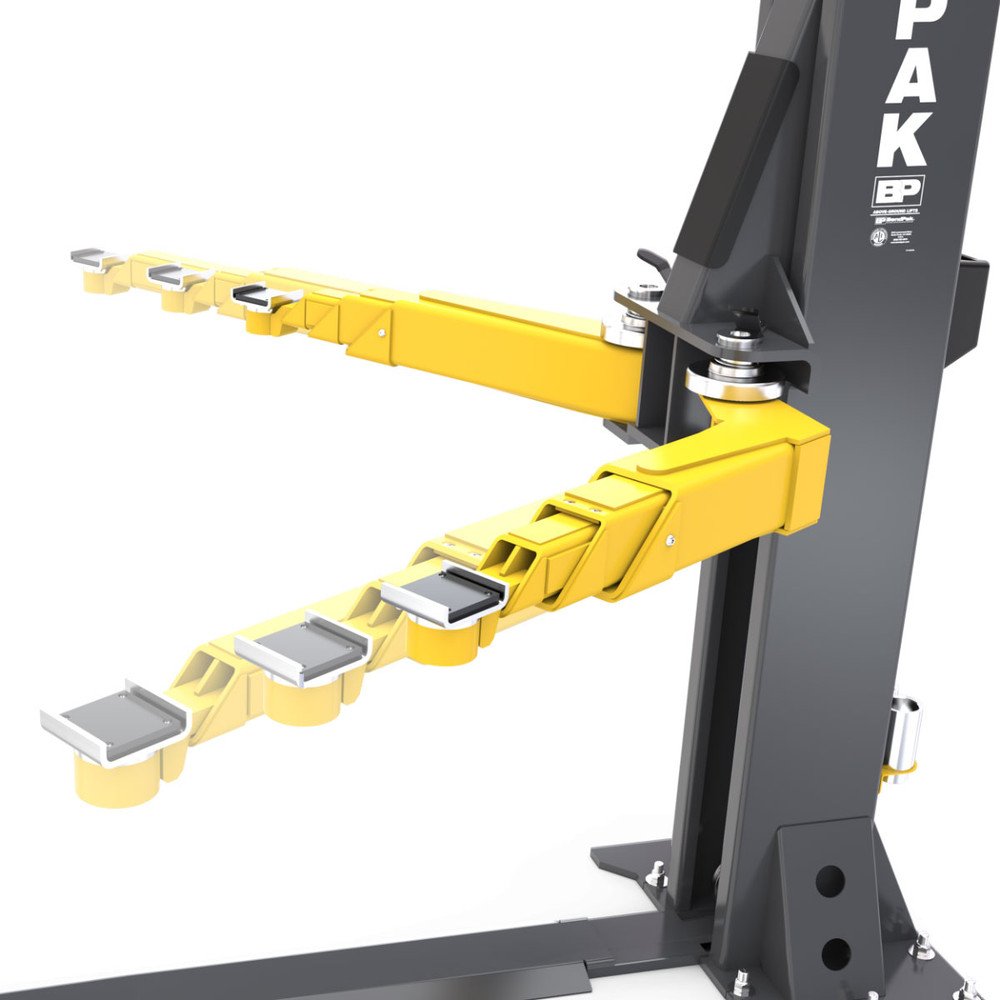

Drop-End Arms Provide a Lower Pad Height
Dual Hydraulic Direct-Drive Cylinders
Electric / Hydraulic HVLP Power System
Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System
Safety Locks in Each Column Spaced Every 3”

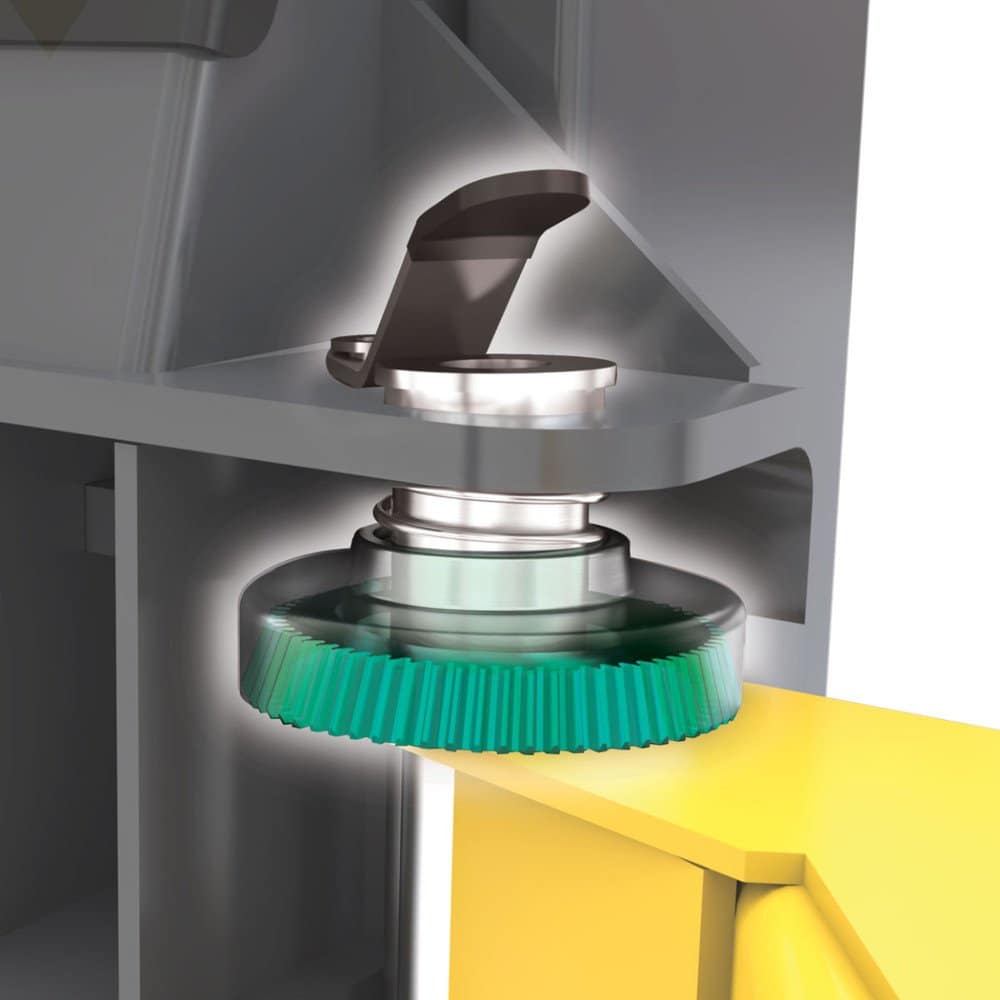

Automatic Arm Restraints Withstand Over 2000-Pounds of Side Force
Heavy-Duty ½” Aircraft-Quality Equalizer Cables
Capacity
Lifting Capacity: 12,000 lbs. (5,443 kg)
Max Capacity / Front Axle: 6,000 lbs. (2,721.5 kg)
Max Capacity / Rear Axle: 6,000 lbs. (2,721.5 kg)
Maximum Capacity per Lift Arm: 3,000 lbs. (1,360 kg)
Dimensions
A – Width Overall: 155 in. (3,937 mm)
B – Base Plate Width: 26.5 in. (674 mm)
C – Post Height: 93.5 in. (2,377 mm)
D – Drive-Thru: 102.25 in. (2,598 mm)
E – Inside Posts: 119 in. (3,026 mm)
F – Outside Posts: 142 in. (3,606 mm)
G – Minimum Height with Pad: 4.25 in. (105 mm)
H – Max. Lifting Height: 46 in. (1,168 mm)
I – Max. Rise: 42.75 in. (1,089 mm)
J – Min. Height with Adapters (5 in + 2.5 in): 11.75 in. (298 mm)
K – Floor Plate Height: 1.5 in. (36 mm)
L – Floor Plate Width: 9.5 in. (240 mm)
Arms & Pads
M – Front Arm Reach (Measured from the Lift Arm Pivot to the Cradle Pad Center Pin): 26 in. min – 55.25 in. max. (659 mm min. – 1,403 mm max.)
N – Rear Arm Reach (Measured from the Lift Arm Pivot to the Cradle Pad Center Pin): 29.25 in. min. – 60 in. max. (745 mm – 1,525 mm max.)
Safety
Safety Lock Positions: 8
Power Unit
Standard Motor: 208-230 VAC, 50/60 Hz, 1 Phase, 5 HP, 23 Amps
Time to Full Rise: ≈45 seconds
Sound Pressure: Lift produces less than 85dB when in operation.
Operating Hydraulic Pressure under Max. Load: 2,170 psi
Special voltages available upon request.
