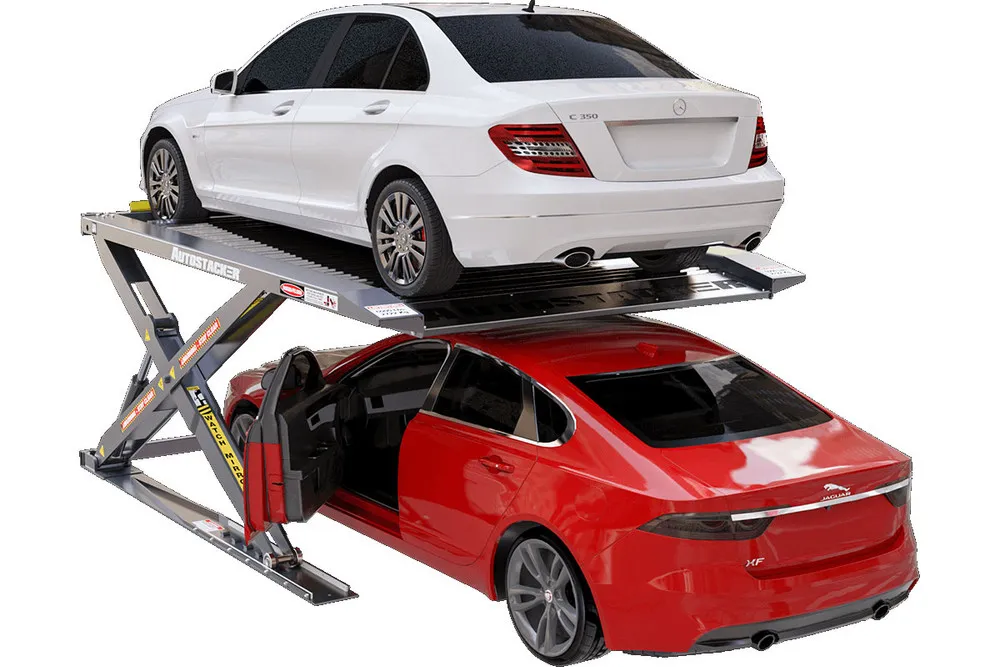

AutoStacker A6S 6,000 lb Standard-Width Parking Lift

$12,295.00

The AutoStacker A6S is a 6,000-lb. parking lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

SPECIFICATIONS

  • 6,000‐lb. lifting capacity

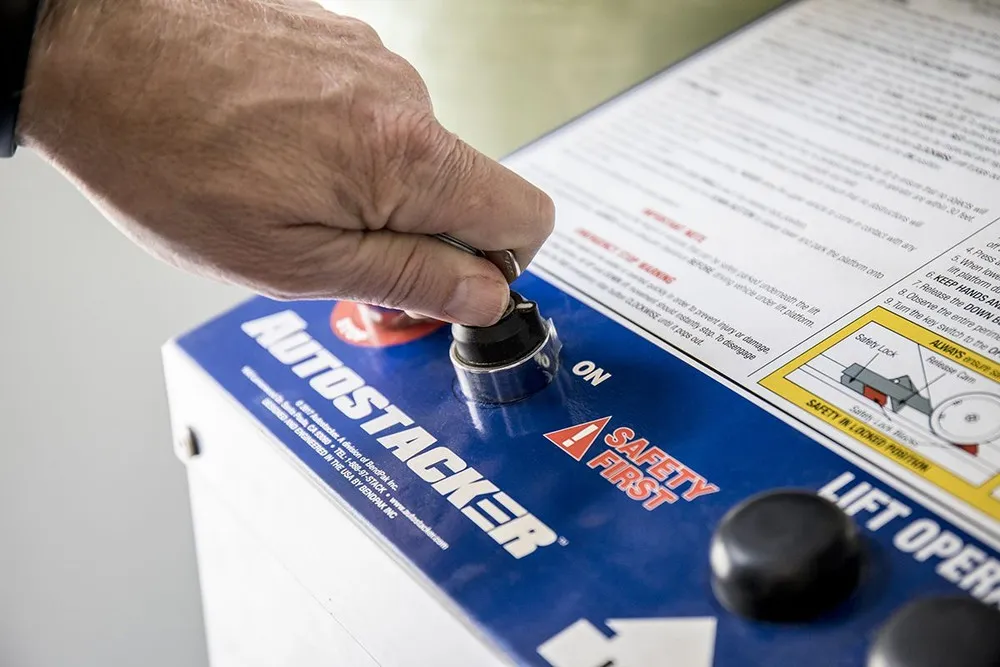

  • Key‐switch disconnect fully disables operation for enhanced security
  • Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
  • Accommodates cars, light trucks and SUVs
  • Rugged, welded‐steel construction is strong and durable
  • 100%  hot‐dipped, galvanized steel platform
  • Attractive slate gray, baked‐on powder coat finish provides added toughness
  • Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward

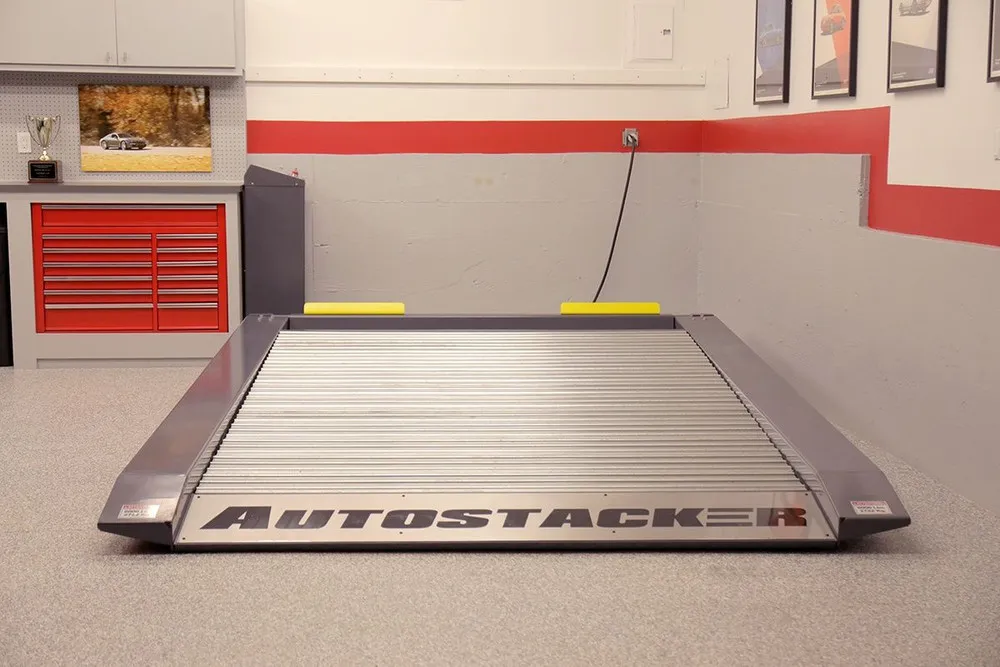

  • Full‐width, gradual sloping platform reduces entry ramp height

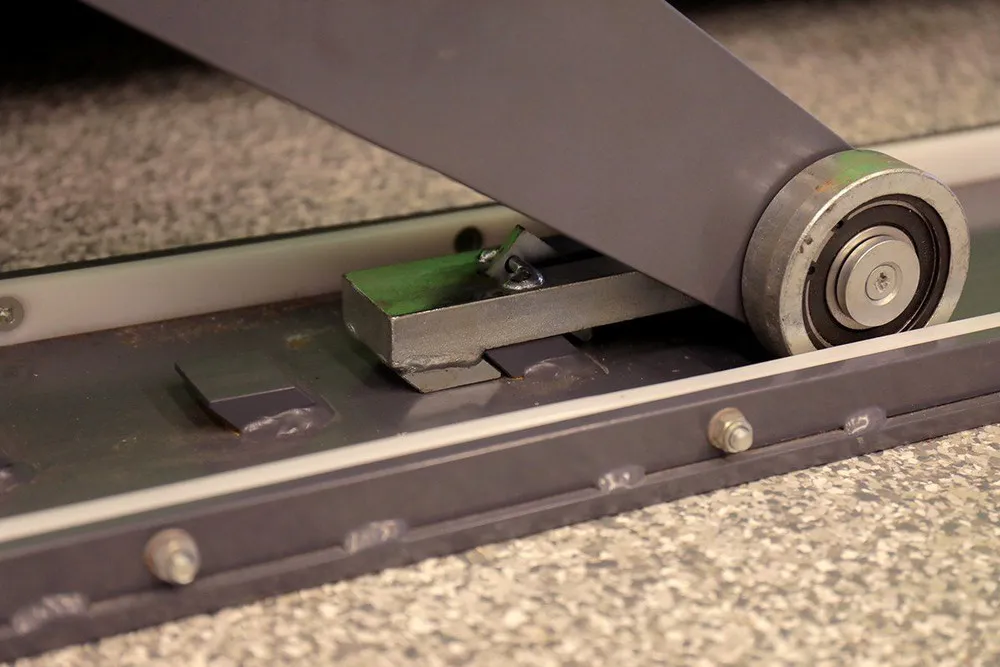

  • Automatic safety locks engage at five different parking heights

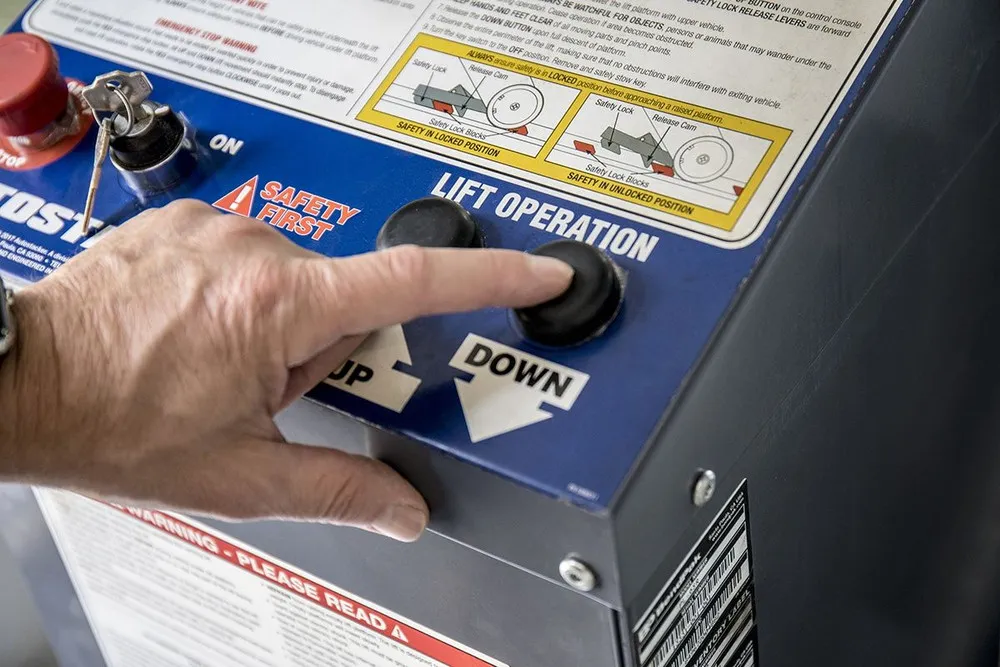

  • Simple push‐button controls
  • Dual, direct‐drive hydraulic lifting cylinders
  • Dependable hydraulic circuit that provides precise, equalized lifting
  • Variable height parking accommodates a wide range of vehicle and ceiling heights
  • Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
  • Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range
  • Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
  • Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability
  • Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
  • Patented asymmetric scissor arms provide greater underside door clearance
  • Patented Door‐sentry™ car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings
  • Space‐saving design is perfect for commercial or residential applications
  • Minimal footprint fits a typical parking space
  • Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
  • UL Listed electrical components meet National Electrical Code (NEC) requirements

Style

Multi-Platform Parking Lift

Lifting Capacity

  • 6,000 lbs. (2,722 kg)

Dimensions

  • Overall Width

    103″ (2,620 mm)

  • Overall Length

    143″ (3,630 mm)

  • Platform Length

    124″ (3,150 mm)

  • Platform Width

    83.75″ (2,128 mm)

  • Platform Height (forward)

    13″ (330 mm)

  • Ramp Height (entry)

    2″ (51 mm)

  • Maximum Underclearance

    80″ (2,032 mm)

Power

Standard – Power Unit Console

  • Single unit operation
  • Motor horsepower: 2HP
  • Power consumption: 1,500 Watts
  • Motor voltage: 208-240V, 50/60Hz / 1Ph
  • Starting amps: 25A
  • Normal running amps: 12-18A

Optional – Multi-Unit Power Unit Console

  • Operates up to 12 lifts
  • Motor horsepower: 7.5 HP
  • Power consumption: 5,600 Watts
  • Motor voltage: 208-230V/460 VAC, 50/60Hz / 3Ph
  • Starting amps 208-230V: 25A
  • Normal running amps 208-230V: 12-18A
  • Starting amps 460V: 10A
  • Normal running amps 460V: 6-9A

Special voltages available upon request.

Five Locking Heights

  • First (Lowest): 52.5″ (1,331 mm)
  • Second: 60.75″ (1,543 mm)
  • Third: 68.5″ (1,736 mm)
  • Fourth: 75″ (1,909 mm)
  • Fifth (Highest): 81.25″ (2,064 mm)

Speed of Rise

  • Standard power unit console (110V): 75 seconds
  • Standard power unit console (220V): 55 seconds
  • Optional multi-unit power unit console: 20 seconds

Decibels

  • 52 db

Shipping Weight

  • 3,350 lbs. (1,530 kg.)

What’s Included

  • Right side scissors superstructure
  • Left side scissors superstructure
  • Front wheel trough
  • Ramp assembly with logo plate
  • Lower front tie-bar
  • Galvanized decking sections

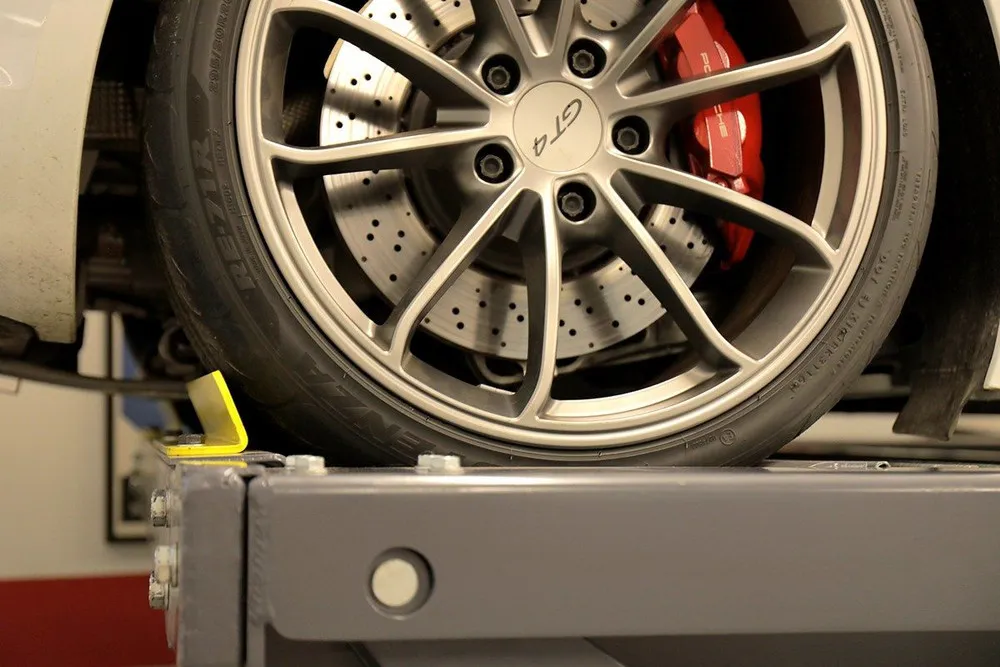

  • Front tire stops
  • Power unit control console
  • Complete assembly parts package including all fasteners, hoses, fittings & anchor bolts
  • Model A6S Installation Guide and Operation Manual

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Parking Lifts.
