Atlas TTC306 Tire Changer and WBT210 Wheel Balancer Combo
$24,299.00

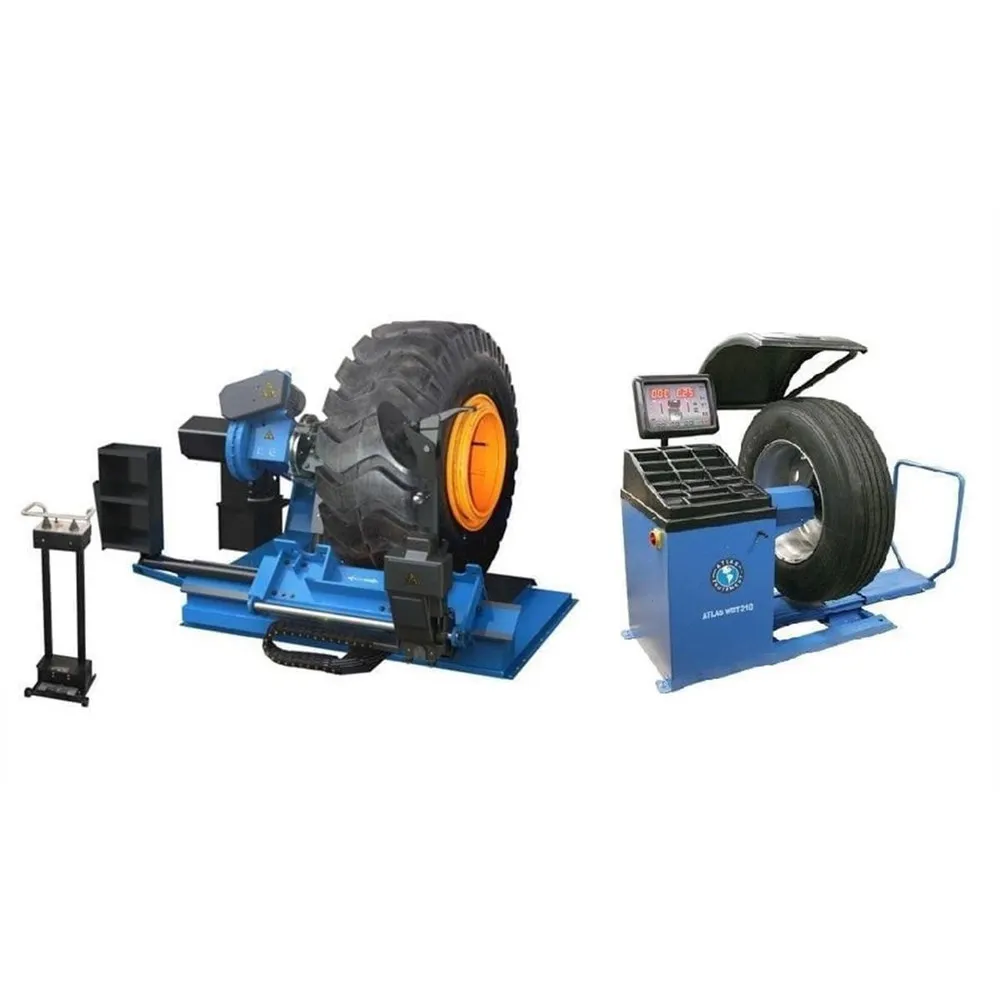

Atlas TTC306 Tire Changer and WBT210 Wheel Balancer Combo
This Combo Package includes the Atlas® TTC306 truck tire changer and the the heavy duty computerized Atlas® WBT-210 wheel balancer. The Atlas® TTC306 is very similar to the Atlas® TTC303, but with several additional features. The remote control allows the operator to move the bead breaker disc and mount/demount head automatically. This Super Duty Atlas® truck tire changer is designed and engineered to handle rim sizes from 14 inches to 56 inches and tire diameters in excess of over 97 inches. The Atlas® TTC306 Truck Tire Changer can easily accommodate tires with a maximum width of up to 53 inches. This is the perfect tire changer for those companies that need the extra capacity to change large agricultural and earthmover tires. The Deluxe TTC306 has identical features of those truck tire changers costing over $20,000..
The Atlas® WBT-210 is the perfect wheel balancer for those shops that want one balancer that can balance a 14 inch steel rim up to and including a 300 pound semi-truck tire. There are many large (32 inch) custom wheels and over-sized ” gumbo-mudders ” that can easily be balanced on the Atlas® WBT-210 computer wheel balancer.
The Atlas® WBT-210 is the perfect computer spin balancer for those trucking companies that operate everything from passenger cars to light trucks to over the road semi tractor/ trailer rigs. The 40 mm heavy duty shaft accommodates the standard mounting cones for most cars and pickup trucks. There are several large truck adapters included with the package that will allow the operator to mount and balance most BUDD style wheels.
Description
Atlas TTC306 Tire Changer and WBT210 Wheel Balancer Combo
Atlas TTC306 Truck Tire Changer
2-Speed Hydraulic Chuck w/ 5 Rim Locking Positions
Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
Handles rims from 14″ to 56″ and tire diameters in excess of 97″
Accommodates tires with a max width of up to 53″
Bead Breaker
Mount/Demount Head
Electric/Hydraulic Self-Centering Four Jaw Chuck
5 different rim locking positions
Wired Mobile Control Unit Available (Sold Separately)
Heavy Duty Tire Tool Included
Rim Clamps for Steel and Alloy Wheels Included
Alloy Rim Adapter Set w/ Plastic Inserts Included
Clamping Extensions Included
Atlas WBT210 Heavy Duty Spin Balancer
Cone sets for car and light truck tires included
Cone and spacer set for truck, bus, or implement tires included
Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included
Pneumatic wheel lift (external air supply required – NOT INCLUDED)
Automatic start/stop when hood is lowered/raised
Static and dynamic balancing modes
Rapid optimization (OPT)
Self-Diagnosing and Calibrating
Exceptional stability in reading the unbalance between planes
Display in grams or ounces, and in mm or inches
Wheel Weight Pliers & Wheel Width Caliper Included
Both Machines 1 Year Parts Only Warranty
This part number FREIGHT PREPAID
Atlas TTC306 Specifications
Max Tire Diameter: 98″ (8′ 2″)
Max Tire Width: 53″
Rim Clamping Range: 14″ – 46″
Rim Clamping Range w/ Extensions: 47″ – 56″
Max Wheel Weight: 3968 lbs
Clamping Power: 13173 lbs
Operating Pressure: 0 – 1885 psi
Acoustic Pressure: 70dBA
Bead Breaker Force: 5930 lbs
Tool Arm Positioning: Automatic
Tool Head Positioning: Automatic
Construction: Single Piece Frame w/ Solid Floor-Plate
Hydraulic Motor Power: 3HP 220v +/- 5% (209-231 volts) 3phase, 30 amp breaker required
Chuck Motor Power: 3.5-4HP 220v +/- 5% (209-231 volts) 3phase, 30 amp
Atlas WBT-210 Specifications
Max Tire Diameter 47″
Rim Sizes (Cars And Light Trucks) 10″-32″
Rim Width 1 1/2″-20″
Shaft Size 40mm
Max. Wheel Weight 440 lbs.
Balancing Speed 150 rpm Car-Light Truck Mode/90 rpm Truck Mode
Data Entry All Dimensions Manual Entry
Measurements Standard Or Metric
Accuracy 1 gram Car-Light Truck Mode/10 gram Truck Mode
Weight Position Resolution 1.4 Degrees
Self Calibration Yes
Motor 1/3 HP
Air Requirement 115-140 PSI (External Air Supply Required – NOT INCLUDED)
Power Supply 220volt +/- 5% (209-231 volts) 1phase, 30 amp breaker required
Shipping Weight 725 lbs.
