Atlas PV12PX Commercial Grade Overhead 12,000 lb. Capacity 2-Post Lift

Q: Is this Atlas PV12PX Commercial Grade Overhead 12,000 lb. Capacity 2-Post Lift new?

This is a new unit shipped in original manufacturer packaging.

SKU VE-6901Condition New

$8,250.00

In stock — ships in 1–2 business days

The Atlas PV12PX is a 12,000-lb. overhead two-post car lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

Call 216-250-6666

Call with your VIN or tag number and we will confirm this listing fits before you pay.

Shipping: Freight, 3–6 business days
Returns: 45 days, by mail
Warranty: See warranty terms
Payment: Bank transfer, Zelle, Chime

Product details

Features and Benefits:

12,000 lb capacity
Extra Tall & Extra Wide
Commercial Grade
Adjustable height 165 IN (13 FT 9 IN) or 177 IN (14 FT 9 IN)
Special low height 150 IN (12 FT 6 IN) (REQUIRES PURCHASE OF ADDITIONAL CABLES)

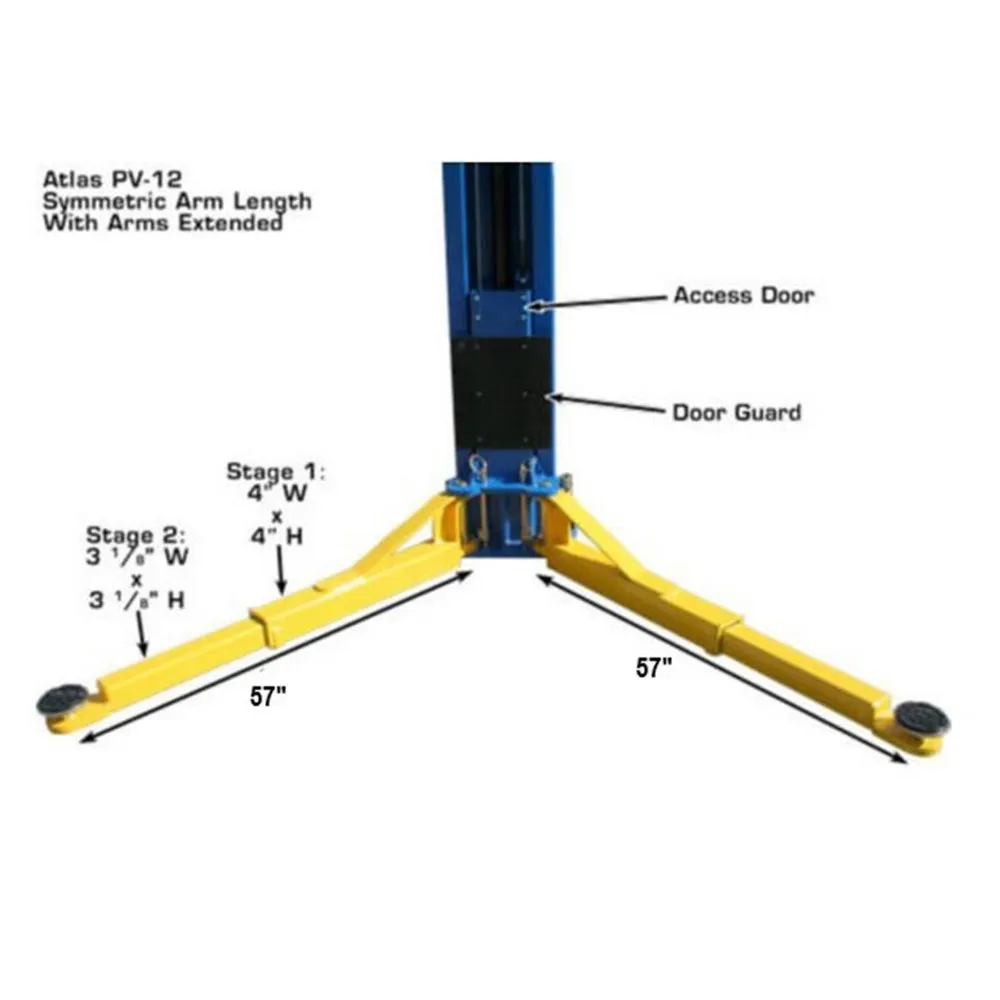

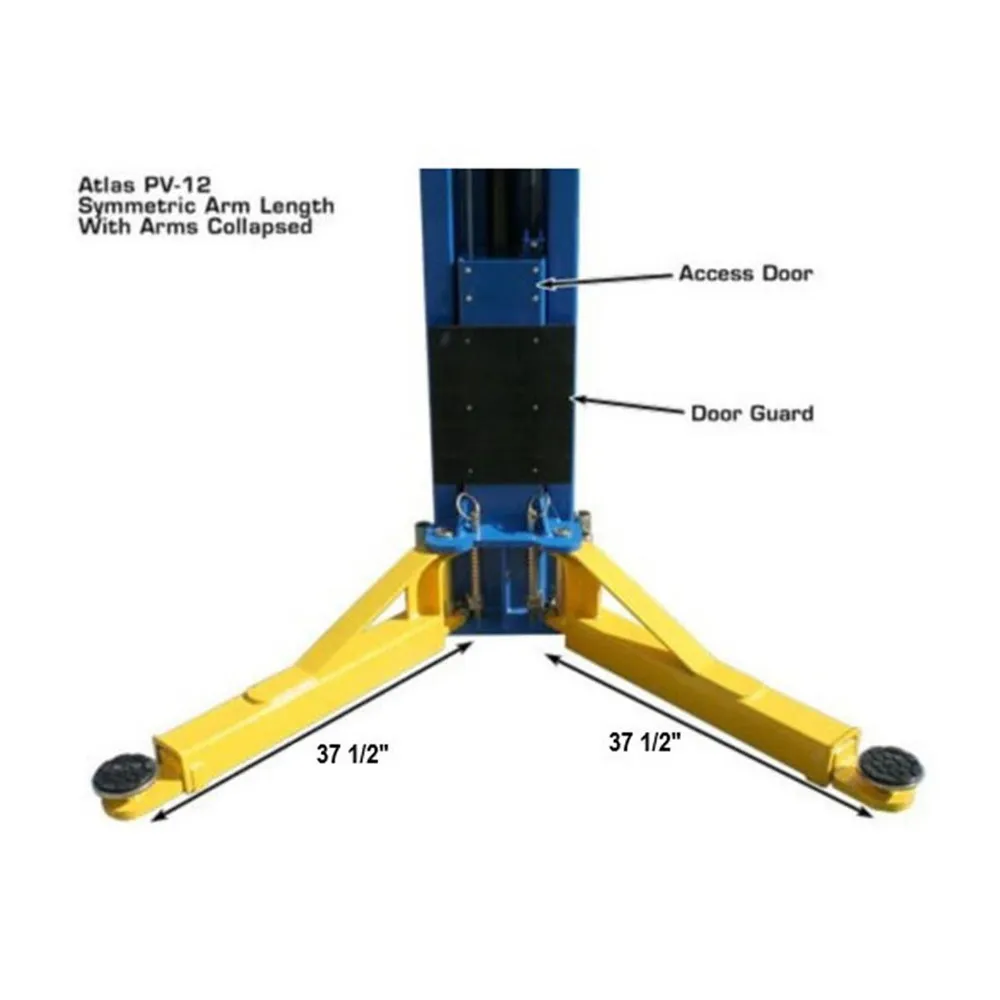

Symmetric arms
Automatic Arm Restraints
“Padded” Shut-Off Bar
Door Guards on Carriages

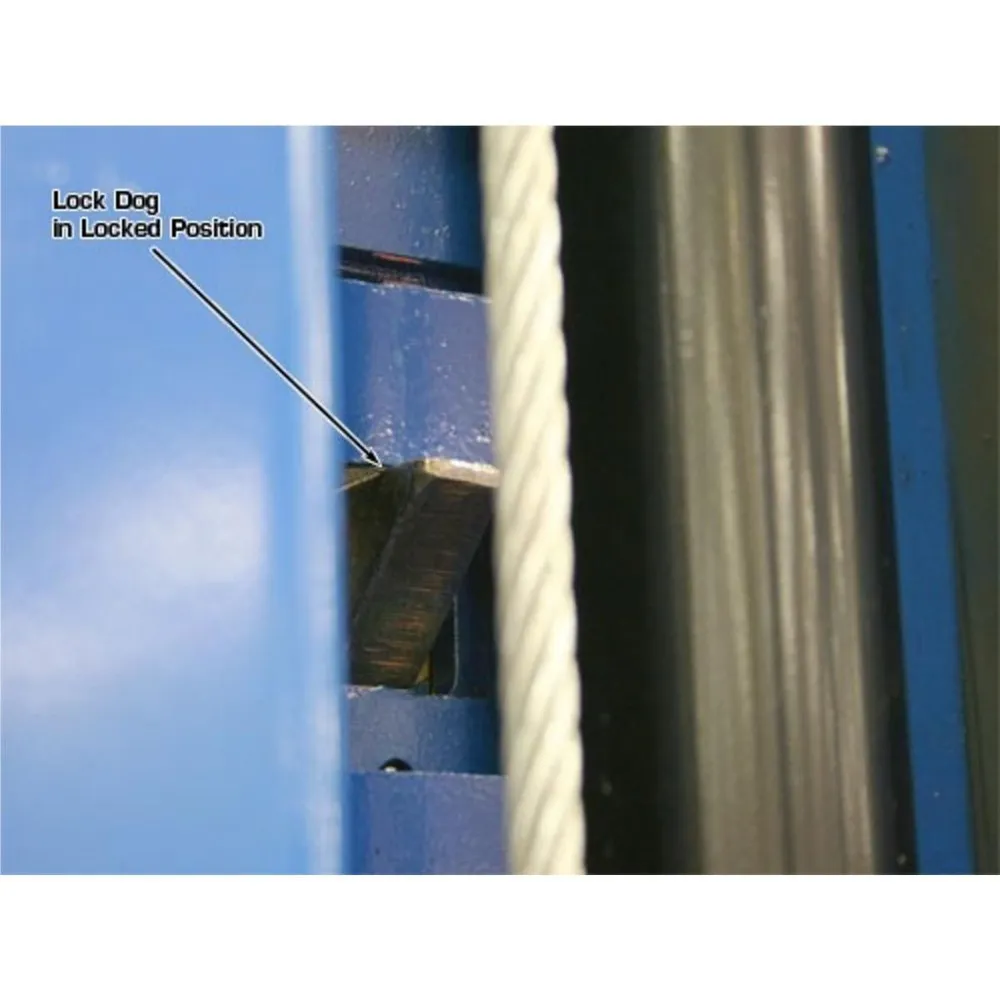

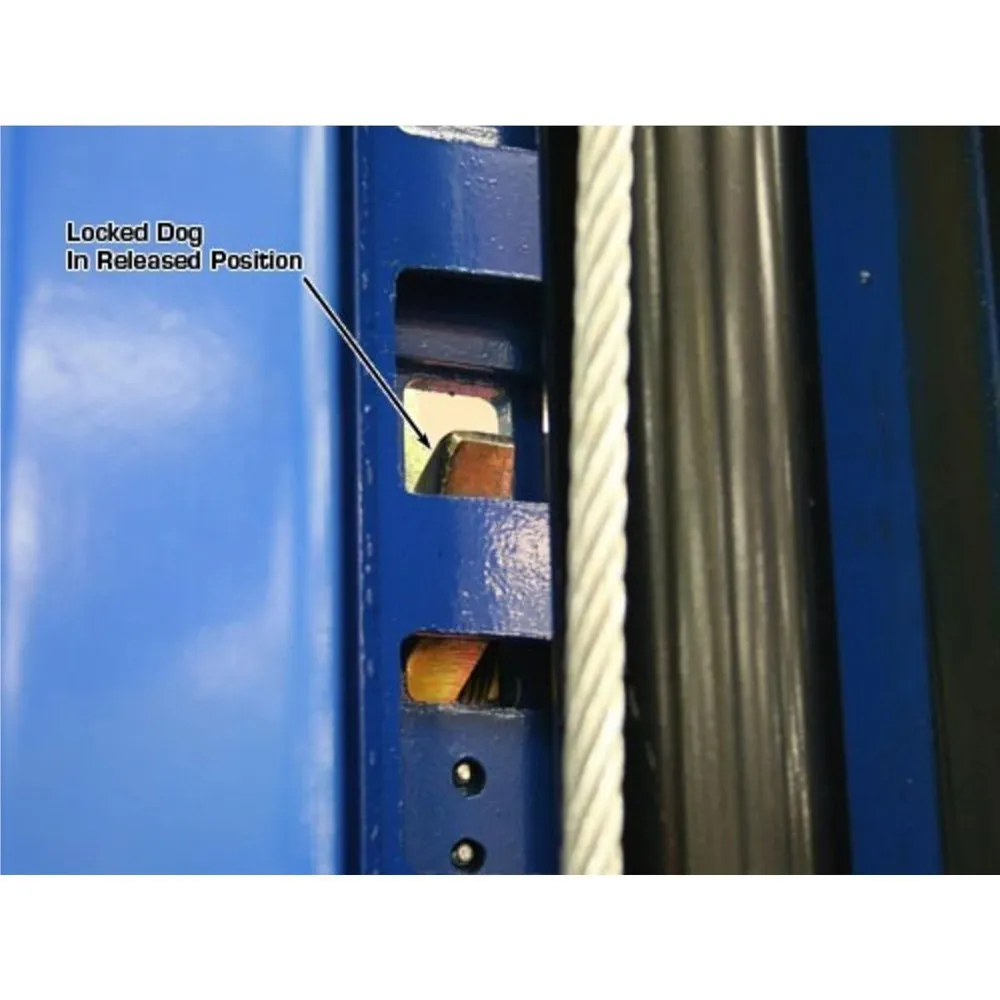

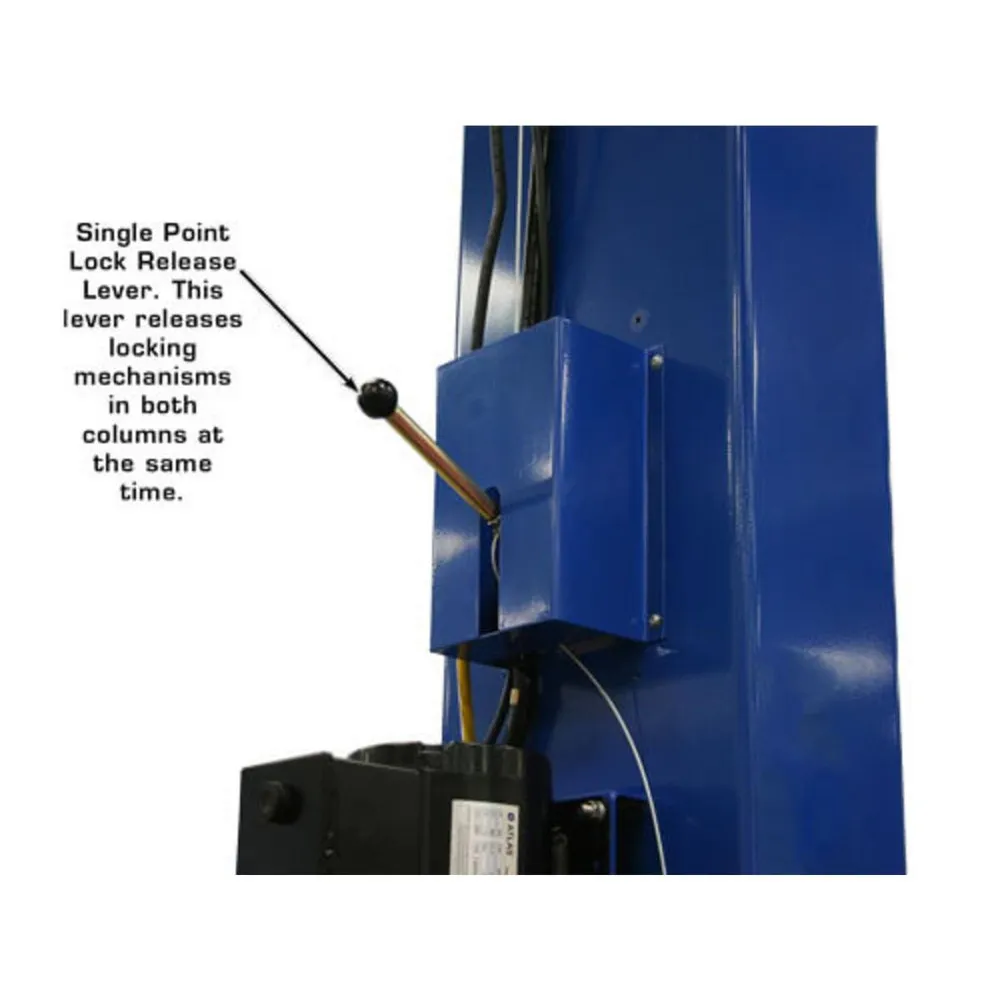

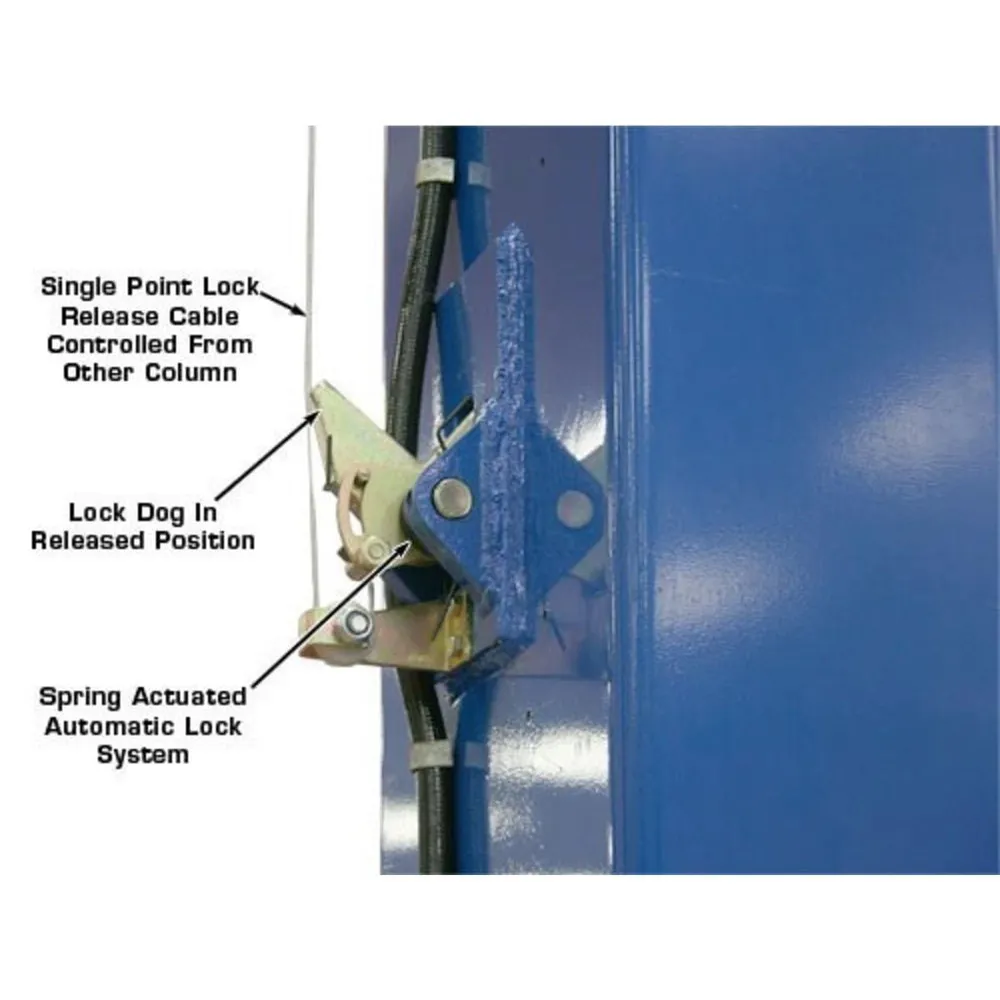

Single Point Lock Release

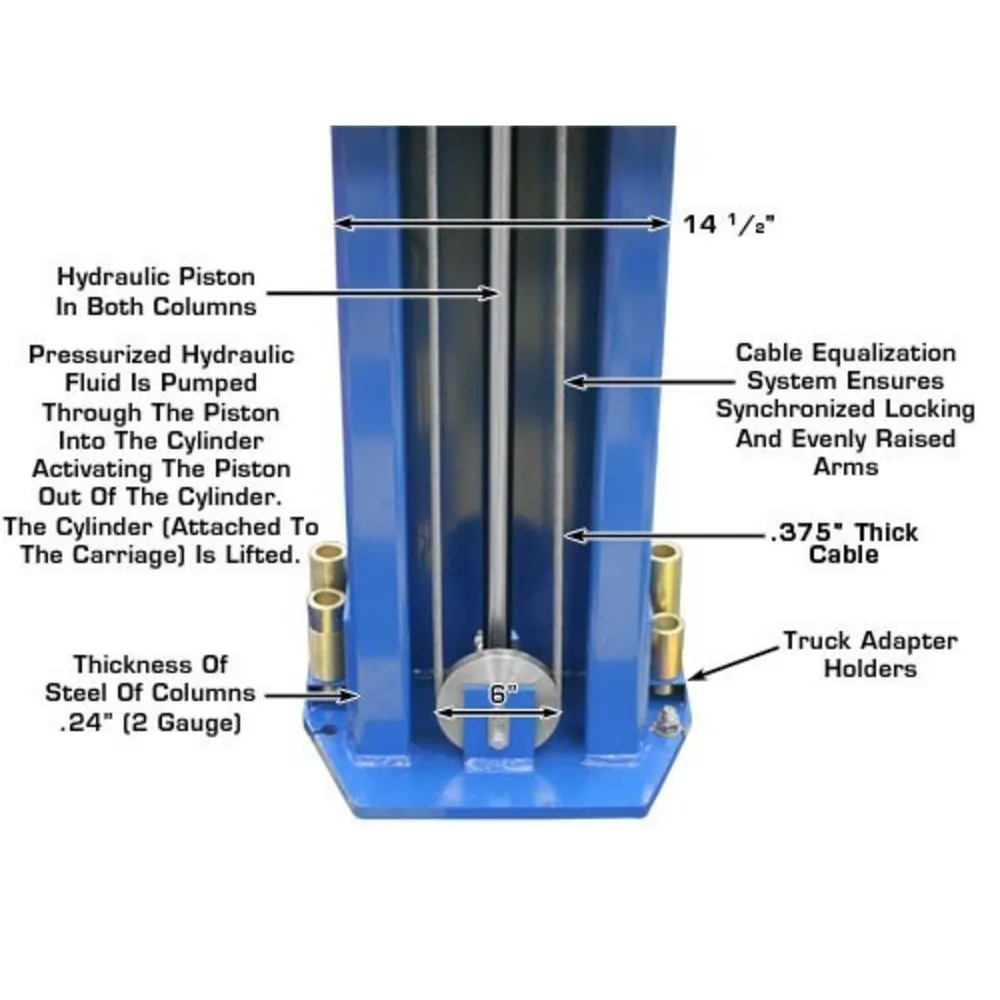

Dual Direct-Drive Cylinders
Powder Coat Finish

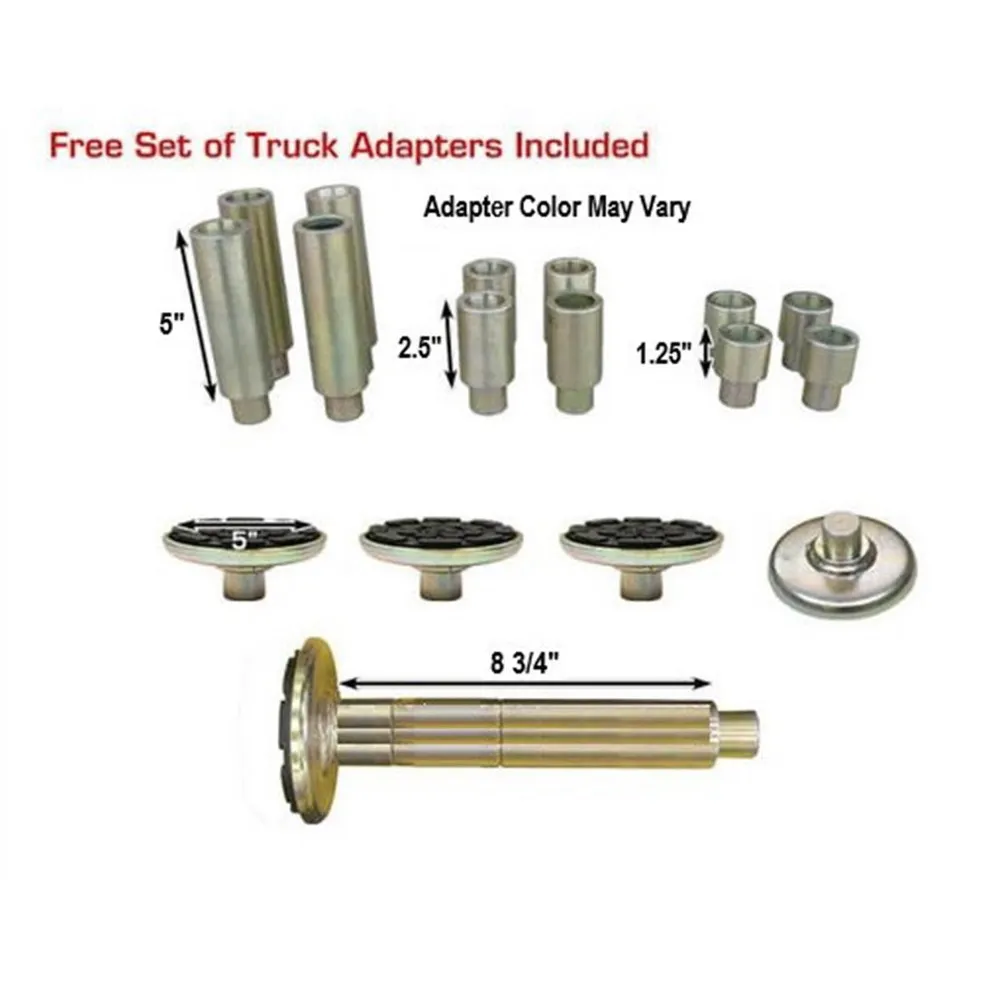

Free 12 Piece Truck Adapter Set

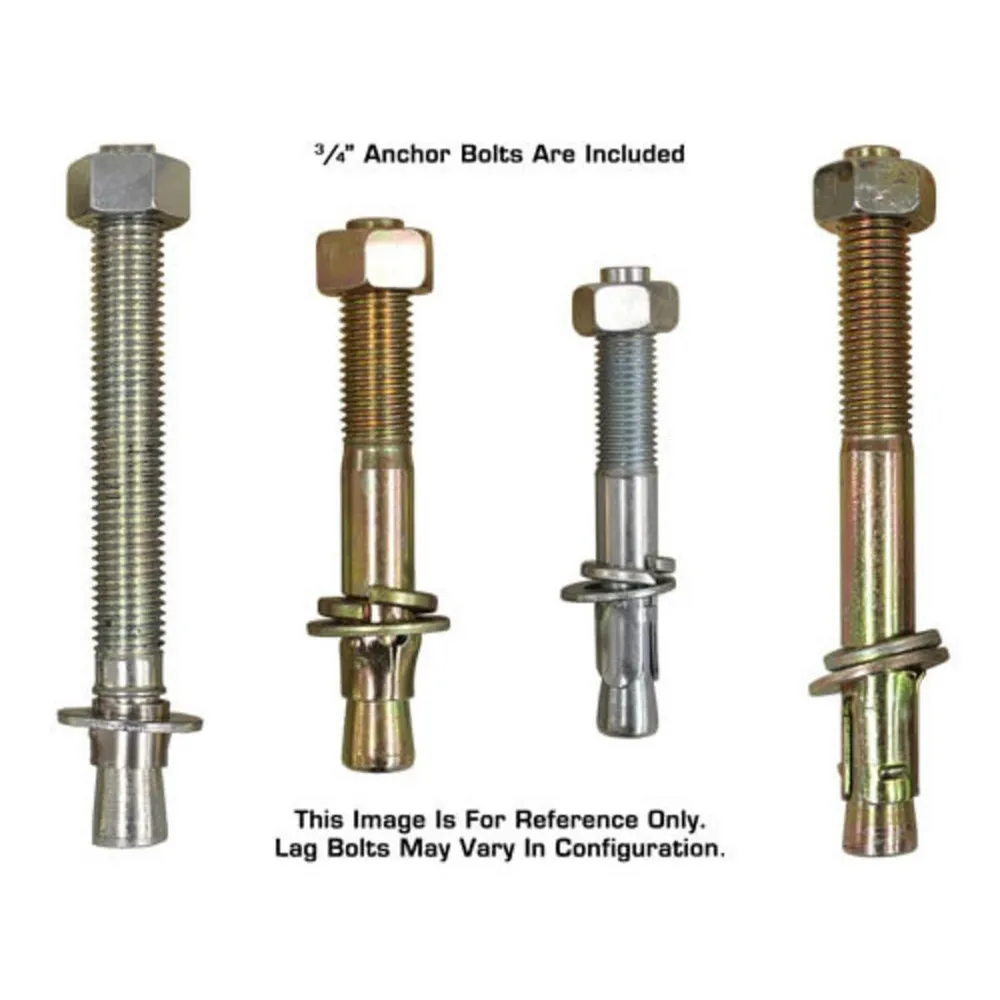

Mounting Hardware Included

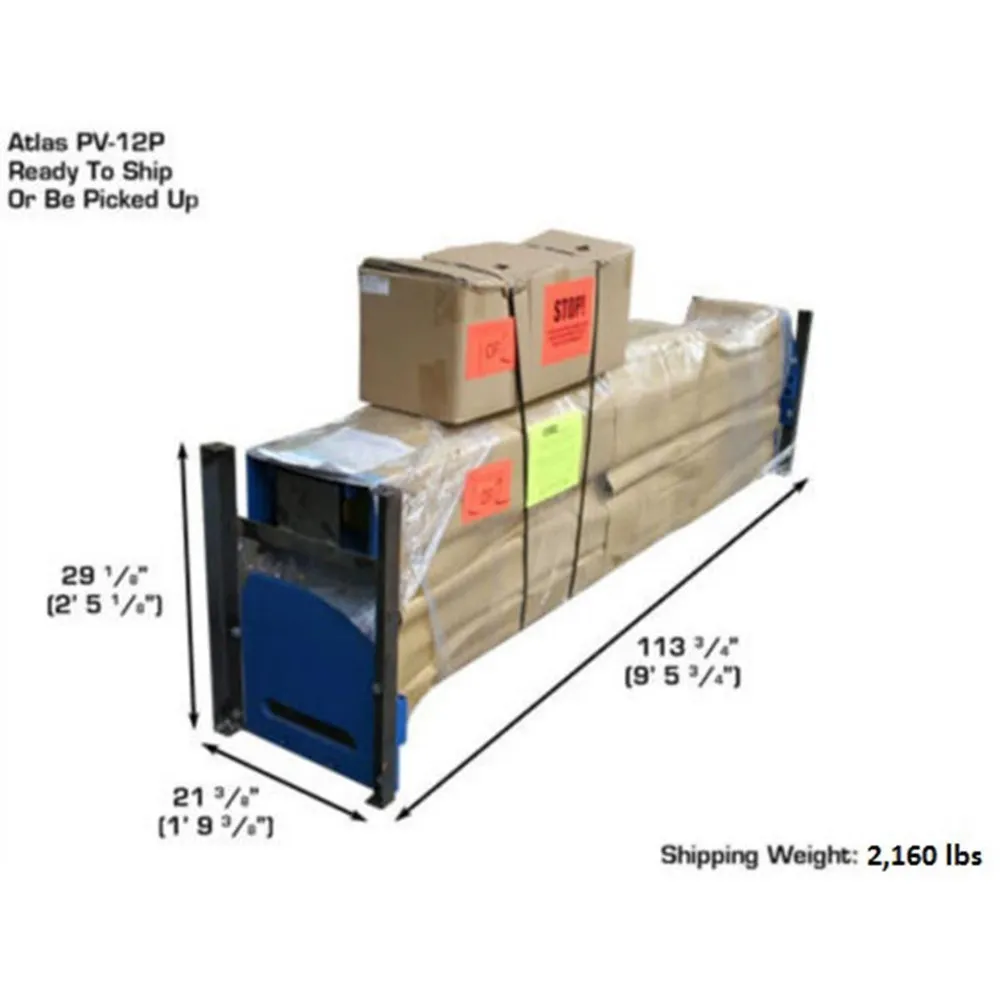

Shipping weight: 2,160 lbs.
5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
This part number FREIGHT PREPAID

Atlas® ATTD-PV12PX Specifications

Capacity 12,000 LB.
Overall Height 165" (13' 9”) or 177” (14' 9”)
Special Low Height 150" (12' 6”) (REQUIRES PURCHASE OF EXTRA CABLES)
Overall Floor Width 153" (12' 6 3/8”)
Outside Column to Outside Column 139 1/8" (11' 7 1/8")
Maximum Lift Height (Without Adapters) 72 1/4"
Maximum Lift Height (With Adapters) 81"
Minimum Arm Height 4 1/2"
Inside Column 123” (10' 3”)
Drive Thru 109" (9' 1”)
Column Size 7 1/2" x 14 1/2"
Column Thickness of Steel 6mm

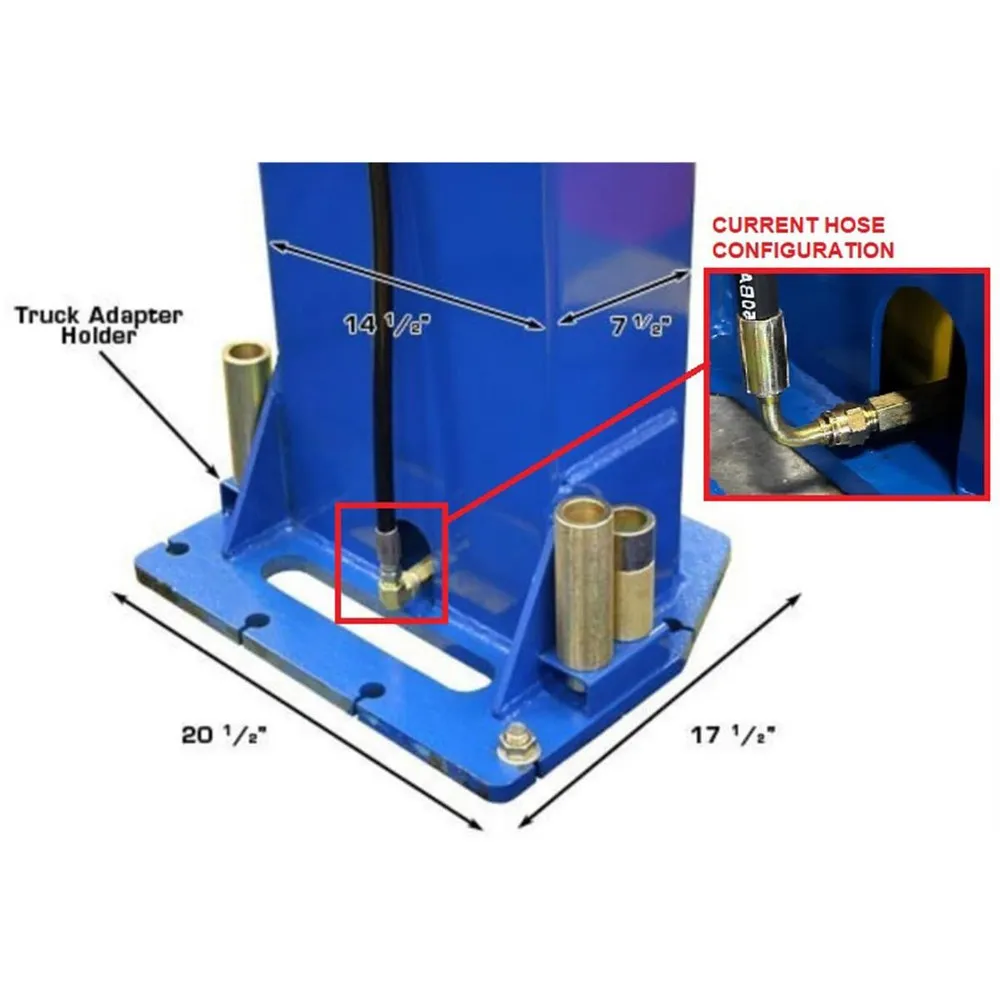

Base Of Lift 17 1/2" x 20 1/2"
Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 2,160 LBS.

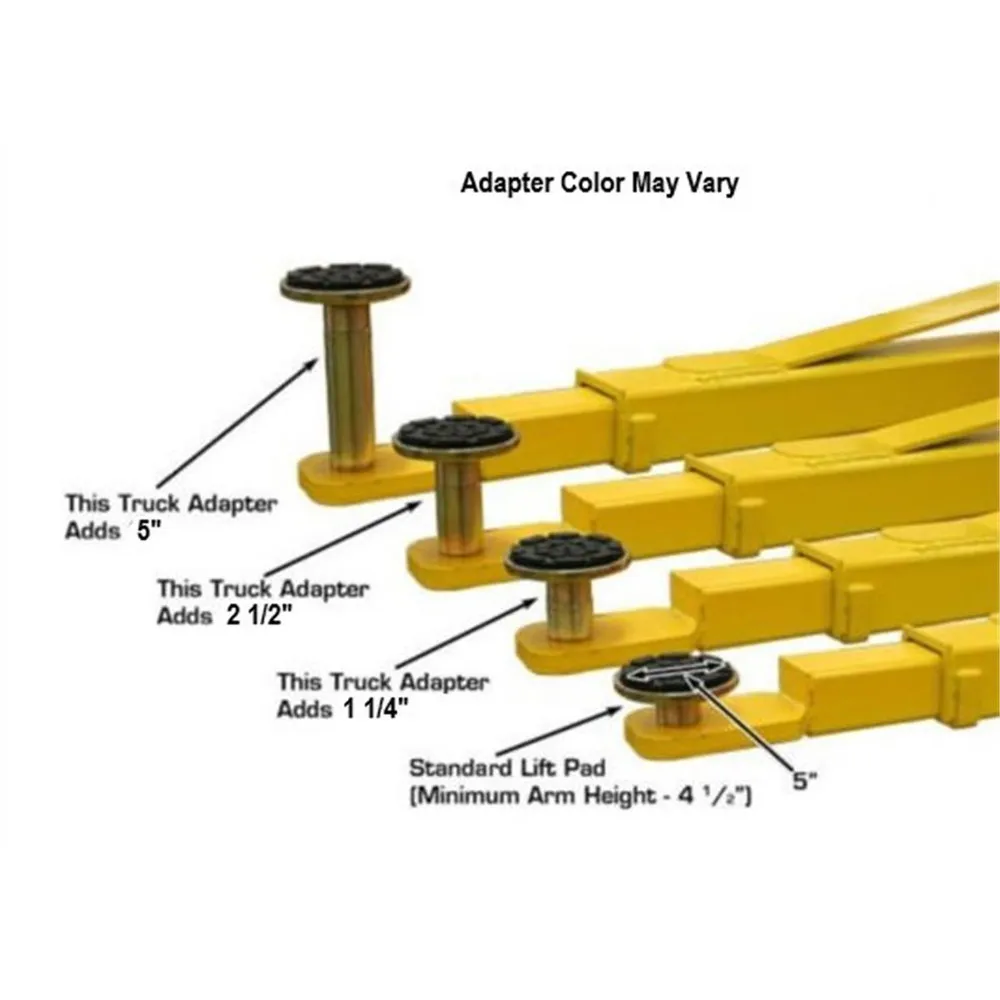

Adapter Heights 4 Each 1.25”, 2.5”, 4”
Arm Hole/Adapter Peg Size 1.5”
Requires a minimum of 6" of concrete with a 3000 psi. rating
