Atlas PV10PX Commercial Grade Overhead 10,000 lb. Capacity 2-Post Lift

Description

Shop the Atlas PV10PX Commercial Grade Overhead 10,000 lb. Capacity 2-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• 10,000 lb. capacity
• Commercial Grade

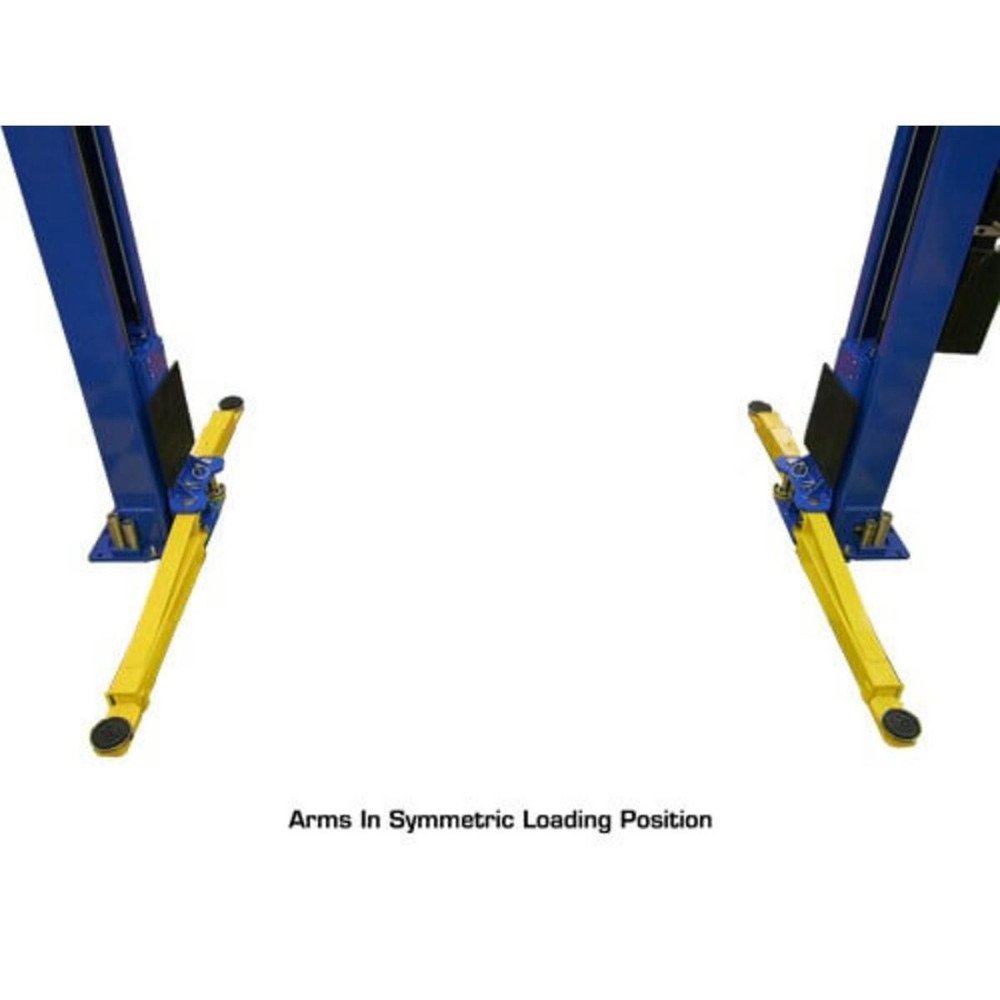

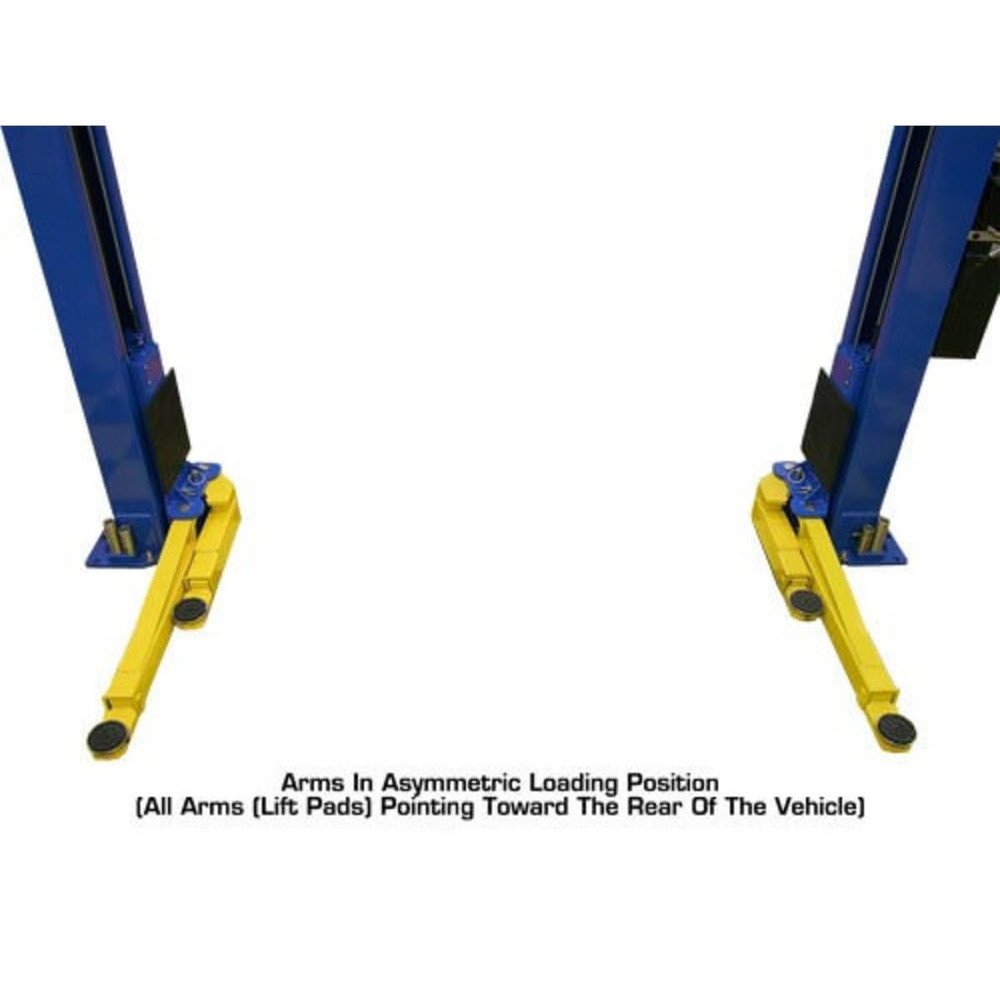

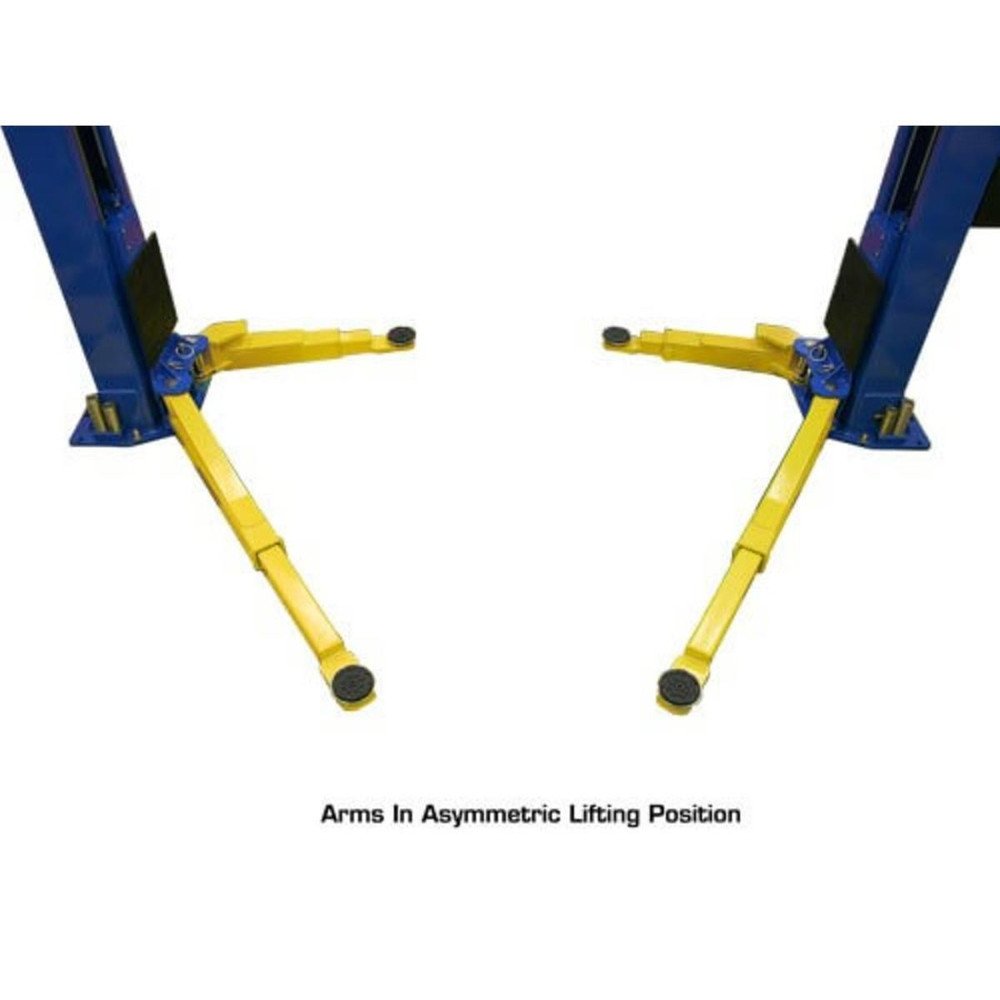

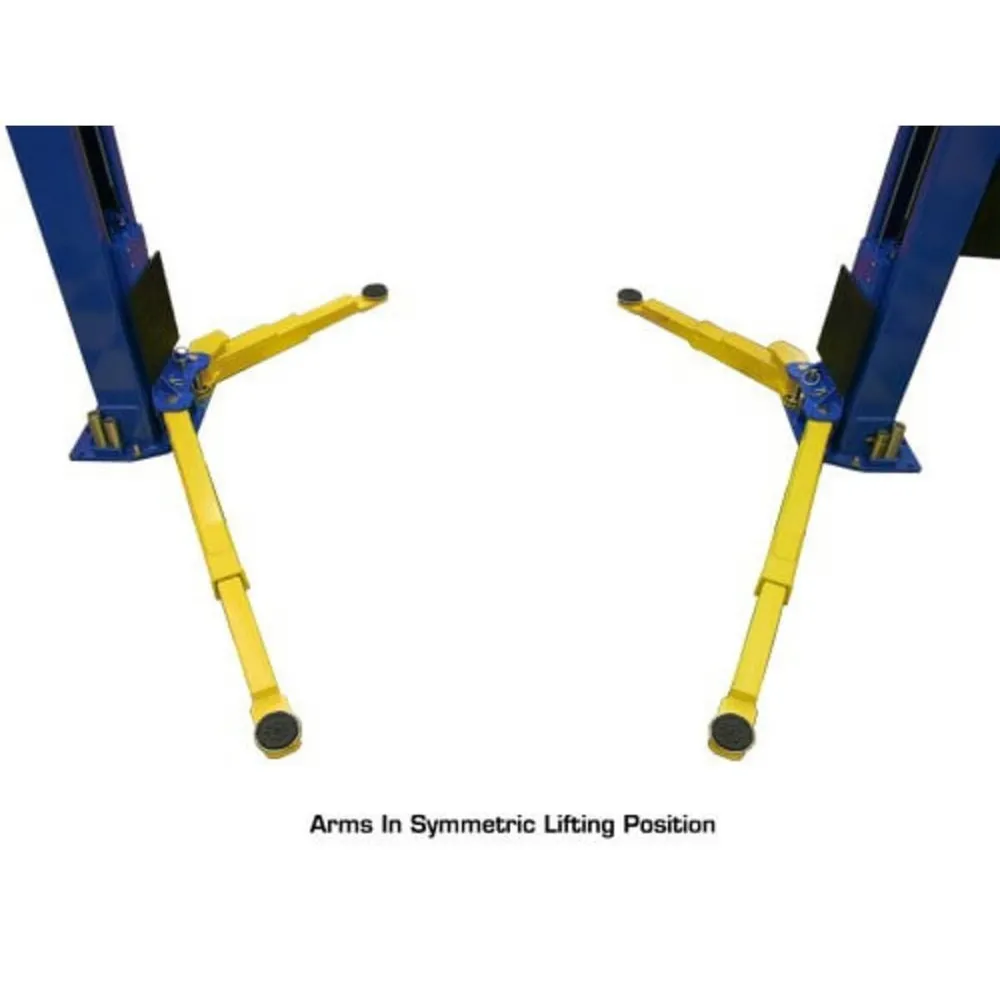

• Asymmetric/Symmetric Arms

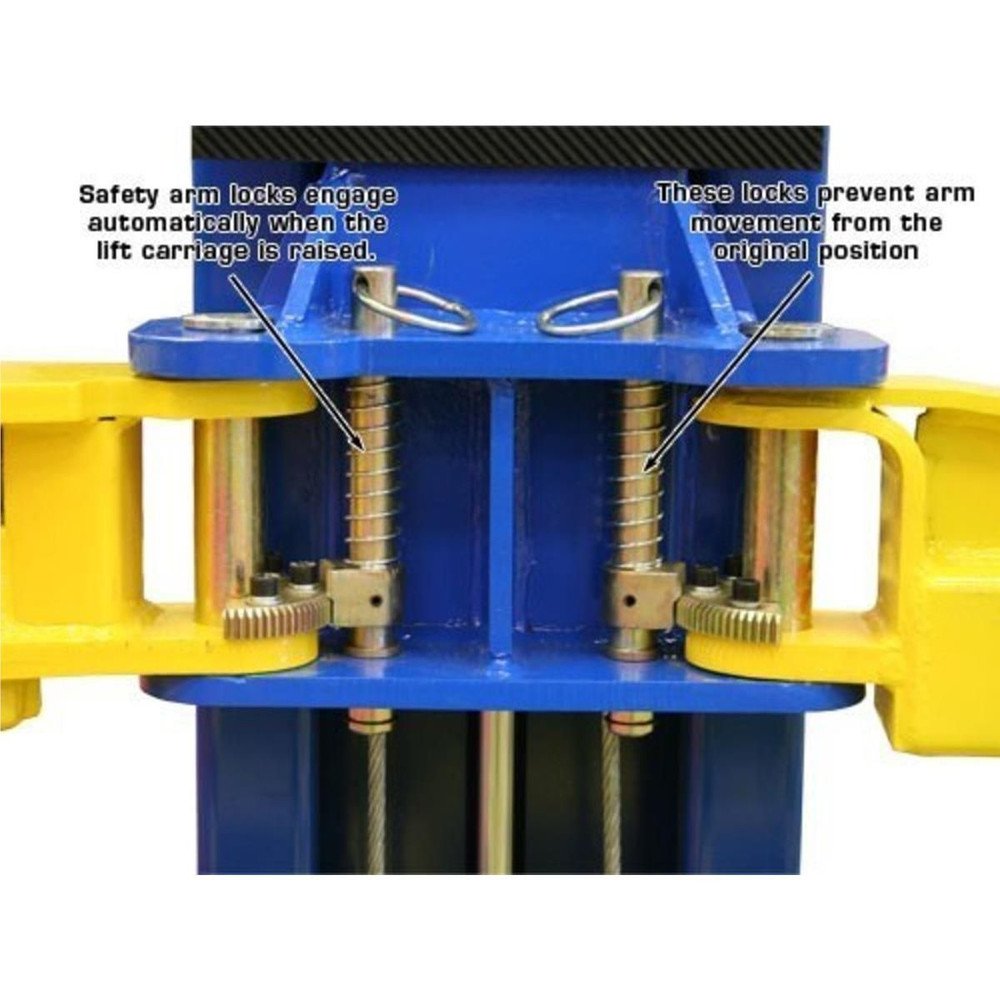

• Automatic Arm Restraints

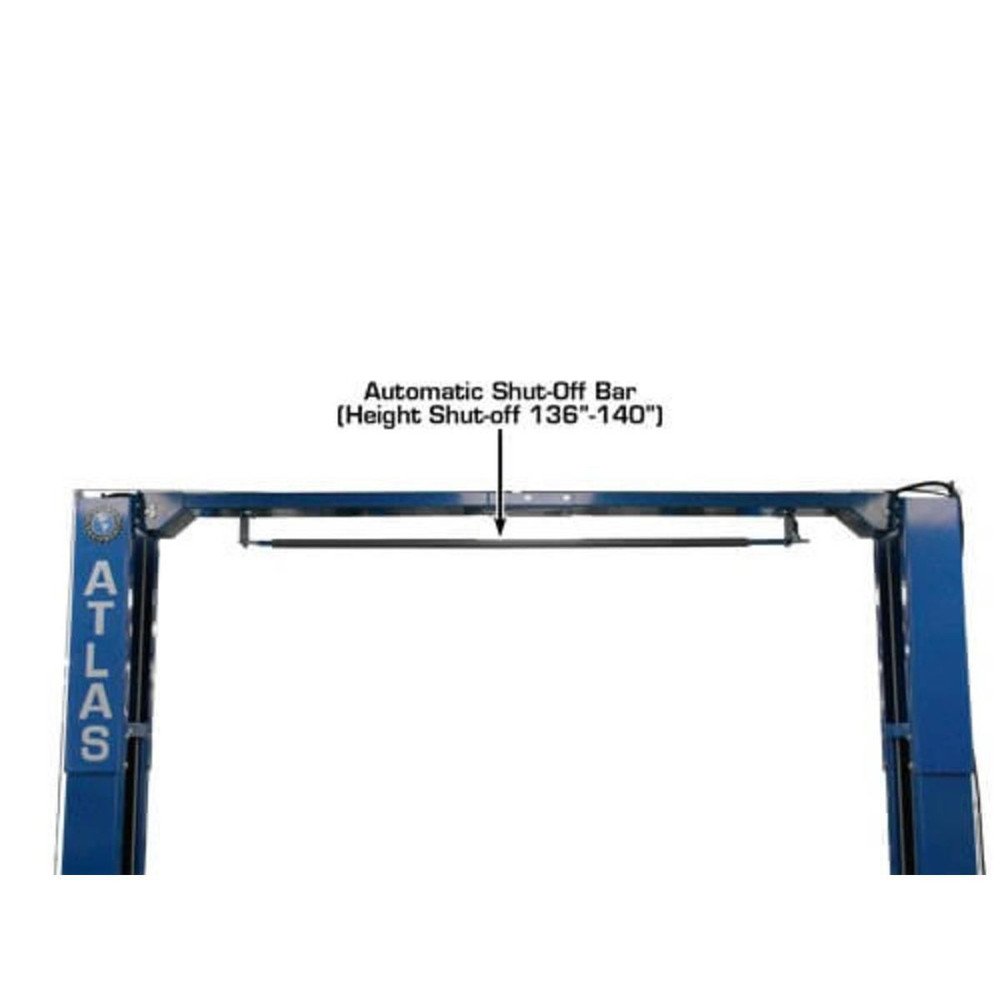

• “Padded” Shut-Off Bar
• Thick Rubber Covers On Carriages

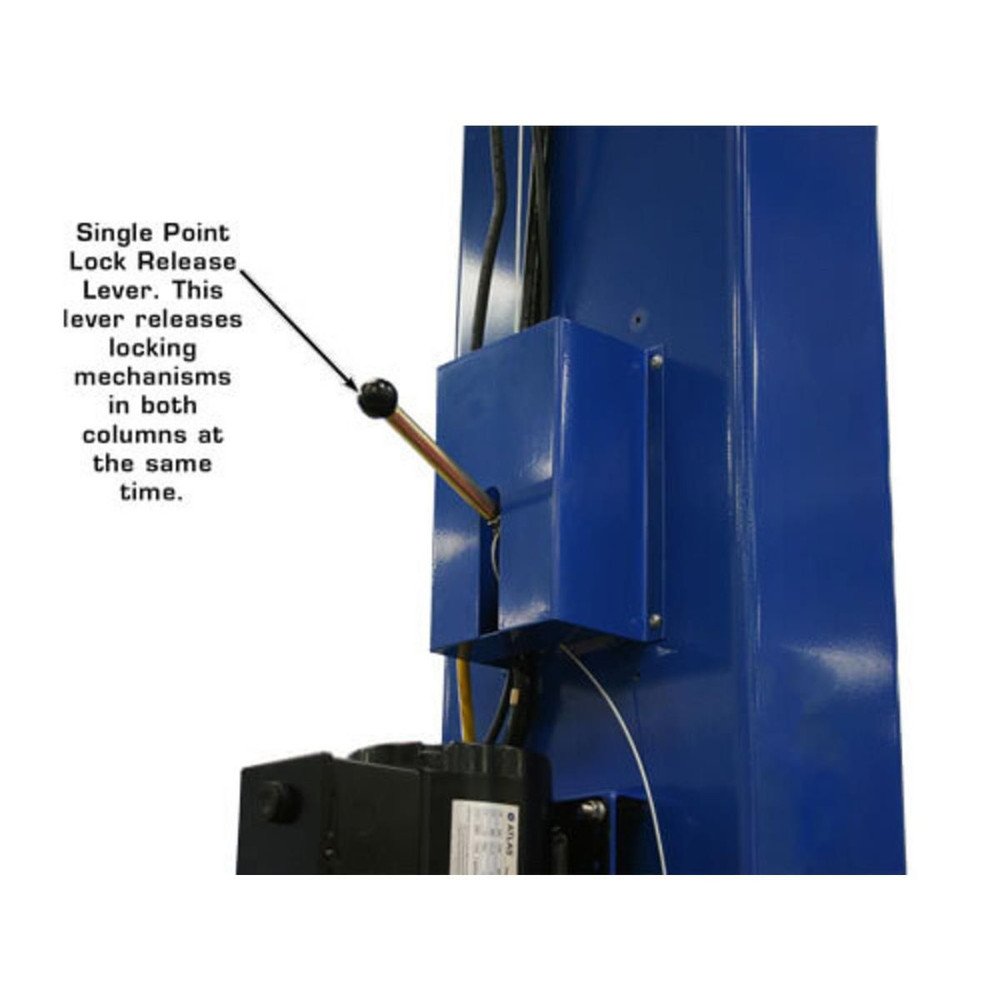

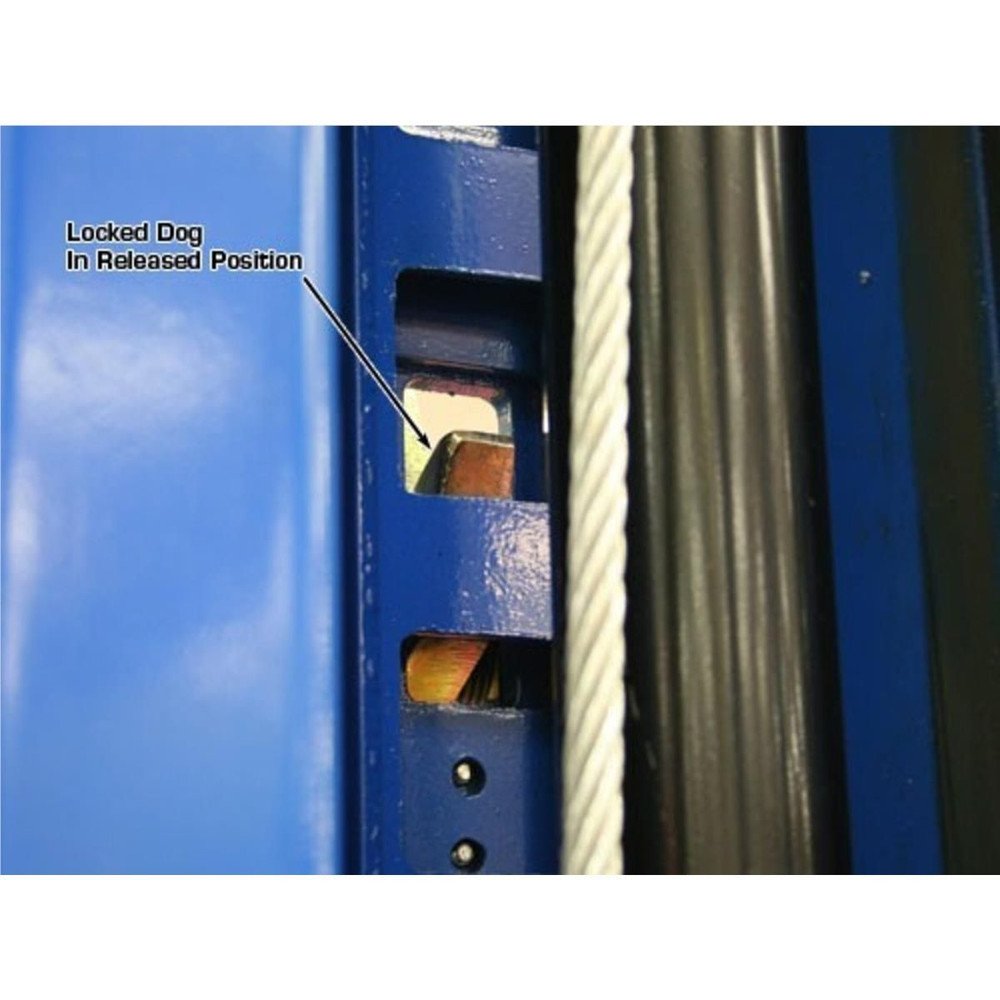

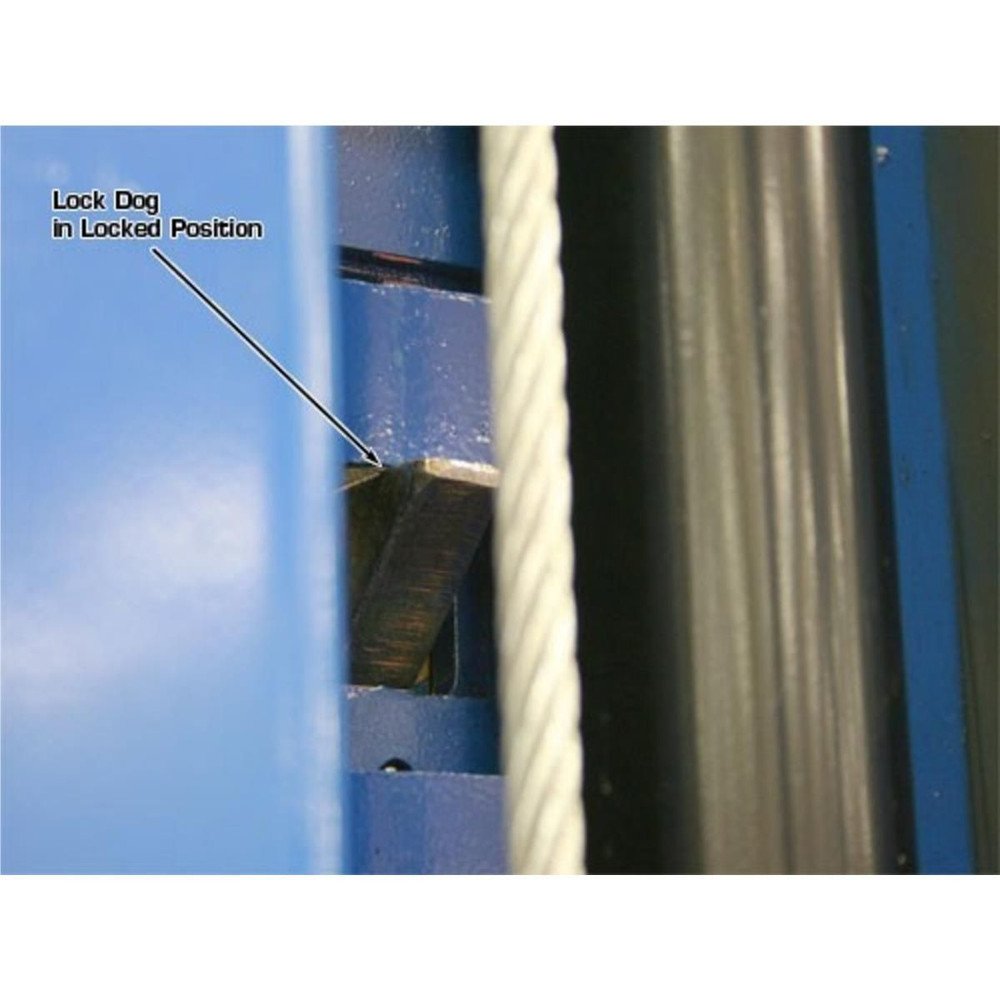

• Single Point Lock Release

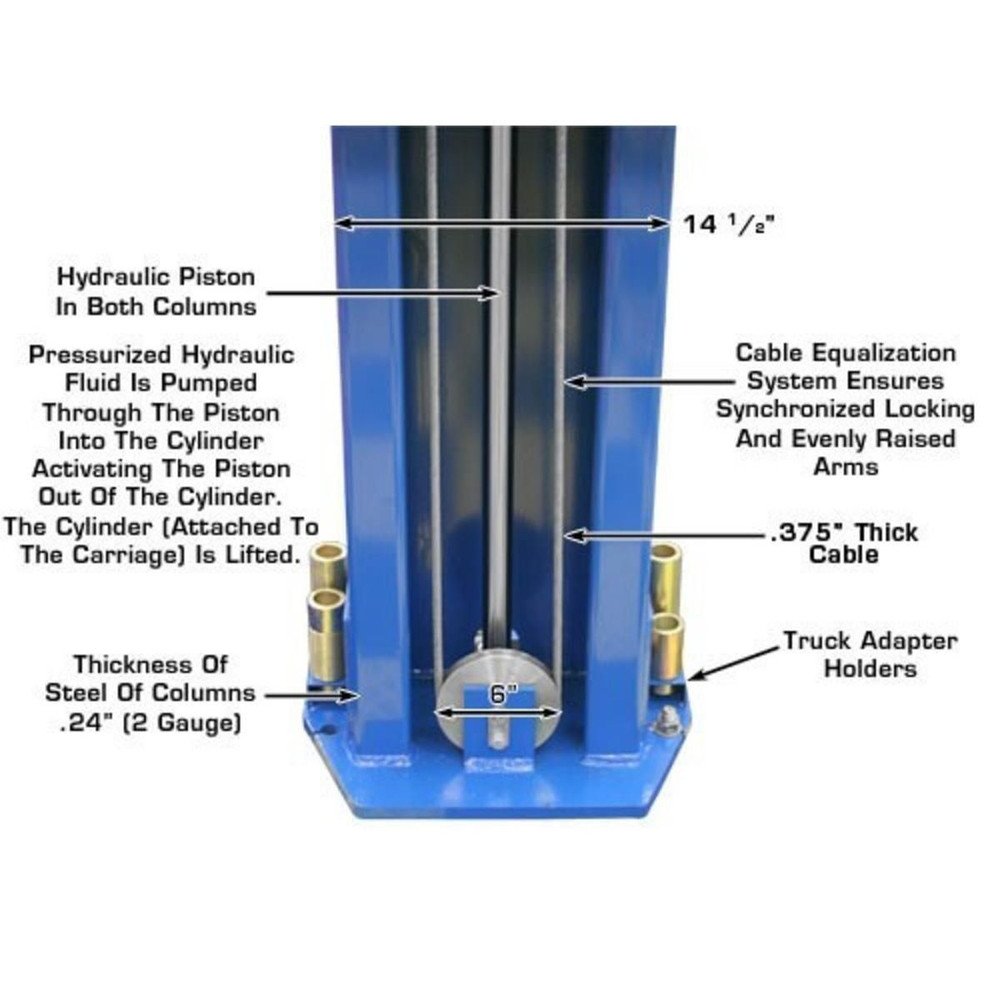

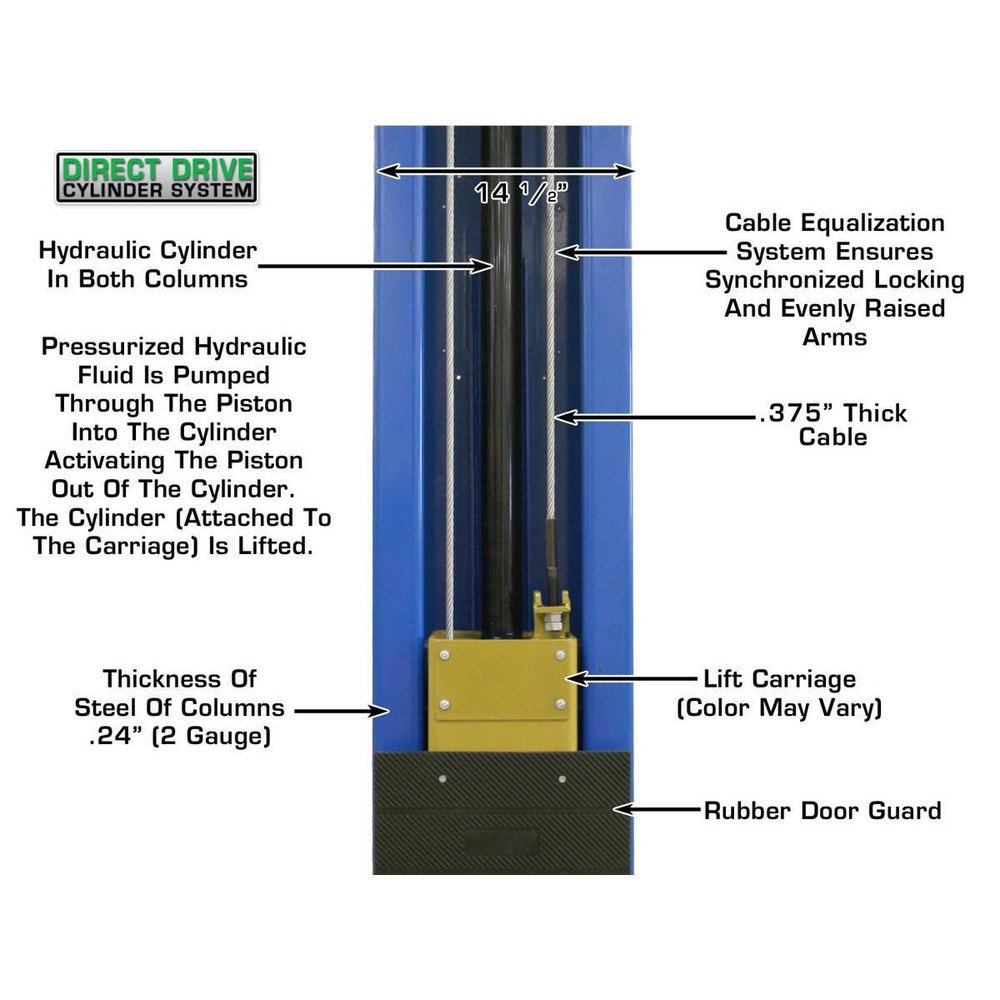

• Direct-Drive Cylinders
• Powder Coat Finish
• Adjustable Height – 11′ 11 1/8″ or 12′ 3″

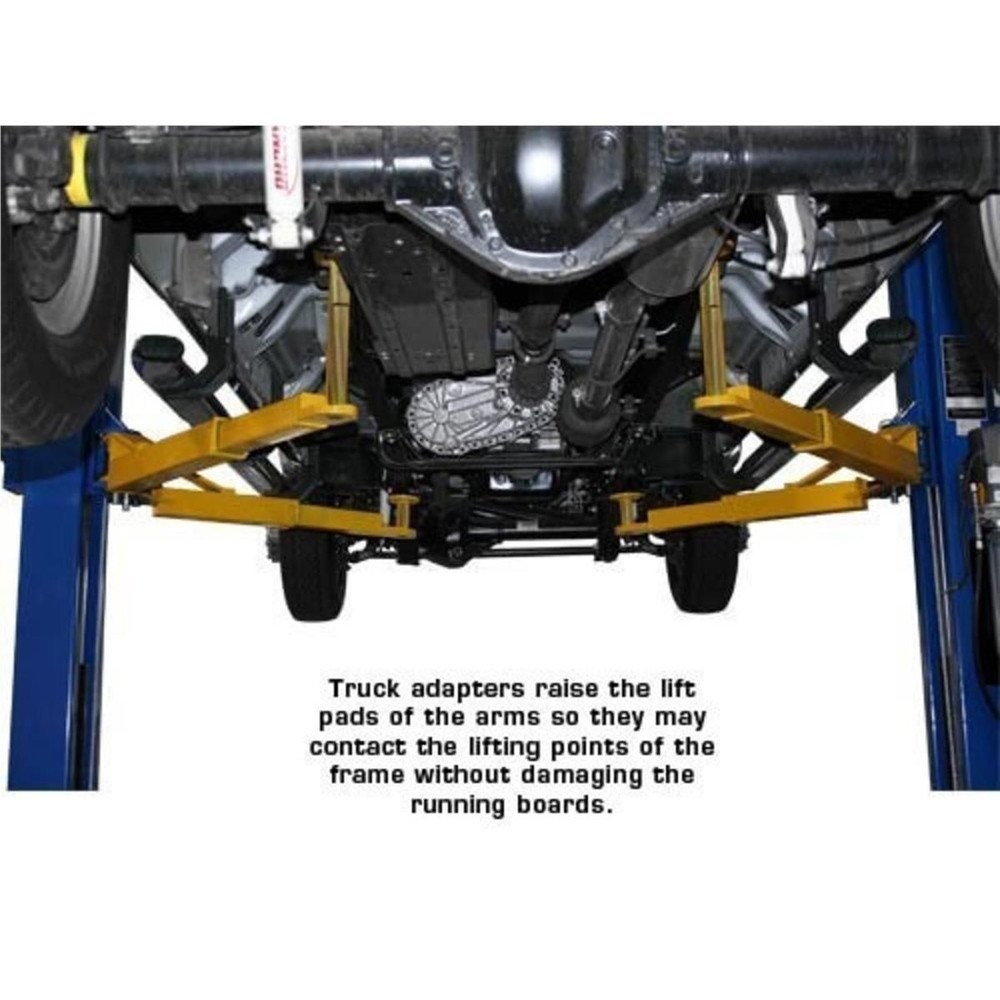

• Free 12 Piece Truck Adapter Set

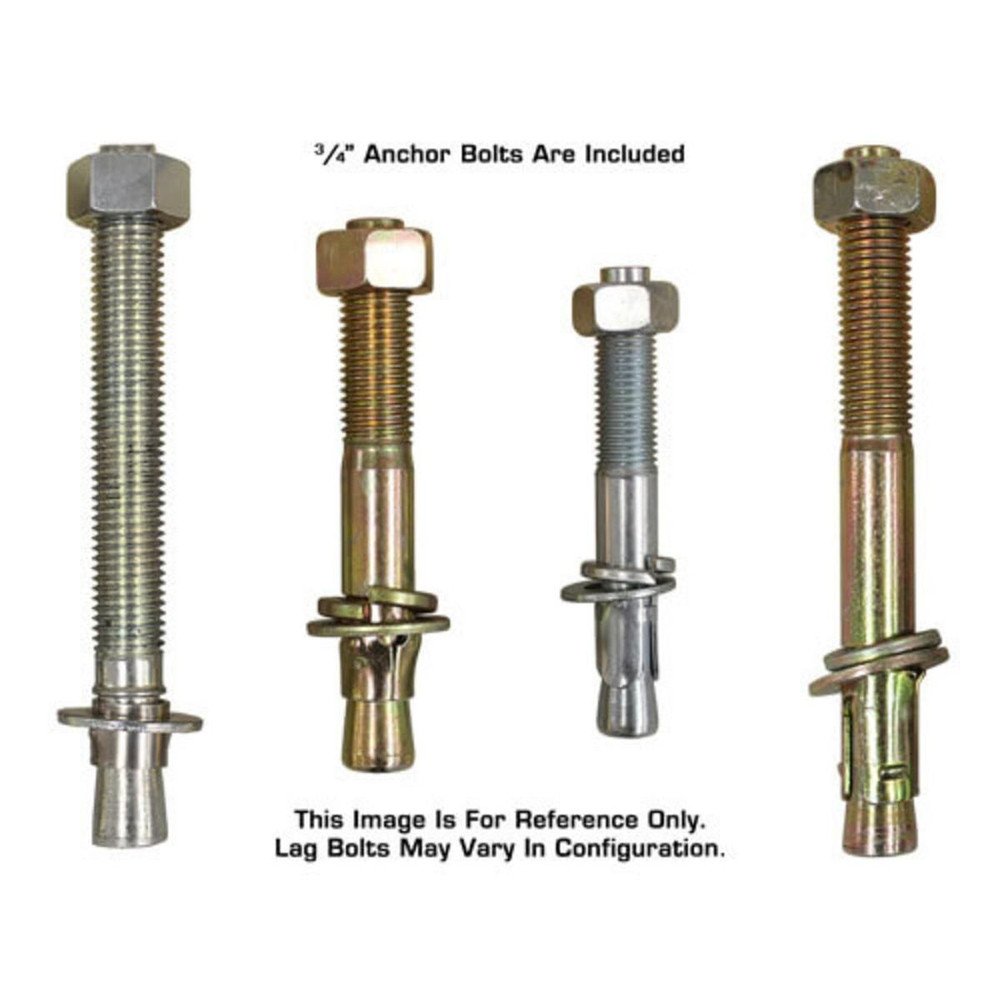

• Mounting Hardware Included

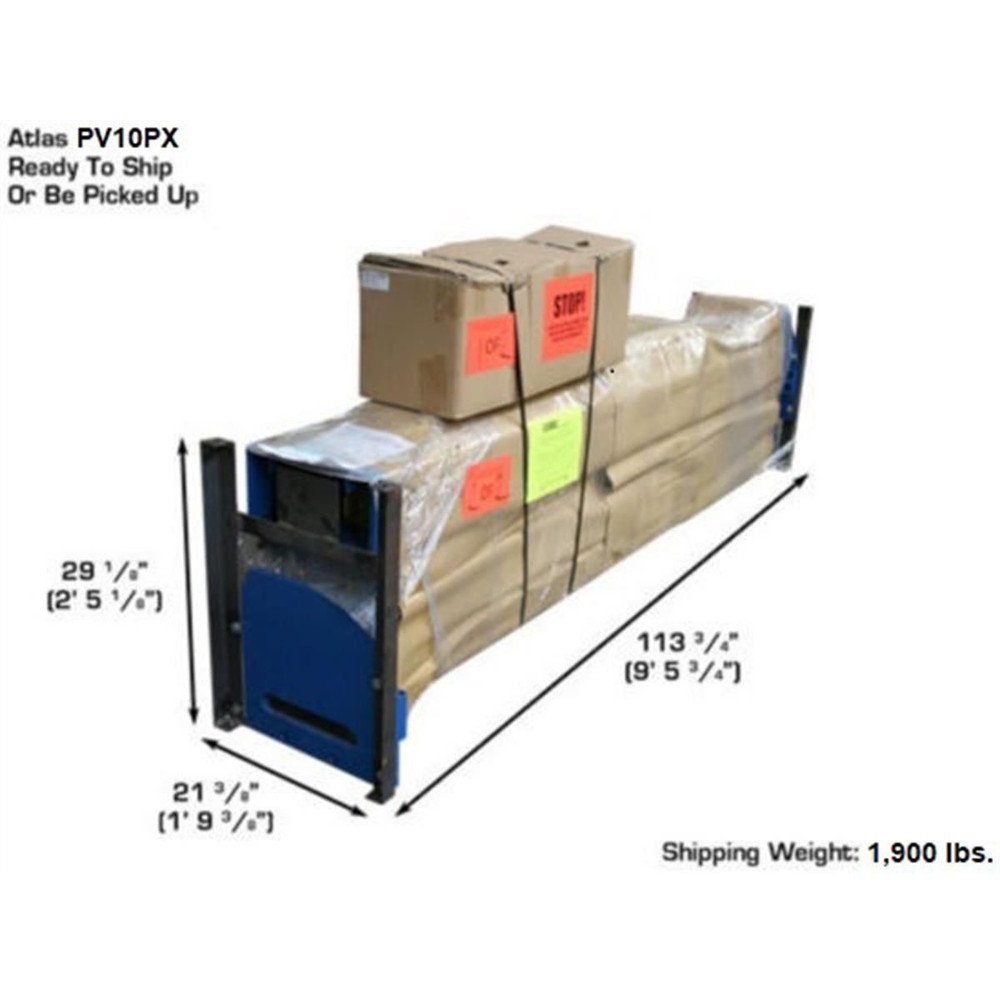

• Shipping Weight: 1875 lbs.
• 5 Year Structural Warranty/2 Year Hydraulic Warranty
• This part number for FREIGHT PREPAID

Atlas® PV10PX Specifications:

• Capacity: 10000 lbs
• Overall Height: 143 1/8″ (11′ 11 1/8″) or 147″ (12′ 3″)
• Overall Floor Width: 137 1/2″ (11′ 5 1/2″)
• Outside Columns: 125 1/2″ (10′ 5 1/2″”)
• Inside Column Width: 110 1/8″ (9′ 2 1/8″)
• Drive Thru: 90 1/4″ Asymmetric/ 96 1/4″ Symmetric
• Max Lift Height w/o Adapters: 72 1/2″
• Max Lift height w/ Adapters: 81 1/4″
• Minimum Arm Height: 4 1/2″

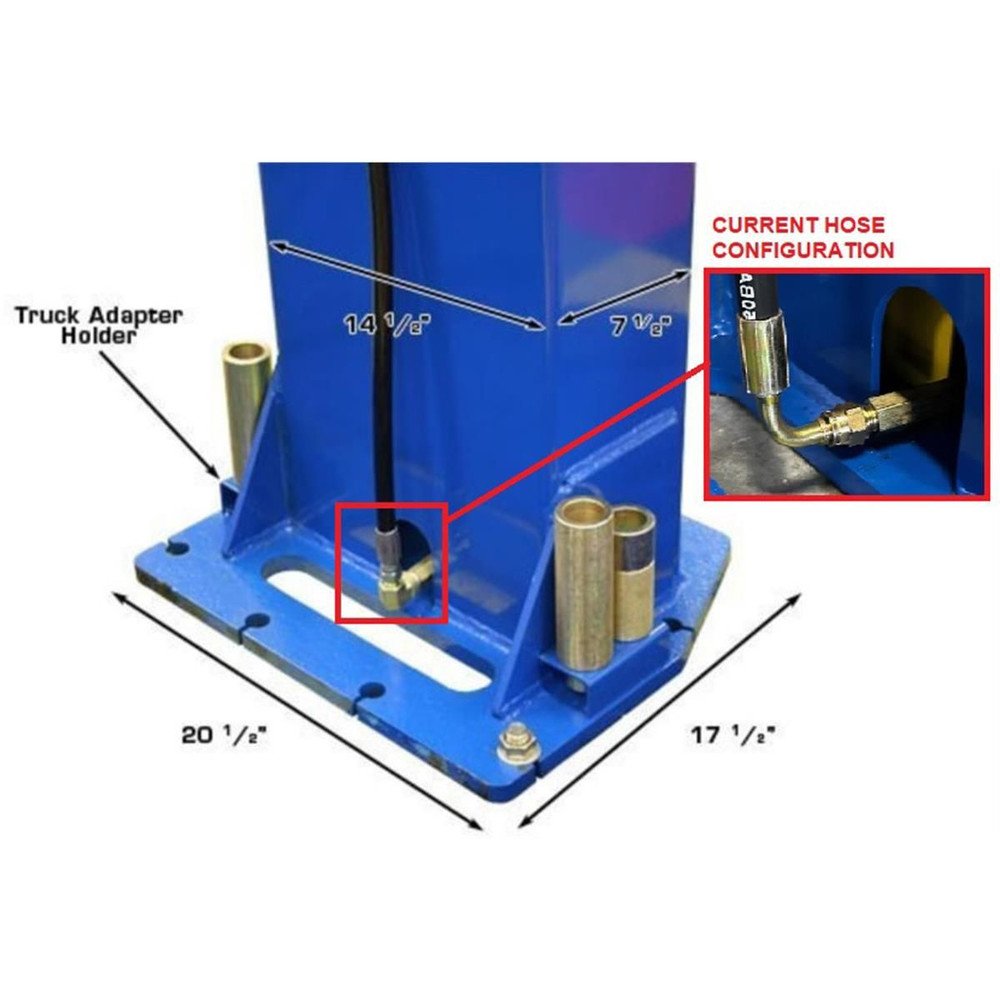

• Column Size: 7 1/2″ x 14 1/2″
• Base of Column: 17 1/2″ x 20 1/2″
• Column Steel Thickness: 6mm
• Arm Steel Thickness: 6mm
• Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 1875 lbs

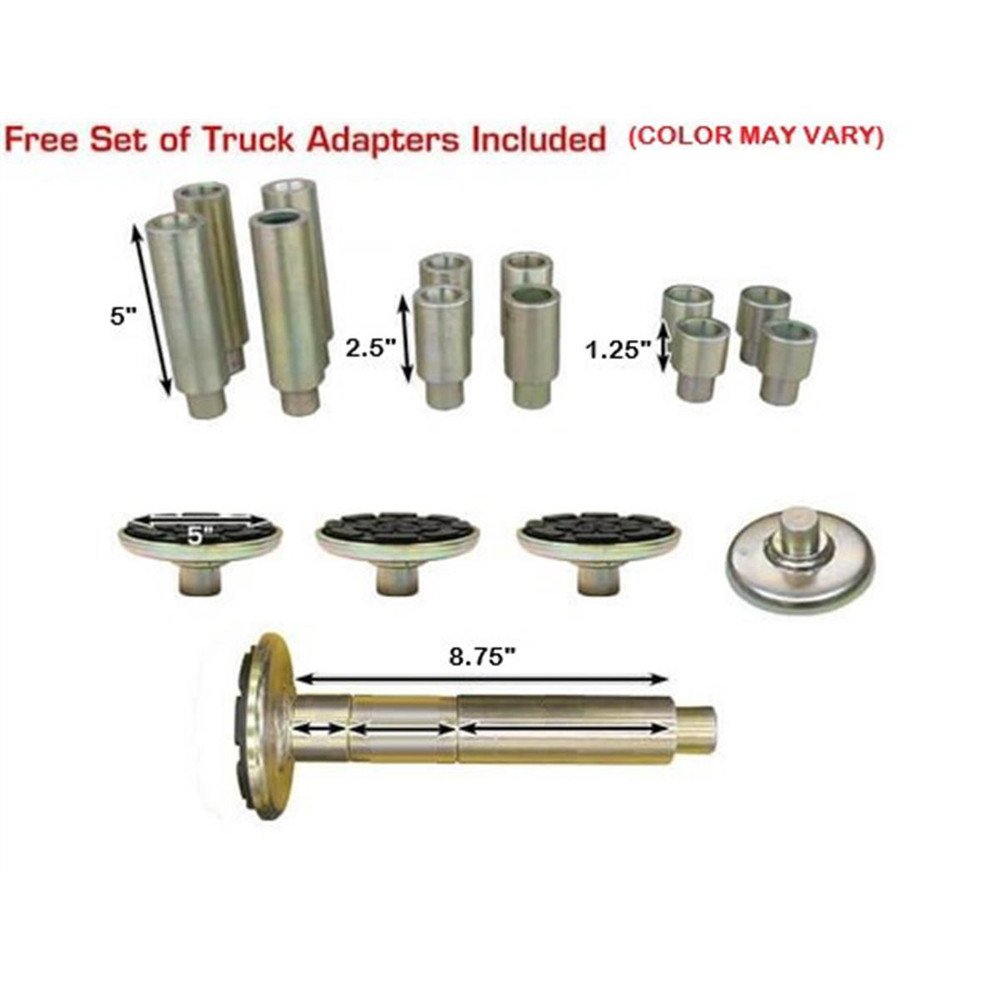

• Adapter Heights: 4 Each 1.25″, 2.5″, 5″
• Arm Hole/Adapter Peg Size: 1.5″
