$5,449.00

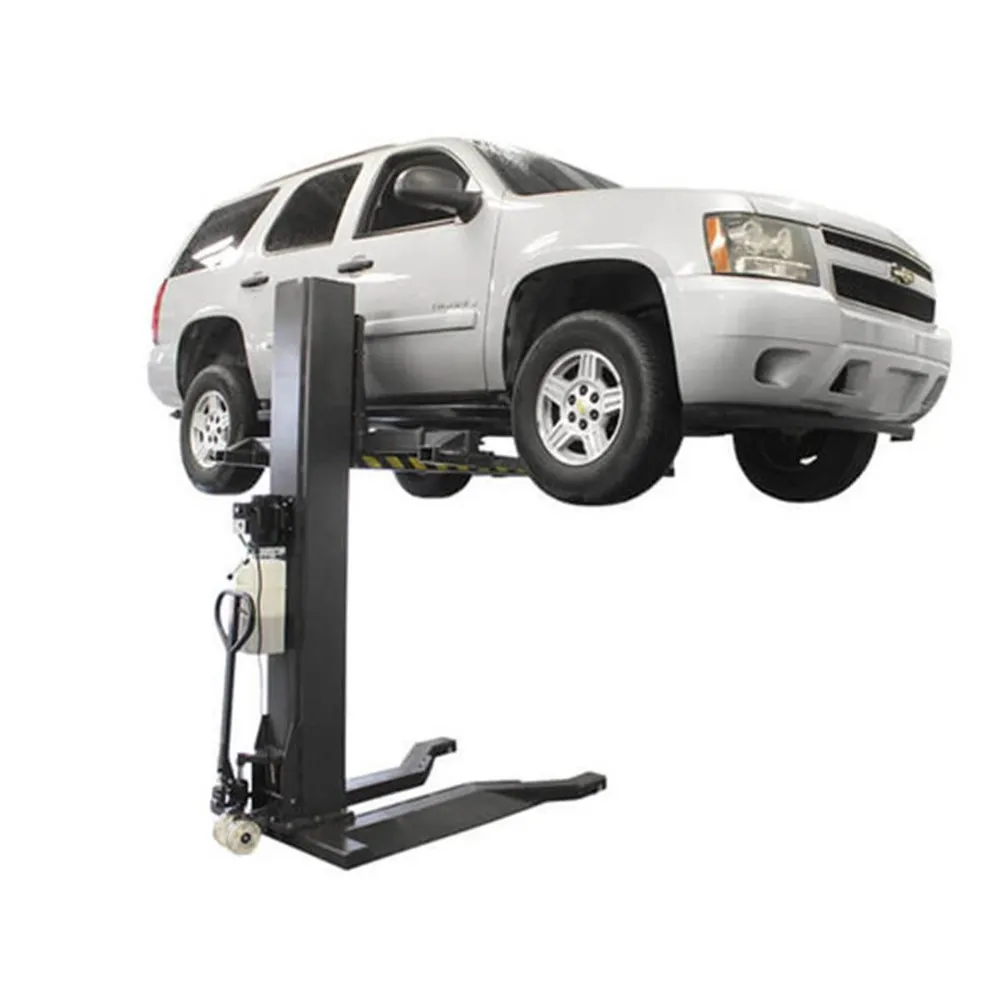

The Atlas PSP-6000 is a 6,000-lb. portable mobile column lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Categories: ,
Brand:

Description

Features and Benefits:

  • 6,000 lbs. Capacity
  • Portable
  • Low Profile Design
  • Rigid Base Construction

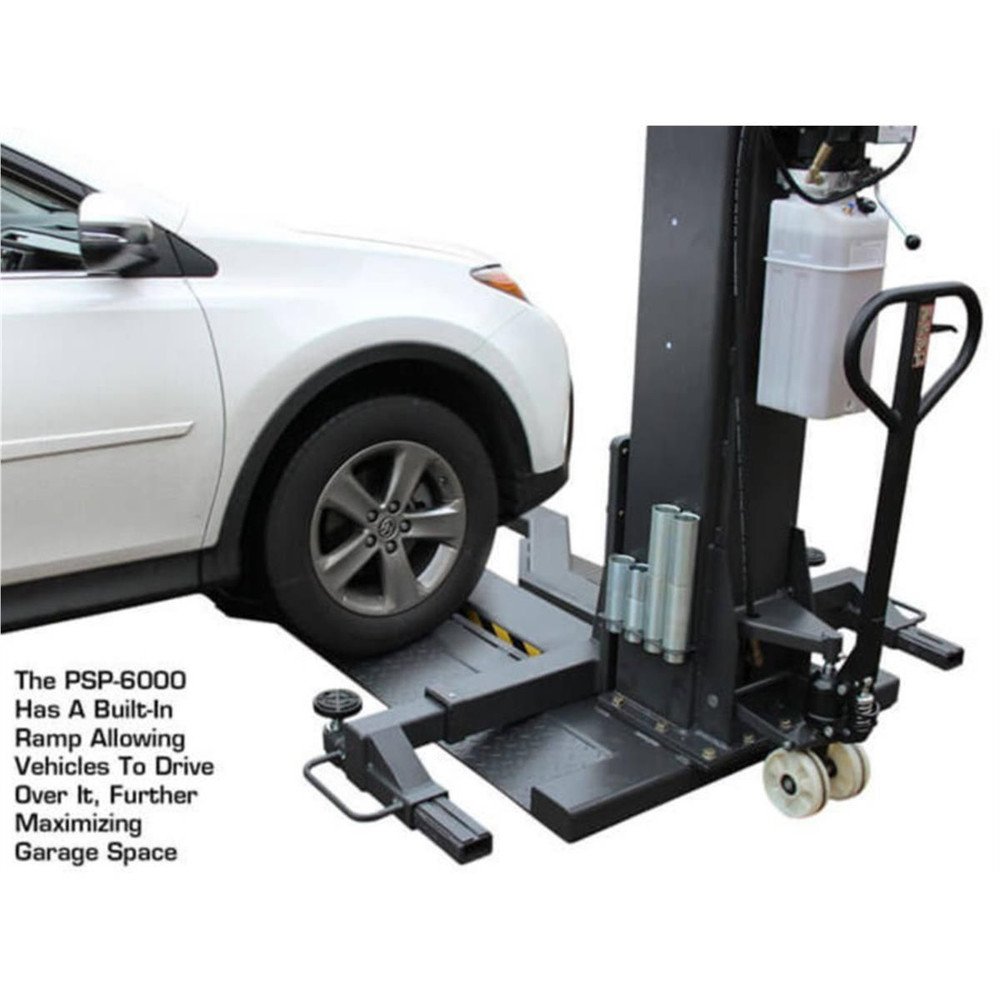

  • Built in Drive-over Ramps

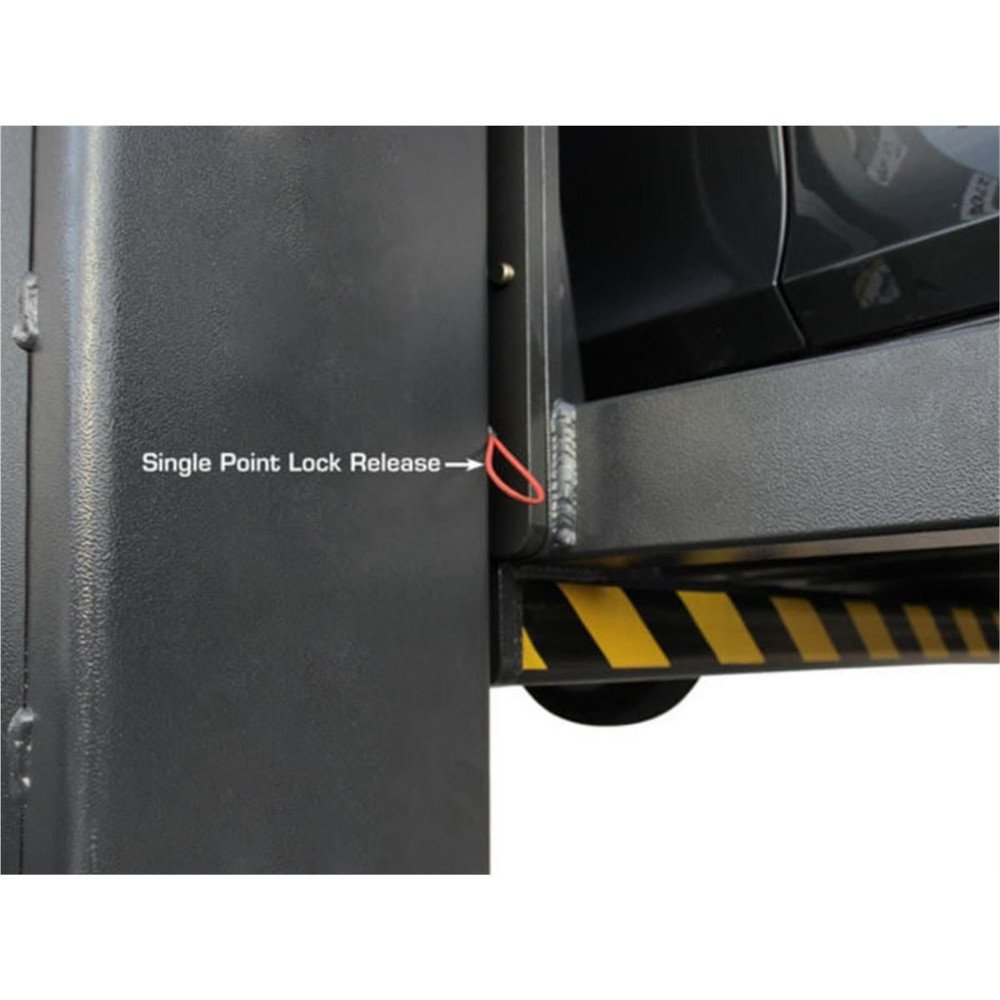

  • Single Point Lock Release

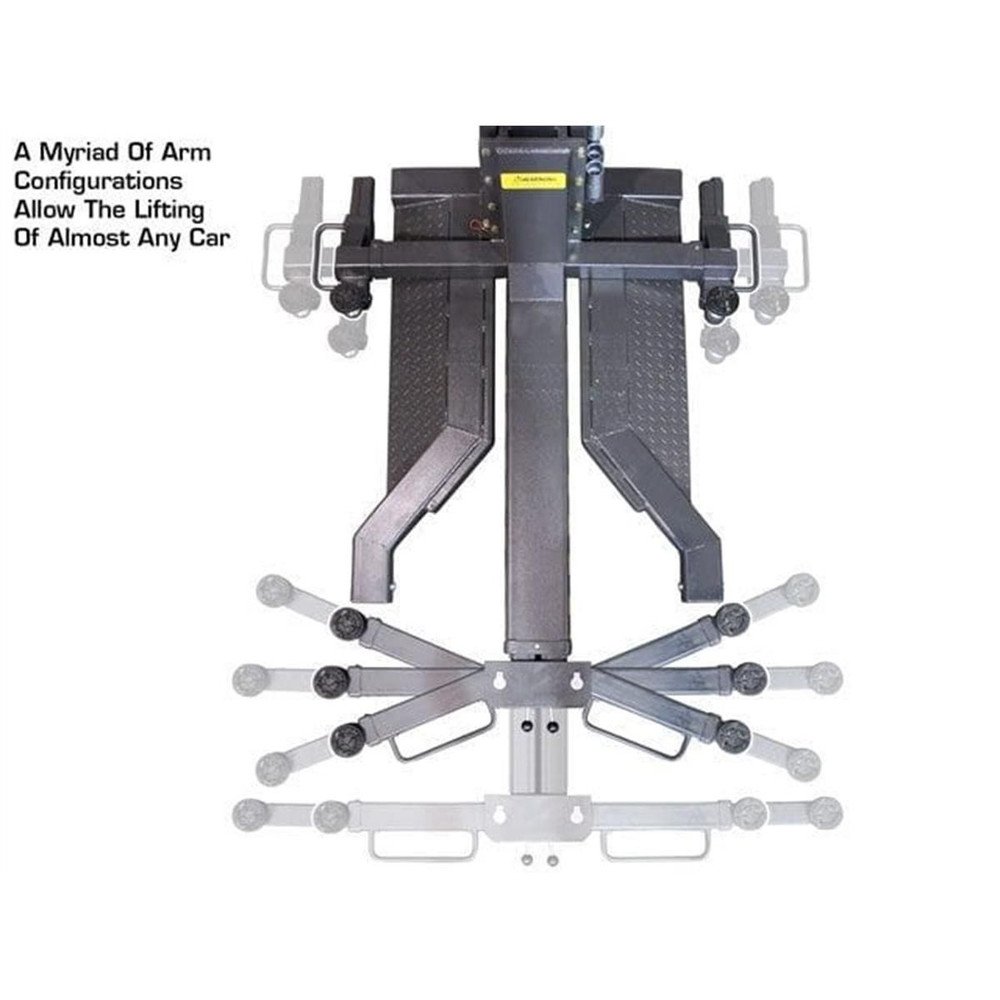

  • Two-Stage Telescoping Swing Arms

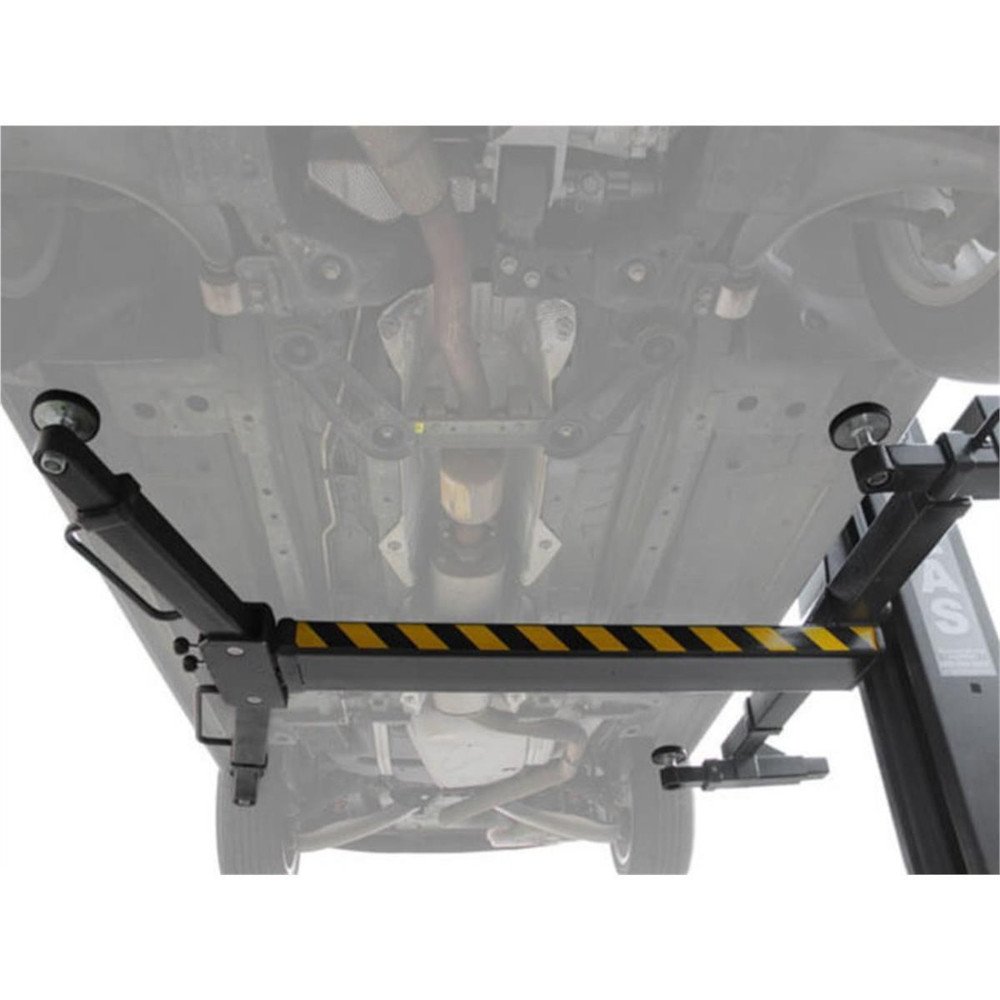

  • Locking Arm Restraints
  • Lifting Height: 5′ 11 2/3″ (71 2/3″)
  • 110volt Electric Operation (30 AMP BREAKER REQUIRED)
  • Free 8 Piece Truck Adapter Set

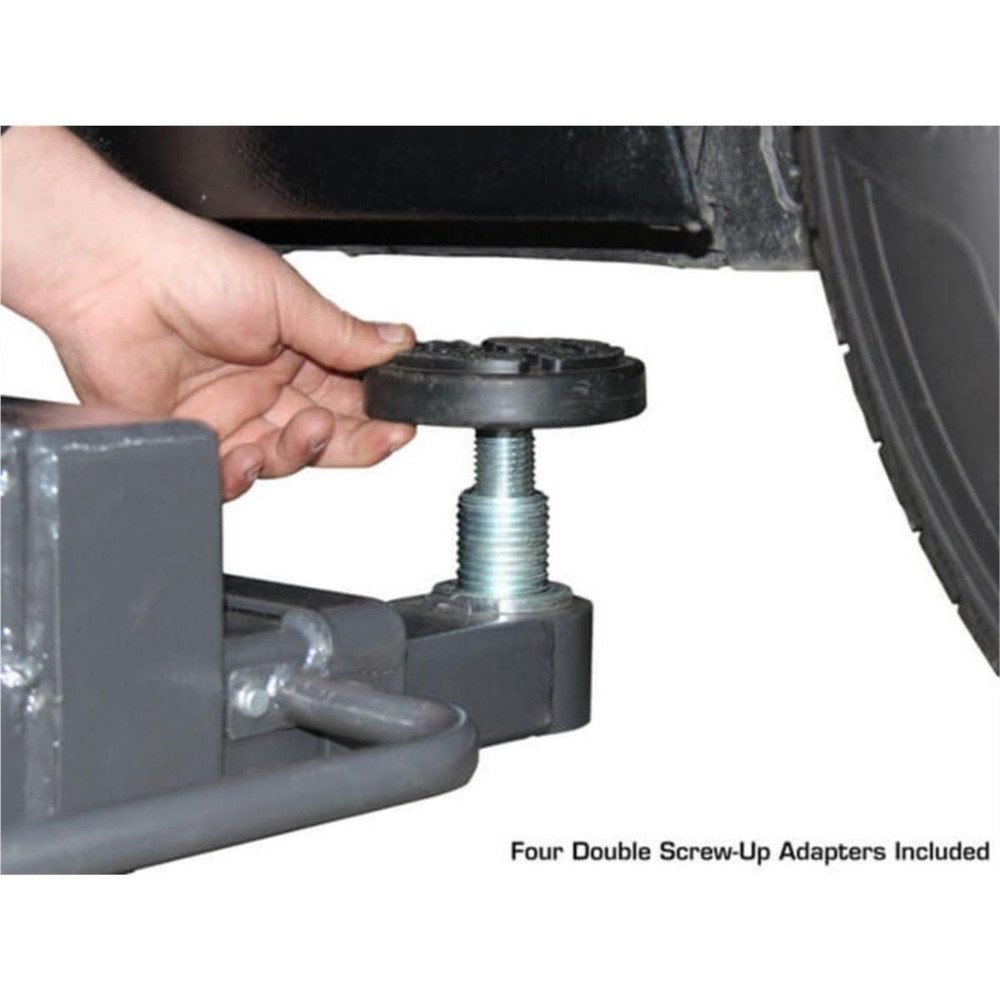

  • Includes Double Screw-up Adapters

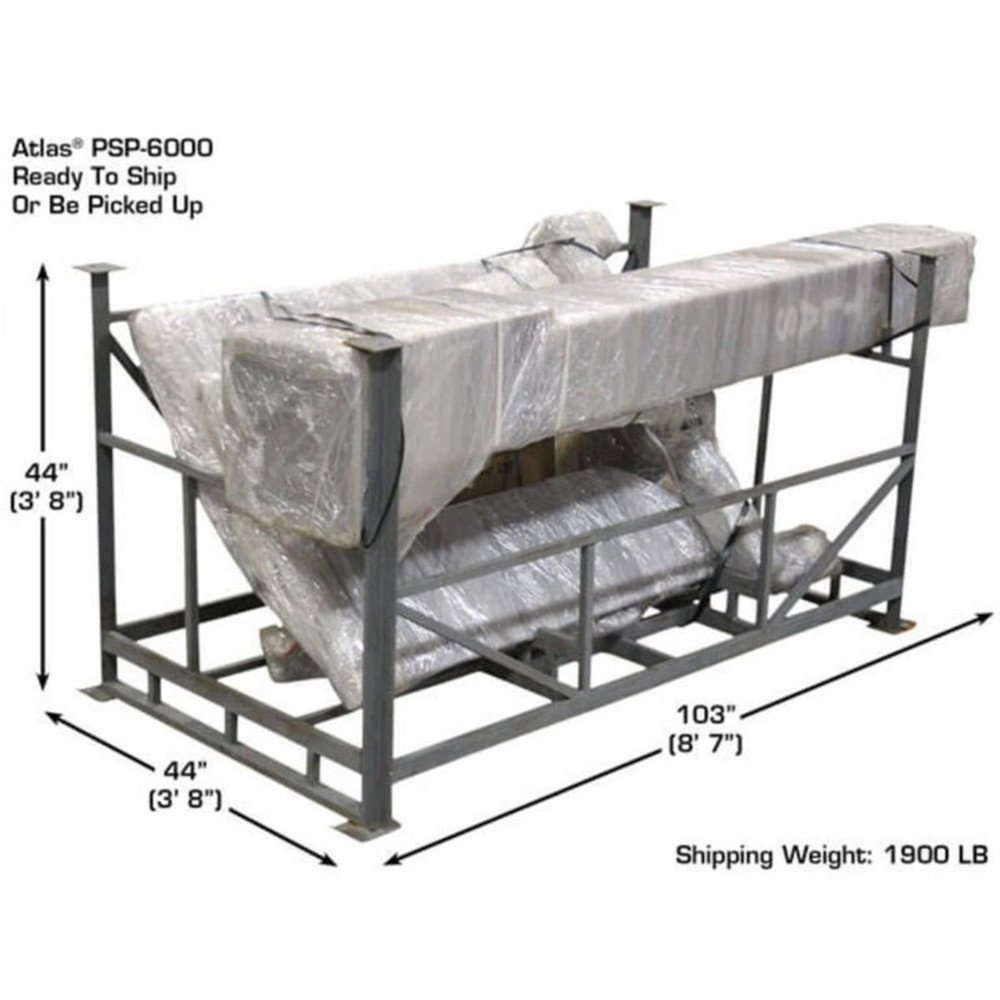

  • Shipping Weight: 1,900 lbs.
  • 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
  • This part number FREIGHT PREPAID

Atlas® PSP-6000 Specifications

  • Capacity 6,000 LB.

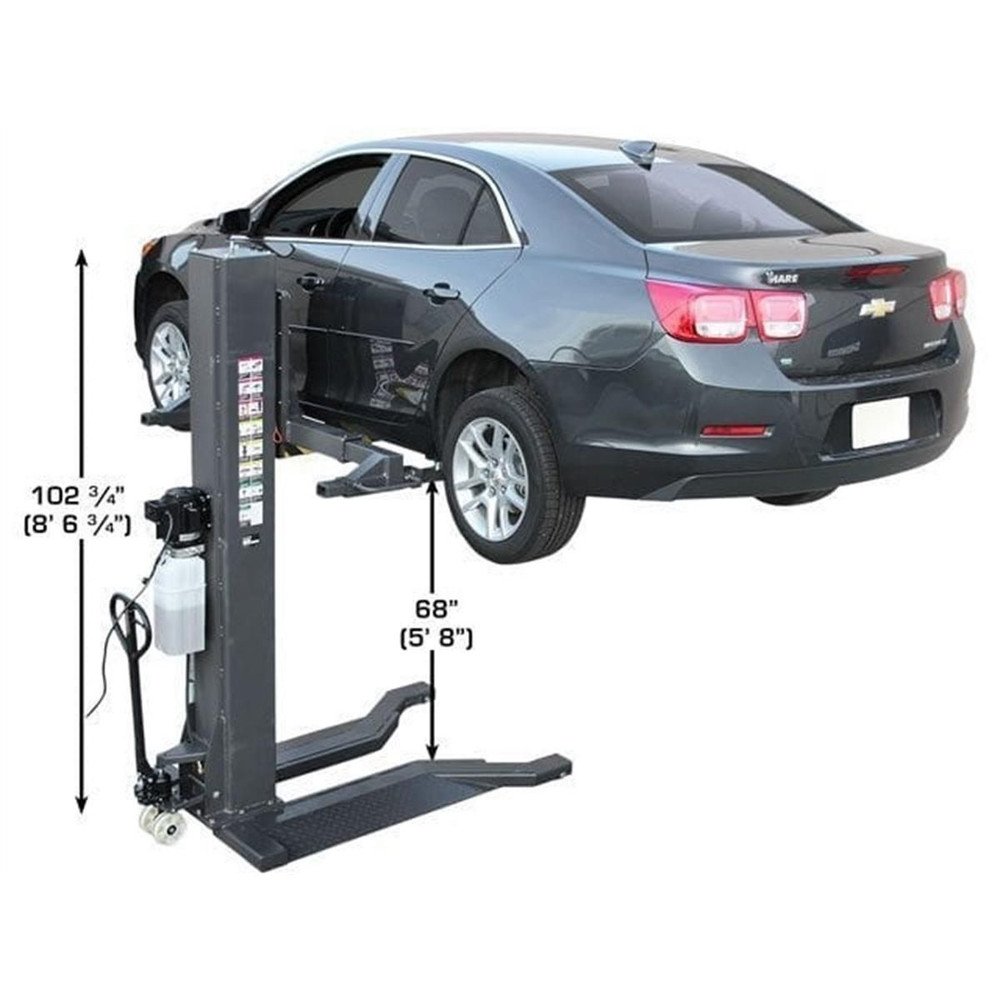

  • Overall Height 102 3/4″ (8′ 6 3/4″)

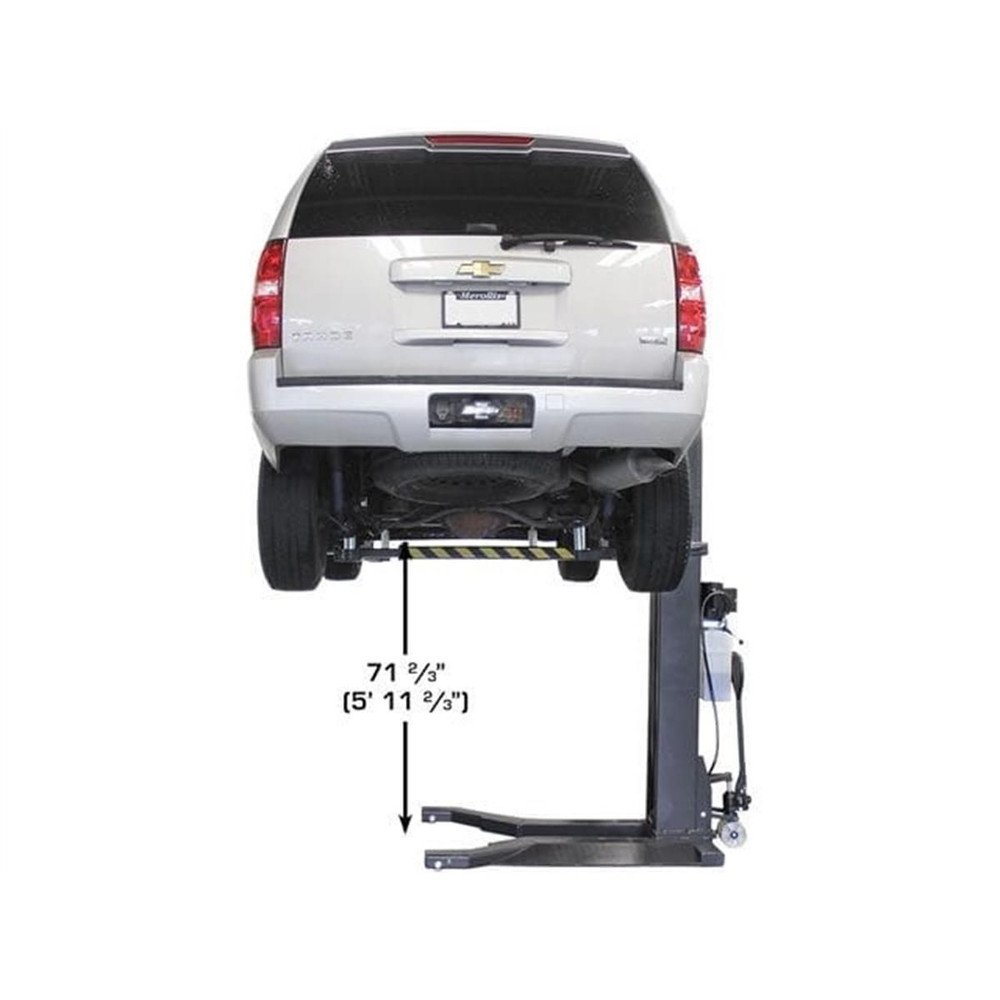

  • Max. Lifting Height (Without Truck Adapters) 71 2/3″ (5′ 11 2/3″)

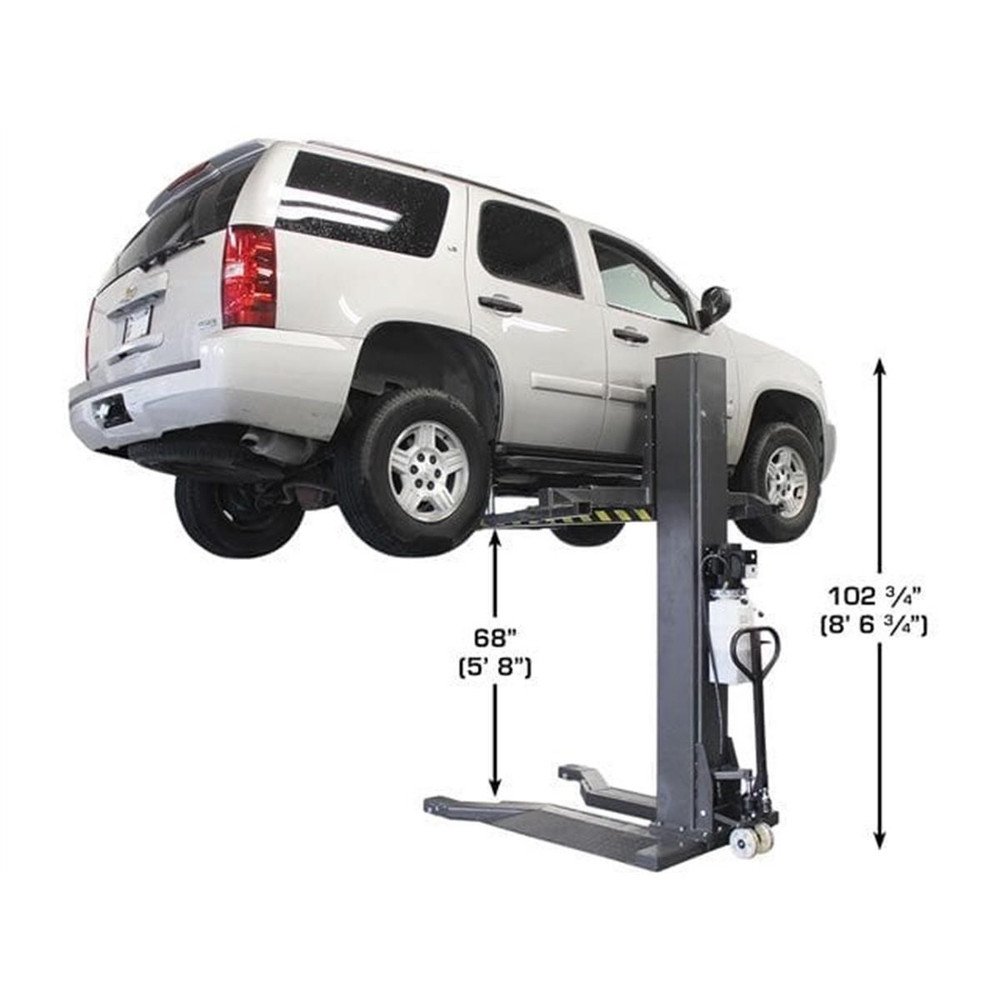

  • Max. Clearance 68″ (5′ 8″)
  • Minimum Height 5″

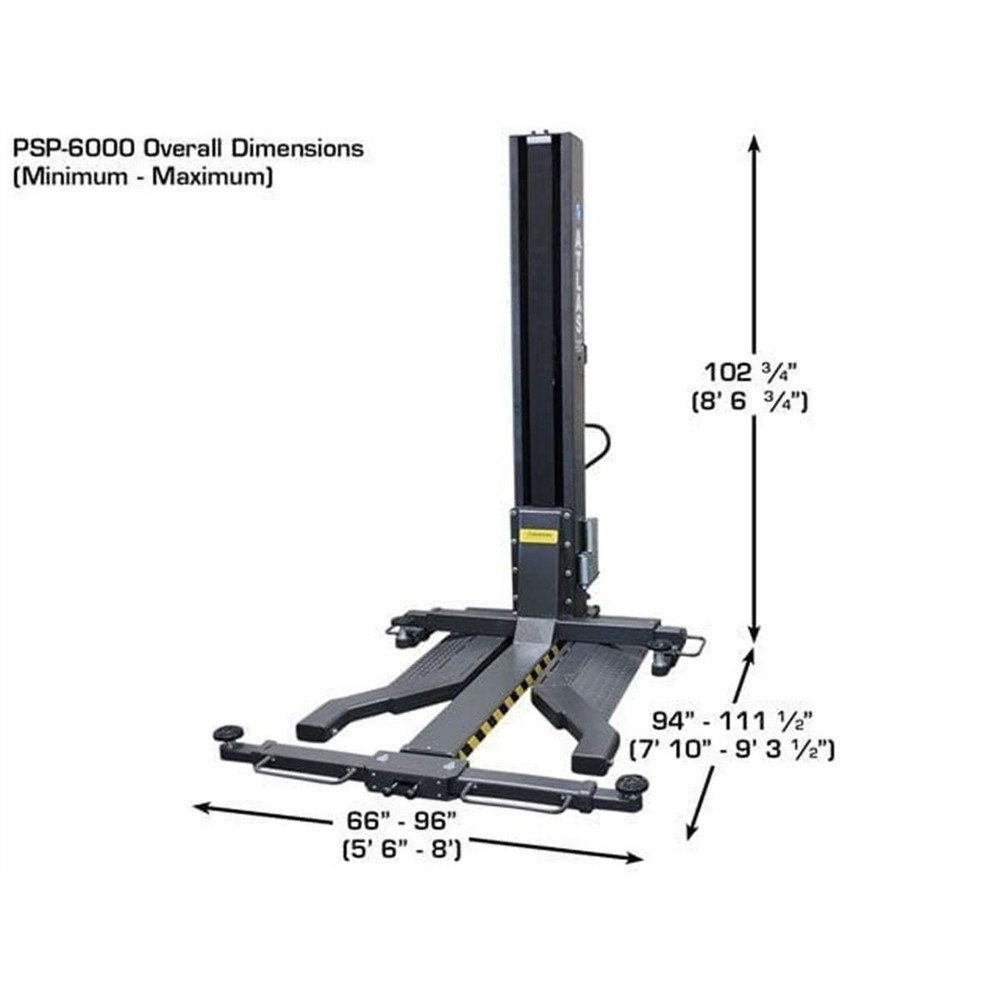

  • Overall Maximum Dimensions L: 111 1/2″ x W: 96″ x H: 102 3/4″
  • Column Size 10 1/2″ x 12 1/2″
  • Distance Between Lifting Pads (Column Side to Offside) 39 1/2″ to 81″
  • Distance Between Lifting Pads (Column Side to Column Side) 53″ to 73″
  • Distance Between Lifting Pads (Offside Side to Offside) 54 1/3″ to 91 1/2″
  • Motor/Electric Requirement 110volt, 30 amp breaker required
  • Oil Requirement 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
  • Shipping Weight 1,900 lbs.
  • Adapter Heights 4 Each 2.75″, 6”
  • Arm Hole/Adapter Peg Size 2”

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Mobile Column Lifts.
