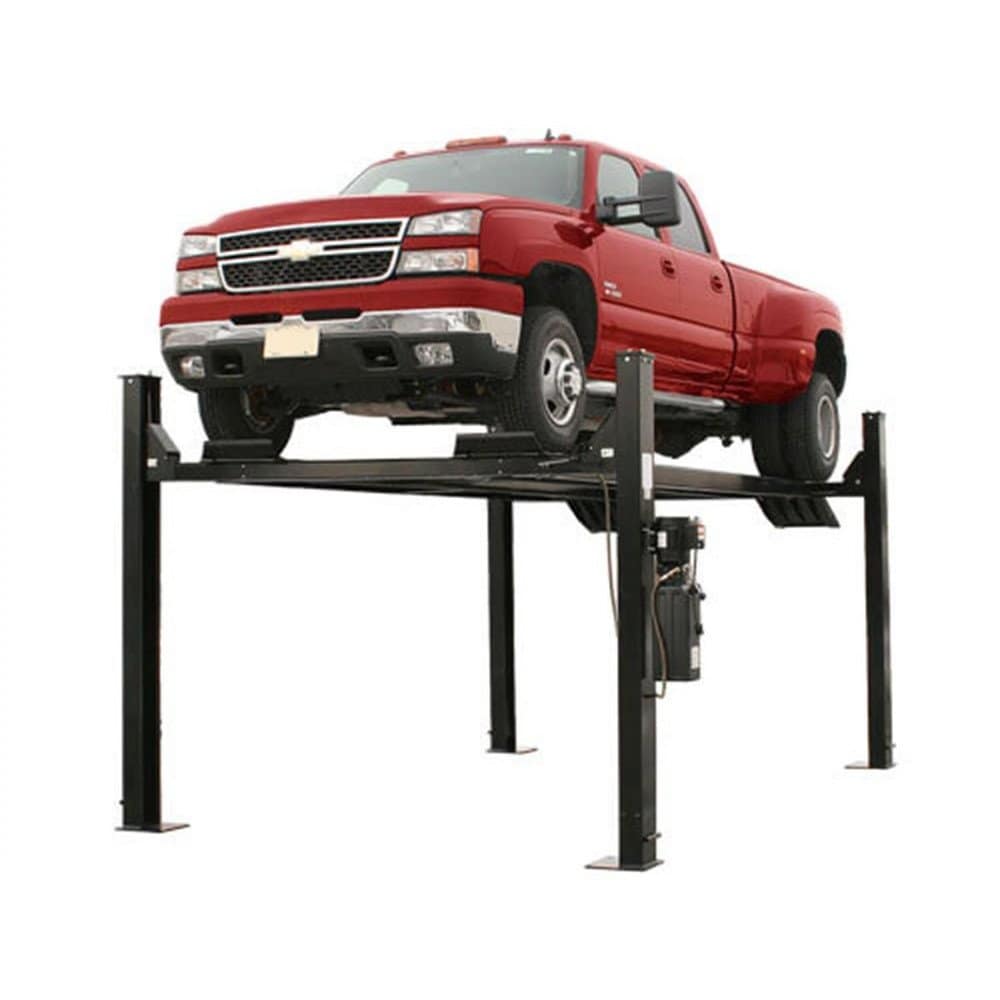

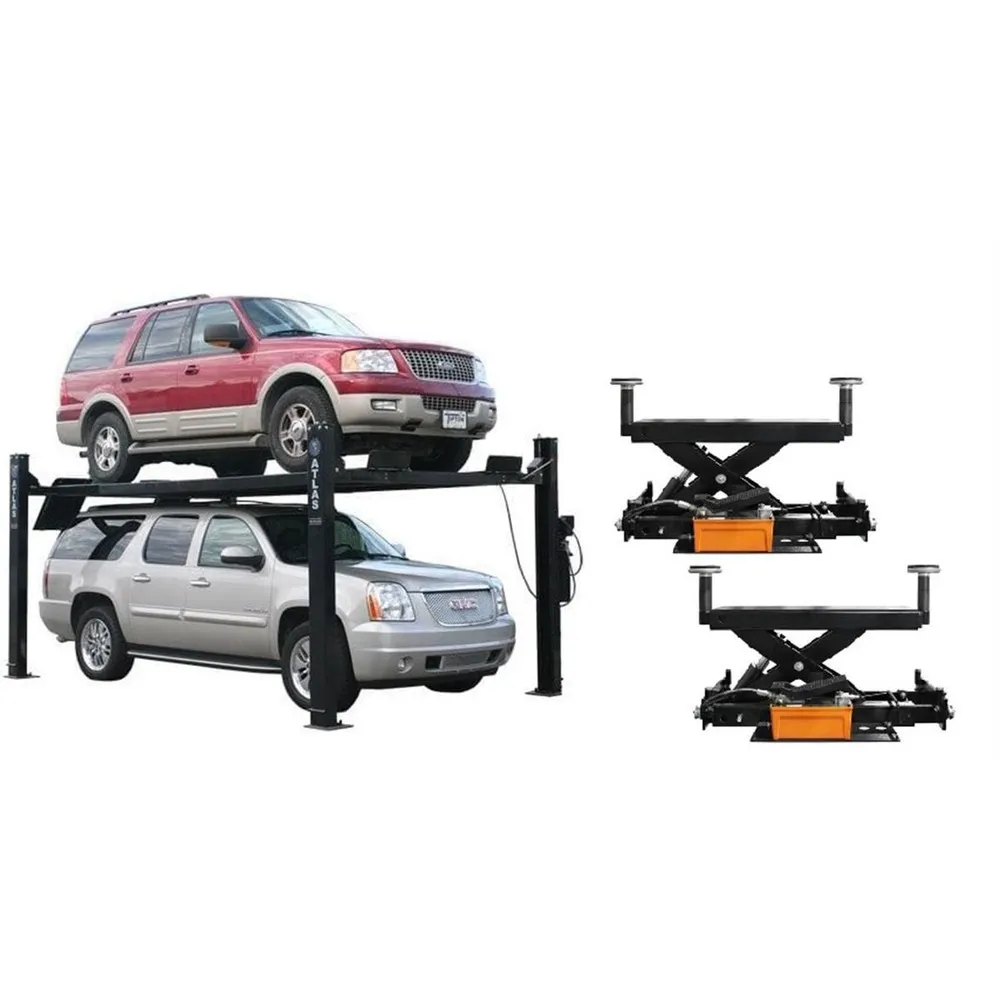

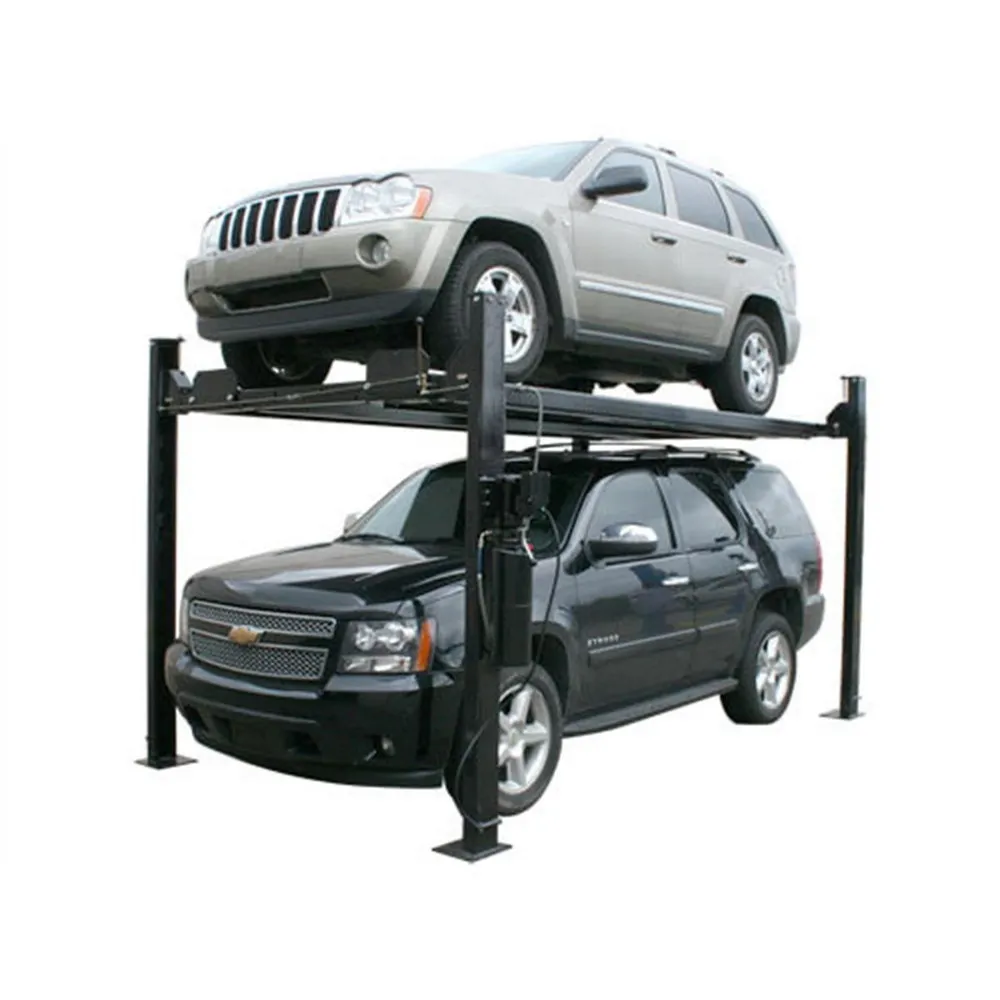

Atlas PRO9000 4 Post Lift + RJ6 Rolling Jacks Combo

Description

Features and Benefits:

• Combo package includes Garage Pro9000 & two RJ6 Rolling Jacks

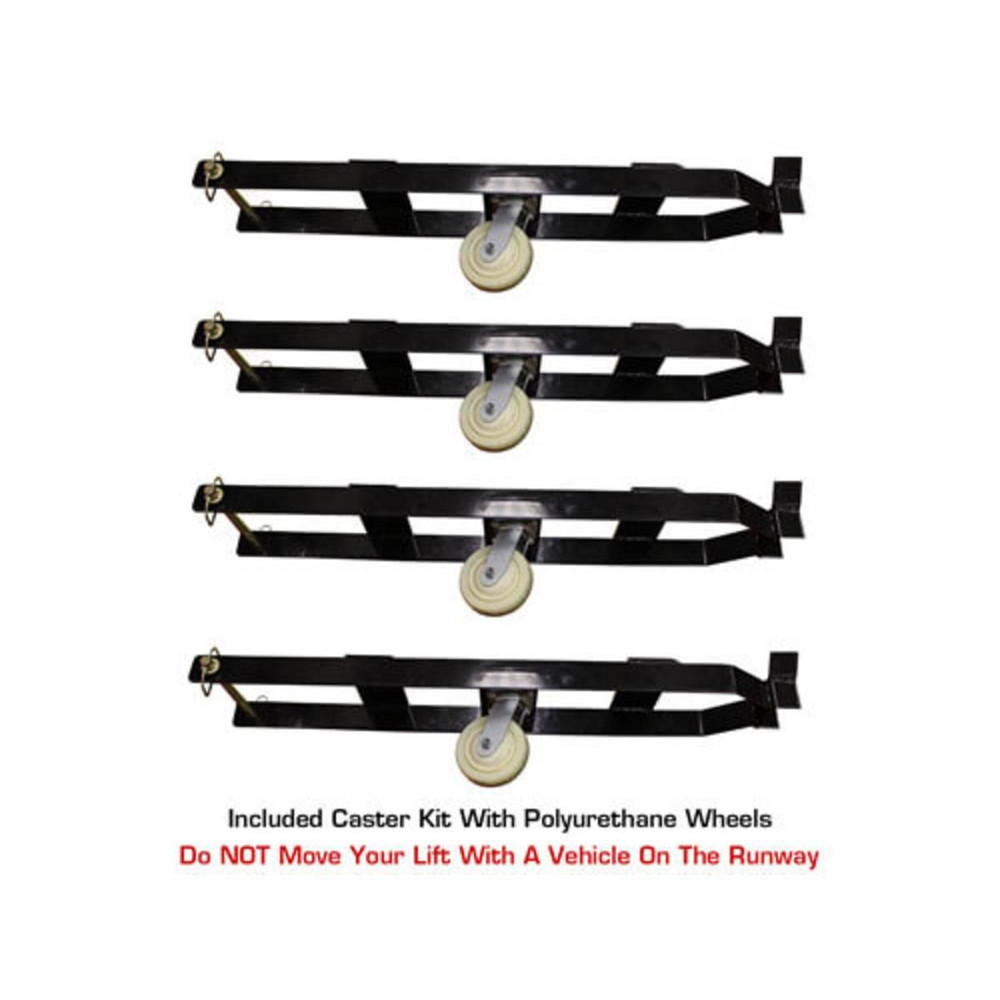

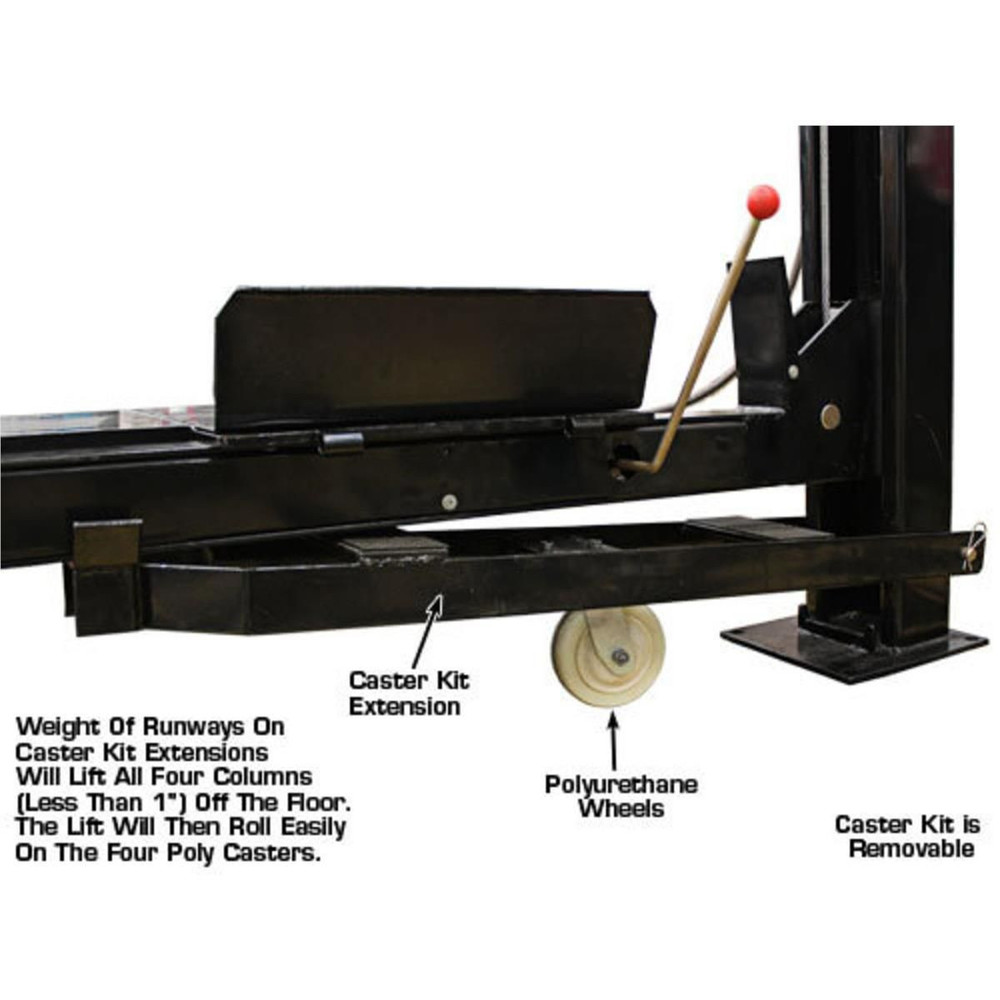

• Caster Kit With Polyurethane Wheels Included

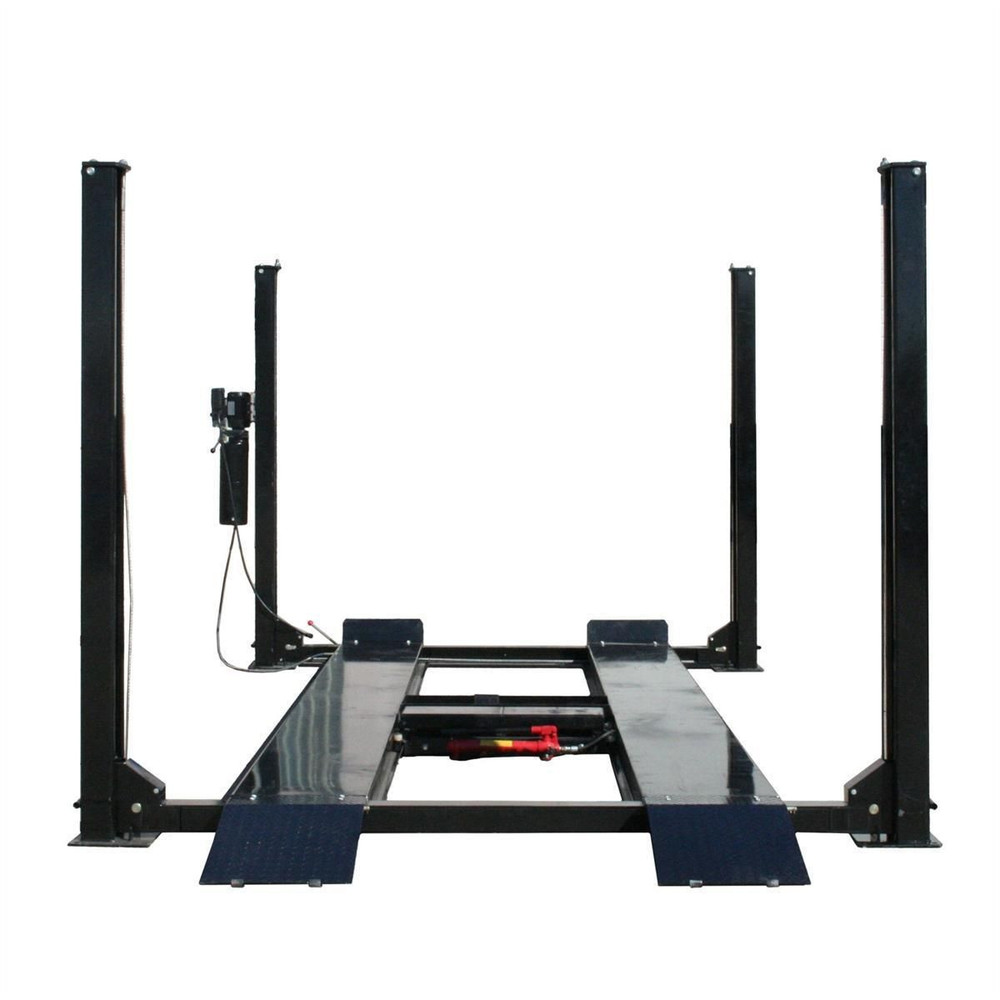

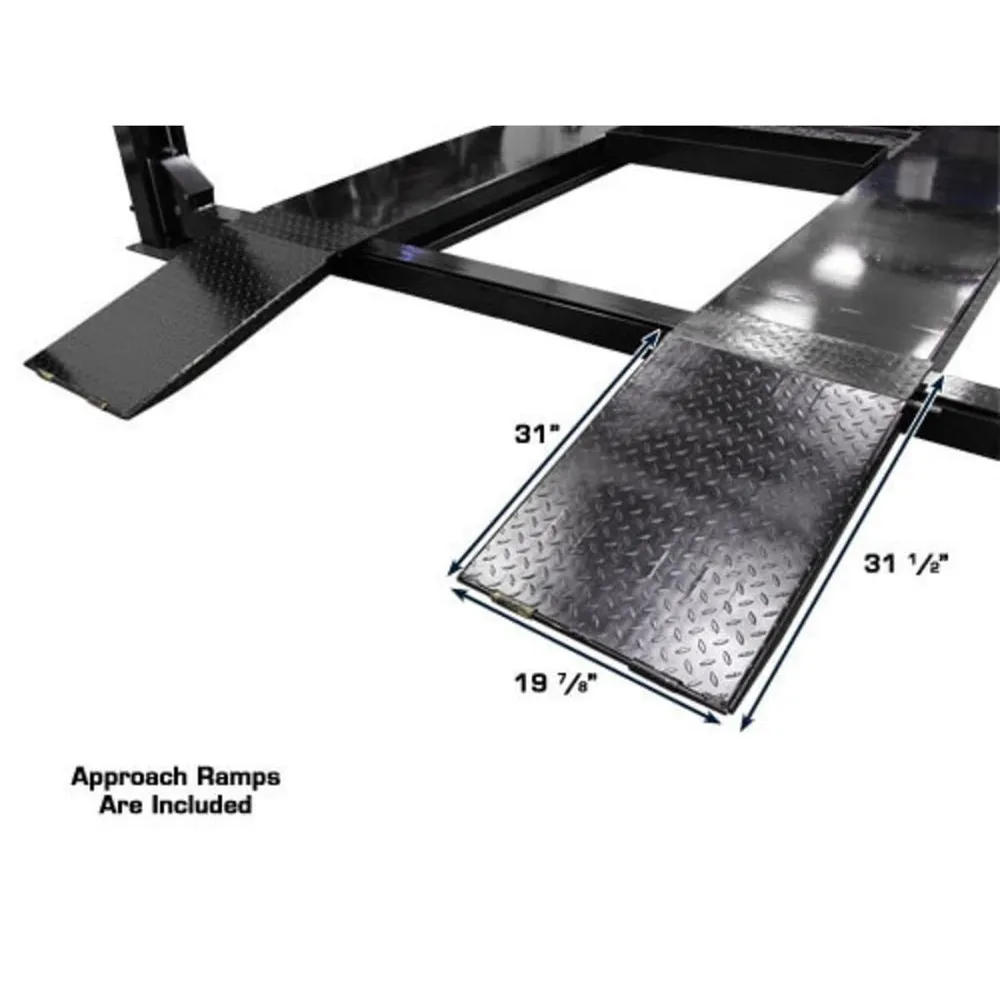

• Steel Approach Ramps Included
• Steel Jack Tray Included

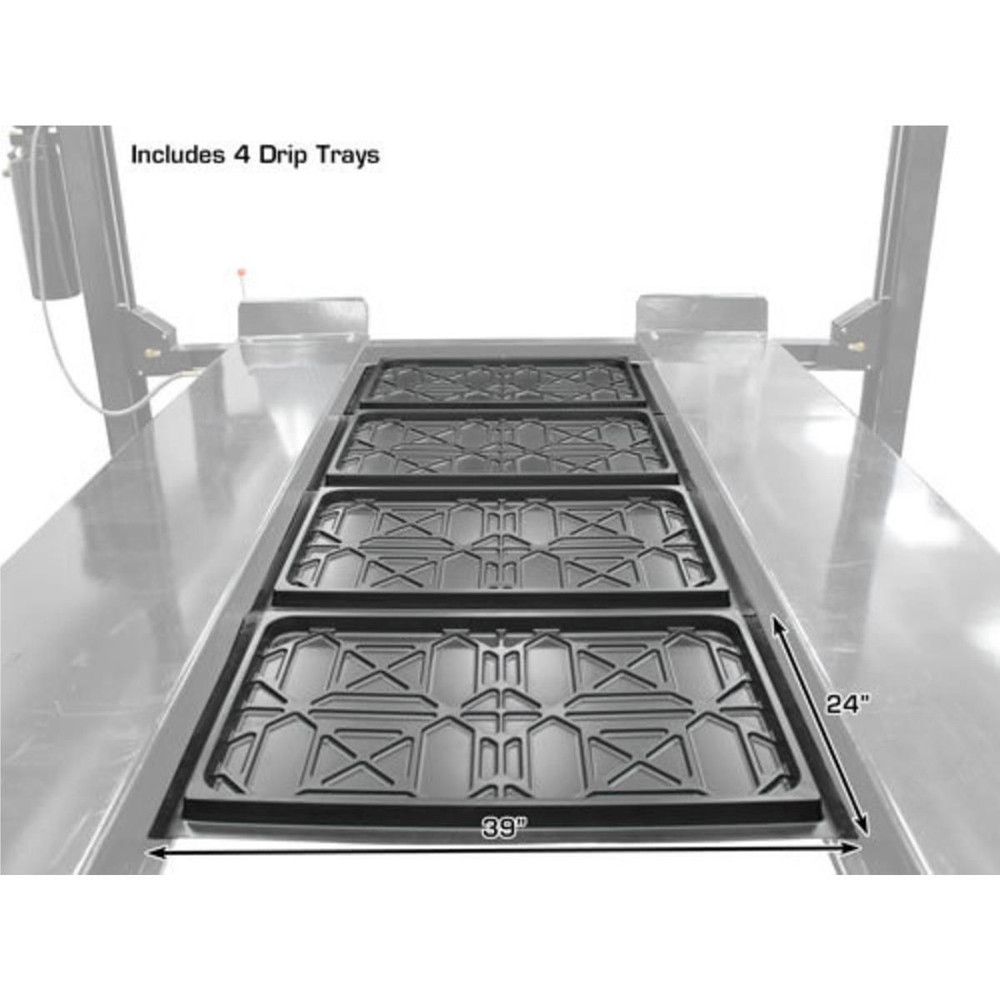

• 4 Plastic Drip Trays Included
• Wheel Stops Included
• 2 Rubber Wheel Chocks Included
• Truck Adapter set for Each Jack Included
• This part number FREIGHT PREPAID

Atlas® Garage PRO9000 Specifications

• Capacity 9,000 Lb.

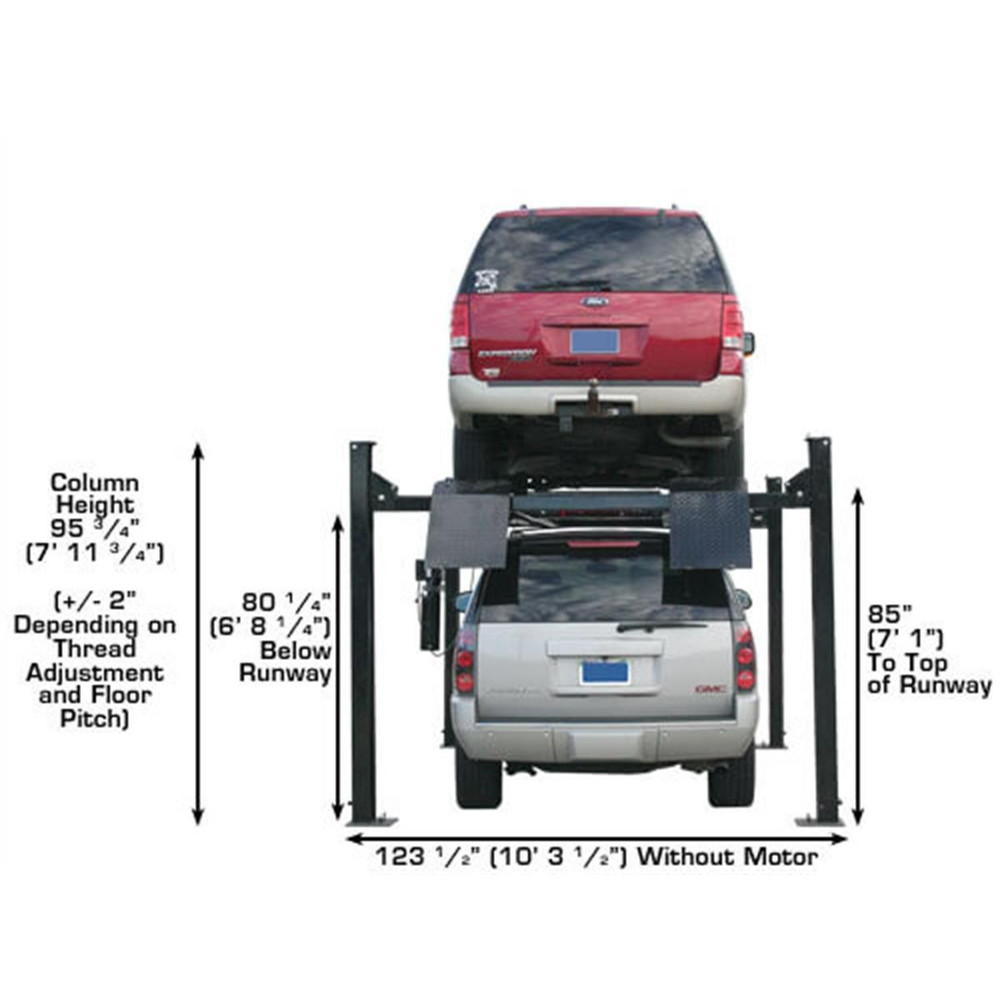

• Lifting Height To Top Of Runway 85″ (7′ 1″)

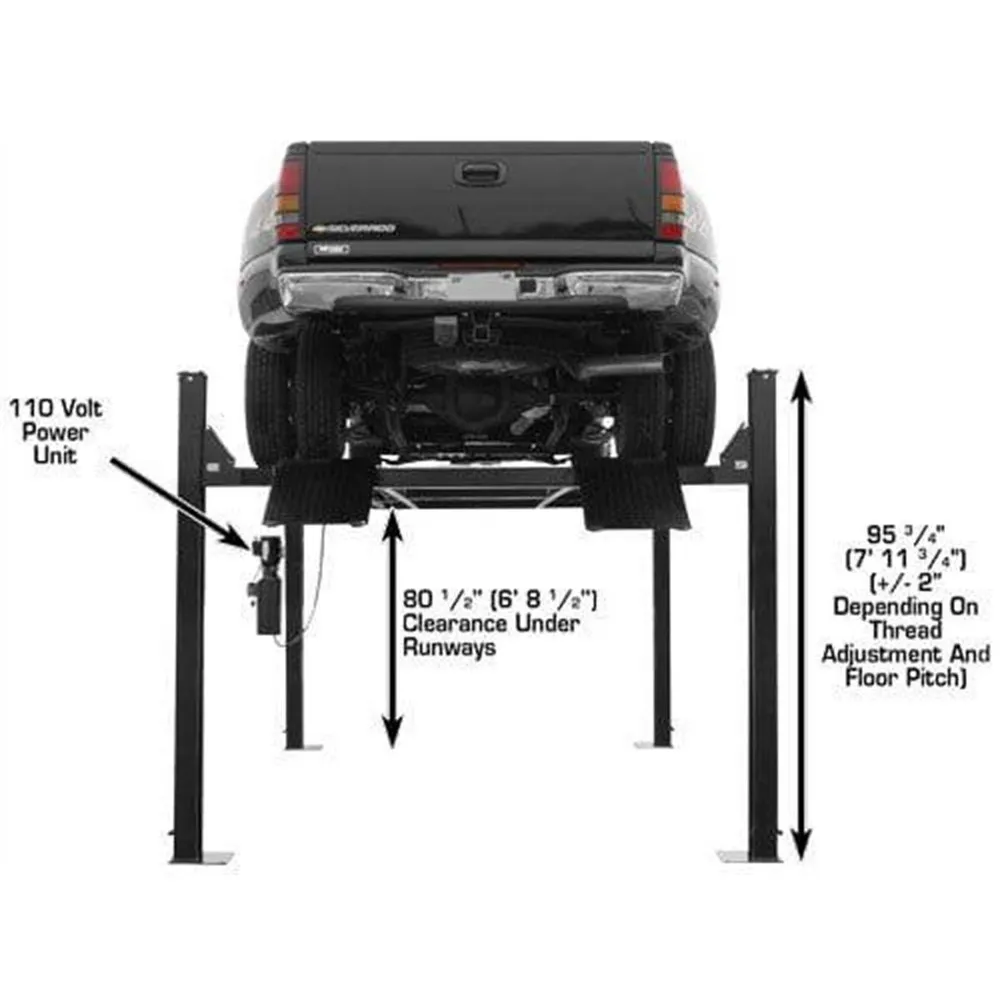

• Clearance Under Runways 80 1/4″ (6′ 8 1/4″)

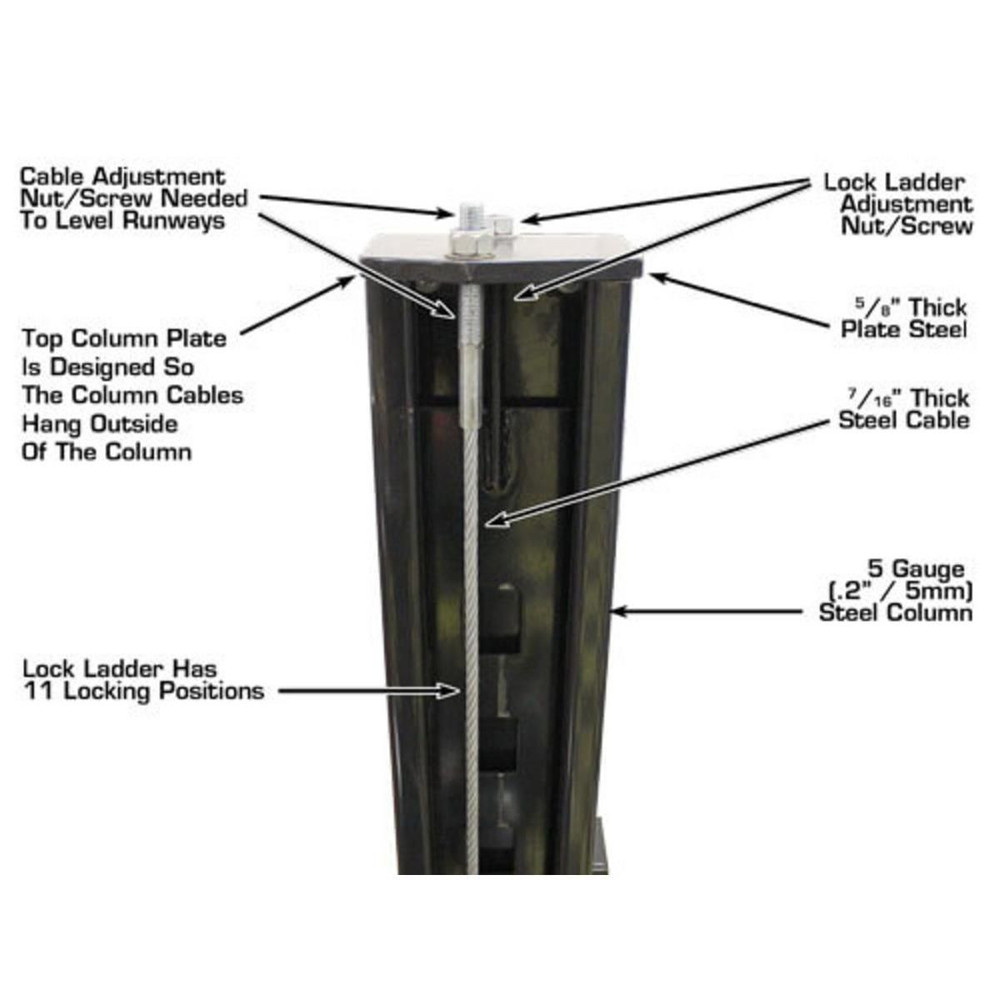

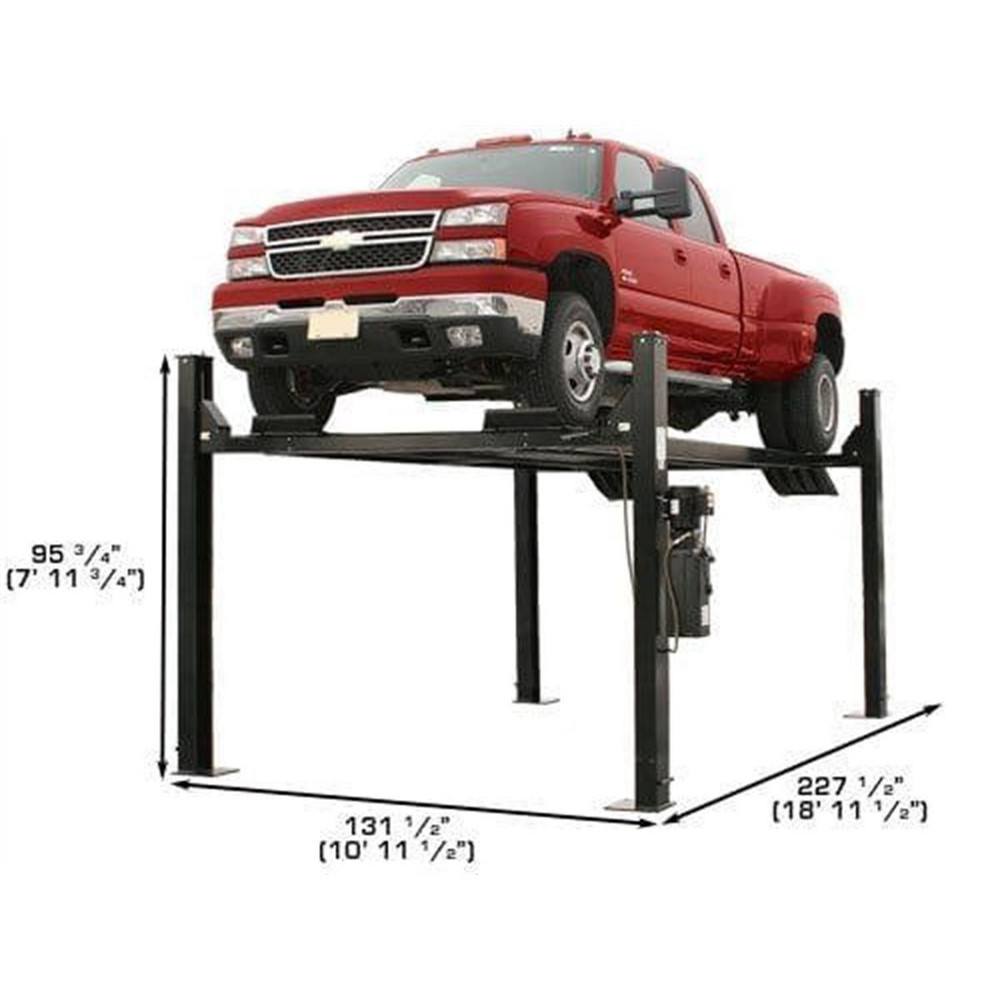

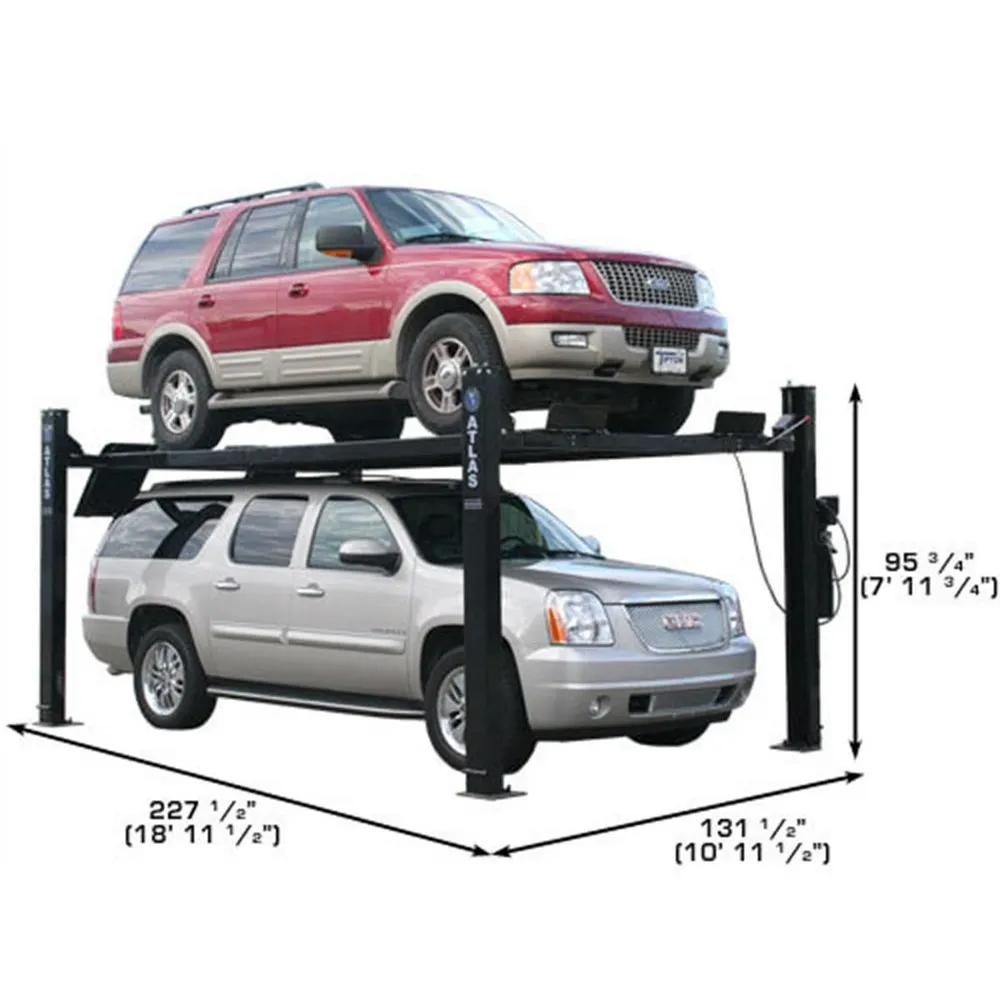

• Height Of Columns 95 3/4″ (7′ 11 3/4″)
• Overall Width (Without Motor) 123 1/2″ (10′ 3 1/2″)

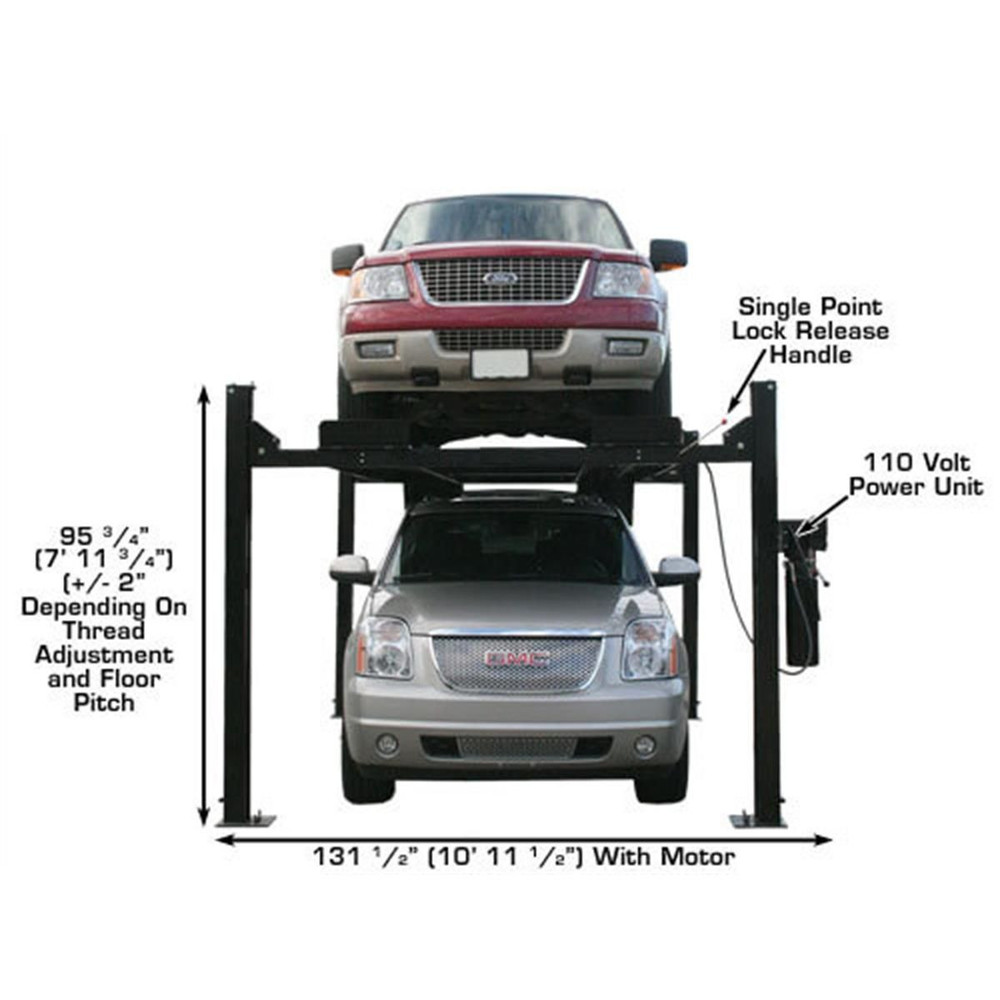

• Overall Width (With Motor) 131 1/2″ (10′ 11 1/2″)

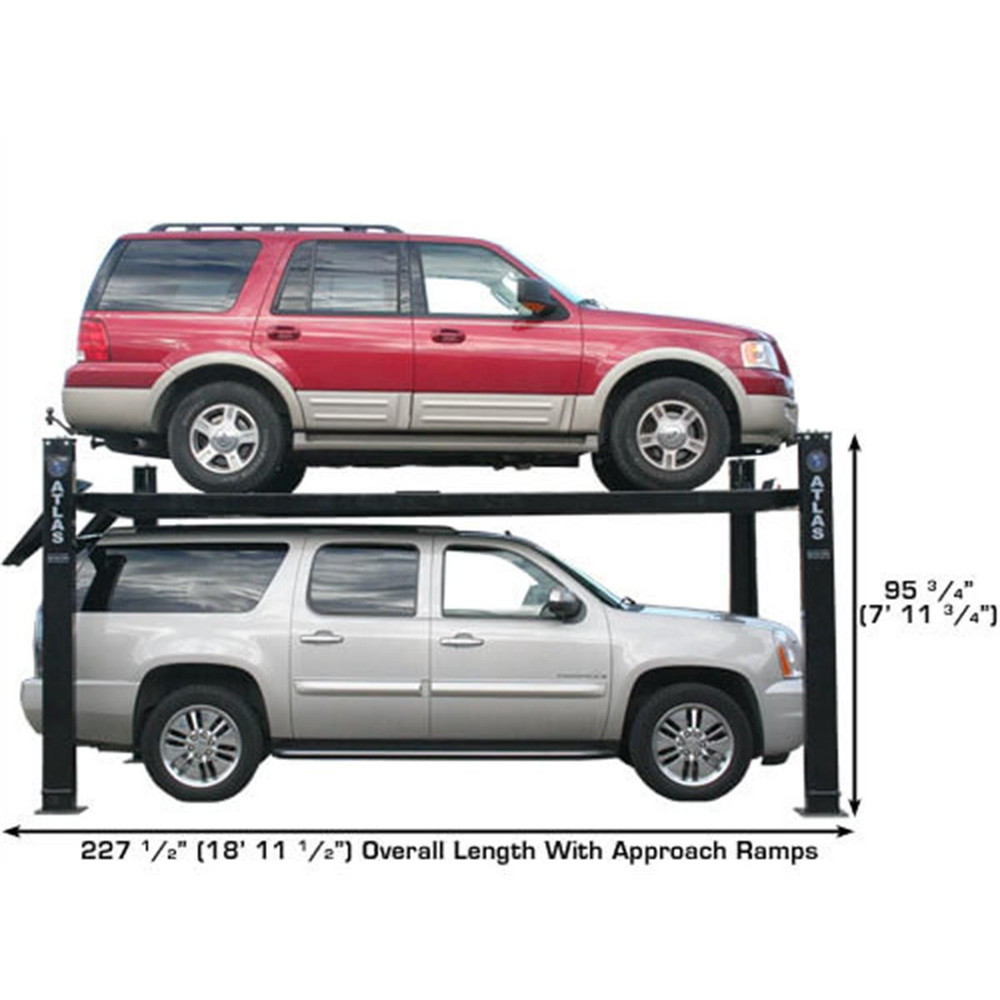

• Overall Length With Approach Ramp 227 1/2″ (18′ 11 1/2”)
• Approach Ramp 31″ (2′ 7″)

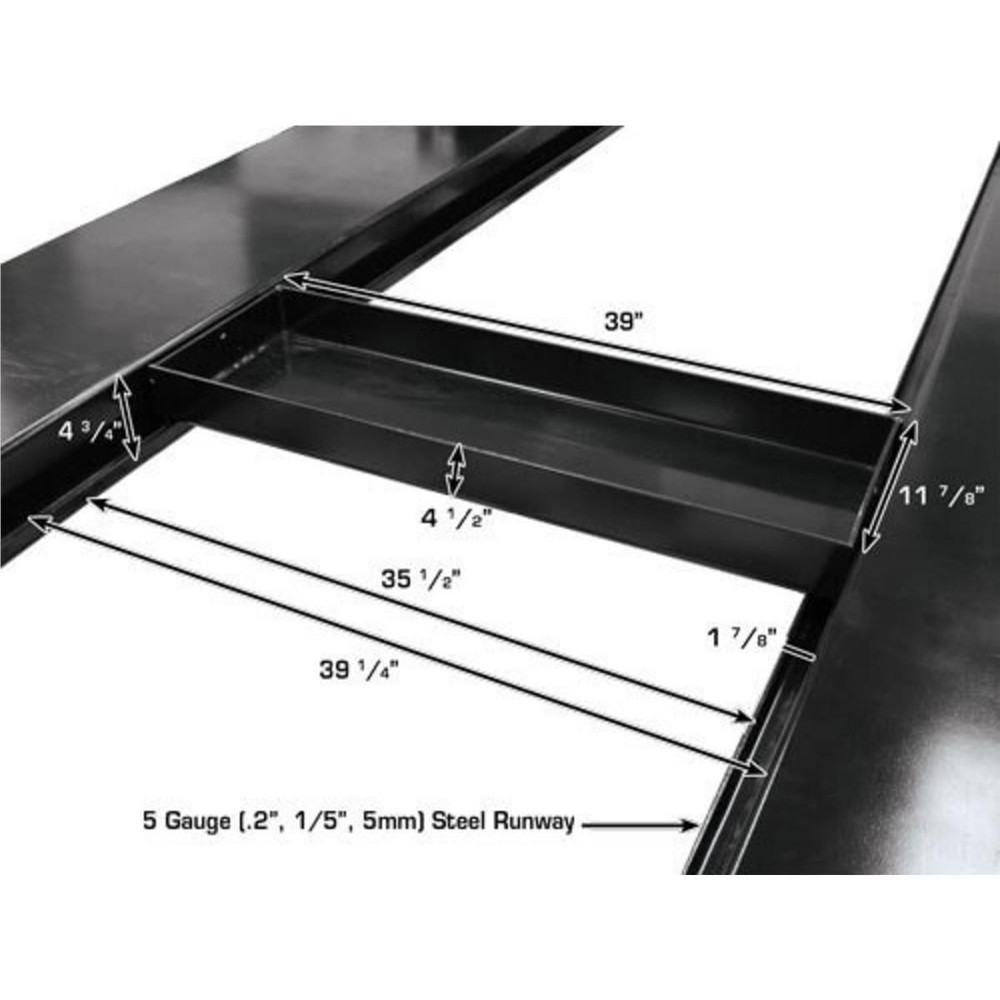

• Runway Width 21 1/4″ (w/ Rails) or 20″ (Driving Surface)
• Runway Length 199 1/2″ (16′ 7 1/2″)
• Runway Thickness 4 3/4″
• Width Between Runways 39 3/4″ (3′ 3 3/4″)
• Width Between Runway Rails 35 1/2″ (2′ 11 1/2″)
• Outside Runway To Outside Runway 79″ (6′ 7″)

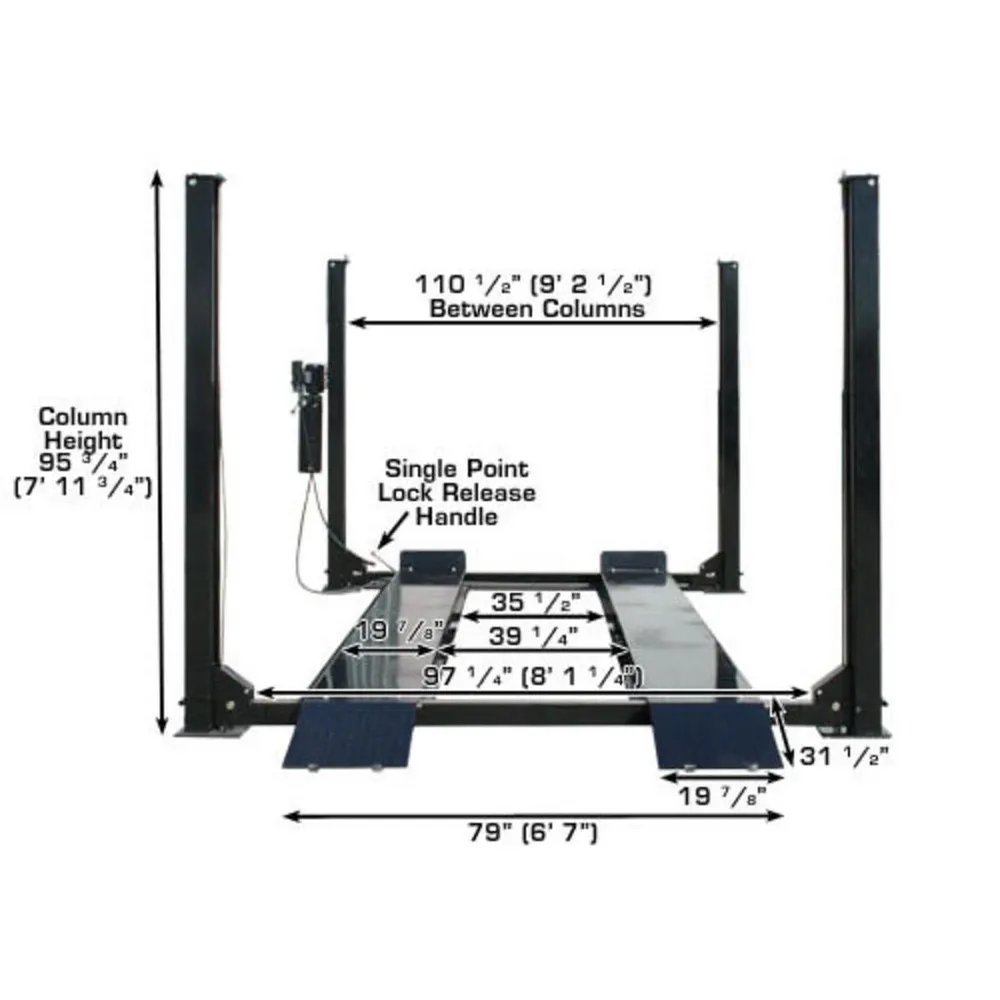

• Clearance Between Columns 110 1/2″ (9′ 2 1/2″)

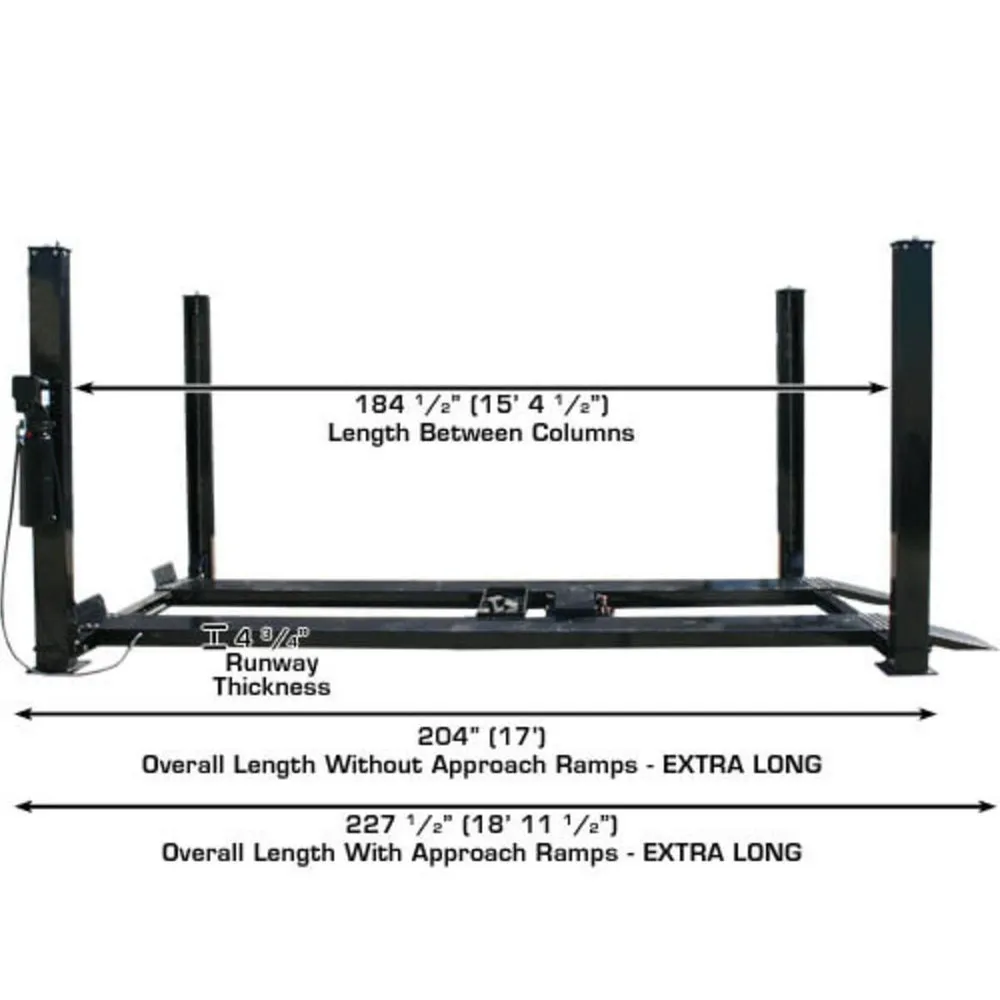

• Length Between Columns 184 1/2″ (15′ 4 1/2″)
• Maximum Wheel Base 187″ (15′ 7″)
• Drive Thru (Outside Of Tire To Outside Of Tire) 97 1/4″ (8′ 1 1/4″)
• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED

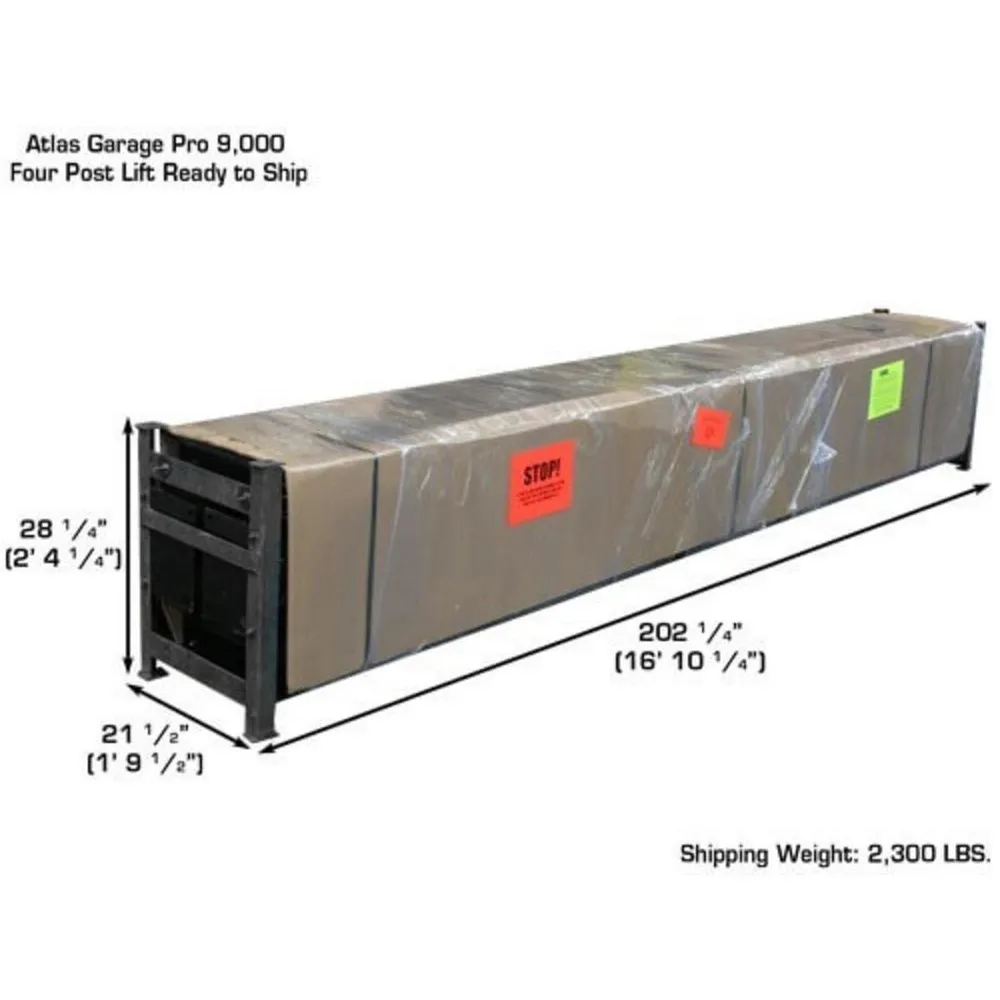

• Shipping Weight 2,300 lb.

Atlas® RJ6BK Specifications:

• Capacity: 6,000 lbs
• Minimum Width: 35″
• Maximum Width: 55″
• Distance Between Runway Capability: 32″ – 52″
• Minimum Lifting Height: 8 1/4″
• Maximum Lifting Height (w/ Adapters): 21″
• Air Requirement: 70-115 PSI
• Shipping Weight: 350 lbs
• Adapter Heights: 2 Each 2″, 3″
• Arm Hole/Adapter Peg Size: 1 1/2″

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
