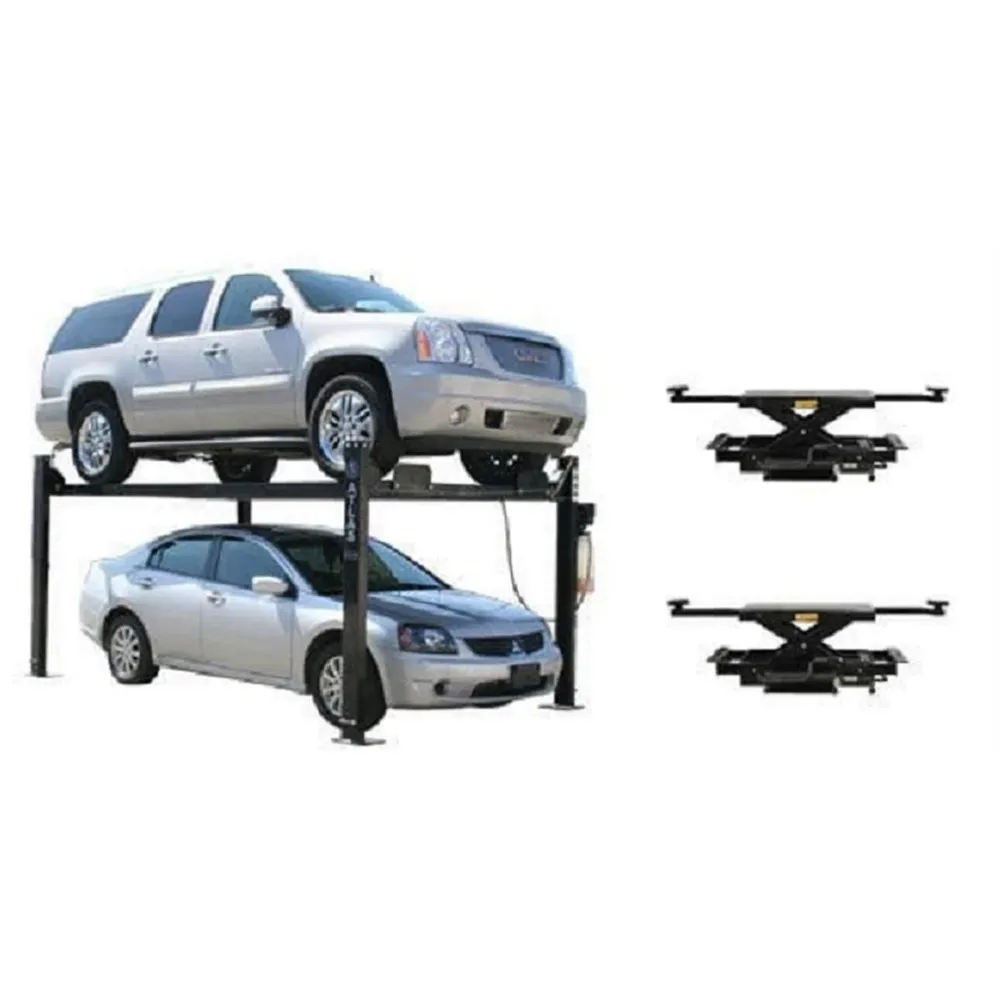

Atlas PRO8000EXT 4 Post Lift + RJ35 Sliding Jacks Combo

Description

Features and Benefits

• Combo package includes Garage Pro8000EXT & two RJ35 Bridge Jacks

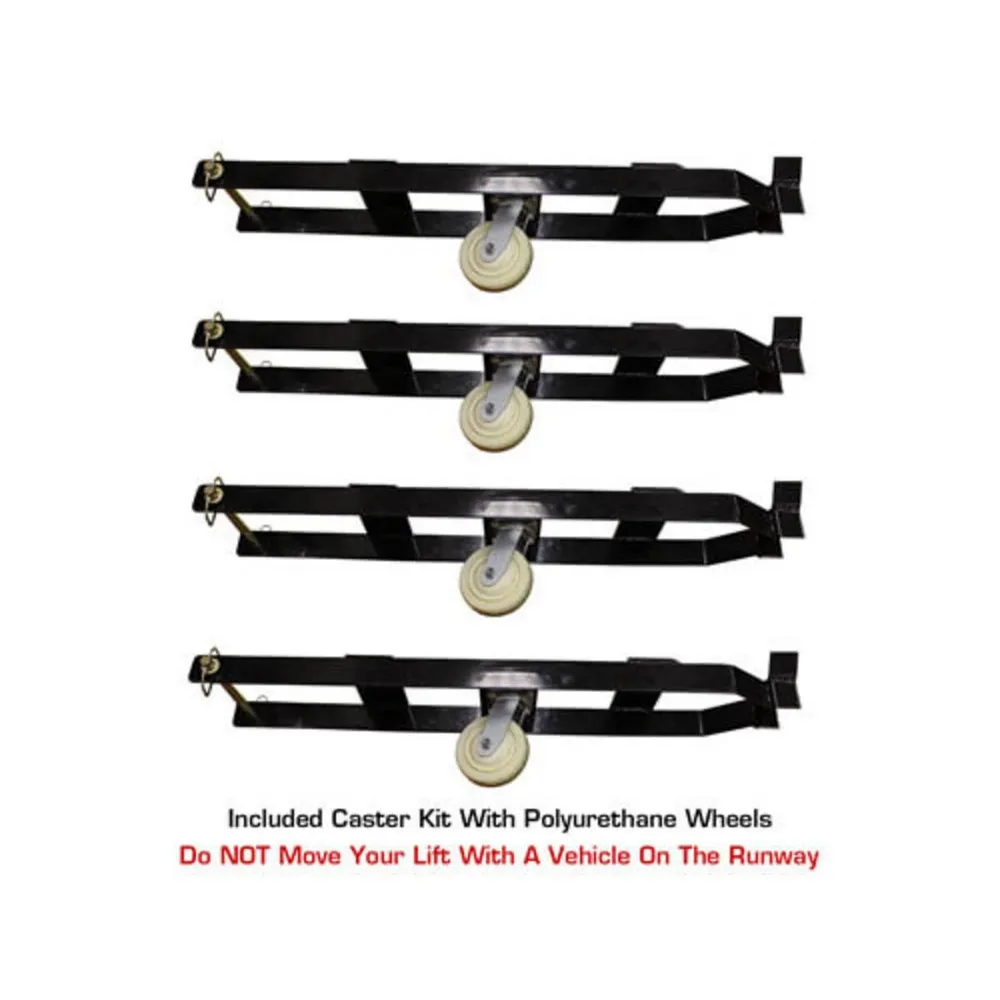

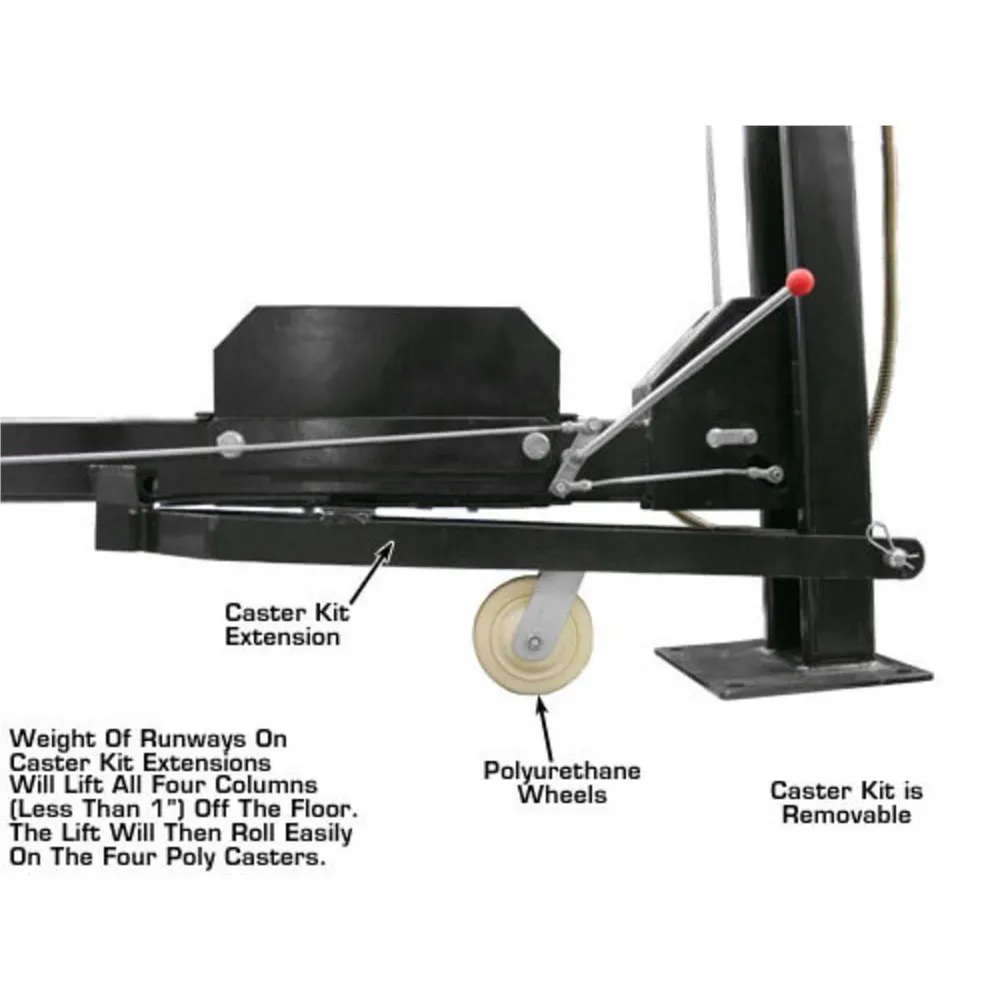

• Caster Kit With Polyurethane Wheels Included

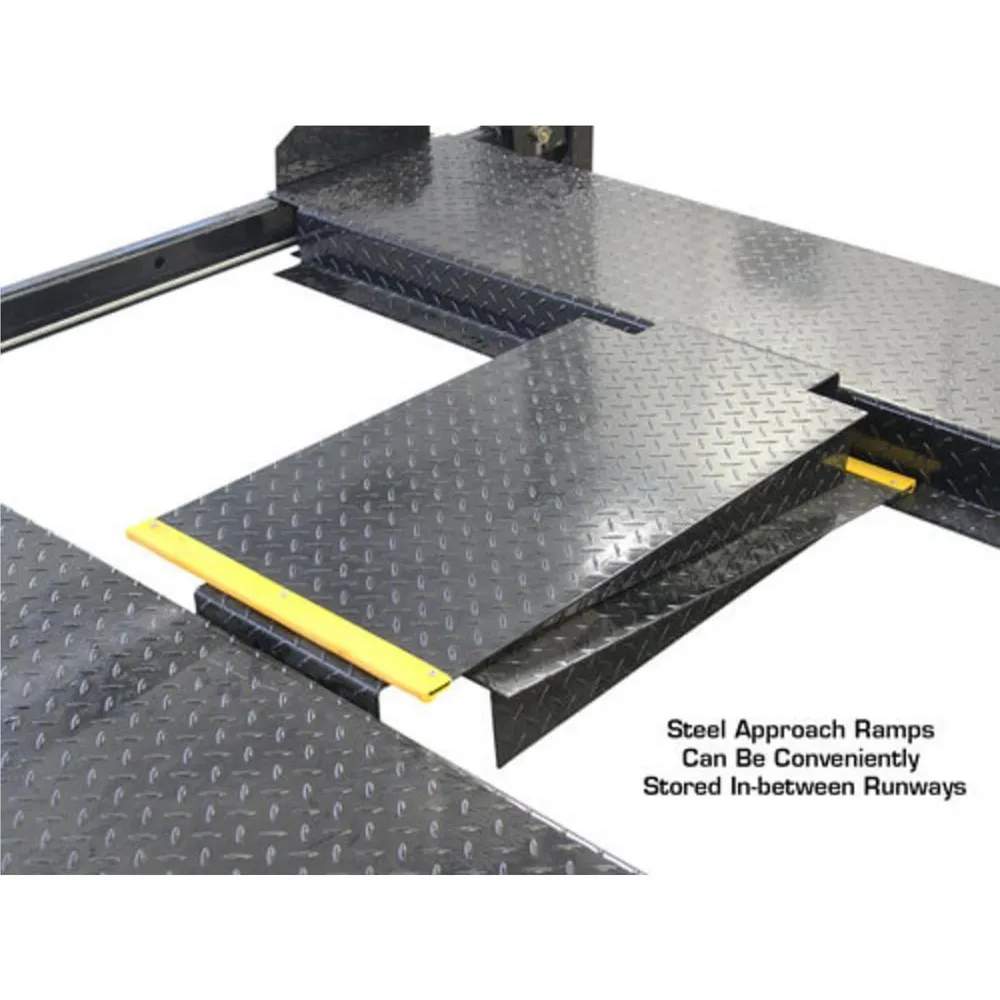

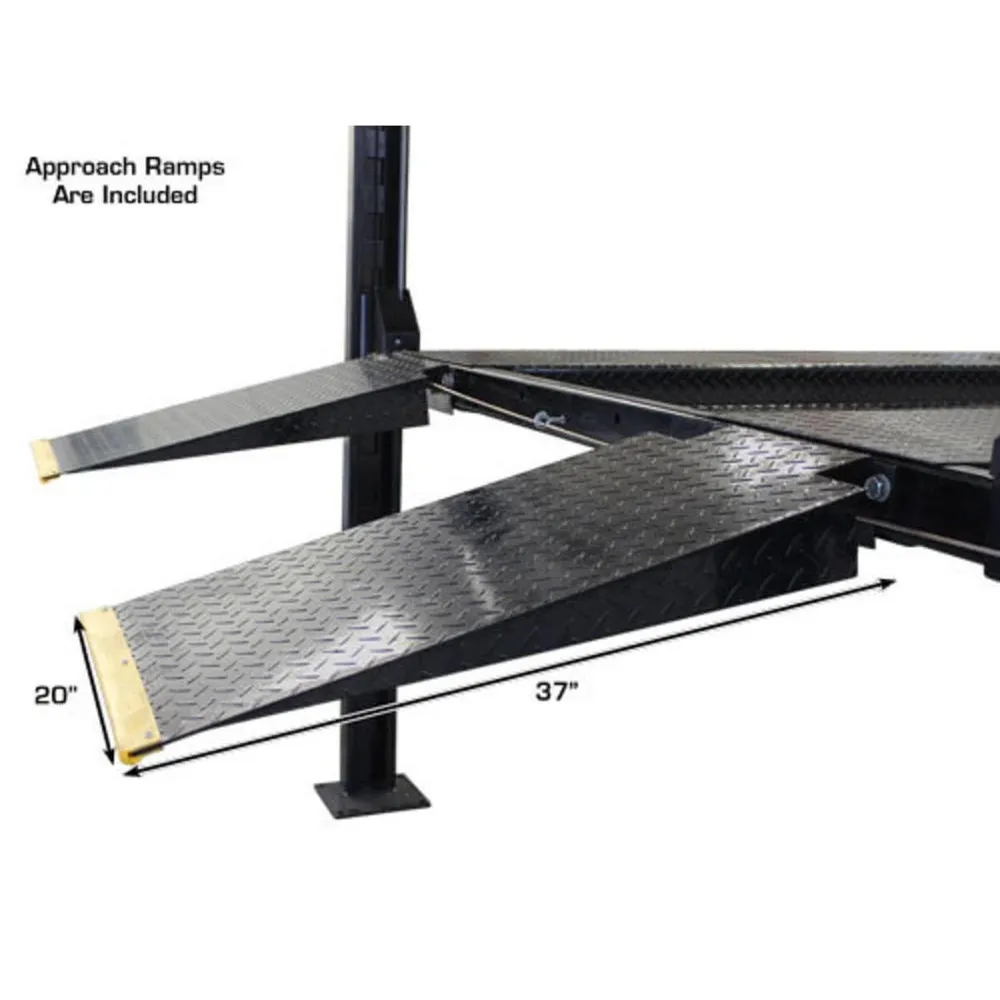

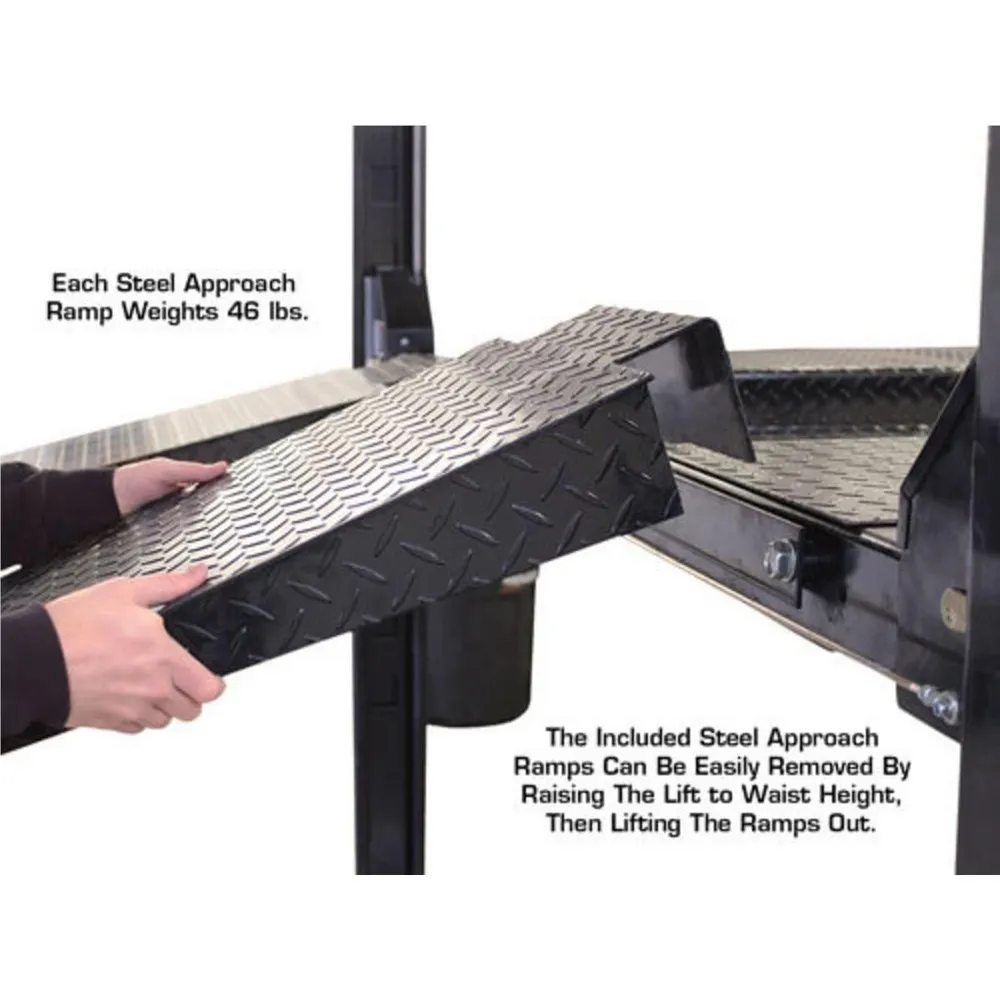

• Steel Approach Ramps Included

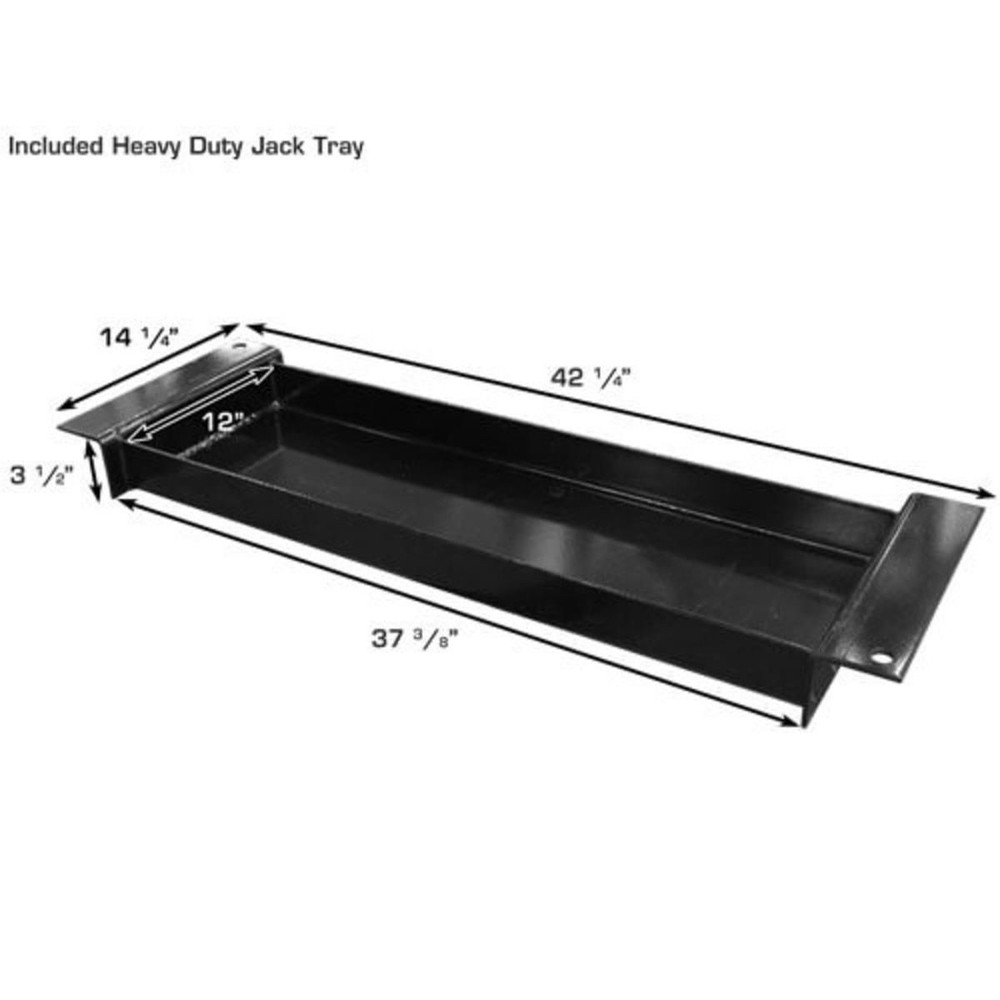

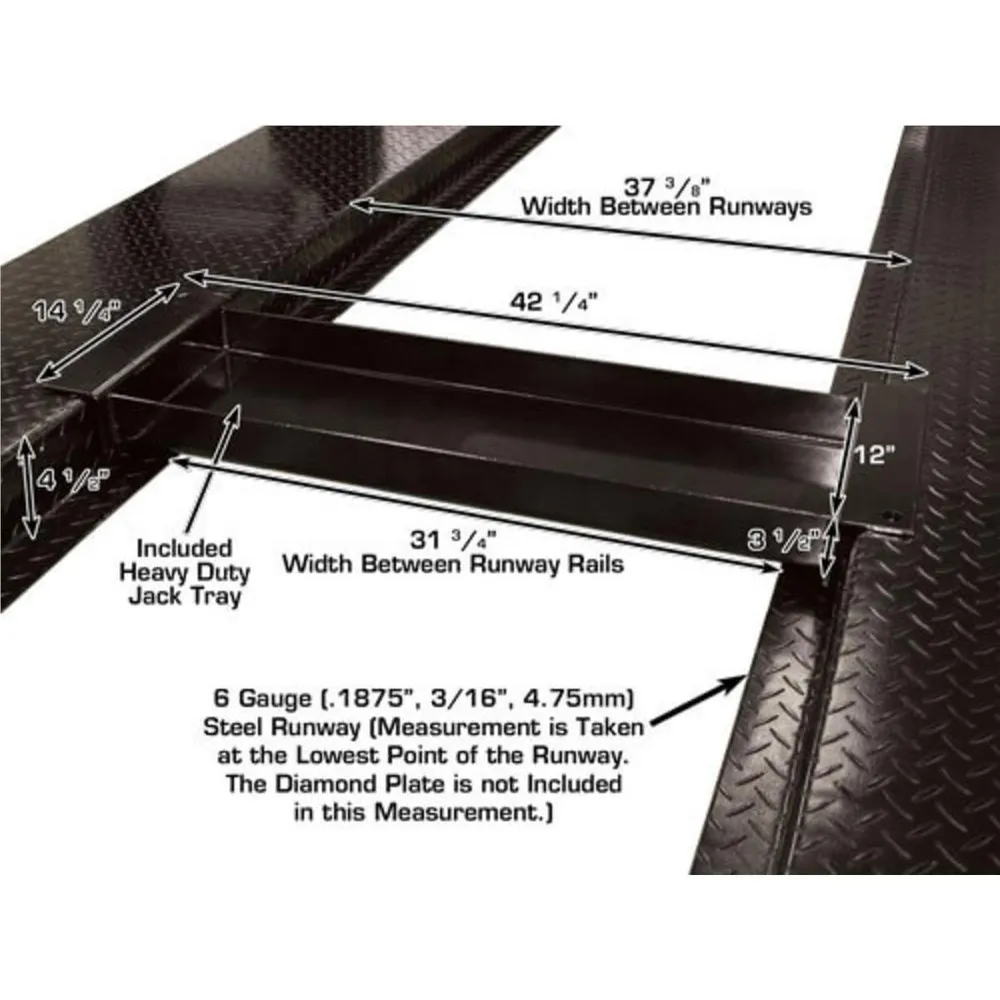

• Steel Jack Tray Included
• 4 Plastic Drip Trays Included

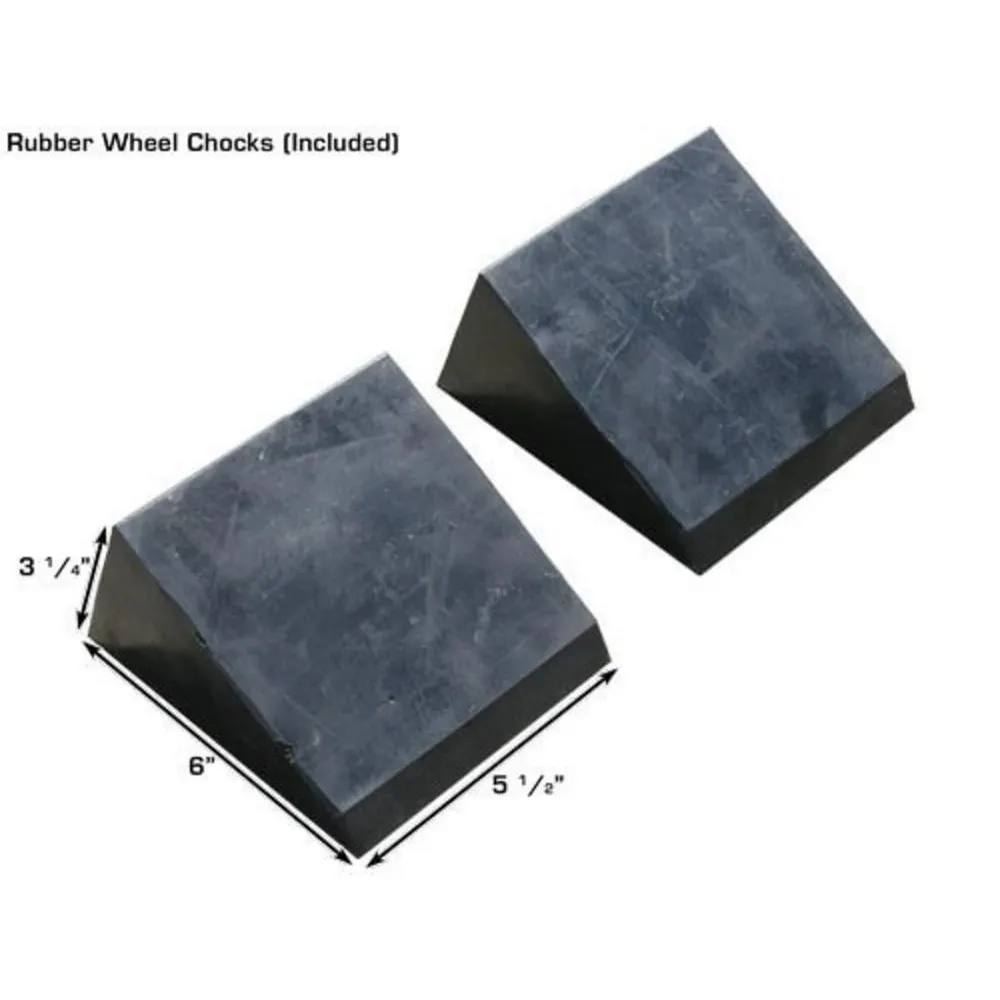

• Wheel Stops Included
• Truck Adapter set for each Bridge Jack Included
• Truck Adapter Set for each Jack Included
• This part number FREIGHT PREPAID

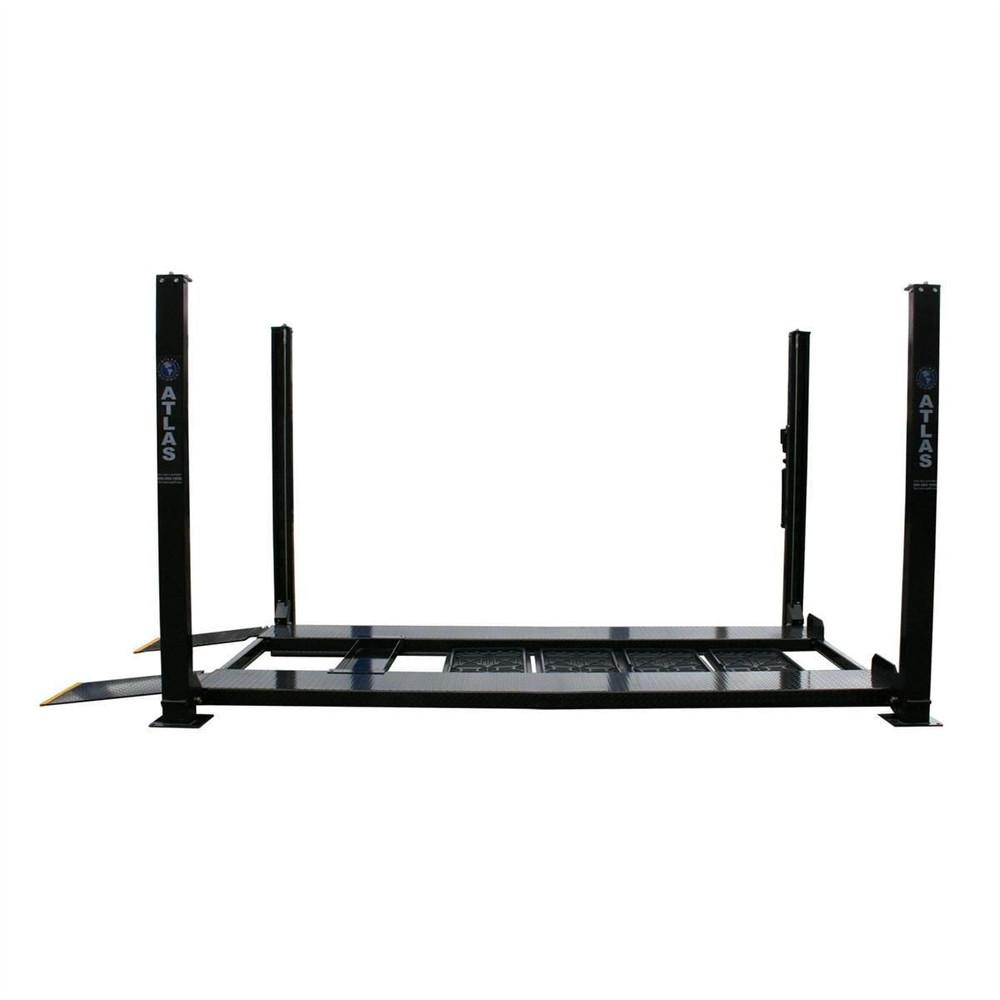

Atlas® PRO8000EXT Specifications

• Capacity 8,000 Lb.
• Lifting Height To Top Of Runway 84 1/4″ (7′ 1/4″)
• Clearance Under Runways 79″ (6′ 7″)

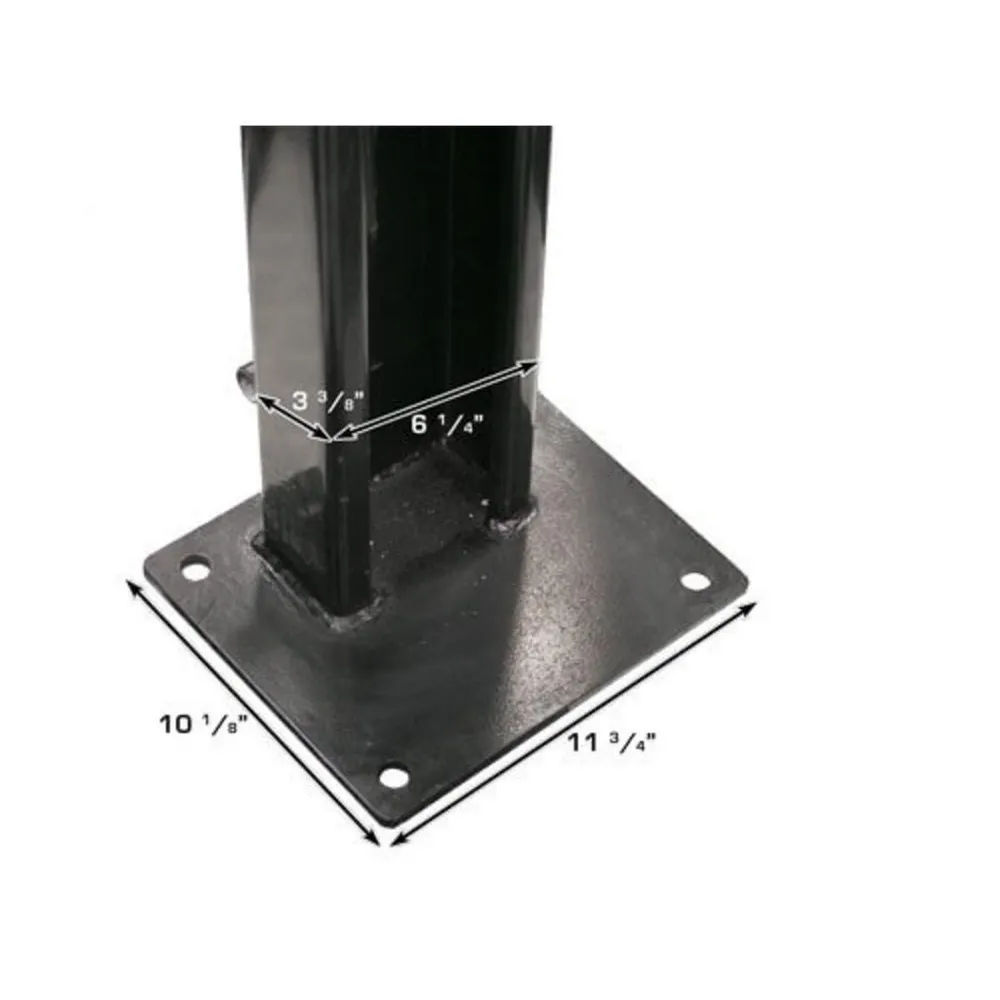

• Height Of Columns 98 1/2″ (8′ 2 1/2″)
• Overall Width (Without Motor) 104 1/2″ (8′ 8 1/2″)
• Overall Width (With Motor) 115″ (9′ 7″)
• Overall Length With Approach Ramp 206 3/4″ (17′ 2 3/4″)
• Approach Ramp 37″ (3′ 1″)
• Runway Width 21 1/4″ (w/ Rails) or 18 3/4″ (Driving Surface)
• Runway Length 165 3/4″ (13′ 9 3/4″)
• Runway Thickness 4 1/2″
• Width Between Runways 37″ (3′ 1″)
• Width Between Runway Rails 31 1/2″ (2′ 7 1/2″)
• Outside Runway To Outside Runway 74 5/8″ (6′ 2 5/8″)
• Clearance Between Columns 94 1/2″ (7′ 10 1/2″)
• Length Between Columns 157 1/2″ (13′ 1 1/2″)
• Maximum Wheel Base 153 1/2″ (12′ 9 1/2″)
• Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2″ (6′ 8 1/2″)

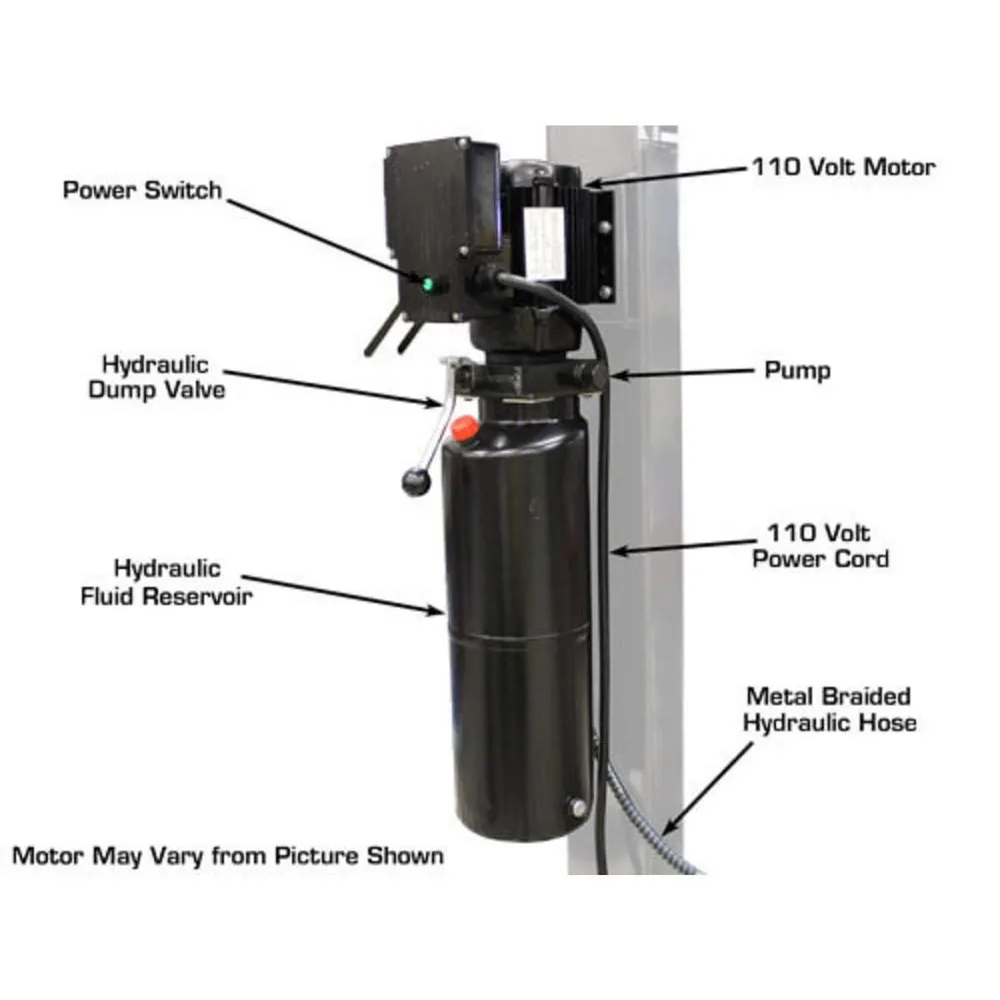

• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED

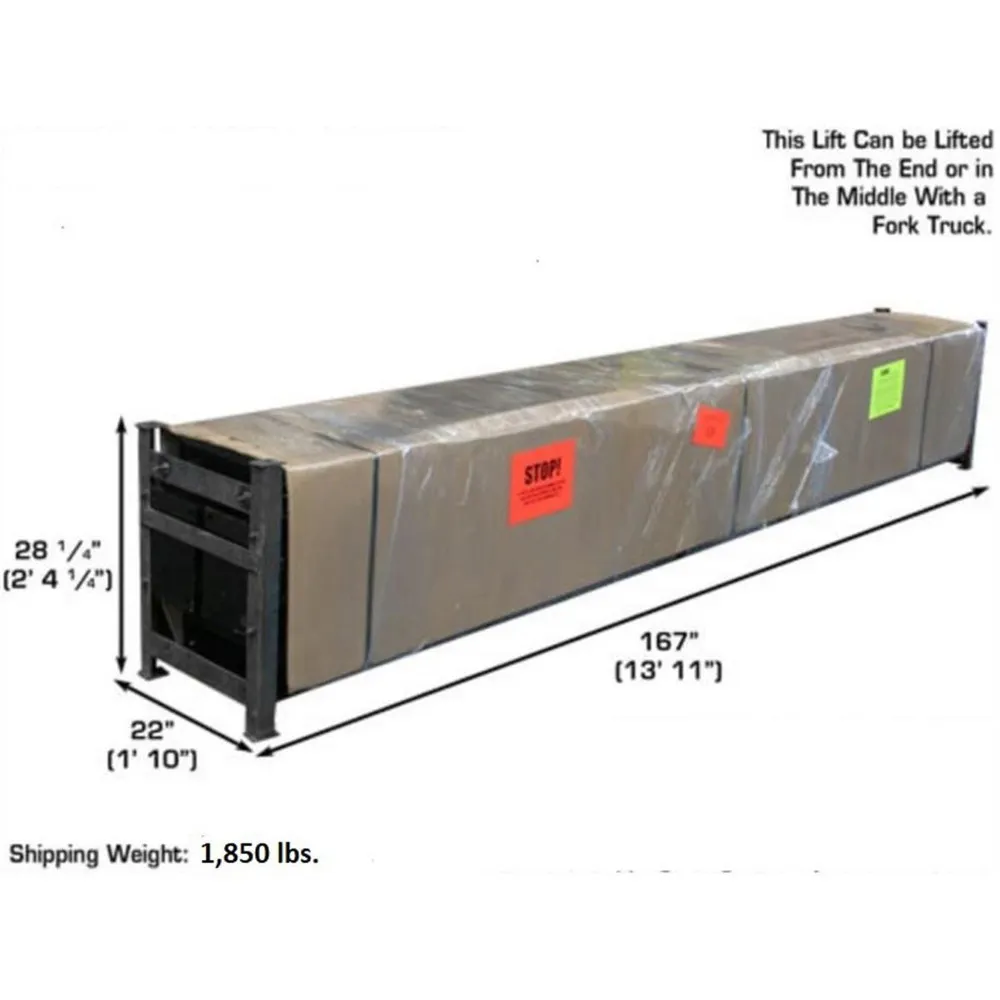

• Shipping Weight 1,850 lb.

Atlas® RJ35 Sliding Jack Specifications

• Capacity: 3500 lbs
• Lower Extension Width (Between Runway): 20 1/2″ to 47″
• Top Width (Arms Retracted & Extended): 39 12″ to 64 3/4″
• Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2″
• Lift Pad Height Above Arm: 1 3/8″
• Max Height Raised w/o Adapter: 11″
• Max Height Raised w/ Adapters: 17 1/4″
• Shipping Weight: 350 lbs
• Adapter Heights: 2 Each 1 1/2″, 5″
• Arm Hole/Adapter Peg Size: 1 1/2″

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
