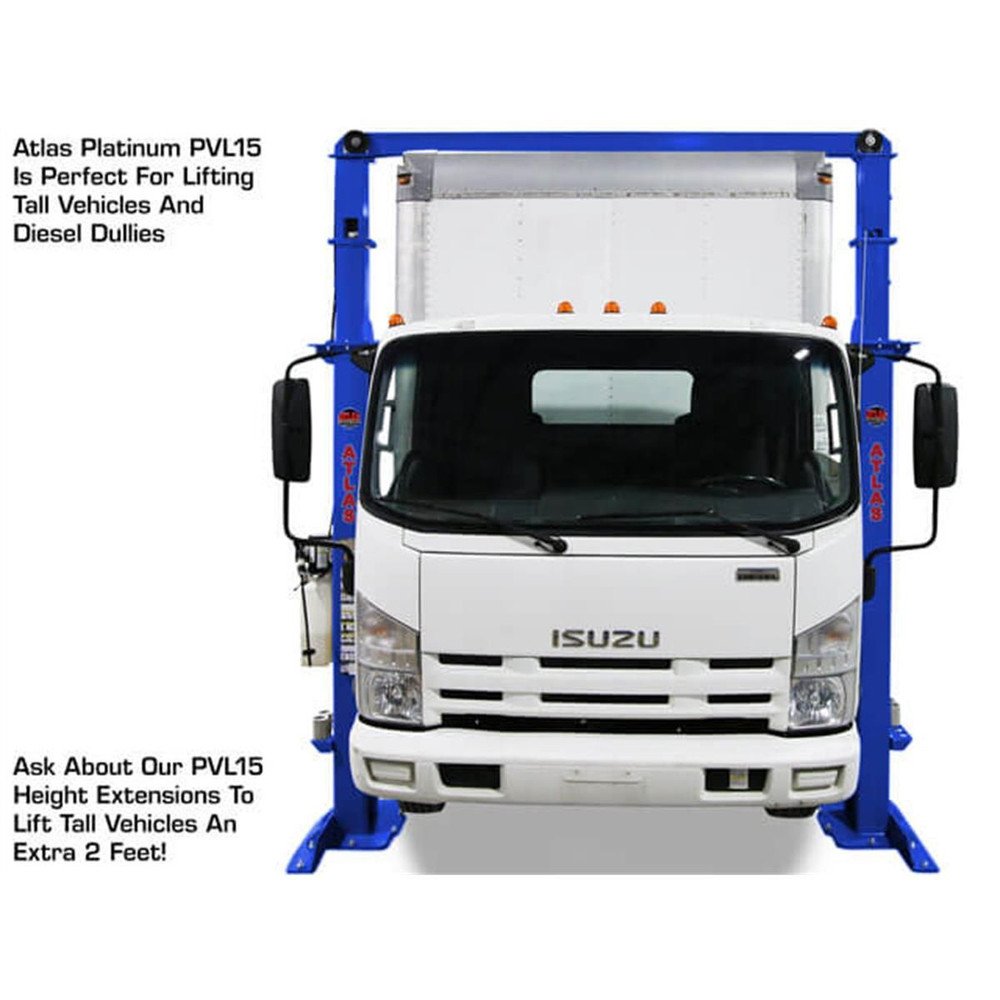

Atlas Platinum PVL15 ALI Certified Commercial Overhead 15,000 lb. Capacity 2-Post Lift

Description

Shop the Atlas Platinum PVL15 ALI Certified Commercial Overhead 15,000 lb. Capacity 2-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• ALI Certified Lift
• 15,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall & Extra Wide
• Overall Height 174 1/2″ (14′ 6 1/2″)
• Padded Carriages

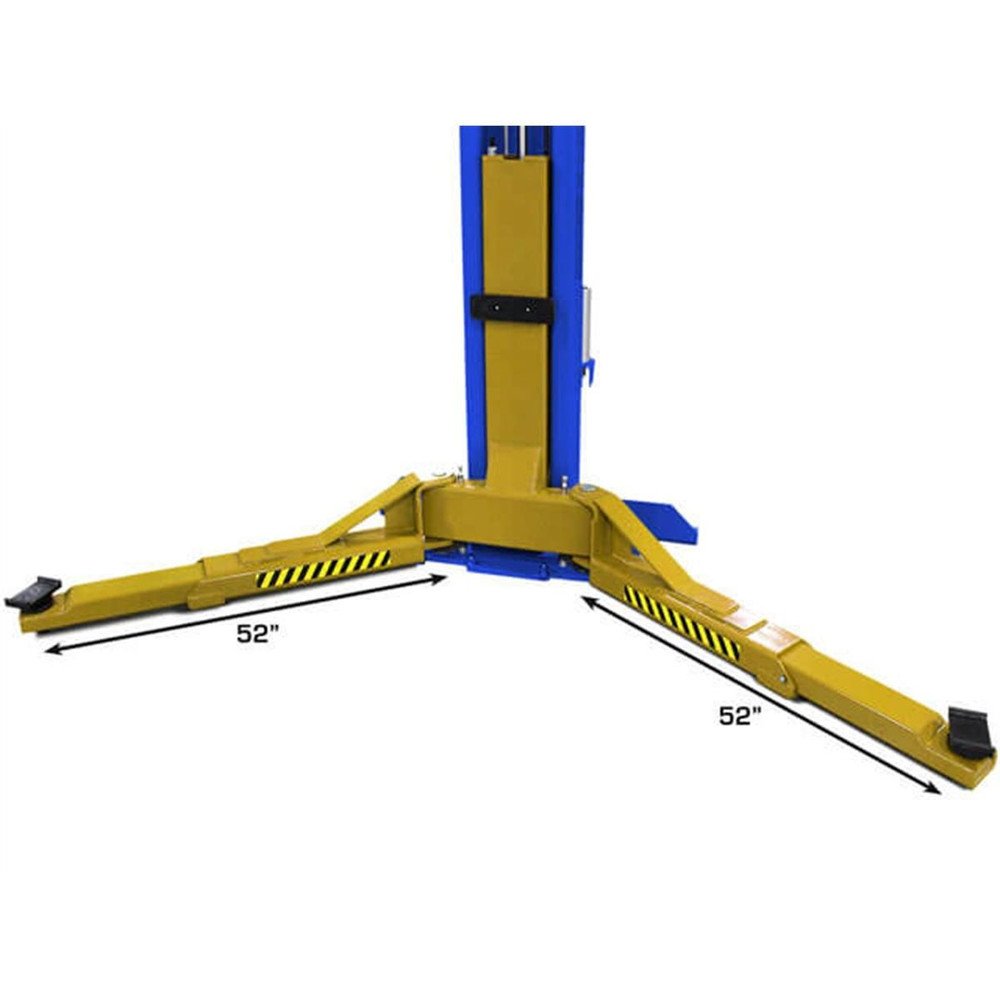

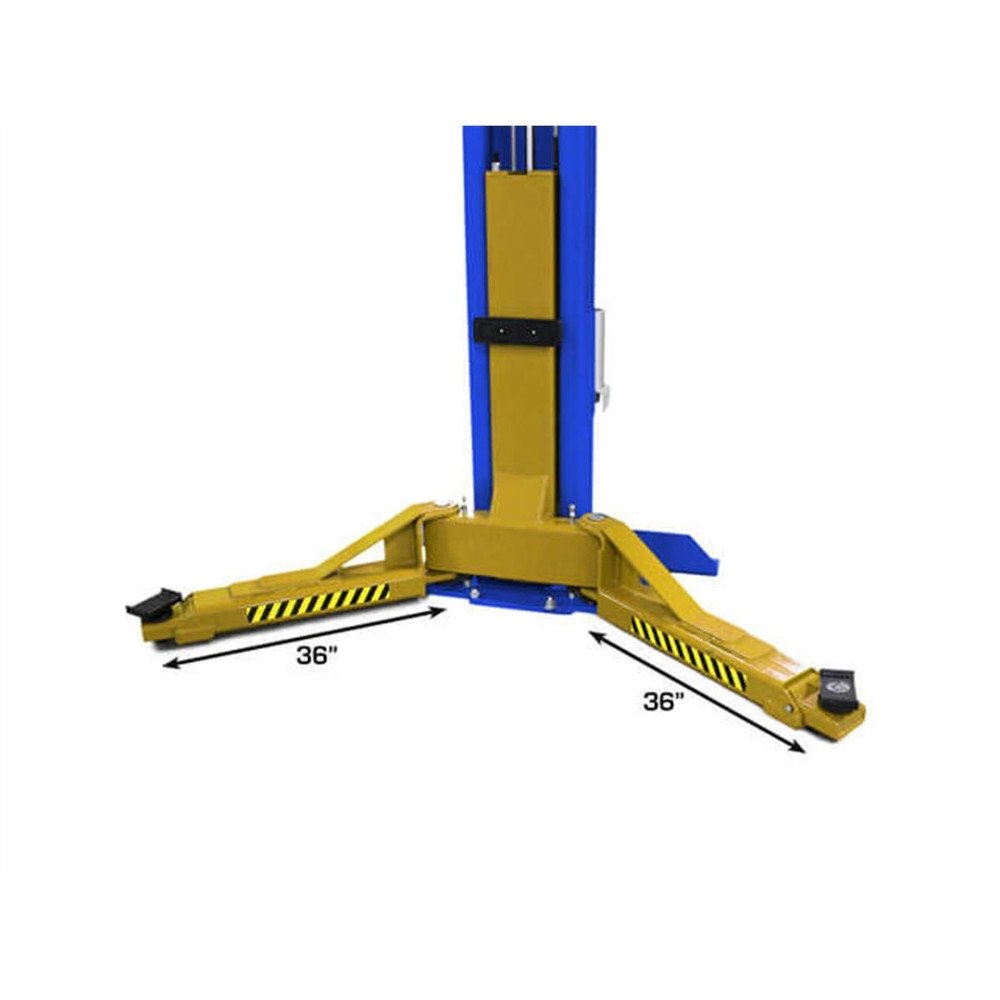

• Symmetric Arms
• Professional Grade Arm Lock Restraint System

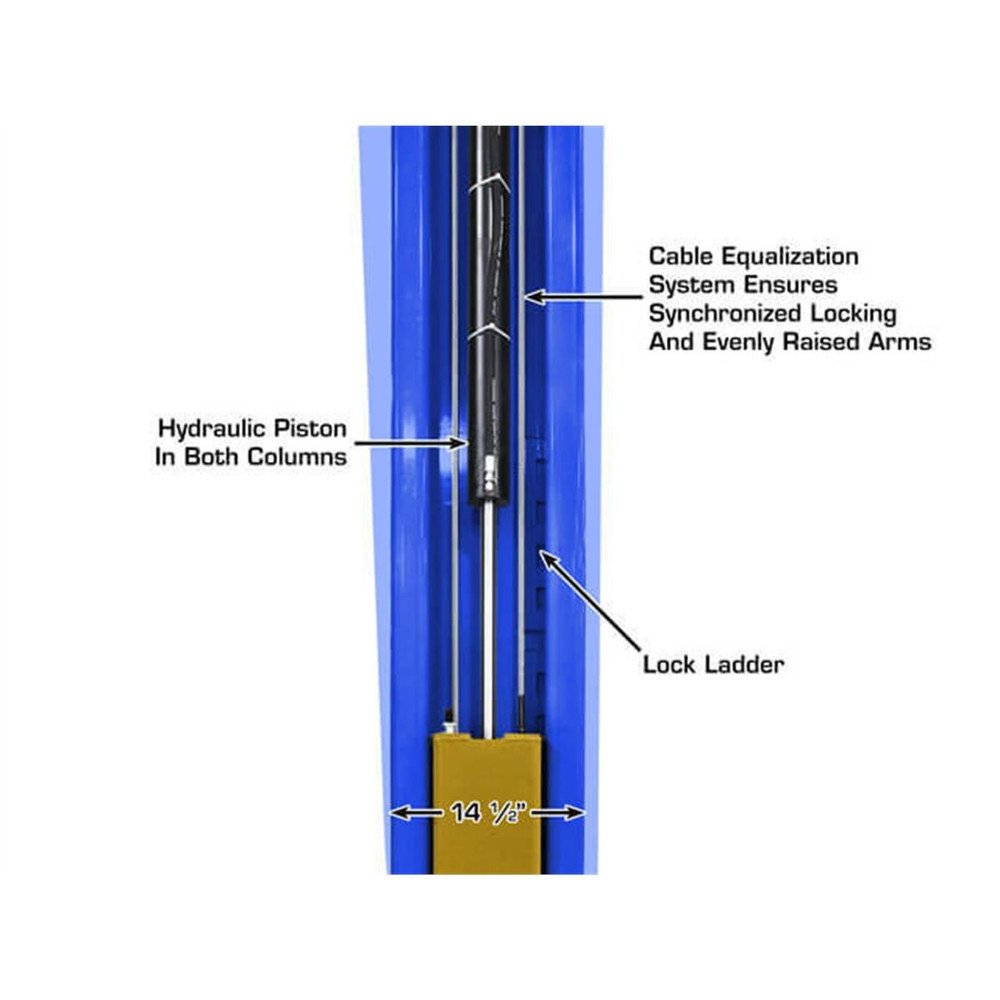

• Dual Direct-Drive Hydraulic Cylinders

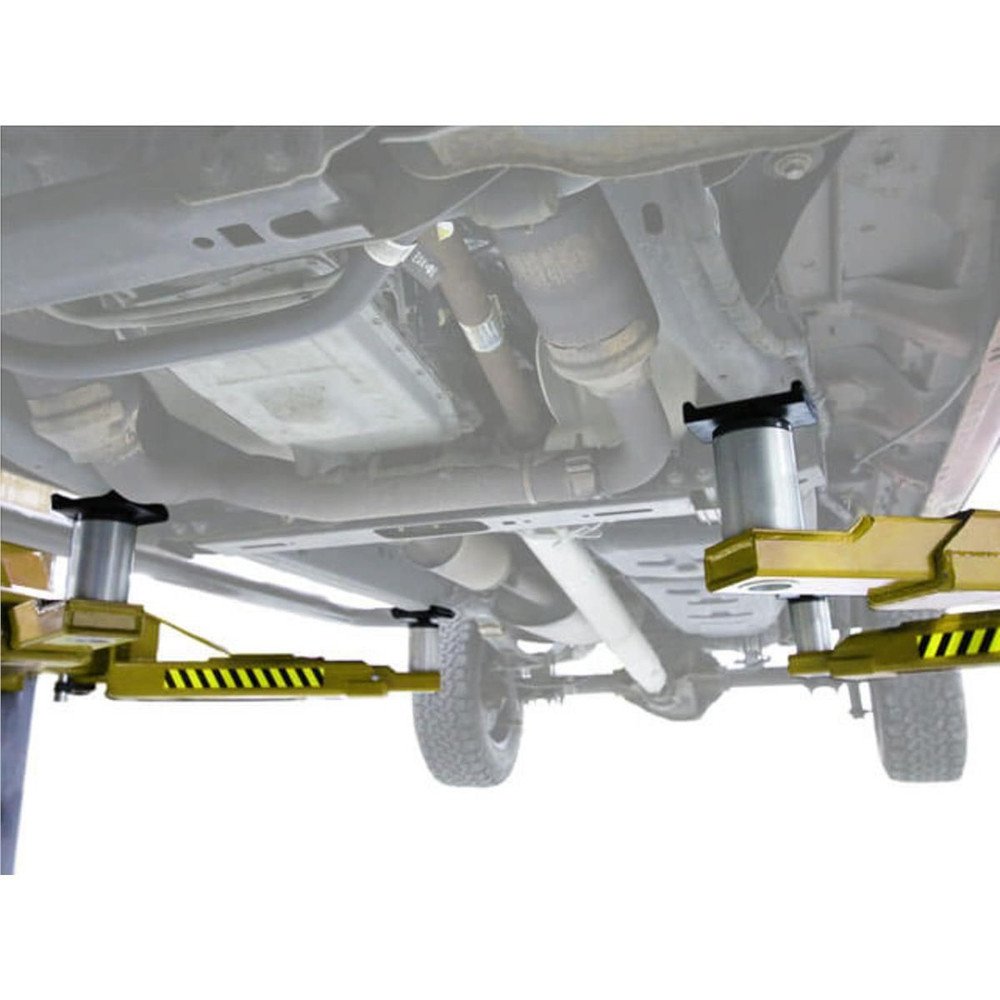

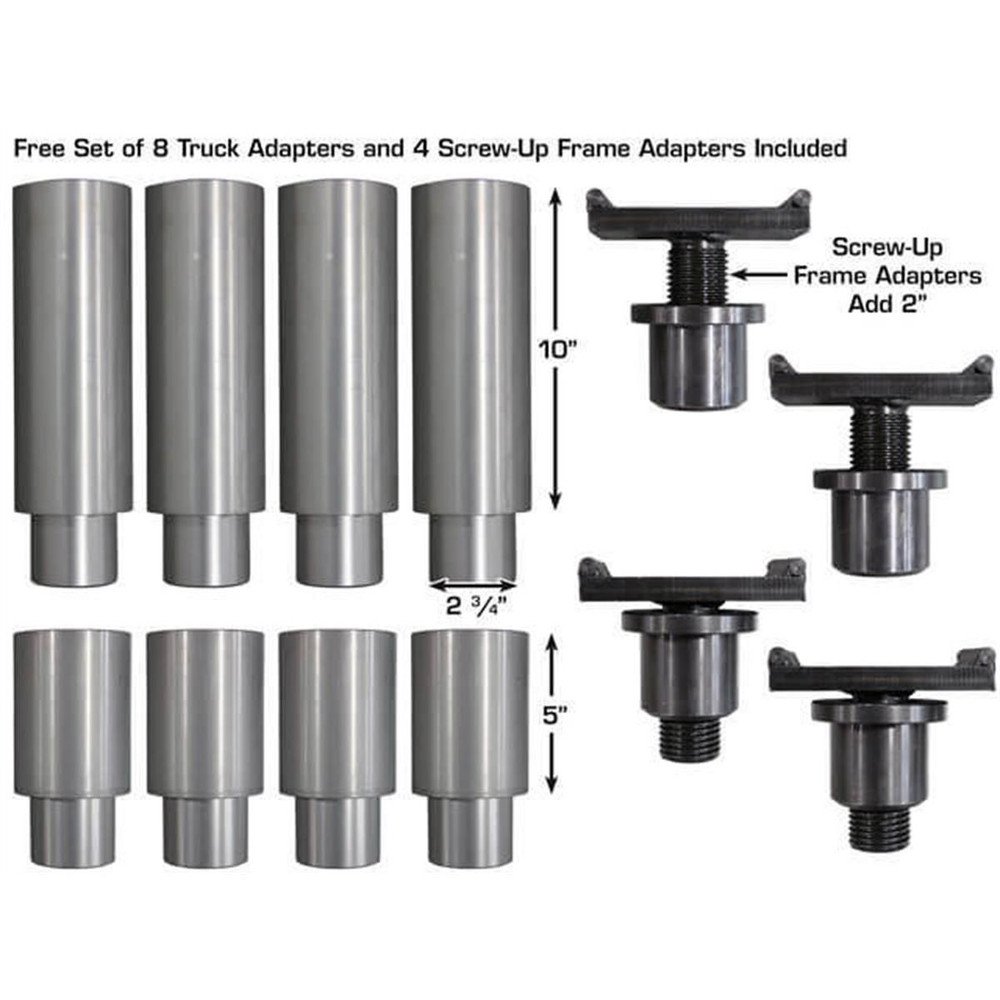

• Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters
• Heavy Duty 3/8″ Equalization Cables
• Mounting Hardware Included
• Standard with Premium ALLY Power unit
• Shipping Weight: 2,600 lbs.
• 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty
• This part number Freight Prepaid

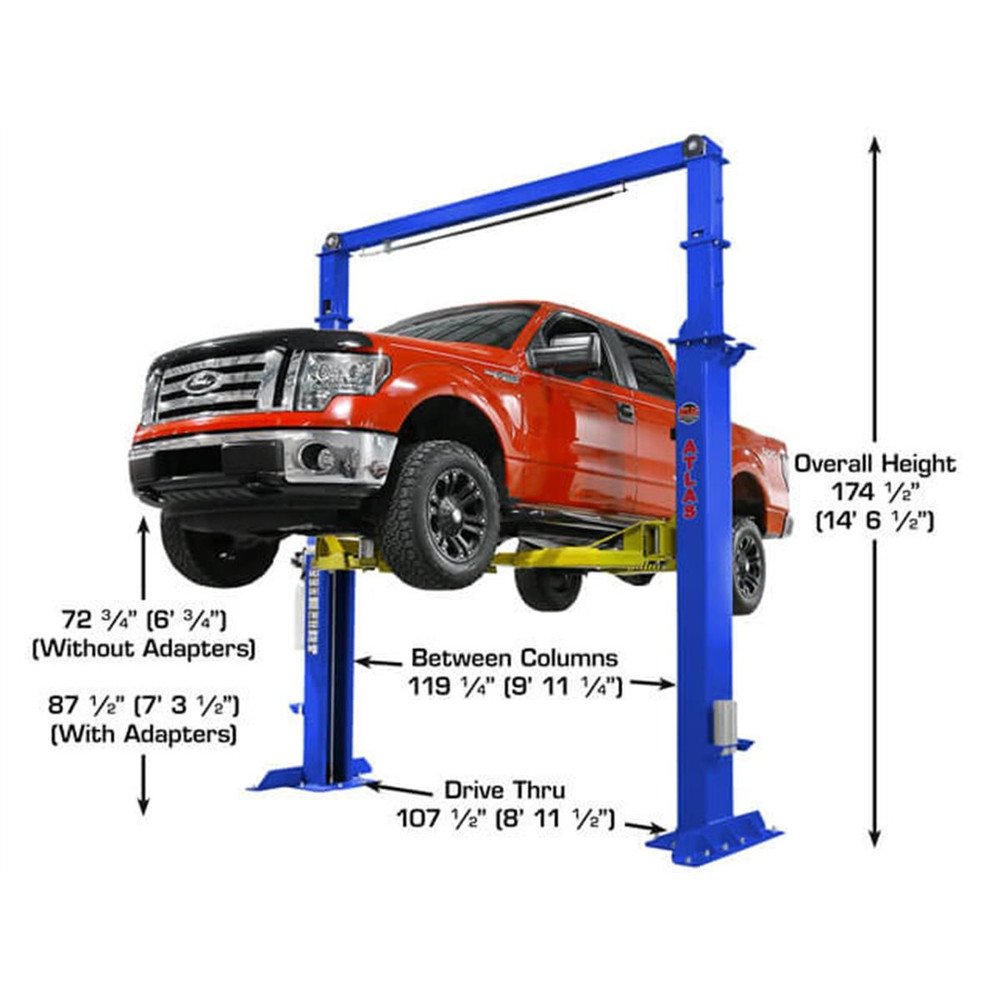

Atlas® Platinum PVL15 Specifications

• Capacity 15,000 LB.

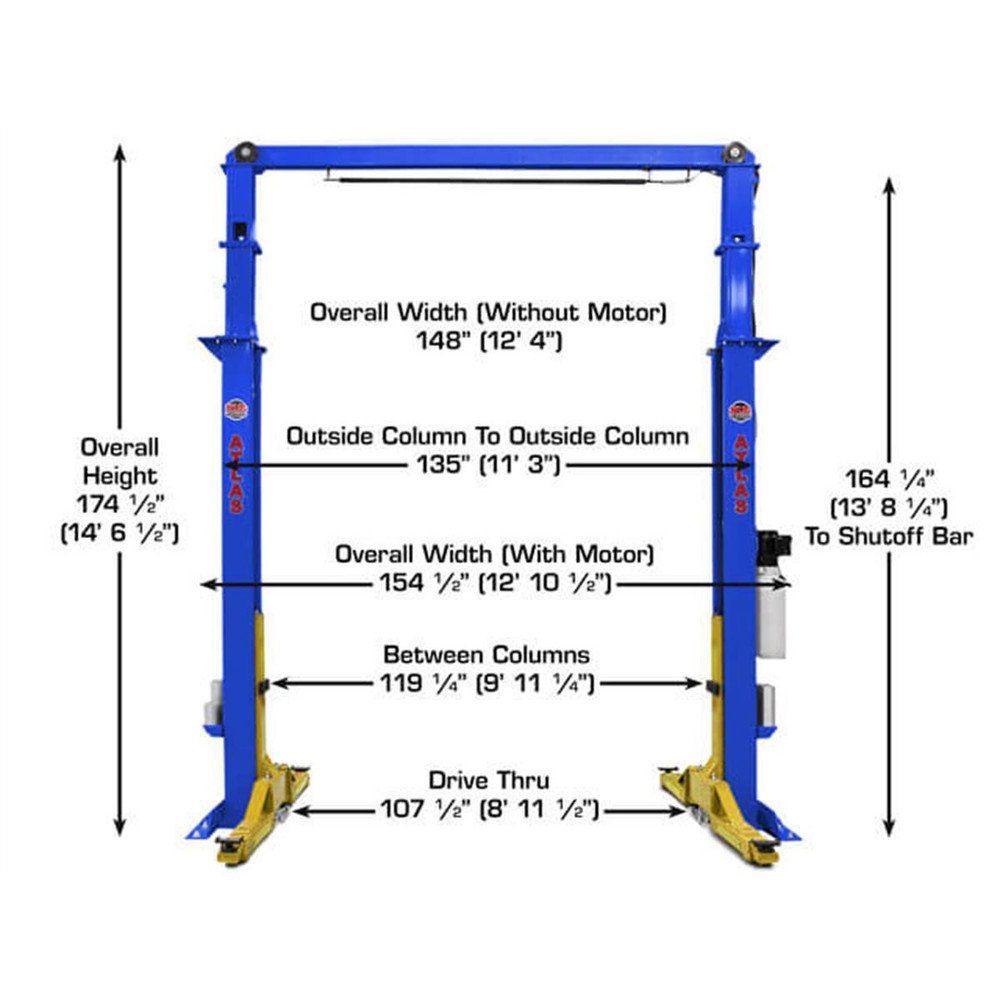

• Overall Height 174 1/2″ (14′ 6 1/2”)
• Overall Floor Width 148″ (12′ 4”)
• Outside Column to Outside Column 135″ (11′ 3″)

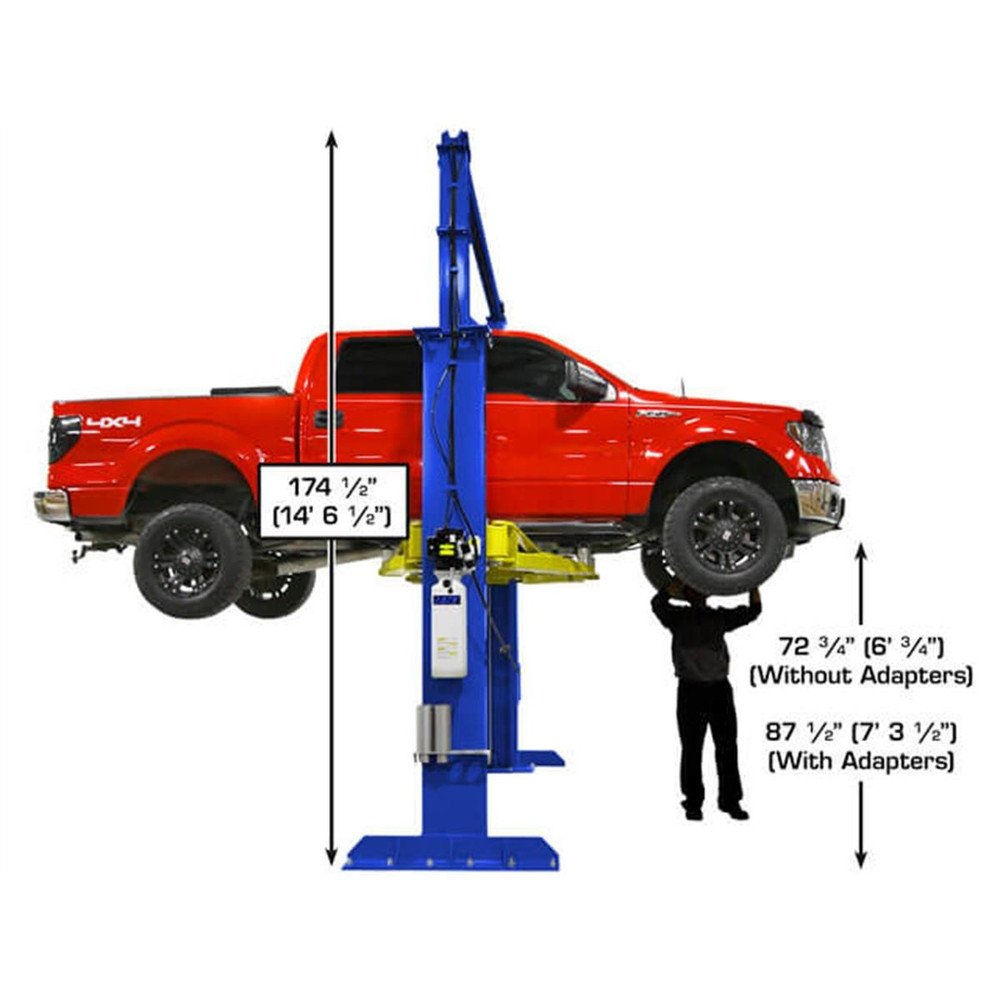

• Maximum Lift Height (Without Adapters) 72 3/4″
• Maximum Lift Height (With Adapters) 87 1/2″
• Minimum Arm Height 6″
• Inside Column 119 1/4” (9′ 11 1/4”)
• Drive Thru 107 1/2” (8′ 11 1/2”)
• Column Size 8″ x 14 1/2″
• Column Thickness of Steel 8mm

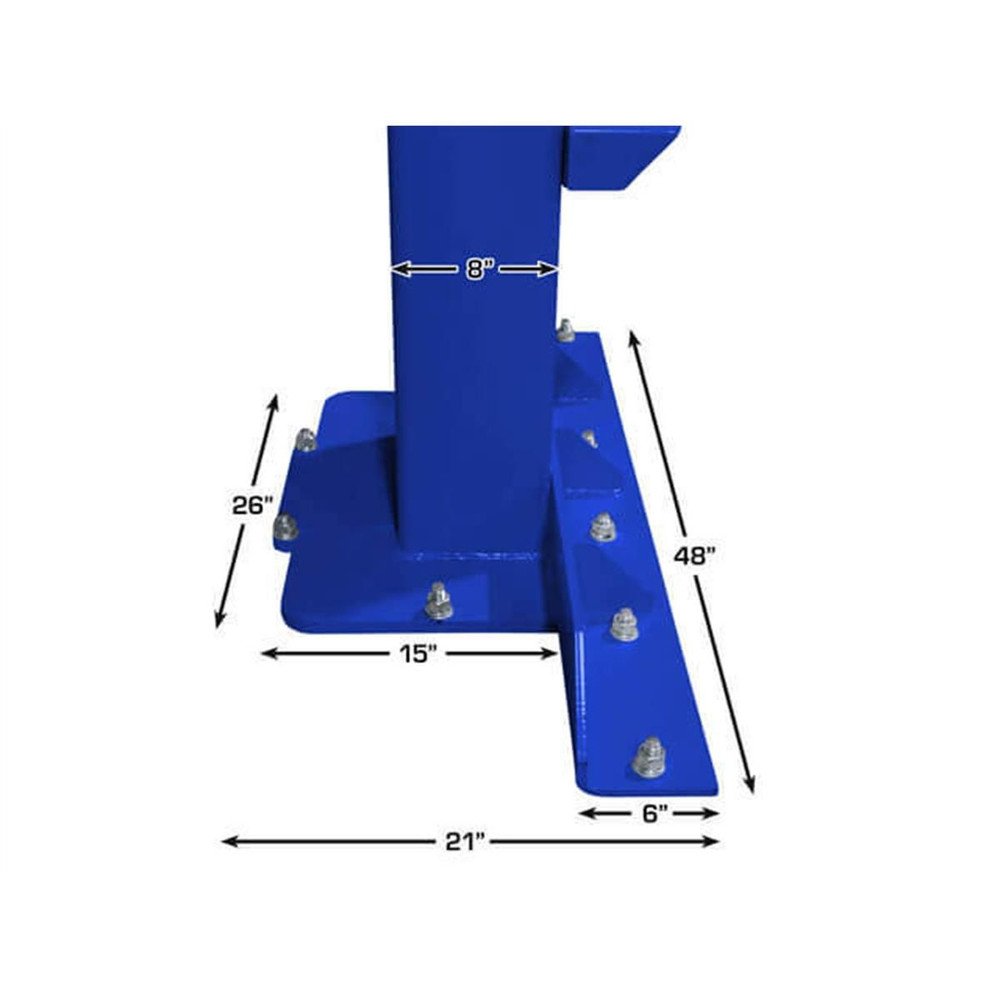

• Base Of Lift 21″ x 48″
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

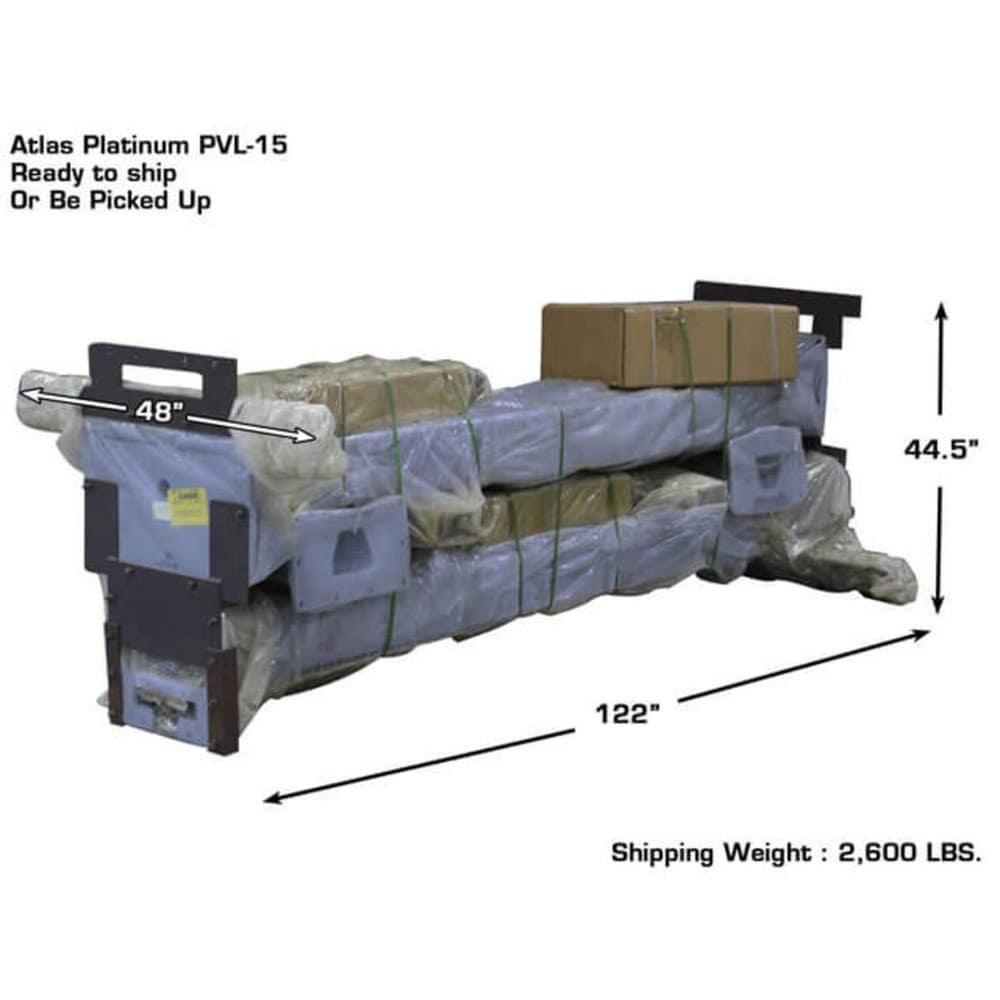

• Shipping Weight 2,600 LBS.

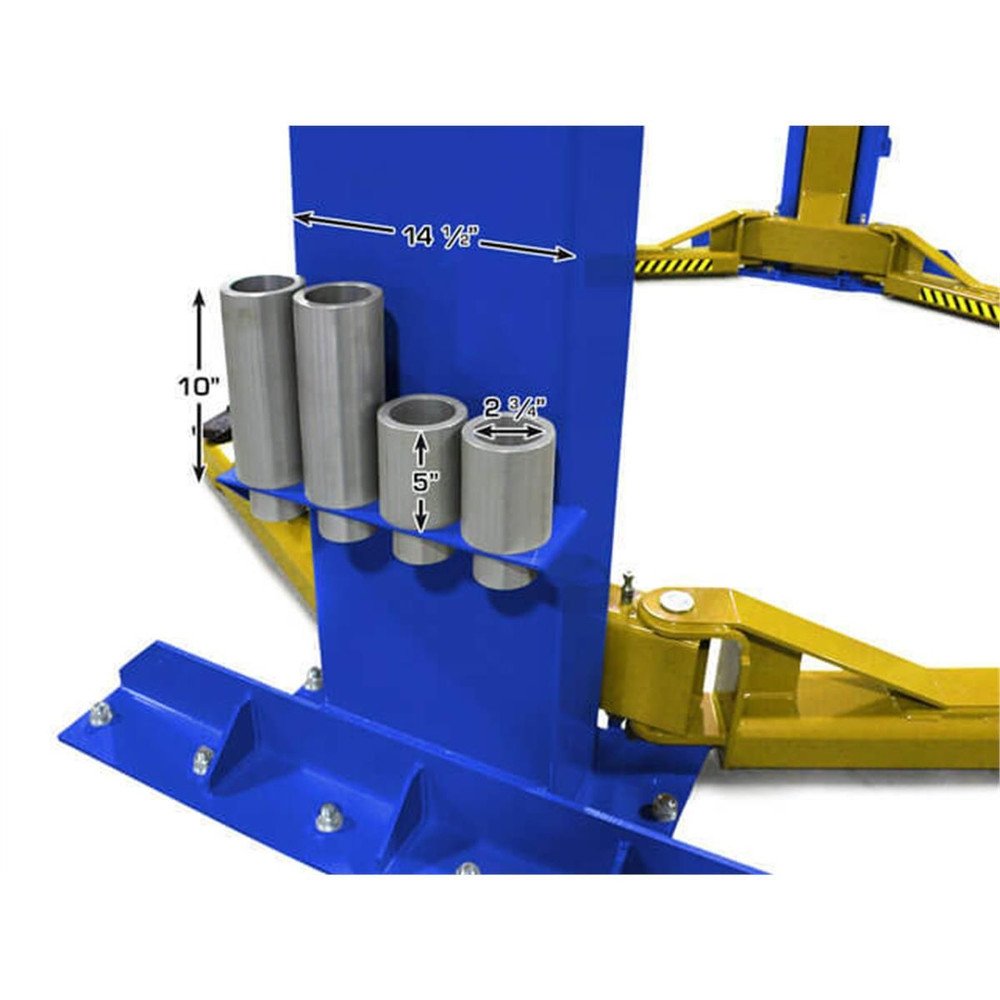

• Adapter Heights 4 Each 5”, 10”
• Arm Hole/Adapter Peg Size 2.75”
• Requires a minimum of 6″ of concrete with a 3000 psi. rating
