$11,749.00

The Atlas PVL14 is a 14,000-lb. ALI Certified four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Features and Benefits:

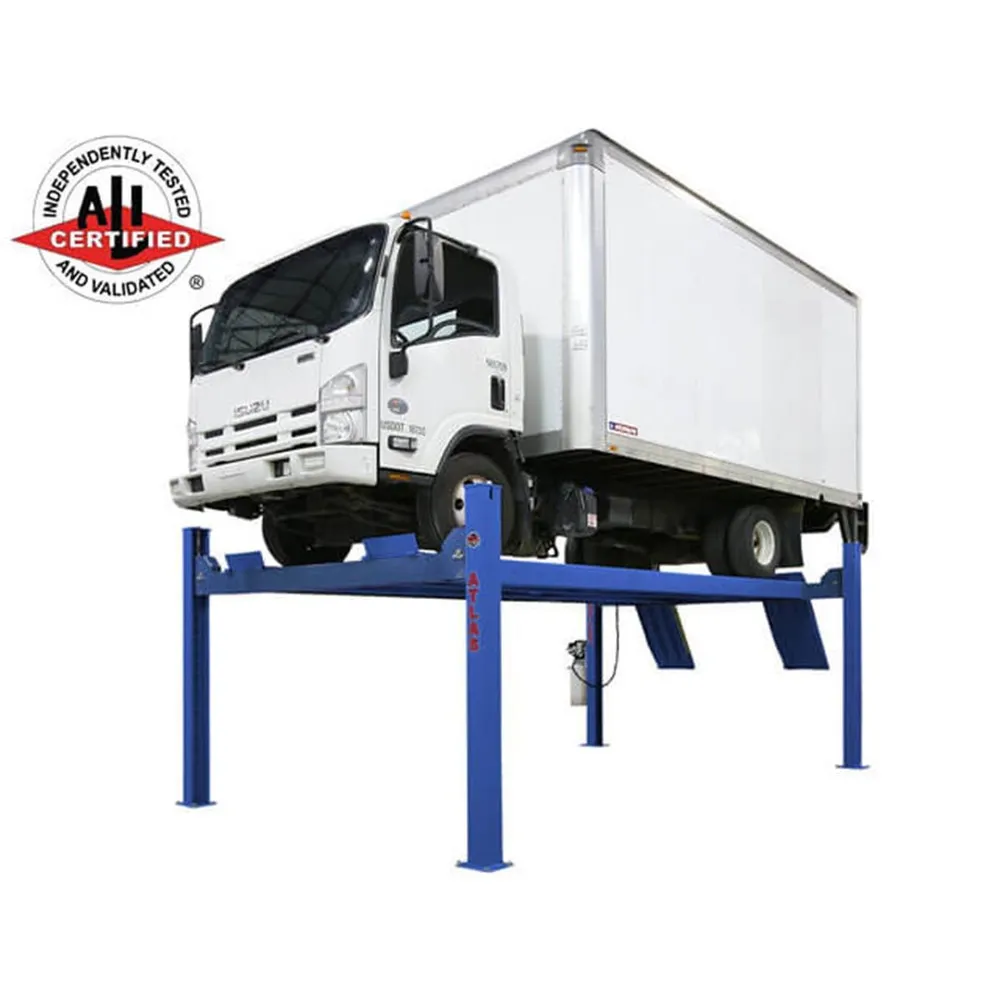

  • ALI Certified Lift
  • 14,000 lb. Capacity
  • Heavy Duty, Commercial Grade
  • Extra Tall, Extra Wide & Extra Long

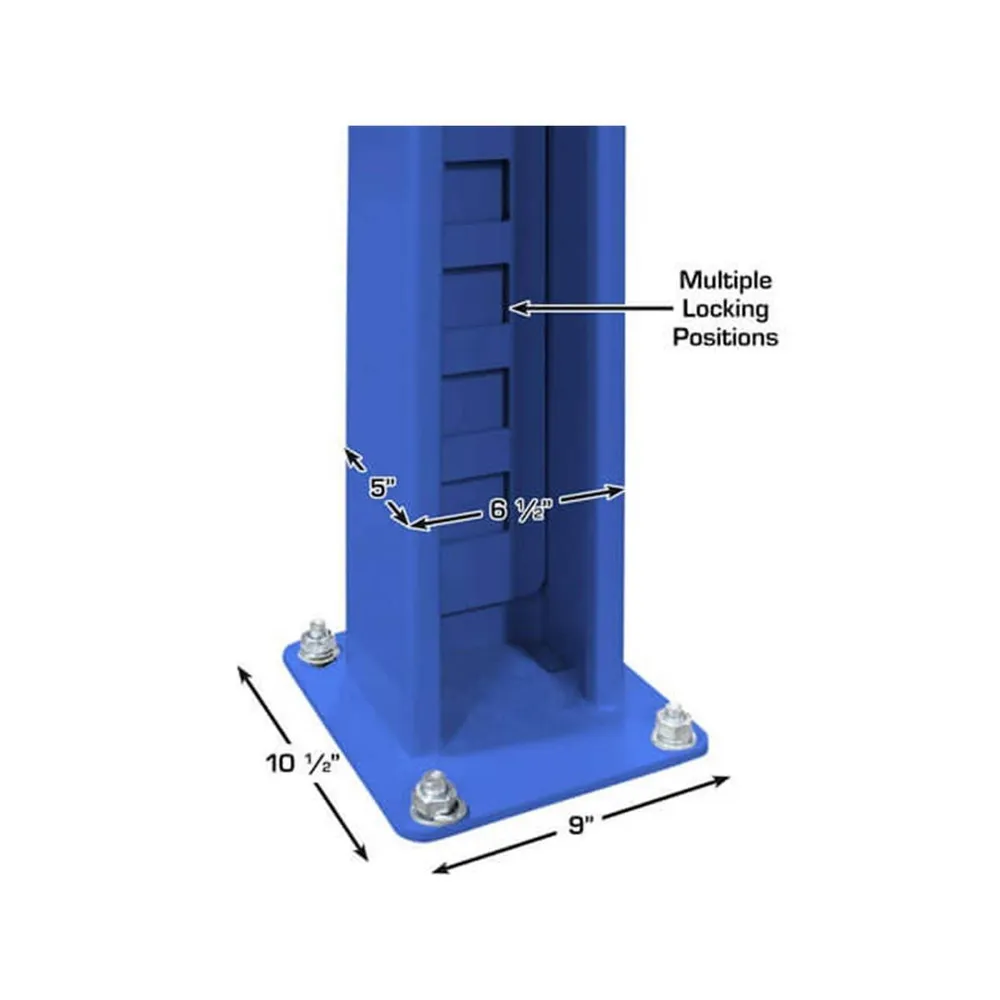

  • Adjustable Lock Ladder Design
  • Higher Quality Powder Coat Finish
  • Air Operated Single Point Lock Release (External Air Supply Required)
  • Lock Ladder Design
  • Double Lock Safety System
  • Powder Coat Finish
  • Steel Approach Ramps Included

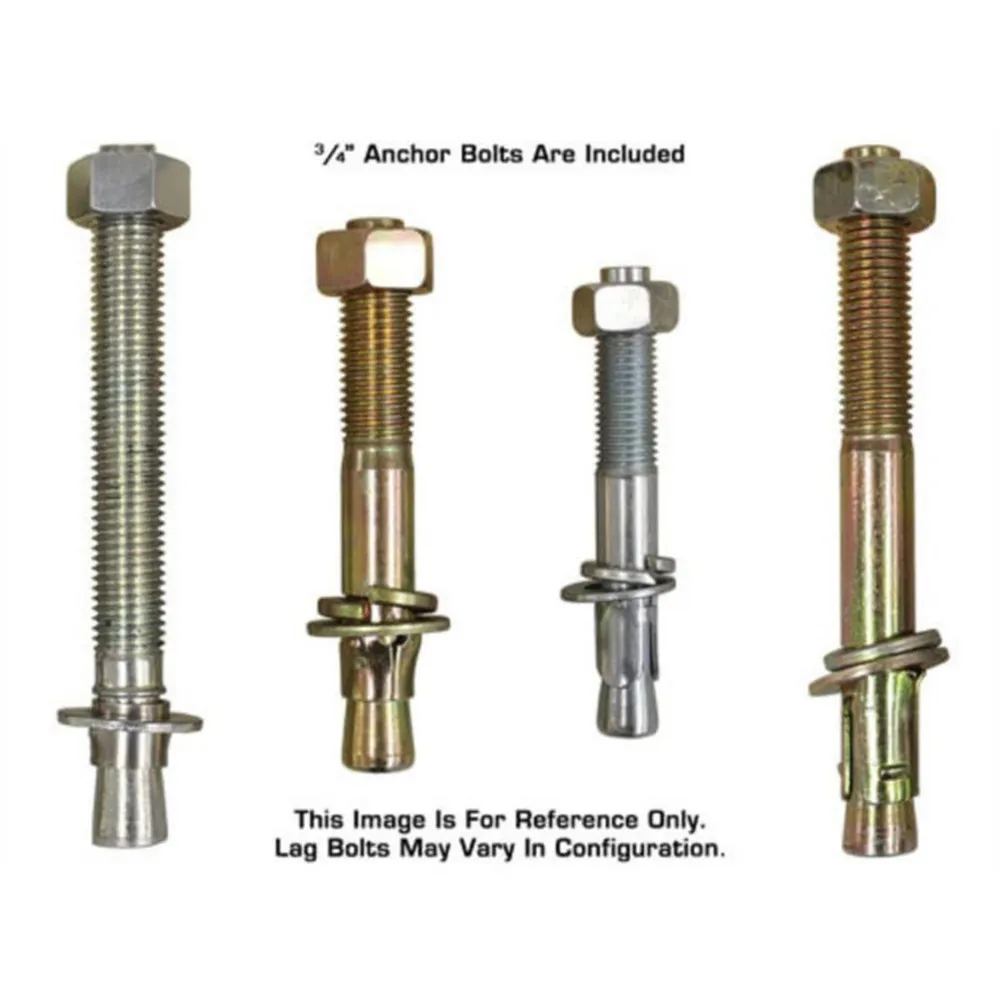

  • Mounting Hardware Included

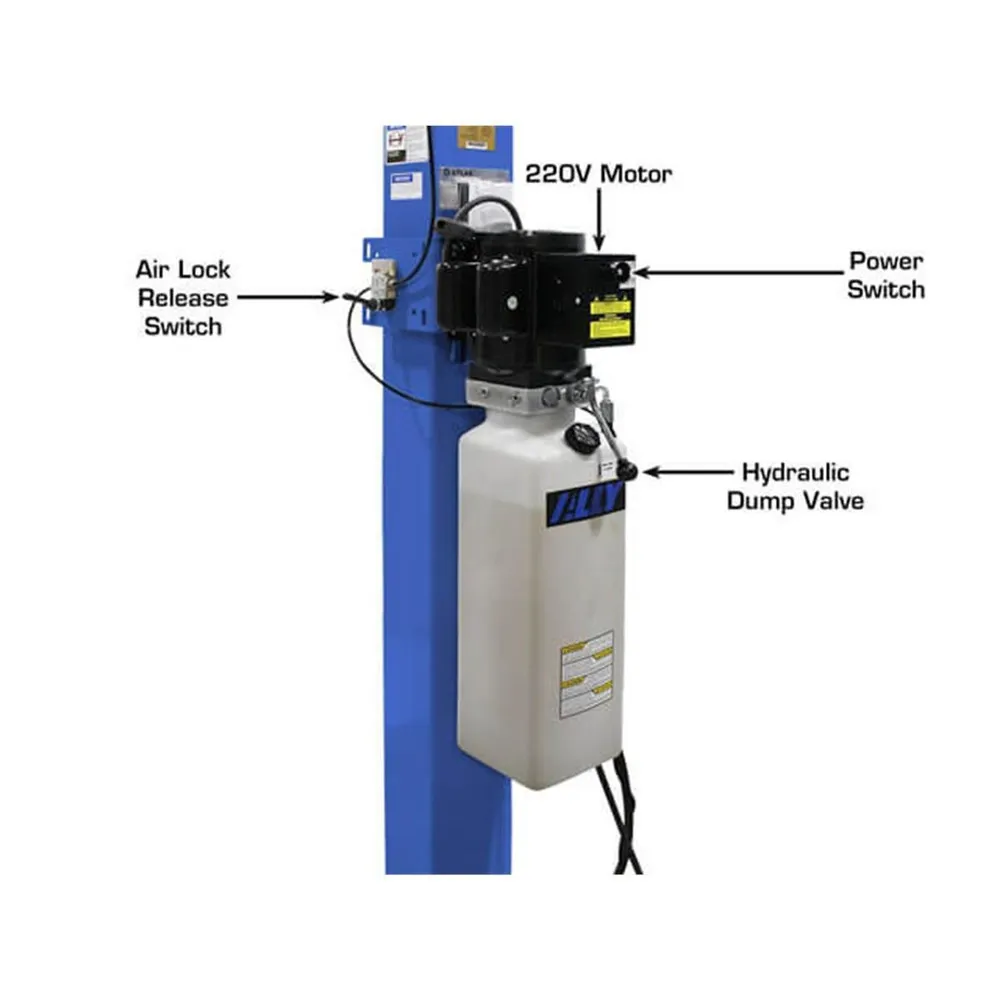

  • Standard with Premium ALLY Power unit
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)
  • Shipping Weight: 2,800 lbs.
  • 5 yr Structural – 2 yr Hydraulic – 2 yr Power unit Warranty
  • This part number Freight Prepaid

Atlas® Platinum PVL14 Specifications

  • Capacity 14,000 lb.

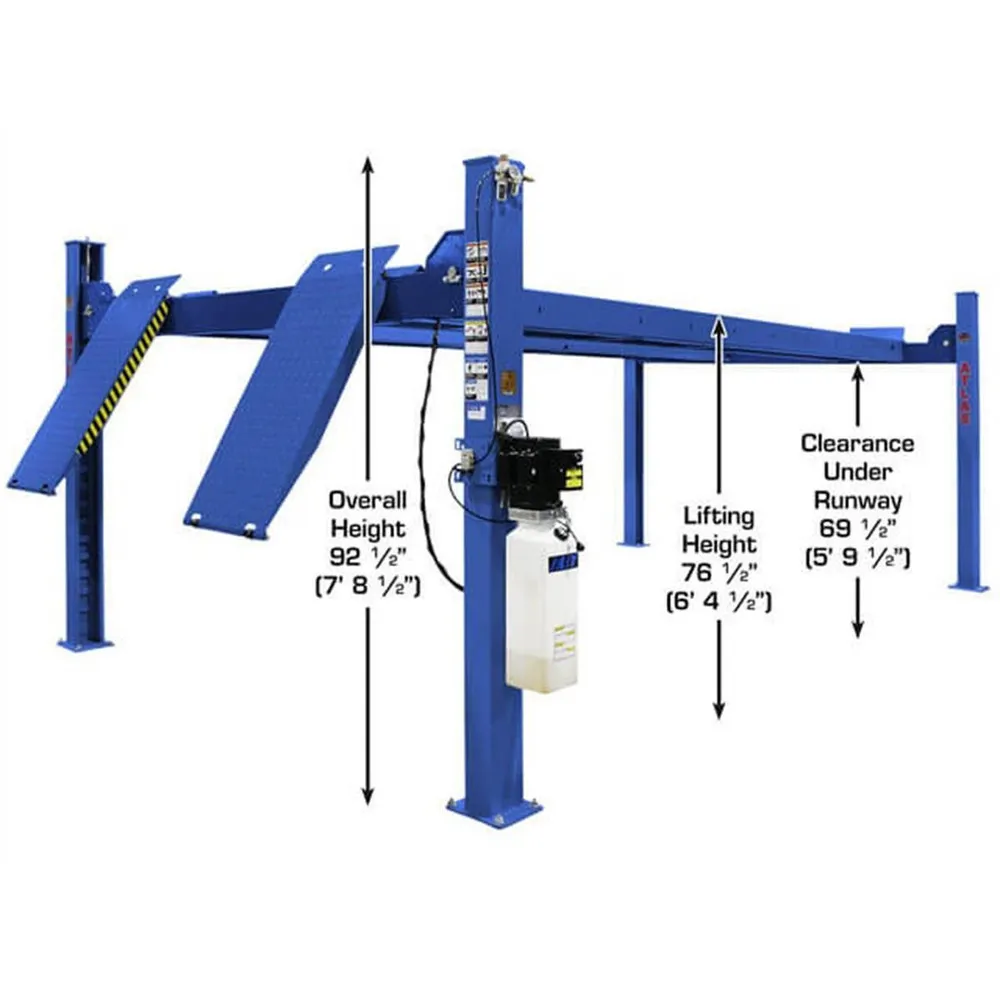

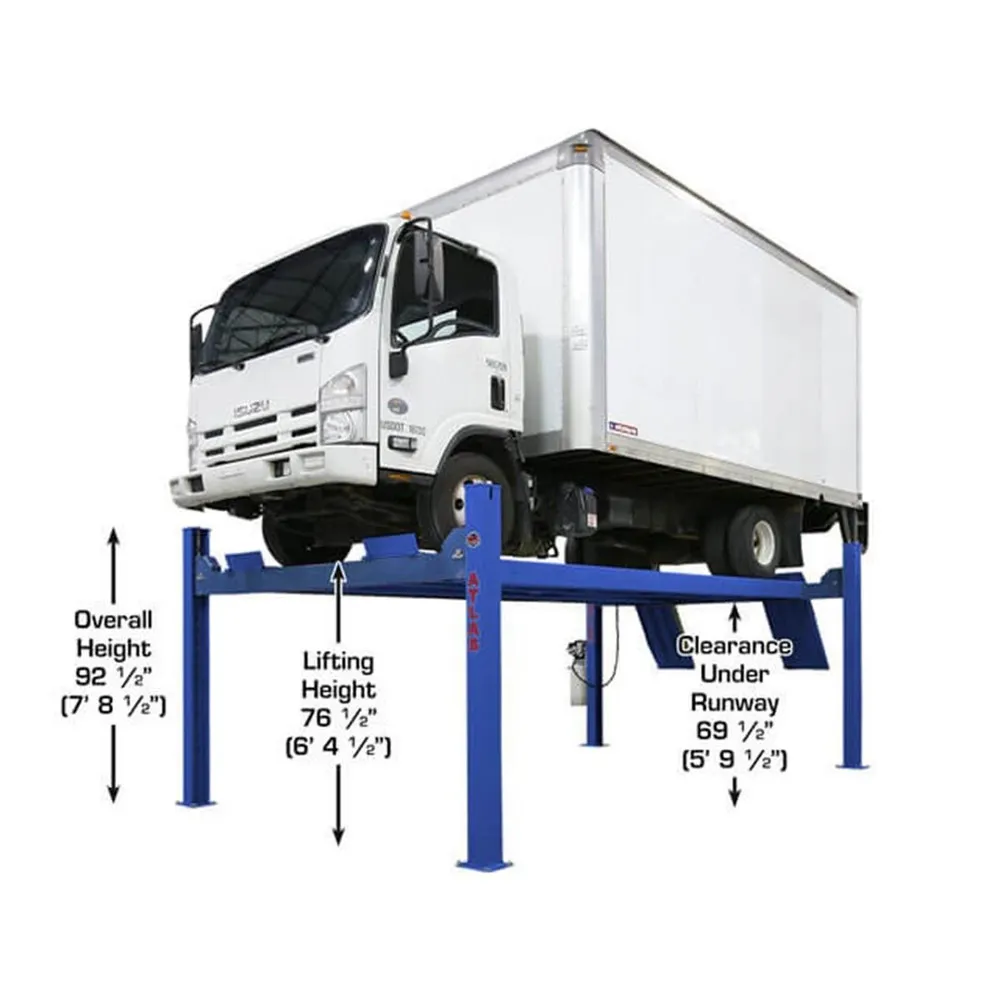

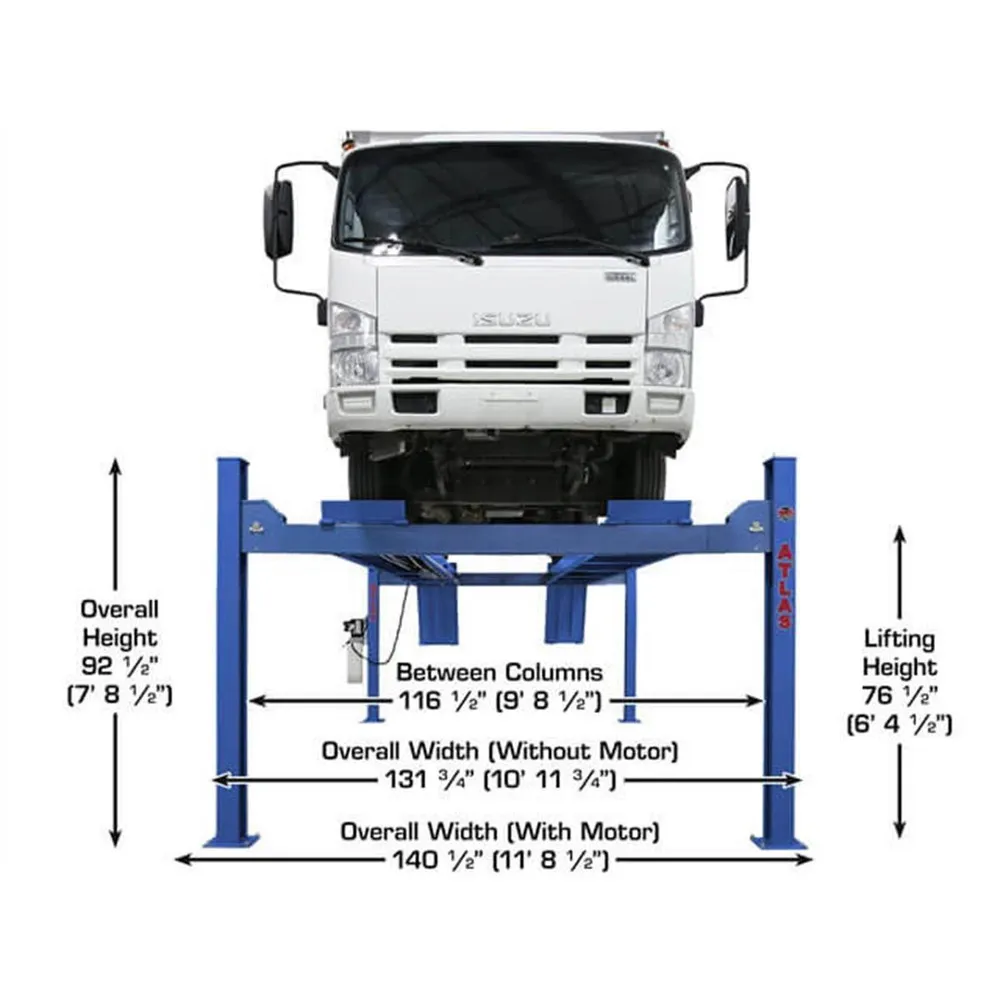

  • Lifting Height 76 1/2″ (6′ 4 1/2″)

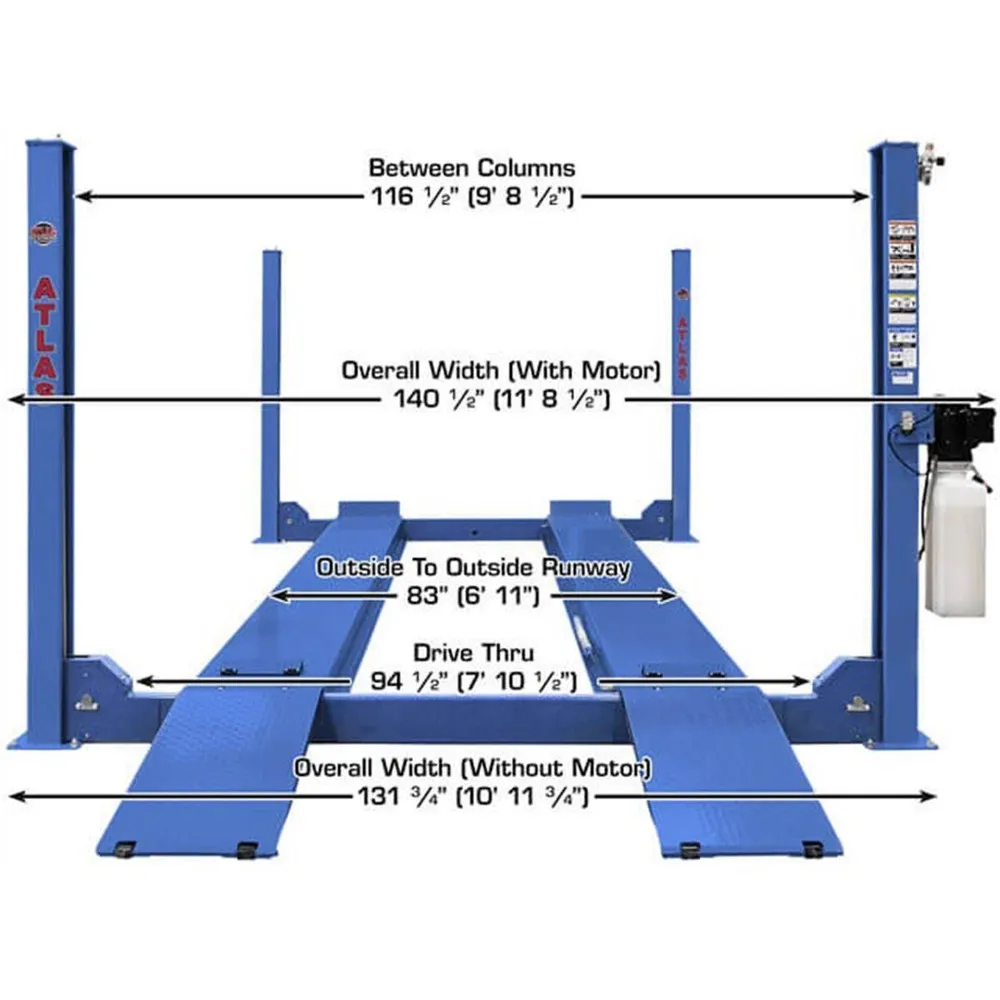

  • Overall Width Of Columns (Without Motor) 131 3/4″ (10′ 11 3/4″)
  • Overall Width Of Columns (With Motor) 140 1/2″ (11′ 8 1/2″)

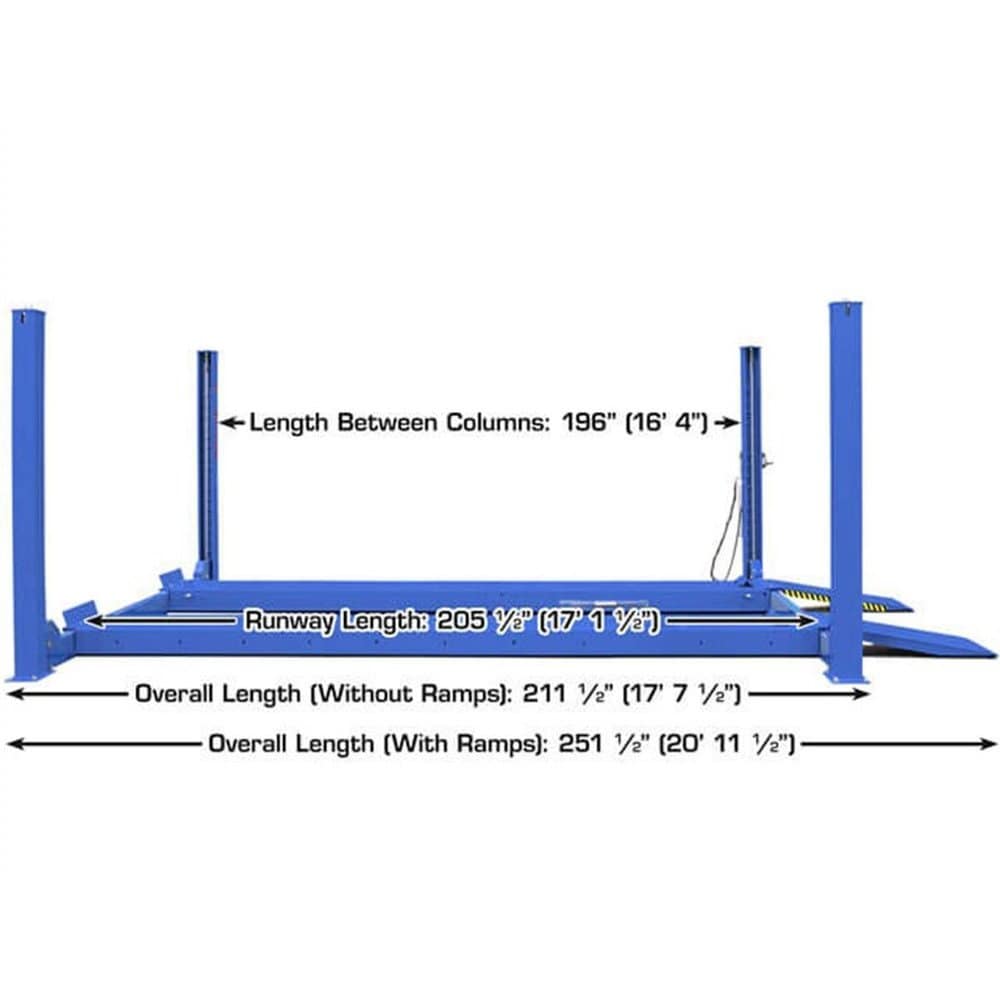

  • Overall Length With Approach Ramp 251 1/2″ (20′ 11 1/2″)

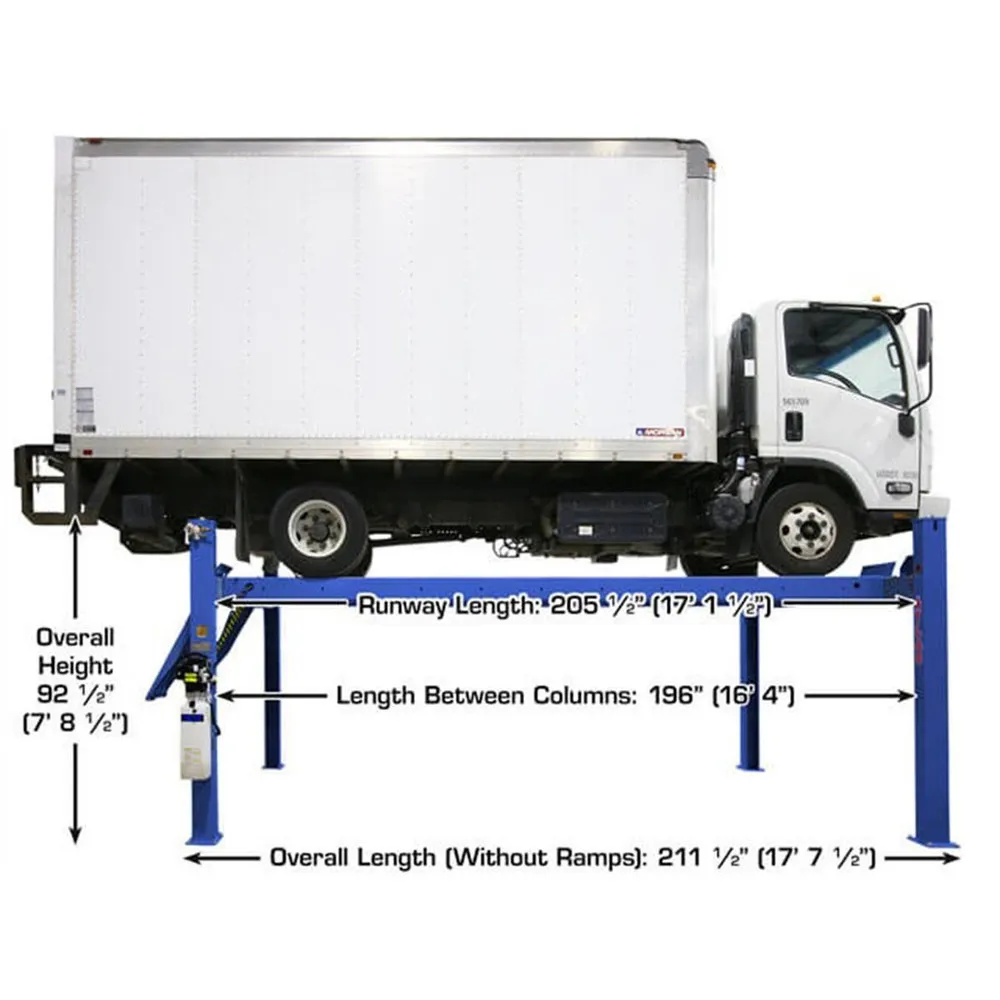

  • Length Between Columns 196″ (16′ 4″)
  • Runway Length 205 1/2″ (17′ 1 1/2″)

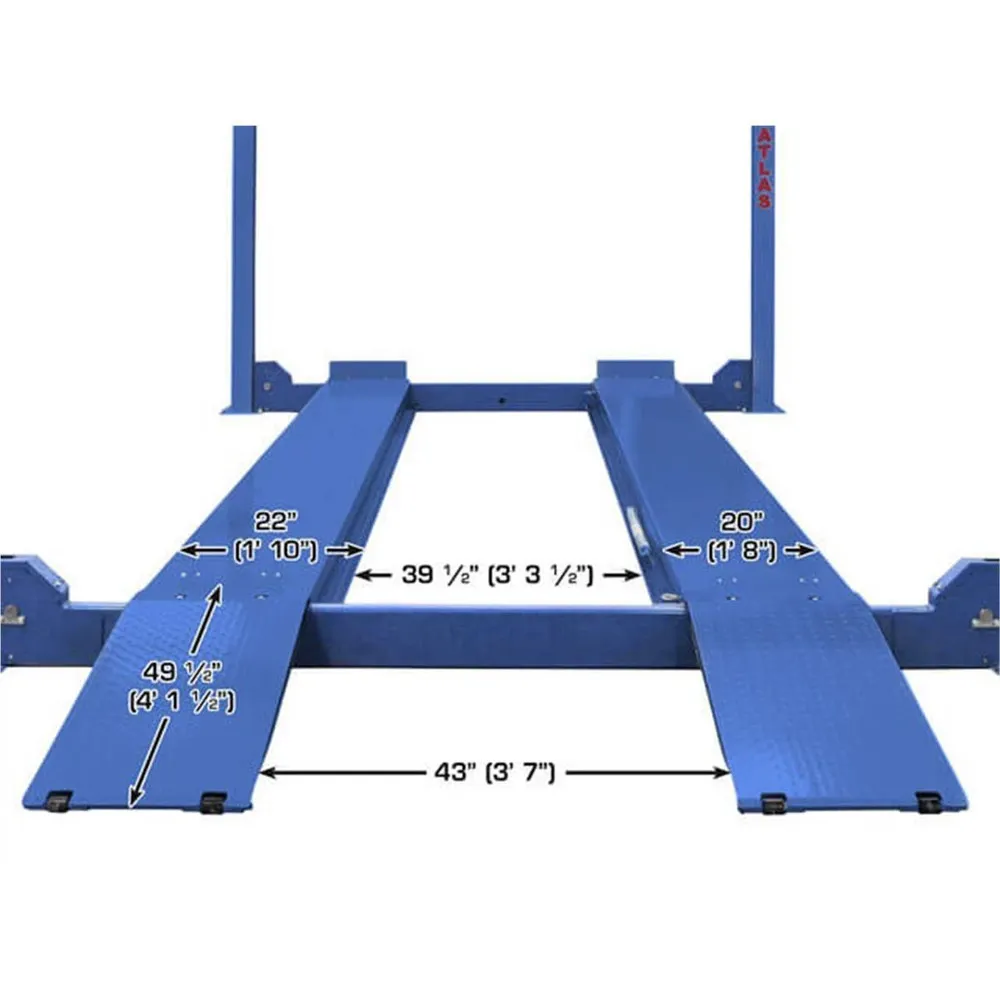

  • Runway Width 20″
  • Thickness Of Runway 7″
  • Width Between Runways 42 3/4″ (w/ Rail 39 1/4″)
  • Outside Runway To Outside Runway 83 1/8″ (6′ 11 1/8″)
  • Clearance Under Runways 69 1/2″ (5′ 9 1/2″)
  • Clearance Between Columns 116 3/8″ (9′ 8 3/8″)
  • Height Of Columns 92 1/2″ (7′ 8 1/2″)
  • Maximum Wheel Base 195″ (16′ 3″)
  • Drive Thru 94 1/2″ (7′ 10 1/2″)
  • Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
  • Motor/Electrical Requirement 220 volt single (1) phase.(A 30 amp breaker is recommended)
  • Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

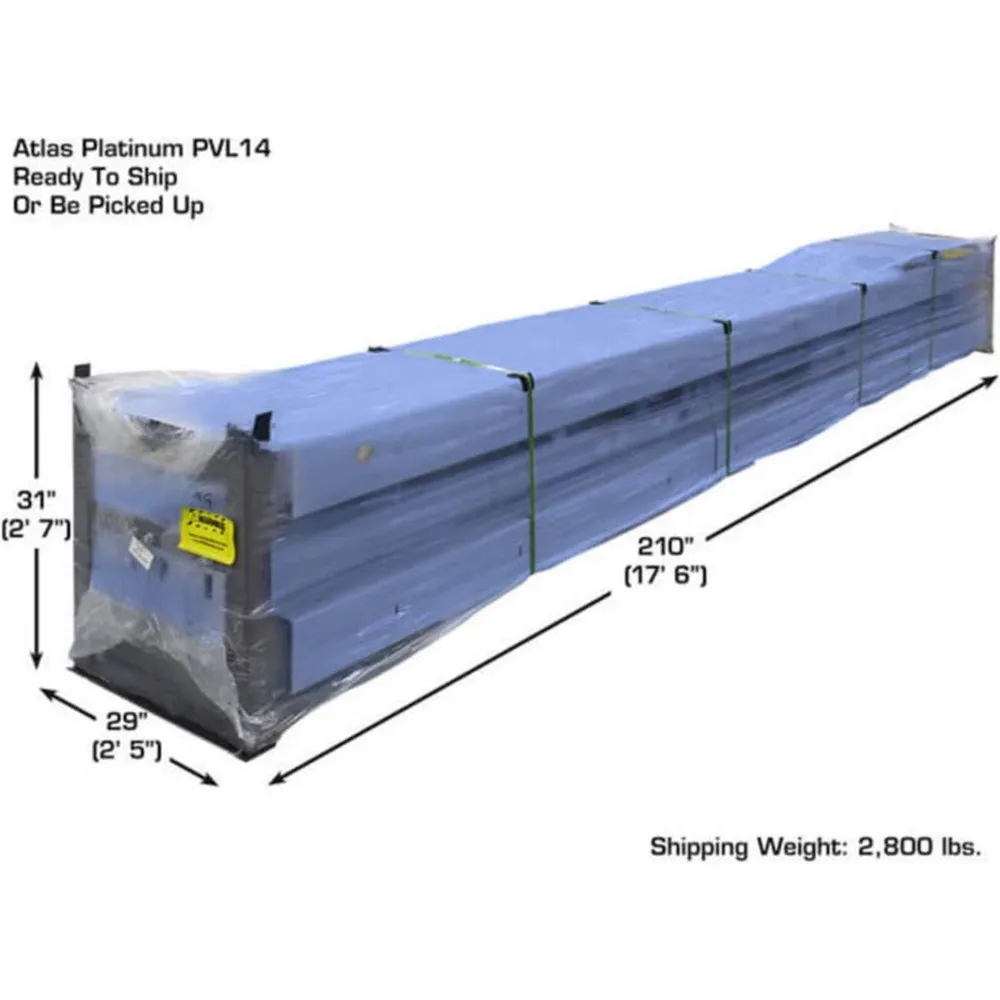

  • Shipping Weight 2,800 LBS.
  • Requires a minimum of 6″ of concrete with a 3000 psi. rating

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
