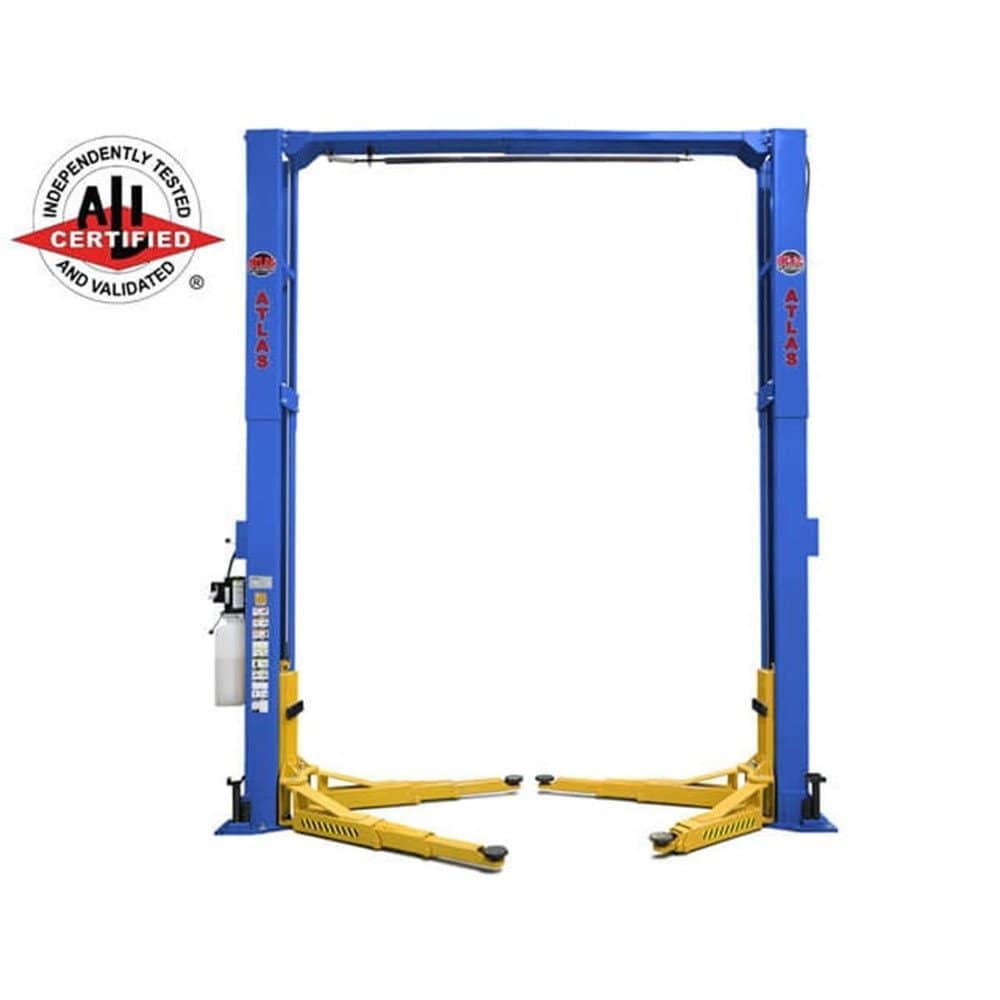

Atlas Platinum PVL12 ALI Certified 12,000 lb. Capacity 2-Post Lift

Description

Shop the Atlas Platinum PVL12 ALI Certified 12,000 lb. Capacity 2-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features and Benefits:

• ALI Certified Lift
• 12,000 lb. Capacity
• Commercial Grade
• Extra Tall & Extra Wide
• Adjustable Height 165″ (13′ 9″) or 177″ (14′ 9″)
• 3-Stage Symmetric Arms
• Automatic Arm Restraints
• “Padded” Shut-Off Bar
• Thick Rubber Door Guards on Carriage
• Single Point Lock Releases

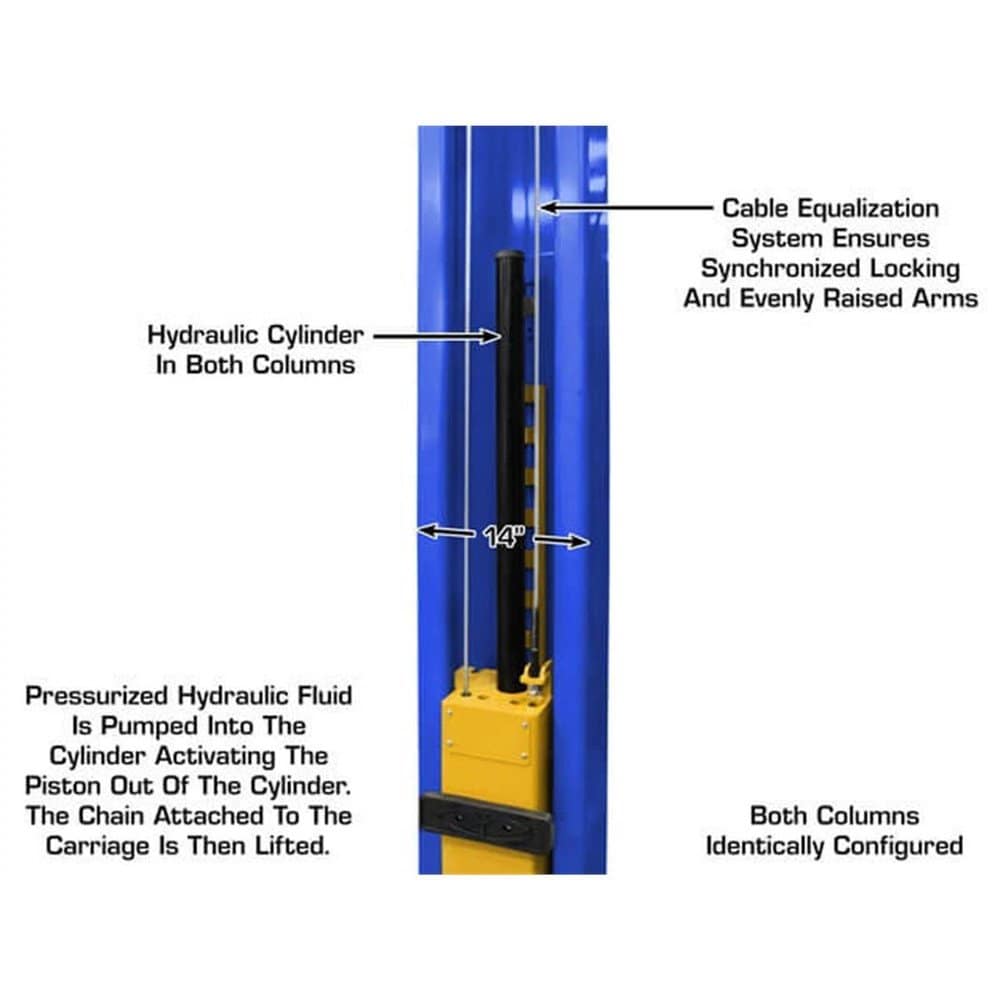

• Direct-Drive Cylinders
• Powder Coat Finish
• Free 8 Piece Truck Adapter Set
• Mounting Hardware Included
• Standard with Premium ALLY Power unit
• Shipping Weight: 2,425 lbs
• 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty
• This part number Freight Prepaid

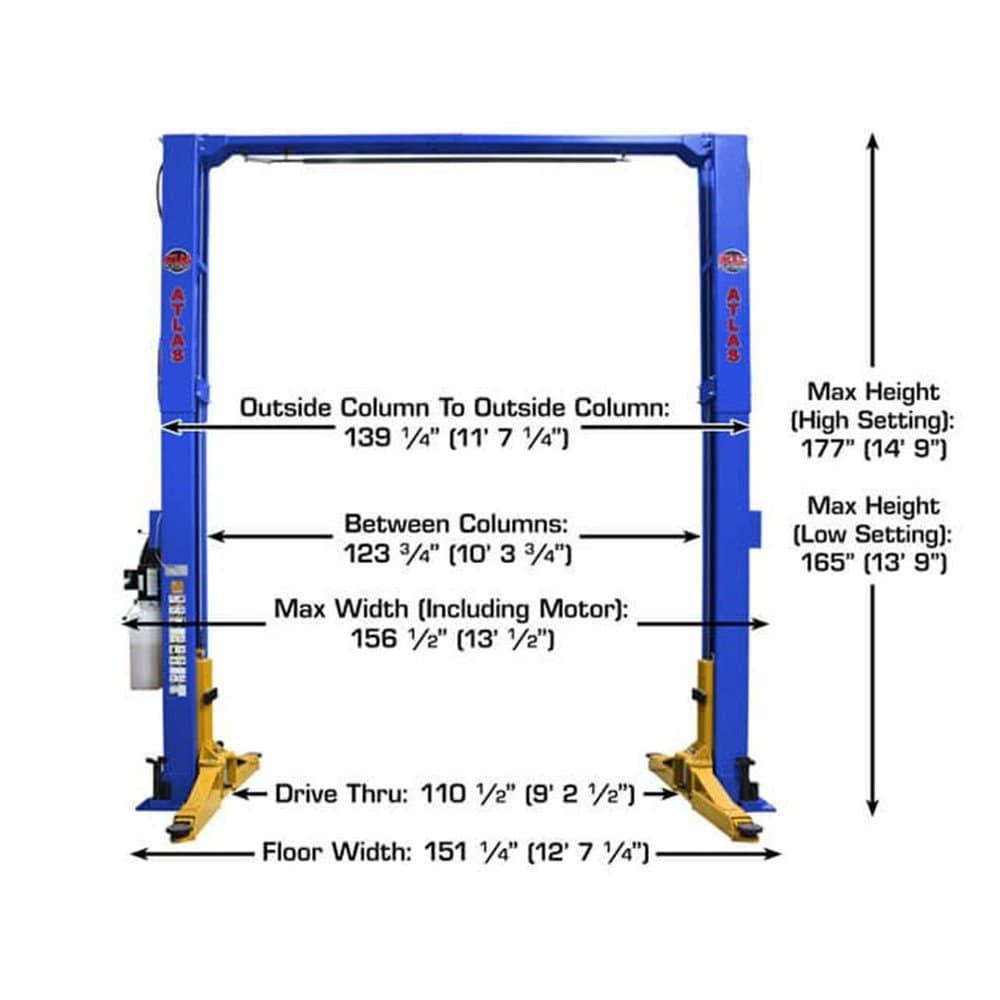

Atlas® AP-PVL12 Specifications:

• Capacity 12,000 LB.

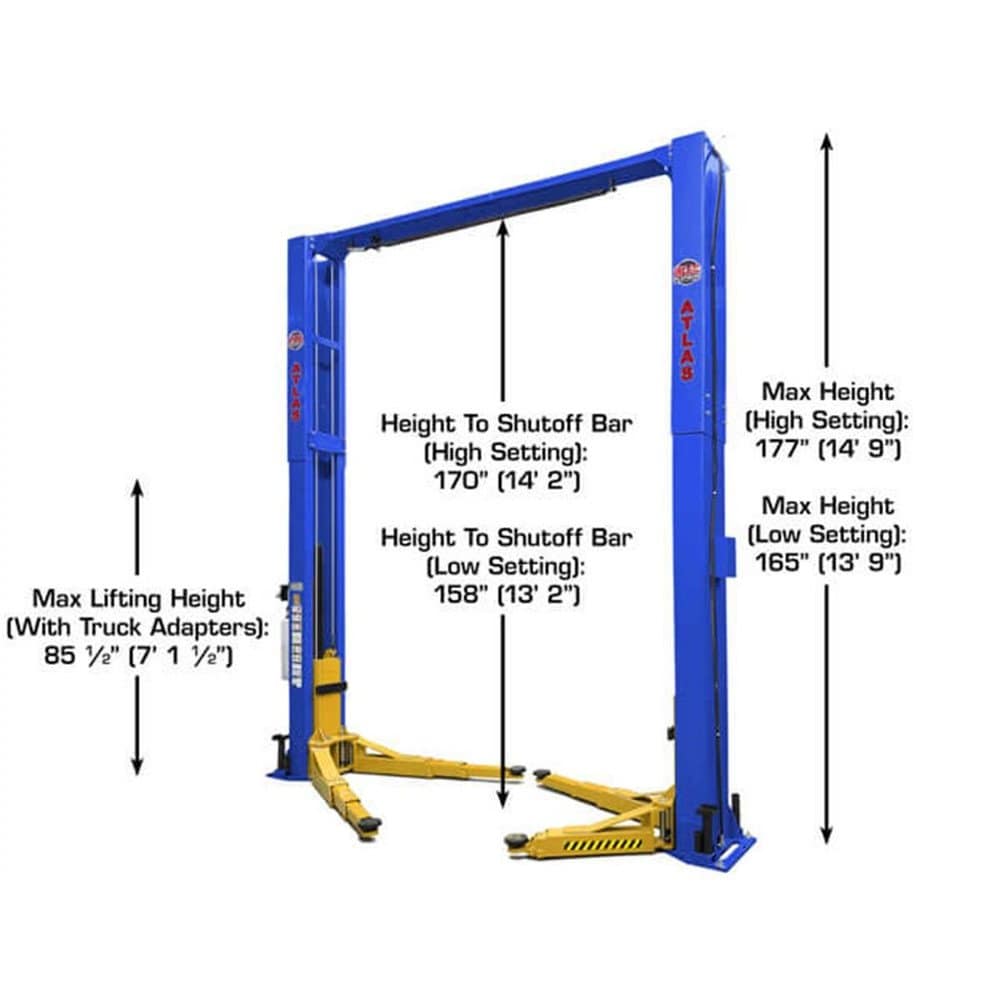

• Overall Height 165″ (13′ 9”) or 177” (14′ 9”)
• Overall Floor Width 150 3/8″ (12′ 6 3/8”)
• Outside Column to Outside Column 139 1/8″ (11′ 7 1/8″)
• Maximum Lift Height (Without Adapters) 73 5/8″
• Maximum Lift Height (With Adapters) 85 1/2″
• Minimum Arm Height 4 1/2″
• Inside Column 122 5/8” (10′ 2 5/8”)
• Drive Thru 109 5/8″ (9′ 1 5/8”)
• Column Size 7 1/2″ x 14 1/2″
• Column Thickness of Steel 6mm

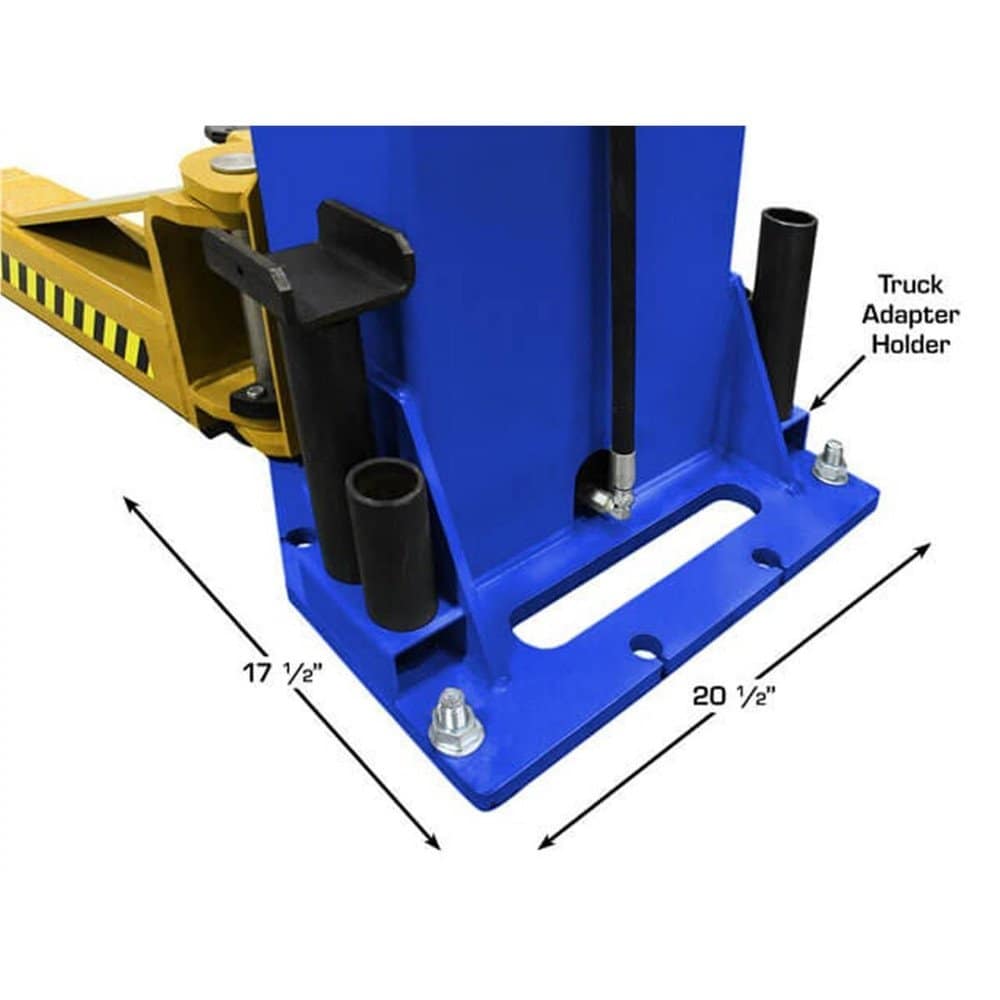

• Base Of Lift 17 1/2″ x 20 1/2″
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 2,425 LBS.

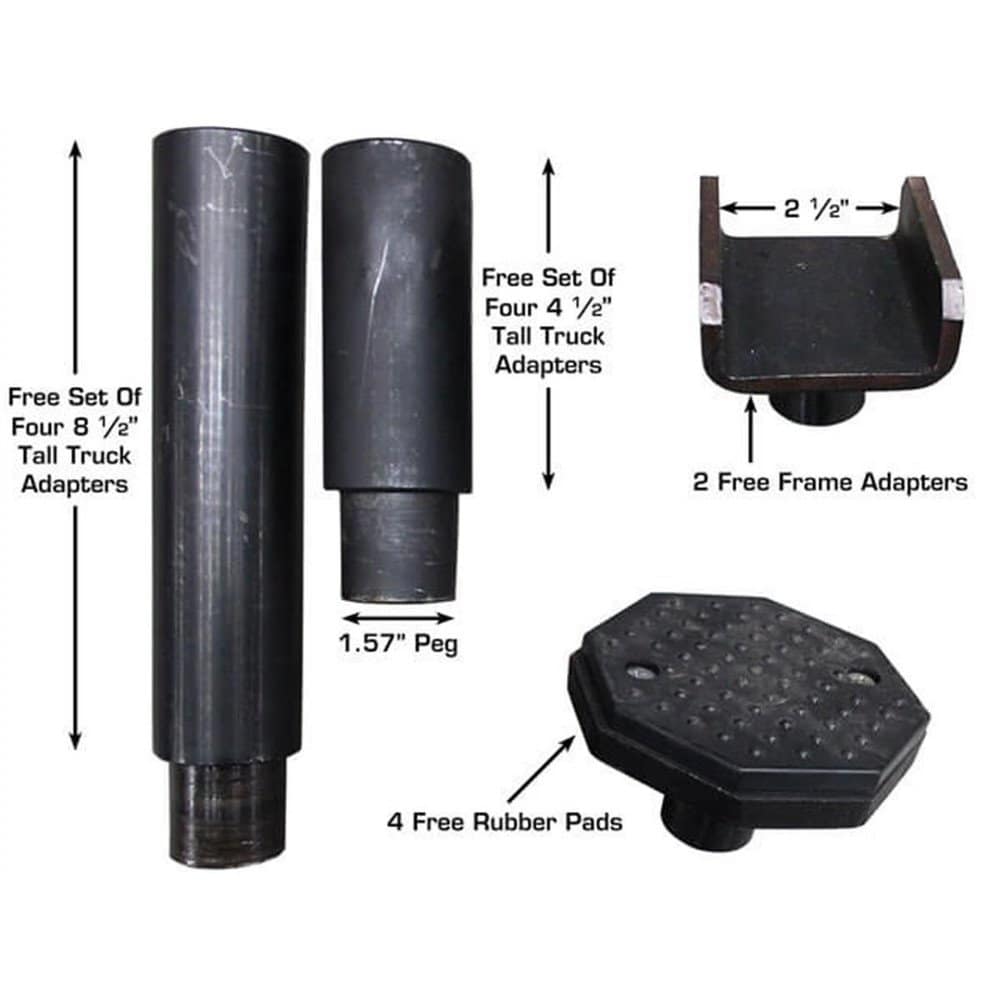

• Adapter Heights 4 Each 4.5”, 8.5”
• Arm Hole/Adapter Peg Size 1.57”

About the Atlas Platinum PVL12 ALI Certified 12,000 lb. Capacity 2-Post Lift

This unit is quality-tested and ready to install. Browse more Two Post Lifts, or contact our team with your VIN for fitment help — with fast, tracked shipping on every order.
