Atlas Platinum PTC300 Tire Changer and PWB50 Wheel Balancer Combo Package
$8,099.00

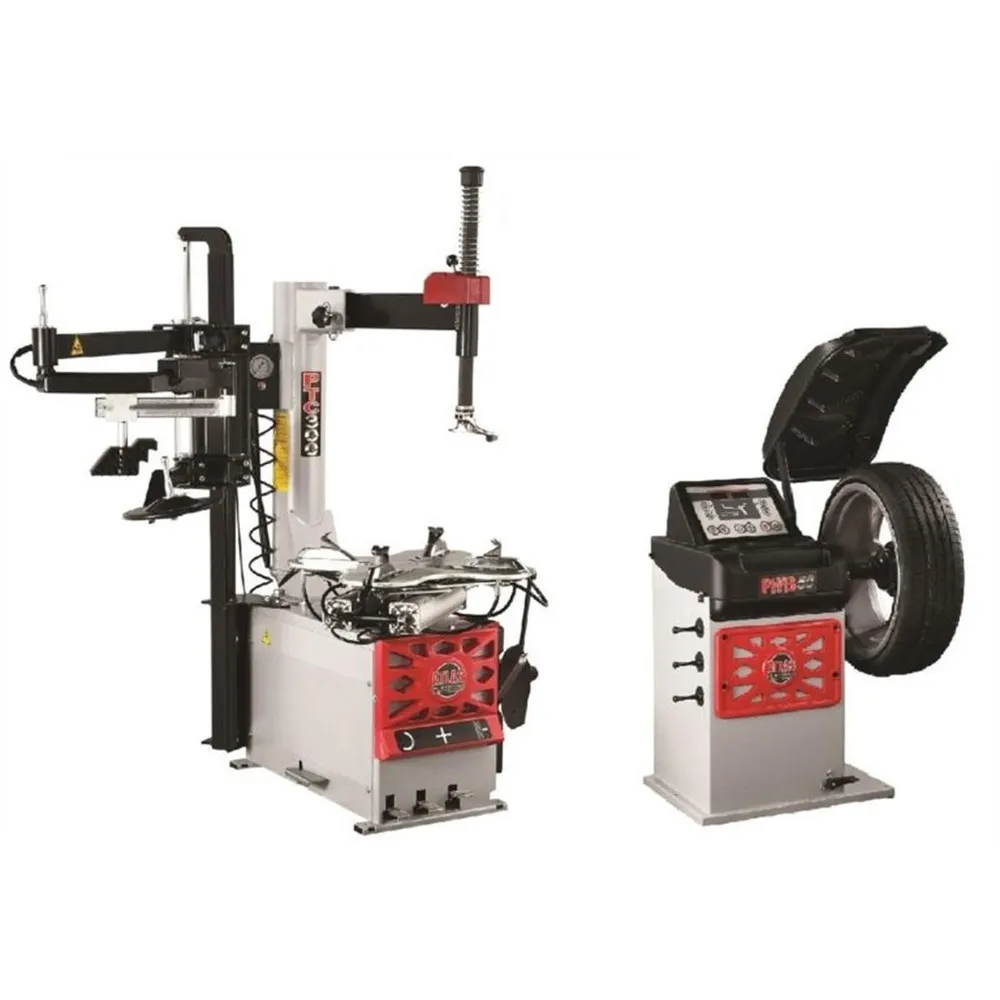

Atlas Platinum PTC300 Tire Changer and PWB50 Wheel Balancer Combo Package
This combination package includes the Atlas® Platinum PTC300 rim-clamp swing arm tire changer & the Atlas® Platinum PWB50-110V computerized spin balancer. This combination is perfect for commercial car repair shops and high volume tire shops. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® Platinum 2 year parts only warranty. This part number is FREIGHT PREPAID.
Description
Atlas Platinum PTC300 Tire Changer and PWB50 Wheel Balancer Combo Package

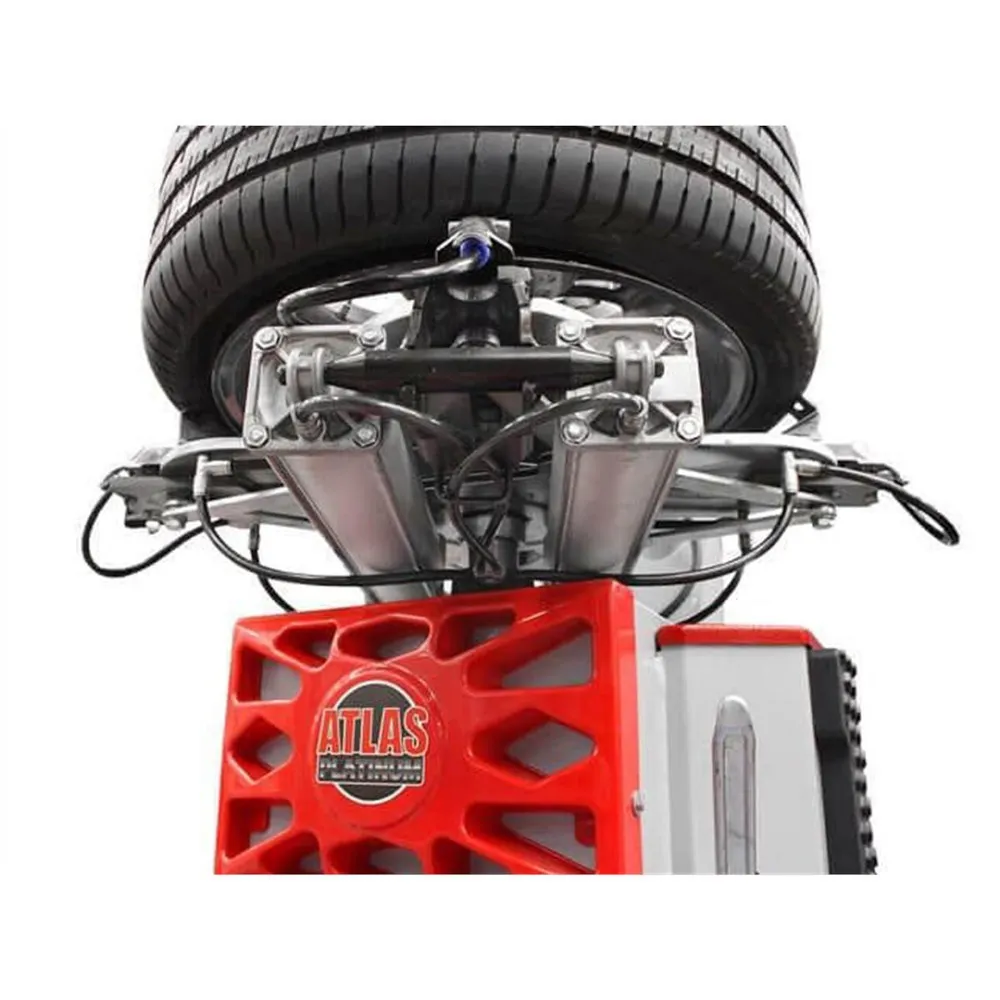

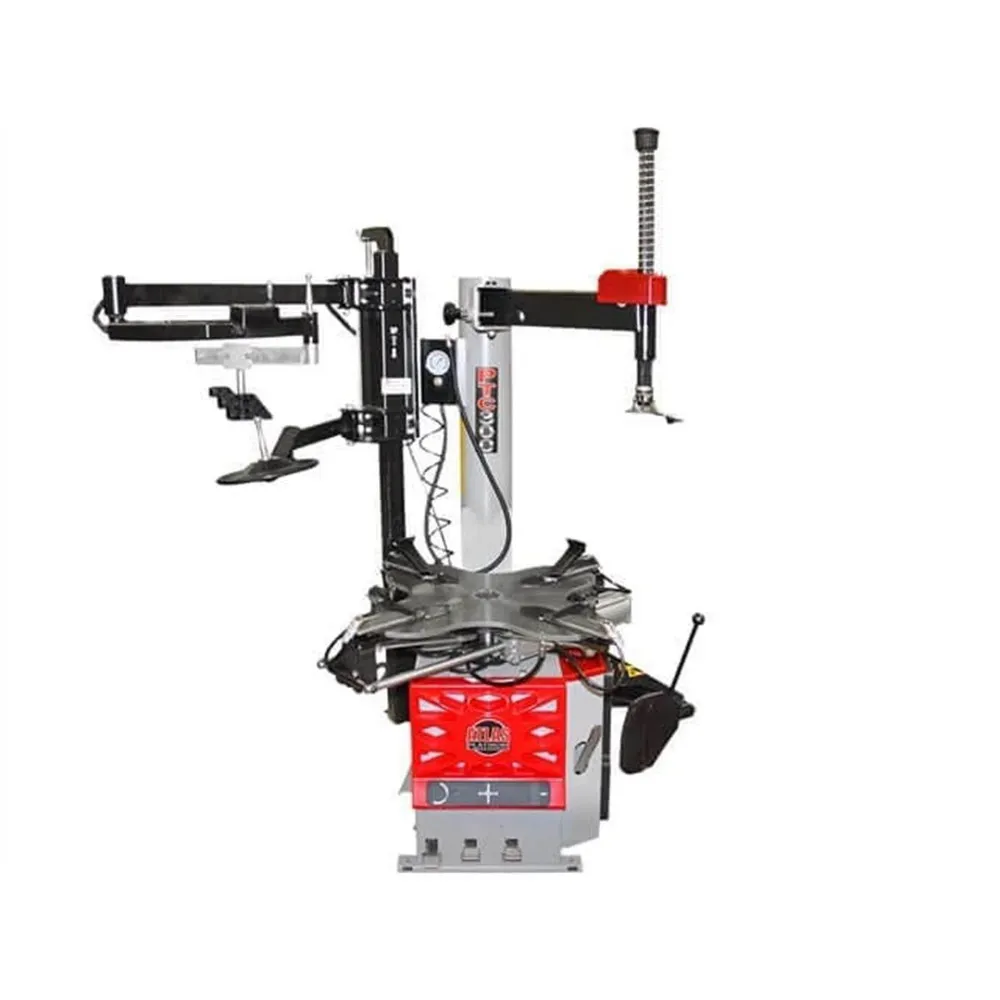

Atlas Platinum PTC300 Tire Changer
Rim Clamp/Swing Arm Tire Changer
Extra Large Star Shaped Turntable
Built-in “Beadblaster”
Left Hand Assist Arm, Pressing/Lifting disk and Pressing Block
Oiler, Filter, Regulator included (external air supply required)
Plastic Protectors included
Tire Tool, Lube Bucket, and Lube Brush Included
Inflation Box w/ Gauge Included

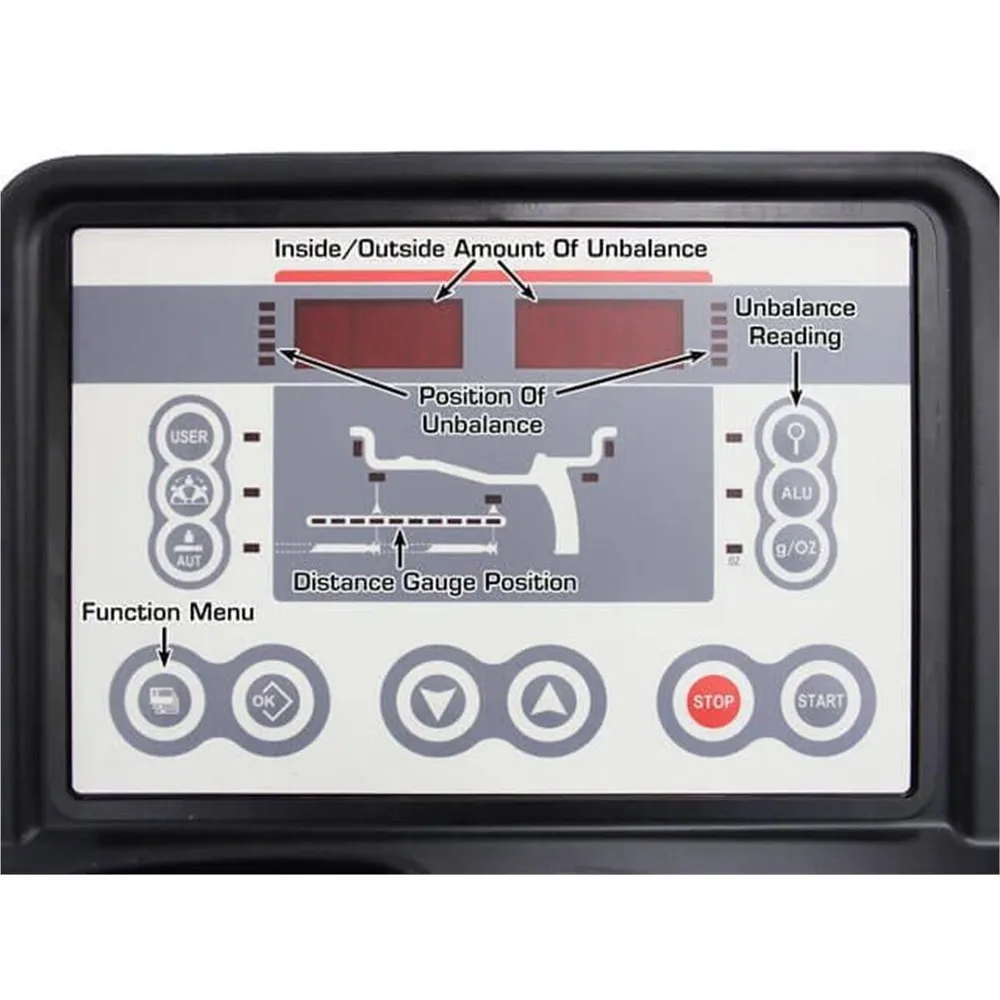

Atlas Platinum PWB50-110V Wheel Balancer
Computer Controlled Spin Balancer
Static and dynamic balancing modes
Automatic 2D Data Entry
Optimatch, FES (Split), OPF (Opposite Position) Functions
Self Diagnosis/Self Calibration
Display in grams or ounces, in mm or inches
4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
Atlas Platinum PTC500 Specifications
External Locking Rim Dimensions: 10″ to 24″
Internal Locking Rim Dimensions: 12″ to 26″
Maximum Tire Diameter: 43″
Maximum Wheel Width (Bead Breaker): 15″
Turntable Rotating Speed: 7 rpm
Bead Breaker: 6924 LB. Force
Operating Pressure: 145 PSI
Electric Requirement: 110volt
Shipping Weight: 620 lbs
Atlas Platinum PWB50-110V Specifications
Max Tire Diameter: 43″
Rim Sizes (Cars & Light Trucks): 10″ – 30″
Rim Width: 1 1/2″ – 20″
Shaft Size: 40mm
Max Wheel Weight: 165 lbs.
Balancing Speed: 130 rpm
Data Entry: Automatic 2D
Measurement: Standard or Metric
Accuracy: 1 gram
Weight Position Resolution: 1.4 Degrees
Self Calibrating: YES
Cycle Time: 7 seconds
Electric Requirement: 110volt
Shipping Weight: 230 lbs
Accessories Available
Center Post Adapter
Light Truck Adapter Kit
Universal Lugcentric Adapter
Air-Operated Wheel Lift
