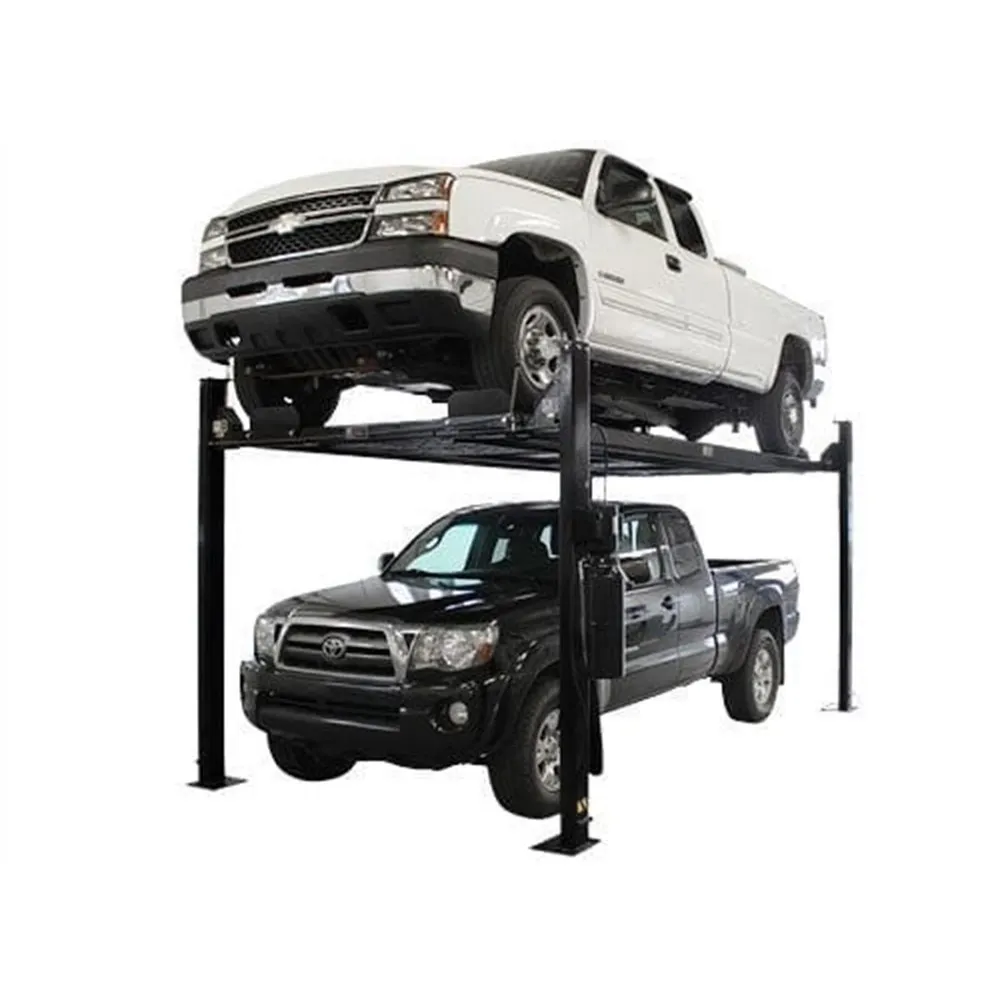

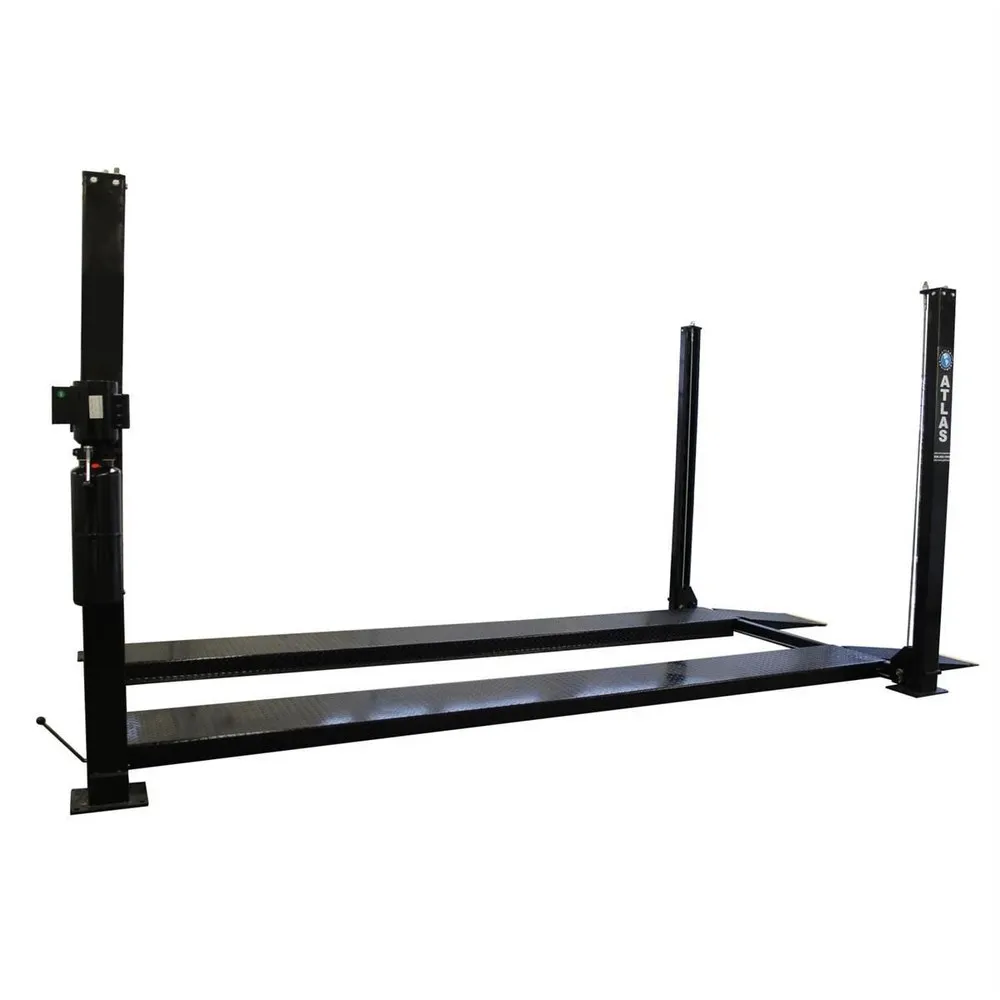

Atlas Garage PRO8000EXT-L Extra Tall/Extra Long Portable Hobbyist 8,000 lb. Capacity 4-Post Lift

• 8,000 lb. Capacity
• Free Standing/Portable Design
• Extra Tall/Extra Long
• Diamond Plated Runways
• Single-Point Lock Release

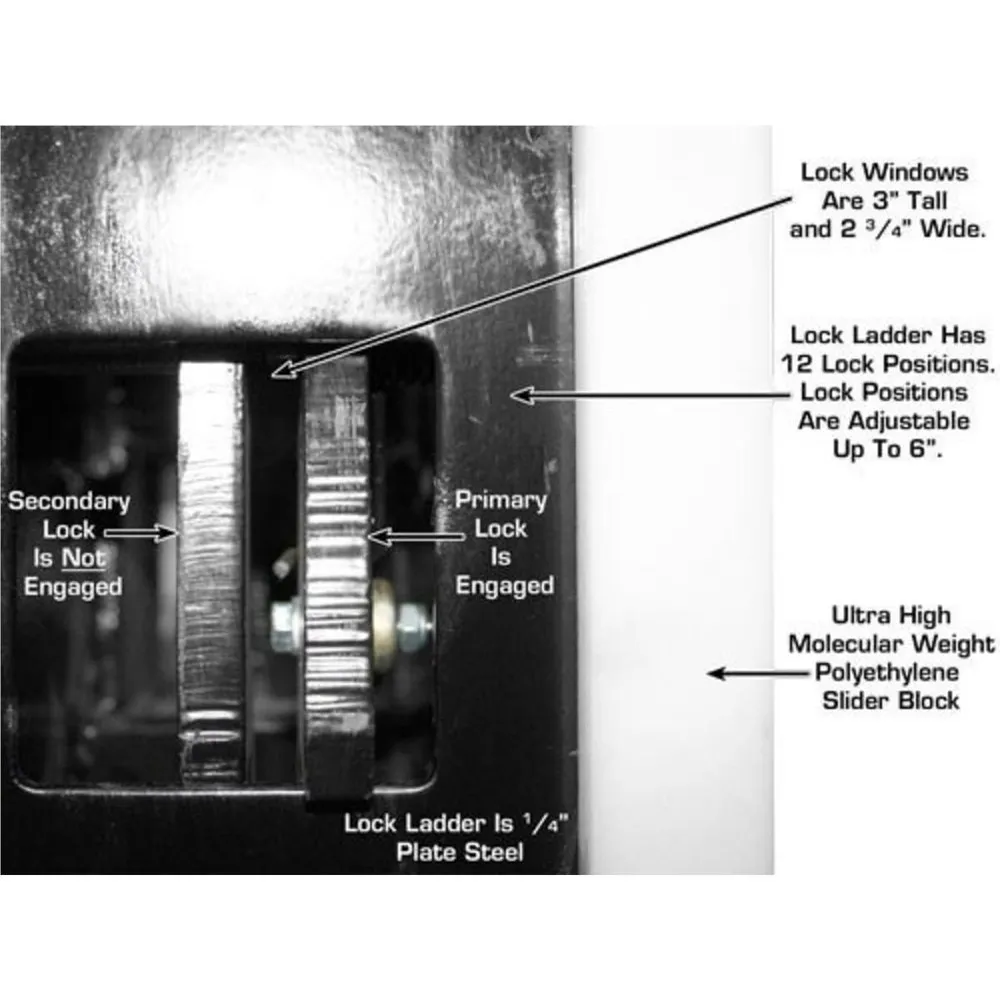

• Lock Ladder Design

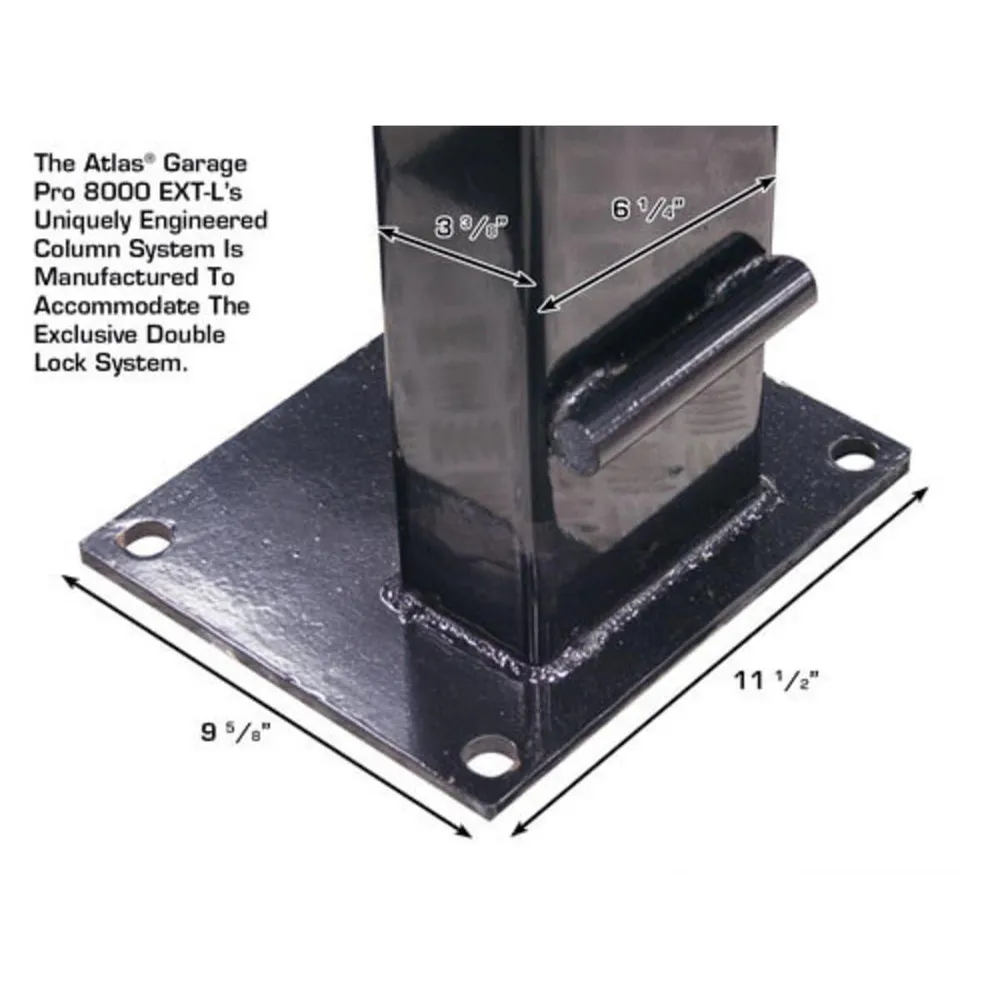

• Double Lock Safety System
• Caster Kit With Polyurethane Wheels Included

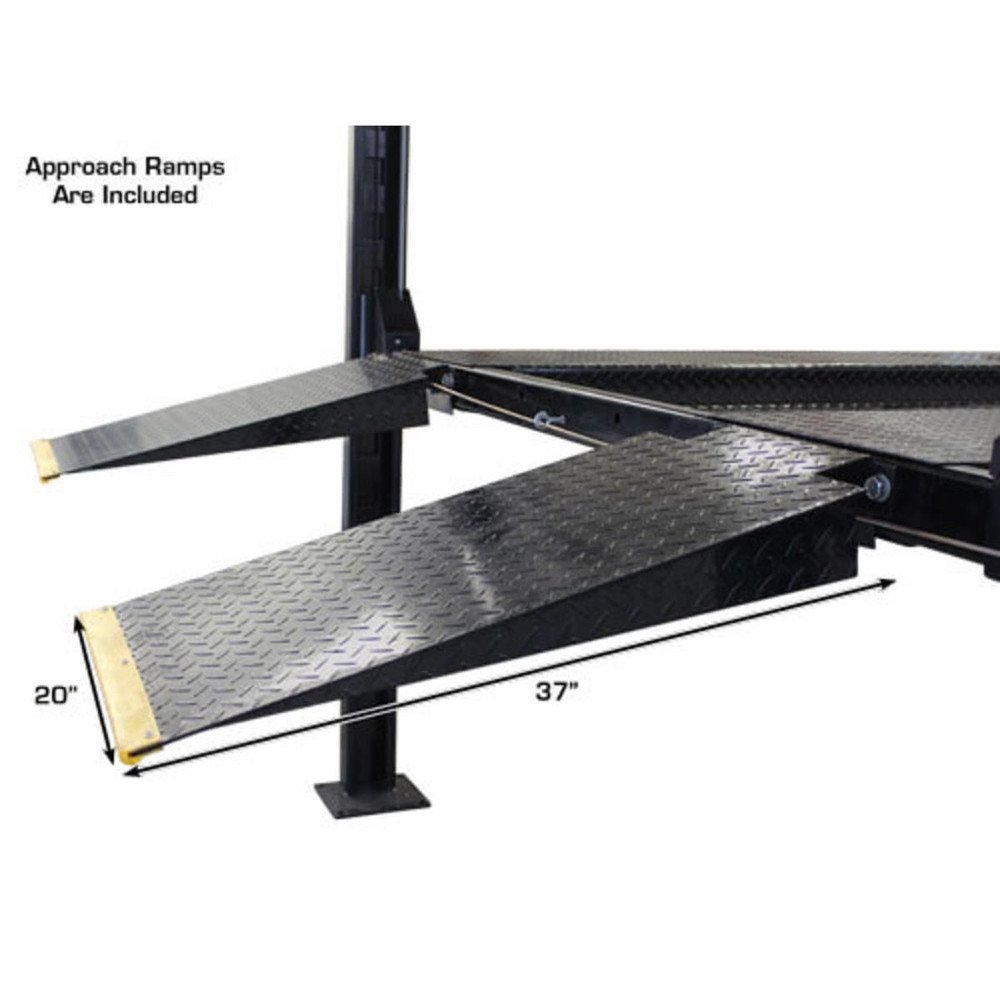

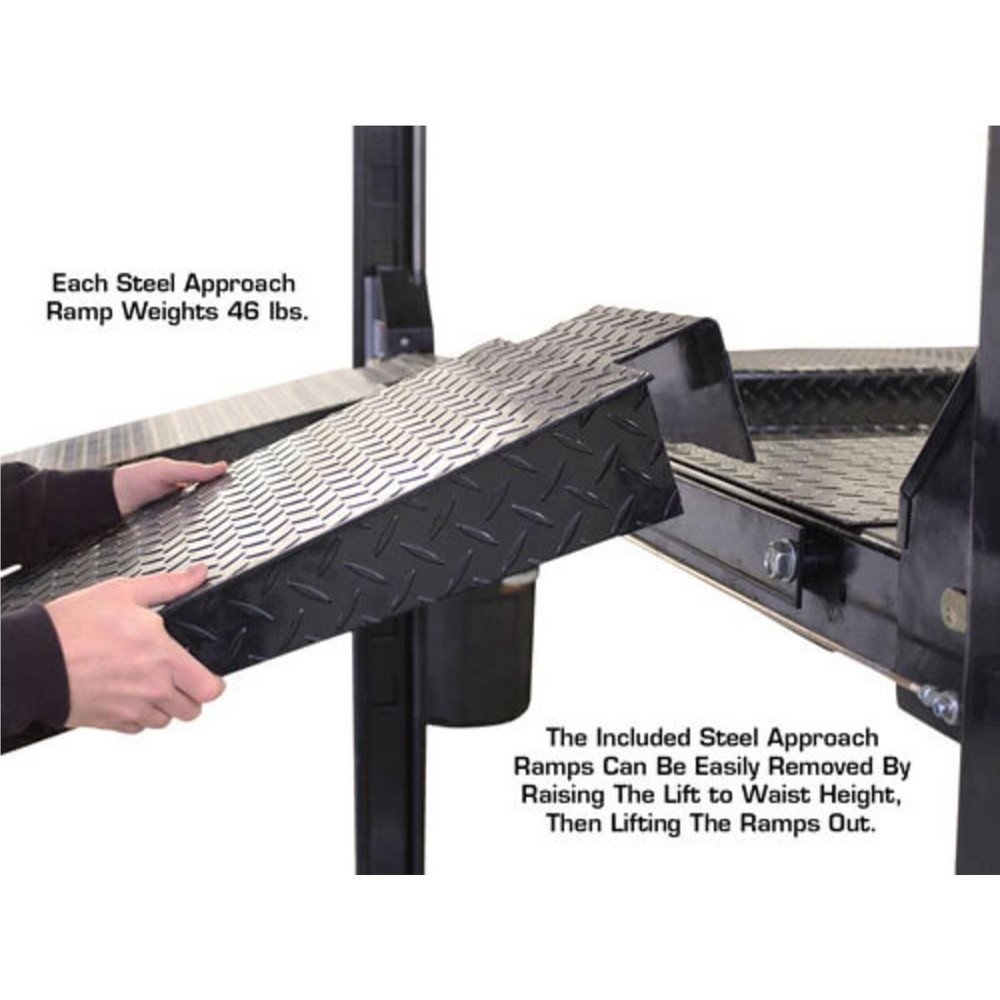

• Steel Approach Ramps Included

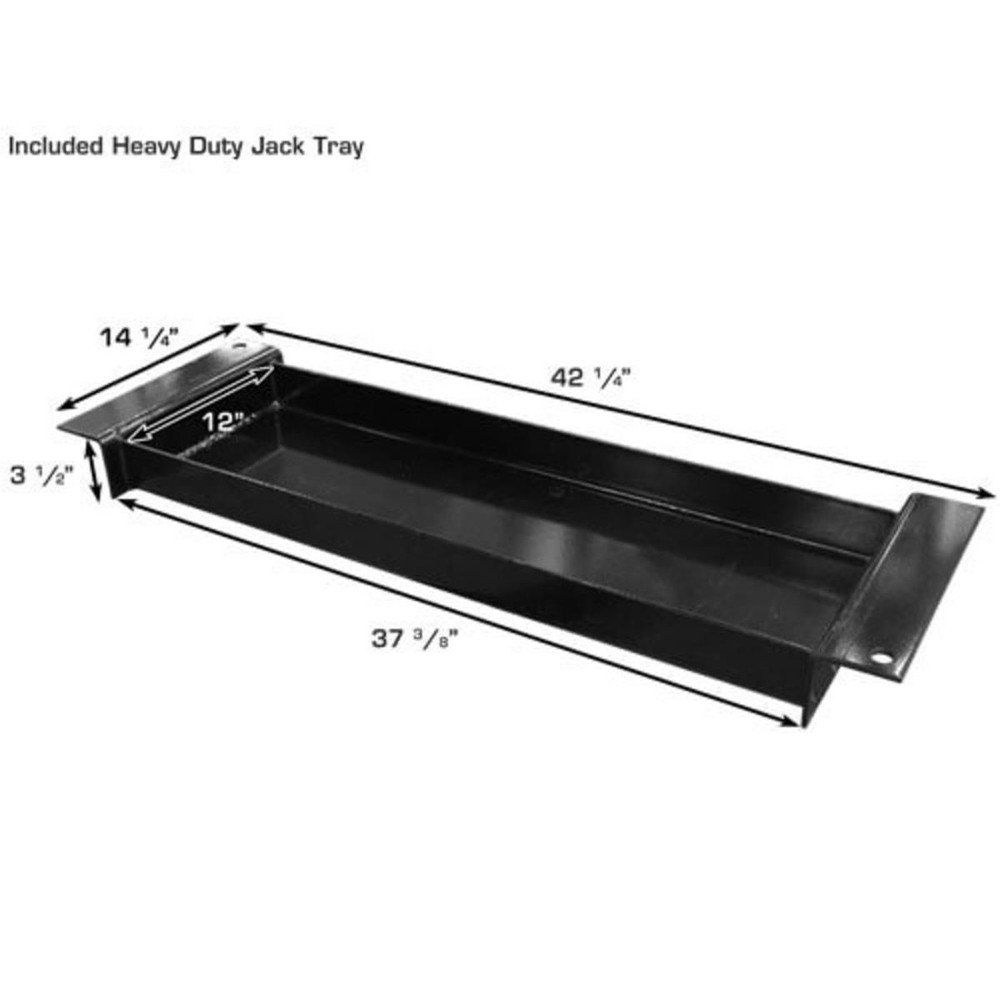

• Steel Jack Tray Included

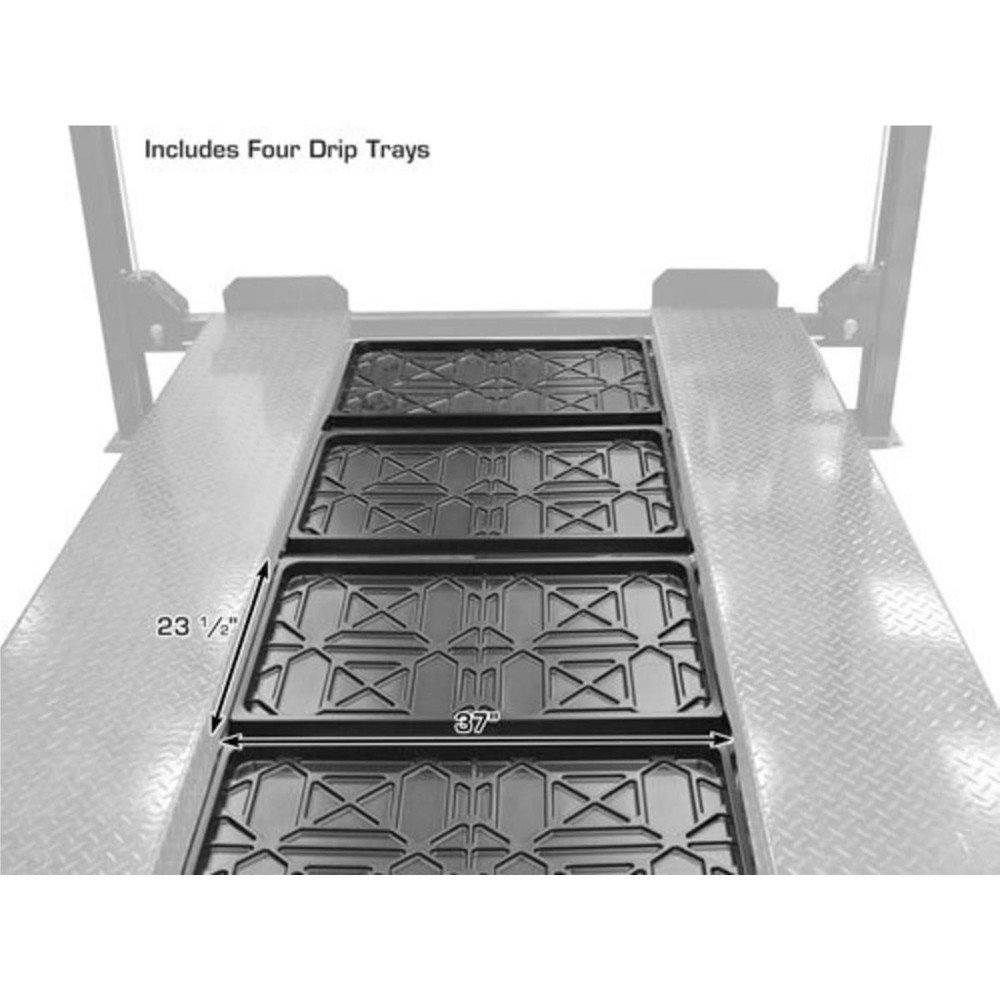

• 4 Plastic Drip Trays Included
• 4 Wheel Stops Included

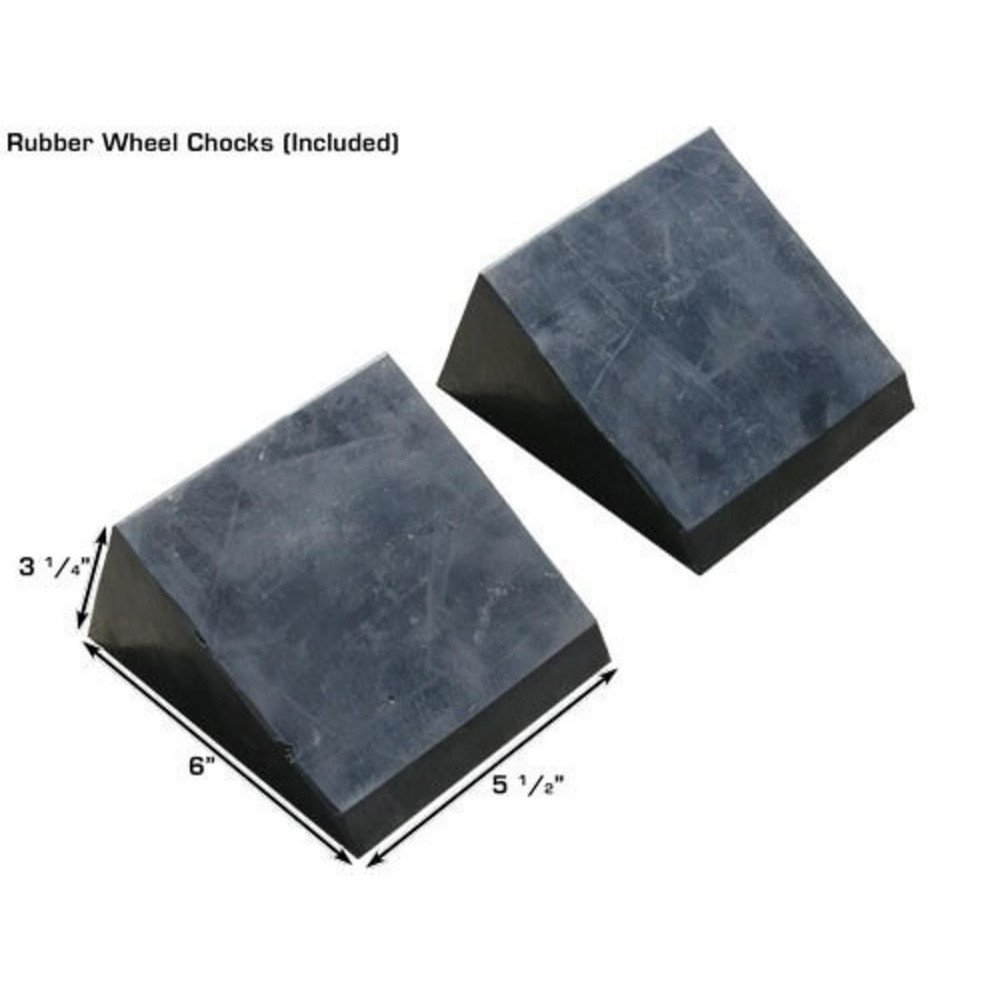

• 2 Rubber Wheel Chocks Included
• Perfect For Storing Or Working On Vehicles
• 110volt Electric Operation (30 AMP BREAKER REQUIRED)
• Shipping Weight 1,900 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
• This part number FREIGHT PREPAID

• Capacity 8,000 lbs.

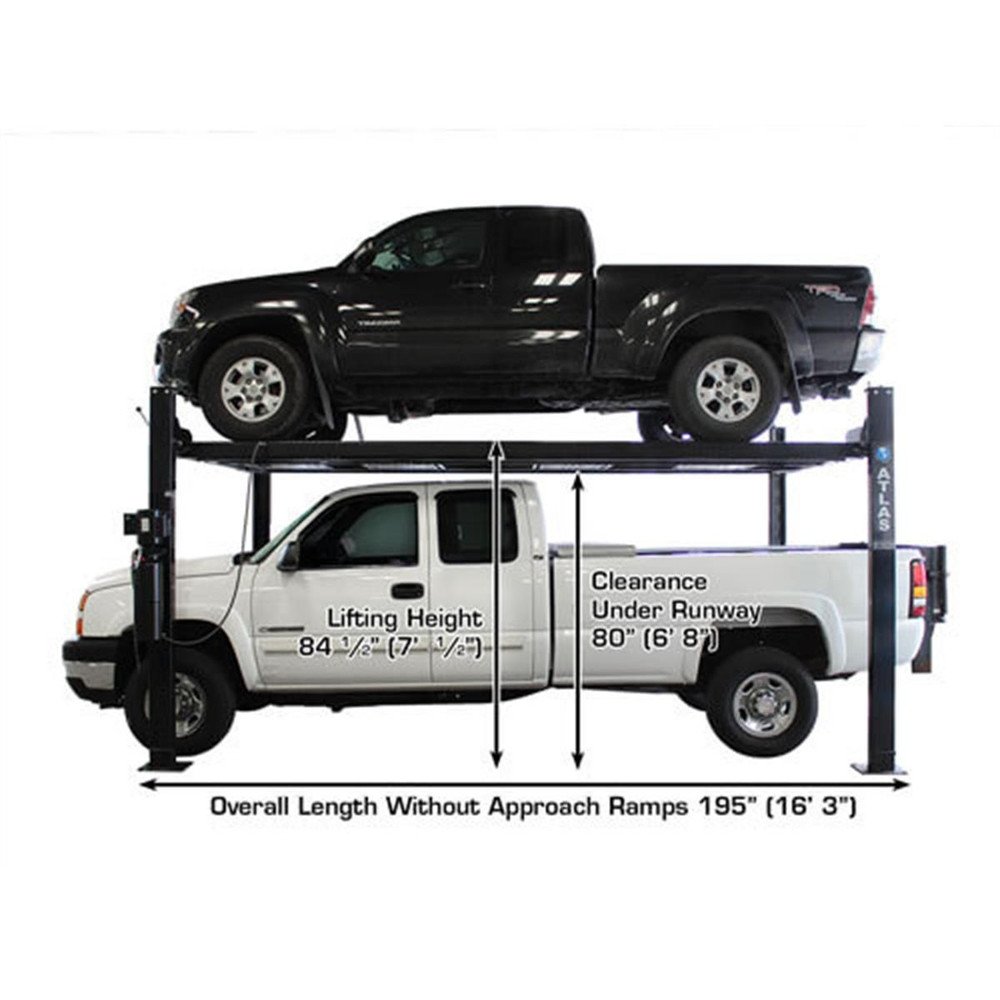

• Lifting Height To Top Of Runway 84" (7')
• Clearance Under Runways 78 1/2" (6' 6 1/2")

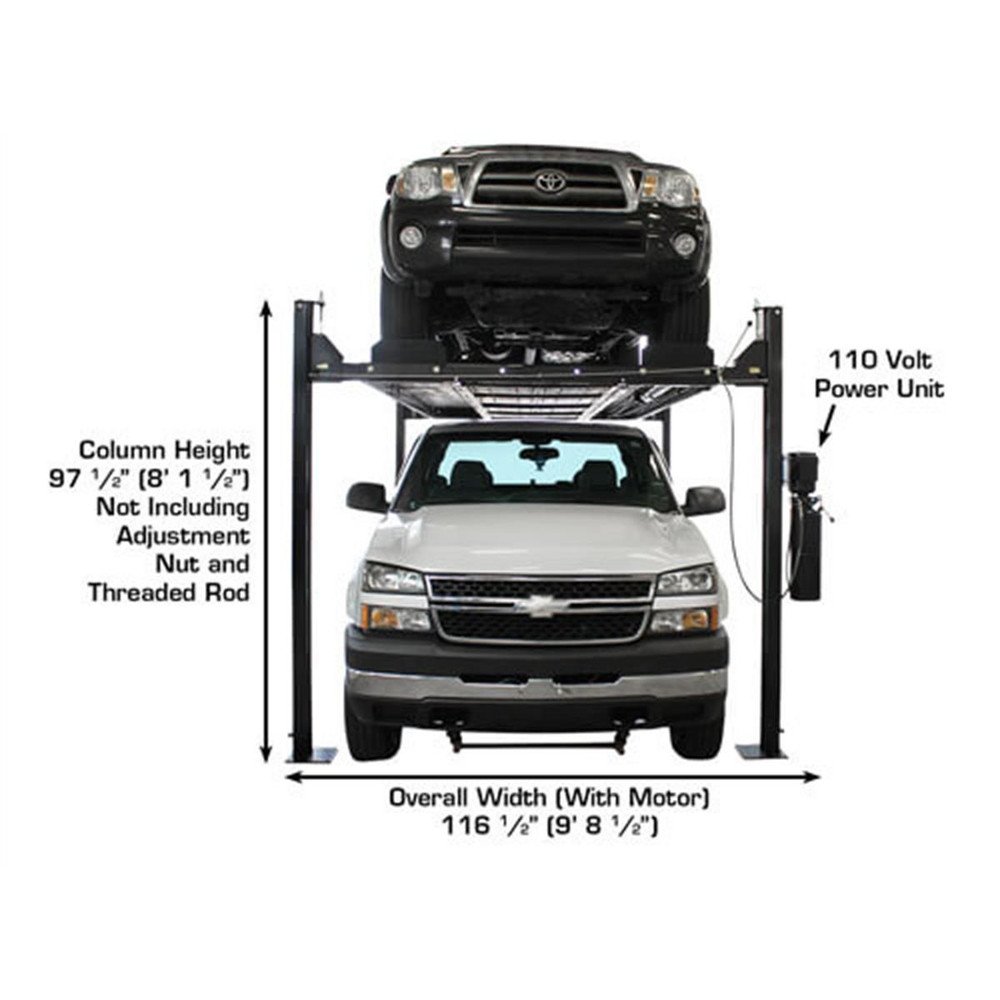

• Height Of Columns 98 1/2" (8' 2 1/2")

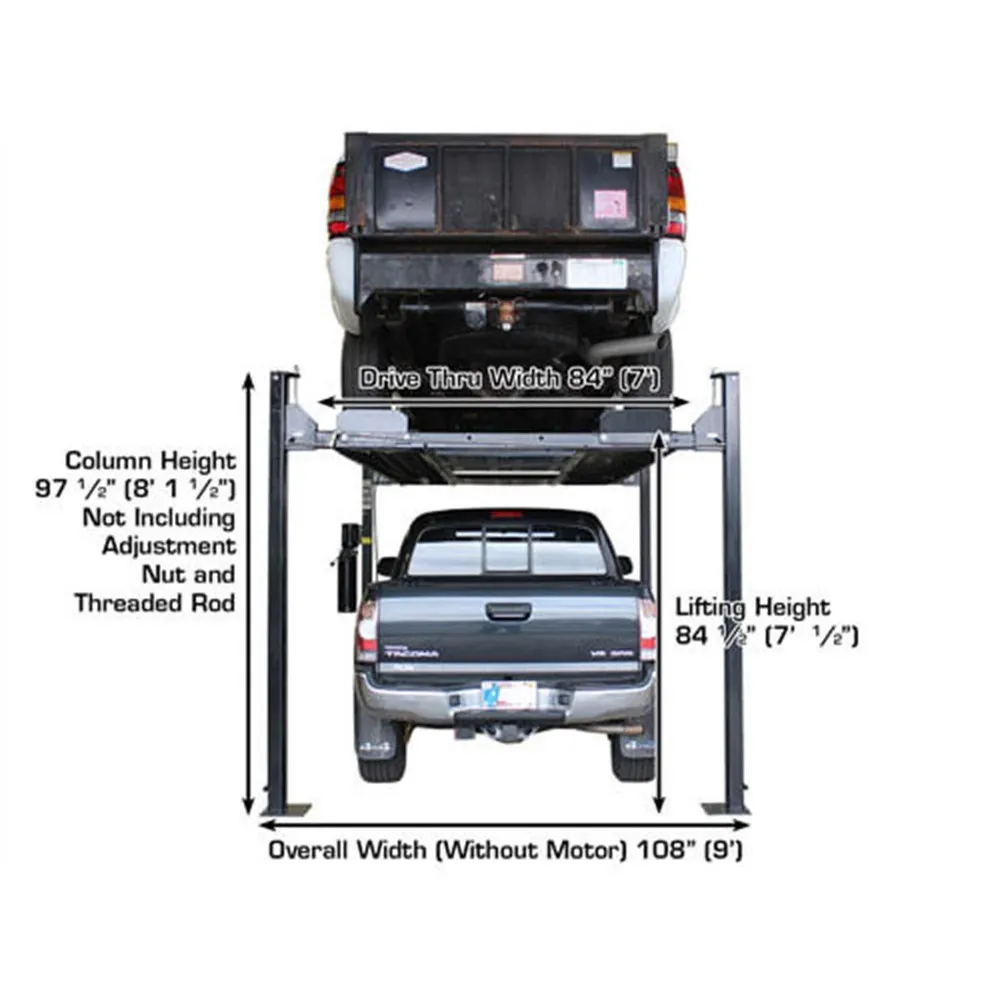

• Overall Width (Without Motor) 108" (9')
• Overall Width (With Motor) 116 1/2" (9' 8 1/2")
• Overall Length With Approach Ramp 222" (18' 6”)
• Approach Ramp 37" (3' 1")
• Runway Width 22" (w/ Rails) or 18 3/4" (Driving Surface)

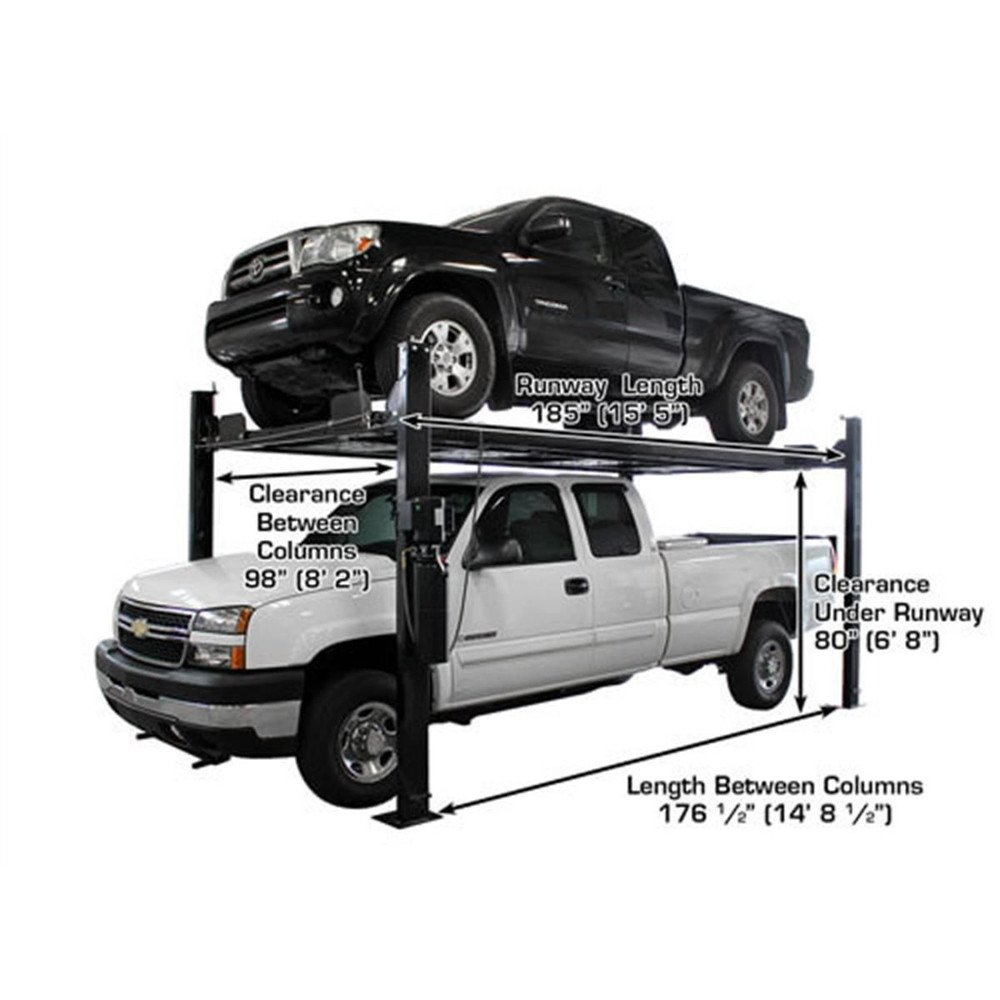

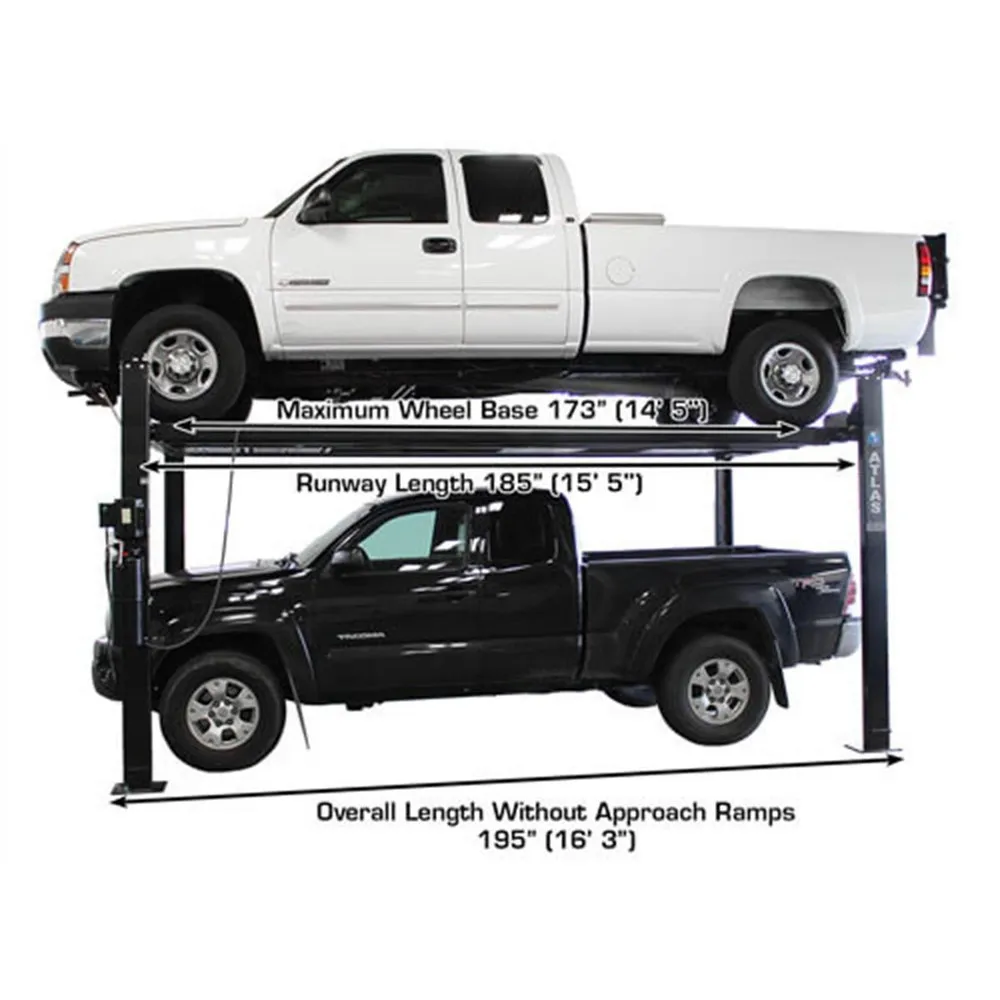

• Runway Length 185" (15' 5”)
• Runway Thickness 4 1/2"
• Width Between Runways 38" (3' 2")
• Width Between Runway Rails 34" (2' 10")
• Outside Runway To Outside Runway 77 3/4" (6' 5 3/4")
• Clearance Between Columns 98" (8' 2")
• Length Between Columns 176 1/2" (14' 8 1/2")
• Maximum Wheel Base 173" (14' 5")
• Drive Thru (Outside Of Tire To Outside Of Tire) 84" (7')
• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
• Shipping Weight 1,900 lb.

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
