$10,099.00

The Atlas PRO7000ST is a 7,000-lb. four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Features & Benefits

  • 7,000 lb. Capacity
  • Heavy Duty
  • “Super Tall” Lifting Height
  • Extra Wide & Extra Long
  • Diamond Plated Runways

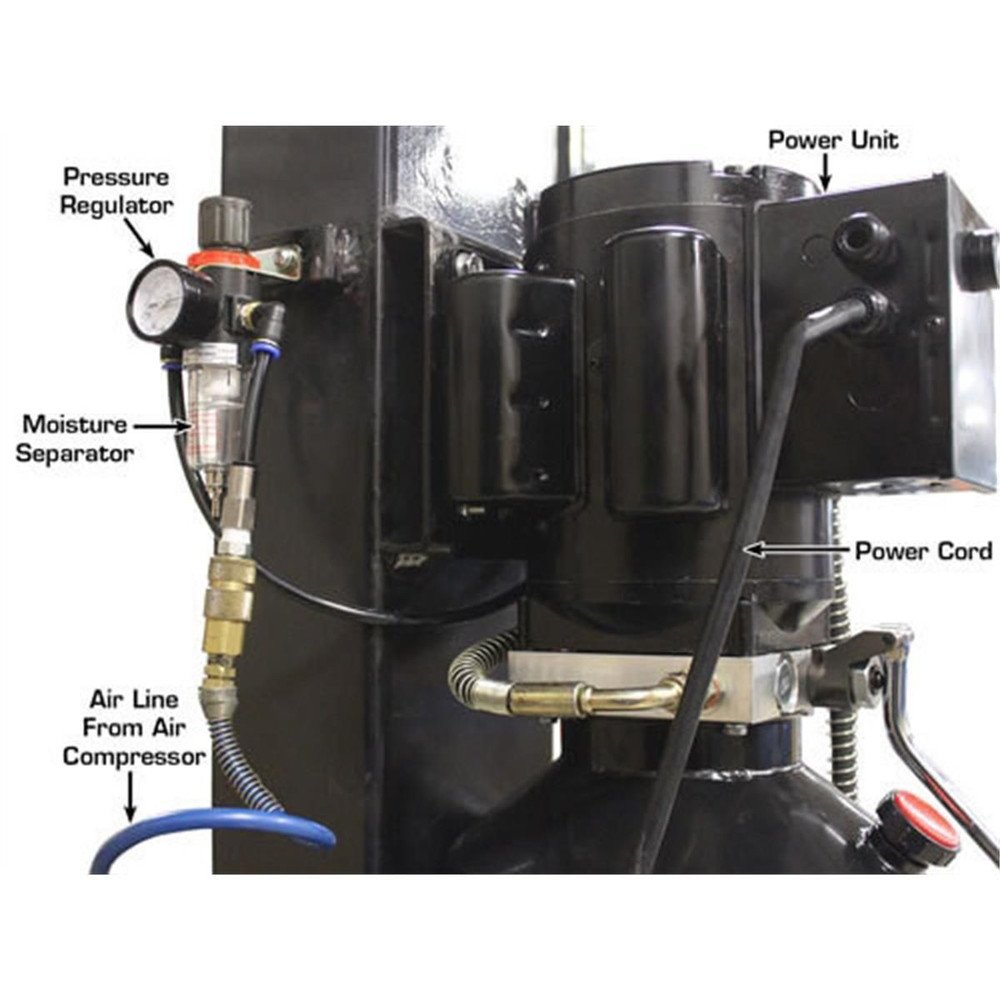

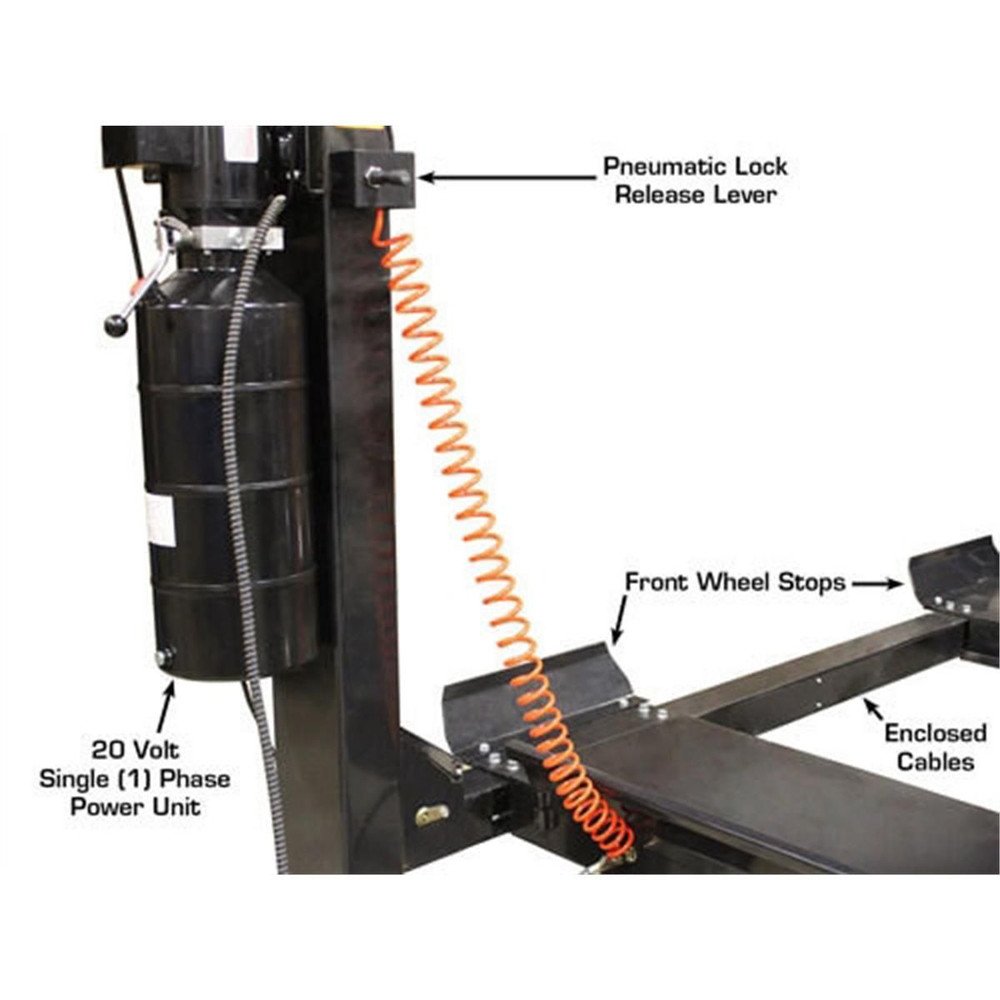

  • Single Point Release, Pneumatic Locks
  • Lock Ladder Design

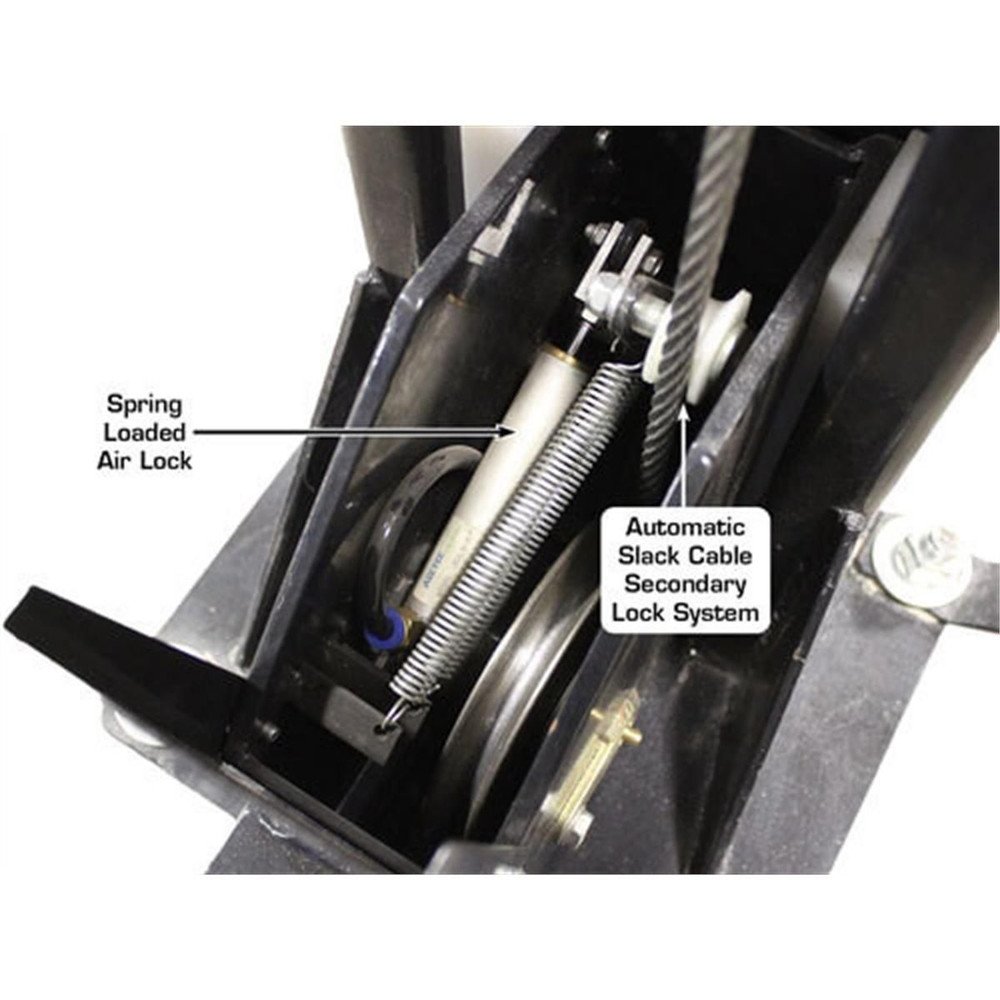

  • Double Lock Safety System
  • Steel Approach Ramps Included

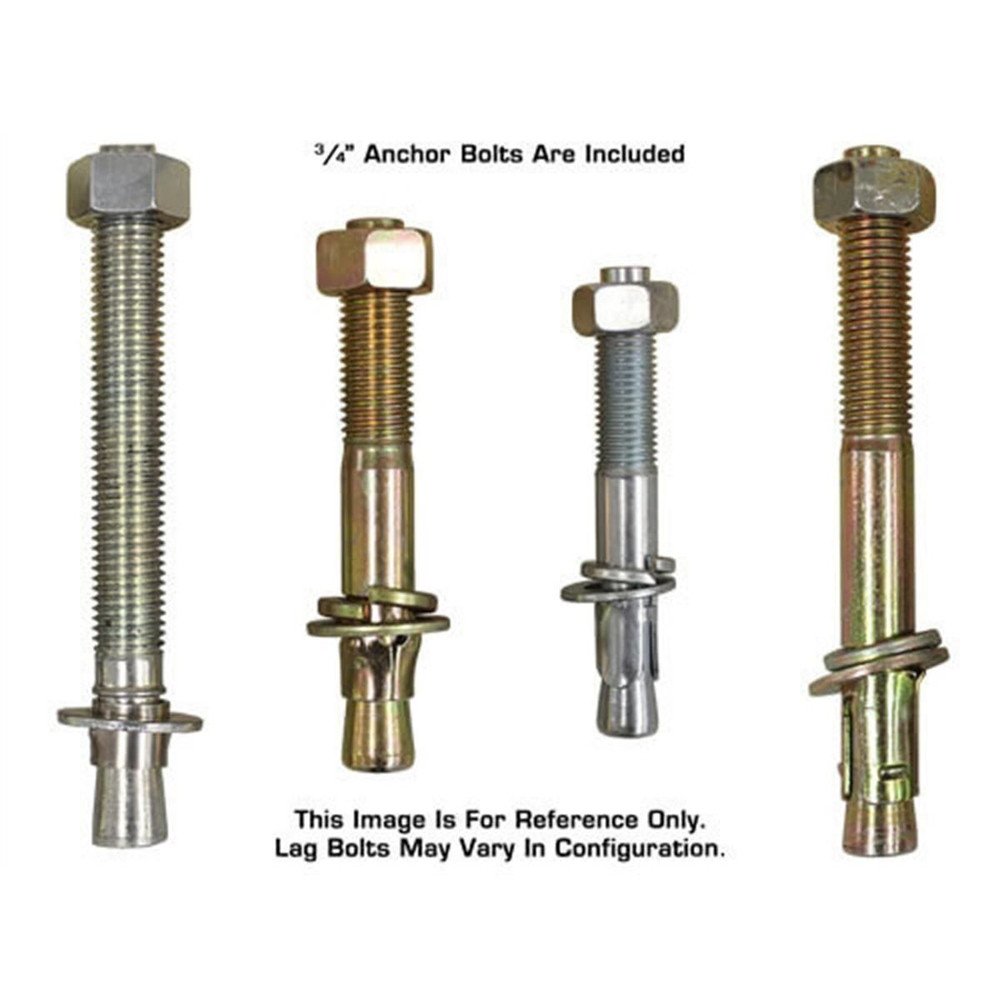

  • Mounting Hardware Included

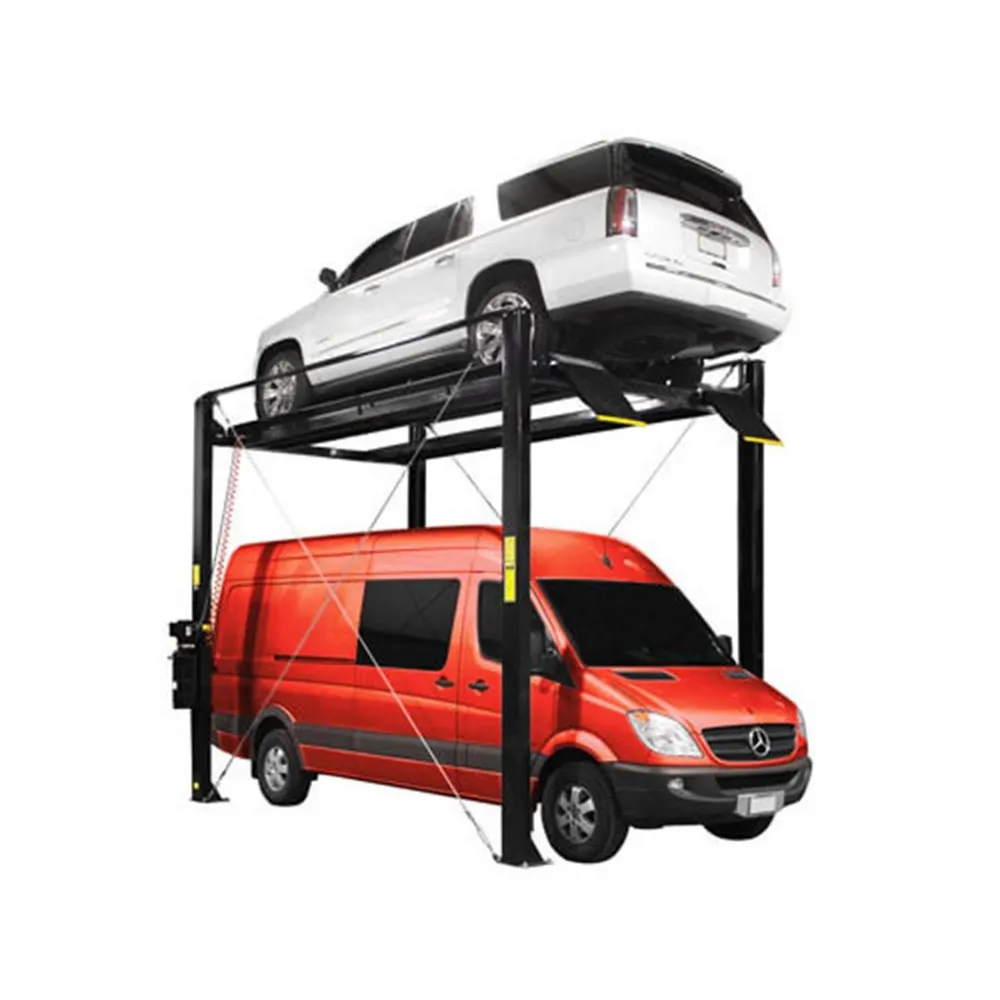

  • Perfect for Storage or Working on Vehicles
  • 220volt/1phase Electric Operation (Requires 30amp Breaker)
  • 2 Year Structural/1 Year Hydraulic Warranty
  • Shipping Weight: 2,866 lbs.
  • This part number FREIGHT PREPAID

Atlas® Garage PRO7000ST Specifications:

  • Capacity: 7000 lbs
  • Lifting Height, Top of Runway: 147″ (12′ 3″)
  • Clearance Under Runways: 142″ (11′ 10″)

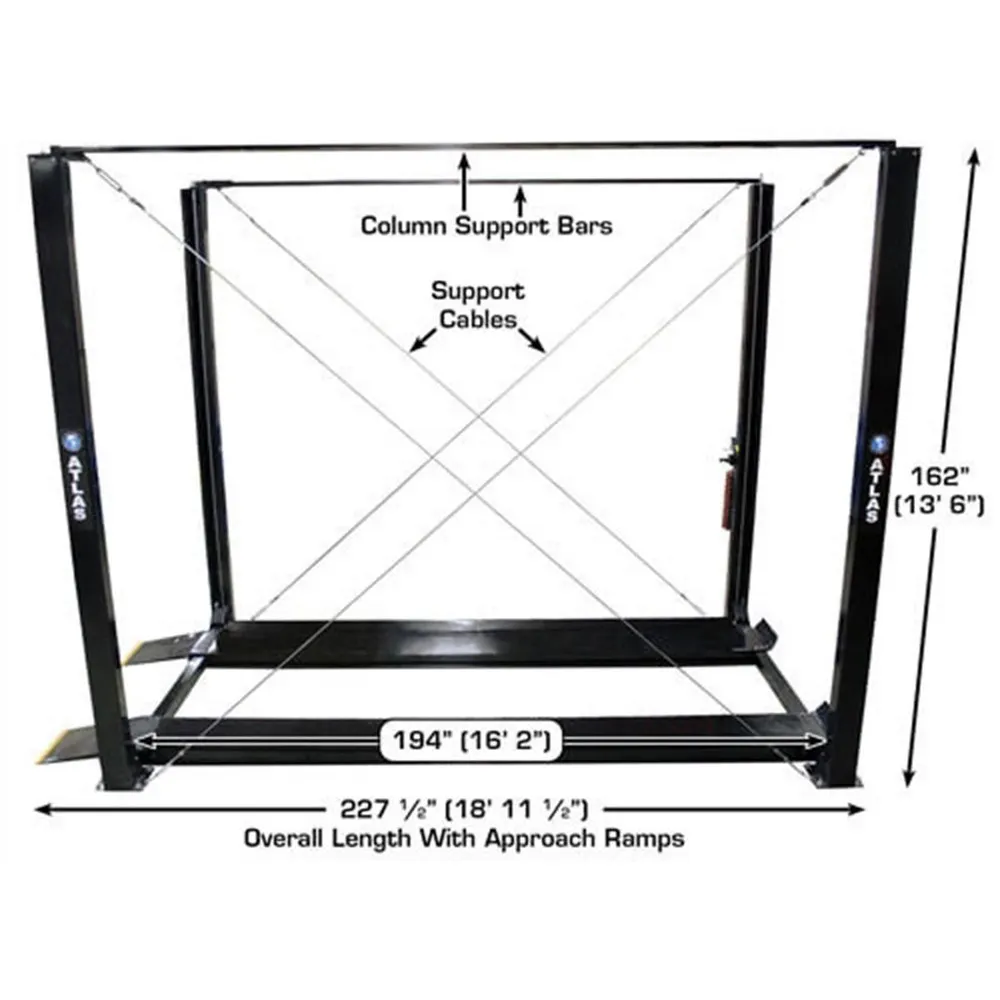

  • Height of Columns: 162″ (13′ 6″)
  • Overall Width: 110 1/2″ (9′ 2 1/2″) w/ motor 123″ (10′ 3″)
  • Overall Length w/ Ramps: 227 1/2″ (18′ 11 1/2″)
  • Runway Length: 194″ (16′ 2″)

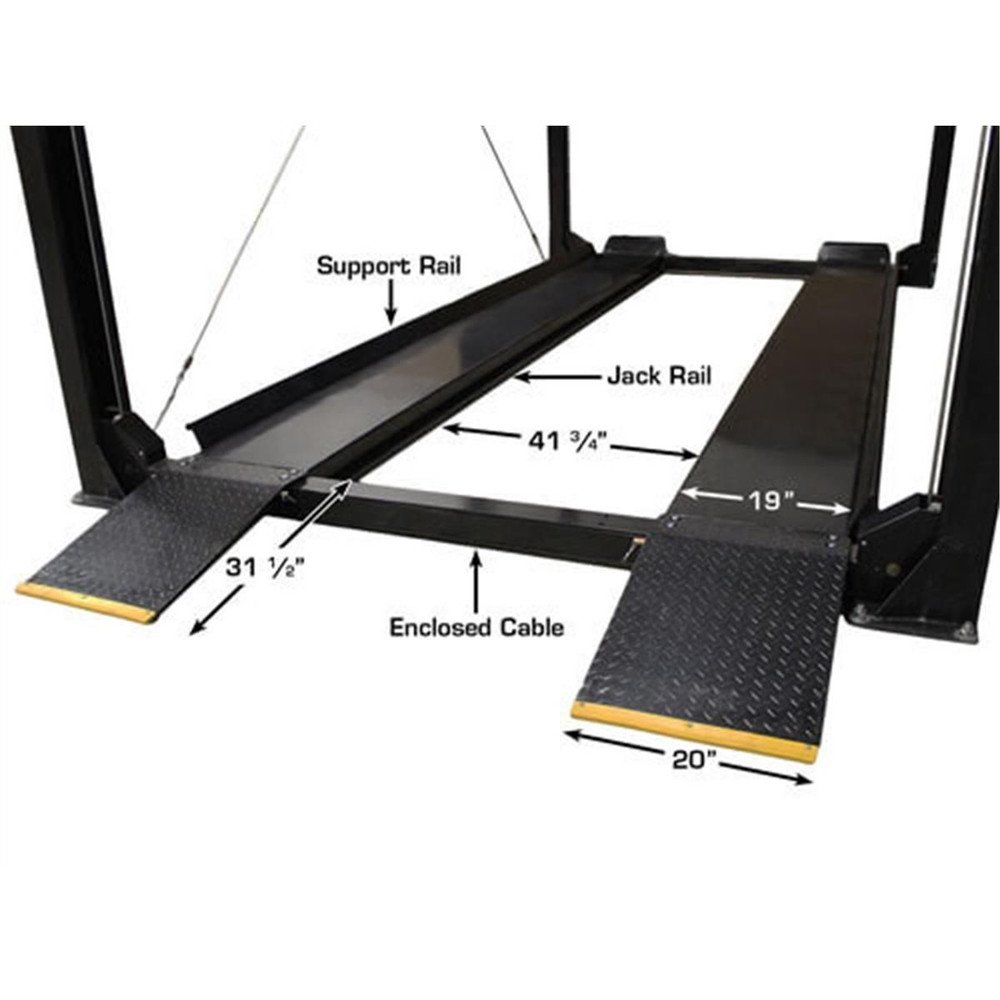

  • Runway Width: 21″
  • Runway Thickness: 4 1/2″
  • Width Between Runways: 45″ w/ Rail 41 3/4″
  • Outside Runway to Outside Runway: 83″ (6′ 11″)
  • Clearance Between Columns: 100″ (8′ 4″)
  • Length Between Columns: 185″ (15′ 5″)
  • Drive Thru: 82 1/2″ (6′ 10 1/2″)
  • Motor/Electrical Requirement: 220volt/1phase, 30 amp breaker required
  • Oil Requirement: 5 Gallons AW32 or AW46 (NOT INCLUDED)
  • Shipping Weight: 2866 lbs

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
