$6,449.00

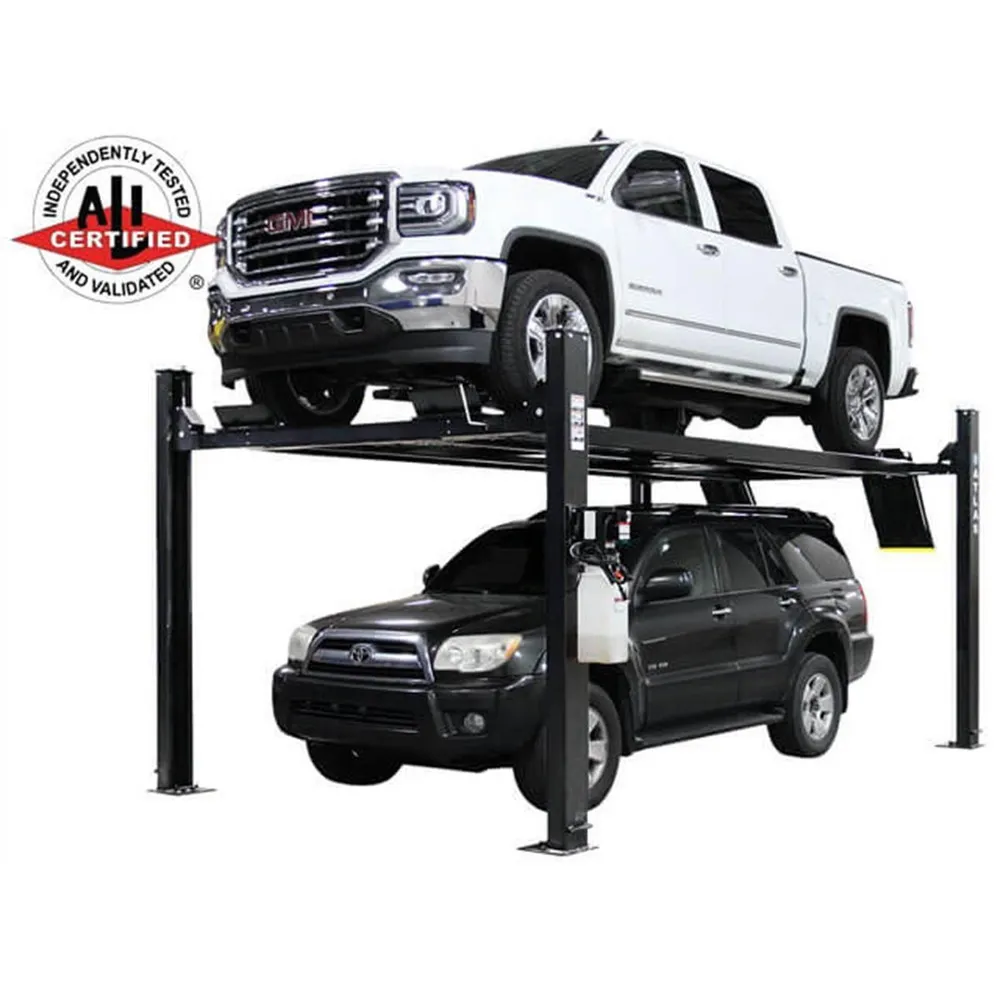

The Atlas Apex 9 Capacity 4-Post Lift is a 9,000-lb. ALI Certified four-post lift. Confirm your ceiling height, floor and power supply before ordering — we ship by freight and can check the install with you.

In Stock
Category:
Brand:

Description

Features & Benefits

  • ALI Certified Lift
  • 9,000 lb. Capacity
  • Free Standing/Portable Design
  • Heavy Duty
  • Extra Tall, Extra Wide & Extra Long
  • Powder Coat Finish
  • Diamond Plated Runways

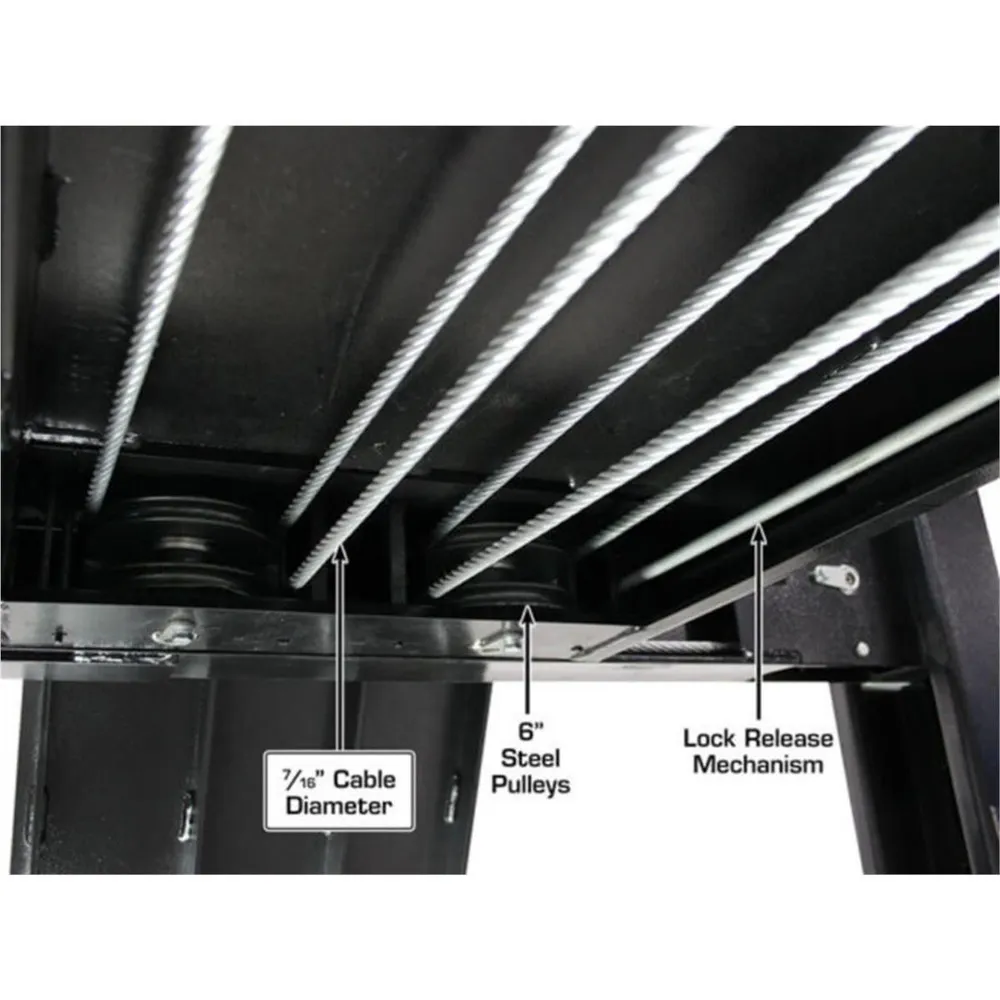

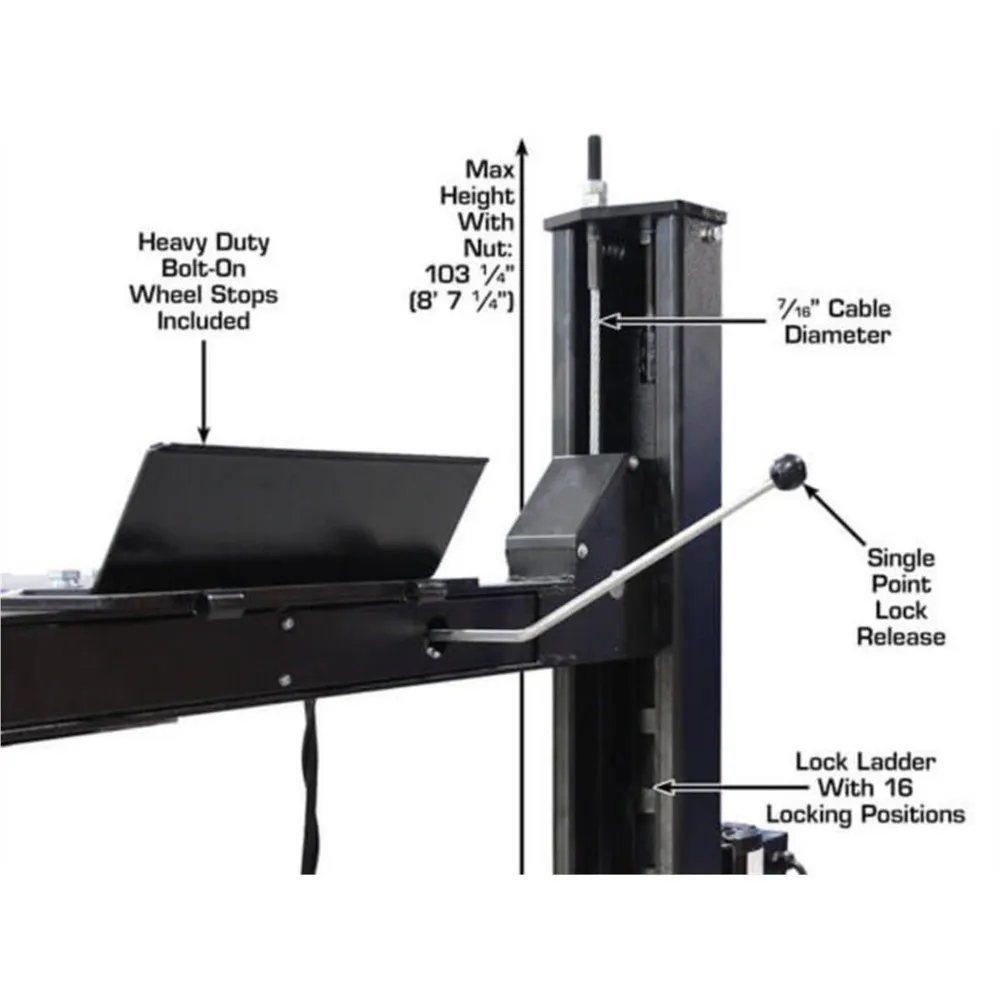

  • Single Point Lock Release
  • Lock Ladder Design
  • Double Lock Safety System
  • Steel Approach Ramps Included
  • Steel Jack Tray Included
  • Four Plastic Drip Trays Included

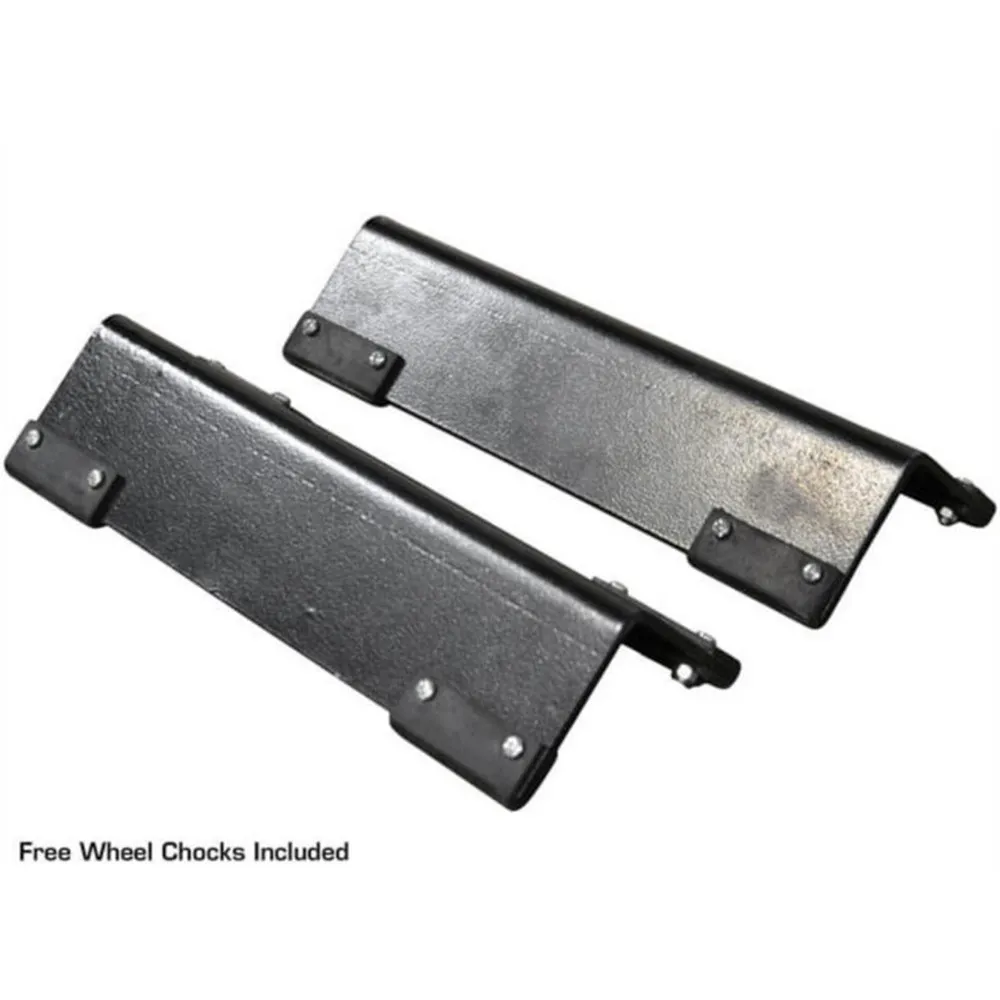

  • Two Rubber Wheel Chocks Included

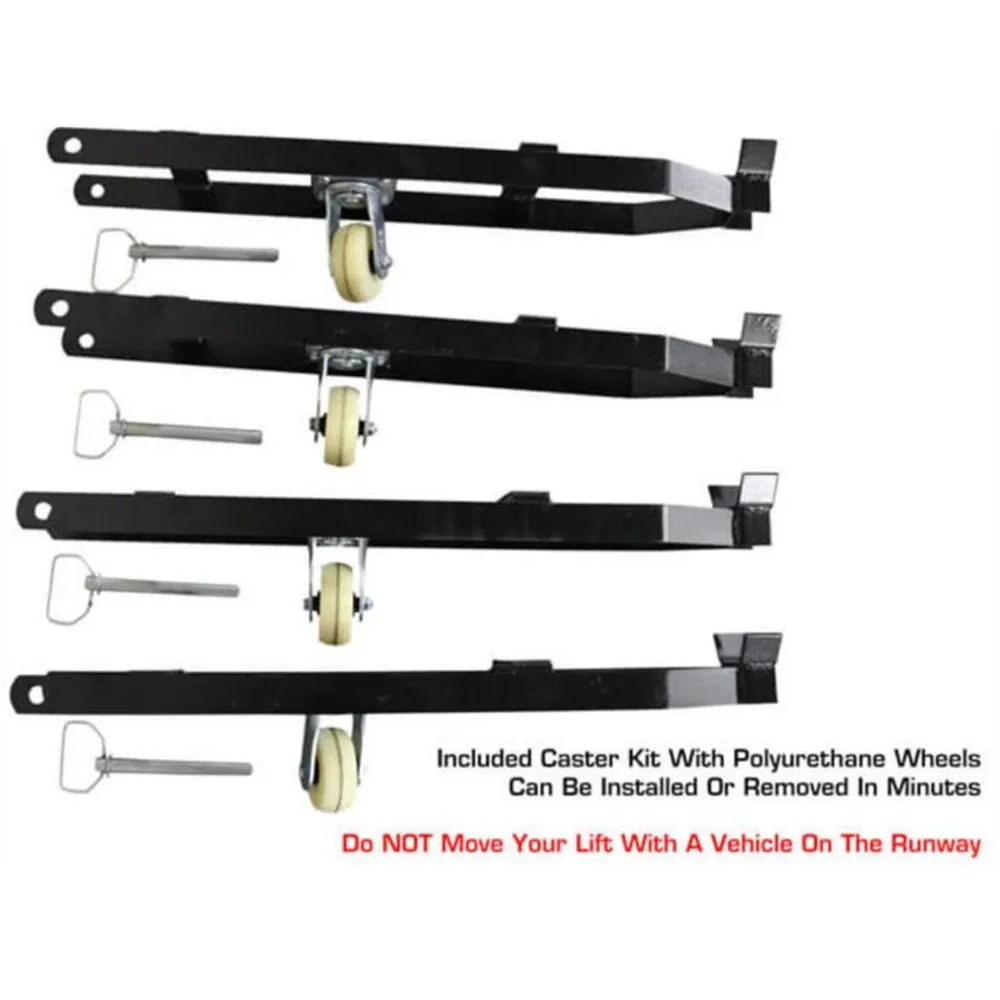

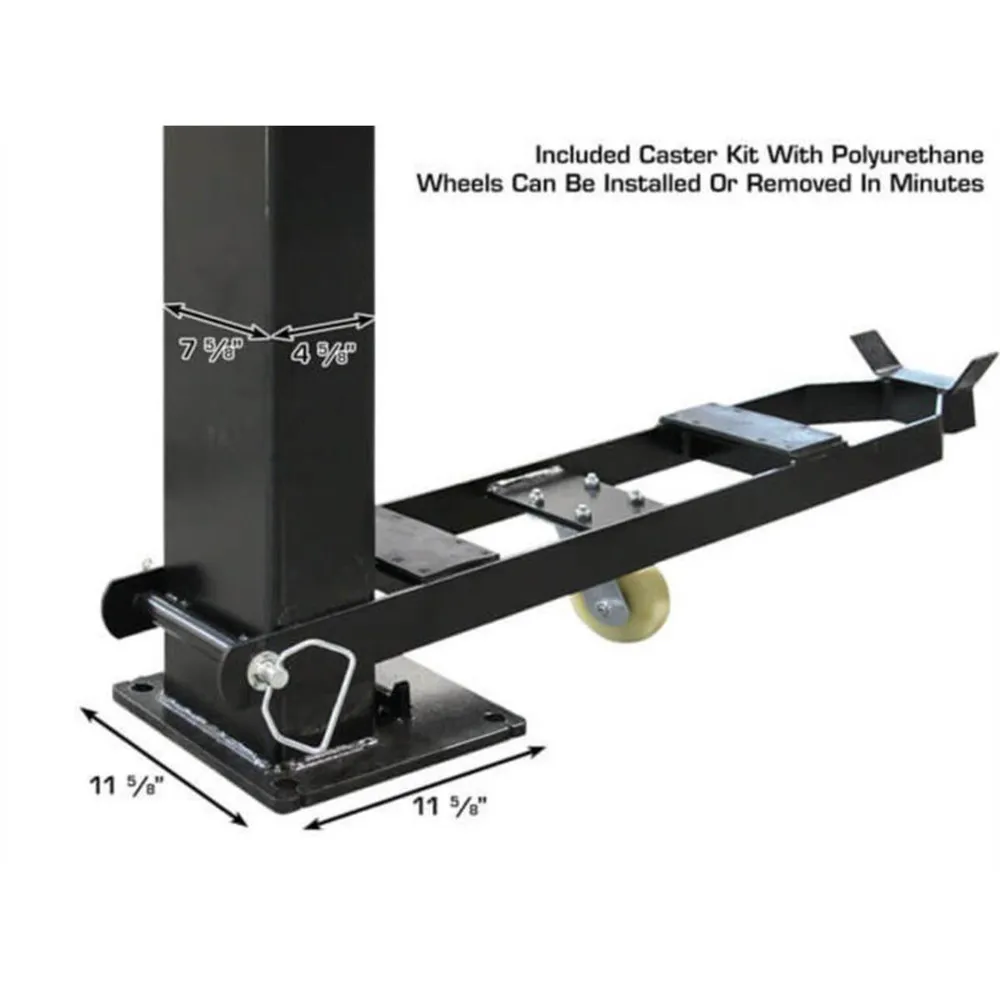

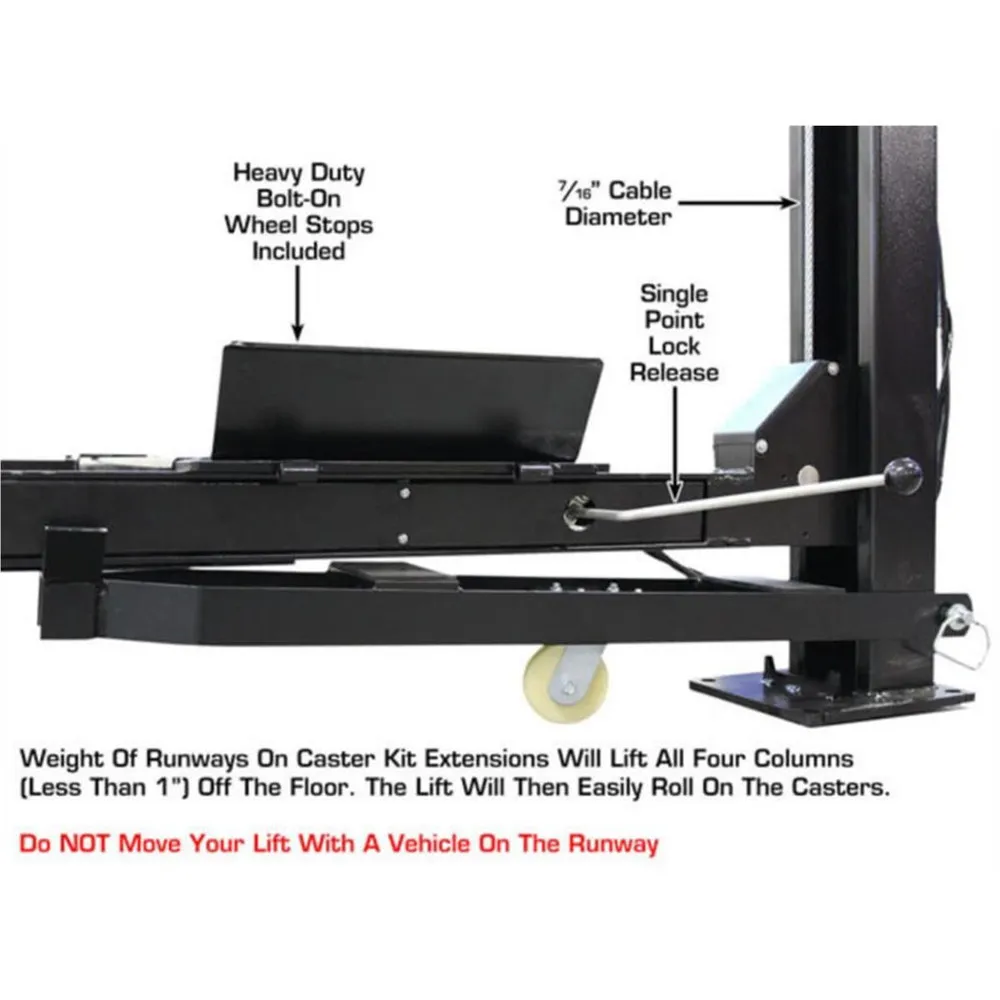

  • Caster Kit with Polyurethane wheels Available (Sold Separately)
  • Anchor Bolts Optional (Sold Separately)

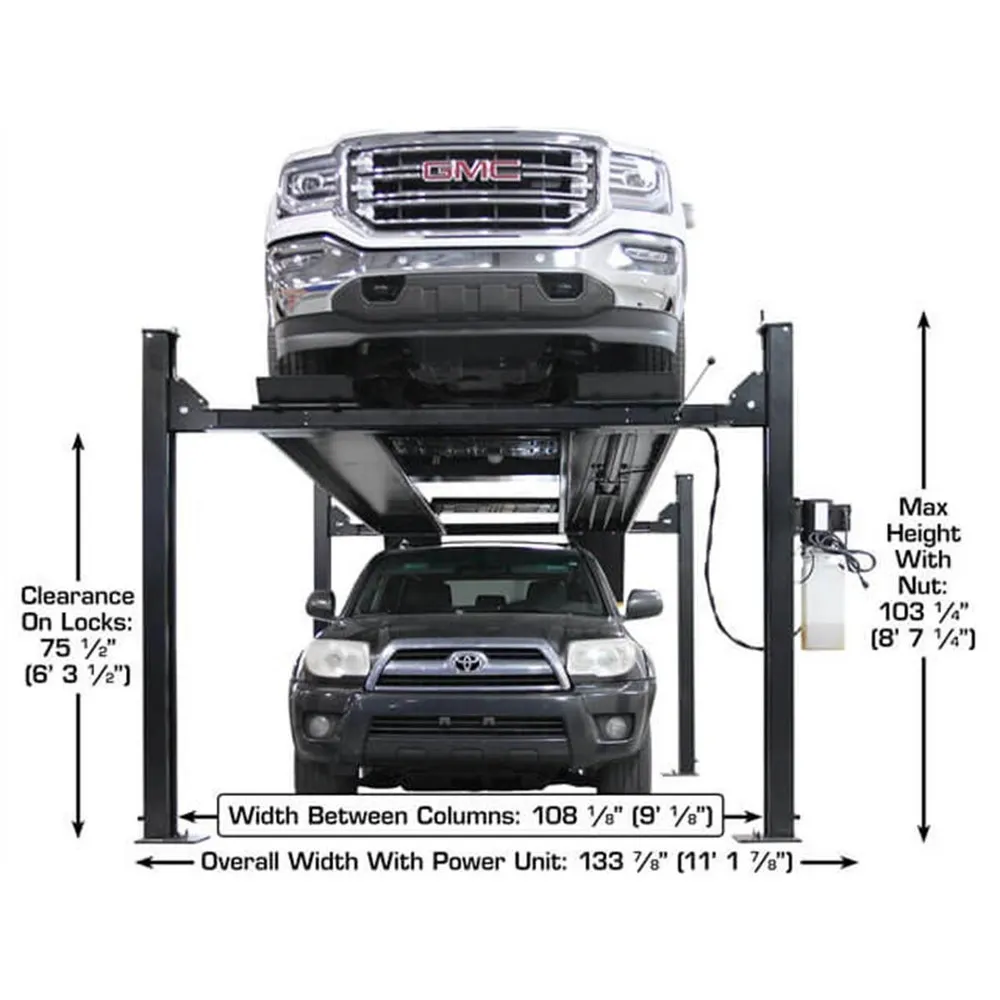

  • Perfect for Storage or Working on Vehicles
  • 110volt Electric Operation (Requires 30amp Breaker)
  • 5 Year Structural/2 Year Hydraulic Warranty
  • Shipping Weight: 2,975 lbs.
  • This part number FREIGHT PREPAID
  • Apex9 (manufacturer Part #)

Atlas® APEX9 Specifications:

  • Capacity: 9000 lbs

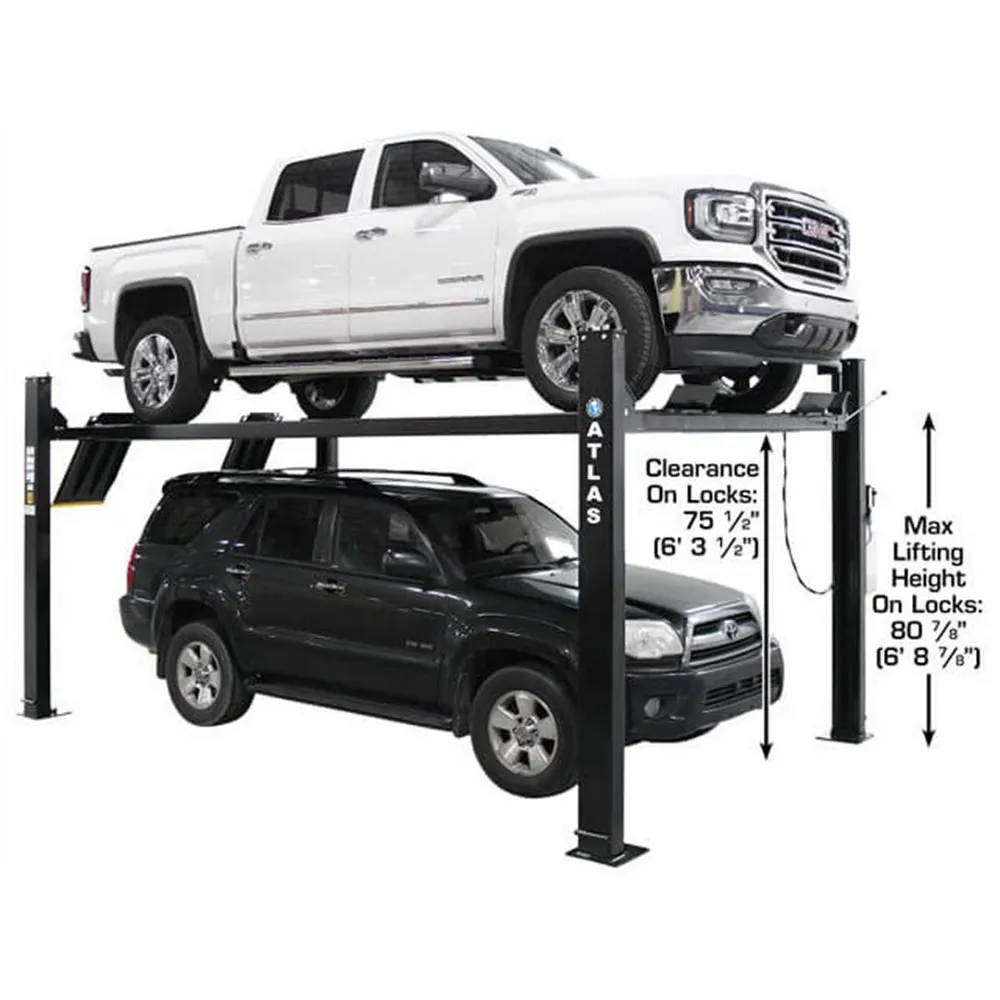

  • Lifting Height, Top of Runway: 86″ (7′ 2″)

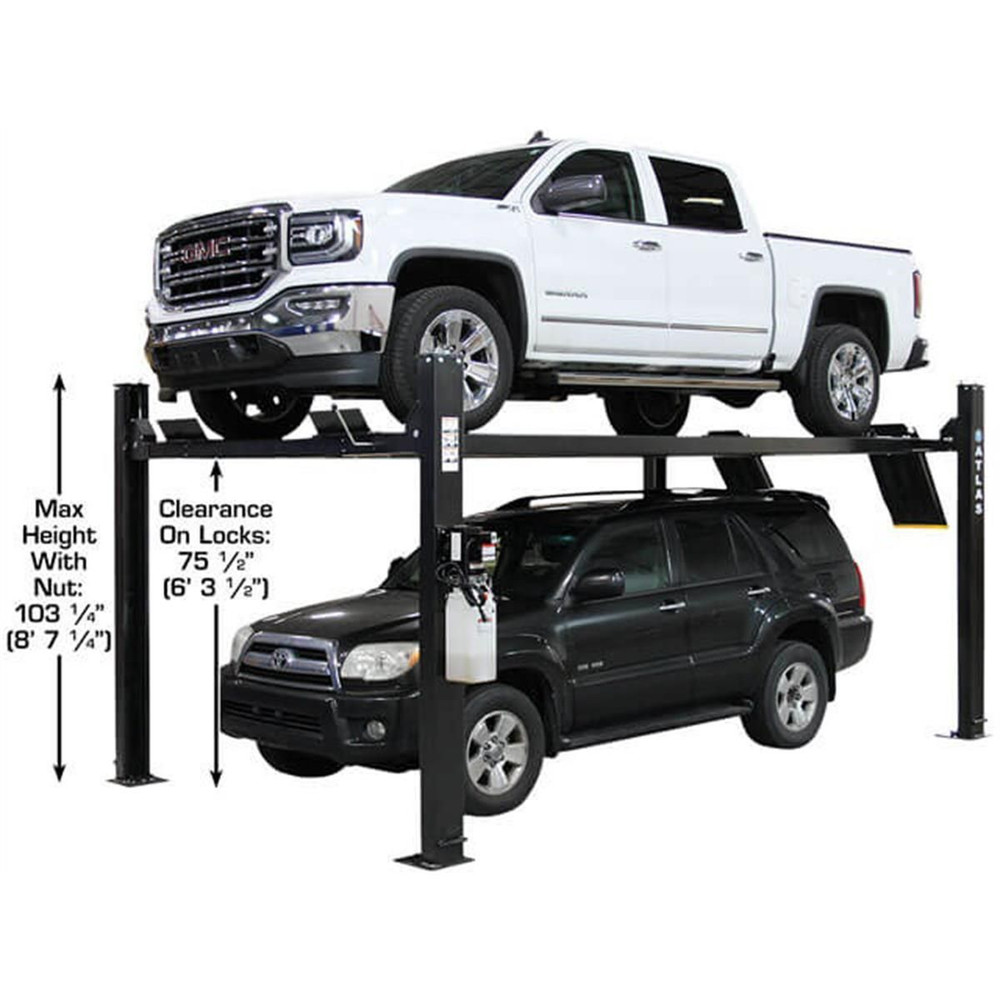

  • Clearance Under Runways: 81 1/4″ (6′ 9 1/4″)
  • Height of Columns: 99″ (8′ 3″)

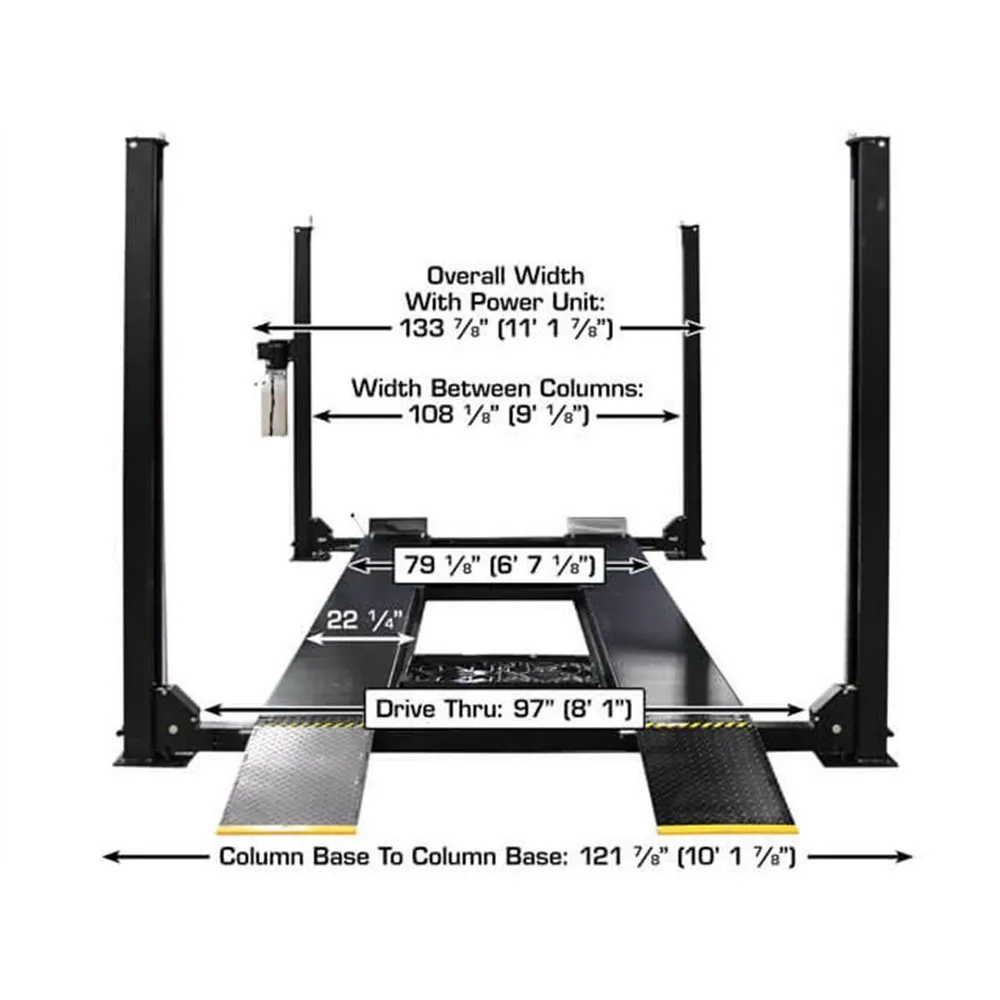

  • Overall Width: 121 7/8″ (10′ 1 7/8″) w/ motor 133 7/8″ (11′ 1 7/8″)
  • Overall Length w/ Ramps: 227 1/2″ (18′ 11 1/2″)

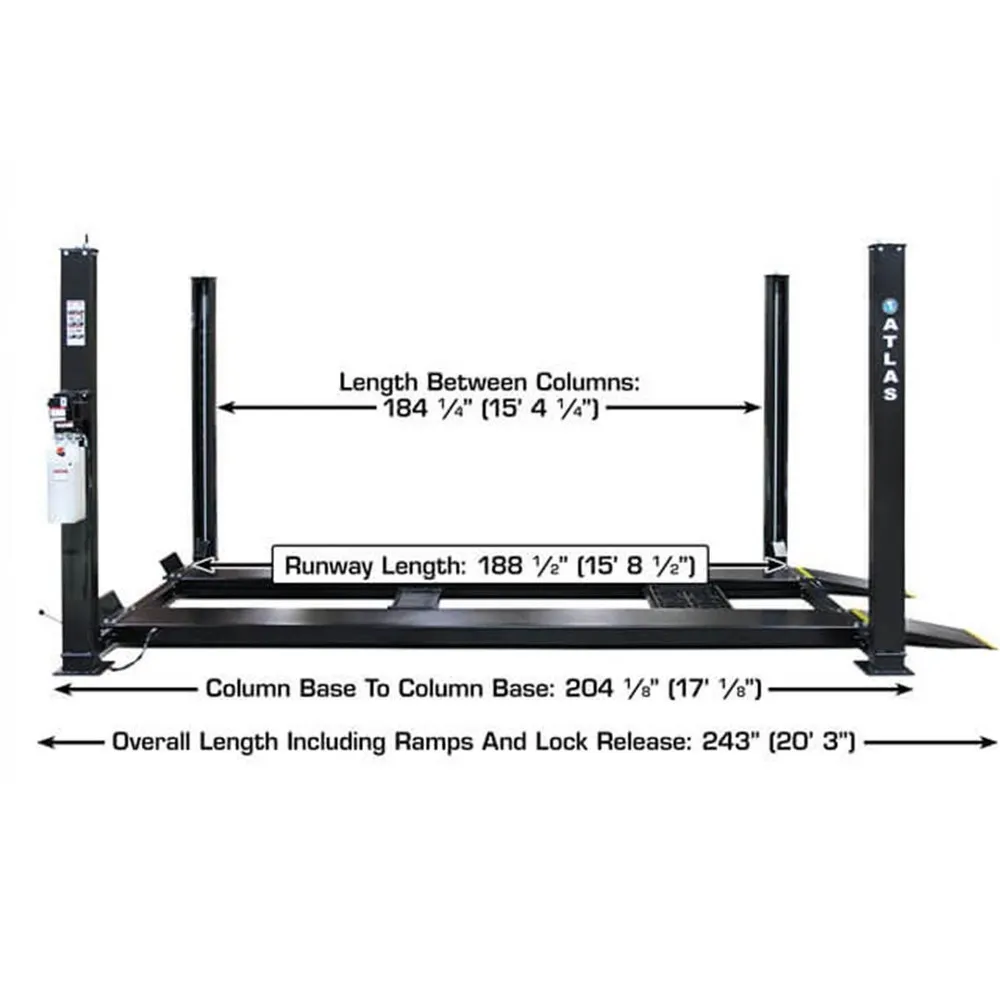

  • Runway Length: 196 1/2″ (16′ 4 1/2″)

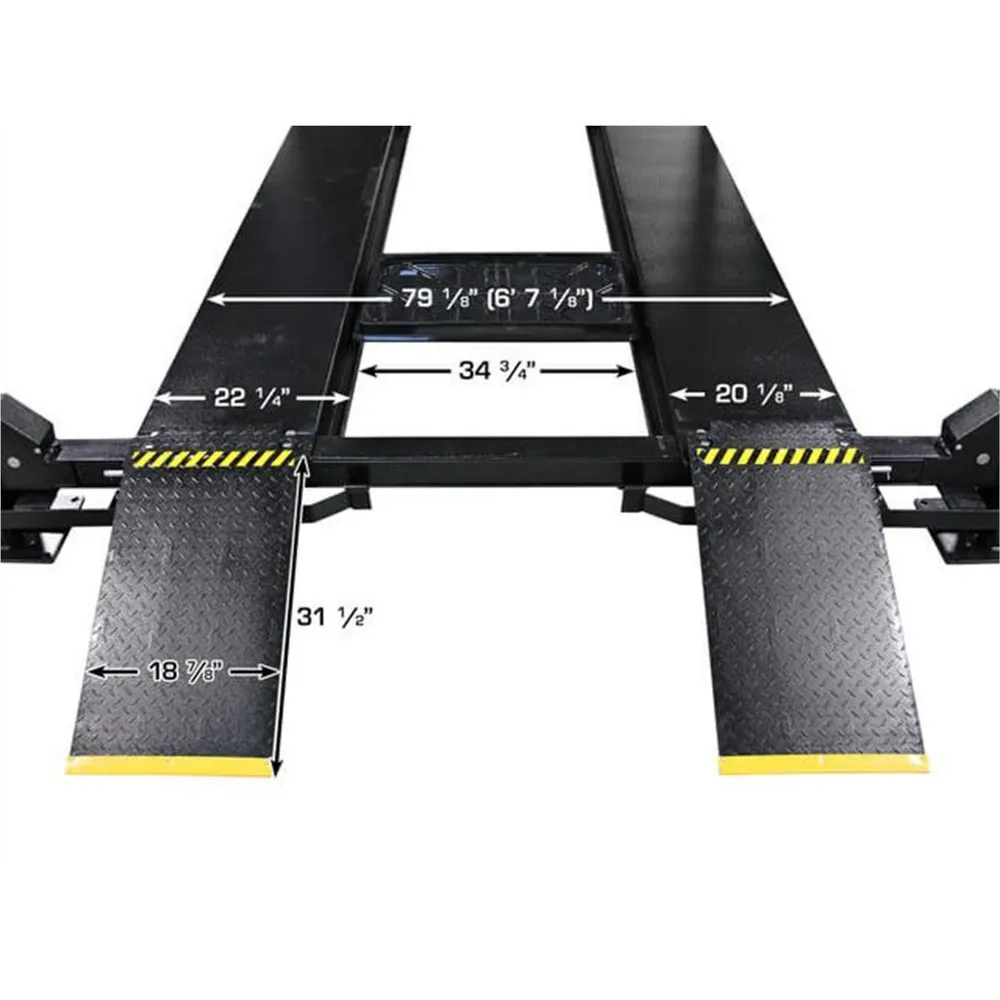

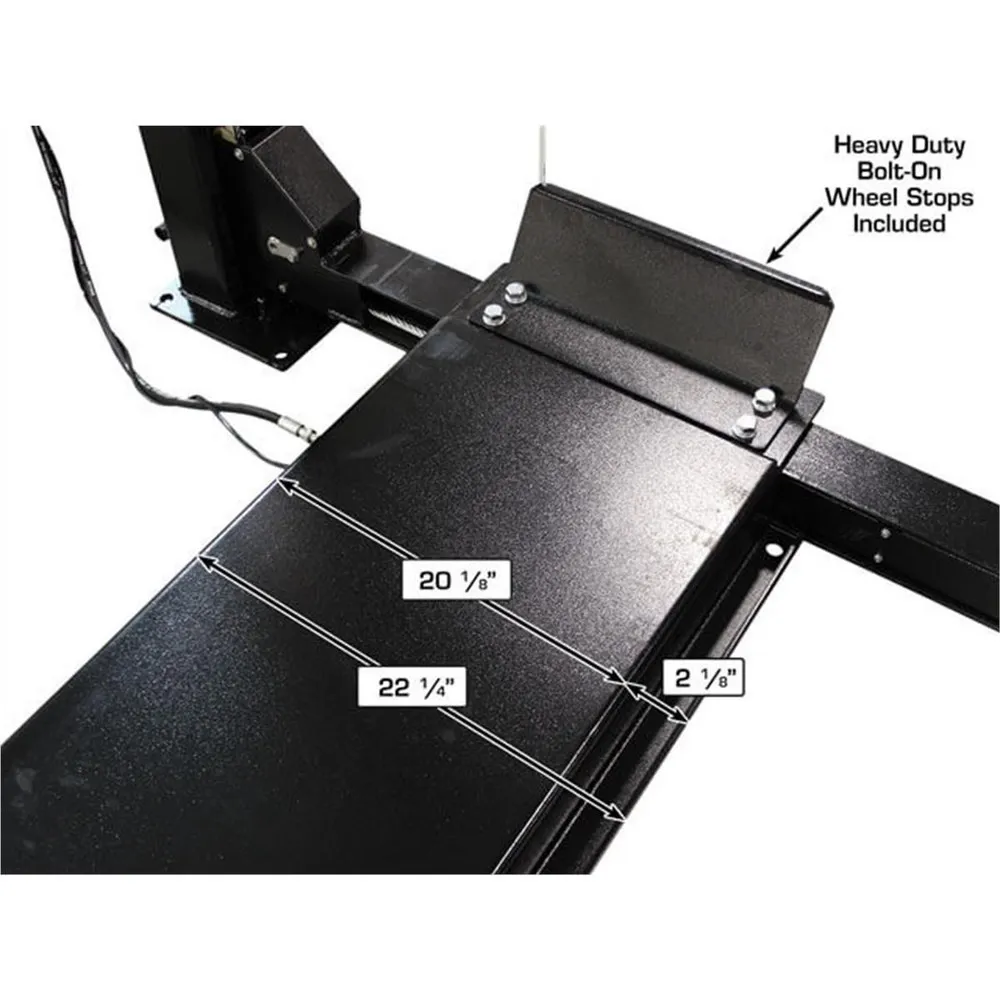

  • Runway Width: 20 1/8″
  • Runway Thickness: 4 3/4″
  • Width Between Runways: 38 7/8″ w/ Rail 34 3/4″
  • Outside Runway to Outside Runway: 79″ (6′ 7″)
  • Clearance Between Columns: 108 1/8″ (9′ 1/8″)

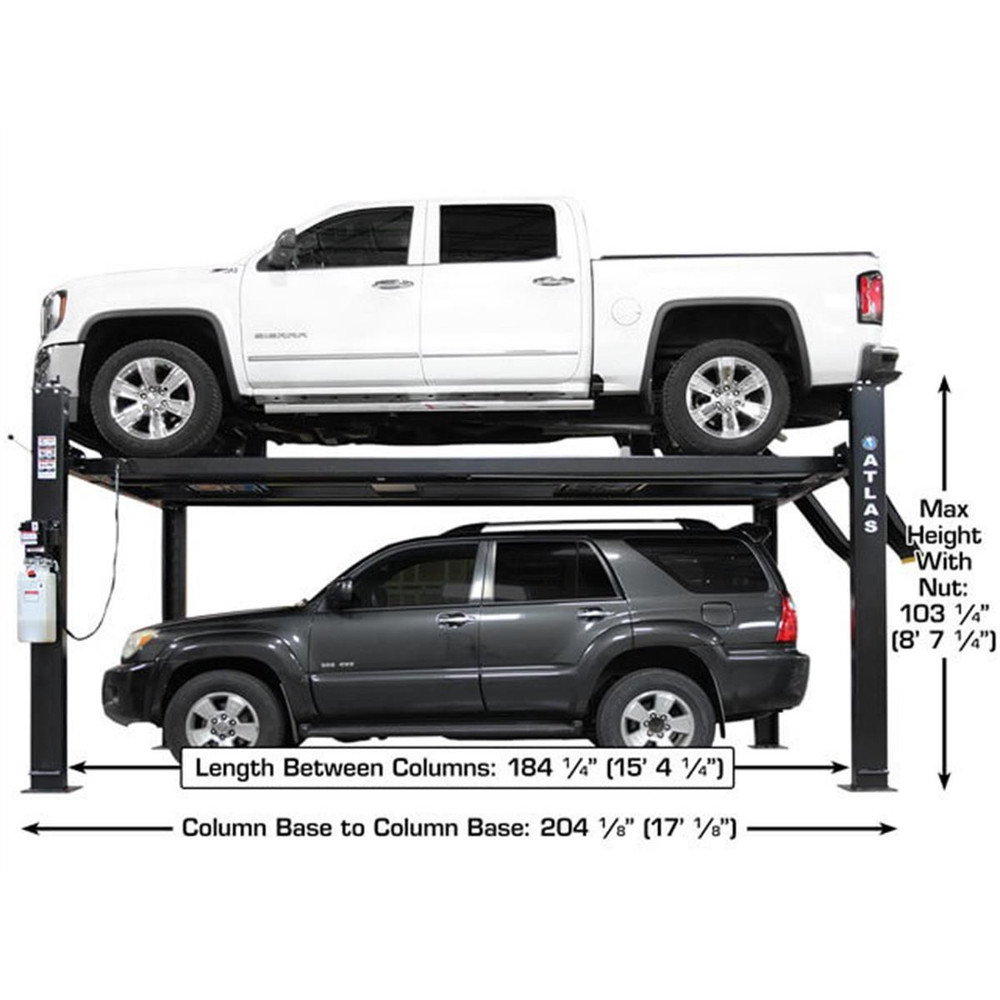

  • Length Between Columns: 184 1/4″ (15′ 4 1/4″)
  • Drive Thru: 98 5/8″ (8′ 2 5/8″)

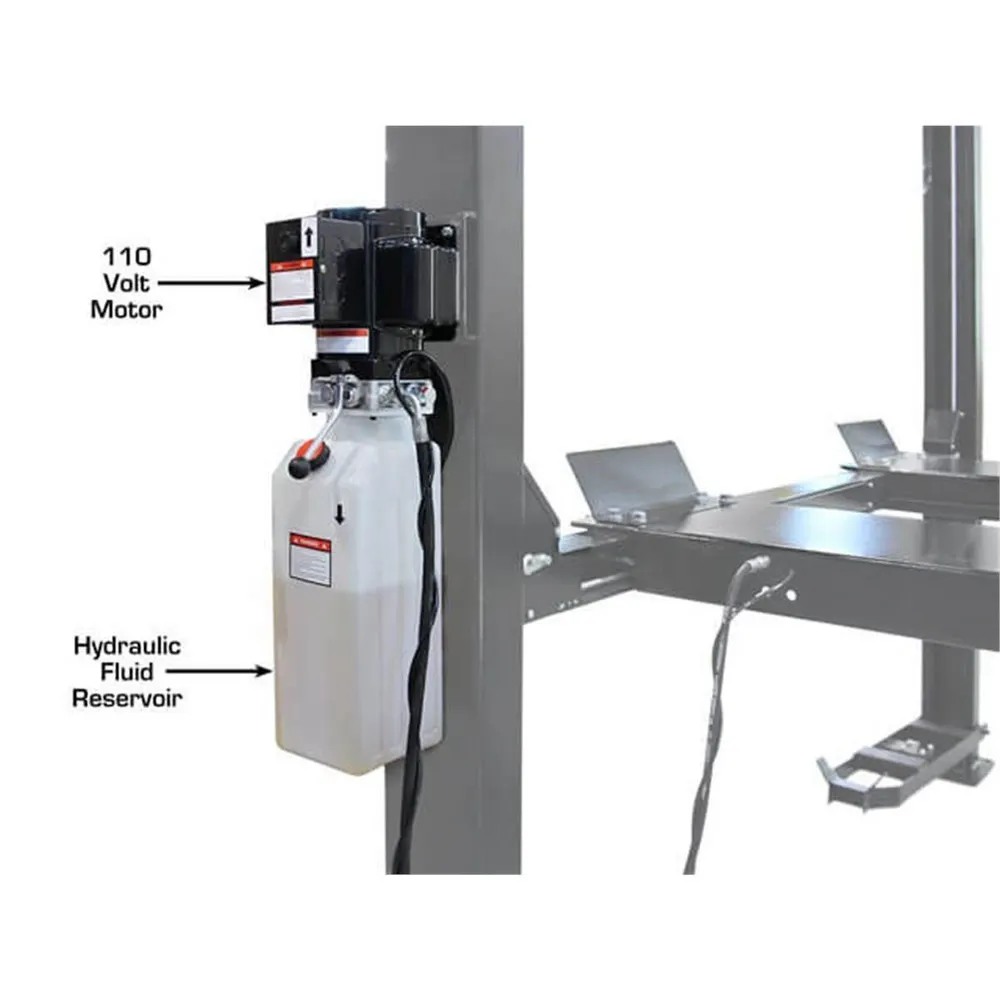

  • Motor/Electrical Requirement: 110volt, 30 amp breaker required
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)

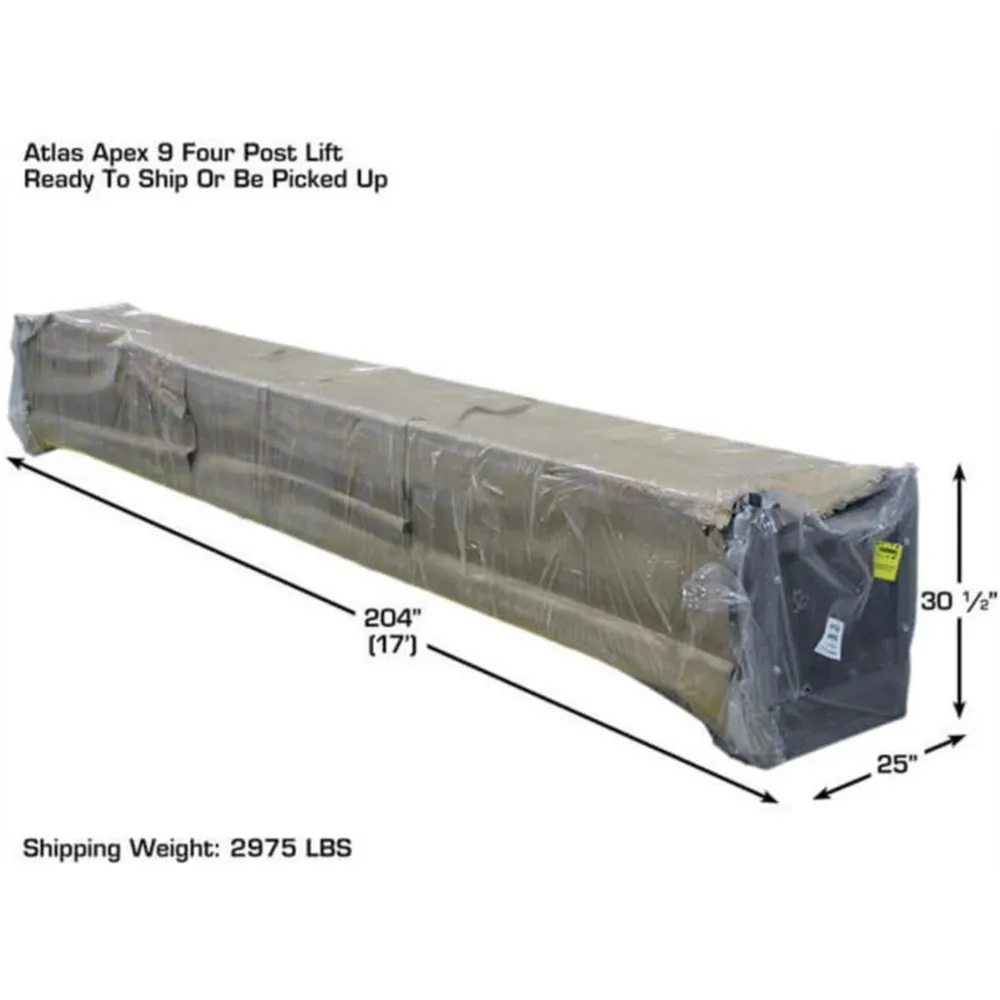

  • Shipping Weight: 2975 lbs

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
