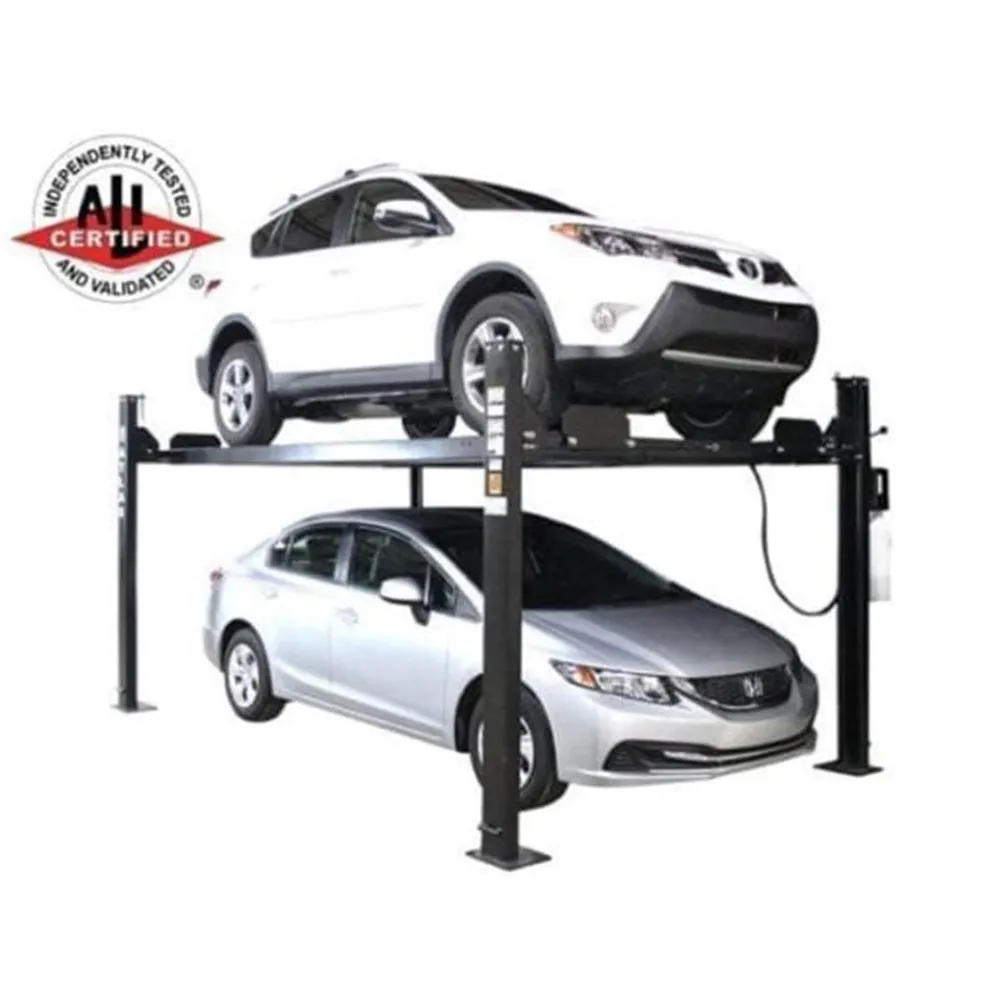

Atlas Apex 8 ALI Certified Hobbyist 8,000 lb. Capacity 4-Post Lift

Description

Shop the Atlas Apex 8 ALI Certified Hobbyist 8,000 lb. Capacity 4-Post Lift at Variety Engines — every unit is carefully inspected, warrantied, and ready to ship fast across the US.

Features & Benefits

• ALI Certified Lift
• 8,000 lb. Capacity
• Free Standing/Portable Design
• Powder Coat Finish

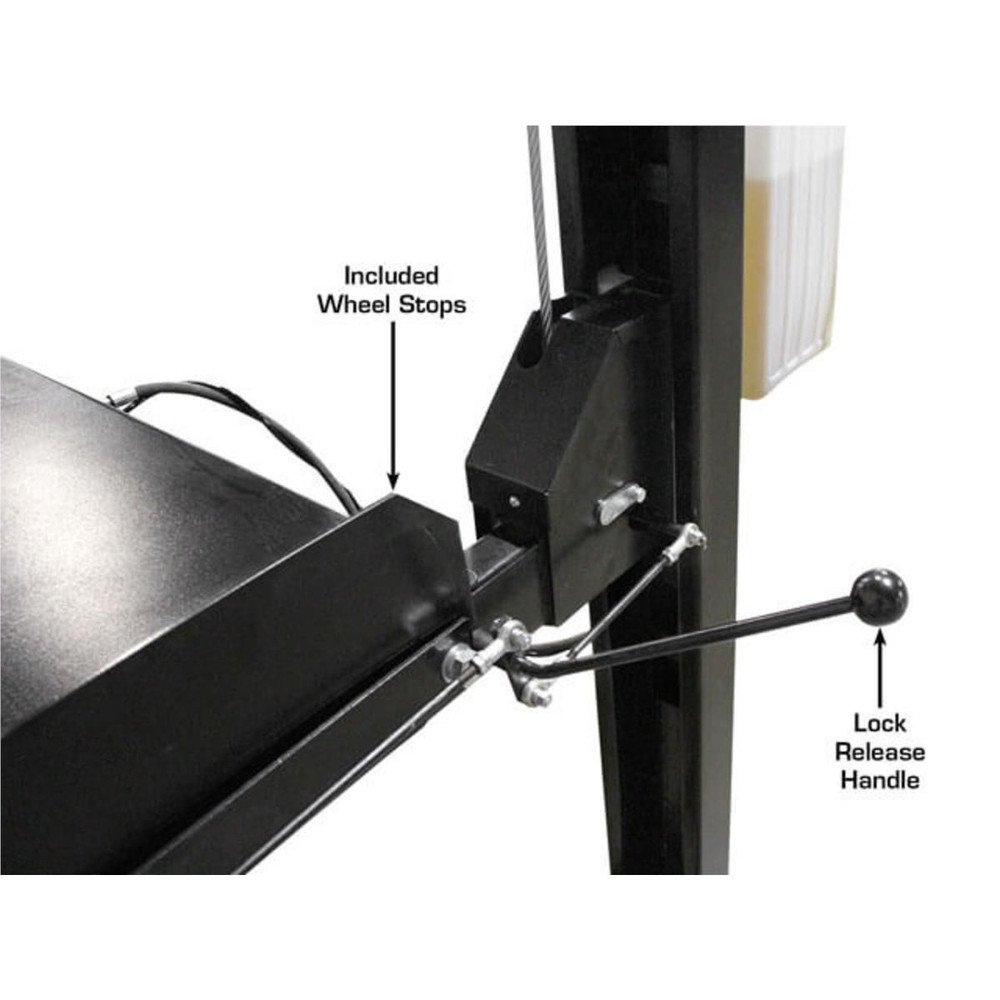

• Single Point Lock Release

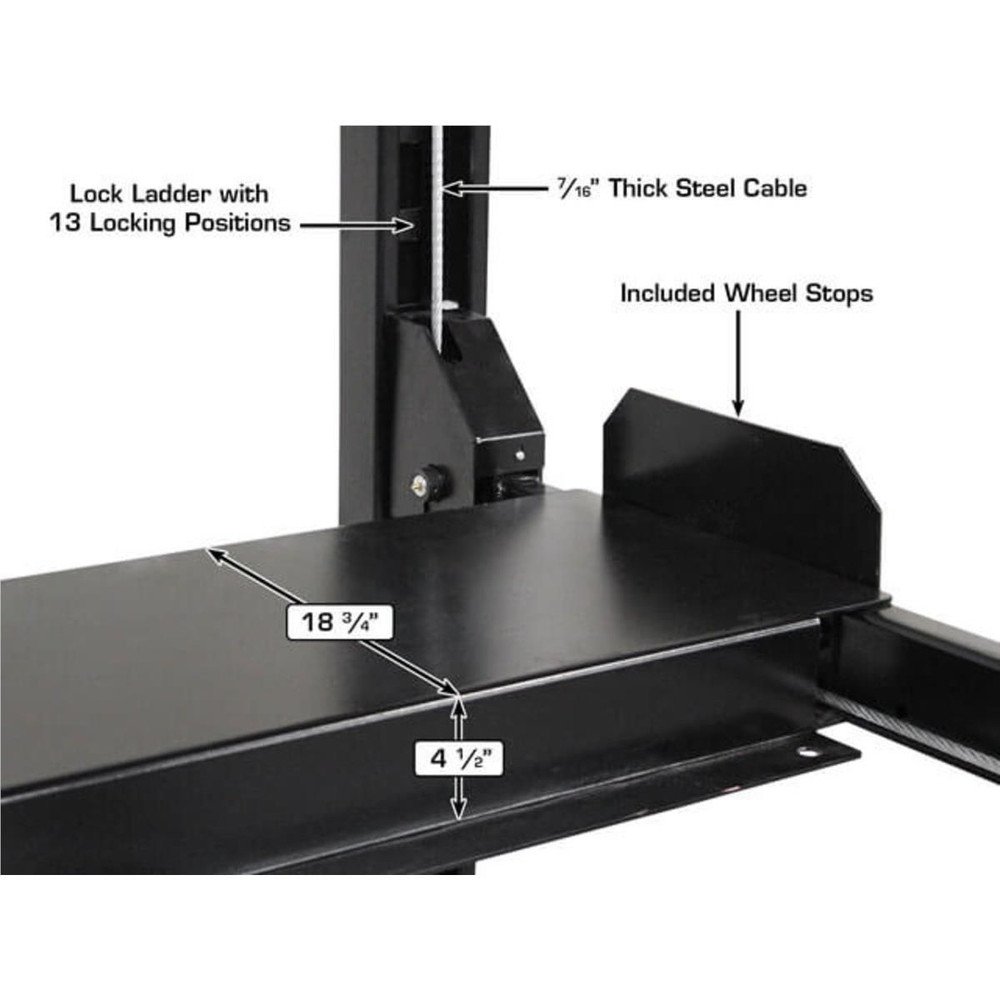

• Lock Ladder Design
• Double Lock Safety System

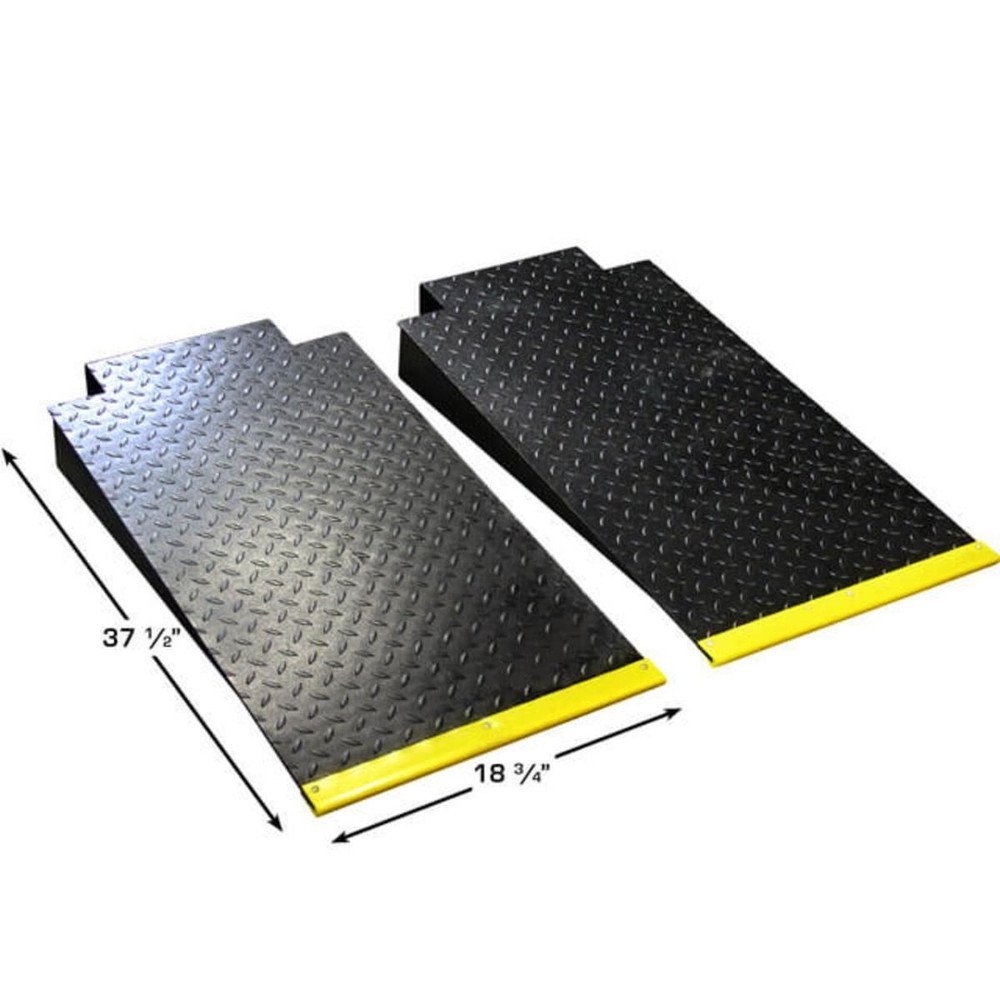

• Steel Approach Ramps Included

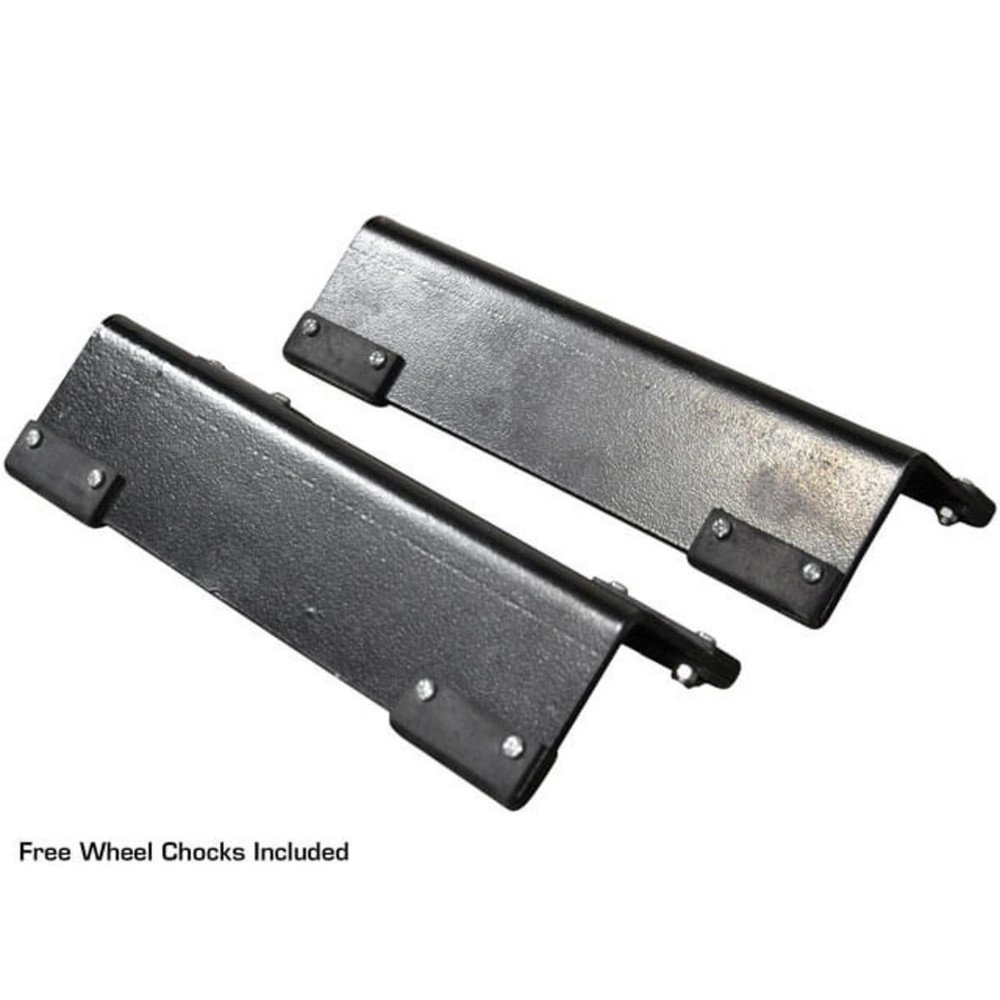

• Two Wheel Chocks Included

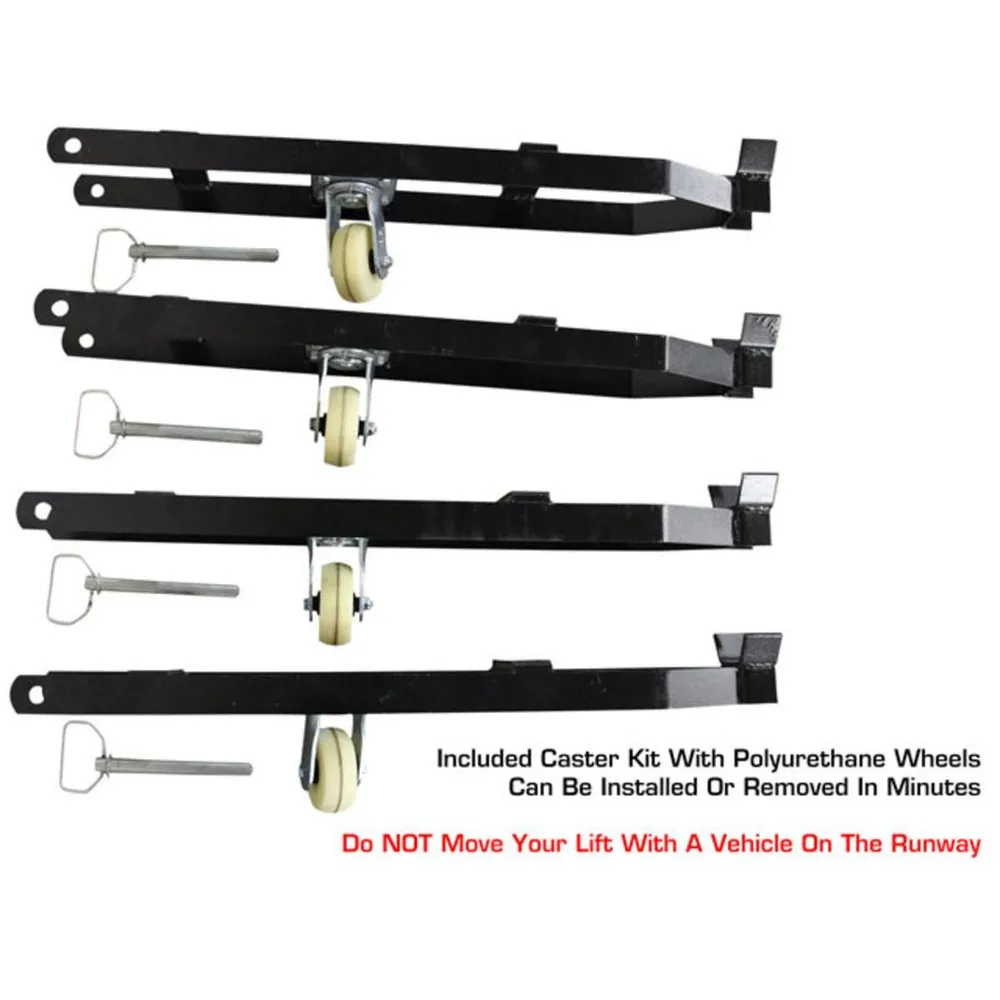

• Caster Kit with Polyurethane wheels Included
• Anchor Bolts Optional (Sold Separately)
• Perfect for Storage or Working on Vehicles

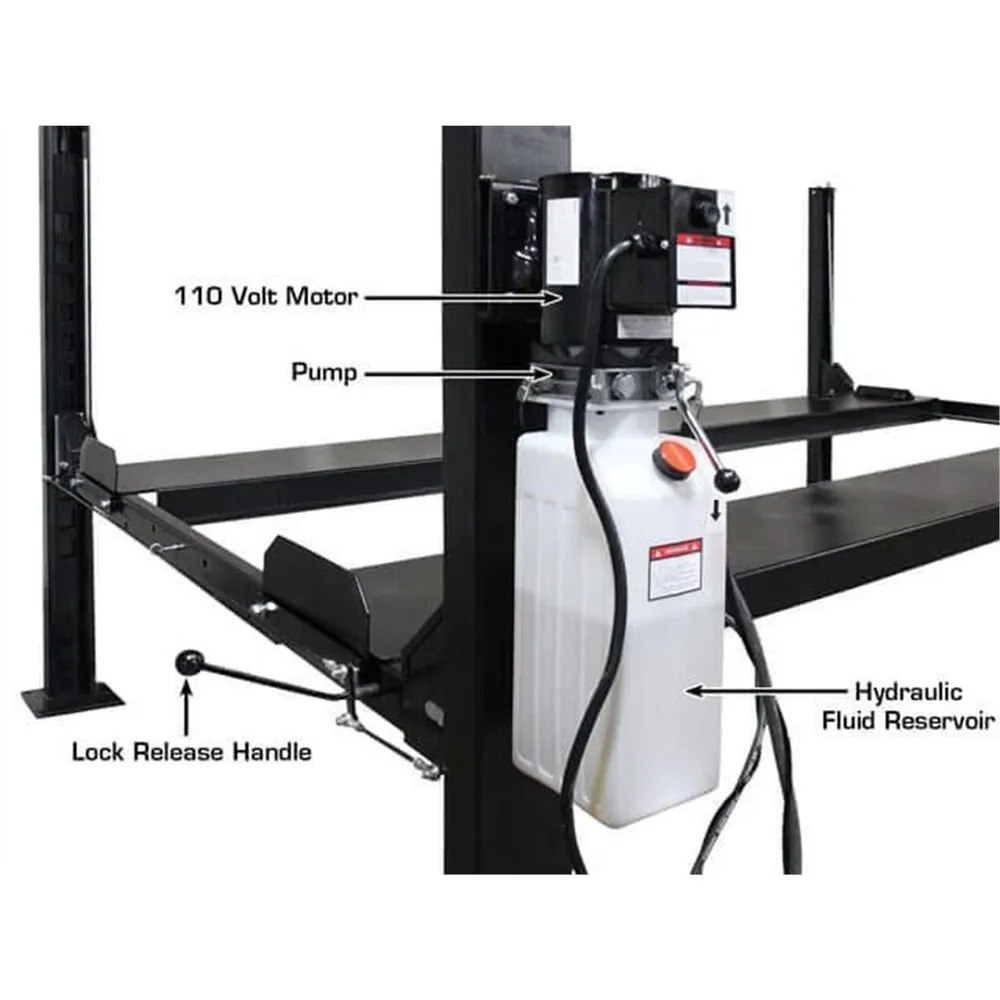

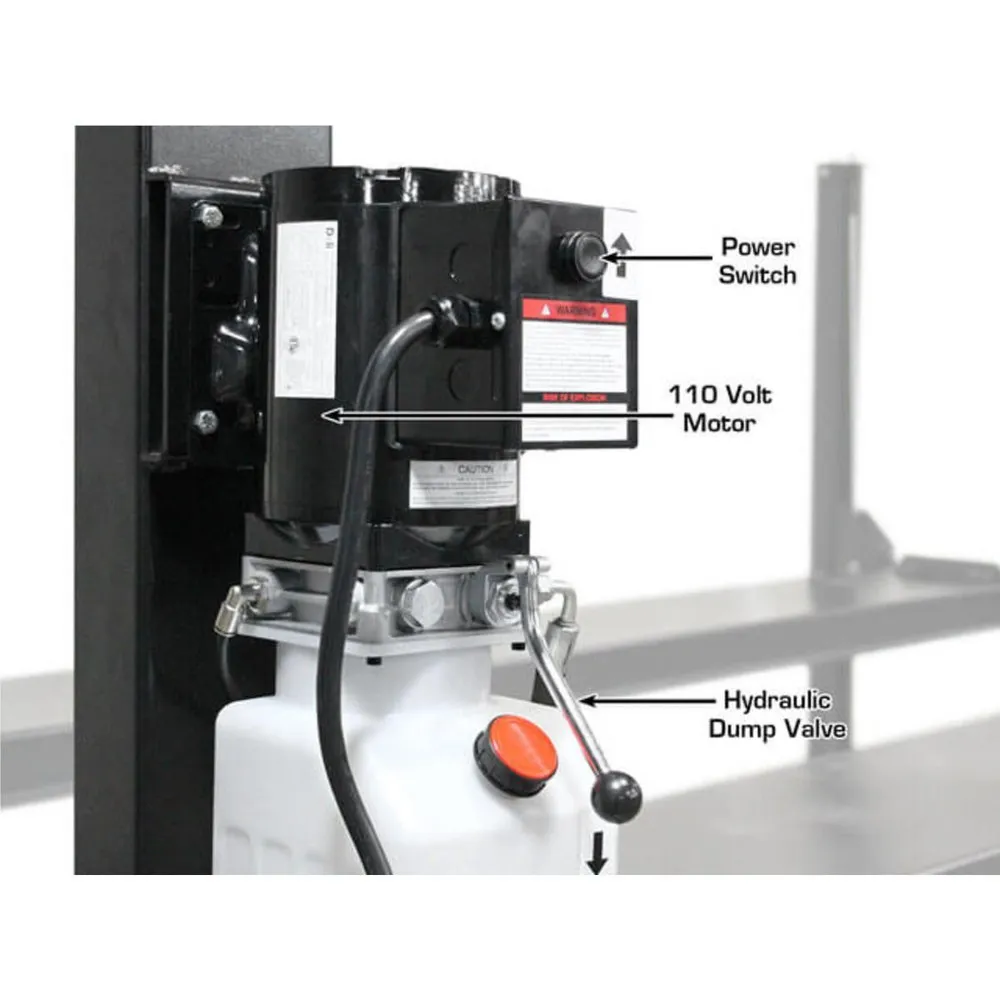

• 110volt Electric Operation (Requires 30amp Breaker)
• 5 Year Structural/2 Year Hydraulic Warranty

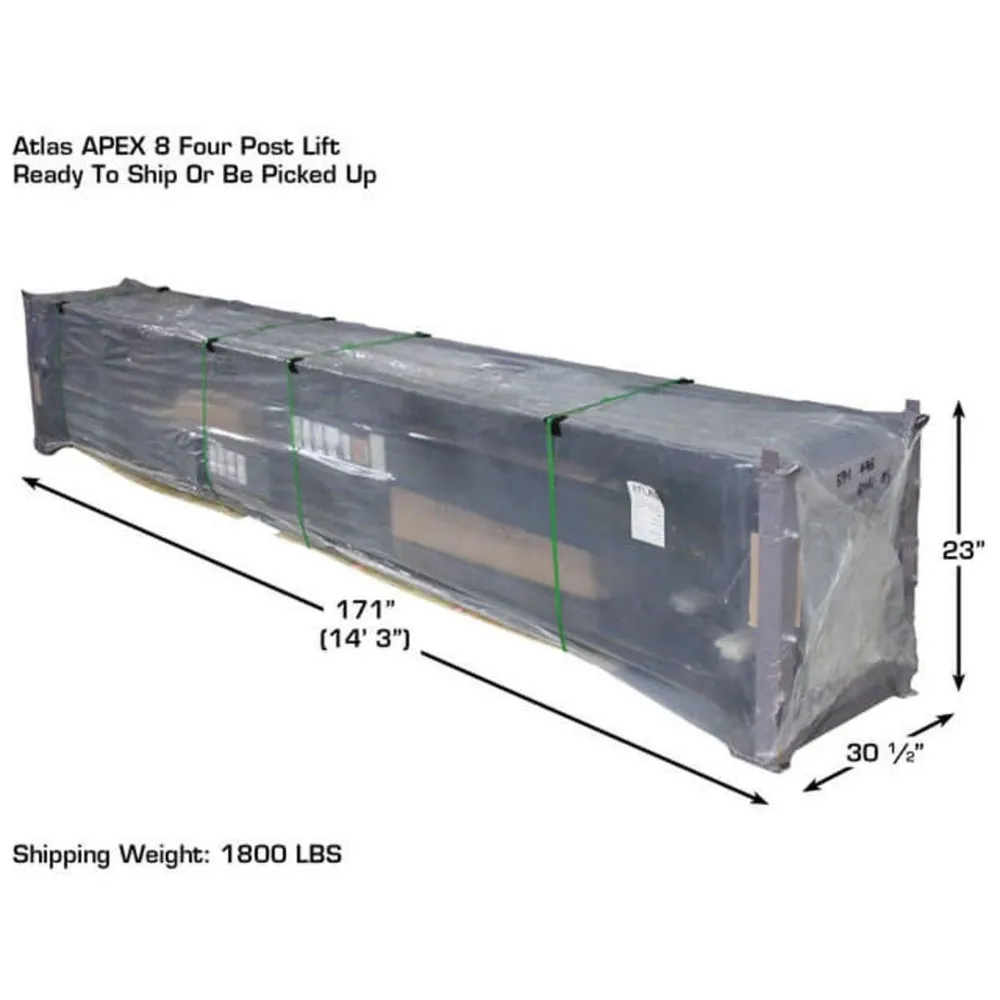

• Shipping Weight: 2,000 lbs.
• This part number FREIGHT PREPAID

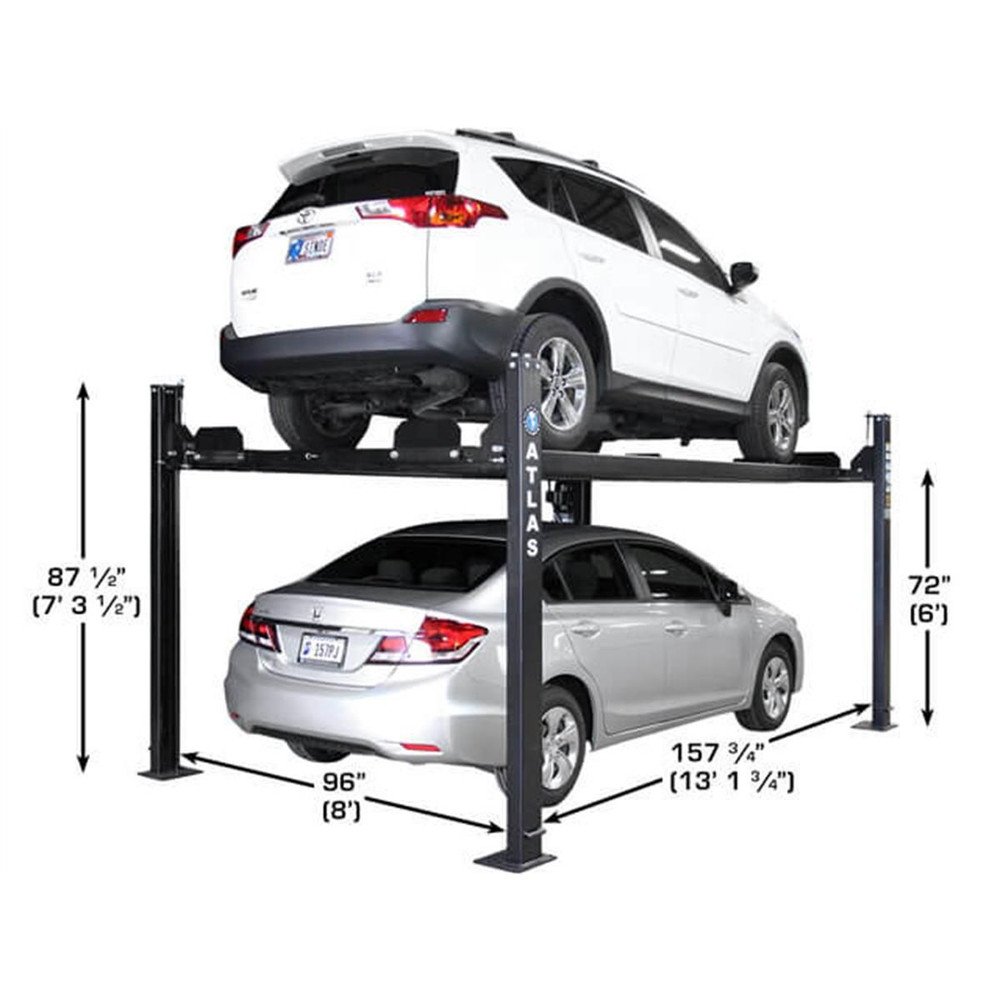

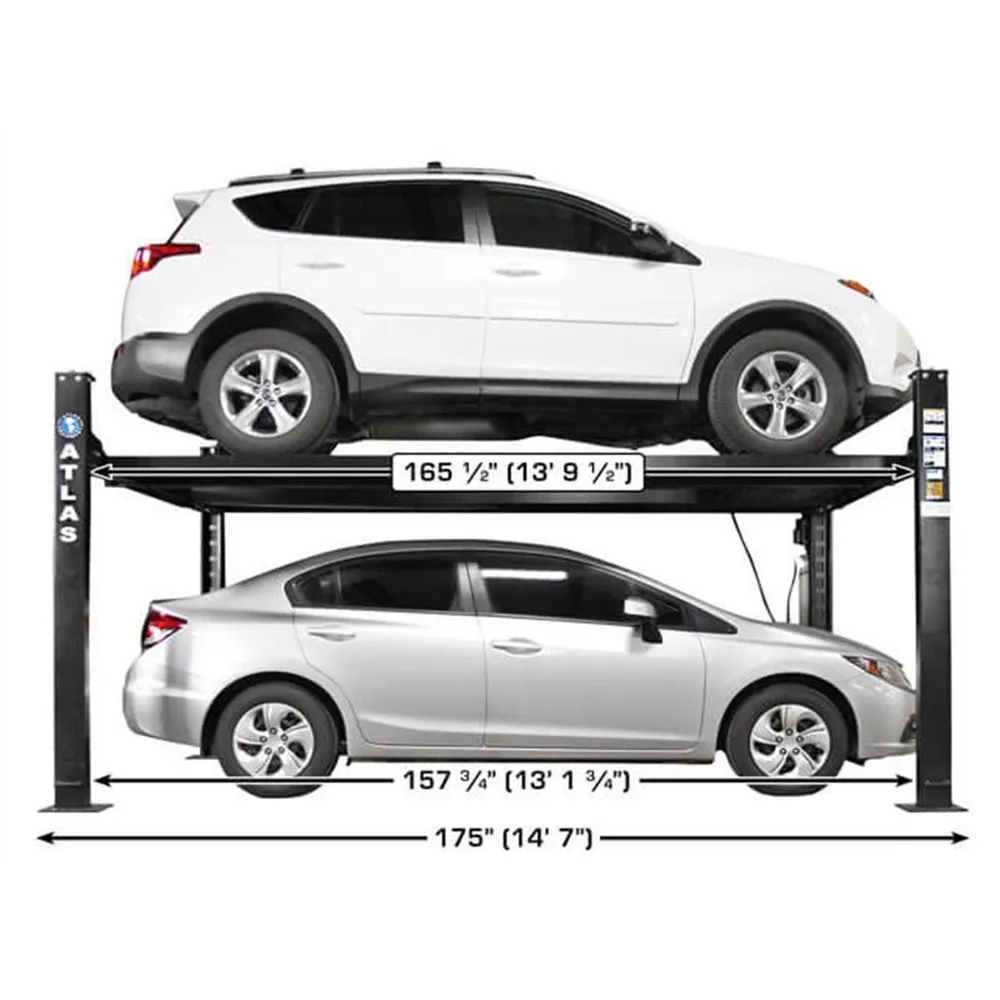

Atlas® APEX8 Specifications:

• Capacity: 8000 lbs
• Lifting Height, Top of Runway: 72″ (6′)

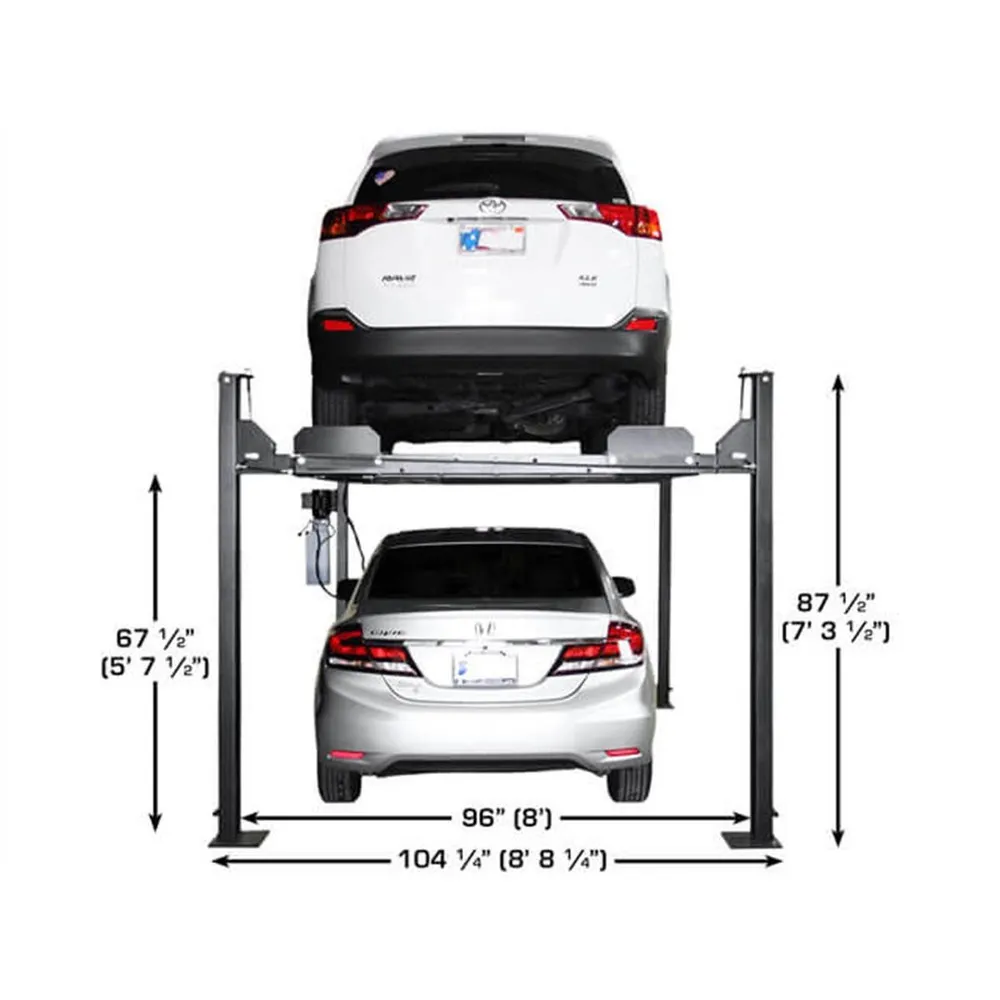

• Clearance Under Runways: 67″ (5′ 7″)
• Height of Columns: 85″ (7′ 1″)
• Overall Width: 104″ (8′ 8″) w/ motor 114″ (9′ 6″)
• Overall Length w/ Ramps: 207 5/8″ (17′ 3 5/8″)
• Runway Length: 169 1/2″ (14′ 1 1/2″)
• Runway Width: 18 2/4″
• Runway Thickness: 4 1/3″

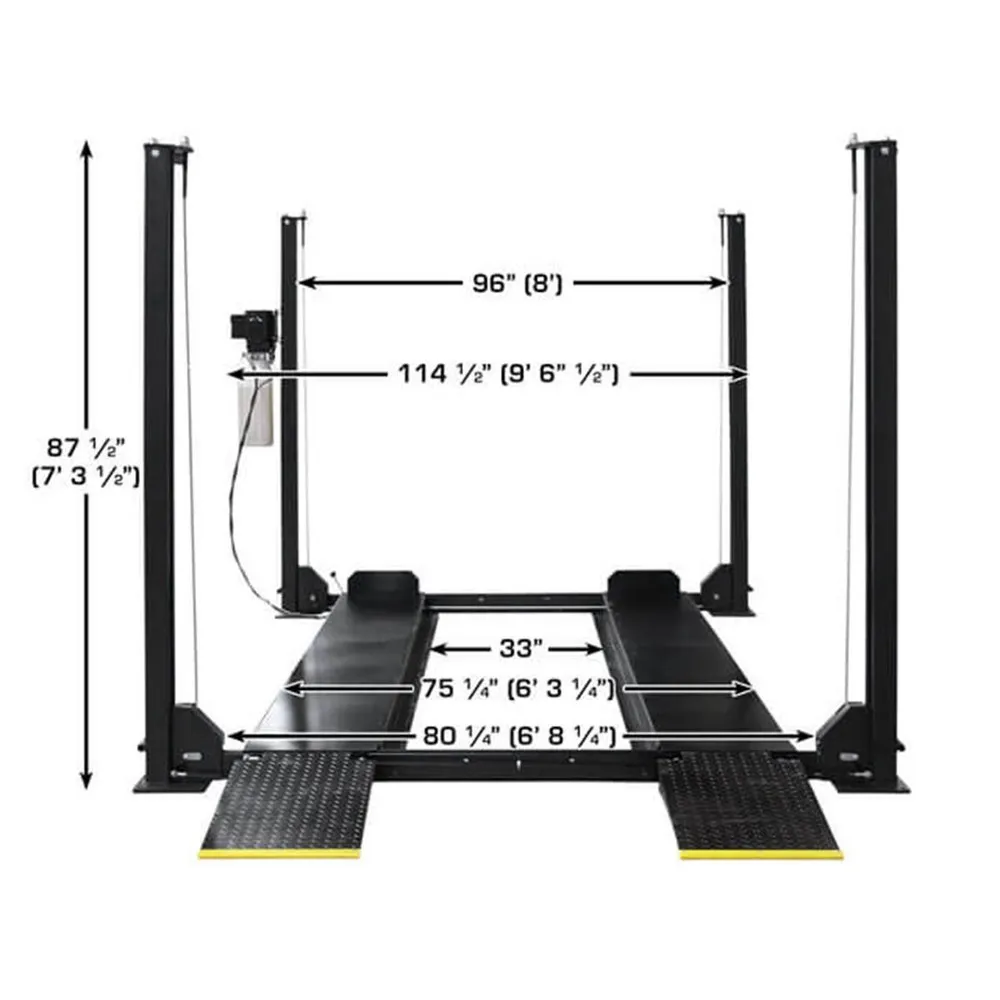

• Width Between Runways: 38″ w/ Rail 33″
• Outside Runway to Outside Runway: 75 1/4″ (6′ 3 1/4″)
• Clearance Between Columns: 94″ (7′ 10″)

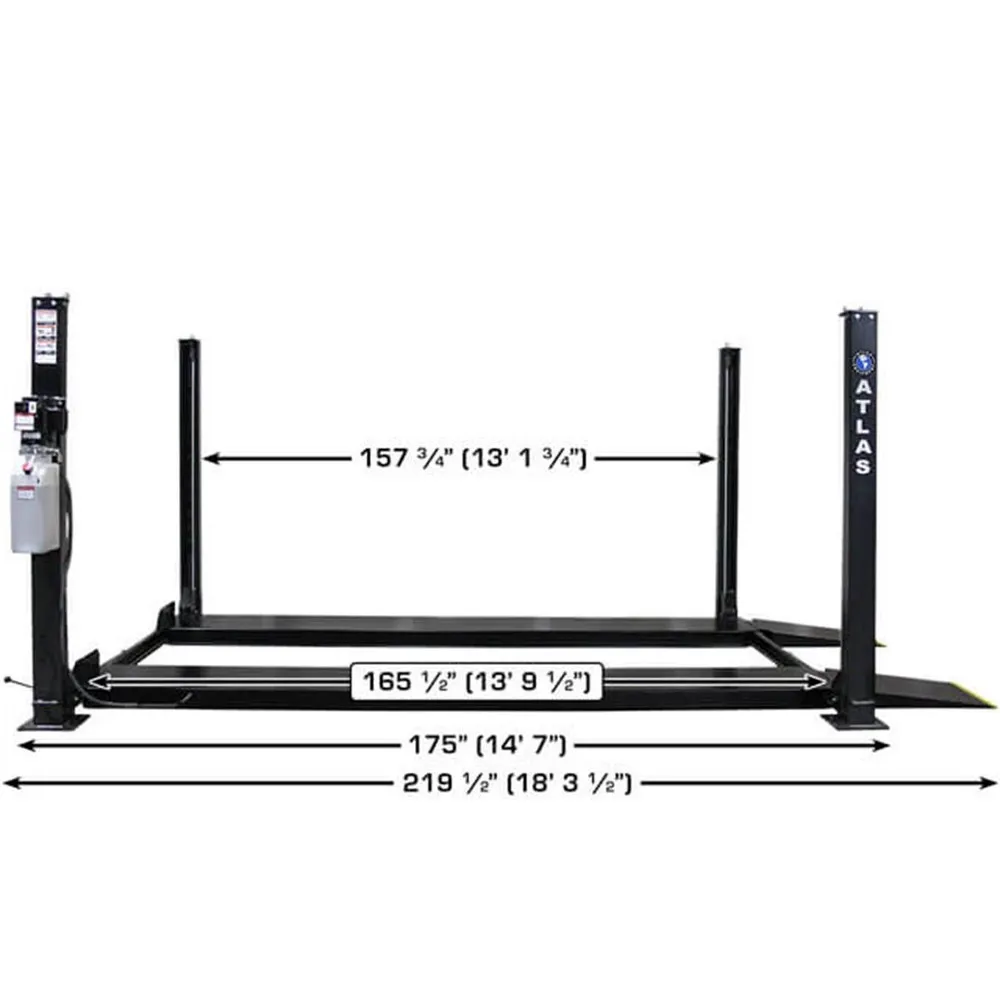

• Length Between Columns: 157 1/3″ (13′ 1 1/3″)
• Drive Thru: 80 1/4″ (6′ 8 1/4″)
• Motor/Electrical Requirement: 110volt, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 2000 lbs
