Atlas ALI Certified APEX9 4-Post Lift + RJ6 Rolling Bridge Jacks Combo

Description

Features and Benefits:

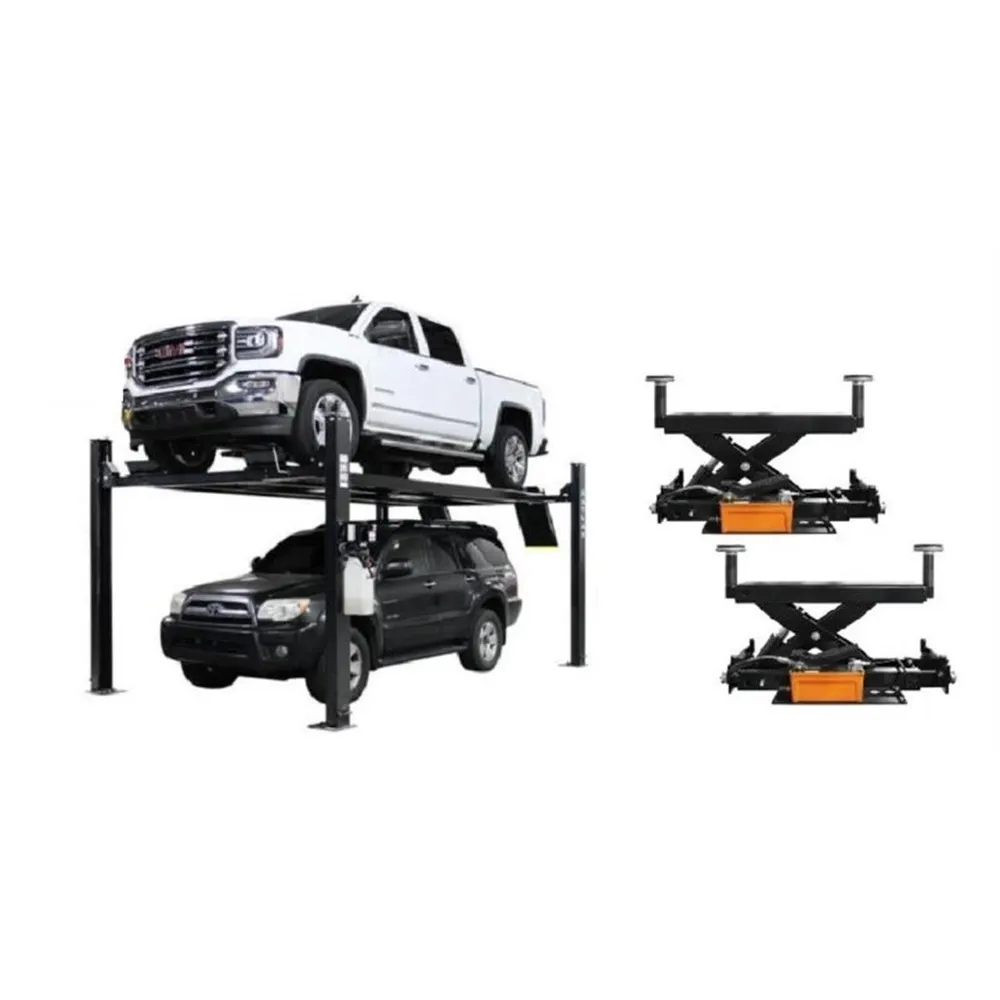

• Combo package includes ALI Certified APEX9 & two RJ6 Rolling Jacks

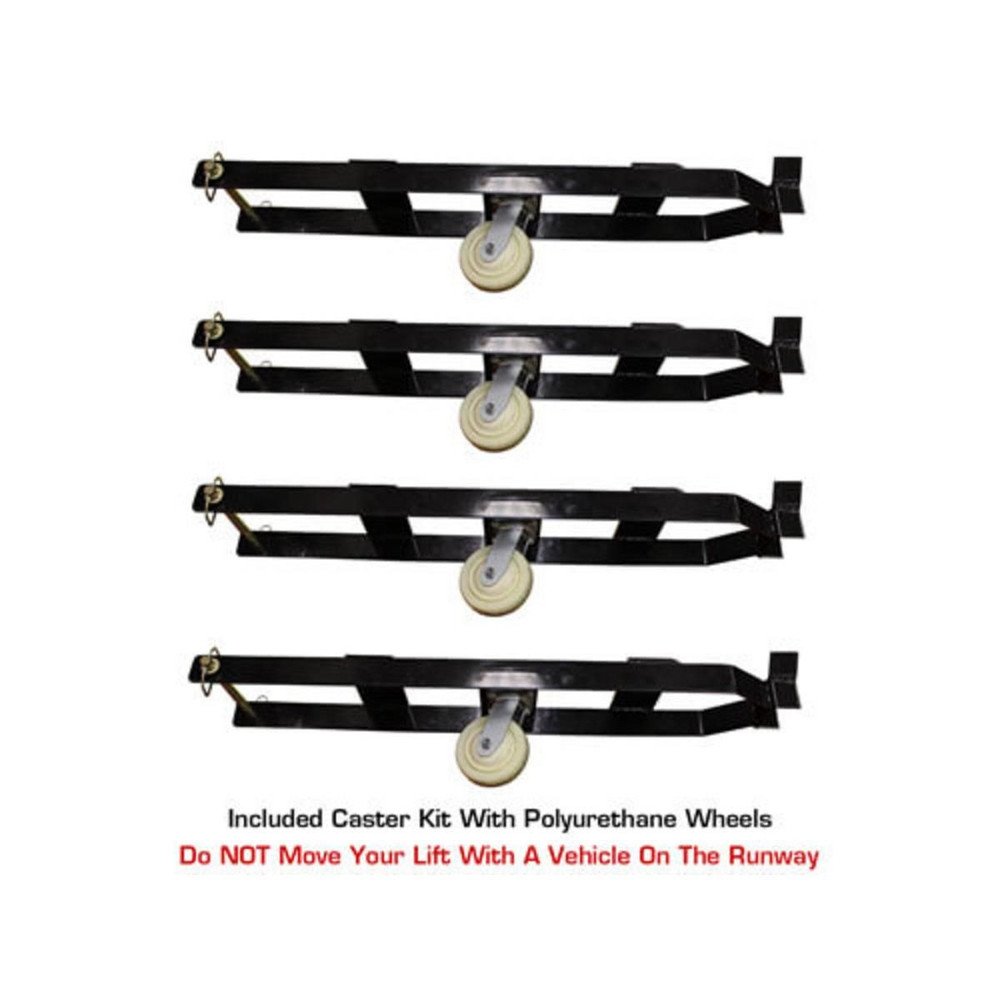

• Caster Kit With Polyurethane Wheels Available

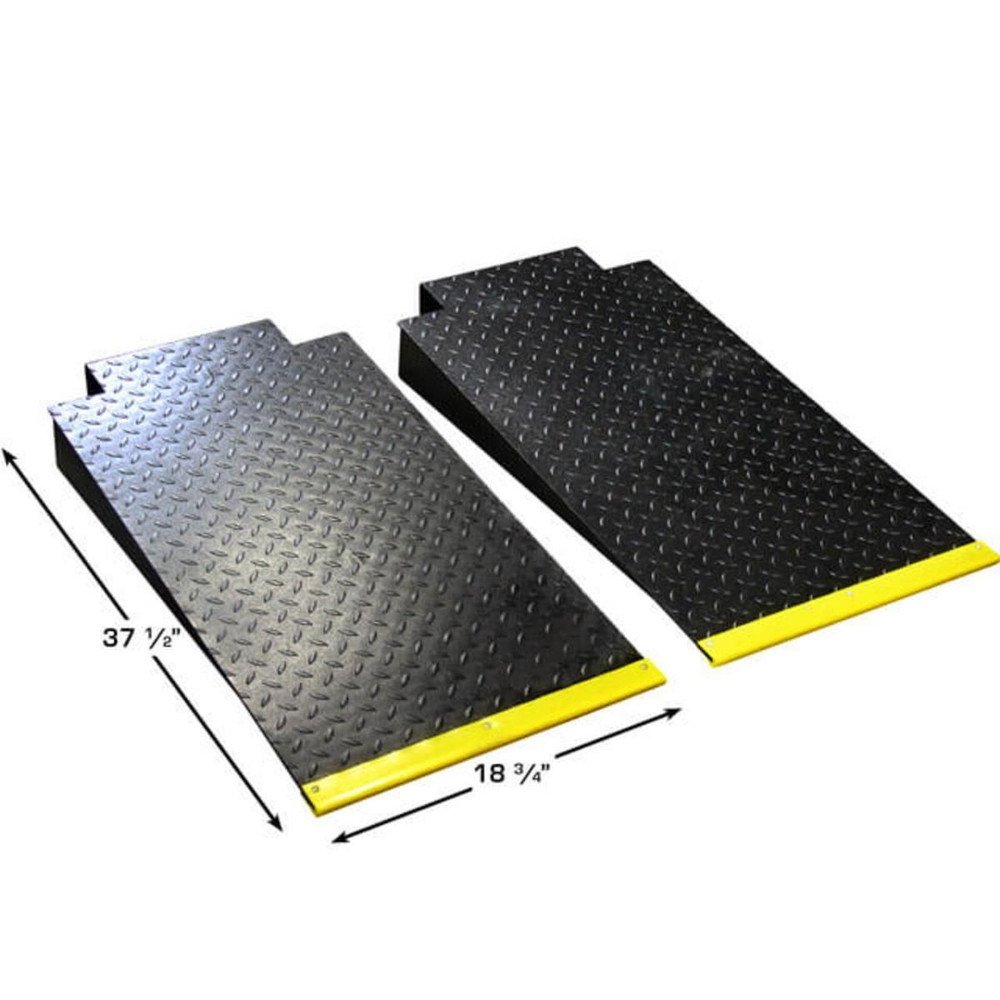

• Steel Approach Ramps Included
• Steel Jack Tray Included
• 4 Plastic Drip Trays Included
• Wheel Stops Included

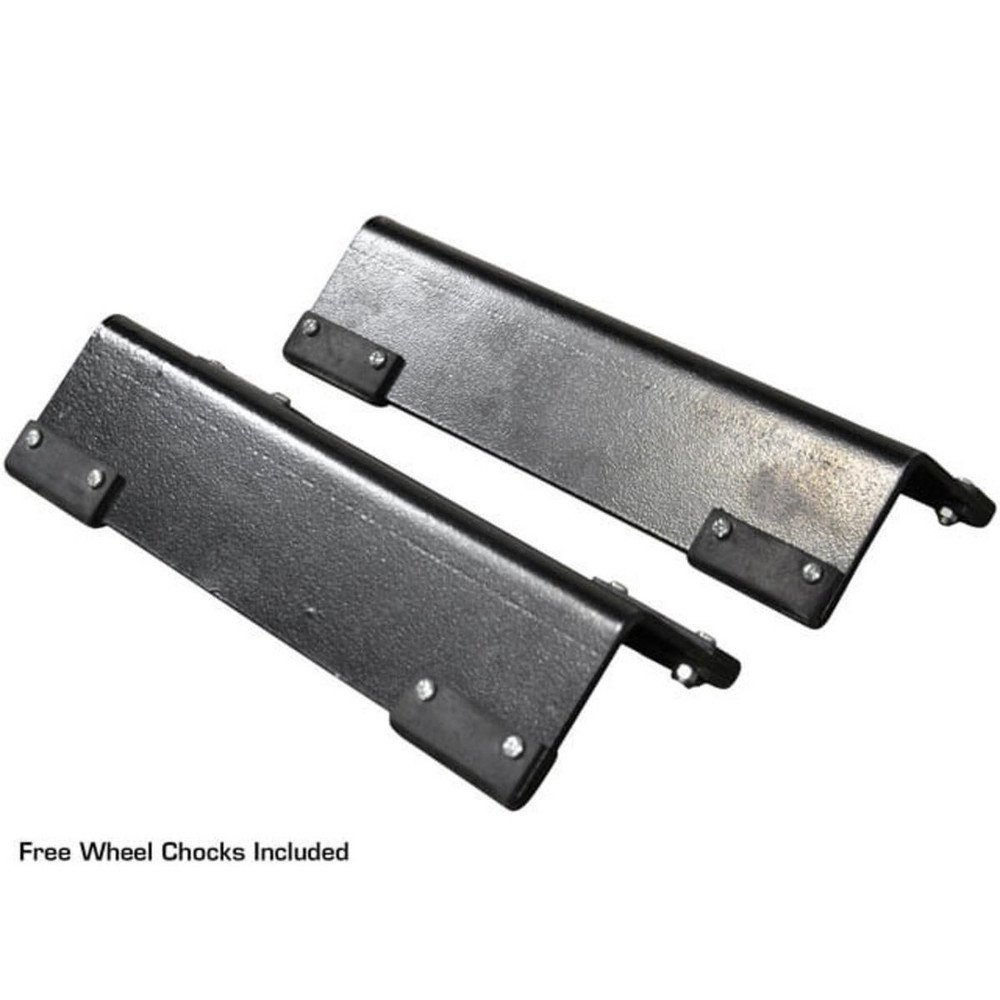

• Wheel Chocks Included
• Truck Adapter set for Each Jack Included
• This part number FREIGHT PREPAID

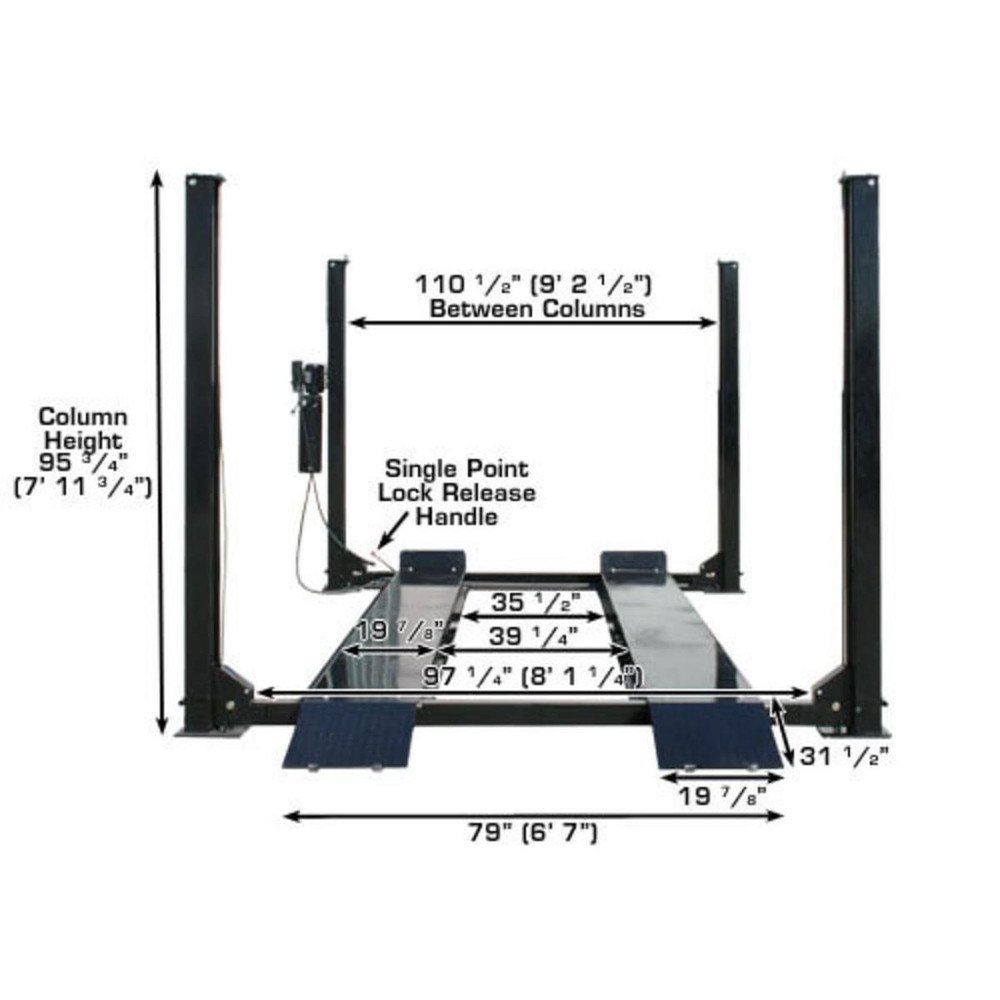

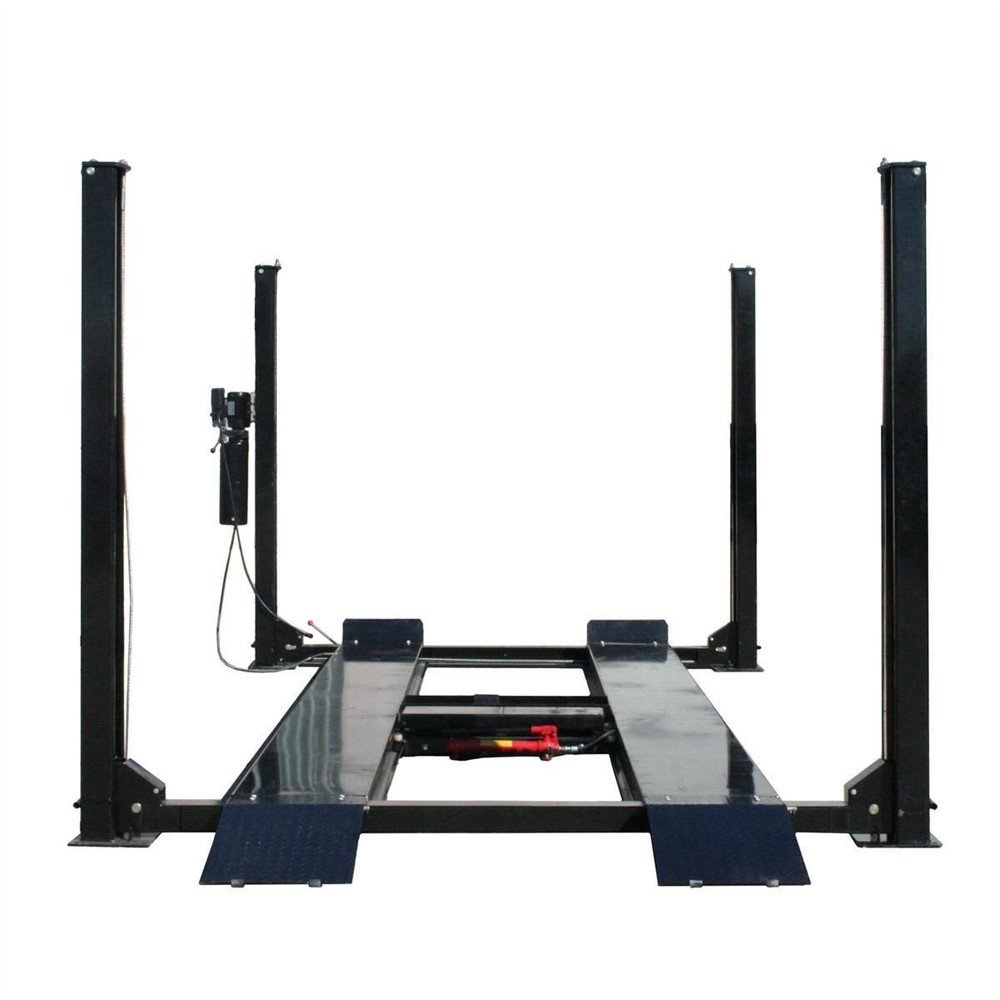

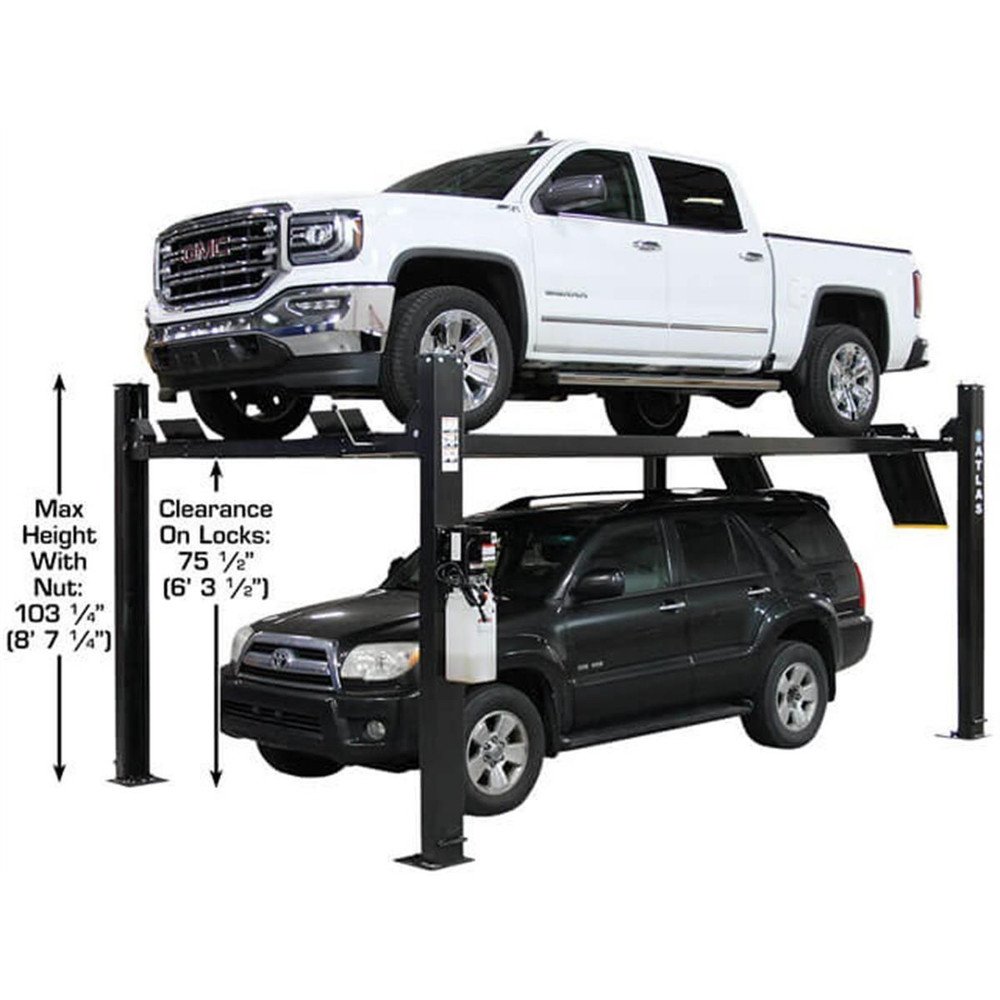

Atlas® APEX9 Specifications:

• Capacity: 9000 lbs

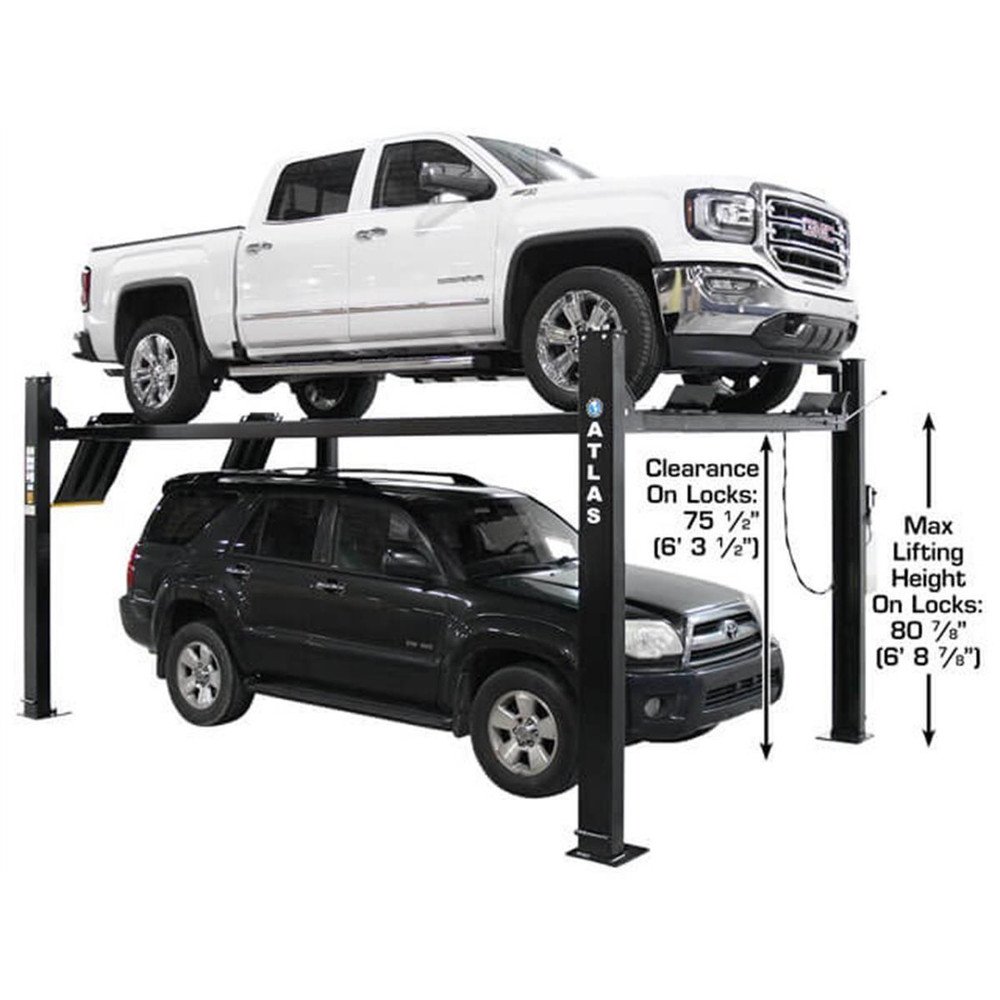

• Lifting Height, Top of Runway: 86″ (7′ 2″)
• Clearance Under Runways: 81 1/4″ (6′ 9 1/4″)

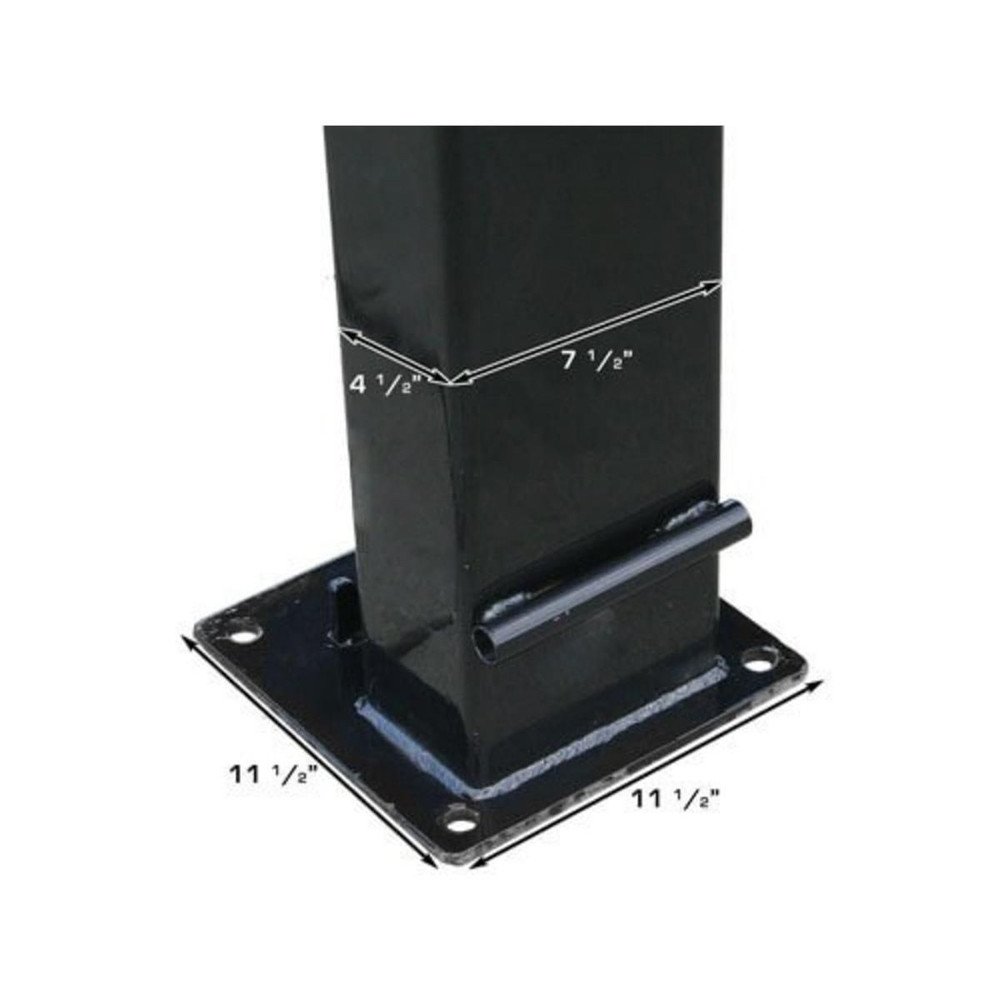

• Height of Columns: 99″ (8′ 3″)

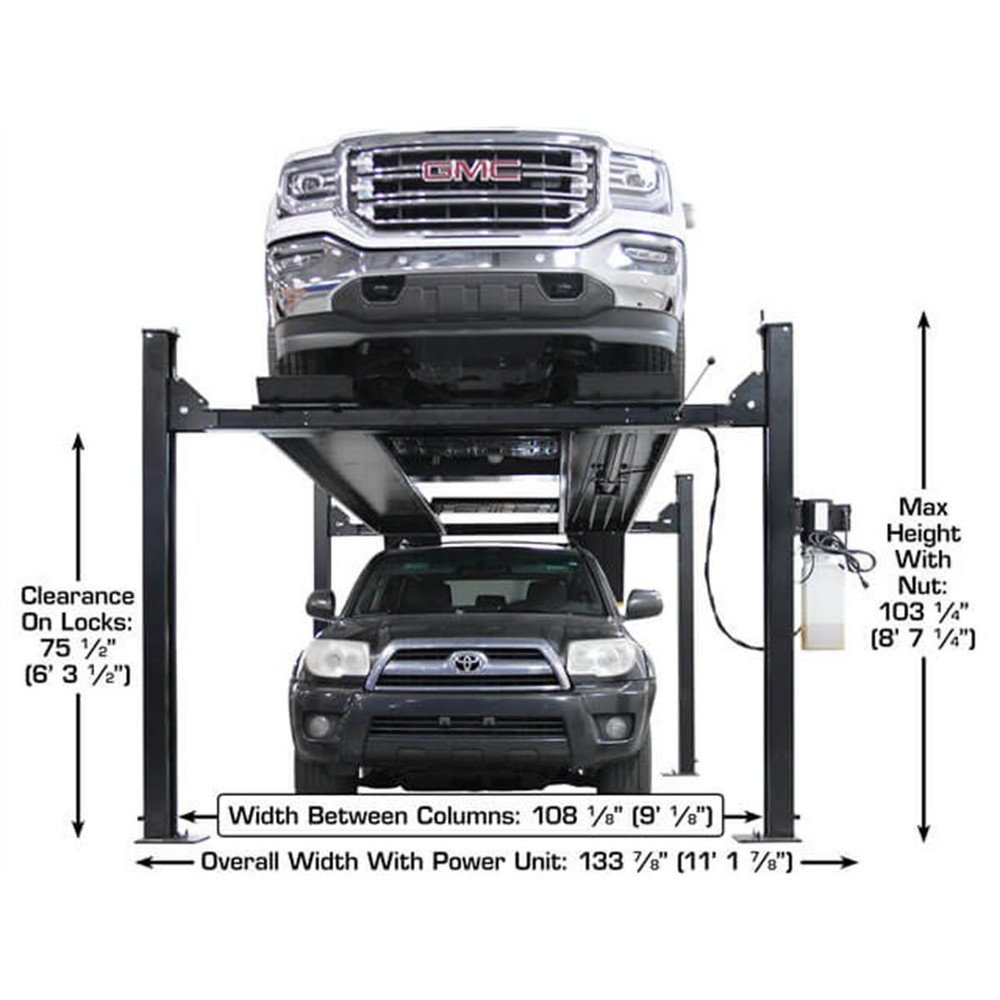

• Overall Width: 121 7/8″ (10′ 1 7/8″) w/ motor 133 7/8″ (11′ 1 7/8″)
• Overall Length w/ Ramps: 227 1/2″ (18′ 11 1/2″)
• Runway Length: 196 1/2″ (16′ 4 1/2″)
• Runway Width: 20 1/8″
• Runway Thickness: 4 3/4″
• Width Between Runways: 38 7/8″ w/ Rail 34 3/4″
• Outside Runway to Outside Runway: 79″ (6′ 7″)
• Clearance Between Columns: 108 1/8″ (9′ 1/8″)

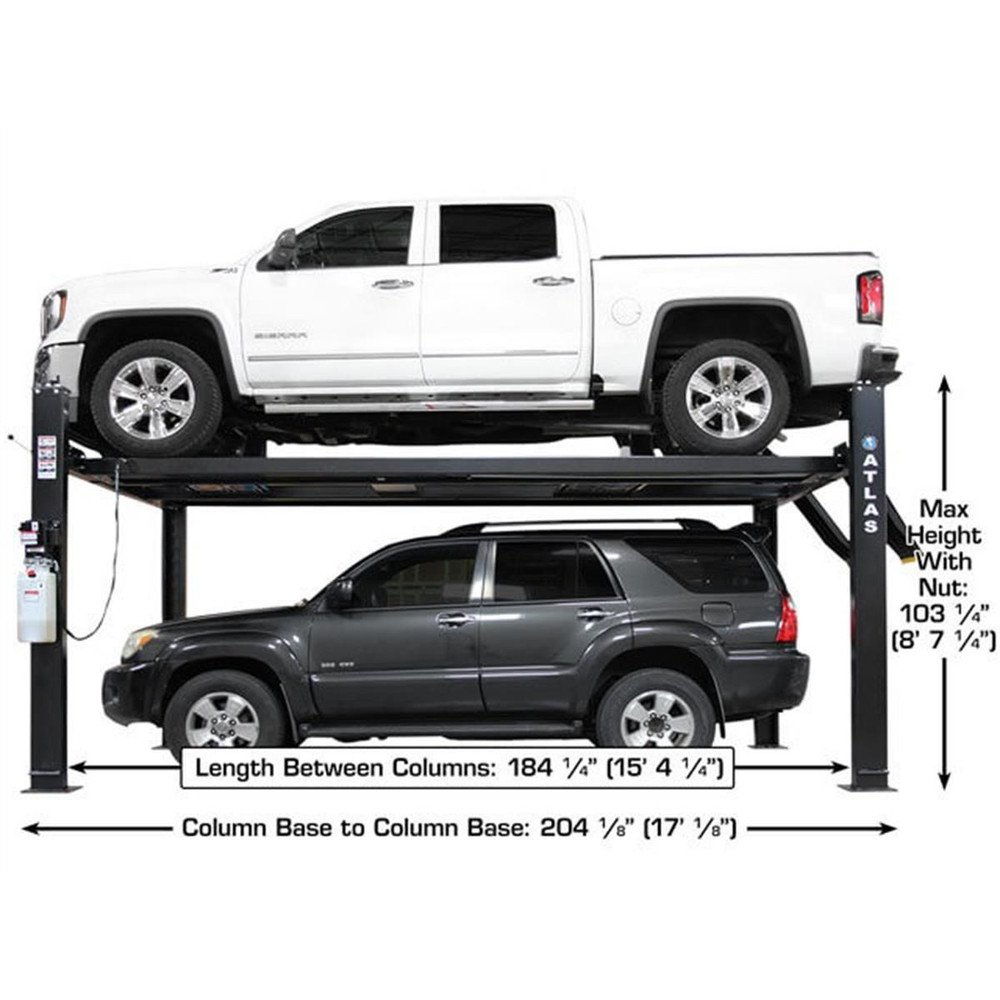

• Length Between Columns: 184 1/4″ (15′ 4 1/4″)
• Drive Thru: 98 5/8″ (8′ 2 5/8″)

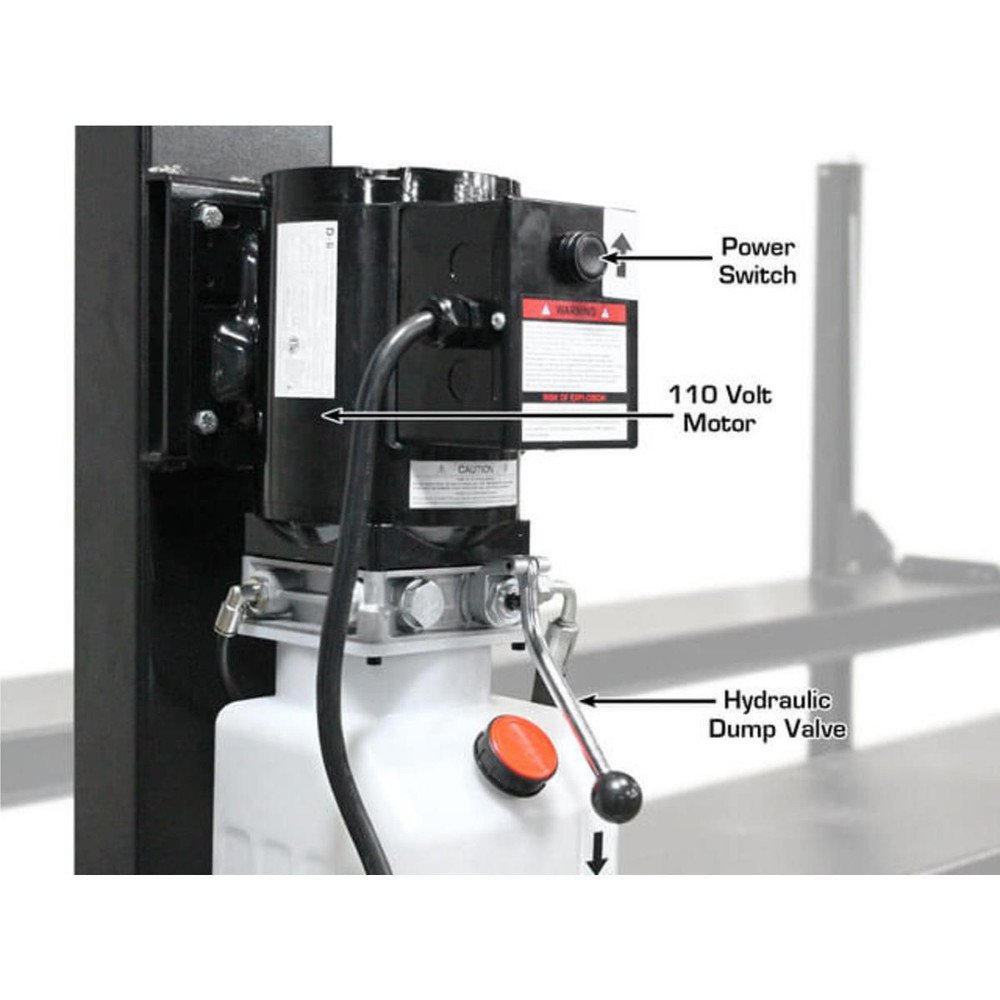

• Motor/Electrical Requirement: 110volt, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 2975 lbs.

Atlas® RJ6BK Specifications:

• Capacity: 6,000 lbs
• Minimum Width: 35″
• Maximum Width: 55″
• Distance Between Runway Capability: 32″ – 52″
• Minimum Lifting Height: 8 1/4″
• Maximum Lifting Height (w/ Adapters): 21″
• Air Requirement: 70-115 PSI
• Shipping Weight: 350 lbs
• Adapter Heights: 2 Each 2″, 3″
• Arm Hole/Adapter Peg Size: 1 1/2″

Call 216-250-6666 or email sales@varietyengines.com with your ceiling height, floor and power supply and we will check the install and freight with you before you order. More Four Post Lifts.
